Wooden Bull's Head Remix

“He who receives an idea from me, receives instruction himself without lessening mine; as he who lights his taper at mine, receives light without darkening me.”

― Thomas Jefferson, Selected Writings

This project was inspired directly by Ninchen's Wooden Bull's Head instructable.

As soon as I saw the photo, along with his comment that "You can built it in any size ... and use any material", I knew I had to scale it down on my laser cutter.

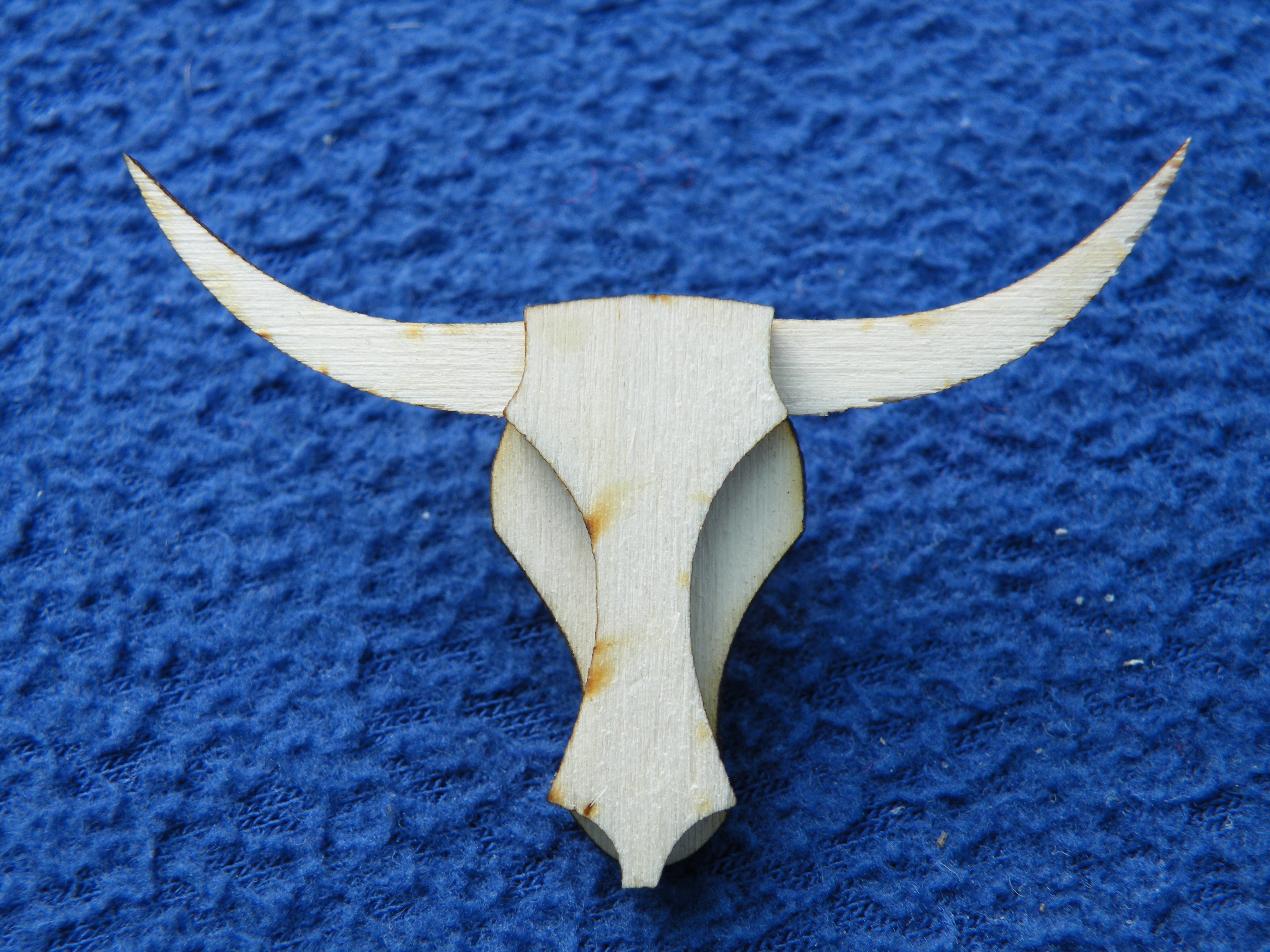

So, I've remixed a three-foot wall-hanging into a one-inch lapel badge or tie decoration.

I hope you (and Ninchen) enjoy it.

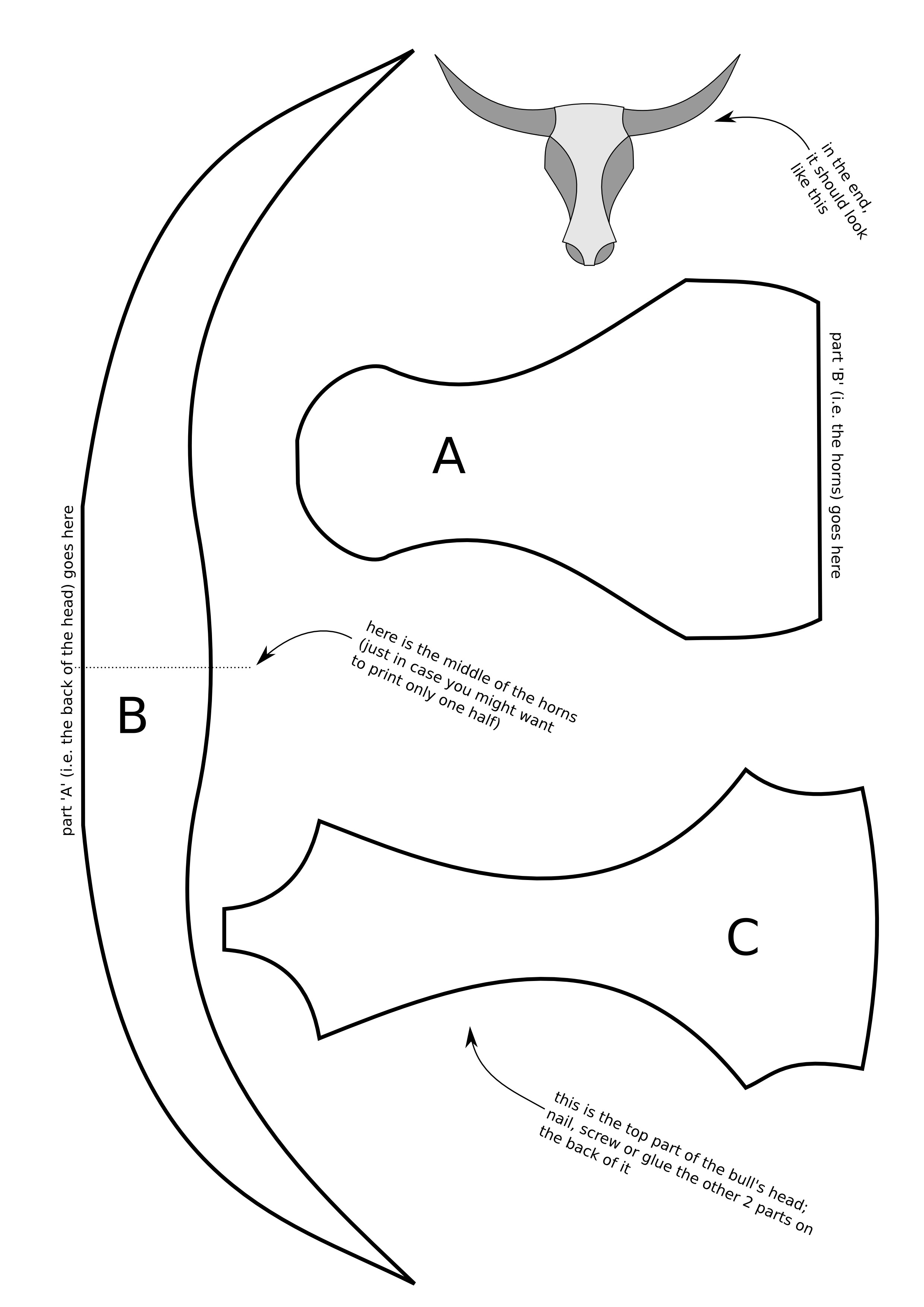

Attached are Ninchen's original hanging and his design, as well as the cutting files.

I blatantly copied Ninchen's original, drawing over the design in Inkscape to create an SVG and DXF file to send to the laser cutter.

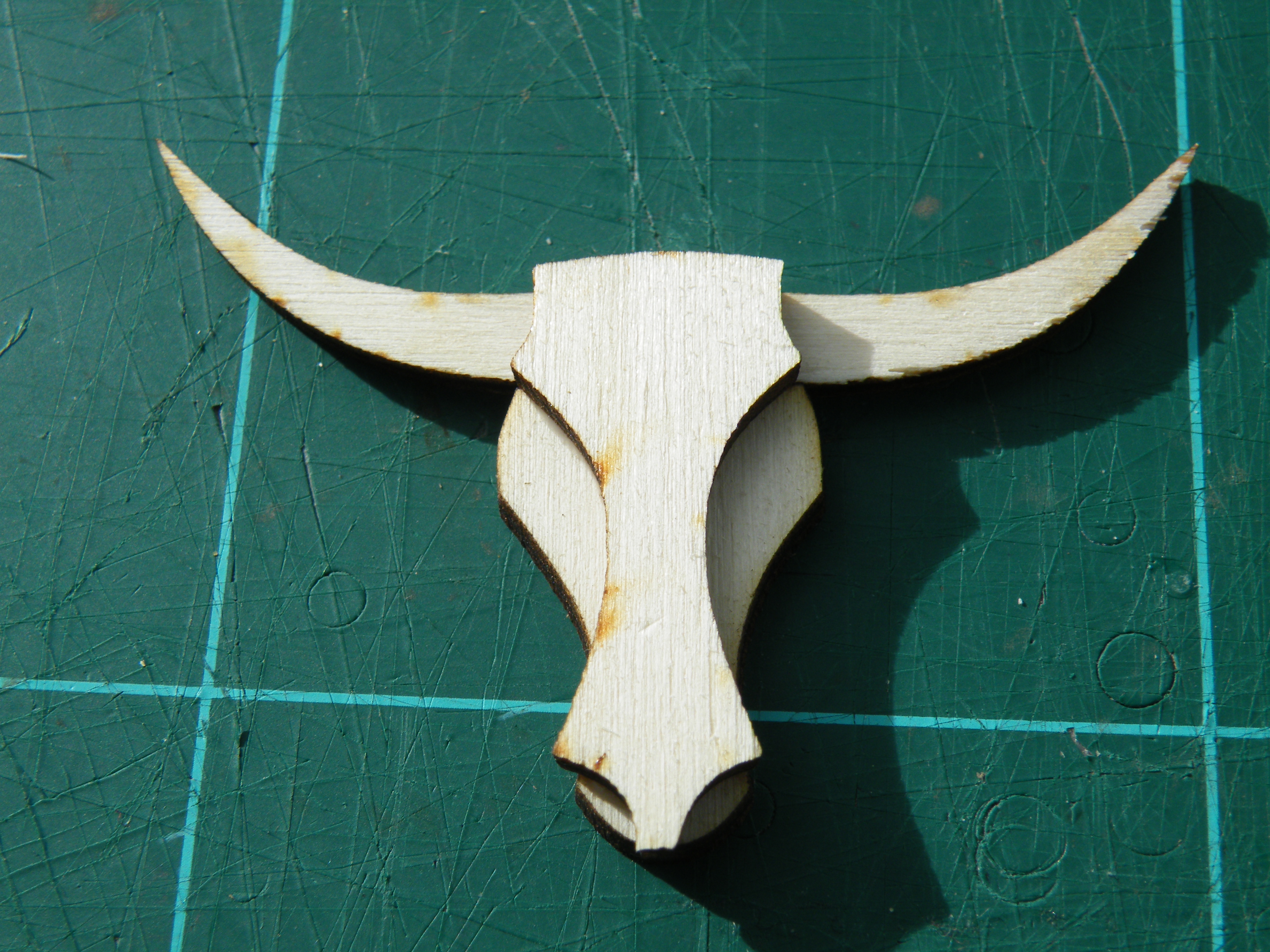

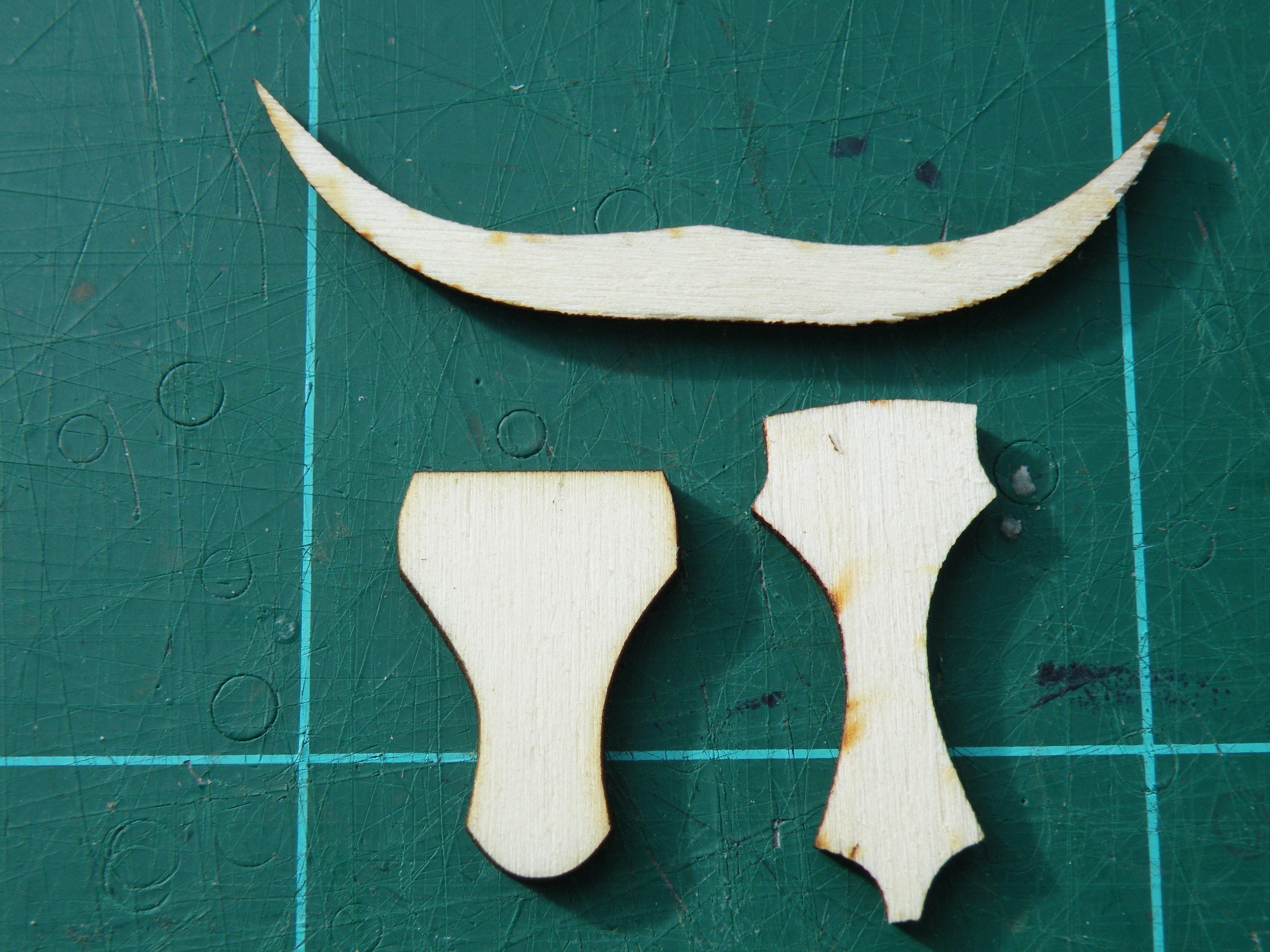

Having cut the pieces from 3mm birch plywood, I assembled the head, fixing it with PVA woodglue, according to Ninchen's instructions.

While the glue is drying, the head need clamped. For a project this size, clothes pegs did an admirable job.

To turn the project into a badge, you need to add a pin. Craft shops sell "blank" pins of whatever kind you prefer, and they are easily available online.

I decided to recycle a charity badge (I buy a new one every year anyway), fixing it with a blob of super glue (cyanoacrylate or crazy glue).

That's it, really.

I like the untreated plywood for this project, as an homage to Ninchen's raw wood original, but you could paint it, stain it or varnish it to your own taste.

Wear it with pride.
