Wooden Block Plane

In this tutorial I break some rules and have fun making this block plane from coconut palm wood. This project is a lot easier than you may think and having a block plane for rounding over edges is easy and safe!

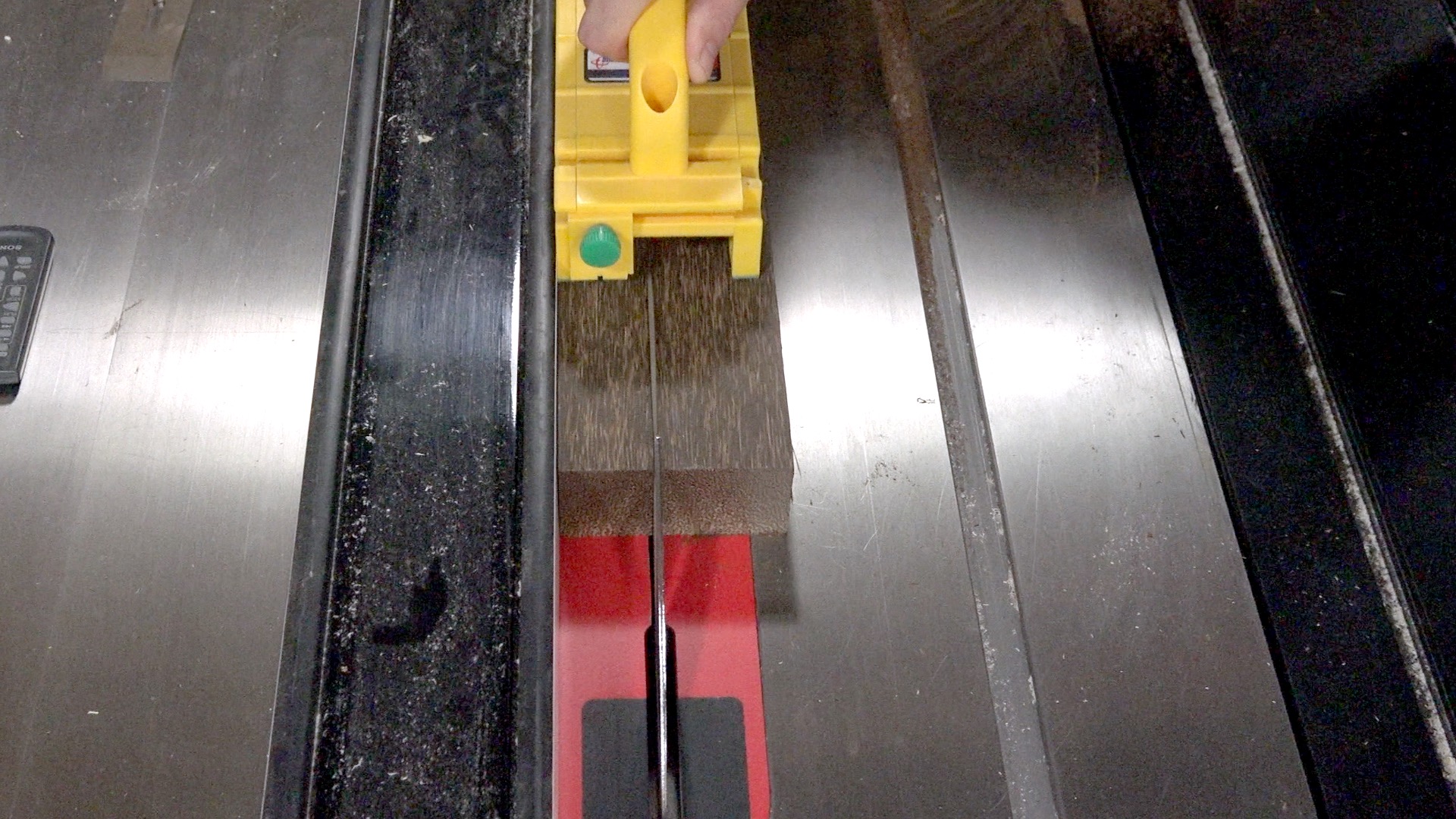

First thing you need to do is cut the wood to width. 1/8" wider than your plane blade should work.

Now you'll want to cut 2 3/16" thin sides for your wooden block plane.

Next you'll cut the 45 degree angle on the iron (back side) of the wooden block plane.

Now you'll cut the 60 degree angle for the front side of the plane.

Double up the two side pieces and drill the hole for the dowel. I'm using 5/16" dowel.

Get all the pieces lined up and ready for glue. Drop the blade in and move the front pieces until it touches the blade. Take out the blade and move the front piece in about an 1/8". After glue-up we'll file away to a perfect gap. See the video for details. Mark registration lines with a pencil.

Now you can glue and clamp up the block plane assembly.

Once the glue dries you can draw out your shape and cut it on the bandsaw. I'm using a typical Krenov style for my wood block plane.

I like to finalize my shaping with the disc and spindle sanders.

Now you'll want to cut a wedge for the plane iron. Shape and size doesn't matter too much as long as it can be wedged between the iron and the dowel.

After everything is sanded and finished you can open up the throat with a file. Be sure to only file away enough material so the blade can slip through.

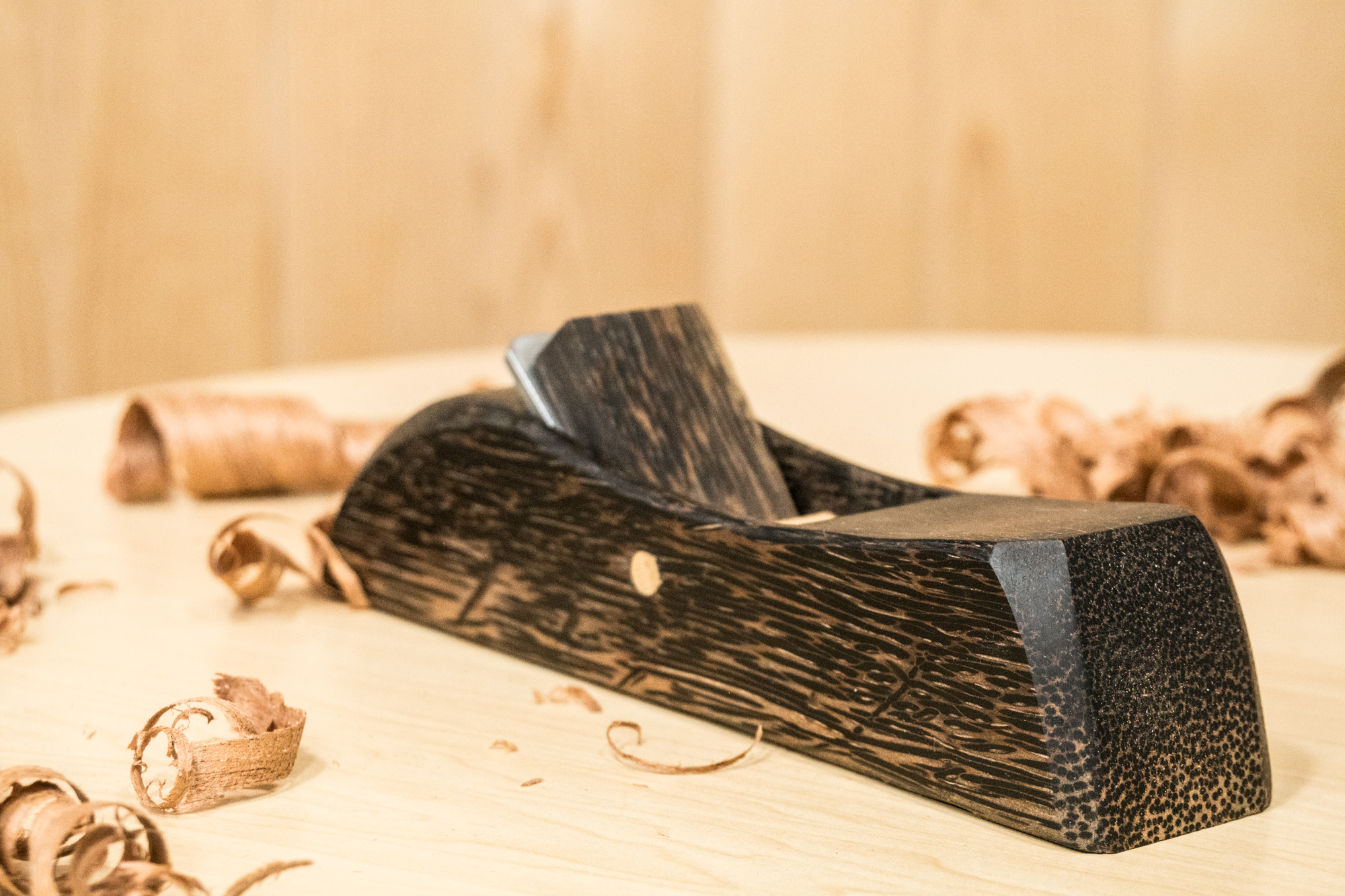

That's it! Be sure to watch the video to see all the steps in action. Be safe, have fun and Make Something!
