Wood Carved Swans

Myself and my partner had been invited to two weddings this month and I really wanted to make our friends a little reminder of their big day. One of the wedding invitations had beautiful hand drawn swans on it & I though that maybe a couple of swans could make quite a suitable gift.

At this point I wasn't quite sure on the material I want to use (I was considering clay) but ever since I won the Foredom K.5240 Woodcarving Kit in the Plastic Contest (HUGE THANK YOU INSTRUCTABLES) I wanted to try it. And so the material was decided on.

I had never really done any woodcarving before apart from the heart pendant so I wasn't sure how it might turn out once finished, but I thought as long as it vaguely resembles swans I could perhaps cover the mishaps with some accessories :D

If you would like to see the first set of swan I made it's the last photo in this step.

My Foredom Woodcarving Kit arrived with Frank Russell's Power Carving Fur, Feathers, & Fins DVD which is well worth a watch. Especially the bit about safety and how to maintain control of carving bits ;)

For this project I've decided to use a piece (100x44mm) of spare timber I had left over from another project.

To start print out template for the swans and glue them onto the wood with a glue stick. If you own a band saw you would only need to glue one of the sides and the bottom of the template, but since I don't have one I used a hacksaw. I glued on the other side as well to just make sure both sides are going to be roughly the same.

The template was created from a 3D model of a swan, I just slightly adjusted the head. If you would like to visit the original one you will find it here: https://www.thingiverse.com/thing:731686

Like I mentioned before, this would've been much easier with a band saw, but since I don't have one and my cheap jigsaw wasn't having it due to the depth I settled for a hacksaw. It took a little while but I did manage to get the rough shape of a swan. I started by cutting the side followed by the bottom of the swan.

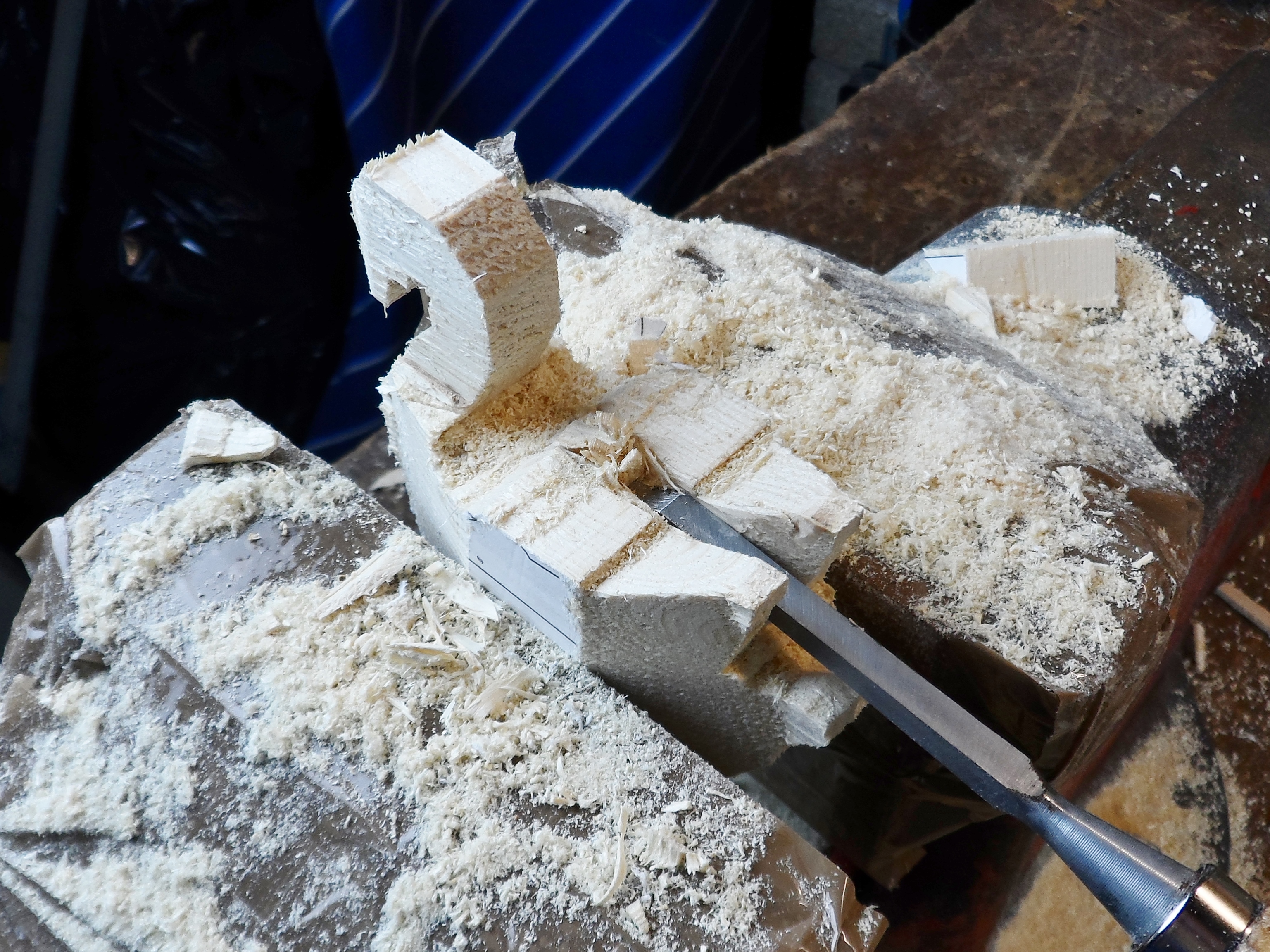

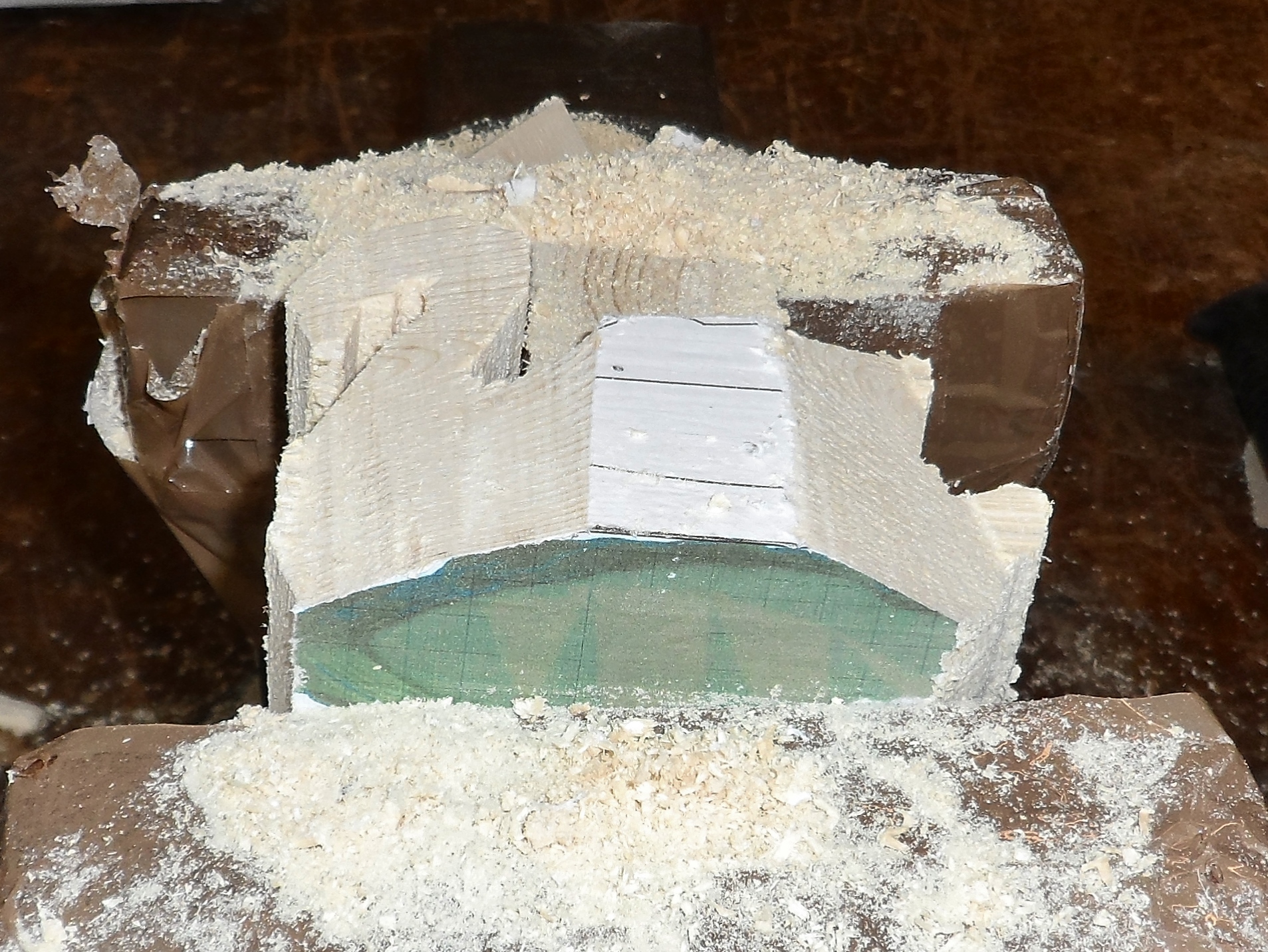

Cut out the head template, glue it to the front of the swan and saw off the excess. With a hacksaw make two cuts between the wings approximately the width of the head. Cut an X in between the wings to give them a bit of a curve and chisel out.

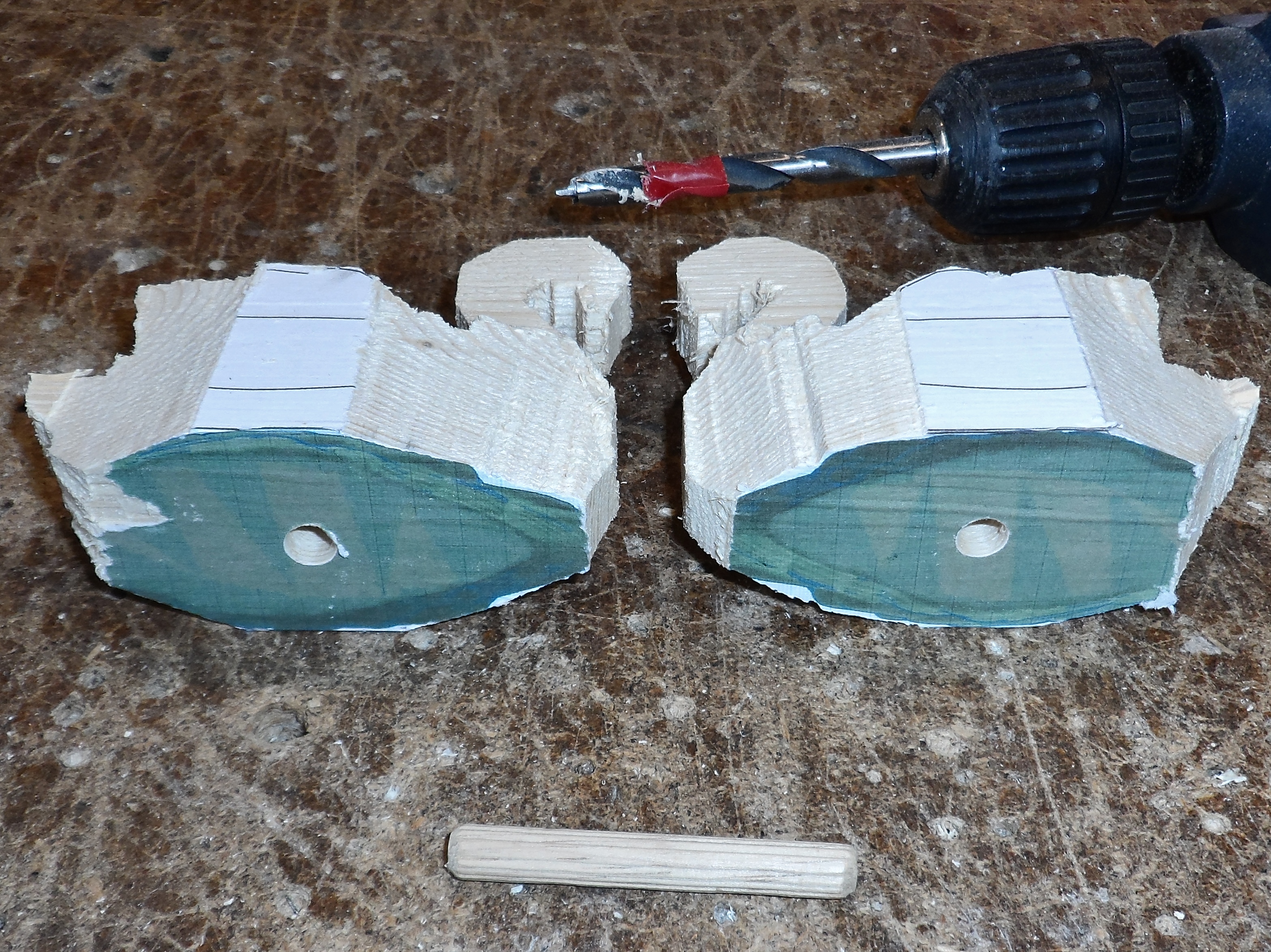

Drill holes in the middle of the bottom on each swan appropriate to the dowels you're using. I used 6cm wooden dowel which I cut in half.

Roughly draw a line around the wings where you will be shaving off. I should've drawn a central line going along the piece, but I'd forgotten which I've slightly regretted later since I wanted the swans to be looking forward and one of them ended up with a slanted head.

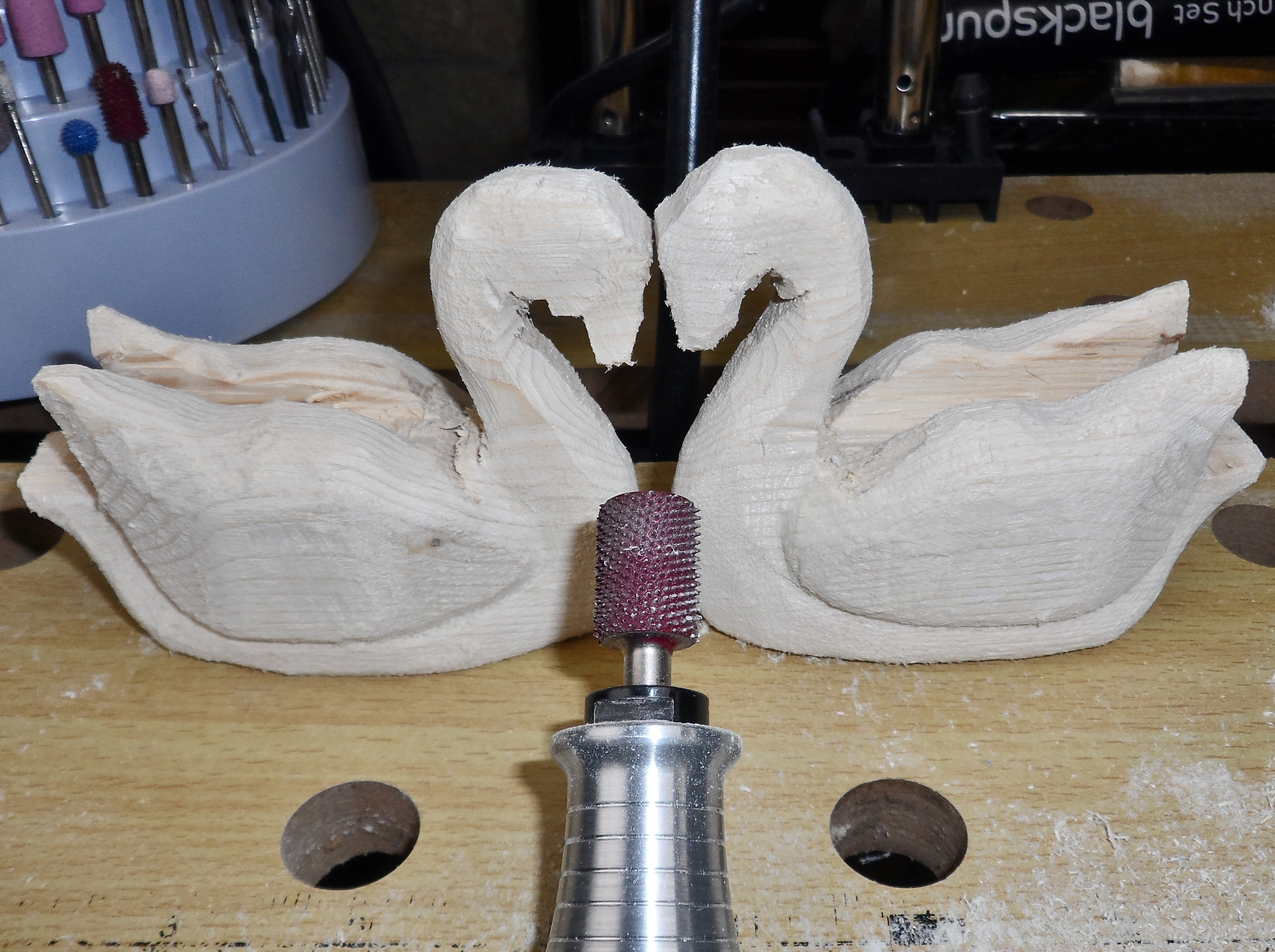

For this step I used the Foredom 1/4" Typhoon cylinder and the 1/8" Typhoon Round.

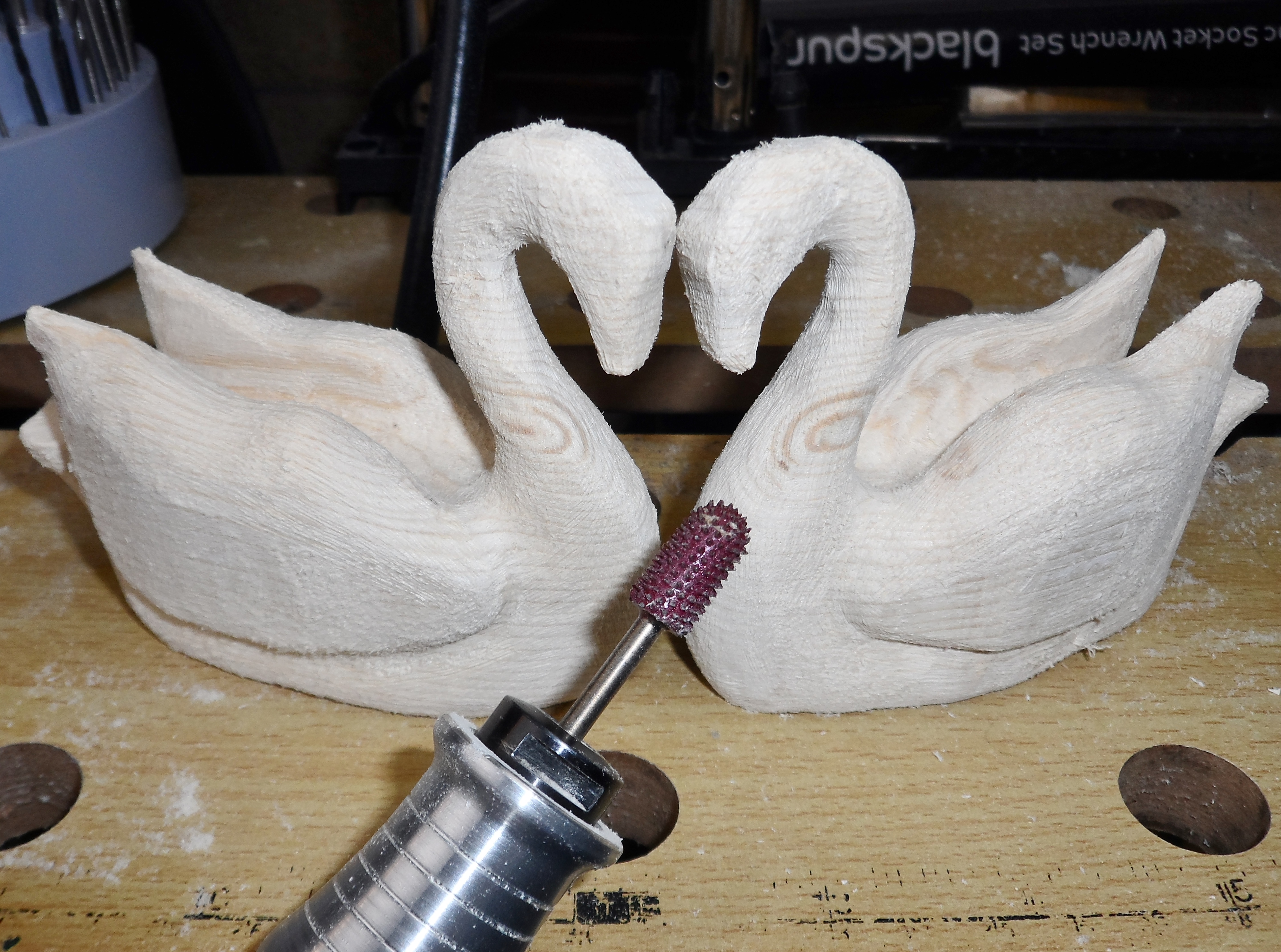

Start your carving by defining and rounding the wings, chest, tail and the bottom with the larger Typhoon. For all of the other bits I couldn't get to with the larger Typhoon I used the smaller one, mainly around the head and in between the wings.

Take extra care when working on the neck part, I managed to decapitate one of the swans (the one on the left :D). If this happens to you don't worry, just drill a small hole in the head and neck, stick a piece of a skewer in and glue them together.

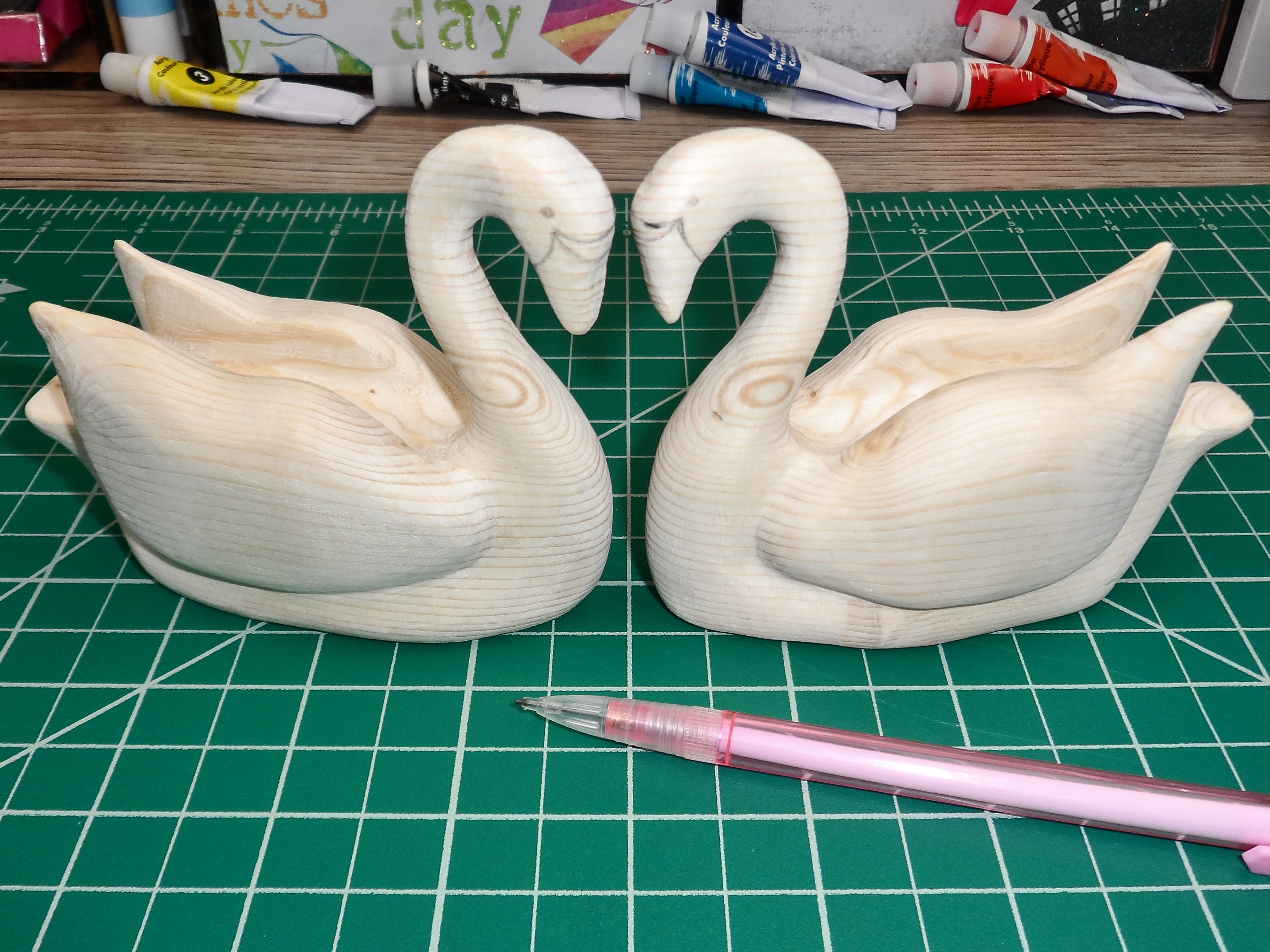

For this step I used a larger and a smaller sanding drum. Carry on sanding both of the swans until you're happy with the shape of them. Since my kit hasn't come with a fine sanding drum I used a 240 grit sandpaper to finish off.

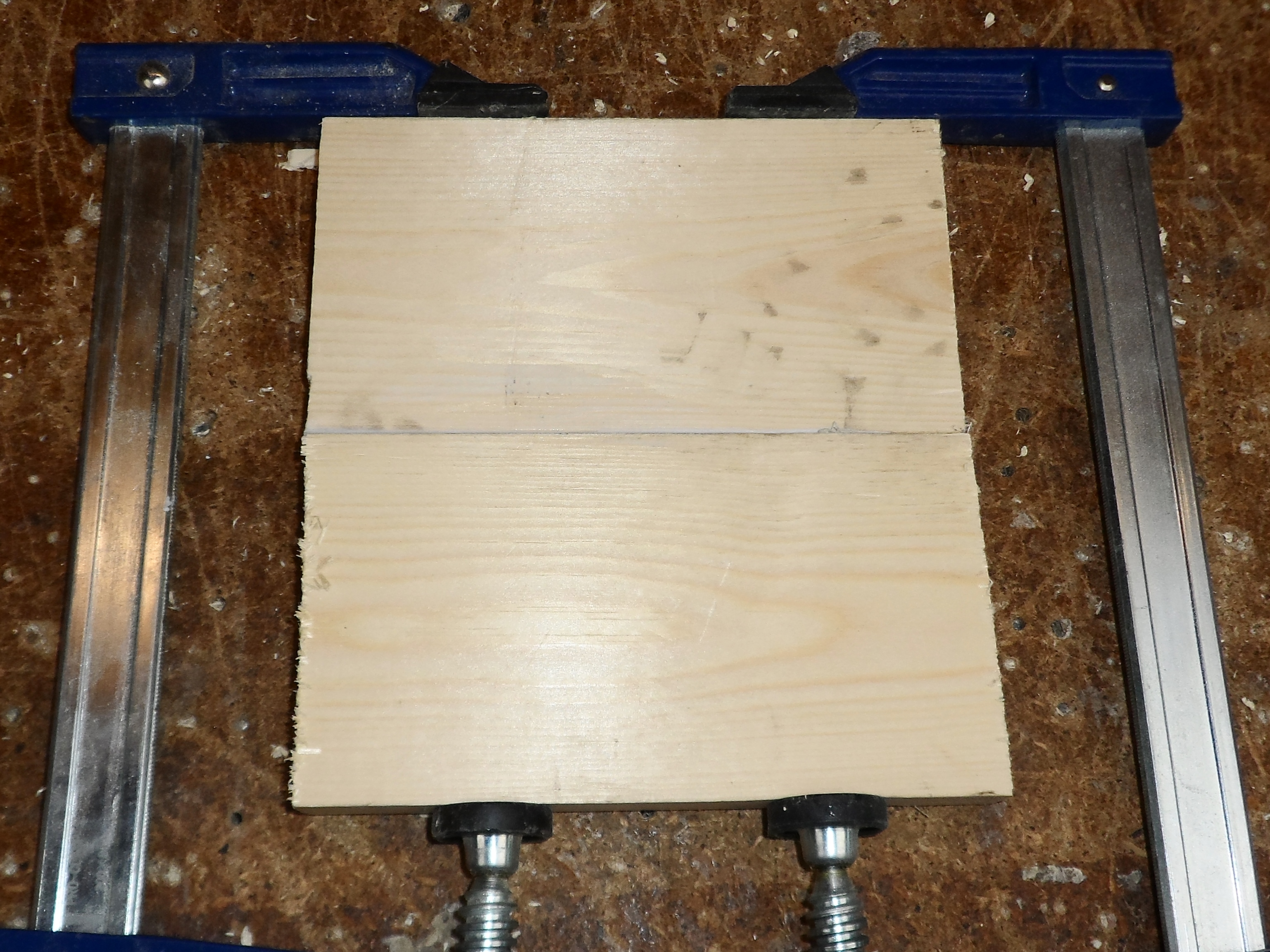

For this step I used 2 pieces of 94x21mm timber and a 6cm wooden dowel cut in half. Mark and drill the holes appropriate for the dowel you're using. Glue the pieces together and let dry.

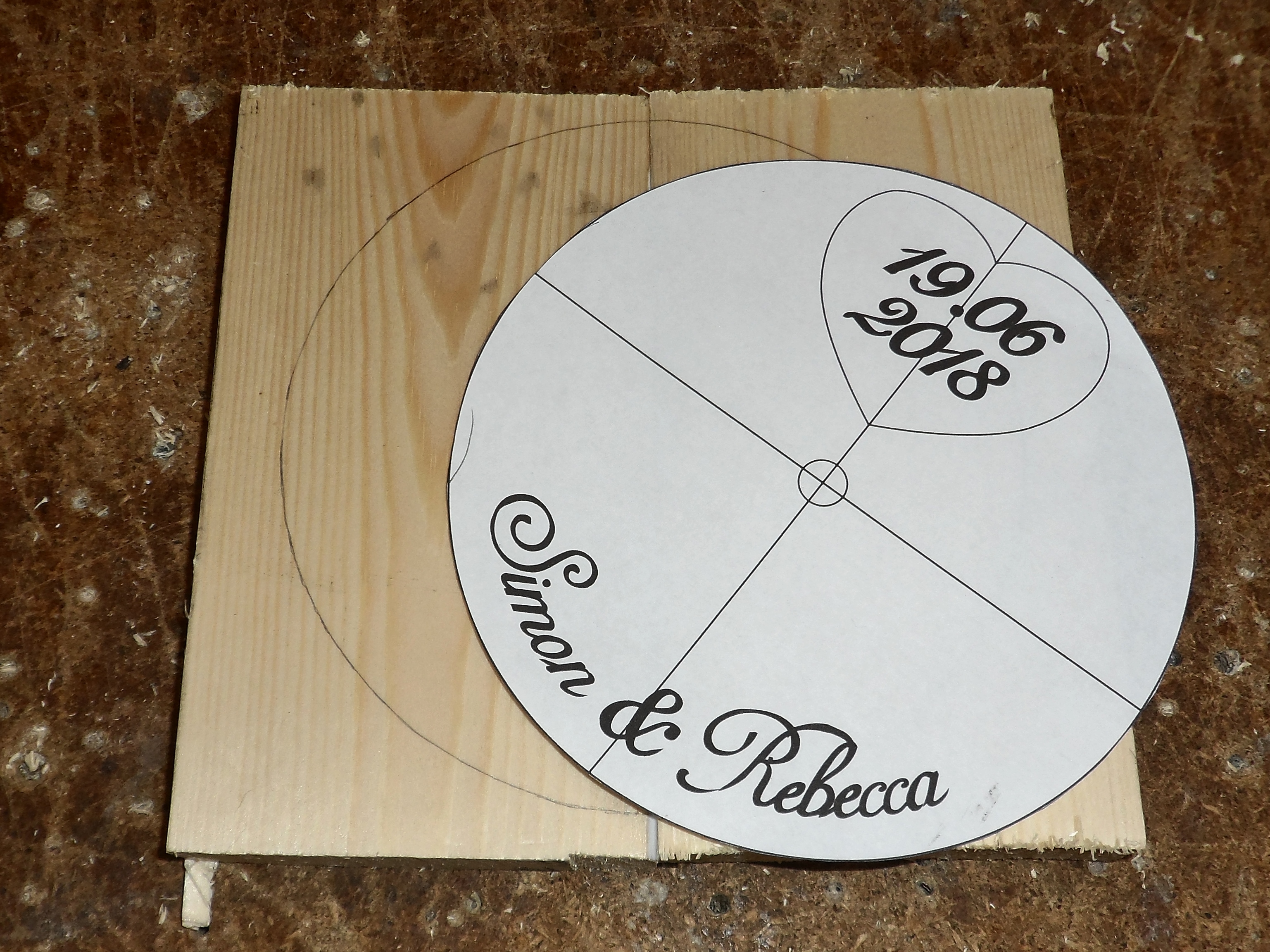

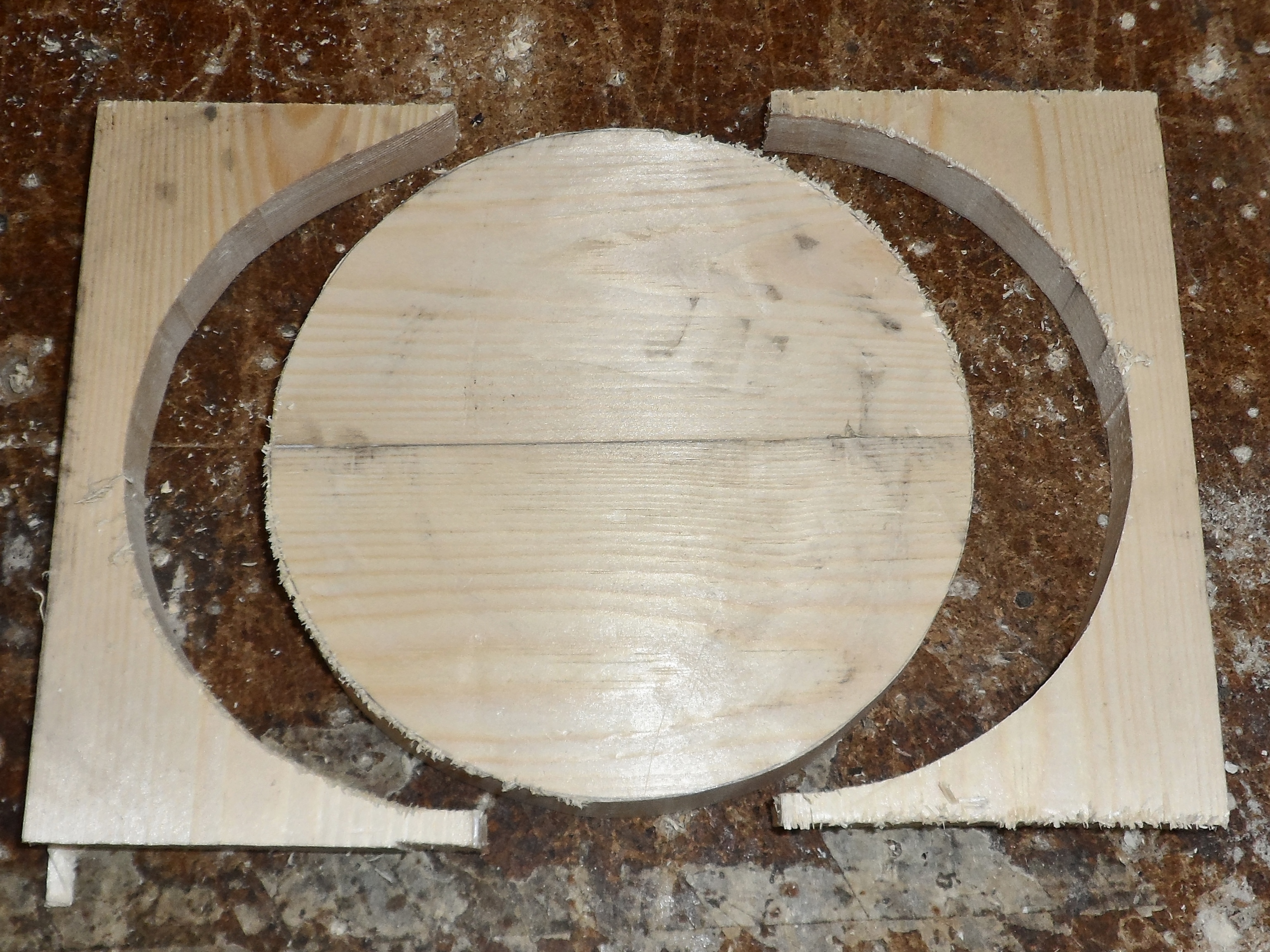

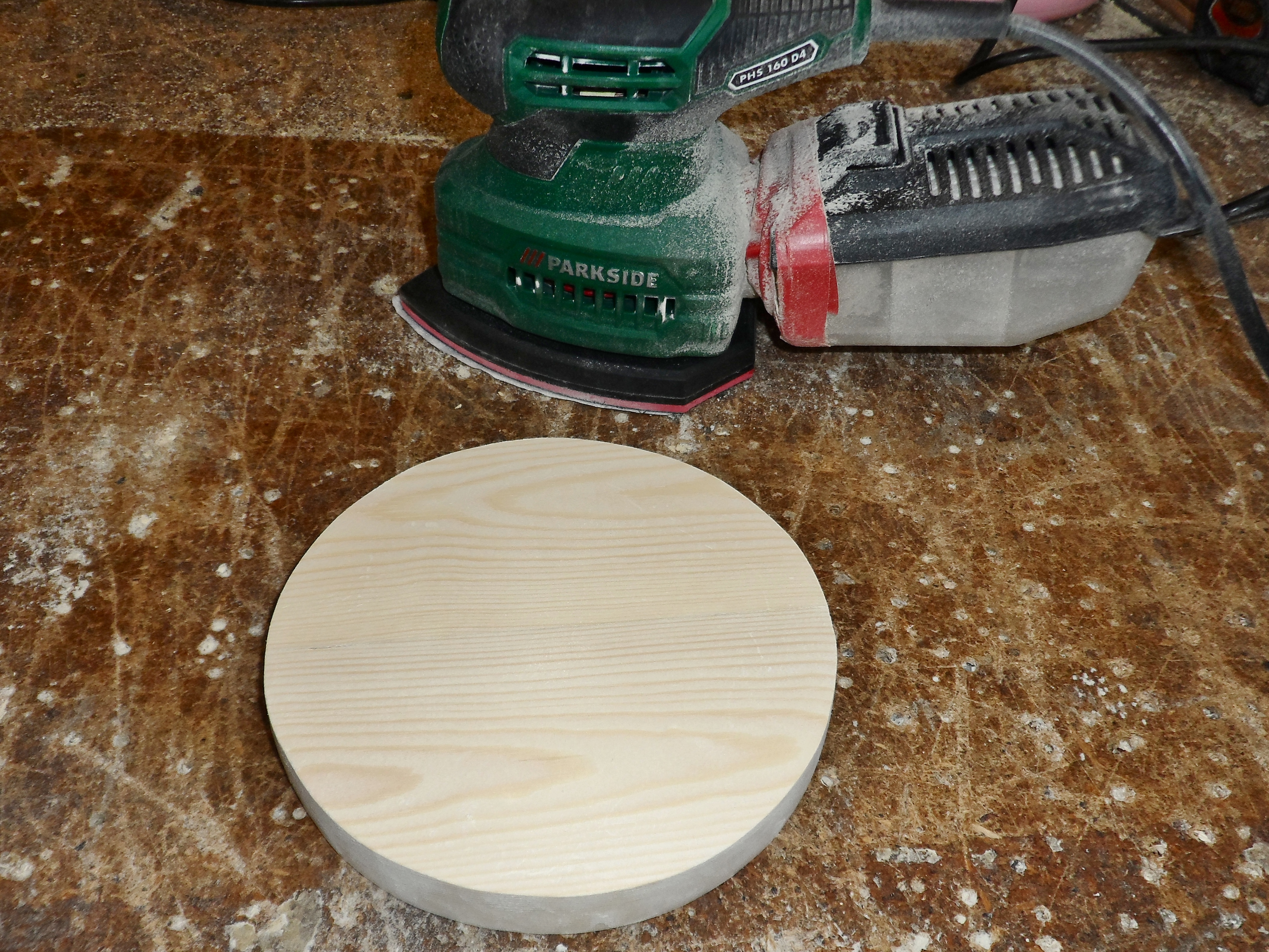

Cut out the base template and trace onto the wood pieces. Cut the base out with a jigsaw and sand it all around. I used 60 120 and 240 grit sandpaper.

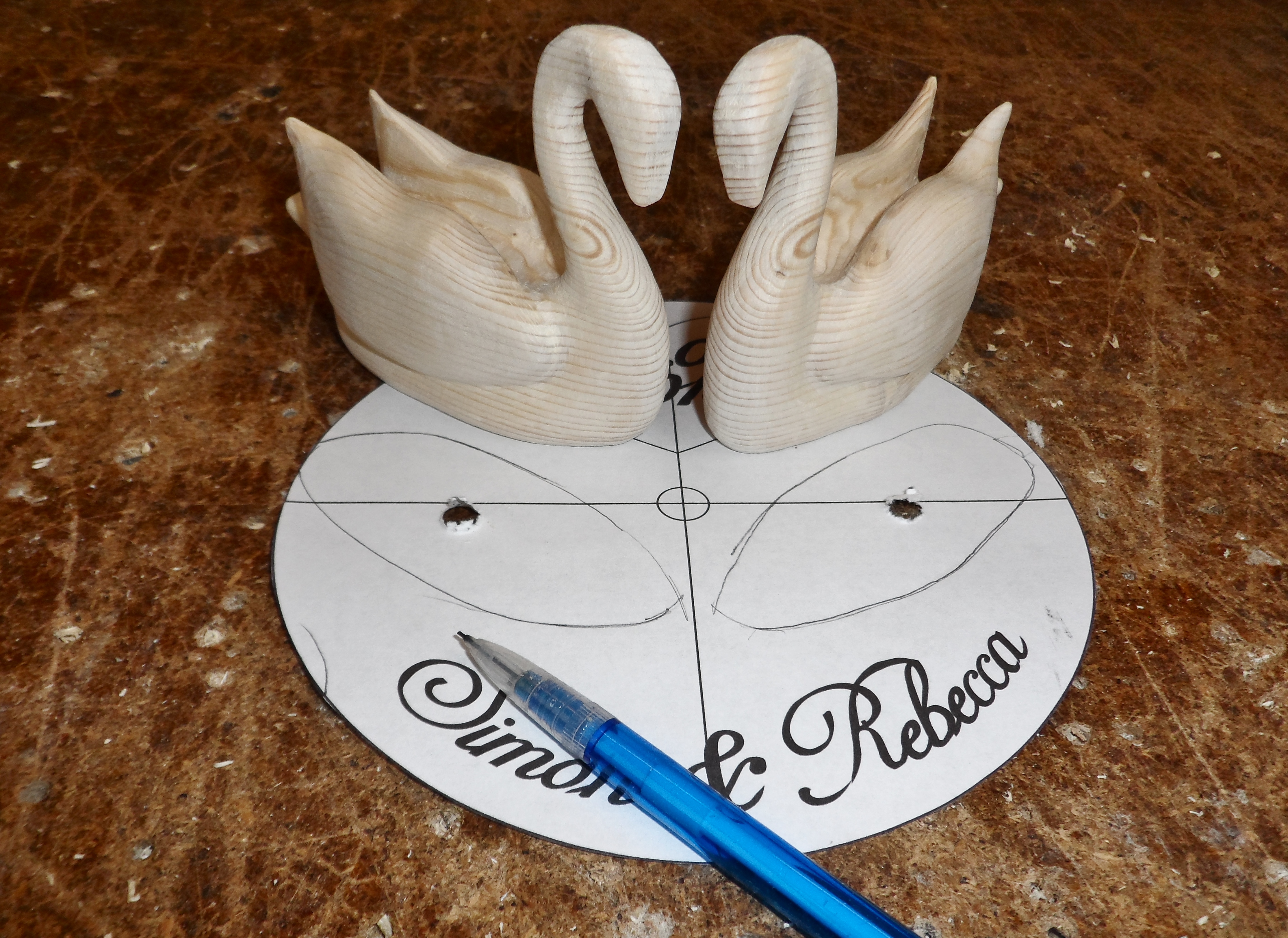

Place your swans onto the template and trace the bottoms. Lift the template, place on each of the swans and punch a hole into the template. Place the template onto the base piece, mark and drill the holes appropriate for the dowels you're using.

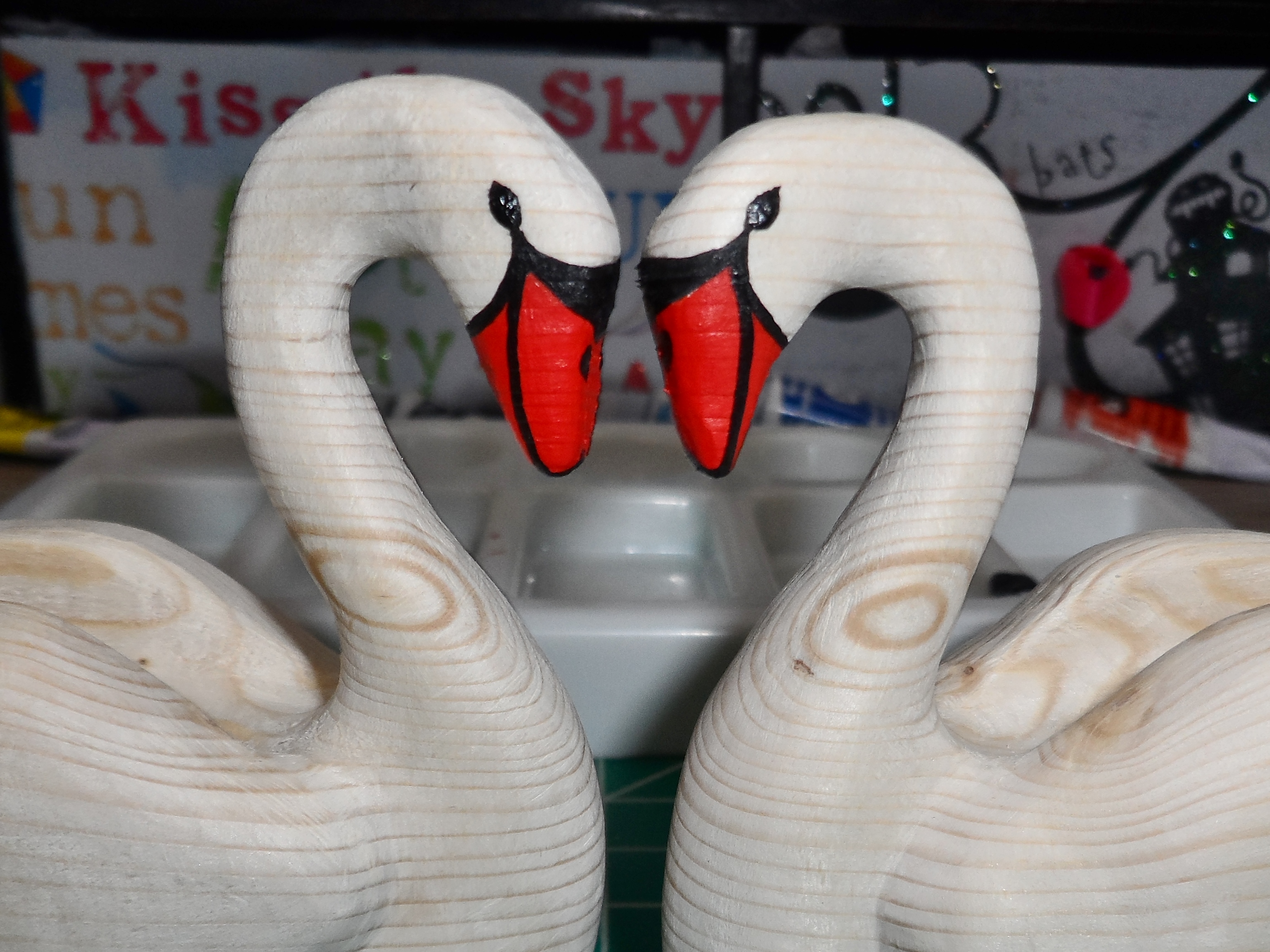

Draw the eyes and beak with a pencil and paint with orange and black acrylic paint.

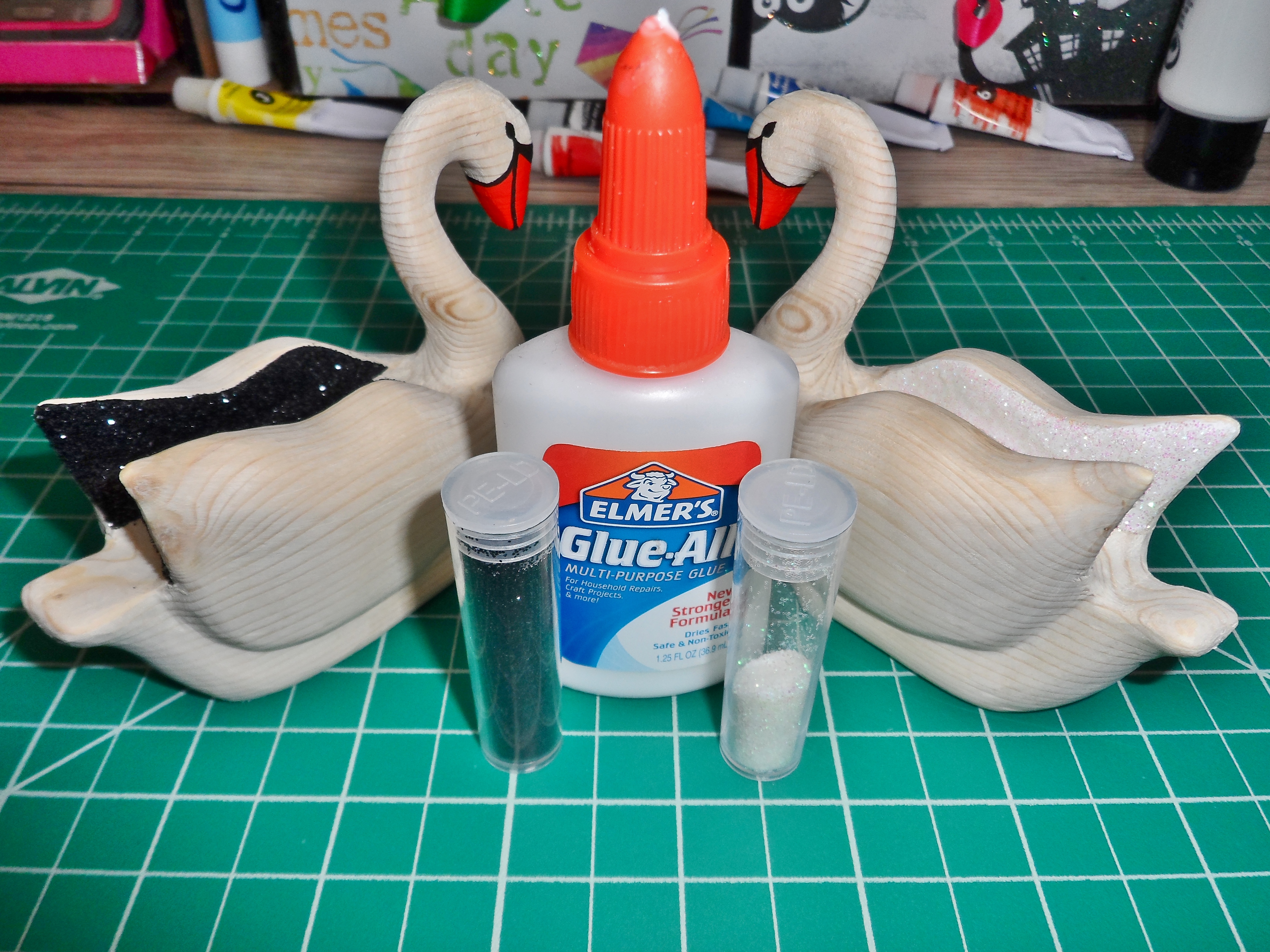

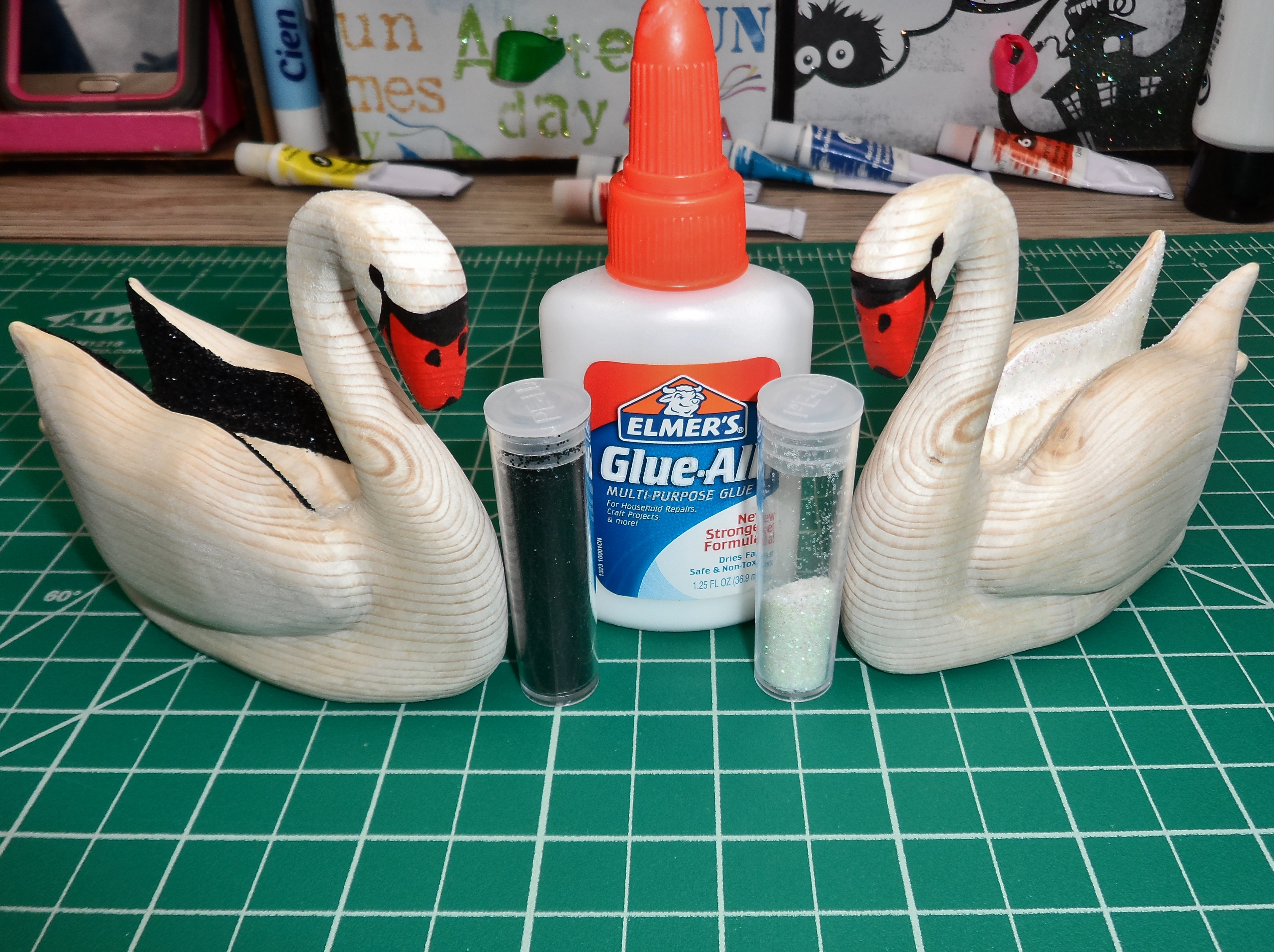

Paint the inside of the wings with a black acrylic paint on the groom swan and white one on the bride swan. Apply a decent amount of glue onto the inside of the wings and sprinkle/pour over the glitter (black for groom and white for bride).

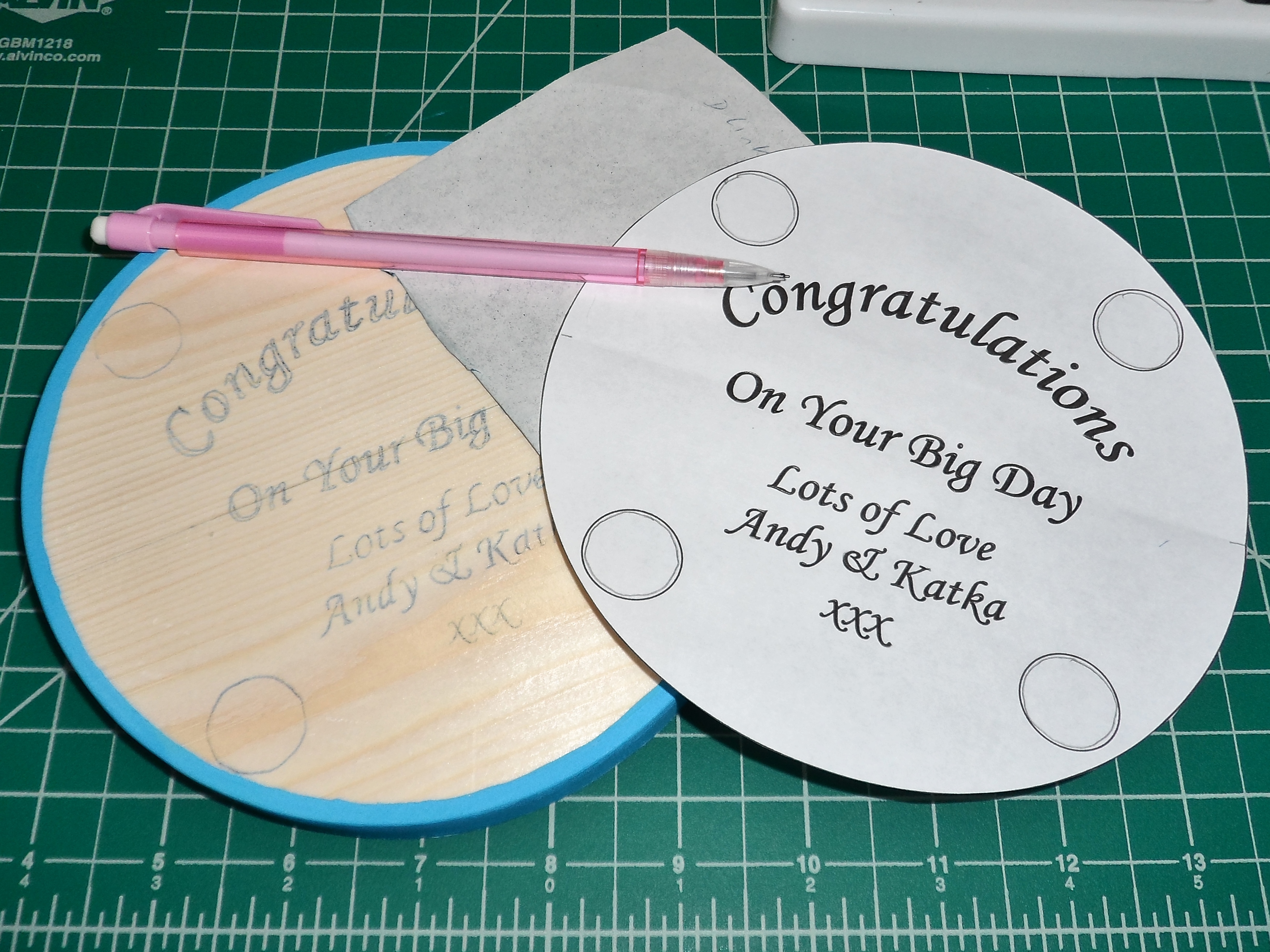

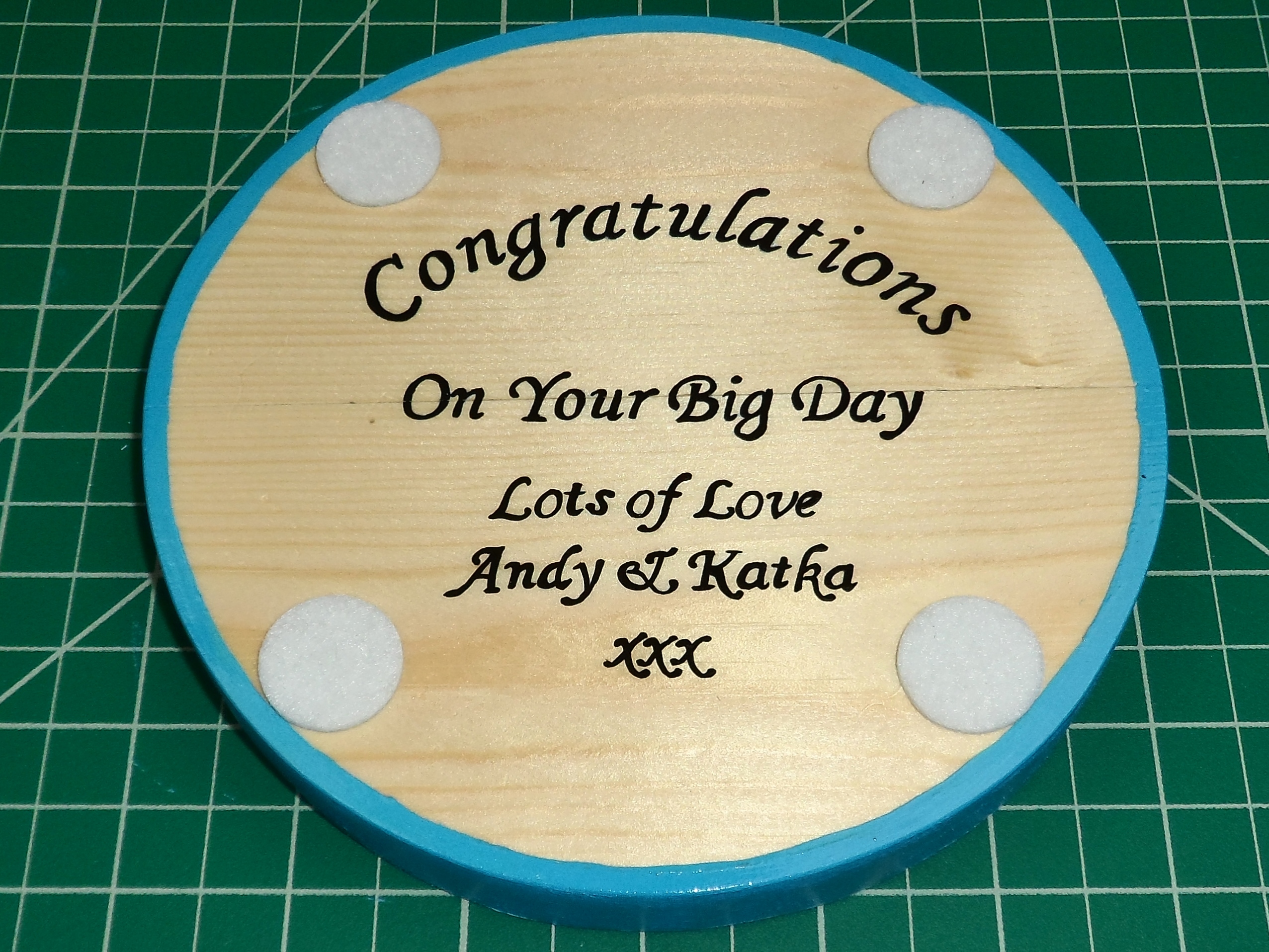

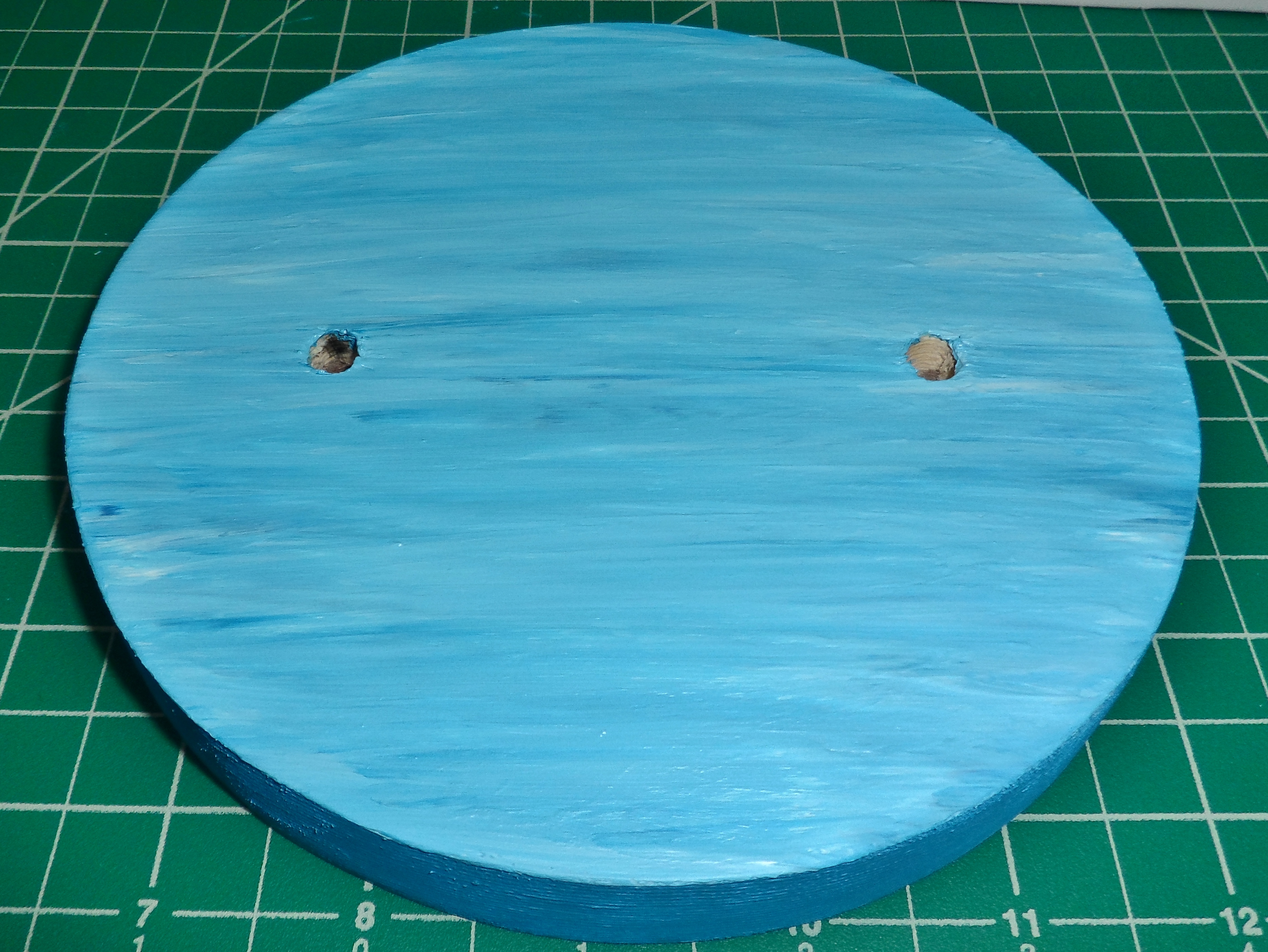

Paint the top and side of the base light blue with hints of dark blue and white. Using template and carbon paper trace your message onto the bottom of the base and colour in with black paint.

Again using the template and carbon paper trace the names and date onto the top of the base and paint with black paint. I wanted to add sunlight reflection onto the water, so I painted it with red, orange and yellow, though I might've overdone it slightly :D

Spray with varnish and let dry.

Stick 4 felt pads onto the bottom of the base.

Cut the glitter strip according to the depth of your base and affix it onto the side using the B-7000 glue. Apply some multipurpose glue into the holes on the swans and the base and the B-7000 glue onto the bottom of the swans and glue the swans onto the base.

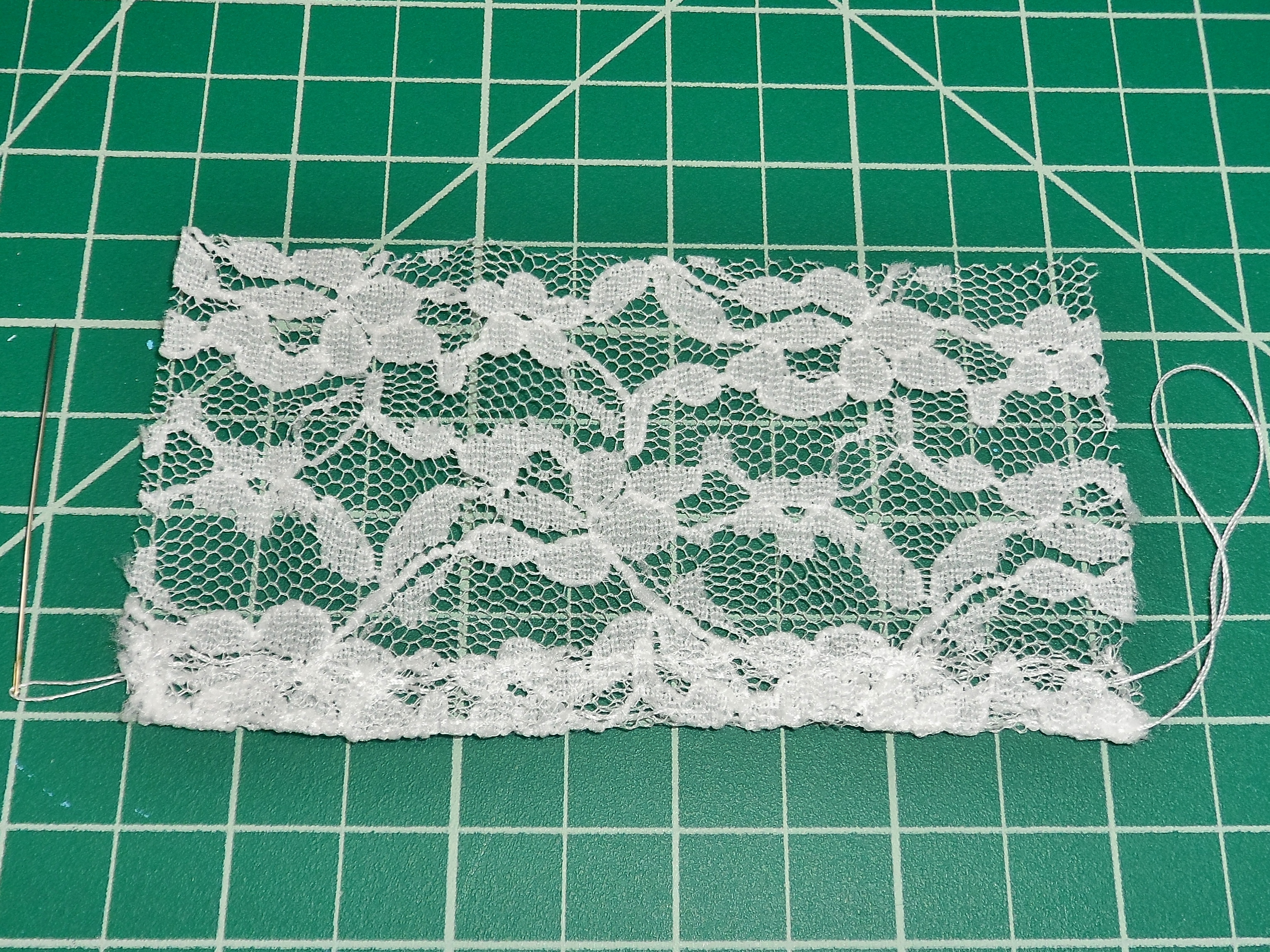

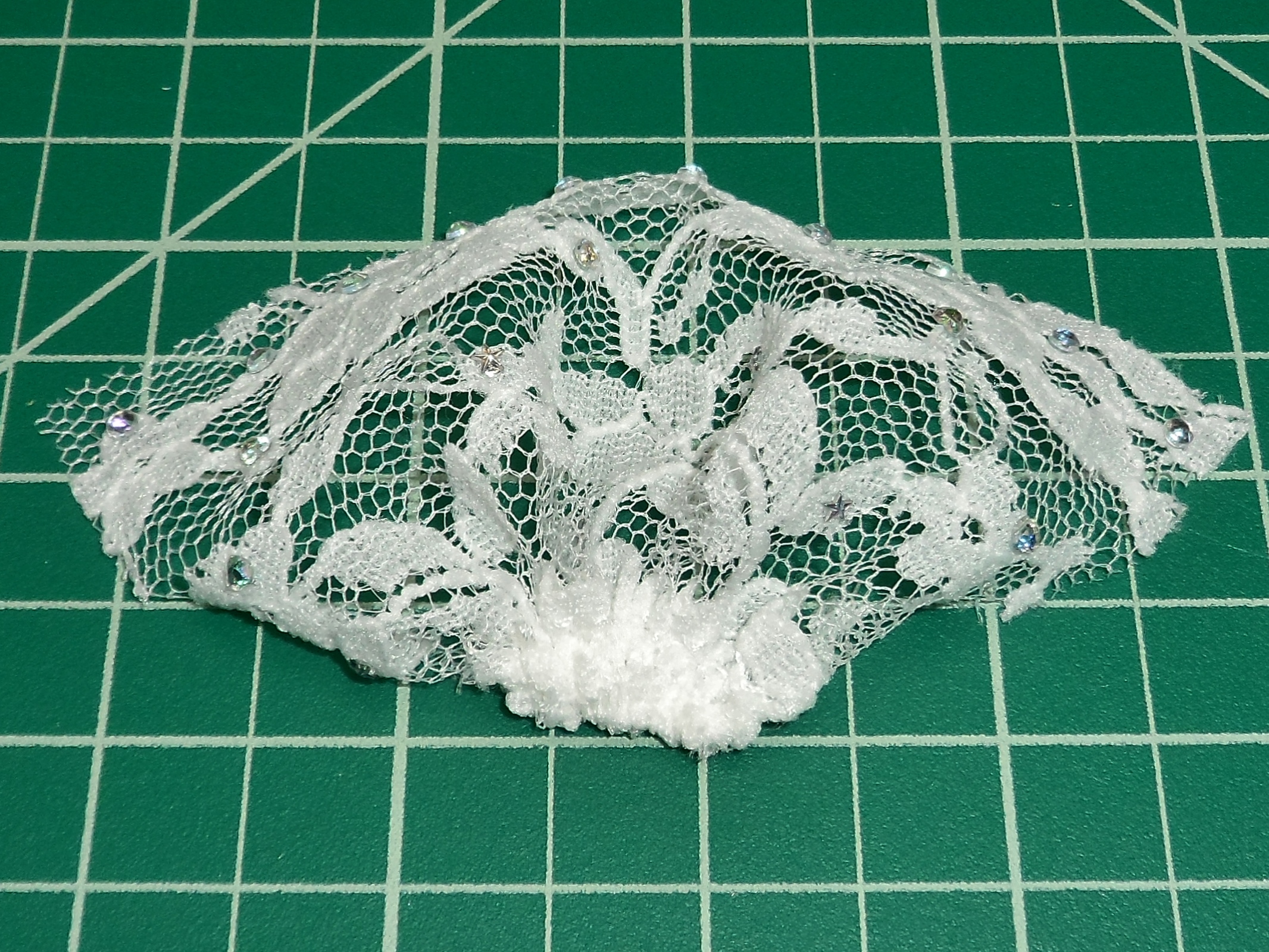

Using the template cut out a piece of lace fabric. Fold over about 1cm of the fabric and thread a white thread through left to right and back. Stick some adhesive gems onto the veil, pull the thread through and tie a knot.

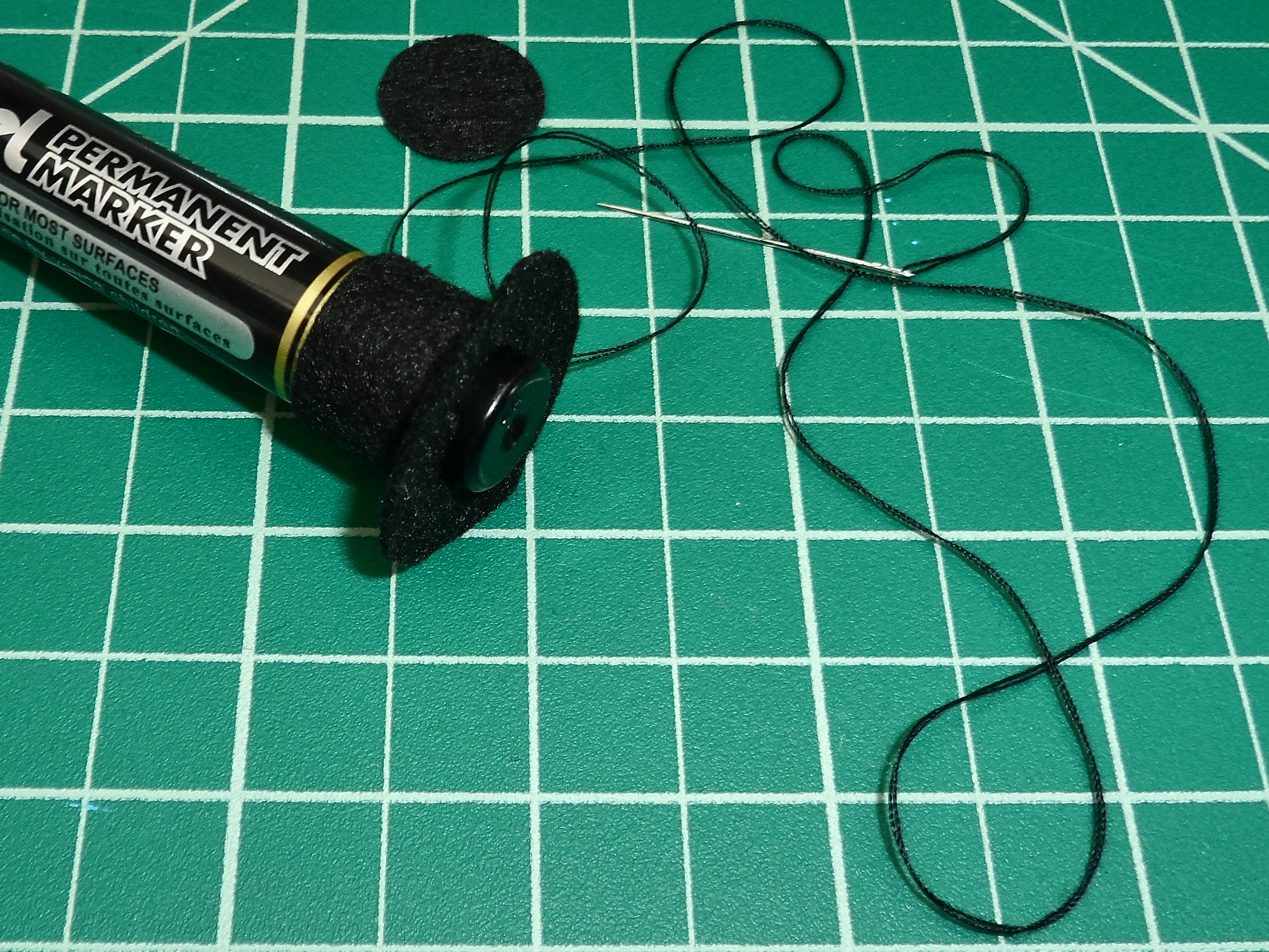

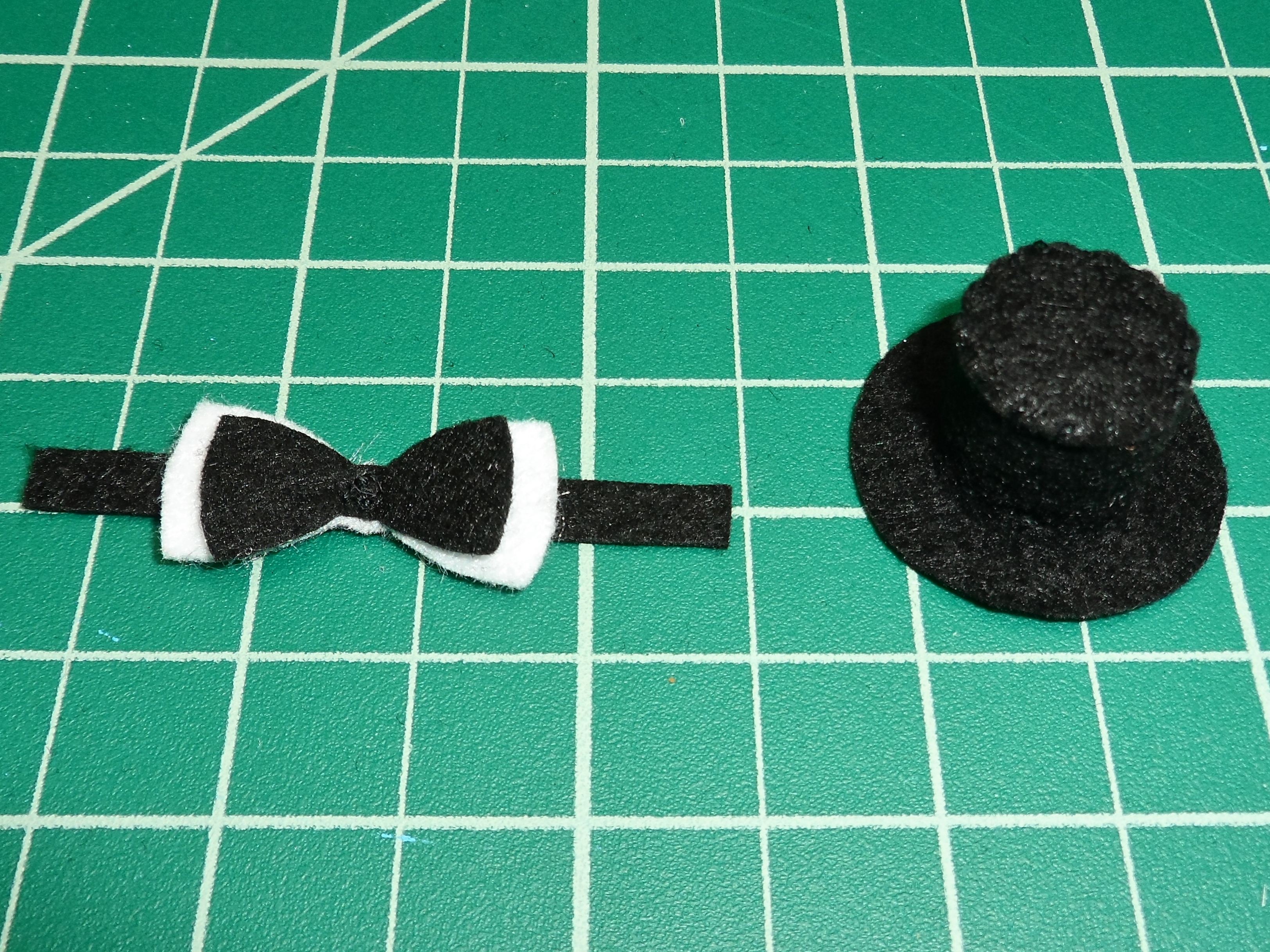

Using the template cut out the pieces from a black and white felt. Wrap the side of the hat around a marker and sew together. Sew on the bottom and the top of the hat. Sew together the bow tie pieces.

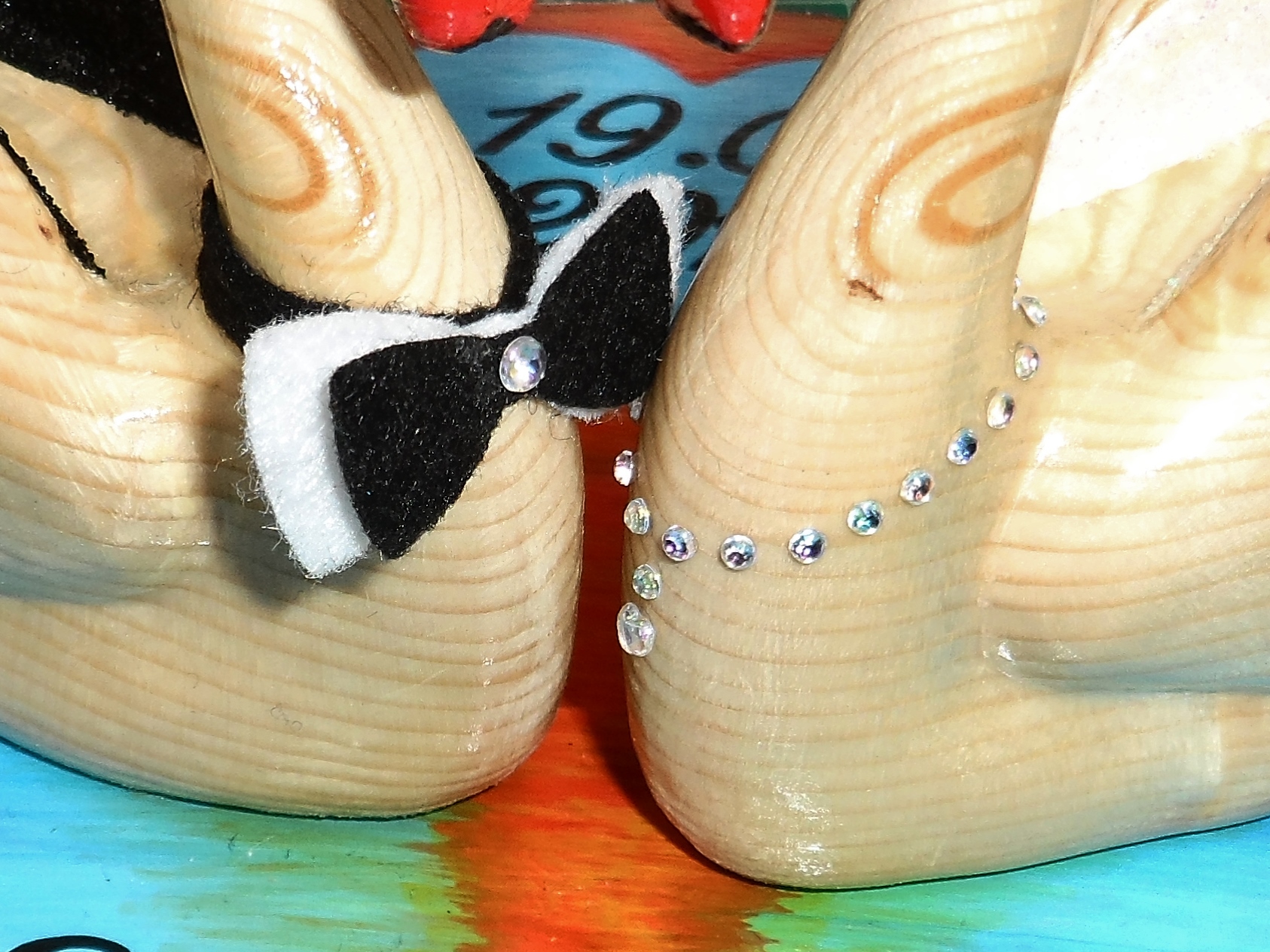

Stick on the adhesive gems around the brides neck in the shape of a necklace. Sew on grooms bow tie and affix in place with the B-7000 glue. Using the same glue attach the veil and the top hat. Stick the adhesive gems onto the front of the veil.

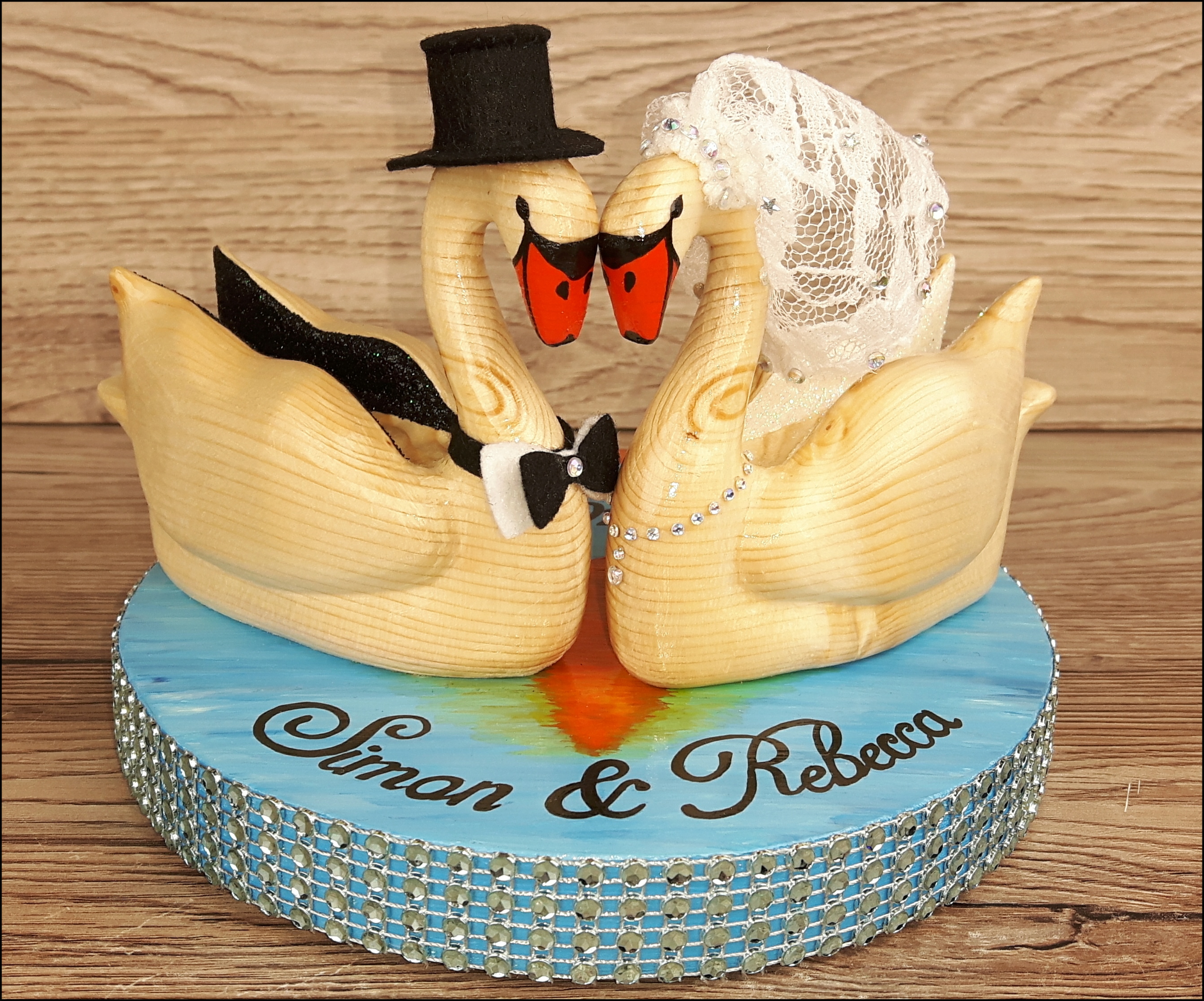

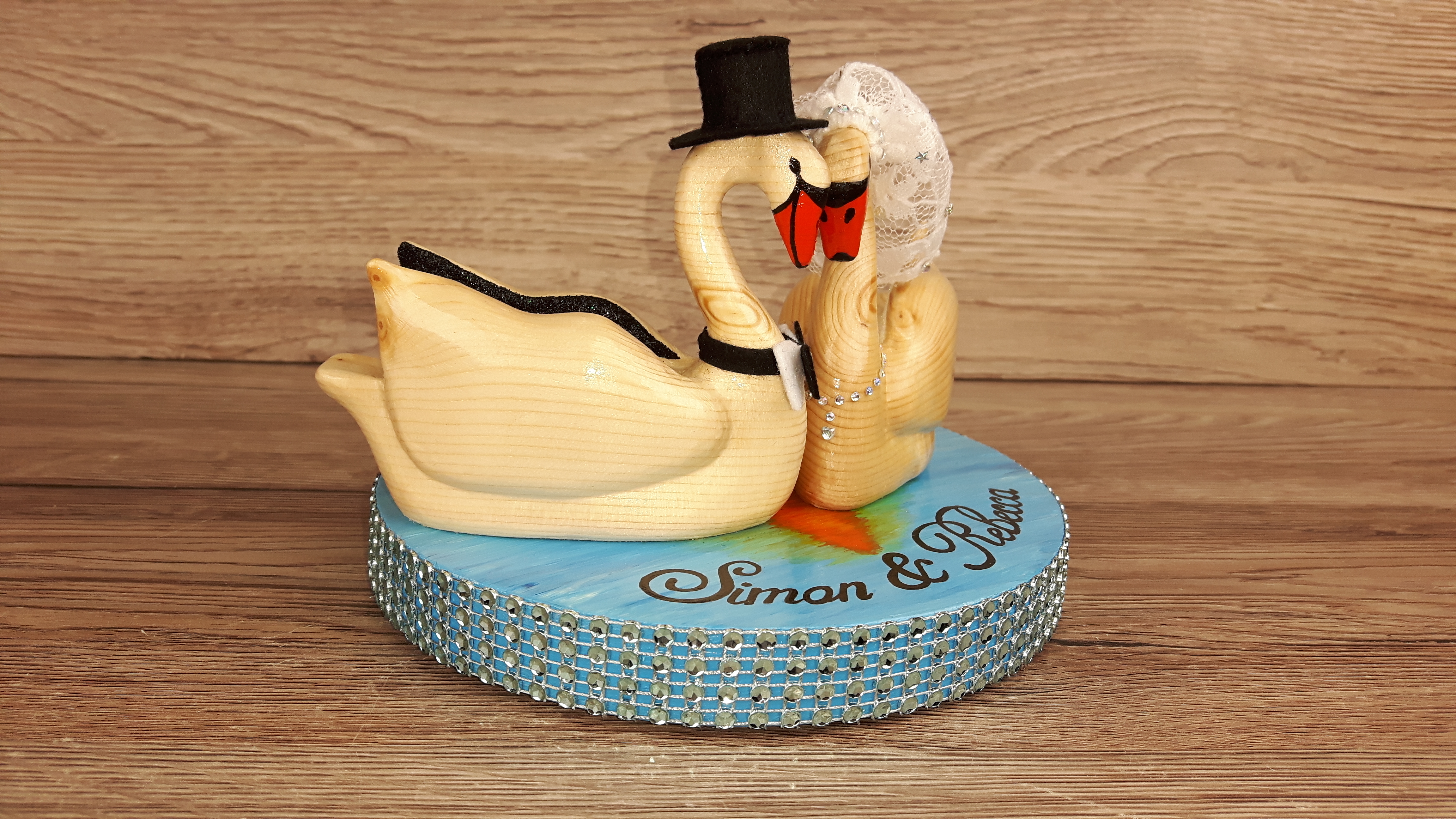

The whole project took about 12 hours to finish plus some drying time and I think it was worth it. One day I would love to be able to carve all of the details like faces, eyes and feathers so I'll definitely keep on practicing and I might even discover what all of the other carving bits are used for :D
