Camping Light Led & Power Bank (Portable)
by chaparro78 in Circuits > LEDs
519 Views, 1 Favorites, 0 Comments
Camping Light Led & Power Bank (Portable)
![20190120_123620.jpg](/proxy/?url=https://content.instructables.com/FB9/BN3H/JSCG4QFD/FB9BN3HJSCG4QFD.jpg&filename=20190120_123620.jpg)
![20190120_123517.jpg](/proxy/?url=https://content.instructables.com/FFL/N8EY/JS0OTWP7/FFLN8EYJS0OTWP7.jpg&filename=20190120_123517.jpg)
Hi!

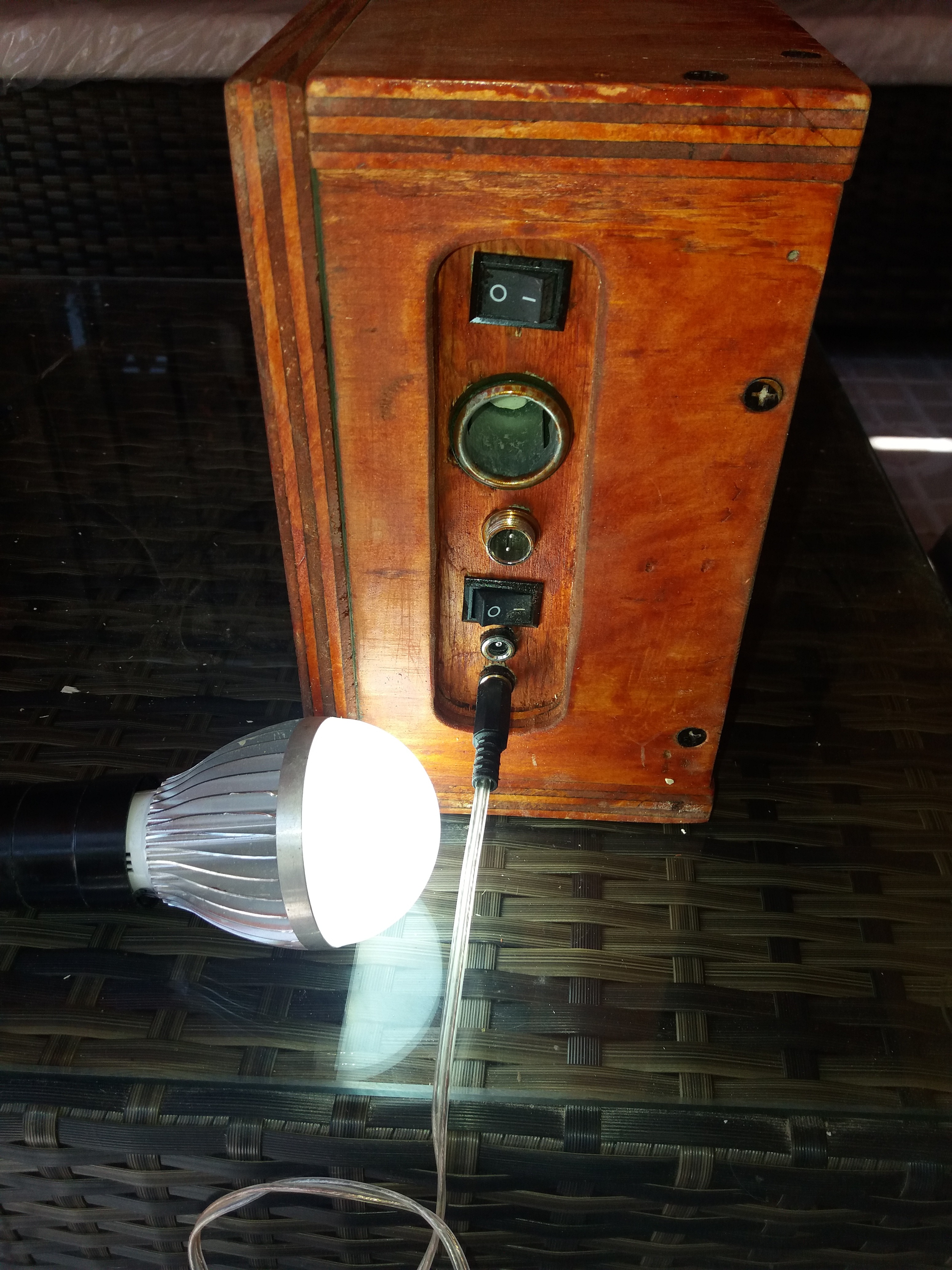

This is another simple solar power bank for camping, with 2 lights of 3 (o 5) watts and power socket of 12 volts, ideal for cell phone charger.
It uses a solar panel of 12 volts 10 watts, ideal for camping or emergencies.
Materiales
![20190117_213015.jpg](/proxy/?url=https://content.instructables.com/F1W/MD95/JS0OTXXK/F1WMD95JS0OTXXK.jpg&filename=20190117_213015.jpg)
![20190117_213031.jpg](/proxy/?url=https://content.instructables.com/FKB/EVMQ/JS0OTXXR/FKBEVMQJS0OTXXR.jpg&filename=20190117_213031.jpg)
![20190117_213101.jpg](/proxy/?url=https://content.instructables.com/FHK/E1ZH/JS0OTXYH/FHKE1ZHJS0OTXYH.jpg&filename=20190117_213101.jpg)
![20190117_213112.jpg](/proxy/?url=https://content.instructables.com/FPB/IBHI/JS0OTXYO/FPBIBHIJS0OTXYO.jpg&filename=20190117_213112.jpg)
![20190118_152114.jpg](/proxy/?url=https://content.instructables.com/F3S/6VWF/JS0OTXZH/F3S6VWFJS0OTXZH.jpg&filename=20190118_152114.jpg)
![download.jpeg](/proxy/?url=https://content.instructables.com/FNP/L6L4/JSCG4PWD/FNPL6L4JSCG4PWD.jpg&filename=download.jpeg)
- Wood, for the box.
- 2 switch (as shown)
- 1 car lighter socket (female)

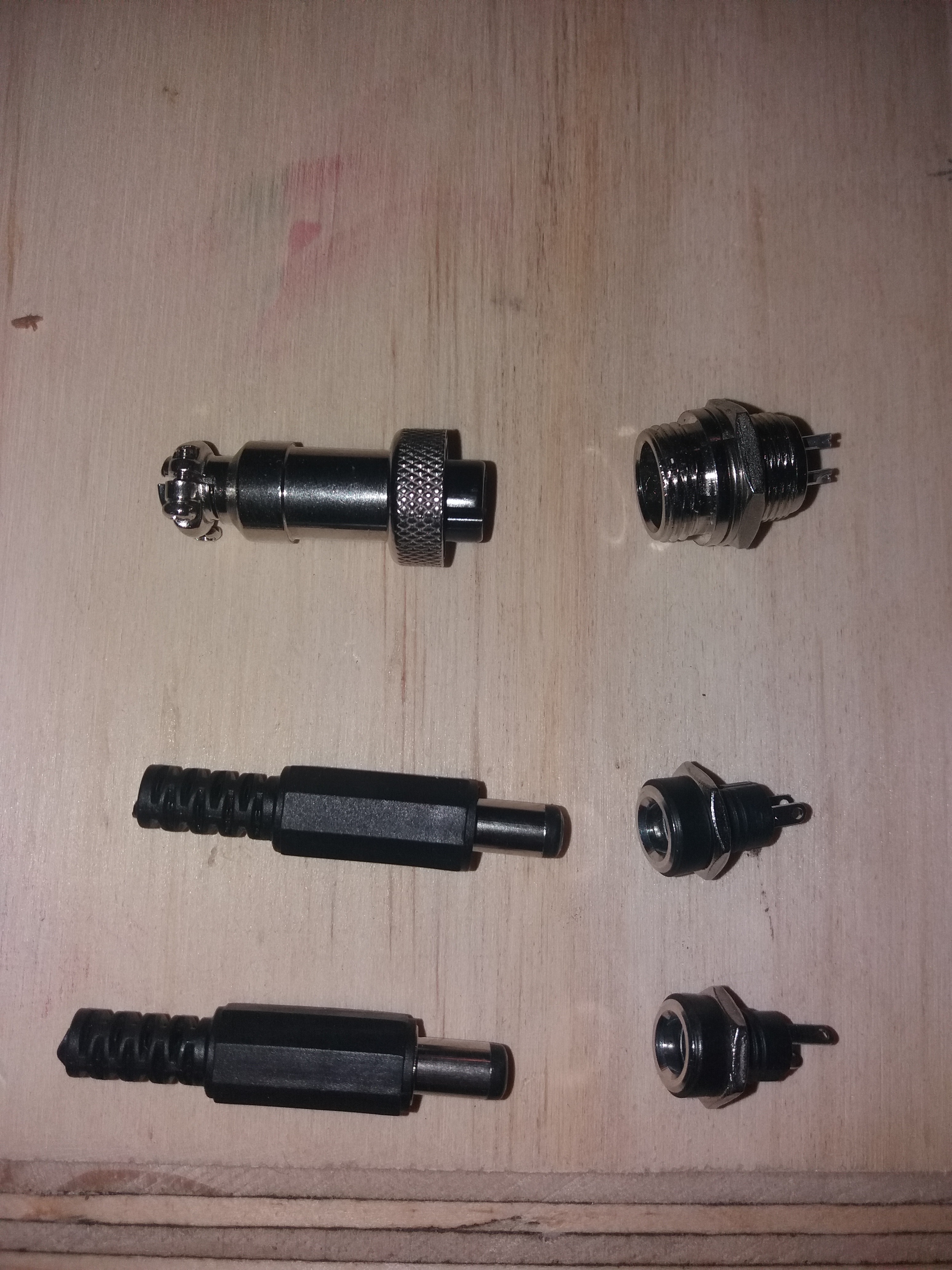

- 2 jack 2.1 mm x 5.5 (as shown) (male / female)
- 1 military connector, 2 pins for the solar panel, (male / female)
- Varnish
- Wire
- 2 socket for lamps
- 2 lamps, 12 volts, 5 watts
- 1 solar regulator, 2 amperes o more.
- 1 battery, 12 volts 7 a/h
- Solar panel, for diary use, 20 watts, for camping, 10 watts
Assemble the Box
![20190117_213241.jpg](/proxy/?url=https://content.instructables.com/FXQ/D8YT/JS0OTXZC/FXQD8YTJS0OTXZC.jpg&filename=20190117_213241.jpg)
![20190117_213234.jpg](/proxy/?url=https://content.instructables.com/FT4/JSJ9/JR4WKRJM/FT4JSJ9JR4WKRJM.jpg&filename=20190117_213234.jpg)
![20190117_213303.jpg](/proxy/?url=https://content.instructables.com/F19/YYVB/JR4WKRLA/F19YYVBJR4WKRLA.jpg&filename=20190117_213303.jpg)
![20190117_213211.jpg](/proxy/?url=https://content.instructables.com/F93/FIXL/JR4WKRSI/F93FIXLJR4WKRSI.jpg&filename=20190117_213211.jpg)
![20190117_213153.jpg](/proxy/?url=https://content.instructables.com/F9Q/N130/JR4WKRKO/F9QN130JR4WKRKO.jpg&filename=20190117_213153.jpg)

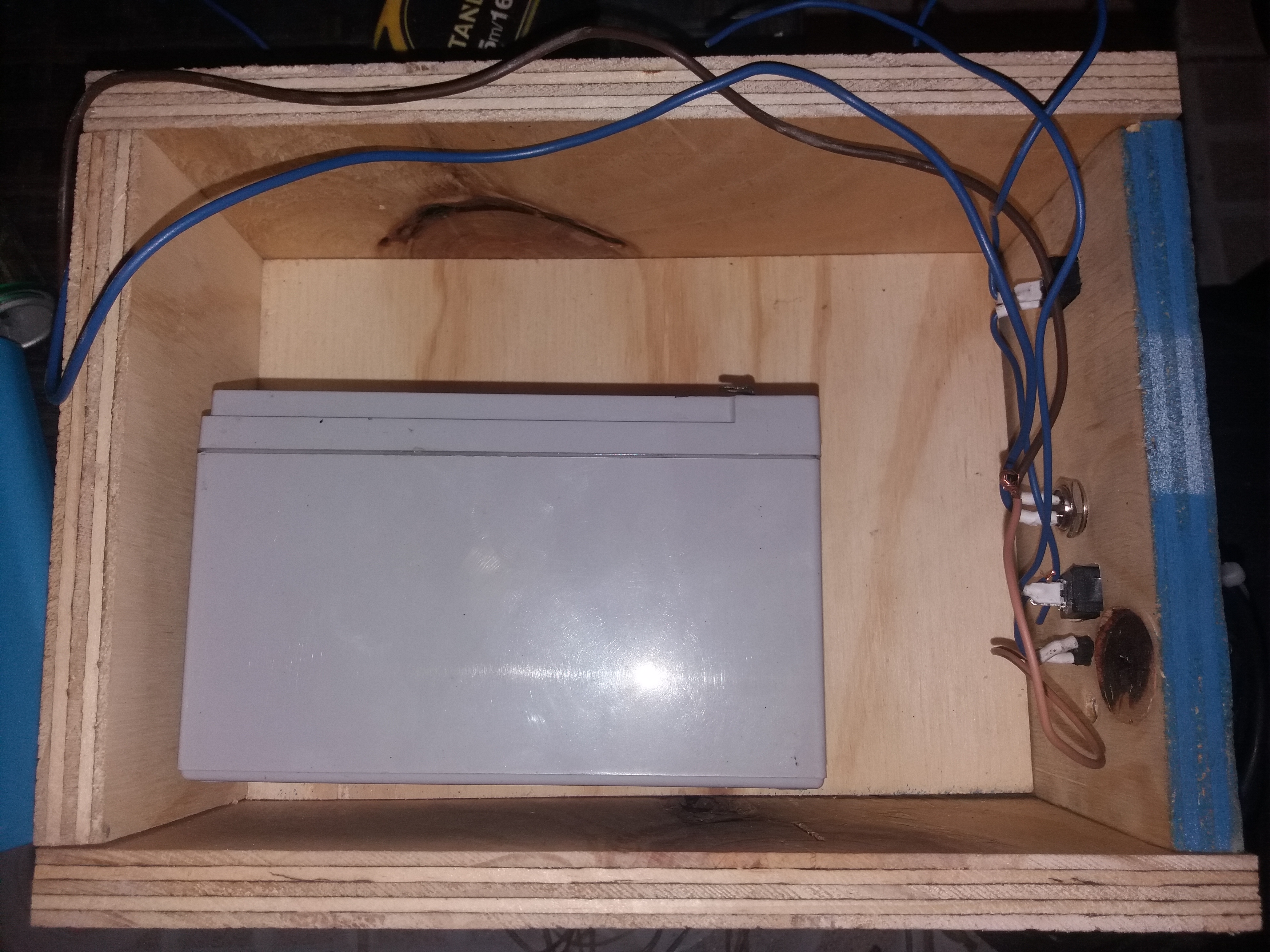

Assemble as shown in the photos, leave a cover un-installed to begin the connections

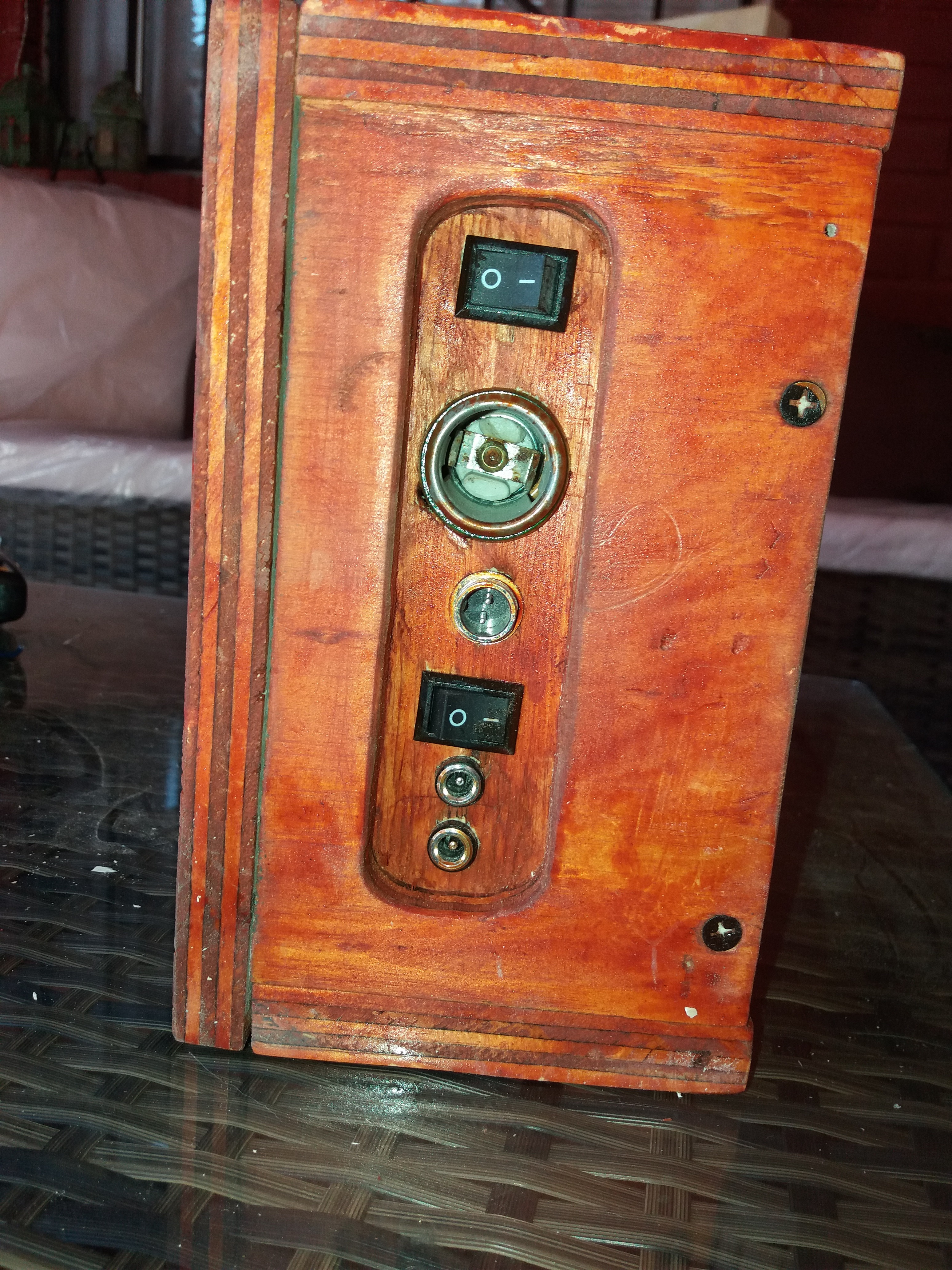

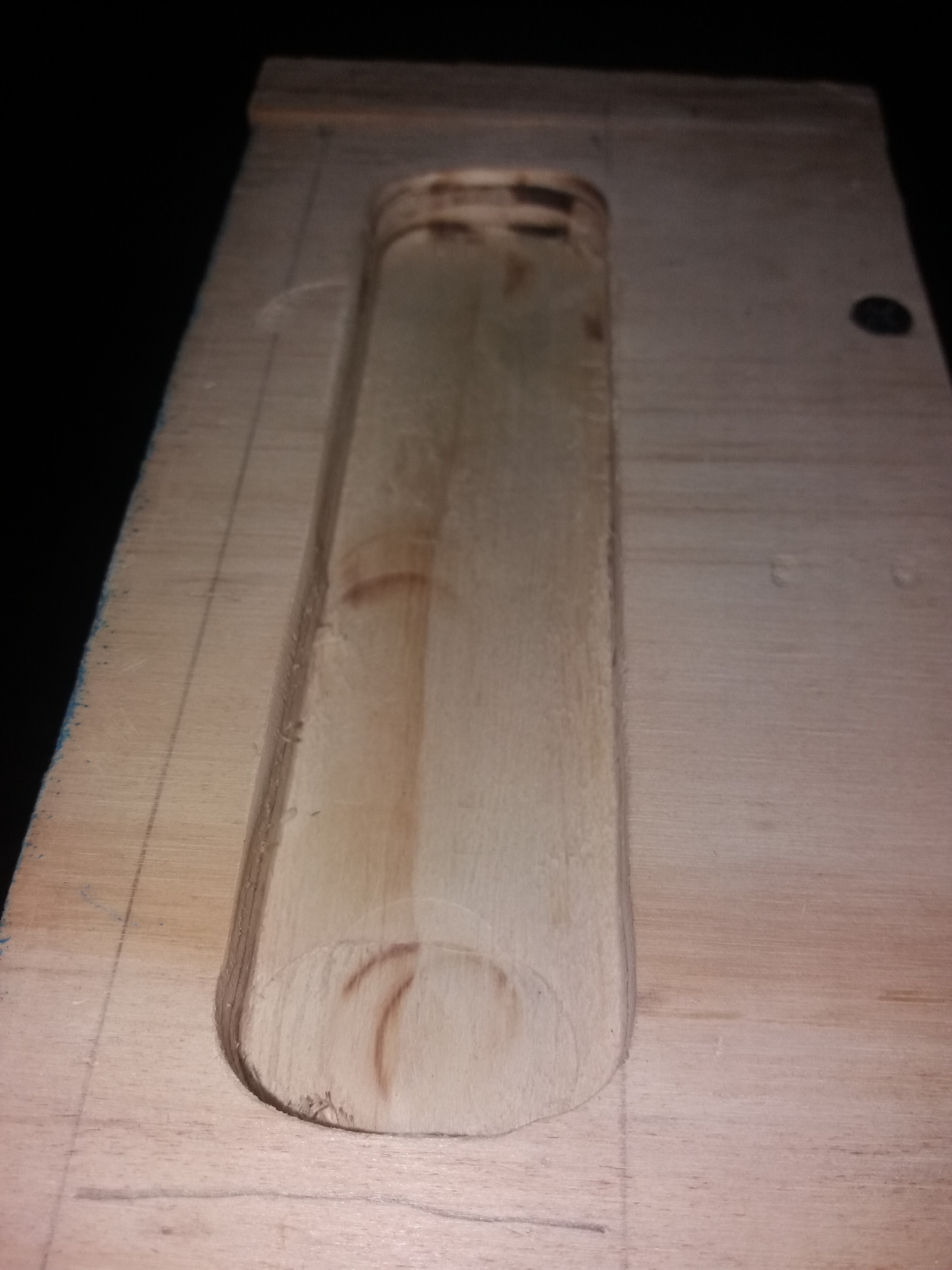

Optional: make a recess so that the switches and connectors are low relief and do not suffer damage
Connection
![Picture2.png](/proxy/?url=https://content.instructables.com/F5Y/A9HY/JS5CE453/F5YA9HYJS5CE453.png&filename=Picture2.png)
![20190118_213434.jpg](/proxy/?url=https://content.instructables.com/FZ2/JMI9/JS0OTZYJ/FZ2JMI9JS0OTZYJ.jpg&filename=20190118_213434.jpg)
![20190120_133752.jpg](/proxy/?url=https://content.instructables.com/FQH/8R53/JS0OTZZZ/FQH8R53JS0OTZZZ.jpg&filename=20190120_133752.jpg)
![20190120_133800.jpg](/proxy/?url=https://content.instructables.com/F94/M4L3/JS0OU01C/F94M4L3JS0OU01C.jpg&filename=20190120_133800.jpg)
![20190120_123555.jpg](/proxy/?url=https://content.instructables.com/FZR/OCUB/JS5CE4CB/FZROCUBJS5CE4CB.jpg&filename=20190120_123555.jpg)

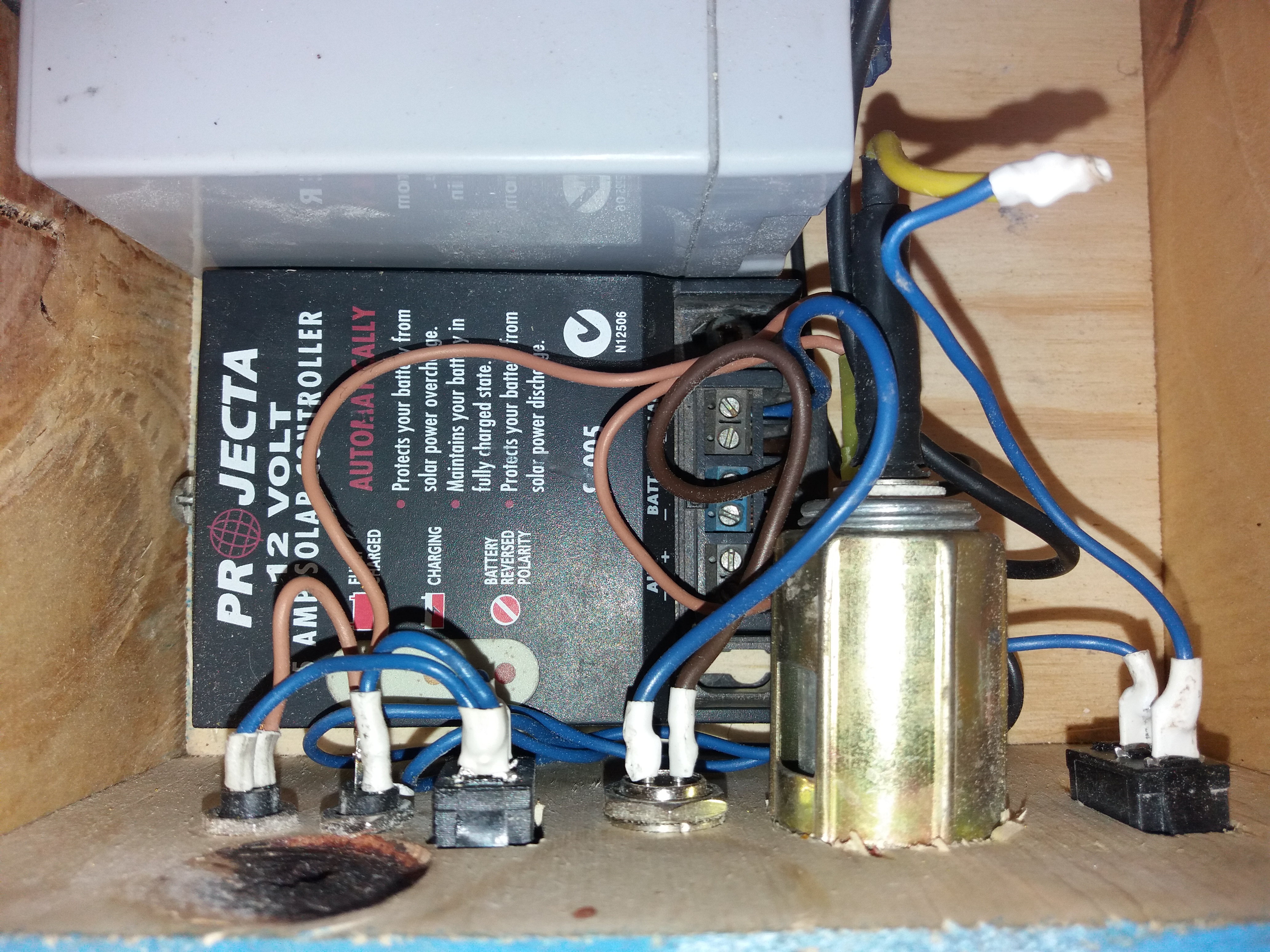

It's very simple, just follow the instructions in the photo to connect everything inside the box
Varnish and Other Things
![20190120_123248.jpg](/proxy/?url=https://content.instructables.com/FRT/80NR/JS0OU10B/FRT80NRJS0OU10B.jpg&filename=20190120_123248.jpg)
![20190120_123351.jpg](/proxy/?url=https://content.instructables.com/FS7/UZML/JS0OU12A/FS7UZMLJS0OU12A.jpg&filename=20190120_123351.jpg)
![20190120_123406.jpg](/proxy/?url=https://content.instructables.com/FBX/4W3V/JS0OU159/FBX4W3VJS0OU159.jpg&filename=20190120_123406.jpg)
![20190120_123432.jpg](/proxy/?url=https://content.instructables.com/FBX/87M0/JS0OU1A8/FBX87M0JS0OU1A8.jpg&filename=20190120_123432.jpg)
![20190120_123441.jpg](/proxy/?url=https://content.instructables.com/FU1/DPVI/JS0OU1IX/FU1DPVIJS0OU1IX.jpg&filename=20190120_123441.jpg)
![20190120_123517.jpg](/proxy/?url=https://content.instructables.com/FJC/8D40/JS0OU1O0/FJC8D40JS0OU1O0.jpg&filename=20190120_123517.jpg)
![20190120_123555.jpg](/proxy/?url=https://content.instructables.com/FTQ/MY5D/JS0OU1WV/FTQMY5DJS0OU1WV.jpg&filename=20190120_123555.jpg)

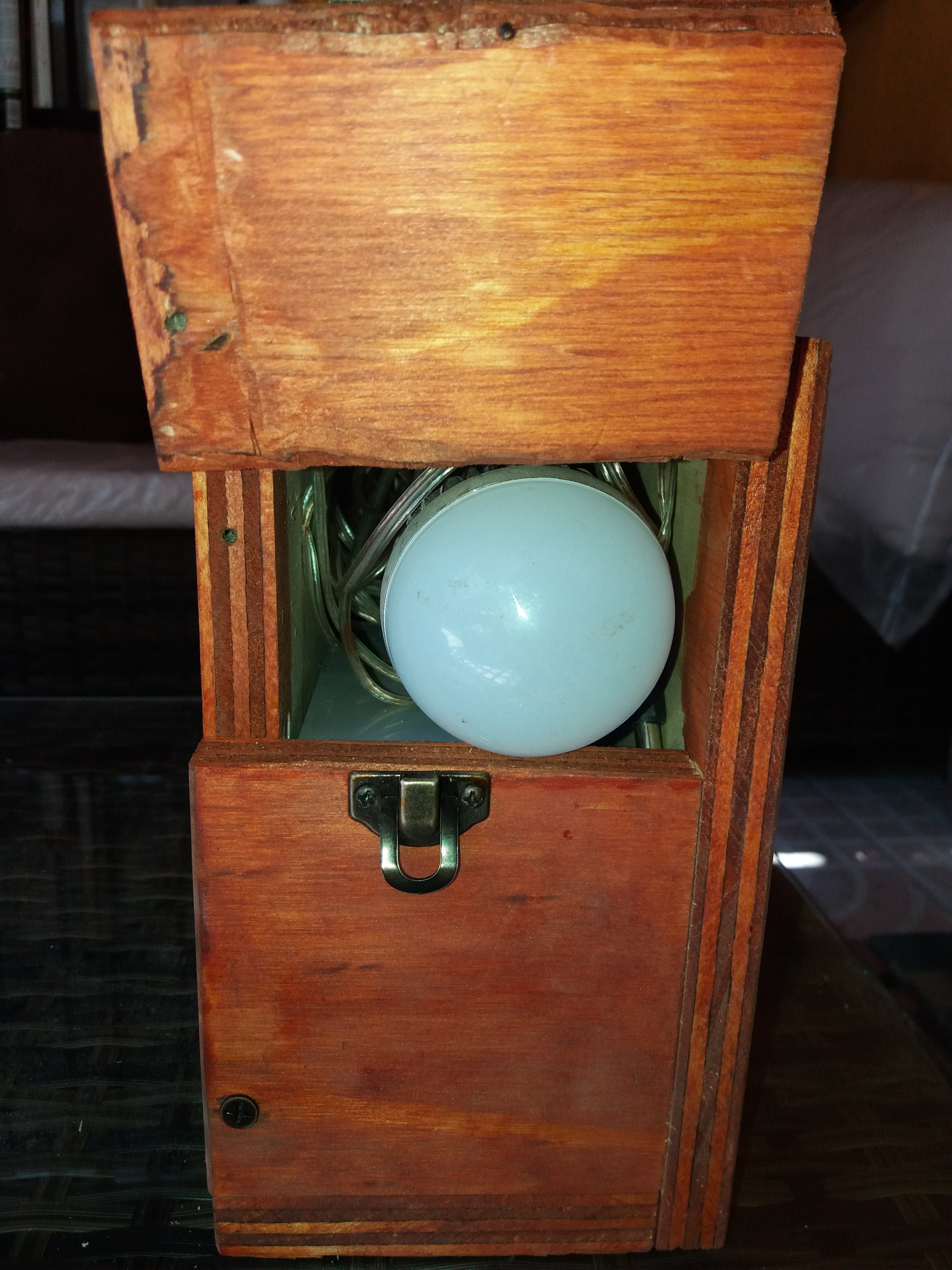

varnish all box and make a door to keep the lights, wires, etc.
