Wireless Remote Fireworks Tube Rack Diplay
by coolbeansbaby68 in Circuits > Wireless
23501 Views, 131 Favorites, 0 Comments
Wireless Remote Fireworks Tube Rack Diplay

.JPG)






















.JPG)
.JPG)
.JPG)








The quantum wireless remote firework starter is a safe way to ignite fireworks without getting hurt .
Quantumfire Wireless Remote Firing System

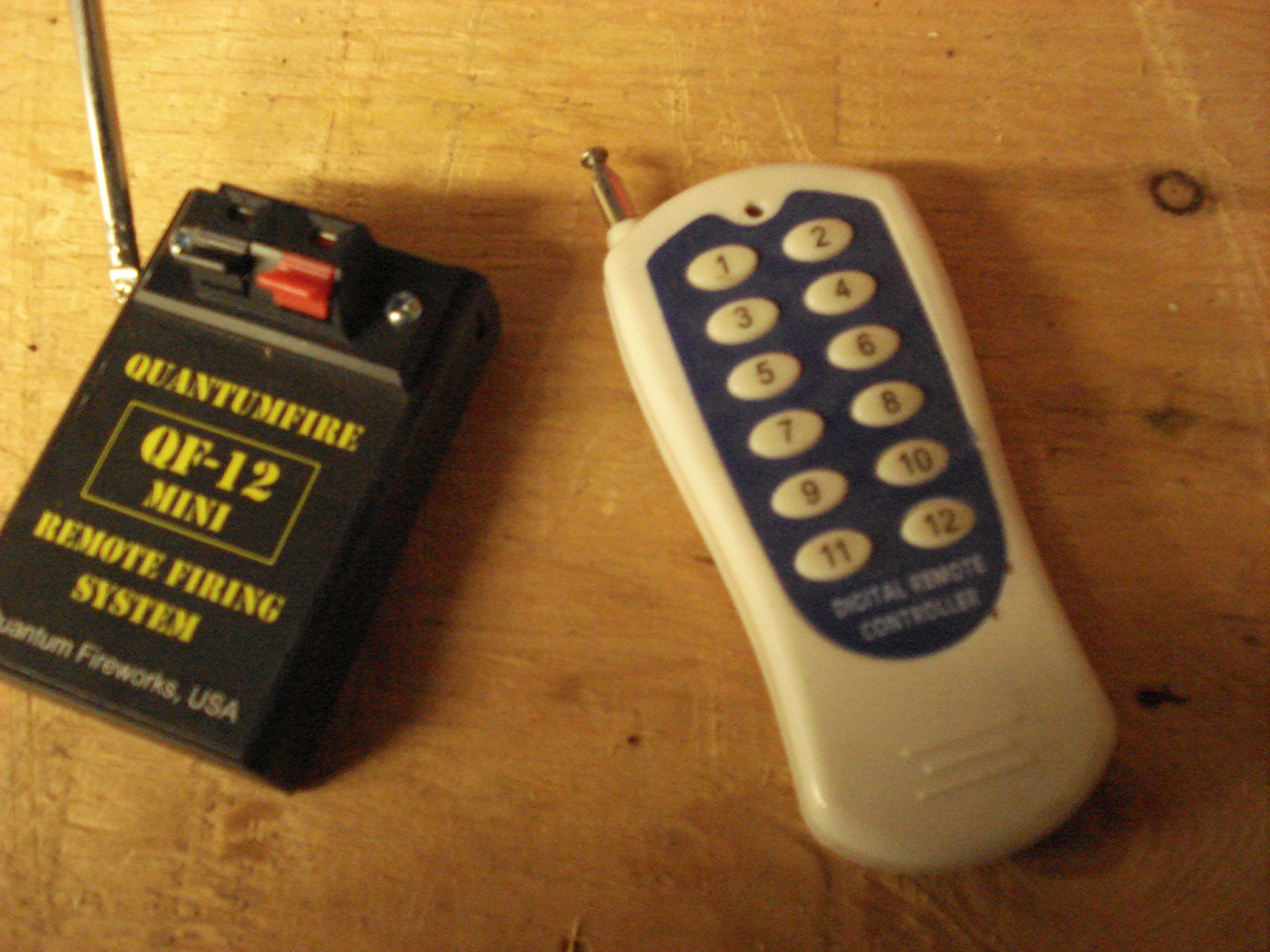

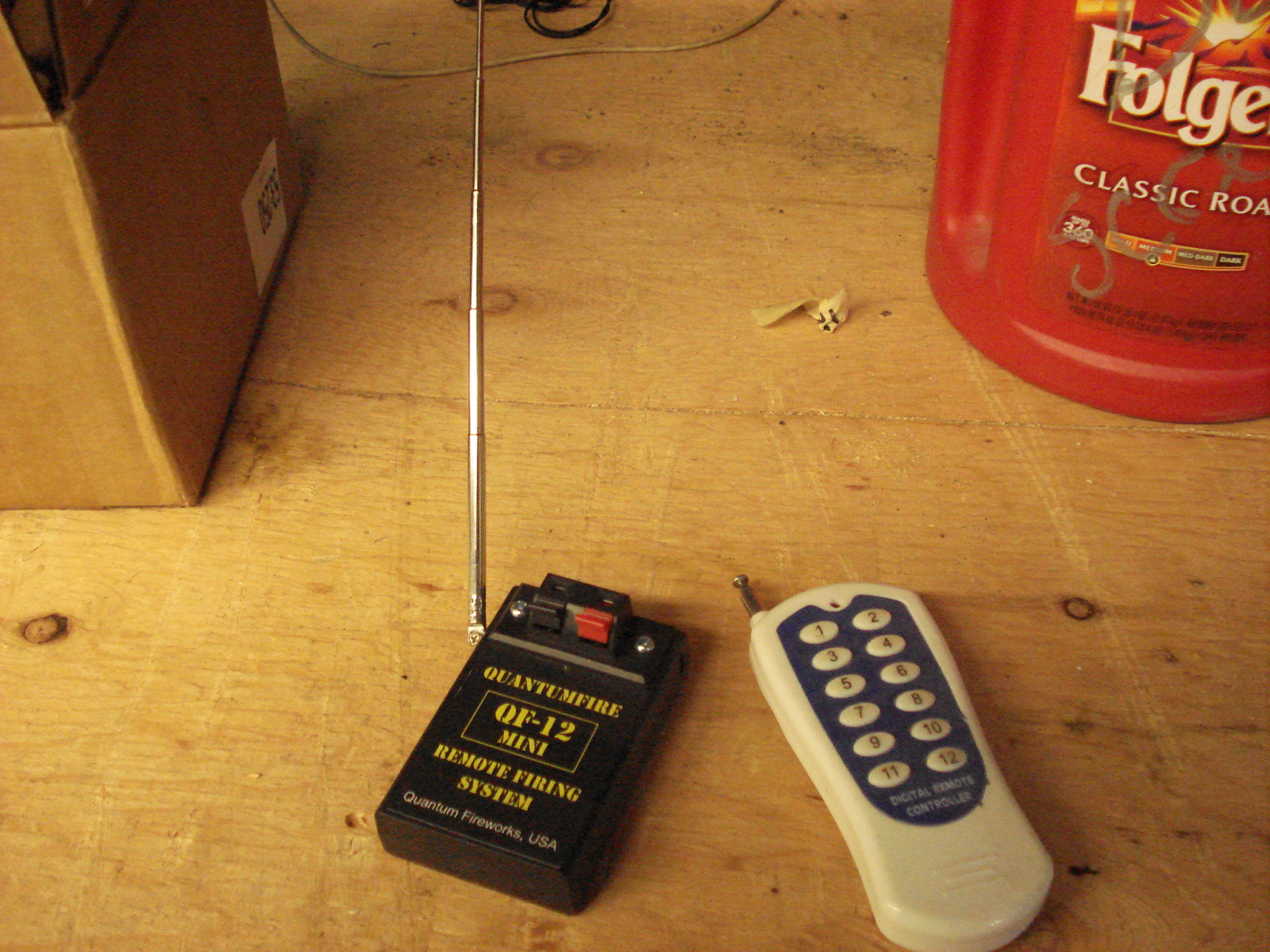

1st picture ~ This is a picture of the remote control and 1 of the 12 remote starters that come with the set.

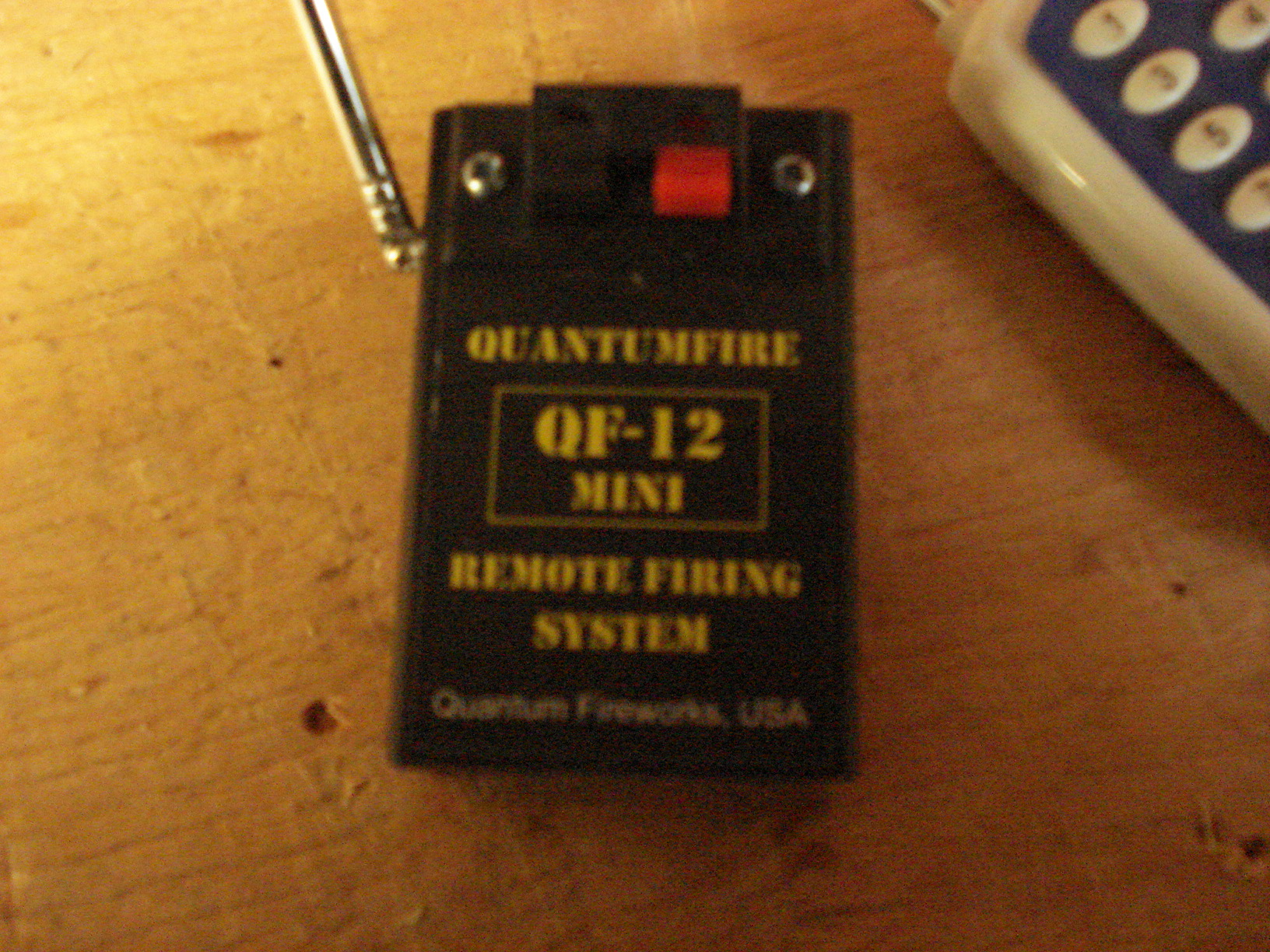

2nd & 3rd pic~ These two pictures show the actual igniter wire which ignites the firework.
2nd & 3rd pic~ These two pictures show the actual igniter wire which ignites the firework.
Mortar Tubes

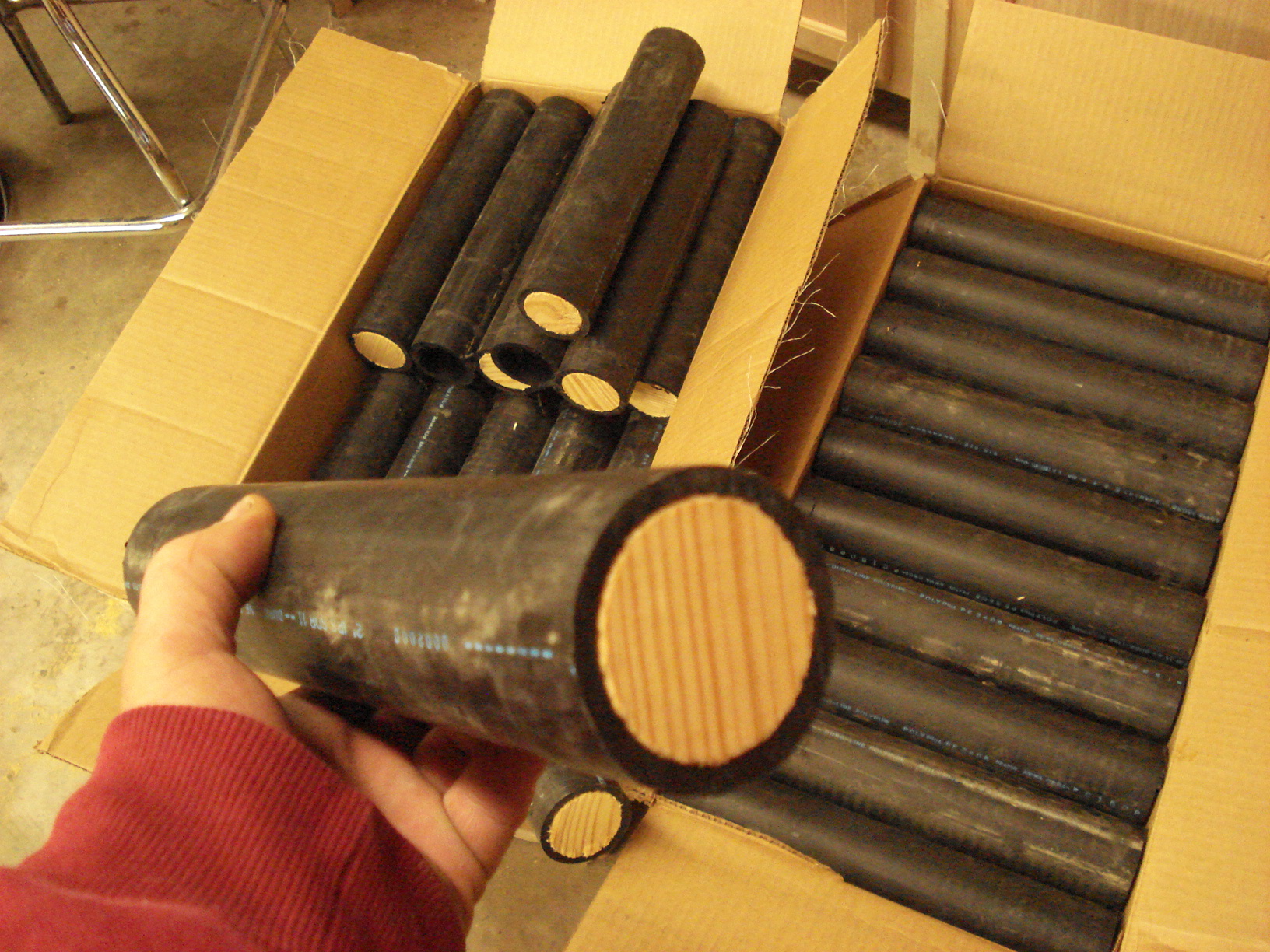

I purchased 100 hdpe (High Density Polyethylene) mortar tubes with plugs from pyro boom.com
Measuring for the Mortar Tube Box

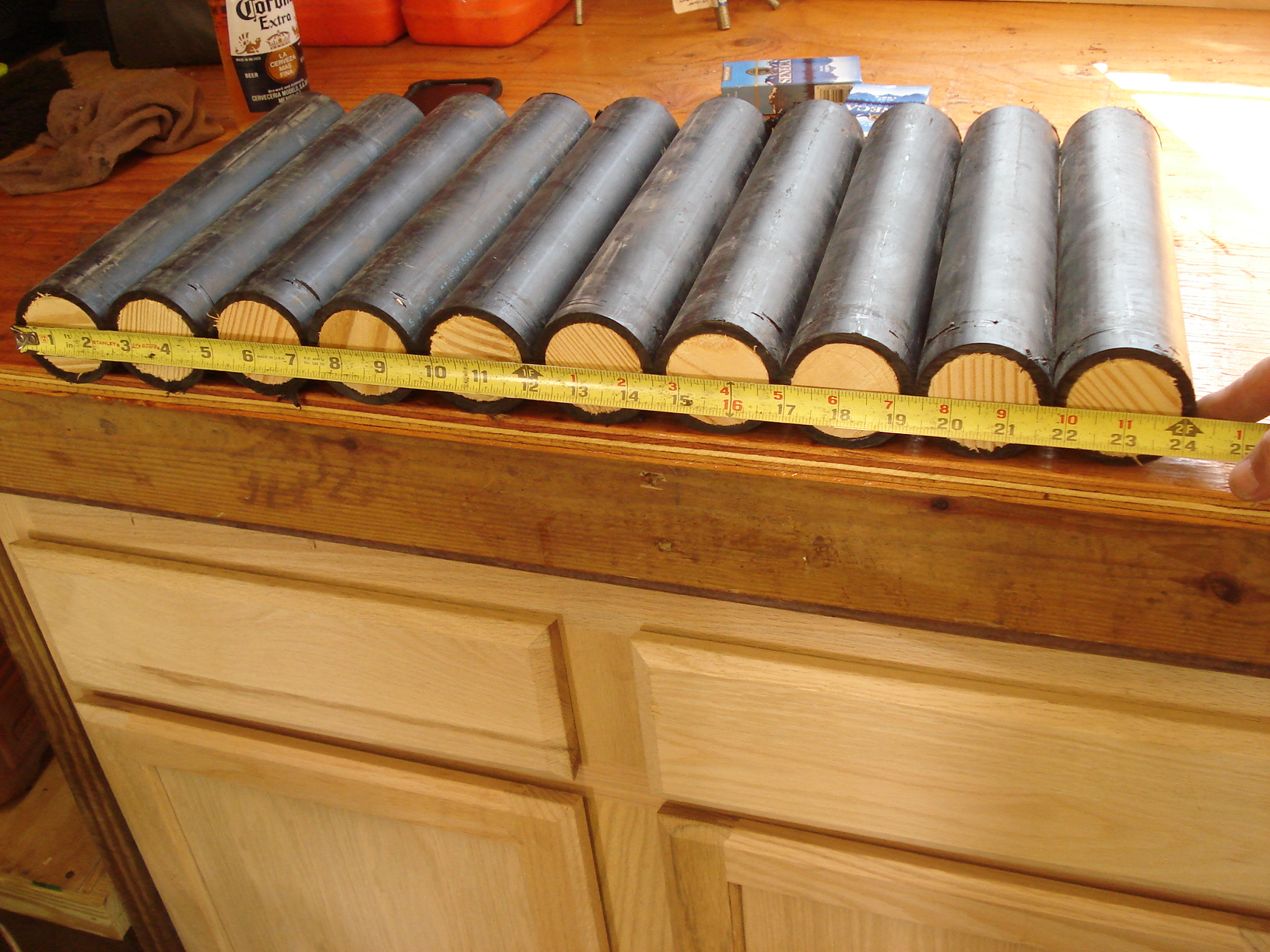

(1) I stacked 10 tubes tight together and measured 24 1/4 inches long.

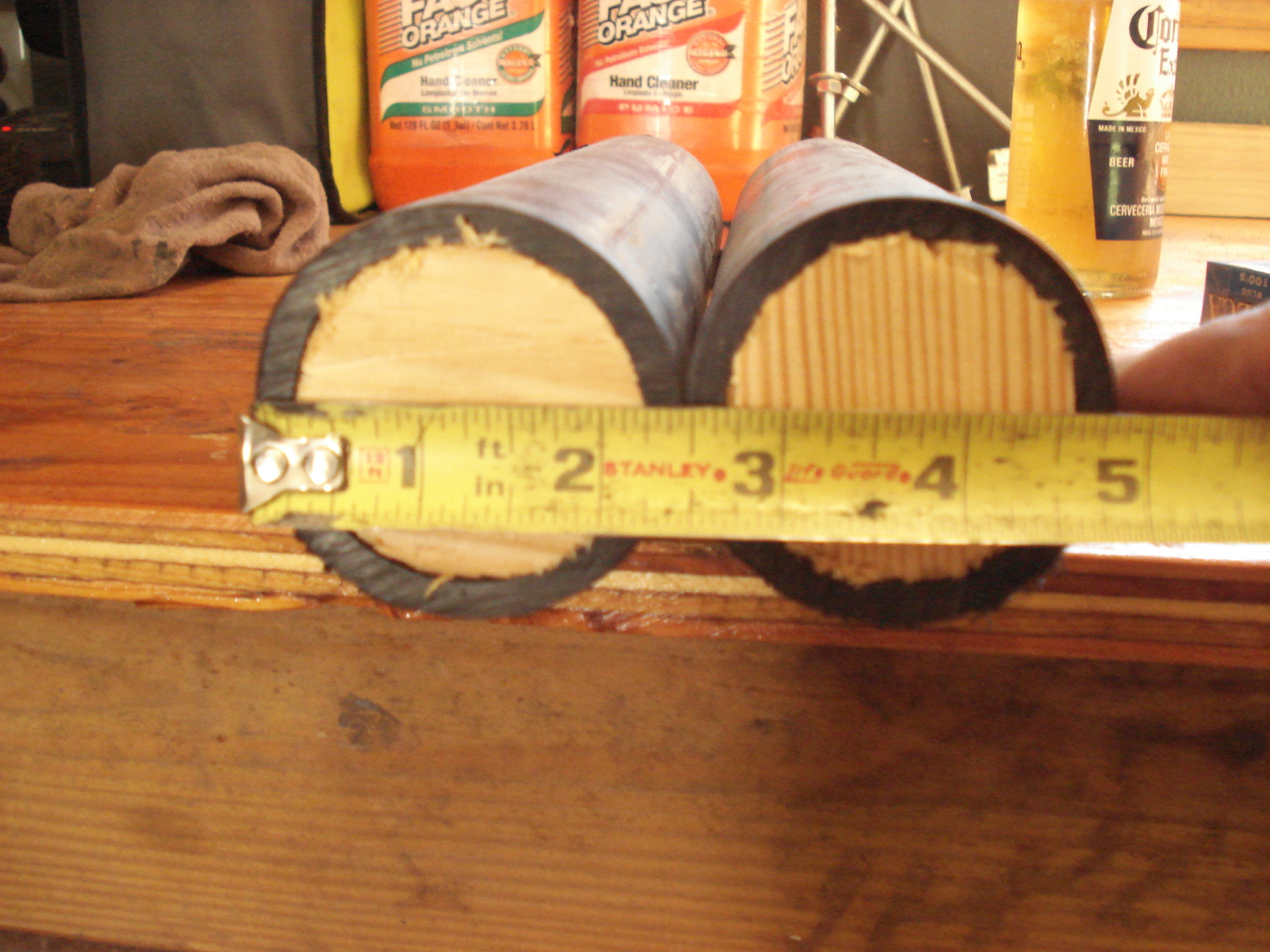

(2) I then measured 2 tubes tight together which measured 4 7/8 long. which would give me the width of each bottom board i had to cut.
(2) I then measured 2 tubes tight together which measured 4 7/8 long. which would give me the width of each bottom board i had to cut.
Cutting the Boards for the Box

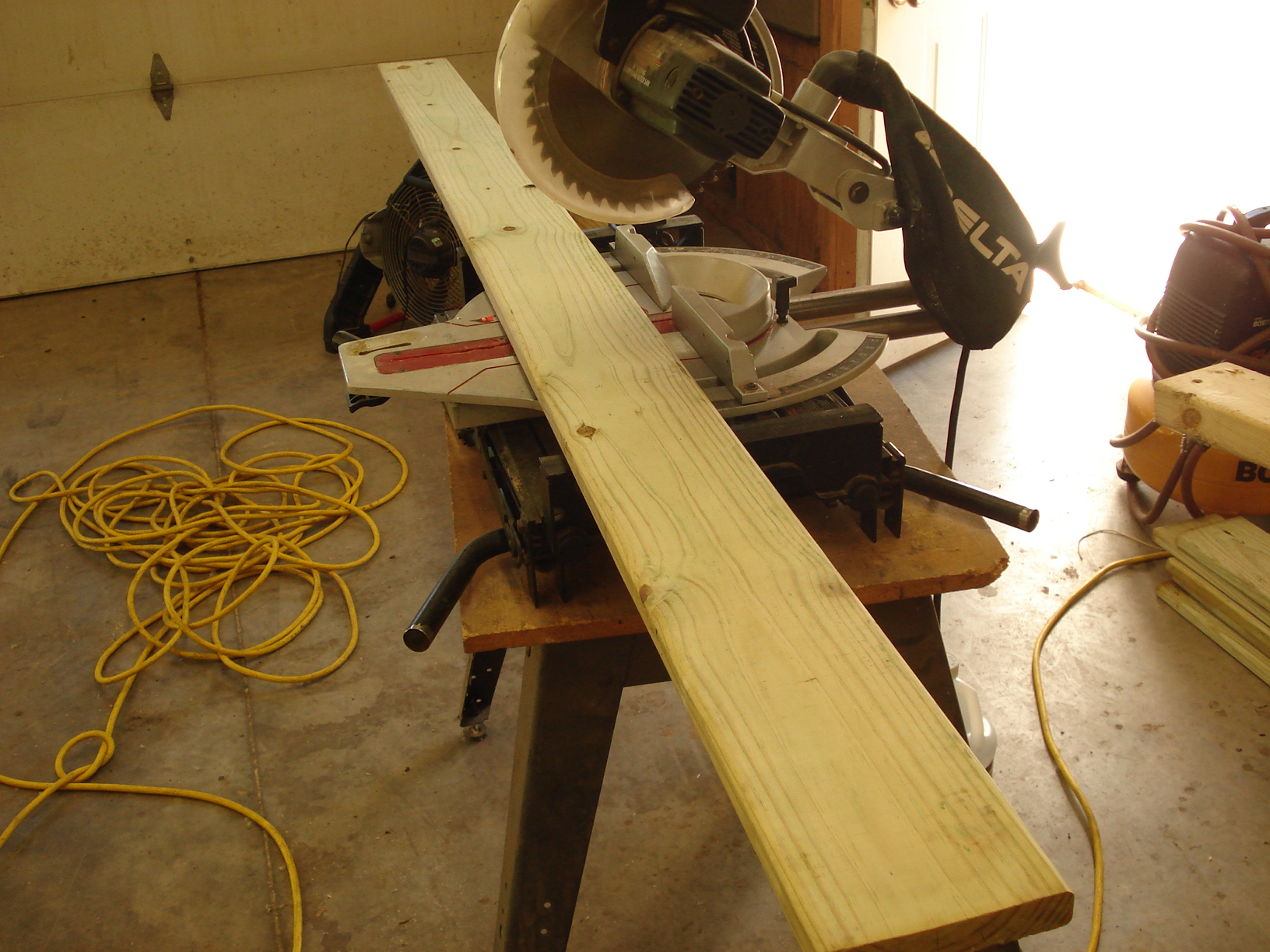

(1) I used 1x6x8 foot pressure treated wood for the bottom boards of the box.
(2) I cut 4 boards 24 1/4 inches long.
(3) Then i ripped them 5 inches wide which would hold two rows of 10 tubes each.
(2) I cut 4 boards 24 1/4 inches long.
(3) Then i ripped them 5 inches wide which would hold two rows of 10 tubes each.
Marking and Pre Drilling the Holes for Each Tube.




(1) measure up from the bottom and down from the top of the board 1 1/2 inches. Then scribe a line the whole length of the board on top and bottom.
(2) First measure in from the end 1 1/2 inches on the top and bottom. Then scribe a line for your first two center lines for the mortar tubes.
(3) Next measure every 3 inches and put a mark for the rest of the mortar center locations.

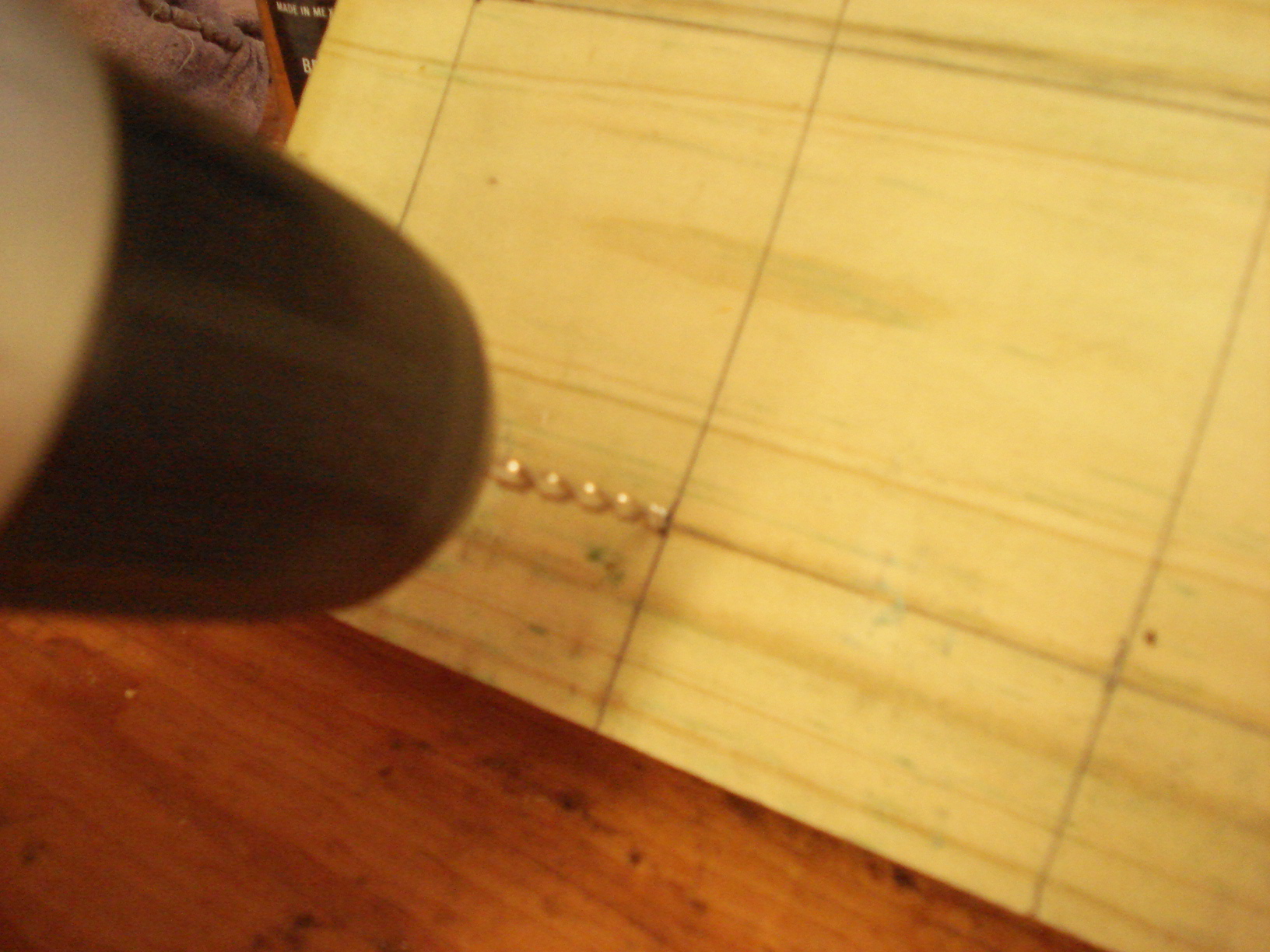

(4) i used a 1/8 inch drill bit to pre drill all the holes.
(5) Repeat this whole process 4 more times to make the 100 mortar rounds .
(6) I used 10/32 flat washers and 1/12 deck screws.
(2) First measure in from the end 1 1/2 inches on the top and bottom. Then scribe a line for your first two center lines for the mortar tubes.
(3) Next measure every 3 inches and put a mark for the rest of the mortar center locations.
(4) i used a 1/8 inch drill bit to pre drill all the holes.
(5) Repeat this whole process 4 more times to make the 100 mortar rounds .
(6) I used 10/32 flat washers and 1/12 deck screws.
Making the Box Sides

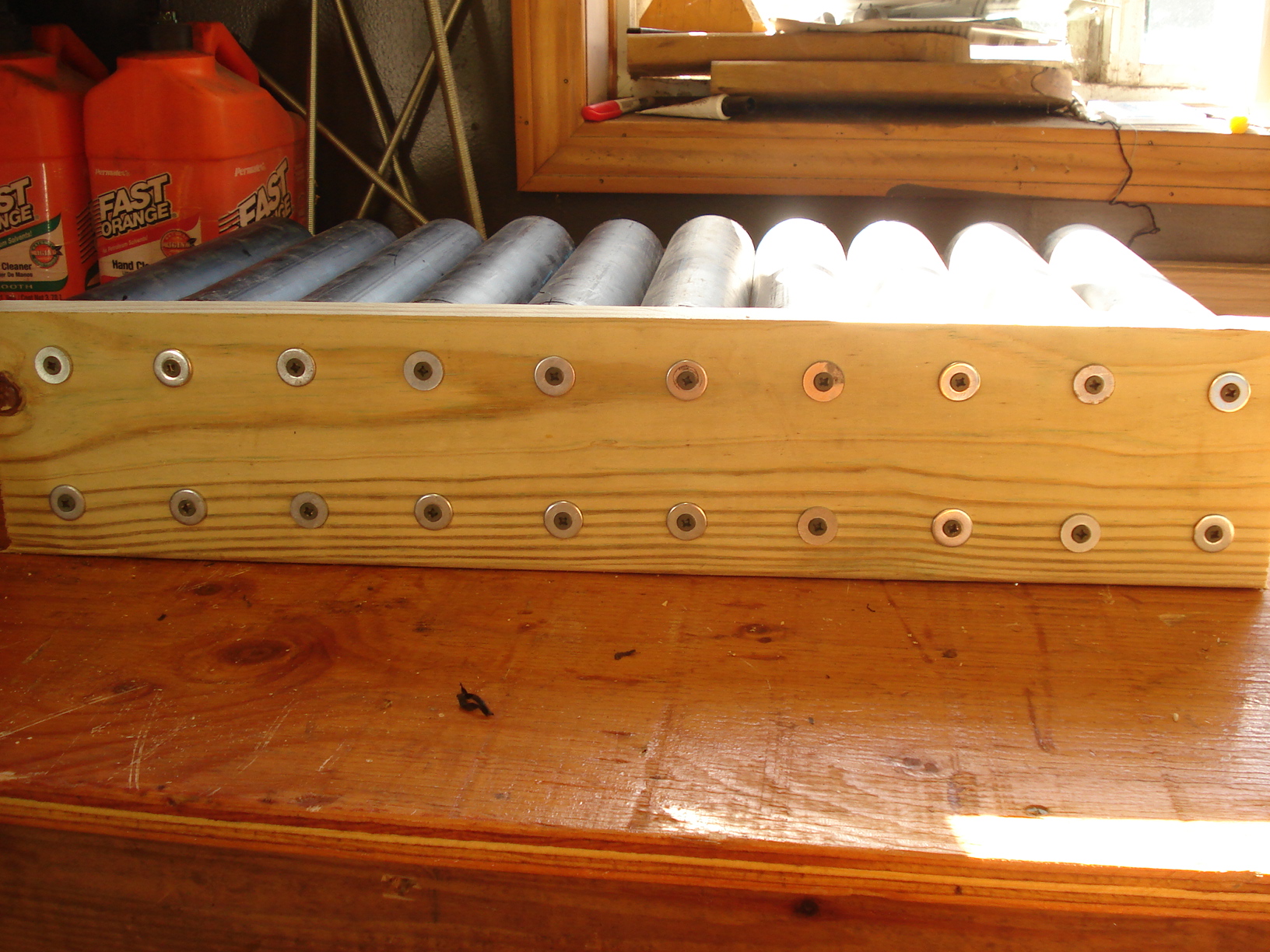

(1) I cut 4 boards 24 1/4 inch long . I used 1 1/2 inch long deck screws two inches apart , and screwed the sides to the bottom .
Finished Mortar Tube Box
.JPG)

.JPG)
.JPG)
.JPG)

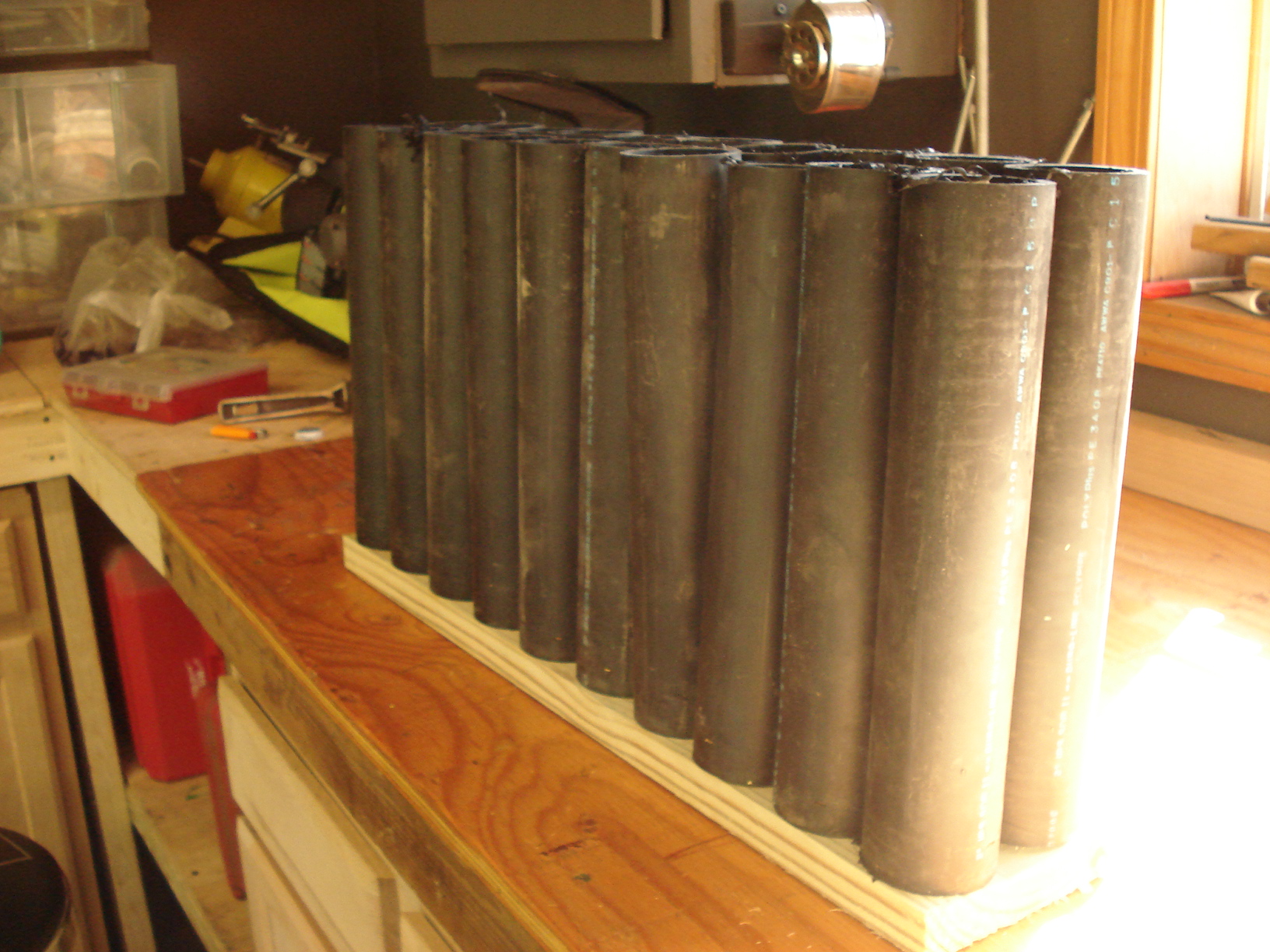

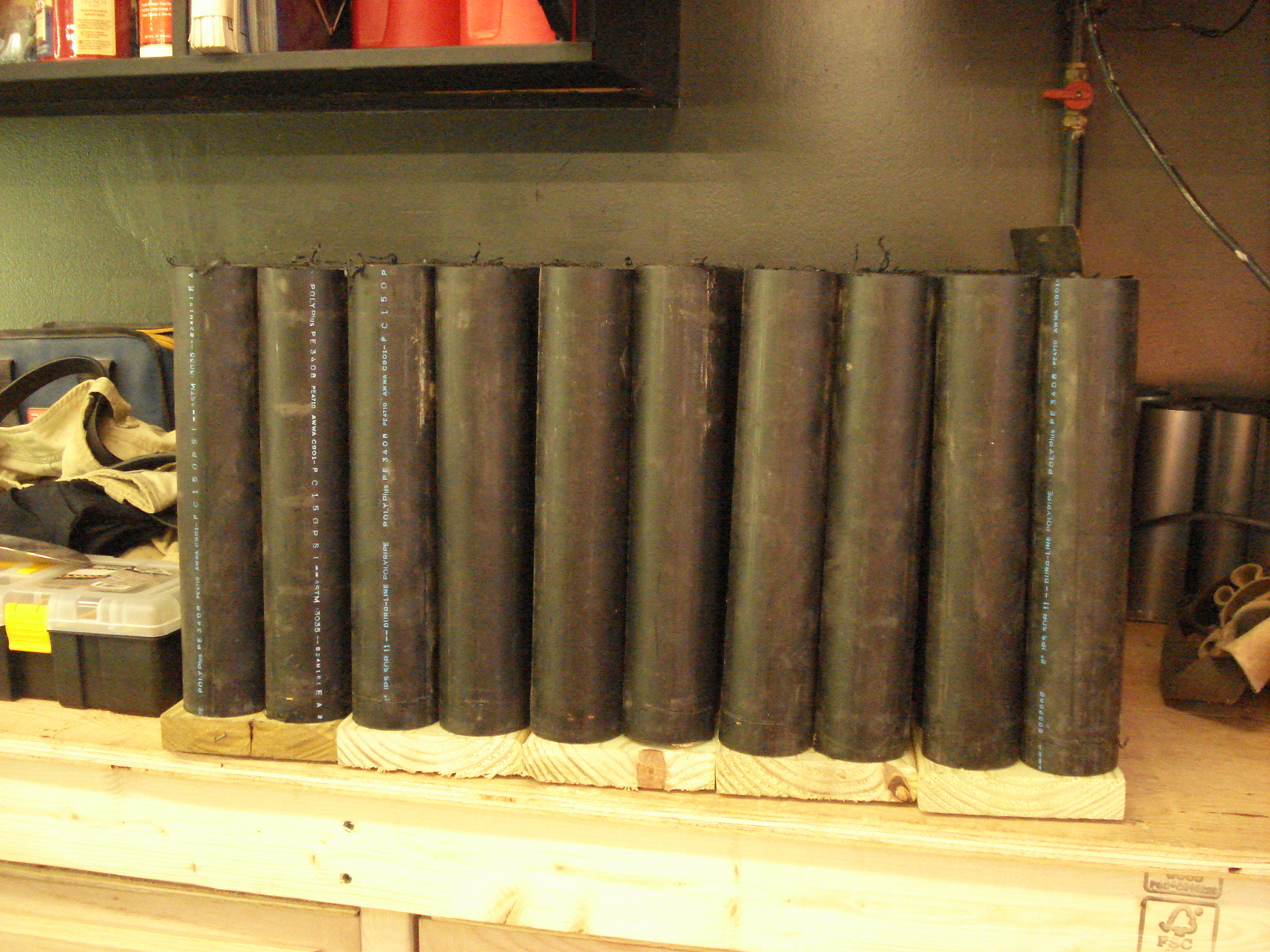

Pic (1) shows the finished mortar tube box.

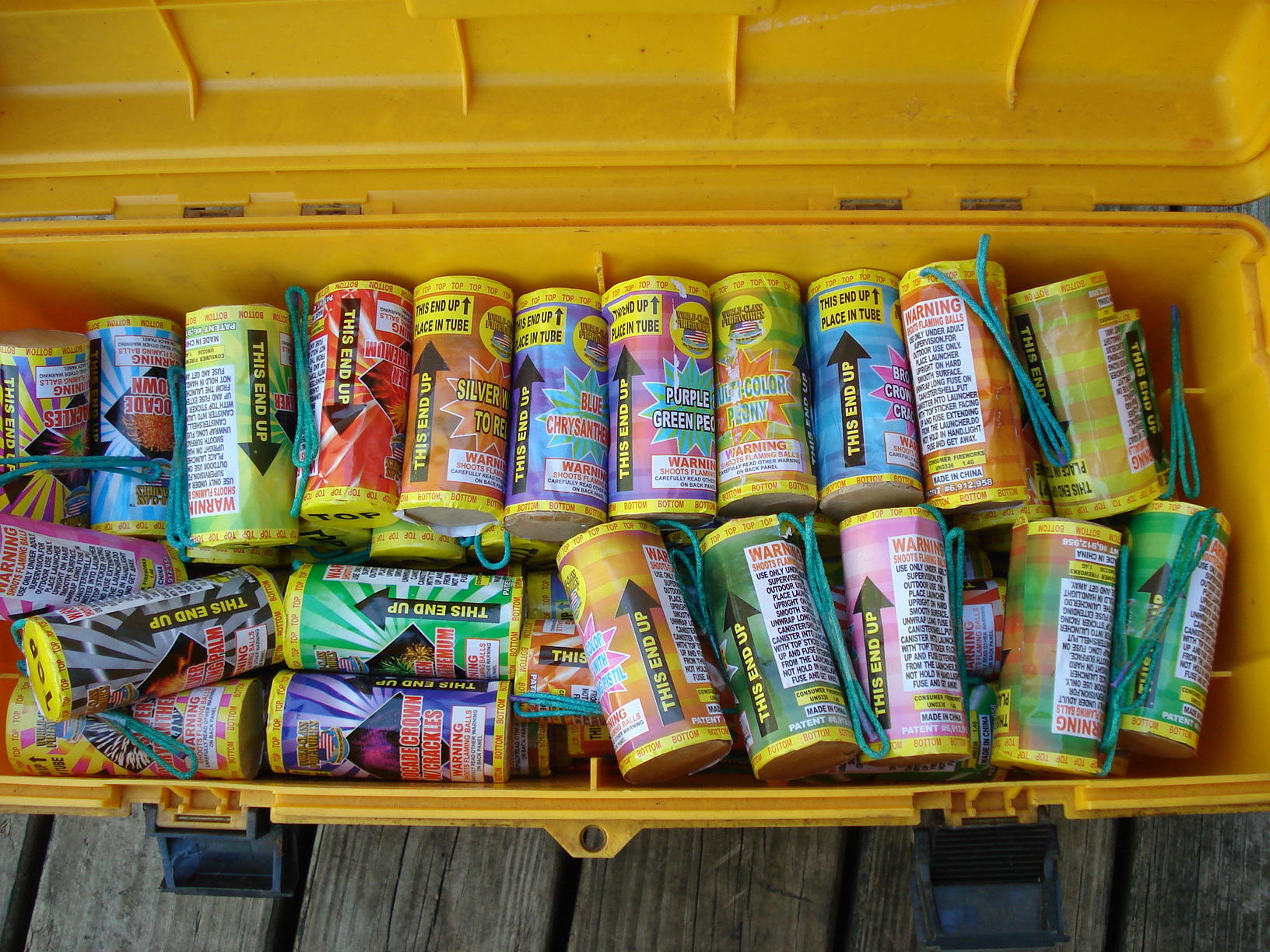

(2) Shows the 100 rounds of x-calibur mortars.
(3) 3 thru5 show the proper way in install the mortars in the tubes. Each mortar round has the word ( TOP) printed on the top of the round. * MAKE SURE THEY ALL GO IN THIS WAY SO YOU CAN SEE THE WORD TOP ON EACH ROUND AFTER YOU DROP THEM IN....
(2) Shows the 100 rounds of x-calibur mortars.
(3) 3 thru5 show the proper way in install the mortars in the tubes. Each mortar round has the word ( TOP) printed on the top of the round. * MAKE SURE THEY ALL GO IN THIS WAY SO YOU CAN SEE THE WORD TOP ON EACH ROUND AFTER YOU DROP THEM IN....
Wiring the Fuses Together

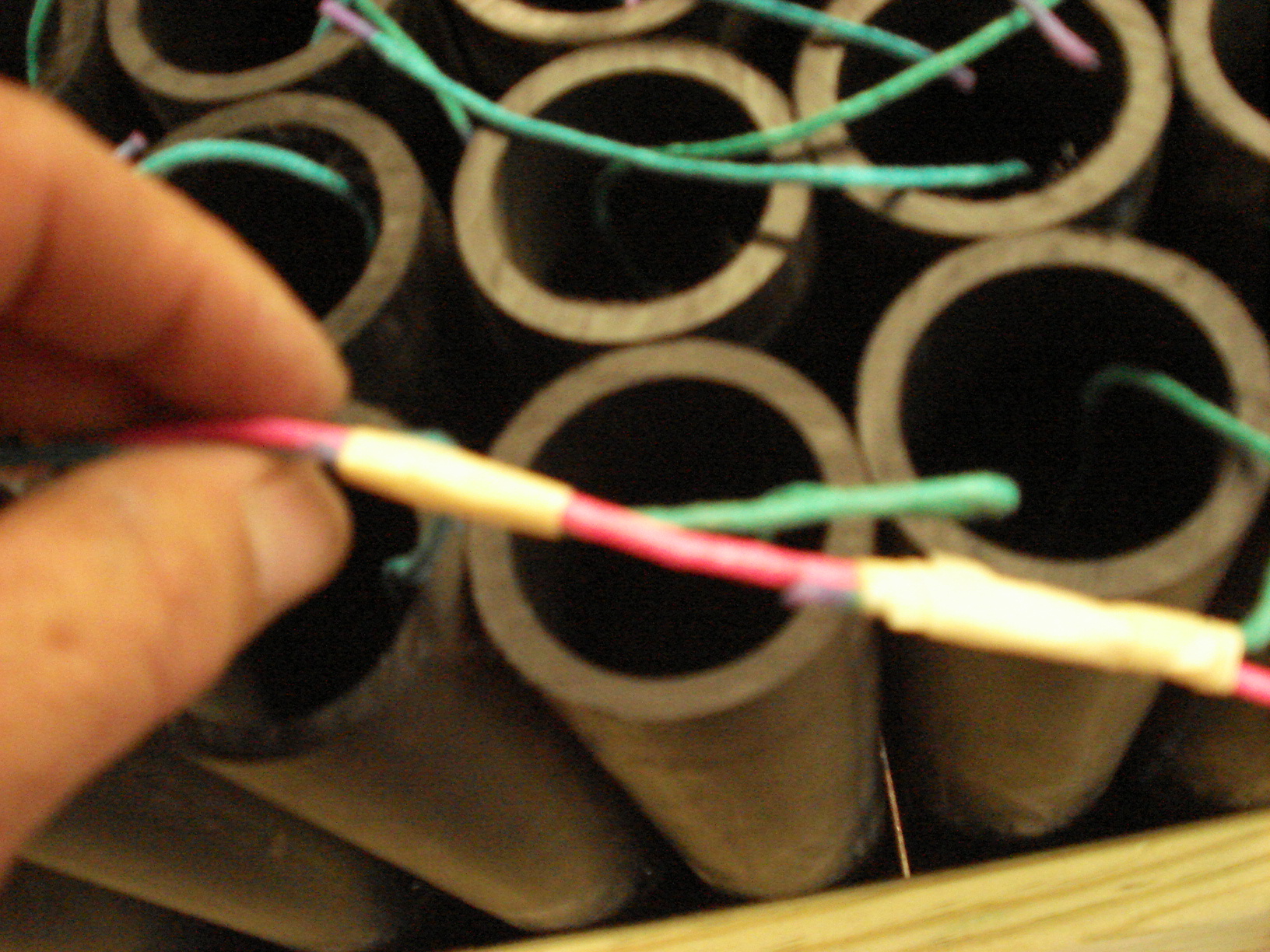

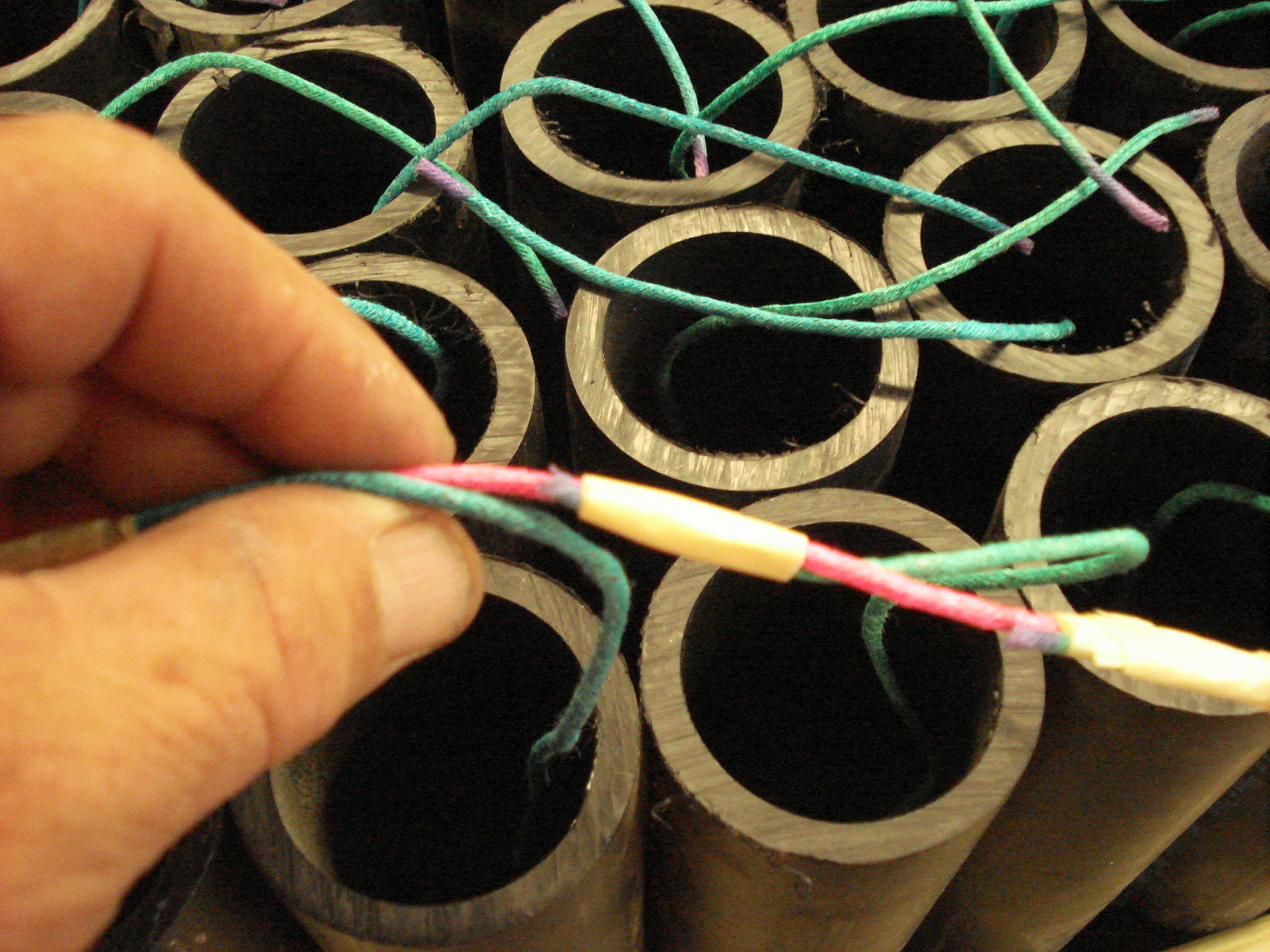

(1) I used 6 feet of the red fast fuse to wire all the mortars. Before you start wiring them together always snip the ends of all the mortar rounds at a 45 degree . Doing this leaves some of the gun powder exposed which will help to ensure each mortar round ignites.
(2) When wiring , Make sure you tape all the fuses coming from each mortar in the same direction that the flame is coming from.
(2) When wiring , Make sure you tape all the fuses coming from each mortar in the same direction that the flame is coming from.
