Wireless Qi Charger Laser or 3D-printed

Hi again! It is time for a new project, today im going to show you how to build your own wireless phone or smartwatch charger. I made one with a lasercutter and one with a 3D-printer.

Parts used:
USB-C cable - https://goo.gl/7oBfpQ
Wireless charging PCB- https://goo.gl/XDJSYz
9V fast charger - https://goo.gl/ms3LhZ
4 mm plywood
If your phone doesnt support wireless charging, you need one of these -https://goo.gl/p2eNft

Tools used:
Laserengraver K-40 - https://goo.gl/pcH5TX
Tevo tarantula 3D-printer - https://goo.gl/vxSLFA
Glue gun - https://goo.gl/tPHa6w

Videoinstructions

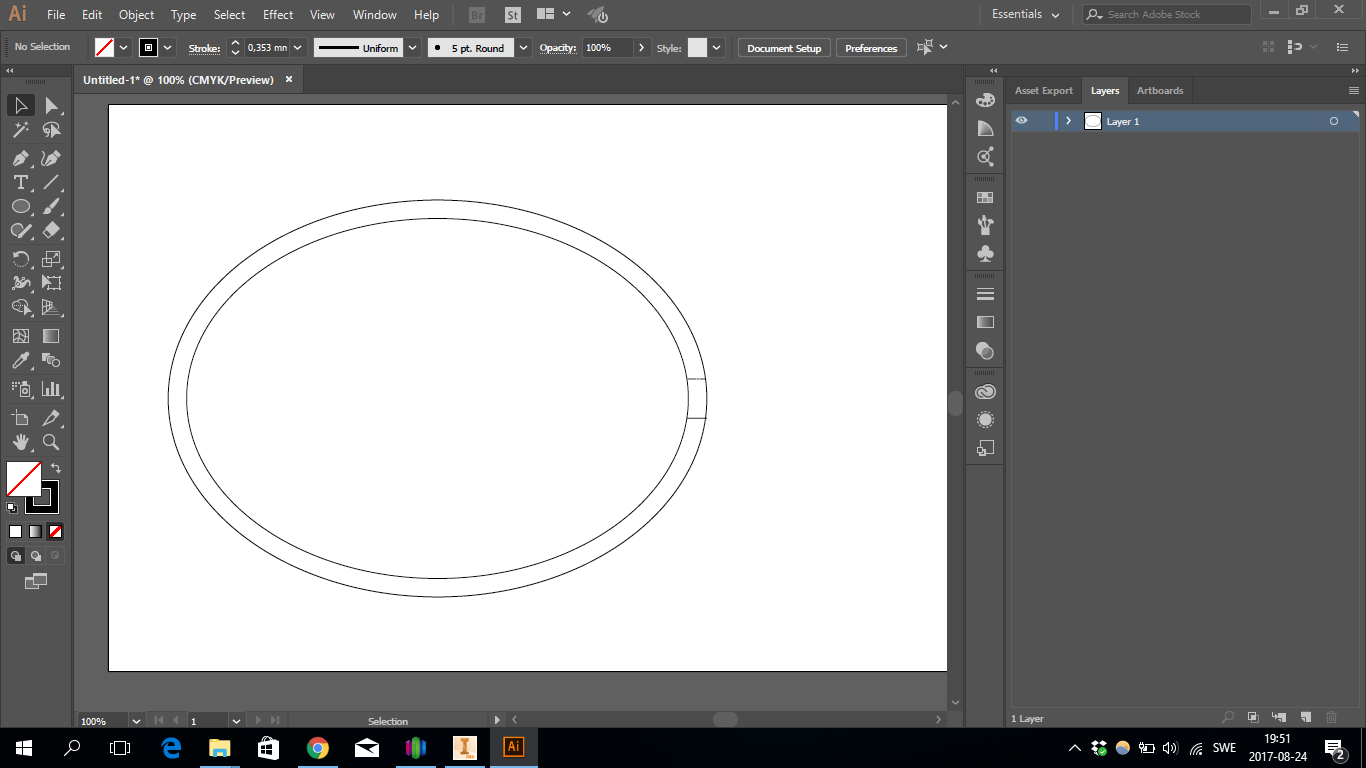

First i made the design in Adobe Illustrator and also a 3D-model of it.

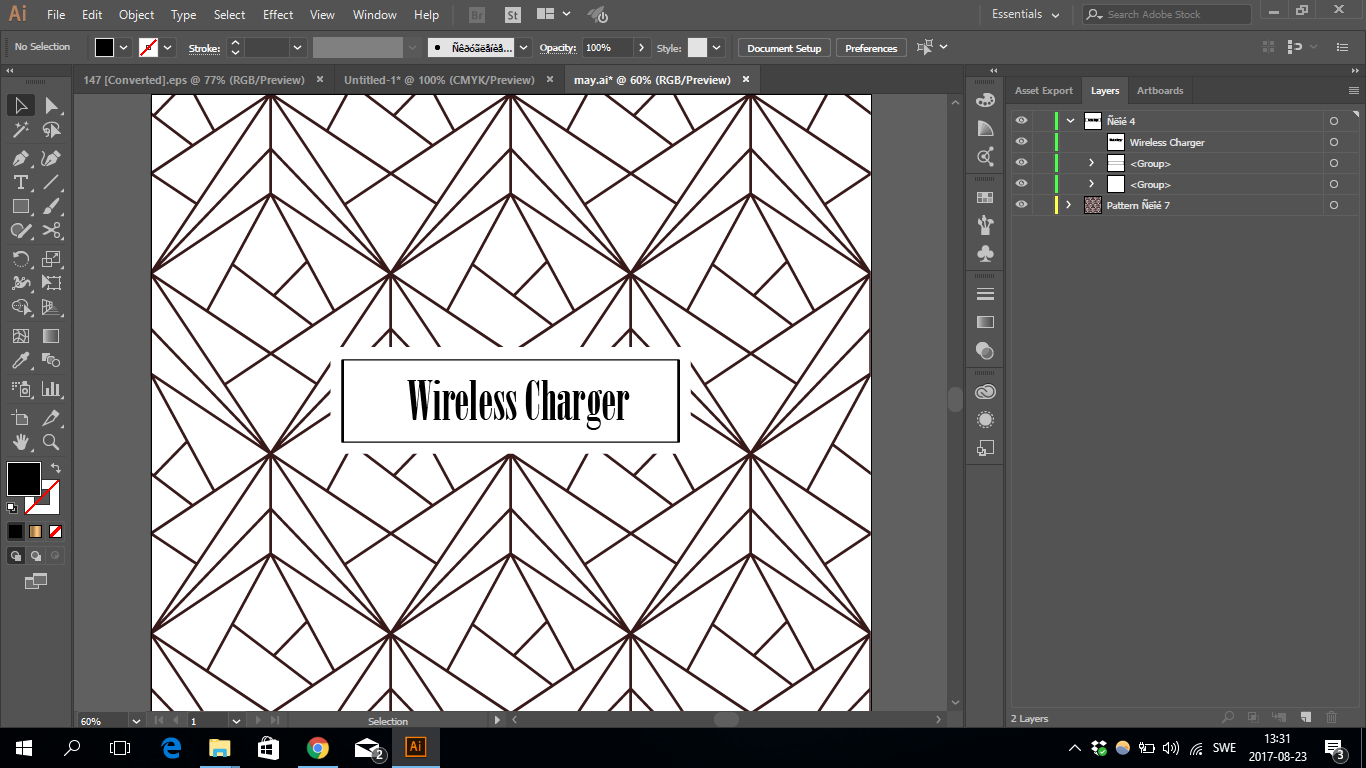

The Ai files can be downloaded. Just add your own pattern or engraving to the top part.

If you wish to 3d-print it here is the STL-files, you can also fin them at thingiverse.
https://www.thingiverse.com/thing:2499035
The bottompart is optional.

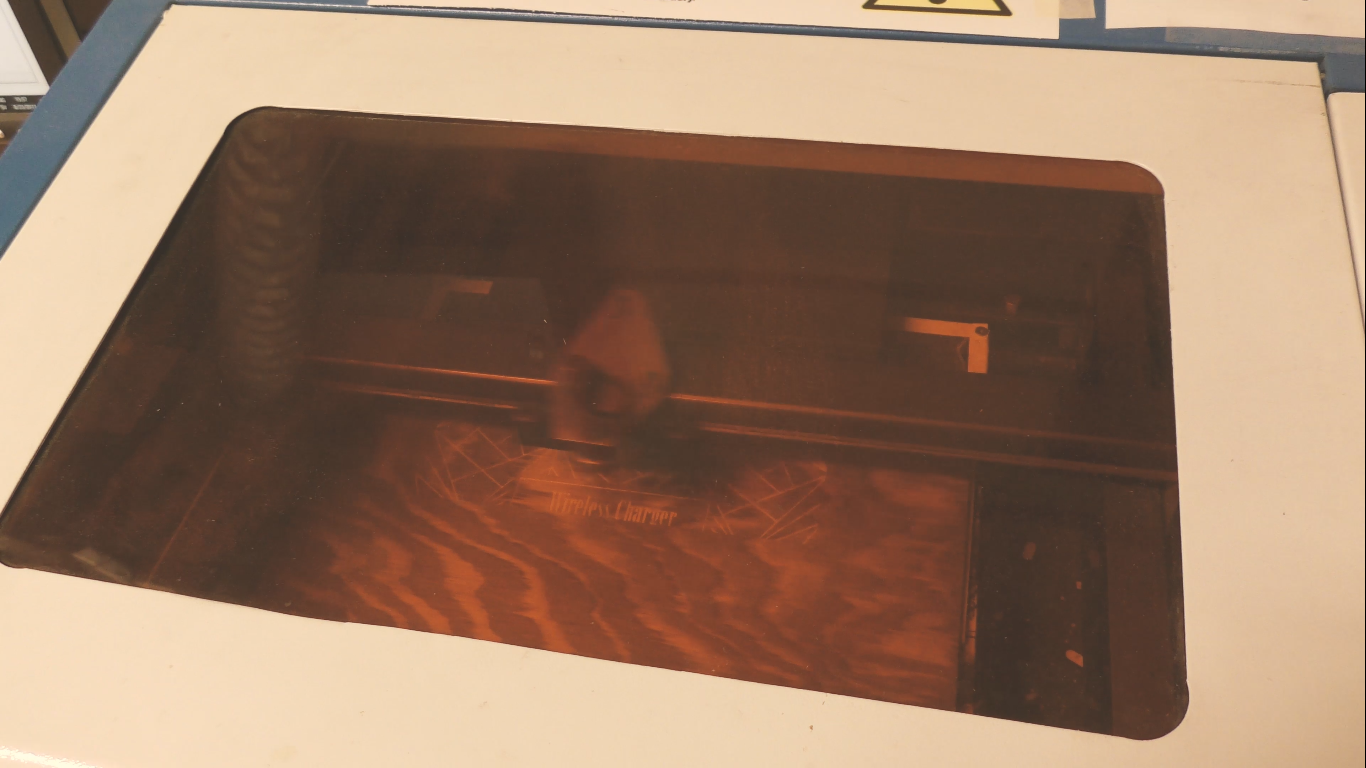

Then i lasercut the middle and bottomparts with the K40 Laserengraver.

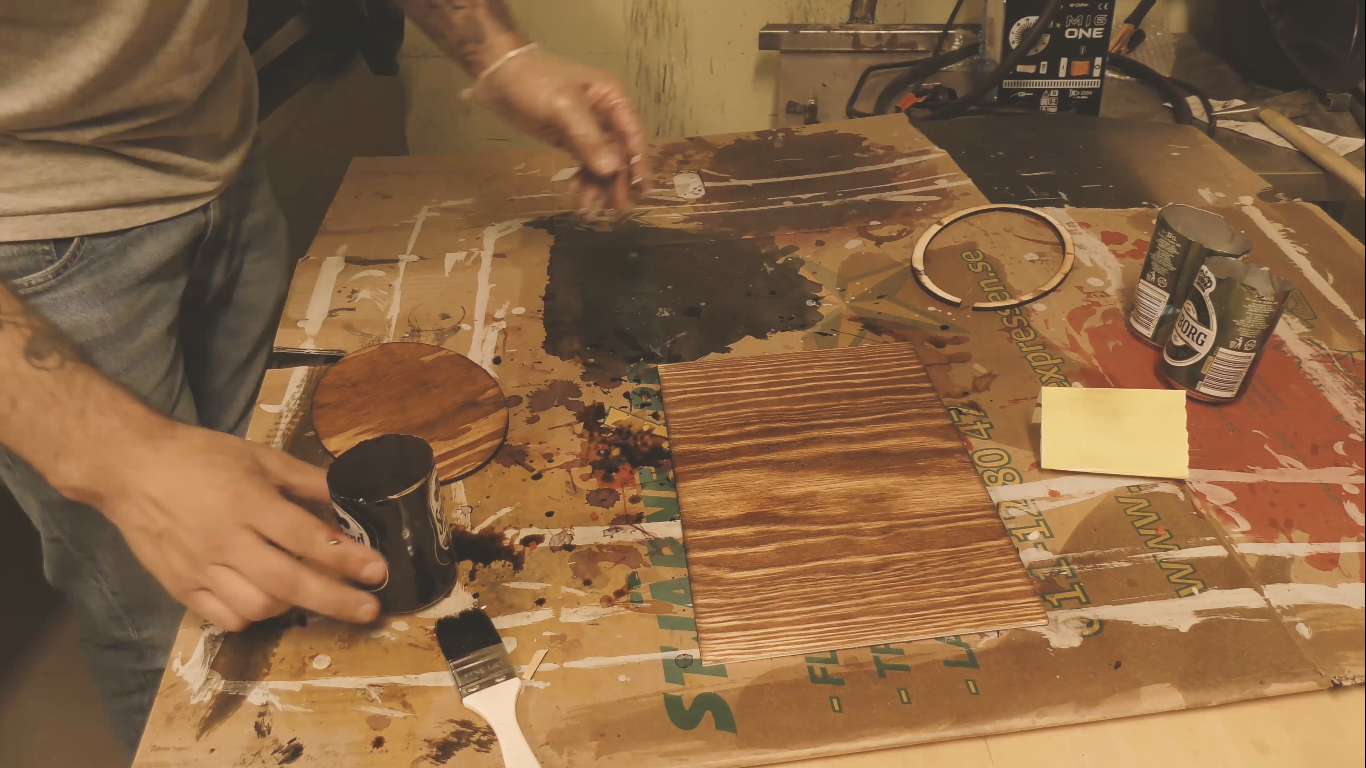

Before i cut and engraved the top part i stained the wood to make the engraving lighter than the dark patina the stain gives the wood. Waited about 30 minutes before i engraved the top part.

I used a mortise chisel to make the plywood top part to make the transmitter a little mer efficent.

Use PVA-glue for the bodyparts and a gluegun for the PCB components

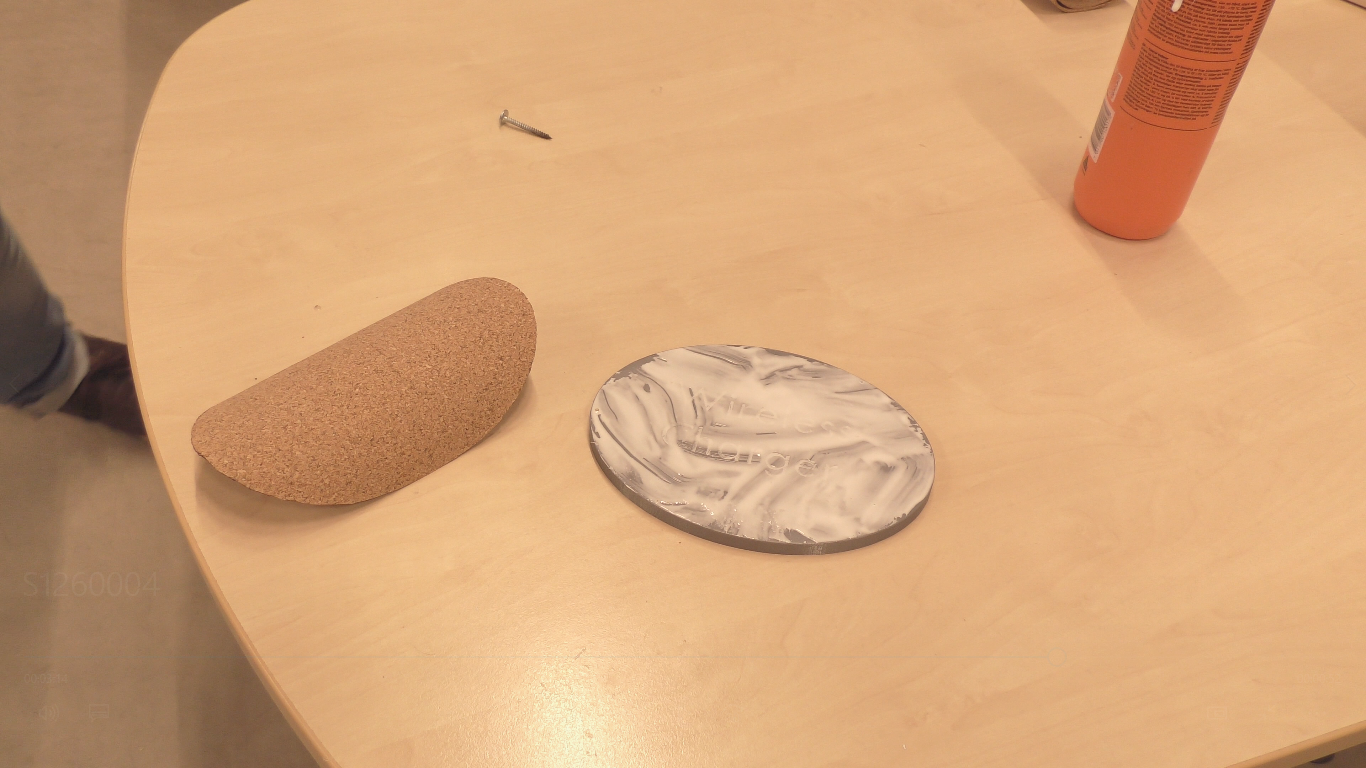

For the 3D-printed part i glued a corksheet on top of it to get rid of the plastic look (optional)

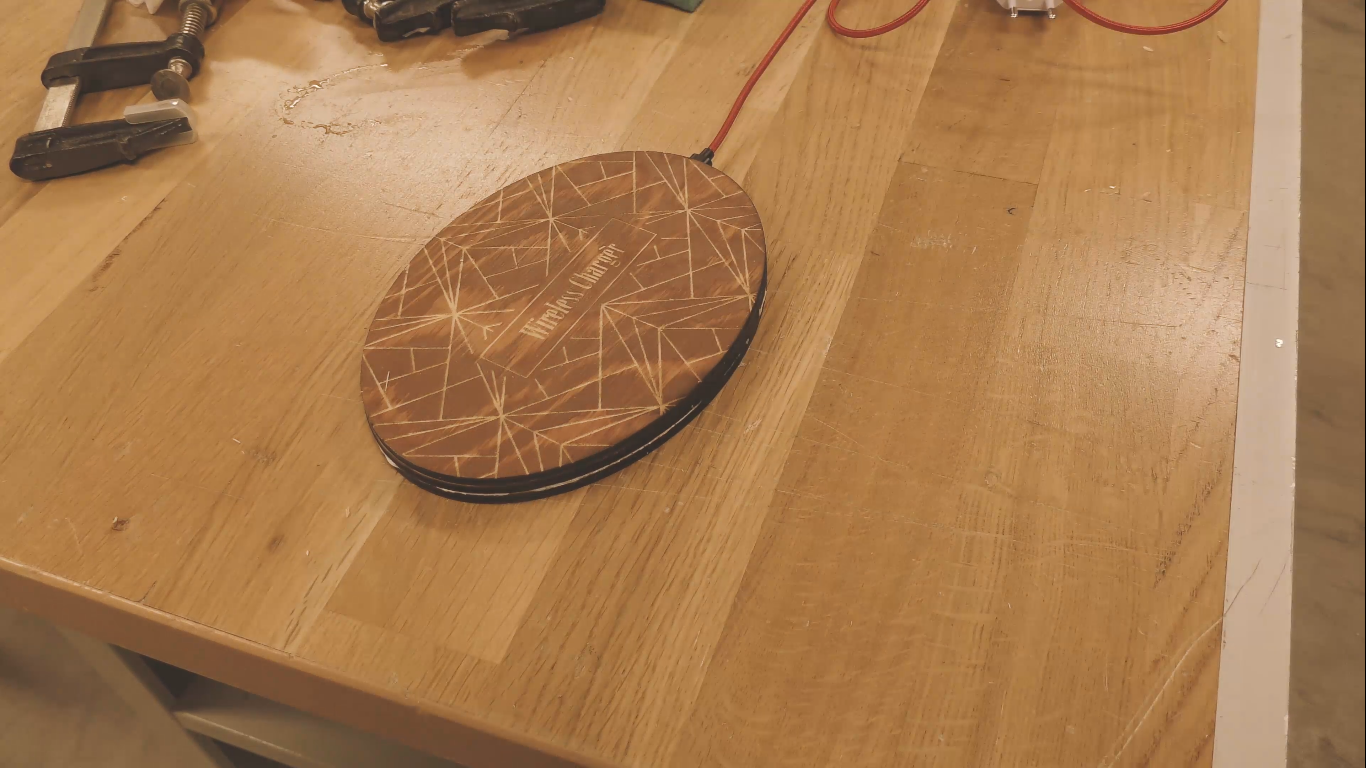

Now you got your own wireless charger with over-temprature protection and over-current protection.
