Wireless Doorbell Using Arduino and RF Module

These systems have features such as a camera, video recorder & it can be easily installed in any part of the house as it is totally wireless

Supplies

Hardware Components

RF module

Arduino Uno

Buzzer

Connecting wires

Breadboard

Push-button

About Project

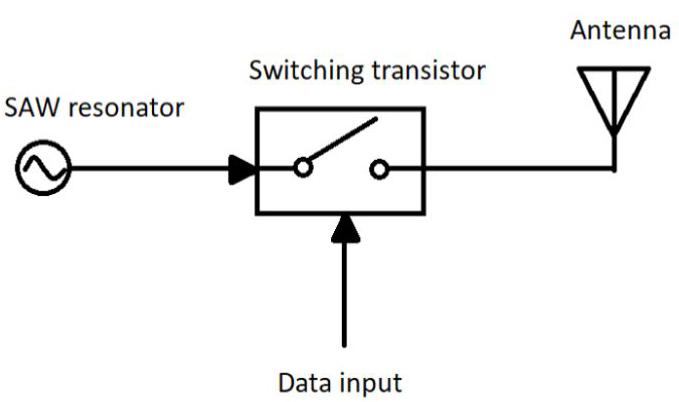

An RF module, which is a Radio Frequency module involves two modules, one which takes the data called the receiver and the one which sends the data called the transmitter.

Wireless Arduino Doorbell

The transmitter module, with the Arduino, is attached near the door and the receiver module with Arduino, can be placed in any part of the room. When someone drives the switch, it carries the high pulse to the 5th pin of Arduino, which is attached near the door along with the transmitter module. When this pin becomes HIGH, Arduino sends data via the transmitter and these signals are initiated by the receiver. The Arduino, which is attached to a buzzer, reads these signals and when the data is received.

Receiver Circuit

An RF tuner is utilized to tune the circuit to a specific frequency, which requires meeting the transmitted frequency. An amplifier circuit is utilized to increase a specific frequency from all other signals and to improve the sensitivity of the specific frequency.

IoT Training Online will give you a thorough view of such IoT Modules.

Run a Program

Doorbell Transmitter Code // ask_transmitter.pde // -*- mode: C++ -*- // Simple example of how to use RadioHead to transmit messages // with a simple ASK transmitter in a very simple way. // Implements a simplex (one-way) transmitter with an TX-C1 module #include #include // Not actually used but needed to compile RH_ASK driver; // RH_ASK driver(2000, 2, 4, 5); // ESP8266 or ESP32: do not use pin 11 void setup() { Serial.begin(9600); // Debugging only pinMode(5,INPUT); if (!driver.init()) Serial.println("init failed"); } void loop() { if(digitalRead(5)==HIGH){ const char *msg = "a"; driver.send((uint8_t *)msg, strlen(msg)); driver.waitPacketSent(); delay(200); } } Doorbell Receiver Code #include #include // Not actualy used but needed to compile #include "pitches.h" //add Equivalent frequency for musical note #include "themes.h" //add Note vale and duration RH_ASK driver; void setup() { Serial.begin(9600); // Debugging only if (!driver.init()) Serial.println("init failed"); else Serial.println("done"); } void Play_Pirates() { for (int thisNote = 0; thisNote < (sizeof(Pirates_note)/sizeof(int)); thisNote++) { int noteDuration = 1000 / Pirates_duration[thisNote];//convert duration to time delay tone(8, Pirates_note[thisNote], noteDuration); int pauseBetweenNotes = noteDuration * 1.05; //Here 1.05 is tempo, increase to play it slower delay(pauseBetweenNotes); noTone(8); //stop music on pin 8 } } void loop() { uint8_t buf[1]; uint8_t buflen = sizeof(buf); if (driver.recv(buf, &buflen)) // Non-blocking { Serial.println("Selected -> 'He is a Pirate' "); Play_Pirates(); Serial.println("stop"); } }
