Wireless Call Bell

by jayakody2000lk in Circuits > Wireless

497 Views, 1 Favorites, 0 Comments

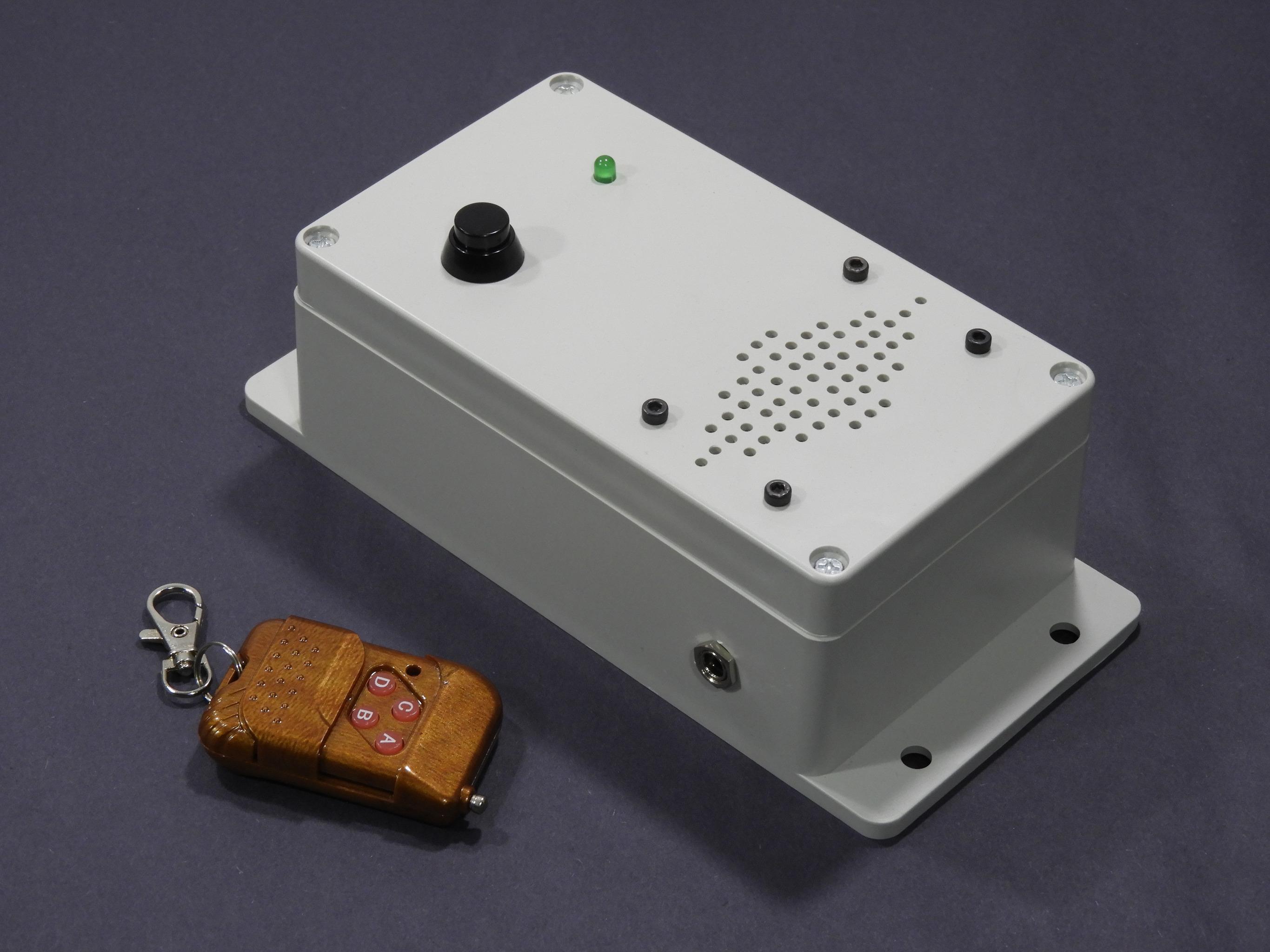

Wireless Call Bell


This project is about a wireless musical call bell. This circuit design uses only the 4000 series CMOS logical ICs, NE555, UM66, and TDA7233 audio amplifier IC. For the remote control, we use a 433MHz 4-channel remote control module. This circuit is designed to work continuously with a low-power external 5V power supply.

Printed Circuit Board


The PCB in this call bell is designed as a single-sided PCB. The dimension of the PCB is 82mm × 50mm.

All the components in this circuit are commonly available through-hole-type components.

Assembling the Circuit

Wireless Call Bell

The whole assembly process of this musical call bell is shown in the video attached to this section.

RF Module


The RF remote control module we use in this project consists of a remote control decoder and encoding IC. In our version, the transmitter (key fob) has a PT2262 encoder, and the receiver has a PT2272 decoder IC. In the prototype build, the receiver and transmitter are configured to use the default address code. To utilize different address codes, tie appropriate address pin(s) to the VCC or GND on both transmitter and receiver.

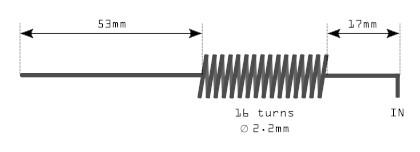

To improve the working distance of the receiver, we attach a small helical antenna to the receiving module. This antenna is constructed using a 22 S.W.G telephone wire, and its dimensions are shown in the attached image.

Enclosure

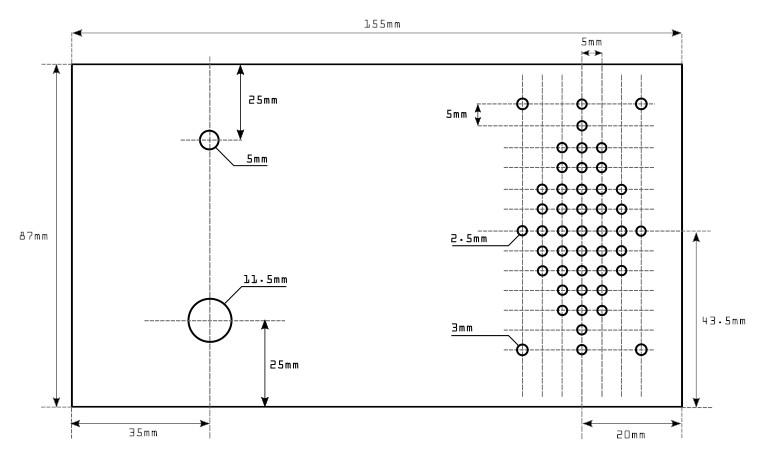

For the housing, we use a 196mm × 90mm × 60mm ABS project box. The drilling layout for the enclosure is shown in the attached image.
