WireLess Headphones

I use for this DIY:

Bluetooth reciver

Nokia battery

Type-C female connector

Li-ion charging board

Small switch

Wires

Soldering iron

Rosin

Solder

Scalpel

Cutters

Dremel

Gasoline galoshes

Toothbrush

Glue Gun

1. Wet the toothbrush in gasoline galoshes and lubricate between the housing and the ear cushion.

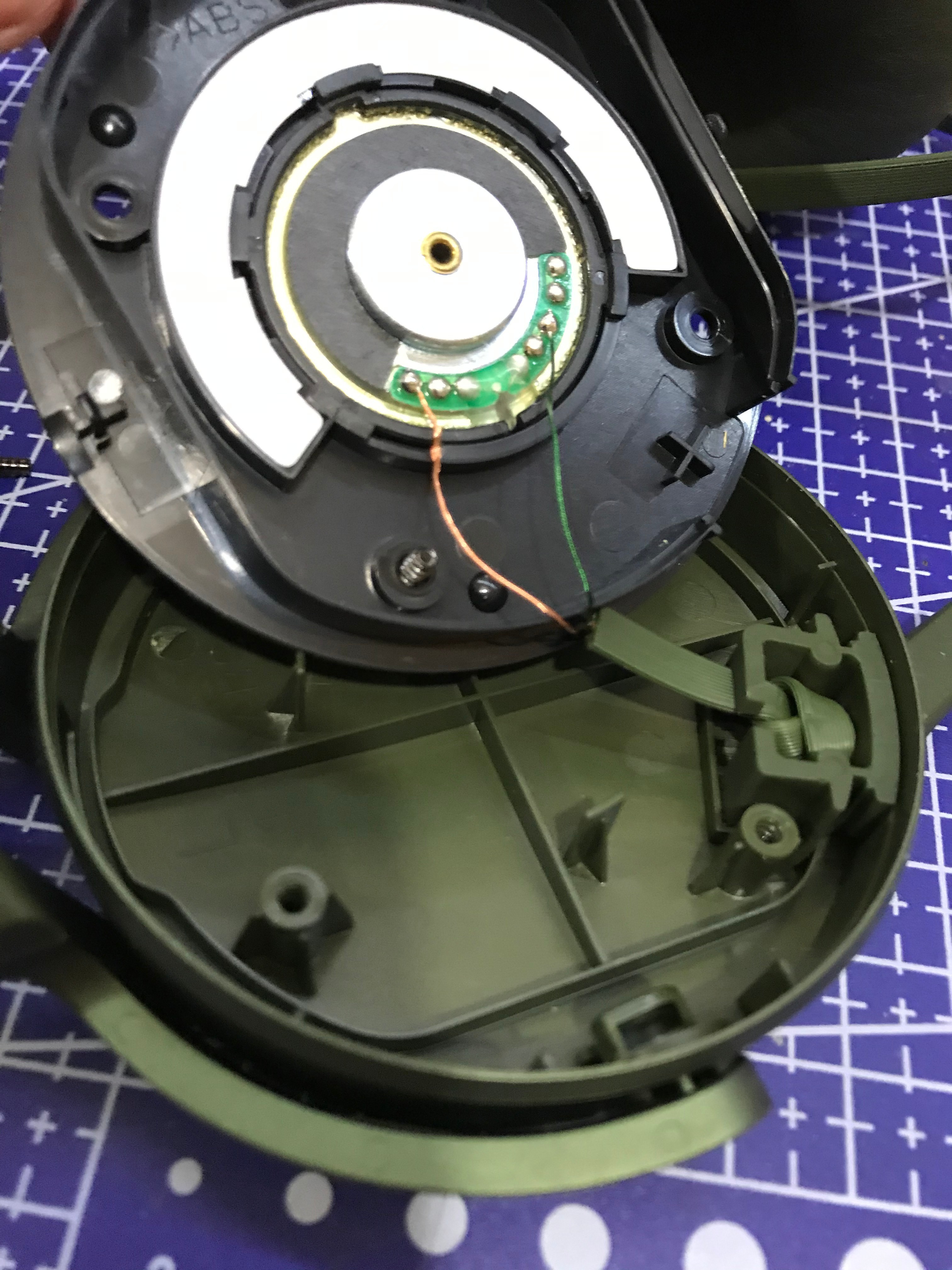

2. Unscrew 4 screws.

3. Share it on 2 pices via round pliers.

4. Solder out 2 wires from speaker.

5. Disassemble the rotary mechanism and arc.

Do this on both sides!!!

1. Cut ribs of rigidity on both sides

2. Made a hole for Type-C via scalpel on left side.

3. Hole for switch on right side.

4.Make incisions for wires. (ON BOTH SIDES)

Draw 4 core wire through the arc and assambly the phones.

Soldering all by the scheme.

Glue whatever hangs and assembly it back

Battery capacity around 800mah

Power consumption 50-70ma

Duration of listening around 13 hours
