Wire Harvester Box Using Corrugated Box

We DIYers use bread board to test small circuits or sometime we even make wire wrap board for larger circuit. what about thoes wire that are of no use. My Idea is of reusing thoes waste wire by harvesting them rather then throwing away

materials

1) corrugated box

2) nut and bolts

tools

1) Paper glue

2) Drill bit

3) scale

4) knife

get a corrugated box of atleast dimention 40 X 30 X 11 cm dimention or above.

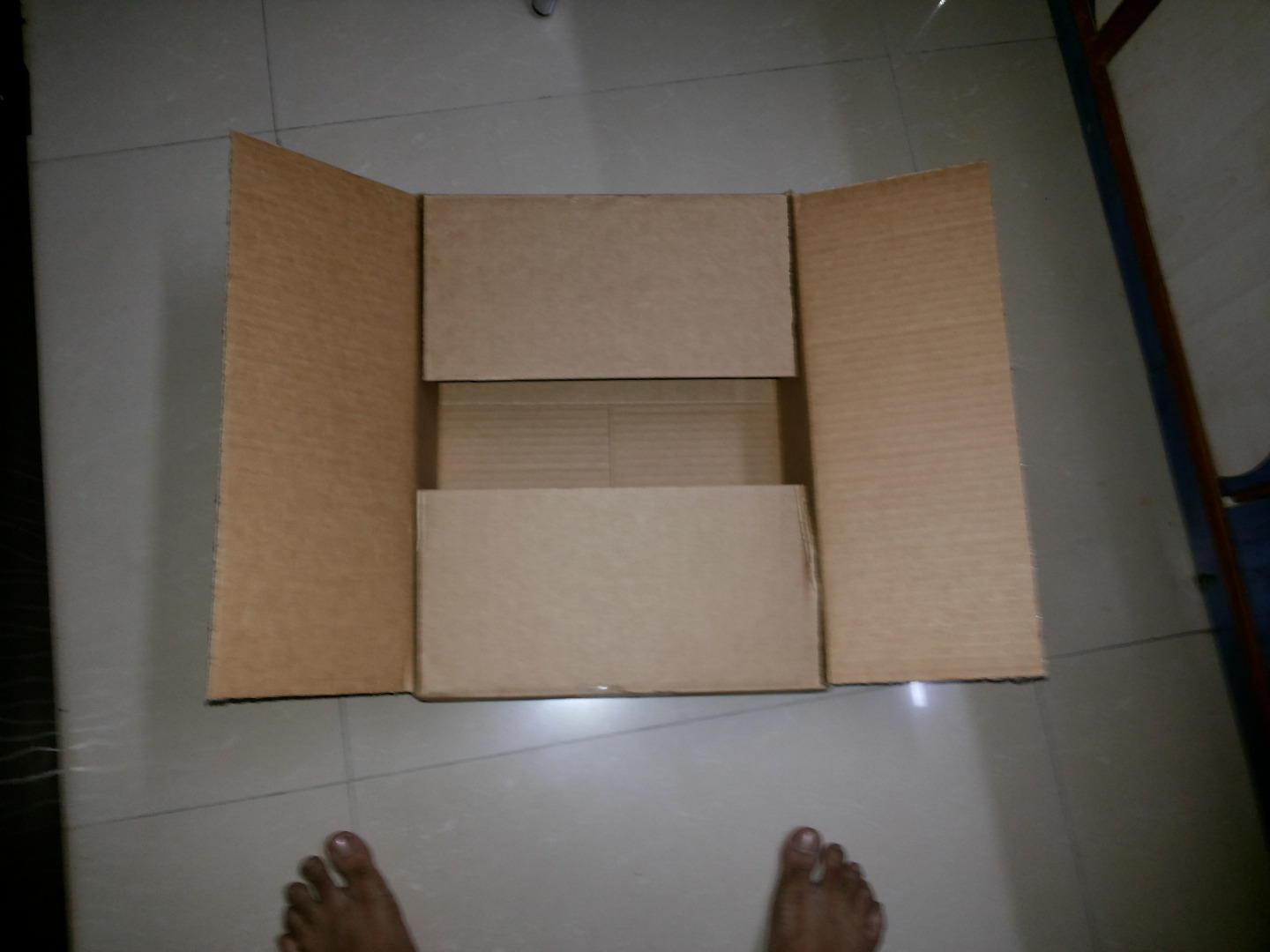

cut the smaller edge plate that has length of 30 cm from both the side to get two edge plate

follow the above step for the backside also to get two more edge plates.

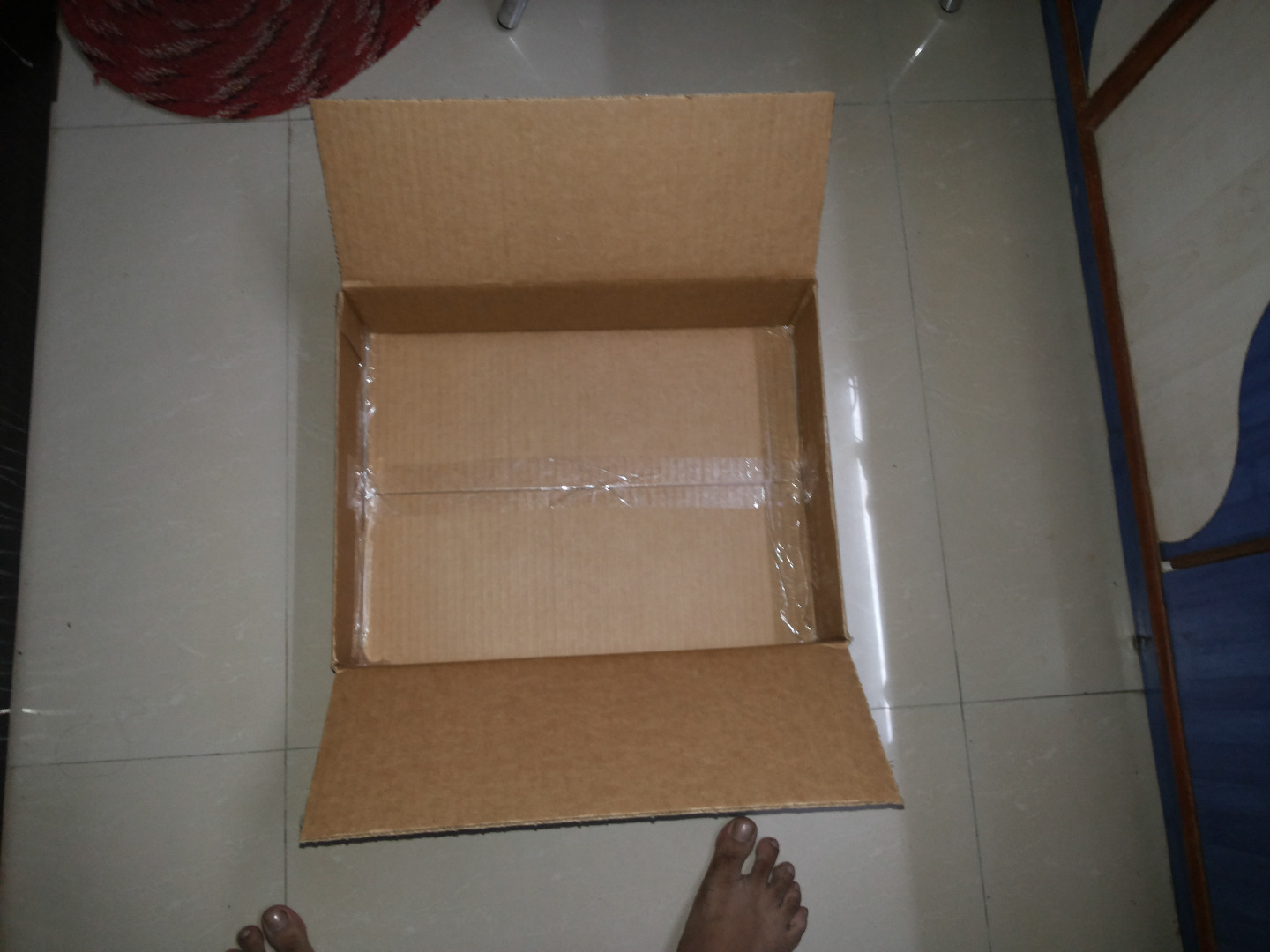

connect the corner plate of the corrugated box from inside using cello tape of one side as shown in figure

connect the corner plate of the same side using cellotape from out side

cut the four car board plate of dimention 28 X 10 cm so that it can fixed inside the box without any force

In this step divide the inner space in foure equal haves and then glue the cardboard plate as a divider as shown above

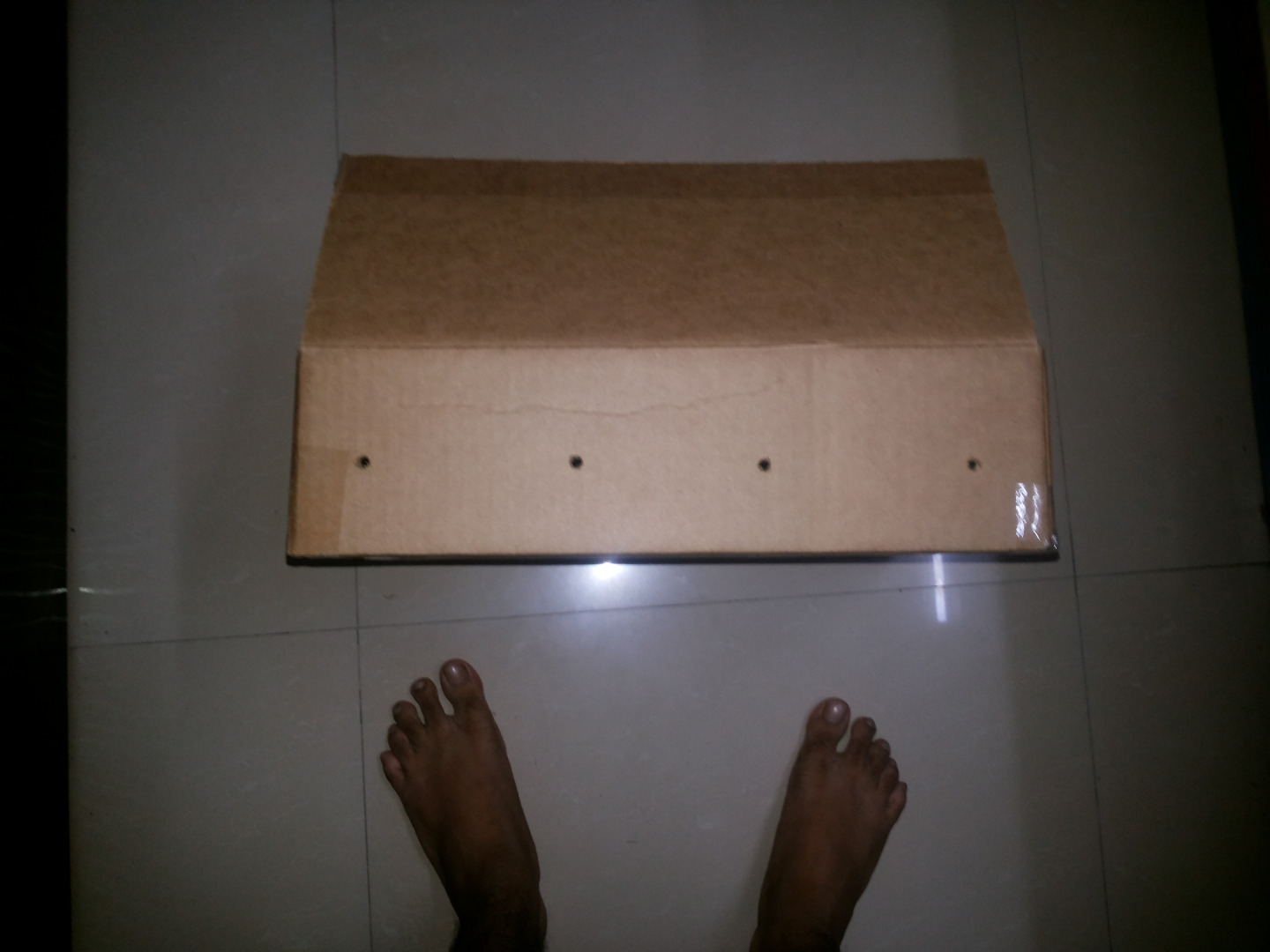

drill each holes for each divided space larger enough that a wire can drop in with out any force

in this step you need to make 4 latch plate using the one cardboard plate left

connect the latch plate using screw and bolt easy enough to move so that the box can be close using latch plate

connect 4 sticker of different colour of the wire that you want to feed in the space
