Winterize Your Shoes - DIY CRAMPONS.
by Frankyfly in Outside > Snow
10818 Views, 55 Favorites, 0 Comments
Winterize Your Shoes - DIY CRAMPONS.
![882_3895.png](/proxy/?url=https://content.instructables.com/FU8/JIQN/GYGF8KJ2/FU8JIQNGYGF8KJ2.png&filename=882_3895.png)
After a recent snow storm, it was icy and slippery all over the roads and pathways. I came up with this simple idea to make some crampons. This is a cheep and easy to make project to be used whenever you need.
Materials and Tools.
![882_3897.png](/proxy/?url=https://content.instructables.com/FZN/BX5F/GYGES1S9/FZNBX5FGYGES1S9.png&filename=882_3897.png)
I used
- Aluminum bars.
-Rivets.
-Velcro bands.
Some tools are needed to make holes and ply the bars. Anyway use what you have in hand and your imagination ;-) .
- Aluminum bars.
-Rivets.
-Velcro bands.
Some tools are needed to make holes and ply the bars. Anyway use what you have in hand and your imagination ;-) .
Size & Dimensions.
![882_3880.png](/proxy/?url=https://content.instructables.com/FZQ/2L7G/GYGES1SM/FZQ2L7GGYGES1SM.png&filename=882_3880.png)
I used my own shoes for reference to size the metal bars, so mark the length on the bars and cut two of them.
Holes for the Rivets.
![882_3882.png](/proxy/?url=https://content.instructables.com/FSU/USNN/GYGGN4EU/FSUUSNNGYGGN4EU.png&filename=882_3882.png)
![882_3883.png](/proxy/?url=https://content.instructables.com/FBQ/HY2W/GYGF8L3B/FBQHY2WGYGF8L3B.png&filename=882_3883.png)

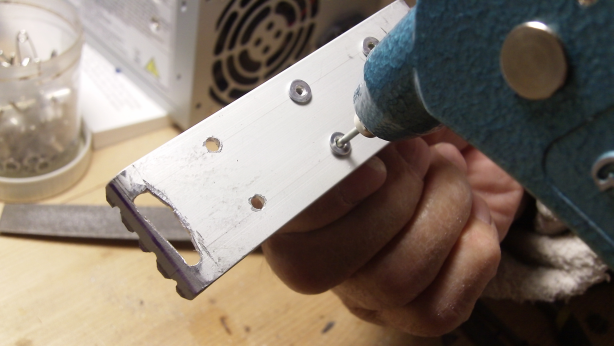

Make few holes to fix the rivets to the bars.
![882_3884.png](/proxy/?url=https://content.instructables.com/F4G/ZYFH/GYGES690/F4GZYFHGYGES690.png&filename=882_3884.png)
![882_3885.png](/proxy/?url=https://content.instructables.com/FGG/NV9E/GYGGIXIR/FGGNV9EGYGGIXIR.png&filename=882_3885.png)

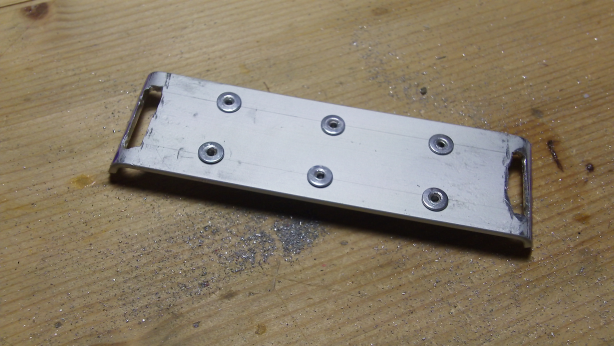

Now bend the bars at both ends and use a file to make some indents to increase the grip on the ice
![882_3888.png](/proxy/?url=https://content.instructables.com/FUC/DXL7/GYGGN4XY/FUCDXL7GYGGN4XY.png&filename=882_3888.png)
![882_3886.png](/proxy/?url=https://content.instructables.com/F85/FXS9/GYGGIXIS/F85FXS9GYGGIXIS.png&filename=882_3886.png)
![882_3887.png](/proxy/?url=https://content.instructables.com/FMY/4S7D/GYGF8P1D/FMY4S7DGYGF8P1D.png&filename=882_3887.png)
Now comes the tricky part. You need to make some slits at the ends of the bars for the passing velcro bands. I did this before putting the rivets on.
![882_3898.png](/proxy/?url=https://content.instructables.com/FNW/V7H2/GYH33I4S/FNWV7H2GYH33I4S.png&filename=882_3898.png)
![882_3893.png](/proxy/?url=https://content.instructables.com/F31/ZT2U/GYGES6AL/F31ZT2UGYGES6AL.png&filename=882_3893.png)
Now pass both the velcro belts (hook and loops) trough the slits and fasten each other underside the bars between the rivets. I had to mold and shape them a bit with a solder to fit among the rivets.
![882_3900.png](/proxy/?url=https://content.instructables.com/FSJ/9RJY/GYGGIXIZ/FSJ9RJYGYGGIXIZ.png&filename=882_3900.png)
![882_3901.png](/proxy/?url=https://content.instructables.com/FKV/MF6F/GYGGN4Y8/FKVMF6FGYGGN4Y8.png&filename=882_3901.png)
![882_3894.png](/proxy/?url=https://content.instructables.com/F4H/TBFR/GYGF8P2O/F4HTBFRGYGF8P2O.png&filename=882_3894.png)
![882_3896.png](/proxy/?url=https://content.instructables.com/FG2/YI1J/GYGGIXJ2/FG2YI1JGYGGIXJ2.png&filename=882_3896.png)
![882_3895.png](/proxy/?url=https://content.instructables.com/F2E/APM4/GYGGIXJ3/F2EAPM4GYGGIXJ3.png&filename=882_3895.png)
You have done !!
Secure your new cheep crampons to your shoes or bring them with you and have a secure walk on the ice.
P.S.: sorry for my English. I did my best to to explain what and how I did it. ;-).
