Wing Tip Glider
![plane.png](/proxy/?url=https://content.instructables.com/FYR/11IE/LMS0FQNV/FYR11IELMS0FQNV.png&filename=plane.png)
I am a Grandview Preparatory School Student. I am in 7th grade and I made a glider that has specially improved stability for flying in windy weather. Due to limited access to Fusion 360, I made some of the project in Tinkercad
Supplies
- 3D printer filament
- 3D printer
- Sandpaper
- Sharp pliers
- Computer
Make the Body
![Screenshot 2023-09-22 at 1.01.06 PM.png](/proxy/?url=https://content.instructables.com/FZJ/Z2WS/LMUM50RK/FZJZ2WSLMUM50RK.png&filename=Screenshot 2023-09-22 at 1.01.06 PM.png)
Starting in Tinkercad, I used a cylinder with a circumference of 22mm. with a length of 174mm (you can use any scale you like). After that is done, add a dome to the back, and a cone to the front. Export for later.
Add the First Wing
![Screenshot 2023-09-22 at 1.14.48 PM.png](/proxy/?url=https://content.instructables.com/FWF/OV3C/LN0BV9ML/FWFOV3CLN0BV9ML.png&filename=Screenshot 2023-09-22 at 1.14.48 PM.png)

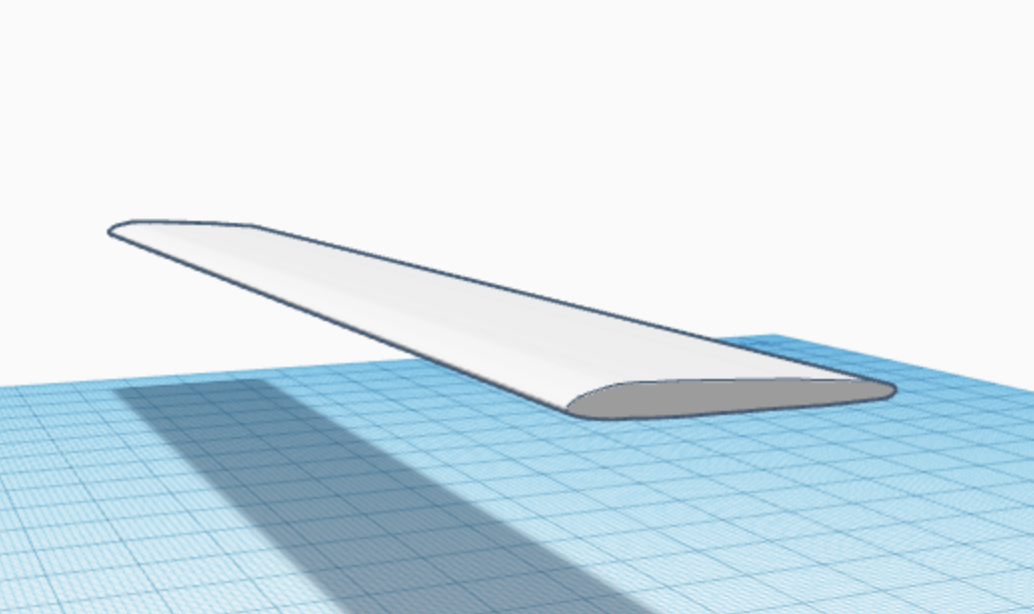

Draw a wing with the drawing tool in Tinkercad rounded in the front and flat in the back. Start small and scale bigger.
Making the Wings
![image 2.png](/proxy/?url=https://content.instructables.com/F7X/DWCJ/LN36R7H6/F7XDWCJLN36R7H6.png&filename=image 2.png)
Move to Fusion 360. Insert this image into tinkercad draw one wing, copy that wing 4 times, and size to the scale you like, or the scale your printer can print to.
Bring It Together
![all.png](/proxy/?url=https://content.instructables.com/FON/IODT/LN0BVAJE/FONIODTLN0BVAJE.png&filename=all.png)

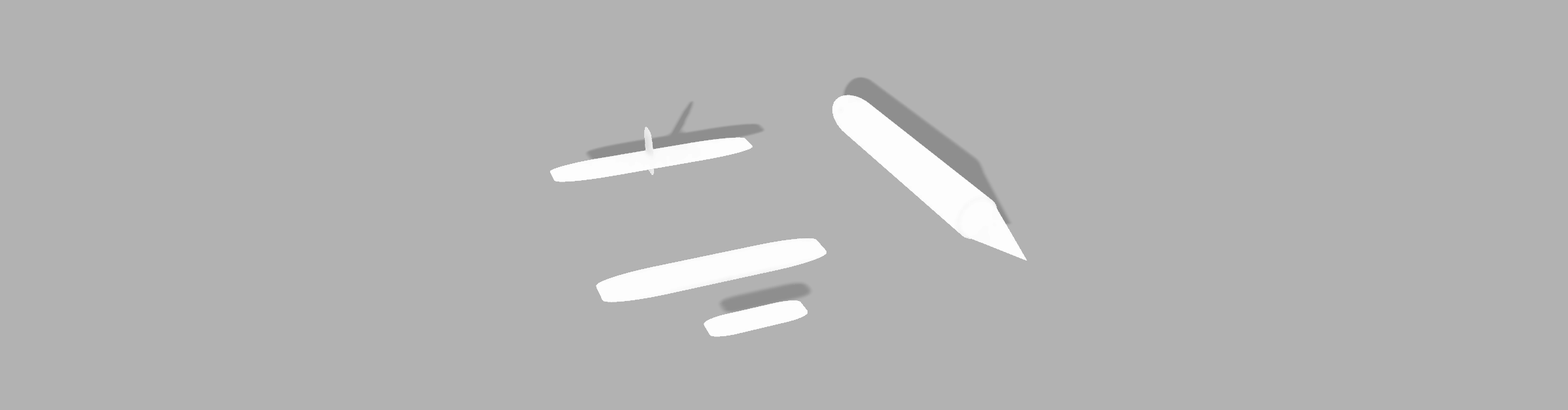

Import the body and main wing to the project. you can do this using insert mesh.
Building the Glider
![Screenshot 2023-09-20 at 12.40.43 PM.png](/proxy/?url=https://content.instructables.com/FX2/QQU1/LN0BVB46/FX2QQU1LN0BVB46.png&filename=Screenshot 2023-09-20 at 12.40.43 PM.png)
Join everything together. Then center the wings and main wing.
You Did It
If you want you can skip the process and download the file below.
