Wine Bottle Edison Bulb Lamp

by Schaf77 in Workshop > Lighting

33560 Views, 446 Favorites, 0 Comments

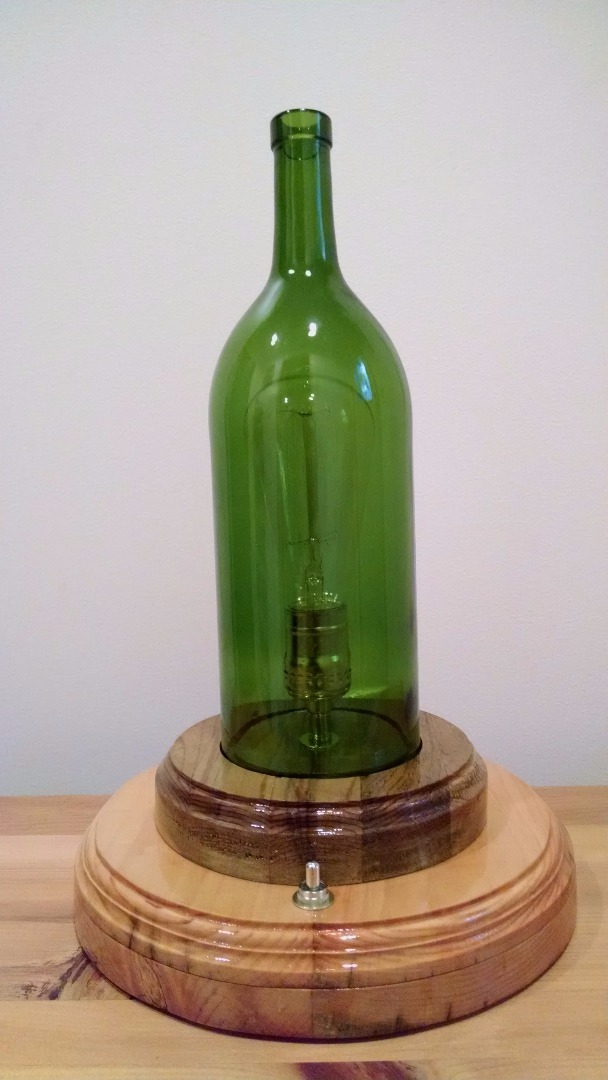

Wine Bottle Edison Bulb Lamp


This instructable shows you how to make a vintage Edison bulb lamp using a wine bottle. A note on the wine bottle: This is a large wine bottle with a diameter of 4''.

Materials

1. Wood - 1st circular piece is 6" in diameter, 2nd and 3rd circular pieces are 9" in diameter, and the wood is pine.

2. Wood glue and clamps - If you have to attach wood planks together to make your base.

3. Four wood screws - Attaching the circular pieces of the base together.

4. Replacement lamp cord

5. Keyless lamp socket (ACE Hardware)

6. Westinghouse Two 1/8-IP Polished Brass Couplings (Home Depot)

7. Westinghouse 6 Assorted Brass-Plated Steel Nuts and Washers (Home Depot)

8. 1/8-IP size nipple (I got an assortment of 8 from Home Depot)

9. Large wine bottle (mine is 4" in diameter)

10. Gardner Bender 10/8/4-Amp Single-Pole Maintained Contact Push-Button Switch- Nickel plating (Home Depot)

11. Lutron Credenza 300-Watt Plug-In Lamp Dimmer (Home Depot)The dimmer is OPTIONAL. Since I was using a vintage bulb, I wanted the ability to dim it which gives a cool warm effect.

12. Electrical tape

13. Hot glue gun

14. Sealant for the wood (I used gloss spar varnish from ACE Hardware)

15. Vintage style light bulb (I used this one from the Home Depot)

Obtain and Cut Your Wine Bottle


Obtain your wine bottle, remove the label, and cut the base off. I just peel the labels off and any sticky residue is removed with goo gone. Next, cut the base off of your bottle. The picture shows the bottle I used. It is one of those larger wine bottles with a diameter of about 4". For some reason I cut this bottle before removing the label, but it still worked. For info on cutting glass bottles, see my instructable.

Make Your Base


If you have to, glue and clamp together the wood you want to use as a base. My base consists of three pieces of wood. Note, this is wood I had on hand. I did not go out and purchase this wood specifically for this project. This is why the first base is thicker than the second and third pieces of wood.

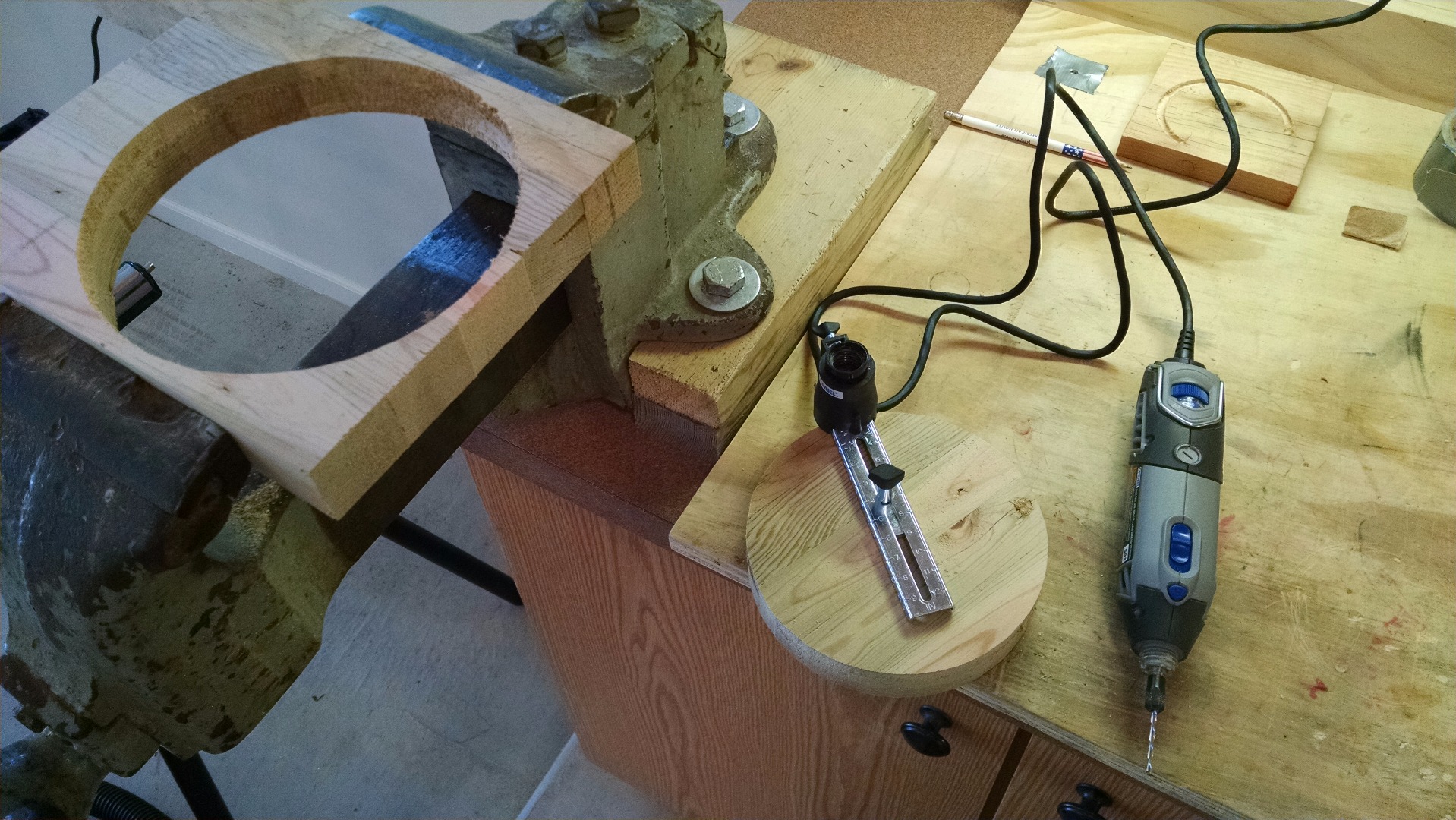

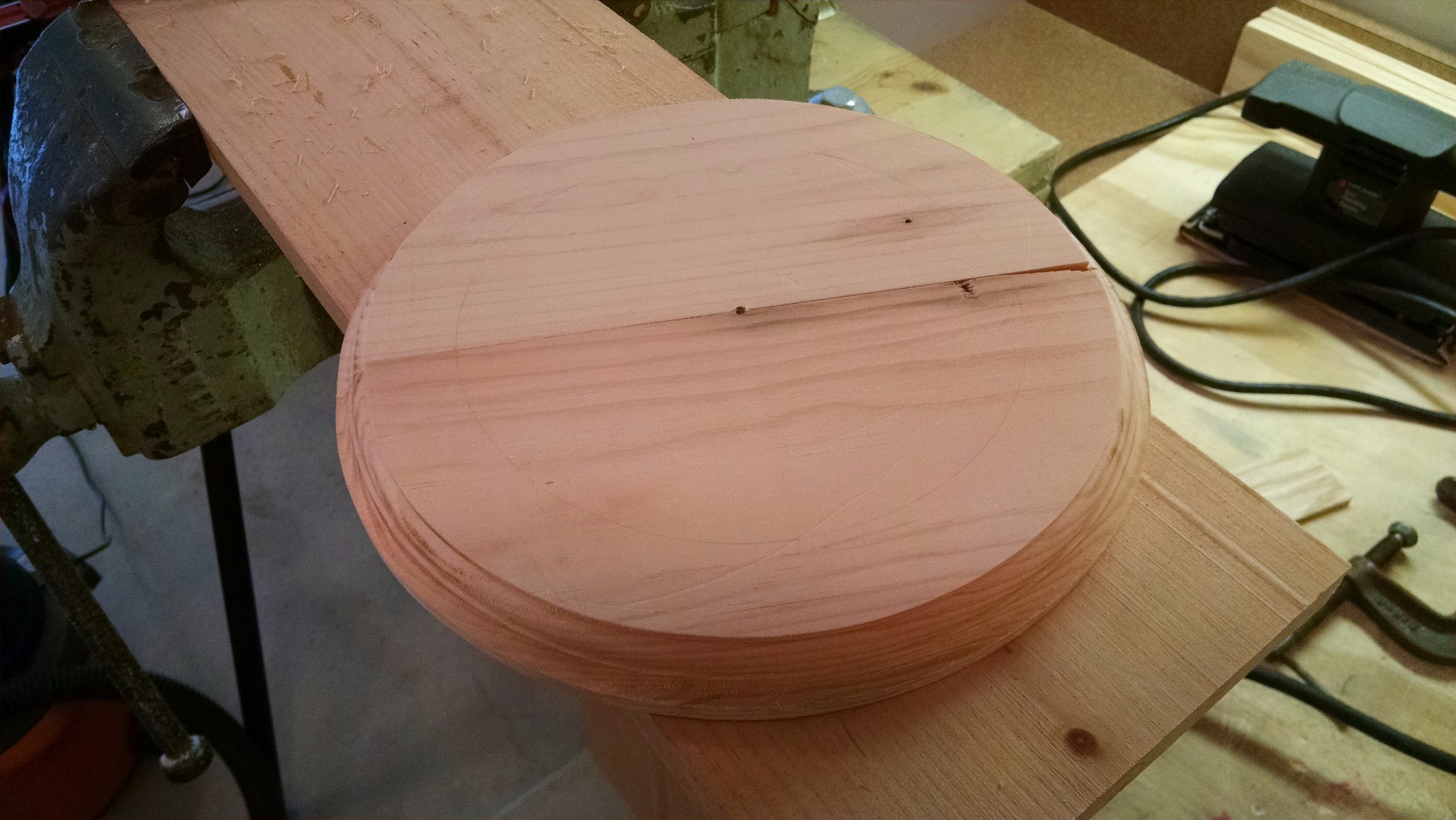

I used a dremel and its accompanying circular-cutting jig to cut the circular shape of each piece of wood as well as the circular sunken area where wine bottle rests. A router was used to create the ornate outer edge on the circular pieces, the holes for the socket and switch, and the central groove the wires sit in.

Coat Your Base


I added about three coats of gloss spar varnish from ACE Hardware to the wood pieces of my base. You can add stain or any type of coating that you prefer.

Add the Socket

Wine Bottle Edison Bulb Lamp Diagram.png

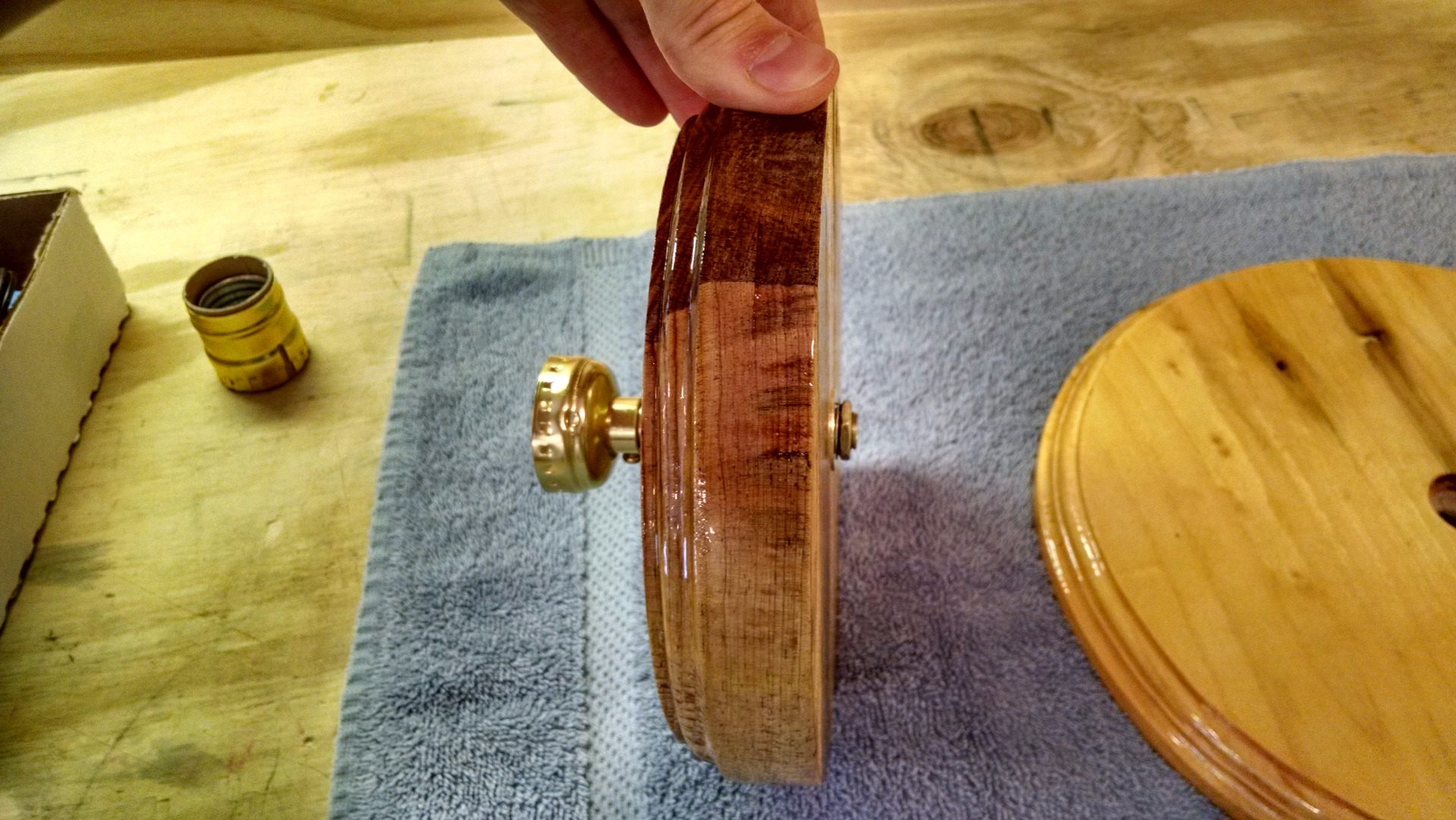

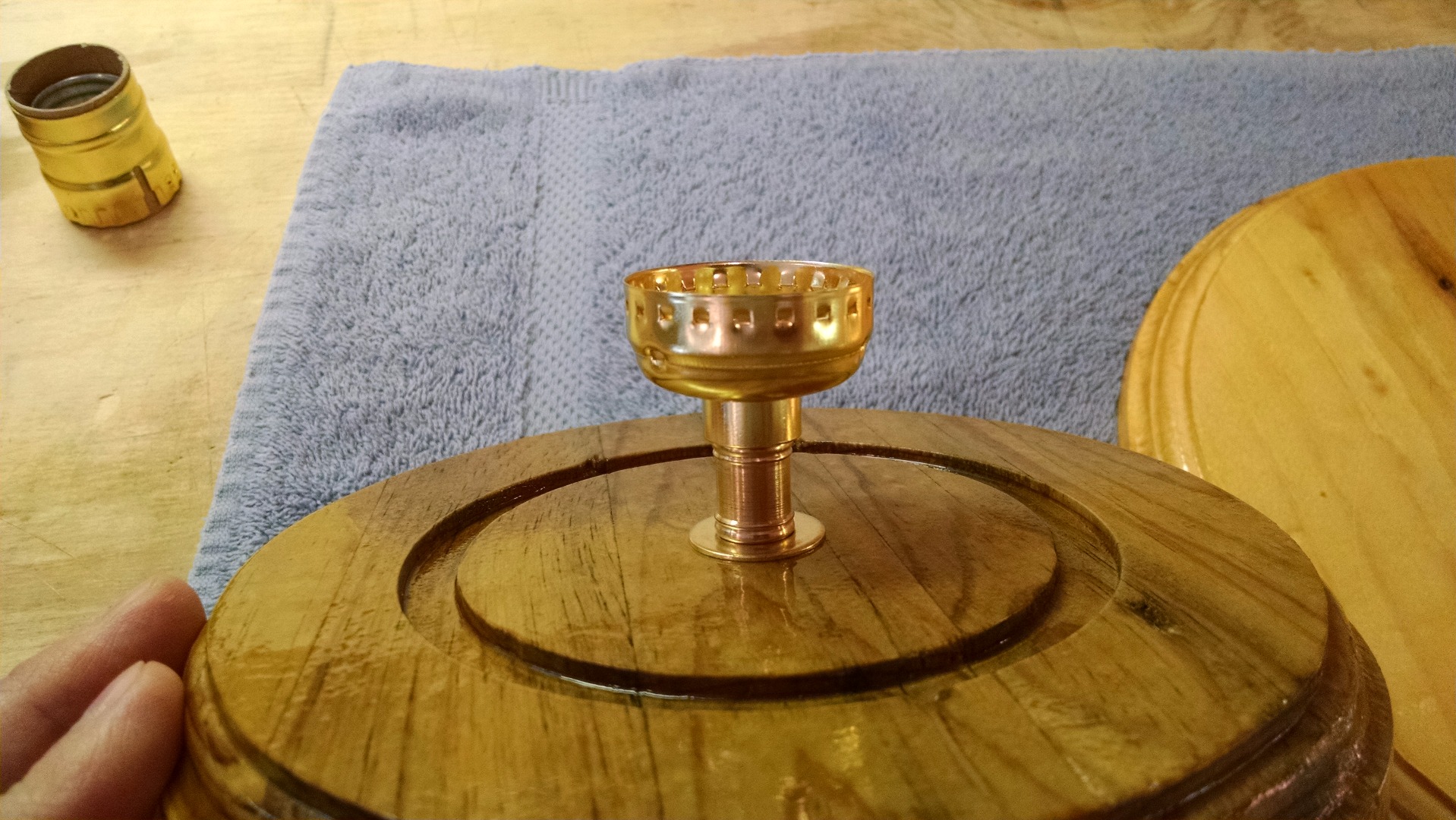

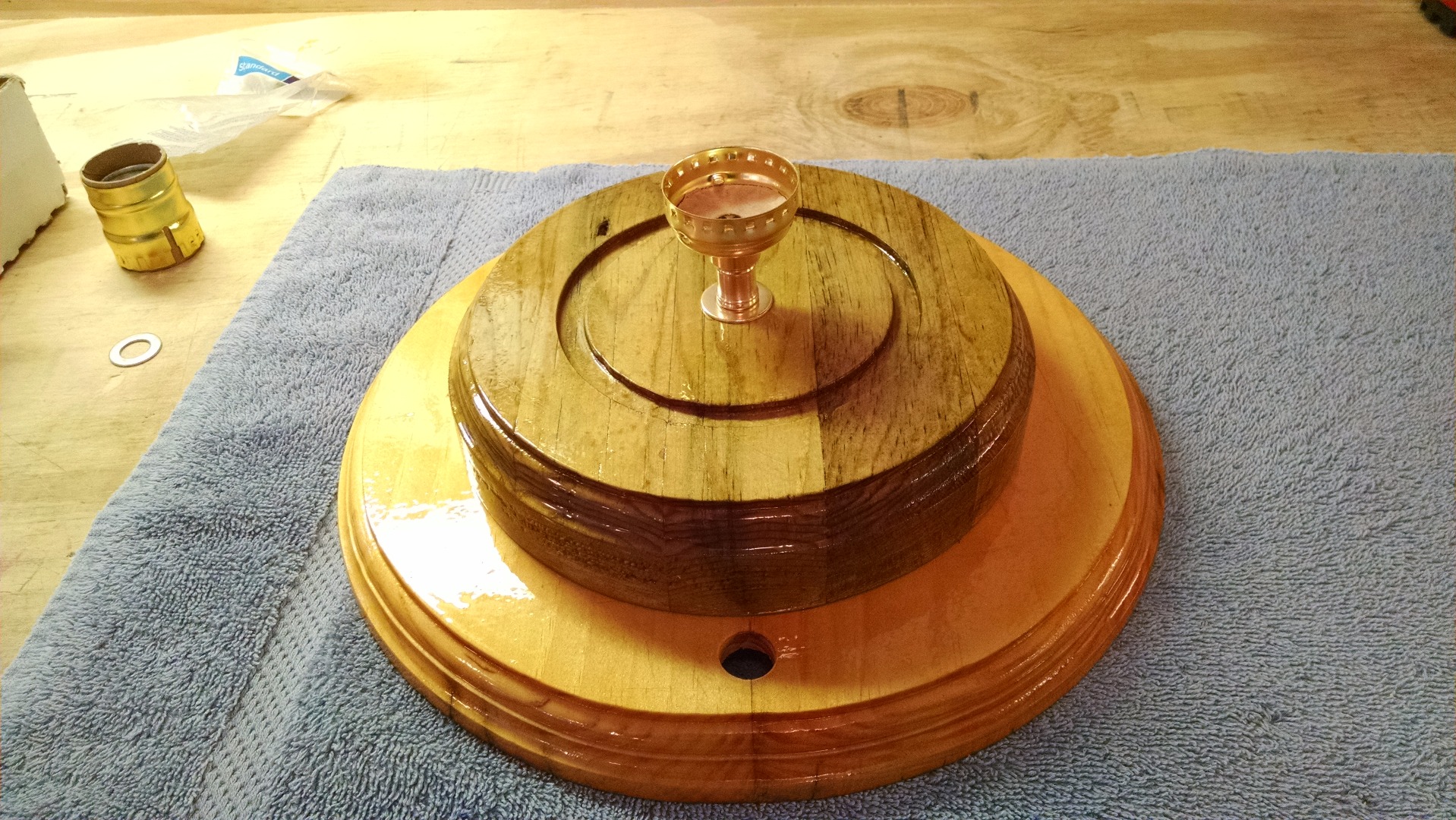

After coating your wood base, you can add the socket. Looking at the first picture, you can see that I used a second coupling to attach a second smaller nipple. I also used a coupling to extend the socket above the base just because I liked the look of the brass coupling with the brass socket. The socket was then secured using the hex nut and washer as shown in the third picture.

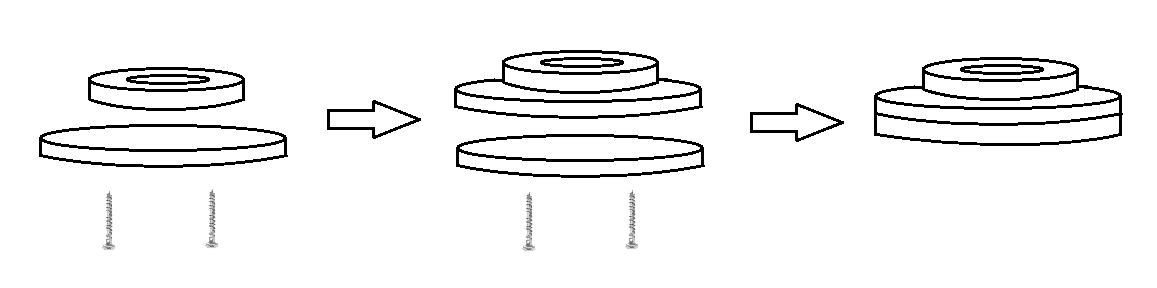

The three wood pieces used for the base were secured together using two wood screws for a total of four wood screws. Look at the simple diagram I made to see how I attached them. After I attached the first two pieces together (the top one with the socket and the middle one) I wired the electrical components.

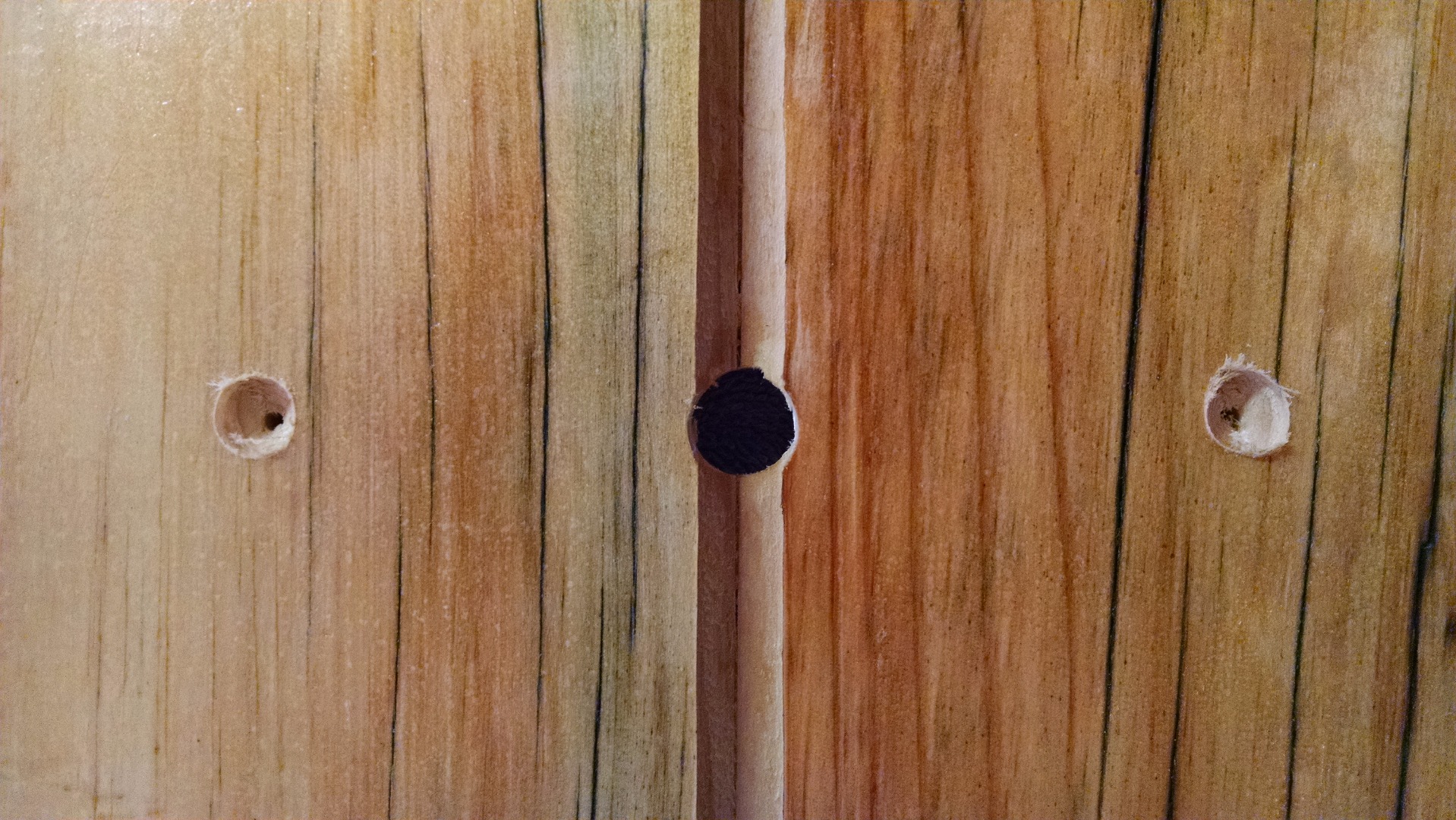

I used a plunge base router to route out the groove the the wires and switch sit in.

Electrical Wiring

Underwriters knot.jpg

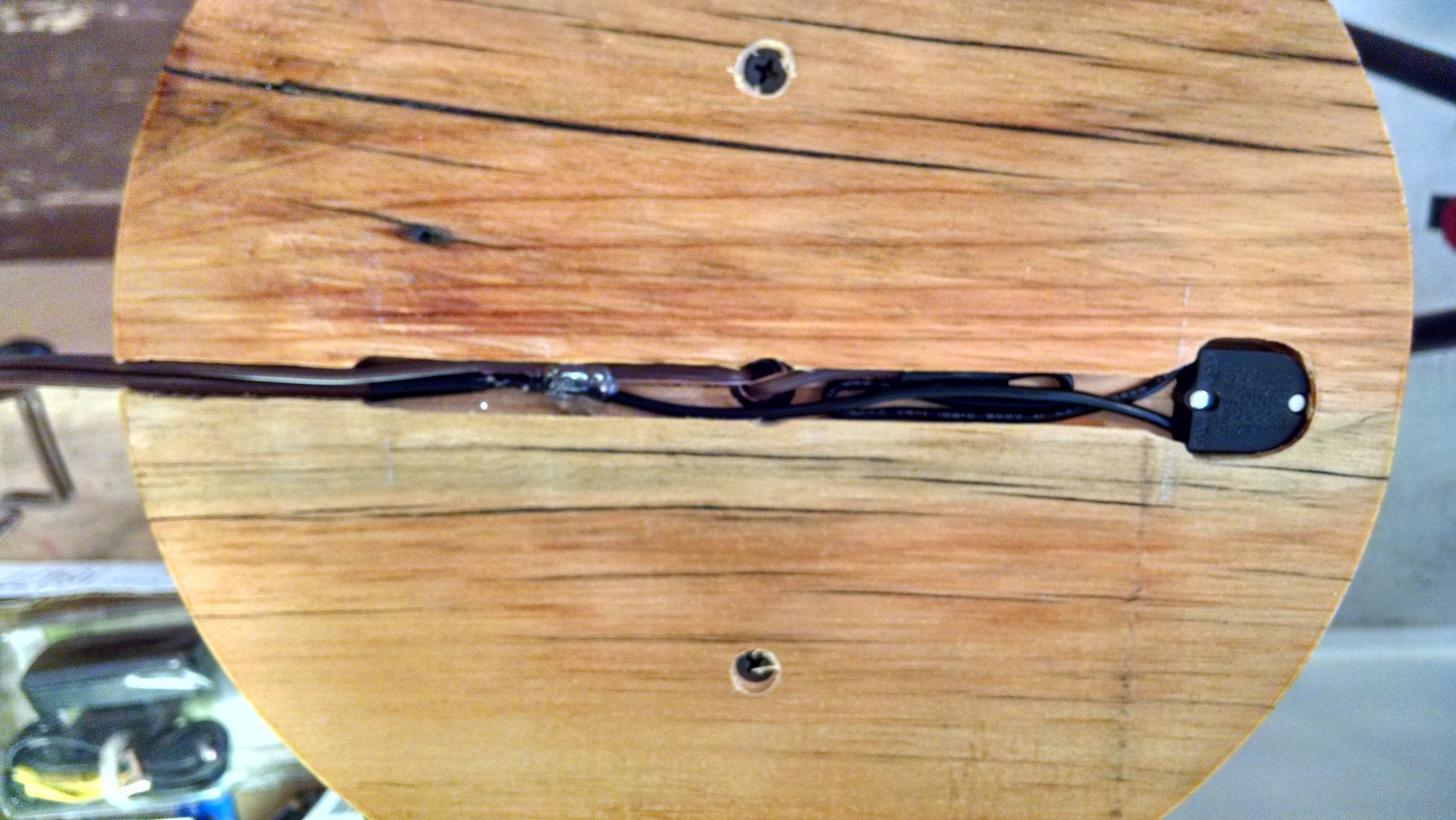

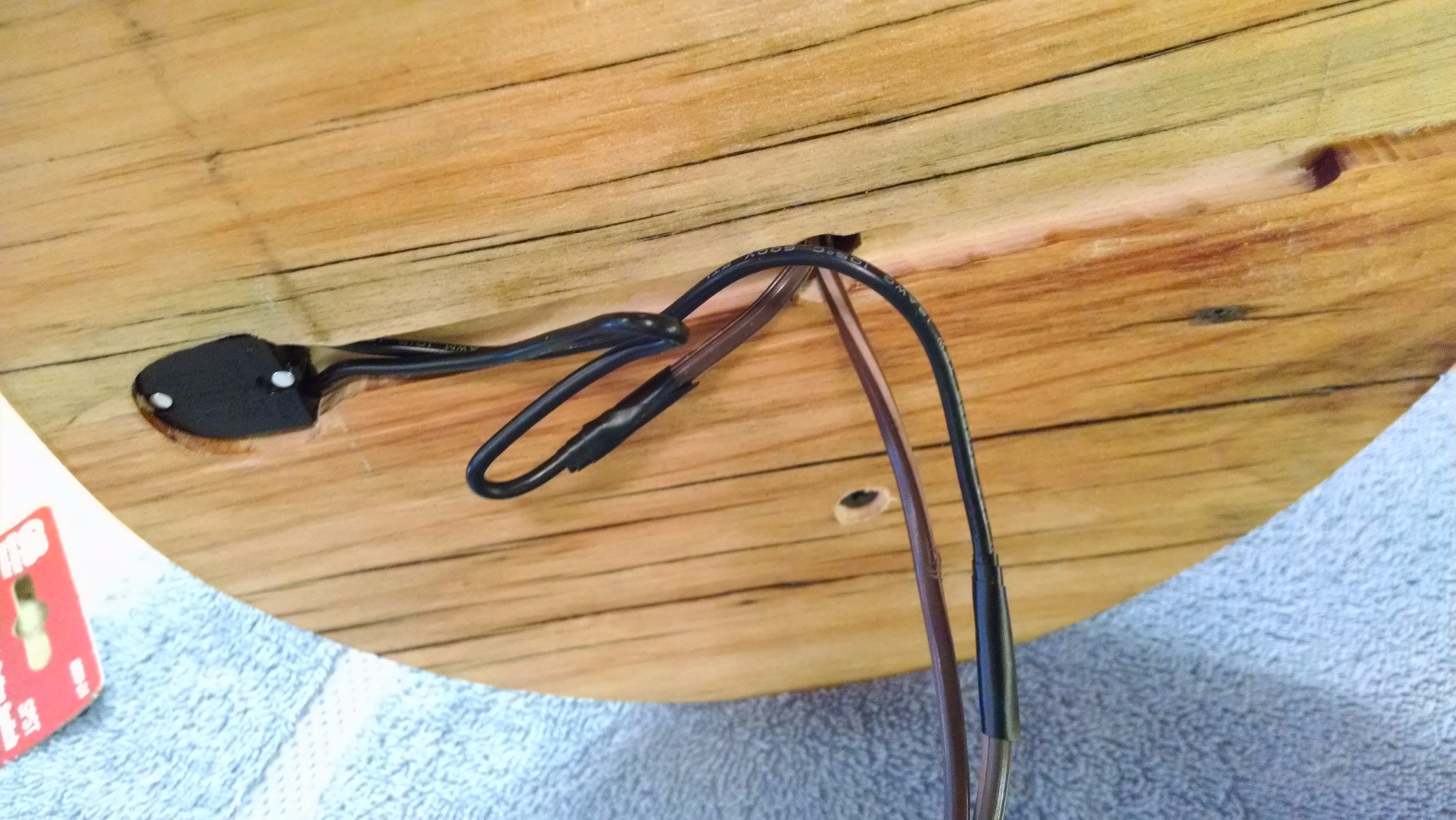

Secure the switch in place (mine was snug and required no adhesive). Thread the replacement lamp cord through the center hole and attach each side to a screw on the bulb socket. I also made an underwriters knot before attaching the two parts of the socket together. Next attach the switch to the replacement cord. I cut one side of the replacement cord and added the switch into the place where I cut. When everything is wired, lay it nicely into the routed groove and secure the wires with a hot glue gun.

Make sure to test the connections you just made before attaching the bottom of the base. Again, the previous step has a diagram showing how the three parts of the base were connected.

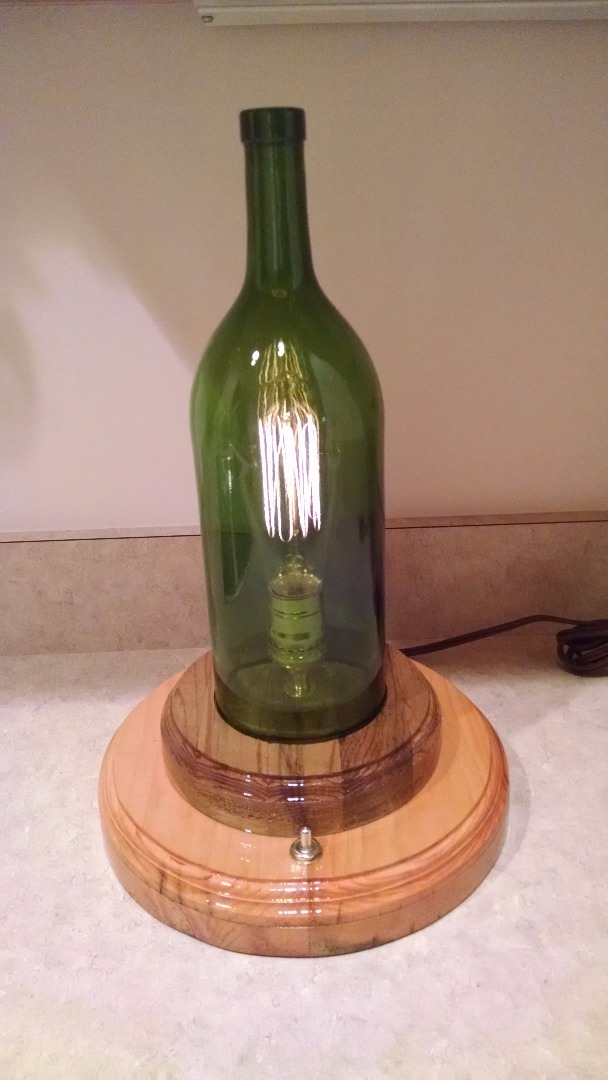

Enjoy Your New Lamp


Once everything is wired correctly and works and the bottom of the base is attached, you can enjoy the new lamp you have made. I also added a dimmer. It is a plug-in dimmer that the lamp cord plugs into and then the dimmer plugs into the wall outlet. Thanks for viewing.
