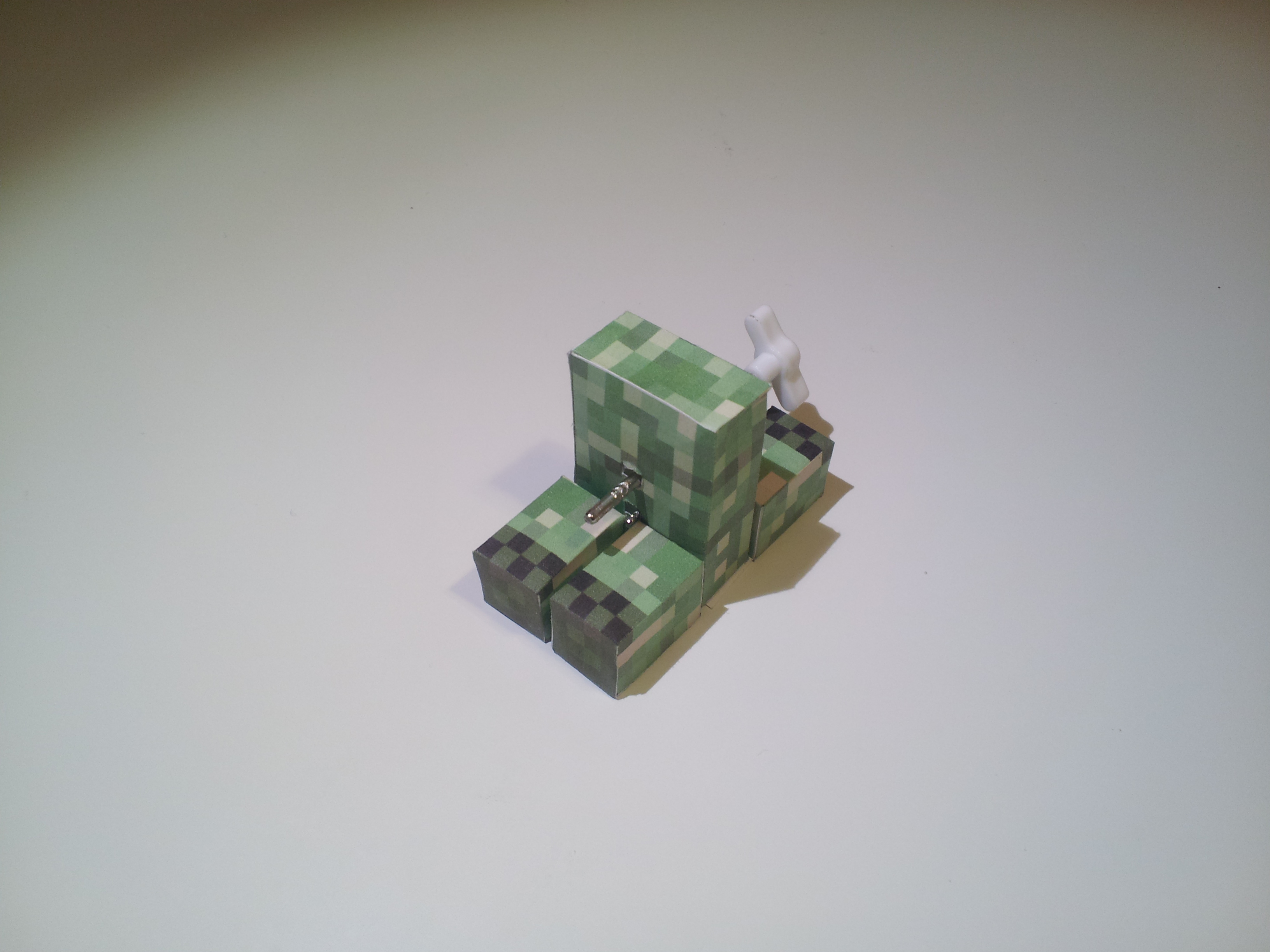

Windup MineCraft Creeper
This is an instructable on how to create a windup creeper. This can be applied to anything you want to add a little movement to.
The following steps will take a papercraft creeper and give your nerves a little more of a test when you hear the "hissing" sound and you turn around to see this little guy walking across your desk.
The following steps will take a papercraft creeper and give your nerves a little more of a test when you hear the "hissing" sound and you turn around to see this little guy walking across your desk.
Gather Tools and Items

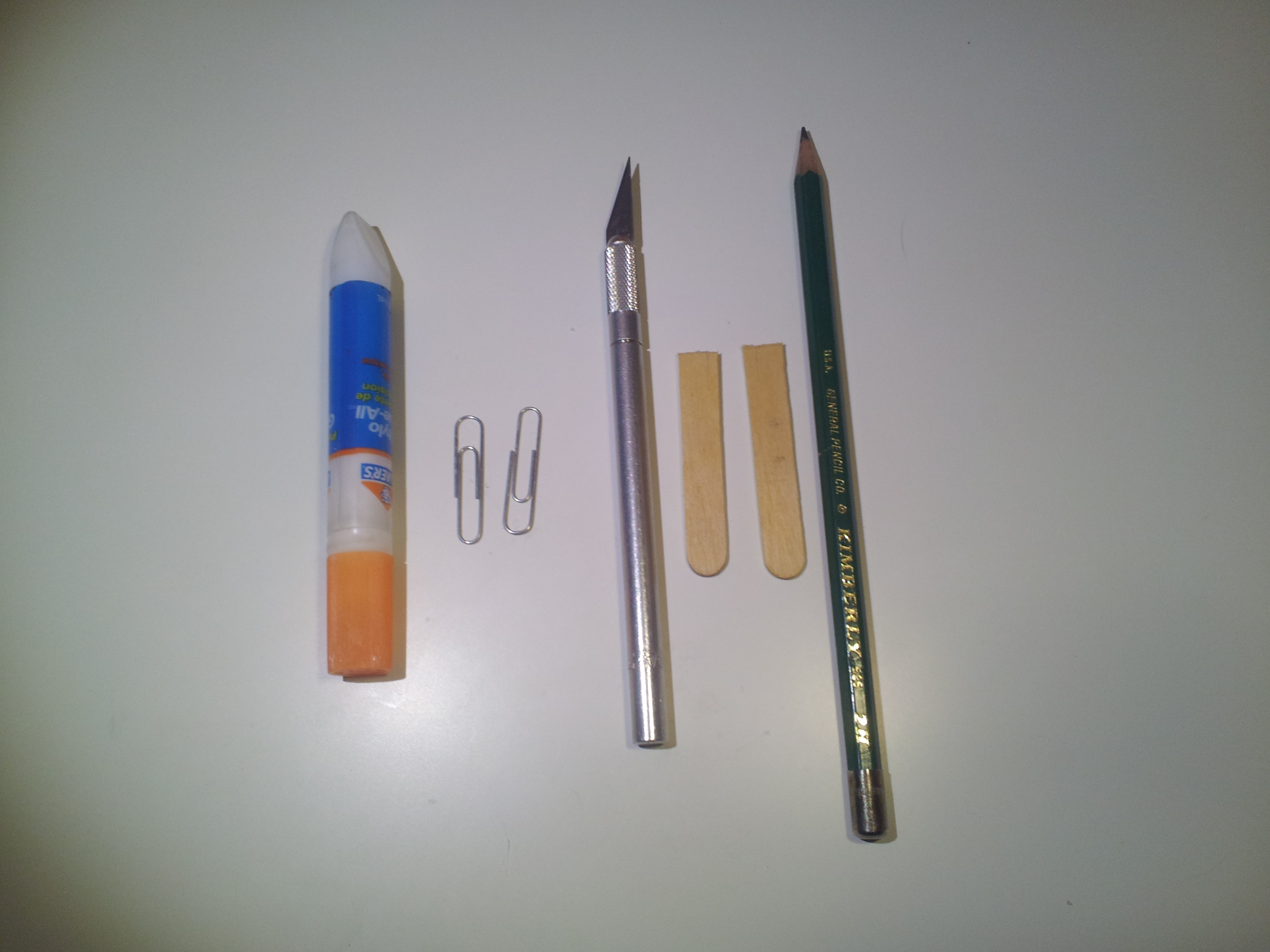

Tools you'll need:
* Glue
* Knife
* Paper clips
* Craft stick
* Pliers
* small Amount of Clay
** Papercraft Model
** Gear Box

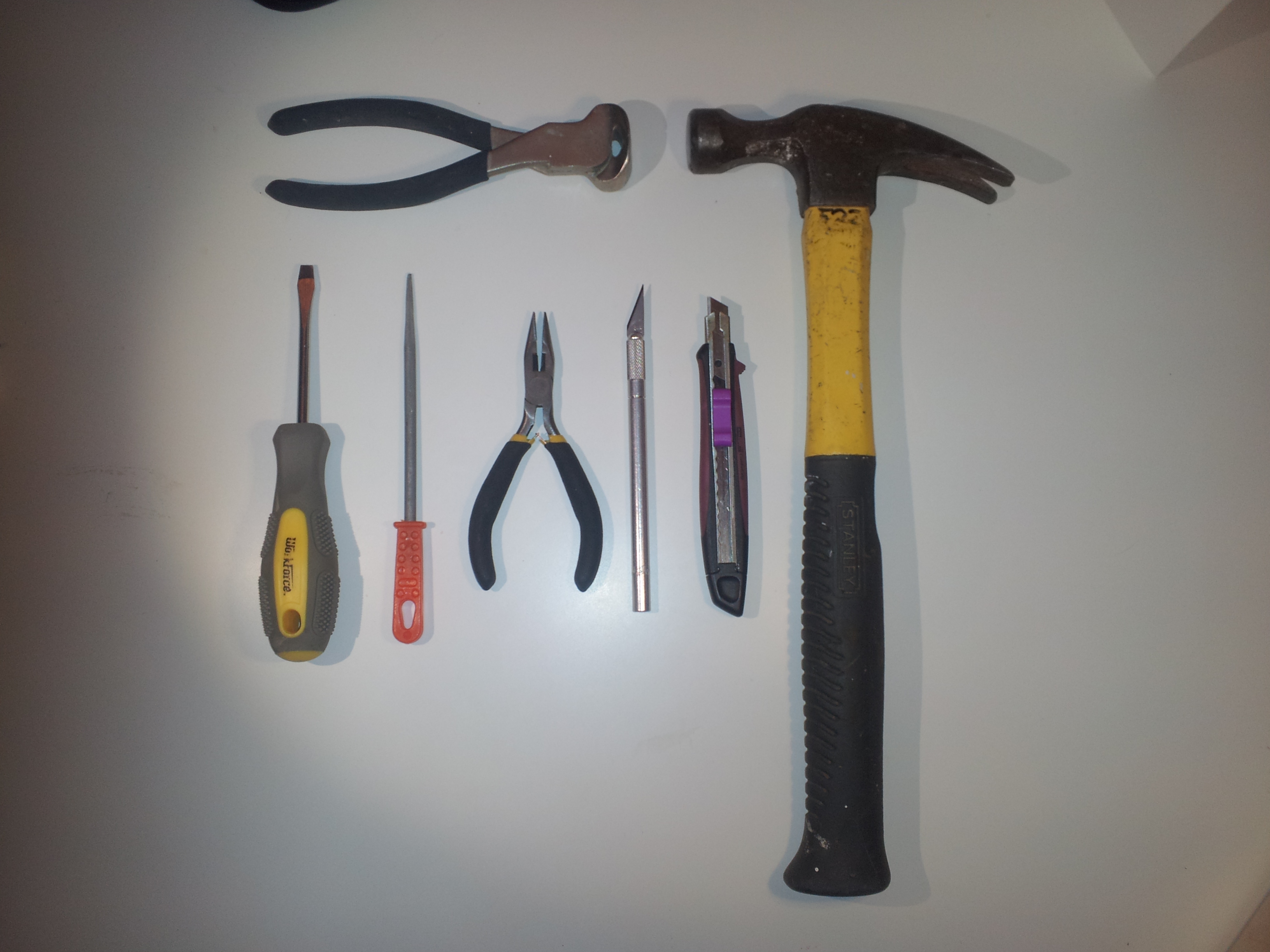

Tools you may need:
* Hammer
* Screw driver
* File
* flush Cutters
* Glue
* Knife
* Paper clips
* Craft stick
* Pliers
* small Amount of Clay
** Papercraft Model
** Gear Box
Tools you may need:
* Hammer
* Screw driver
* File
* flush Cutters
Get a Windup Gear Box
There are many options on where to get a gear box, you can buy them online, remove them from other windups, or if you have a 3d printer make one.

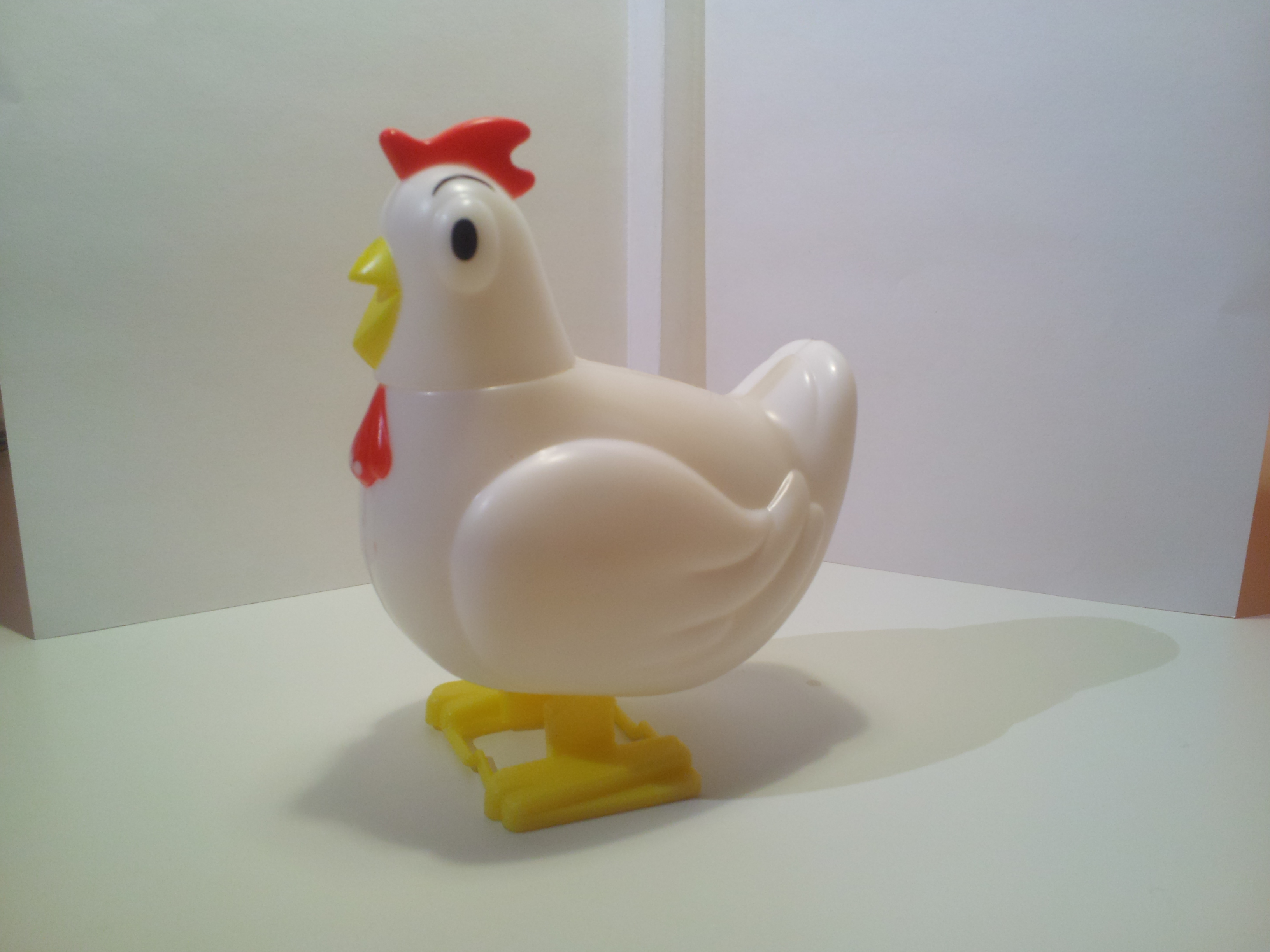

Due to the Easter holiday, I've salvaged a gearbox from a walking chicken. After the you eat the candy eggs there is not much fun left in an empty chicken.
Due to the Easter holiday, I've salvaged a gearbox from a walking chicken. After the you eat the candy eggs there is not much fun left in an empty chicken.
Print Your PaperCraft
Next Print out your papercraft model. Make sure you set it to fill the whole page or best fit.
Building the Body

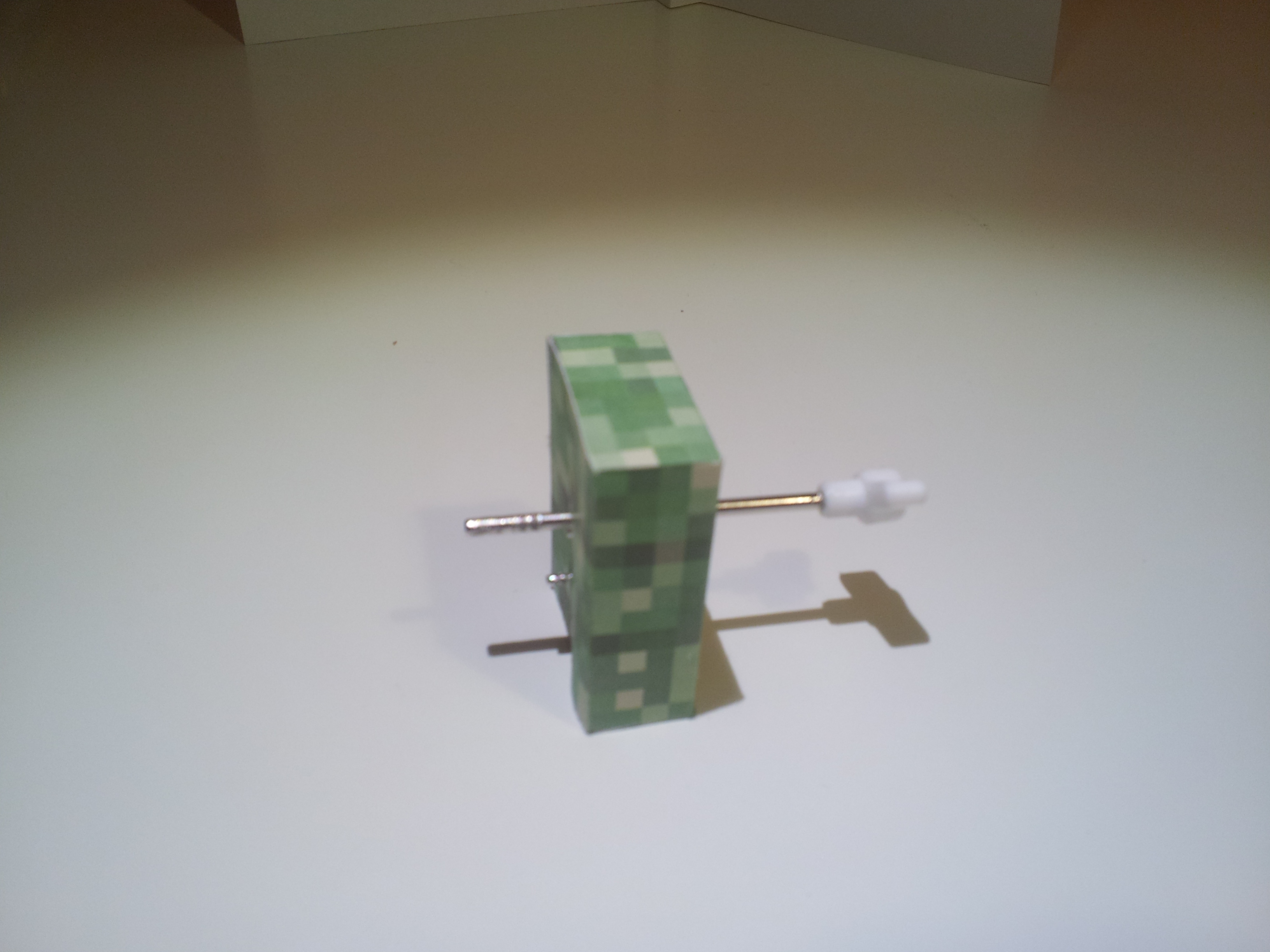

Place the gearbox in the middle of the body mark and cut out holes for the gear rods.
Then glue the body together around the gearbox, adding some glue to hold the body in place will help.
Then glue the body together around the gearbox, adding some glue to hold the body in place will help.
Making the Legs
Cut out the legs, place a small amount of clay in the bottom of each leg to add weight.
Before sealing up the legs, add a tab of paper that will act as a hinge.
Before sealing up the legs, add a tab of paper that will act as a hinge.
Glue the Legs to the Body
Glue the tabs together, and place the body between them.
Be Sure you leave a little space between the front two legs as well as the back, this will be where the crank rod will go.
Once the legs are on, you may assemble the rest of the body.
Be Sure you leave a little space between the front two legs as well as the back, this will be where the crank rod will go.
Once the legs are on, you may assemble the rest of the body.
Build the Leg Rods
With the body built, we will build two sets of cranks, one for the front legs and another set for the back.
unbend the paper clips to form straight pieces of metal. Using a pair of pliers, pinch the end and wrap the paper clip around to form loops.
You will need one small piece to act as the pivot and two longer pieces (long enough to reach from the top of the turn wheel and to the top of the legs. Bend these pieces into a "L" shape with the loop facing in. (see Picture)
The excess on the bottom of the "L" need only be as long as the leg is wide.
unbend the paper clips to form straight pieces of metal. Using a pair of pliers, pinch the end and wrap the paper clip around to form loops.
You will need one small piece to act as the pivot and two longer pieces (long enough to reach from the top of the turn wheel and to the top of the legs. Bend these pieces into a "L" shape with the loop facing in. (see Picture)
The excess on the bottom of the "L" need only be as long as the leg is wide.
Assembling the Crank
Using a knife, make a small hole close to the body and insert the "L" rod, loop facing in.
Do the same on the other leg, this time a little further away then the first hole. Place in the other "L" rod, loop facing in.
Place the smaller pivot pin inside the two "L" loops and glue it into the hole of the turn wheel.
Repeat these steps for the back legs.
Do the same on the other leg, this time a little further away then the first hole. Place in the other "L" rod, loop facing in.
Place the smaller pivot pin inside the two "L" loops and glue it into the hole of the turn wheel.
Repeat these steps for the back legs.
Finshed
Wait for the glue to dry,. Wind it up and watch it go.
You can use a windup gearbox in any project that uses a turn crank or a motor. Have fun and go out and add movement to all your favorite 3D models and papercrafts.
You can use a windup gearbox in any project that uses a turn crank or a motor. Have fun and go out and add movement to all your favorite 3D models and papercrafts.
