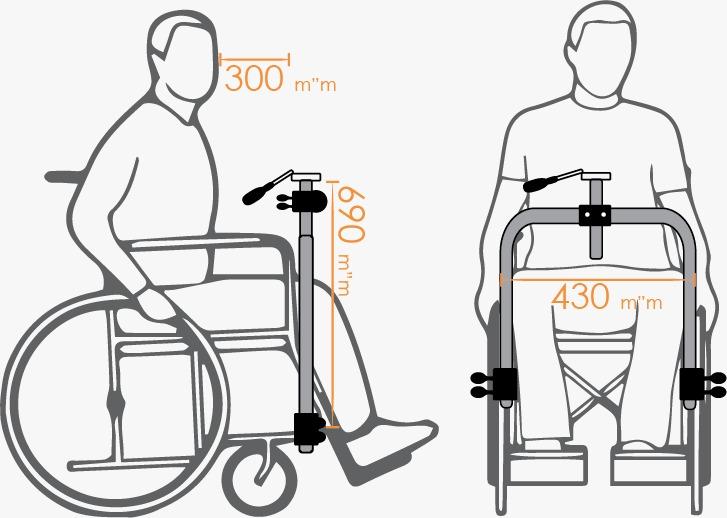

Wheelchair Camera Holder

a camera stand that connects to a wheelchair and allows handicapped people to use a camera without holding it.

download the .stl files and print them.

We used the 3d printer settings below:

PrusaSlicer PETG 0.4mm

nozzle Layer Height: 0.5mm

Line Width: 1.0mm

Wall Thickness: 1mm

Print Speed: 35mm/s

Retraction Speed: 35mm/s

Infill density: 80%

Infill pattern: Grid

Supports: Everywhere

Bend a 22mm diameter tube according to these parameters twice:

Mill a 22mm diameter rod according to these parameters:

Drill holes as described and tap an M5 thread

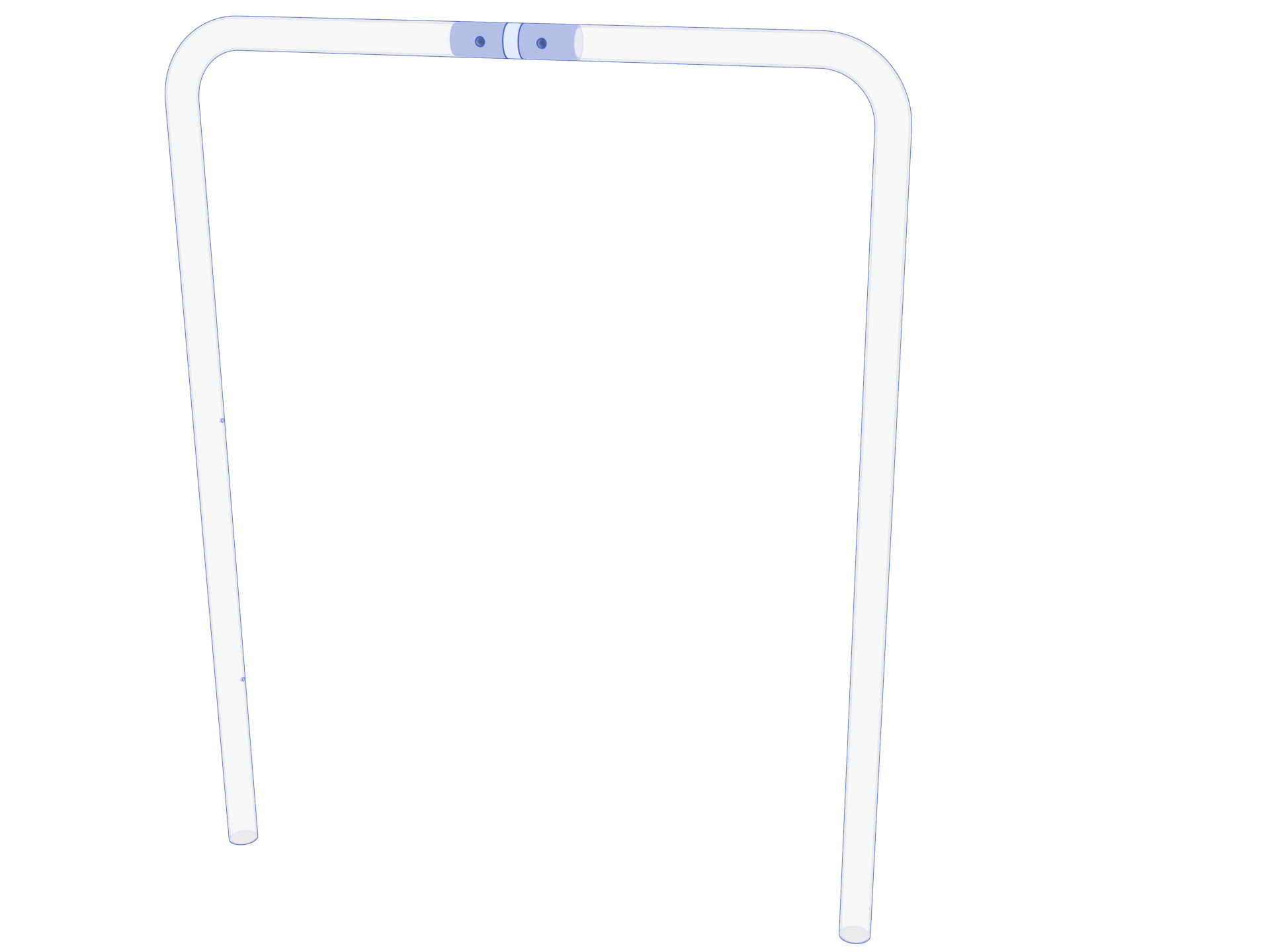

Assemble the two pipes and the rod together when the bores are at the same point

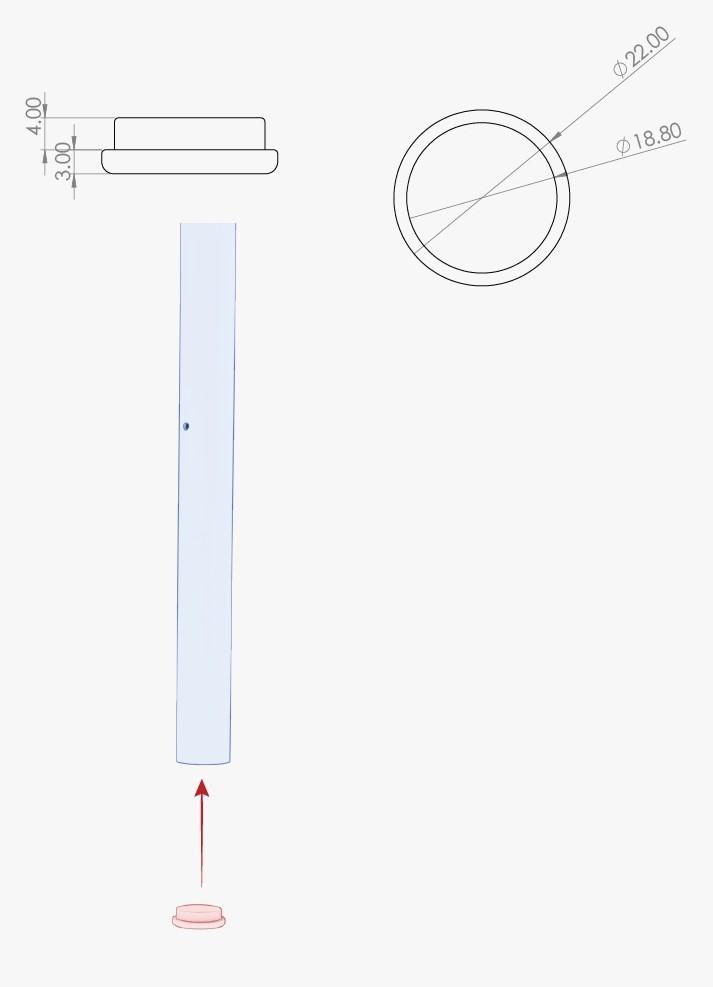

Insert the plugs into the bottom of the pipes

Insert 3mm rods into the axis of each of the 3D printed pars, then cover them with the tap.

Glue the anti-slip rubber strips to the inside of the connector

Use a welder to heat the 5M nuts and insert them into the dedicated slot.

Insert the velcro strip into the dedicated slot as depicted

Assemble all the parts together, then attach to the wheelchair and start shooting awesome videos :)
