How to #2 - Use LTC3780

This is a Buck Boost converter, which is a kind of high efficient power supply module with Constant voltage, constant current, under-voltage protection.

What is Buck Converter ?

It can step down the voltage

What is boost converter ?

It can step up the voltage

And This LTC3780 is Buck boost converter !

If you want to watch the video Click Here

And do check out my channel Click Here

Far right one is for Under voltage protection (VV) and it is mostly used for Solar Charging

What does it mean ?

The device can monitor a DC-DC output voltage and quickly disconnect the power source from the DC-DC input load when an overvoltage condition occurs. A power-OK output signals when the DC-DC input voltage falls below an adjustable threshold.

Center one is for Constant Current ( CC)

What does it mean ?

A constant current is that does not change its intensity with time.

Left one is for Constant Voltage ( CV )

What does it mean ?

Same as CC does not change over time

It depends on the board the one which I have used can handle Up to 130W

But after 80W it needs to increase the Heat Dissipation

And

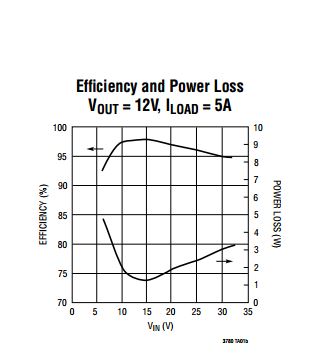

The sweet spot for the efficiency is 98% at 12V

I had a bunch of LED's soldered in parallel

After powering it up I have to say it worked like charm and I was able to control the voltage and current to change the intensity of the LED's

From where I got mine ?

Gearbest - Click Here

LTC3780 - Click Here

Volt Amp Display - Click Here

Shipping Time ?

It took 2 weeks for me to reach India

Packaging ?

Excellent Static proof bags with bubble wrap in it

Note - In the Next Instructables And video I am going the built a power Supply out of it !

So For updates you can check my Youtube Channel, Facebook And Instagram

Hope you like this Instructables

Happy Making !
