Welding Table
This is my Diy Welding table
38 inches long
20 inches Wide
29 inches tall.
38 inches long
20 inches Wide
29 inches tall.
Materials
4 Pcs of Angle bracket 1"x1" by 35 " long
4 Pcs. 1"x1" 17 " long
4 pcs. Square Tubing 1"x1". 26" long.
4 pcs. 5mm by 10"x20" for the top
4 pcs 2"x2" by 5mm. For the bottom of the legs
4 Casters
And a PC of wood for the shelf
And paint.
4 Pcs. 1"x1" 17 " long
4 pcs. Square Tubing 1"x1". 26" long.
4 pcs. 5mm by 10"x20" for the top
4 pcs 2"x2" by 5mm. For the bottom of the legs
4 Casters
And a PC of wood for the shelf
And paint.
Tools
Grinder
Welding Machine
Welding Helmet
Gloves
Clamps
Dust mask
Safety boots
Proper clothes

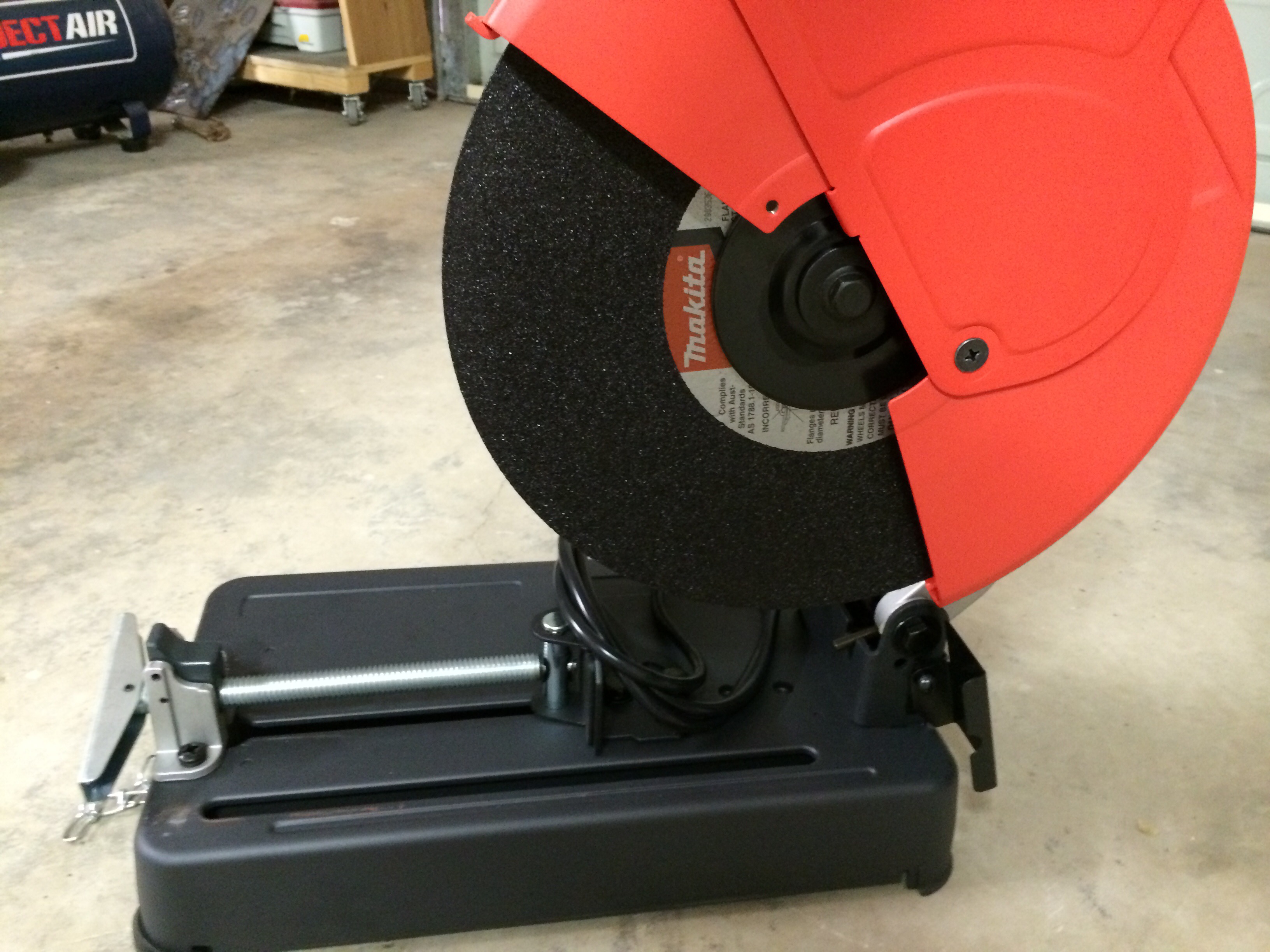

Cutting machine
Welding Machine
Welding Helmet
Gloves
Clamps
Dust mask
Safety boots
Proper clothes
Cutting machine
Weld the Frame
yes weld the frame . place the top of the table on the floor and weld the frame to it. then weld the legs to table
making sure that all is levelled and strait.

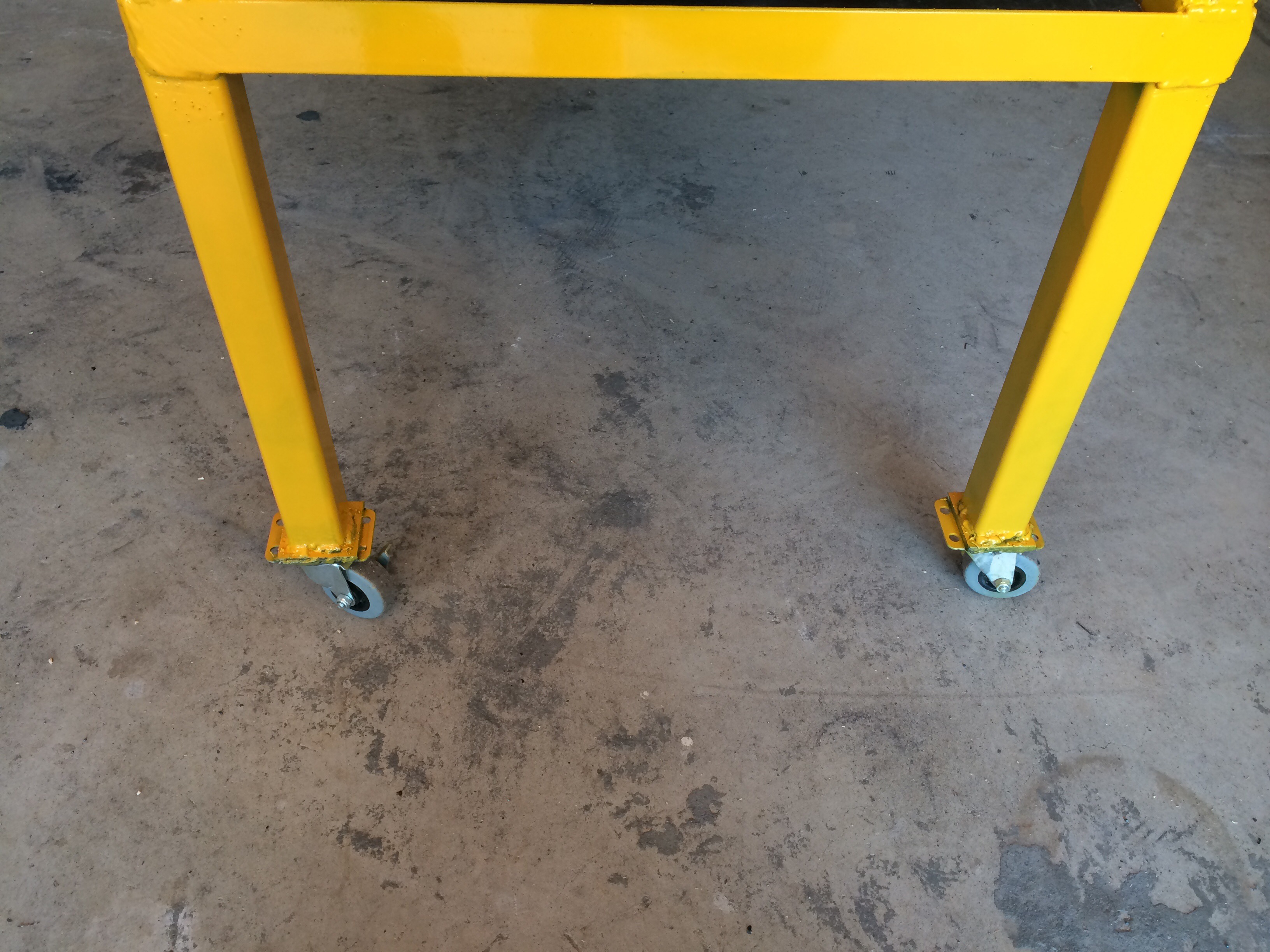

turn table rite side up. place the 2x2 on bottom of each leg weld it in place.
then turn table up side down and weld the casters to each leg.
and presto table its done….. now paint it and enjoy
now go and make something.
