Weber Smoker
![20190429_203800.jpg](/proxy/?url=https://content.instructables.com/FD8/CRWJ/JV2R0YFH/FD8CRWJJV2R0YFH.jpg&filename=20190429_203800.jpg)
Old Mr Weber starts smoking
Weber Resigns
![20190420_085004.jpg](/proxy/?url=https://content.instructables.com/FGD/X5GX/JUQSY4CA/FGDX5GXJUQSY4CA.jpg&filename=20190420_085004.jpg)
After a quarter-century of round-the-year service,
Weber was about to resign due to weak legs.
As my equally old Abu-smoker started leaking
at the same time as Weber lost his legs,
I decided to give Weber a chance to take over,
as his top was intact.
Simple Tripod
![20190420_085136.jpg](/proxy/?url=https://content.instructables.com/F2X/24G3/JUQSXEJN/F2X24G3JUQSXEJN.jpg&filename=20190420_085136.jpg)
![20190419_154618.jpg](/proxy/?url=https://content.instructables.com/FJU/A0XC/JUQSXE48/FJUA0XCJUQSXE48.jpg&filename=20190419_154618.jpg)
I found some threaded rods in my workshop, to be mounted along
the perimeter of an old copper cooking pot from a flea-market,
large enough to cover all the holes in the bottom of the grill.
I drilled some undersized holes in a piece of scrap and screwed them into it.
As the pot has a flange some distance from the bottom,
it rests quite stable on the rods and is easily removed to empty the ashes.
Making Chips.
![20190419_153310.jpg](/proxy/?url=https://content.instructables.com/FSS/EXLX/JUQSXE2U/FSSEXLXJUQSXE2U.jpg&filename=20190419_153310.jpg)
From an old apple tree, I removed a dry branch and cut to straight pieces.
Then I screwed a handle to one of them to be able to shred it safely on my jointer.
Loading
![20190419_154745.jpg](/proxy/?url=https://content.instructables.com/FOB/42R9/JUQSXE4Y/FOB42R9JUQSXE4Y.jpg&filename=20190419_154745.jpg)
![20190419_160004.jpg](/proxy/?url=https://content.instructables.com/FM4/MSY6/JUQSXE6C/FM4MSY6JUQSXE6C.jpg&filename=20190419_160004.jpg)
I filled chips from a quarter of a log in the pot and then etanol in a smaller pot beneath as a burner.
Mounting
![20190419_160206.jpg](/proxy/?url=https://content.instructables.com/FRV/TU24/JUQSXE74/FRVTU24JUQSXE74.jpg&filename=20190419_160206.jpg)
![20190419_160408.jpg](/proxy/?url=https://content.instructables.com/FQC/S1NT/JUQSXE8I/FQCS1NTJUQSXE8I.jpg&filename=20190419_160408.jpg)
The old grill was then positioned on the cooking-pot,
and so the grate with the salted salmon I had prepared.
Smoking
![20190419_161014.jpg](/proxy/?url=https://content.instructables.com/FC6/A7IY/JUQSXEC8/FC6A7IYJUQSXEC8.jpg&filename=20190419_161014.jpg)
With the lid in place and the vent open, time to light the burner.
Evaluation
![20190419_190659.jpg](/proxy/?url=https://content.instructables.com/FVP/ER8F/JUQSXEI4/FVPER8FJUQSXEI4.jpg&filename=20190419_190659.jpg)
Smoking continued long after the burner was empty, and due to the lower temperature
the salmon was much smoother than in the Abu-smoker, and more delicious.
Weber has now earned a permanent position as successor to Abu,
and will not be retired for years.

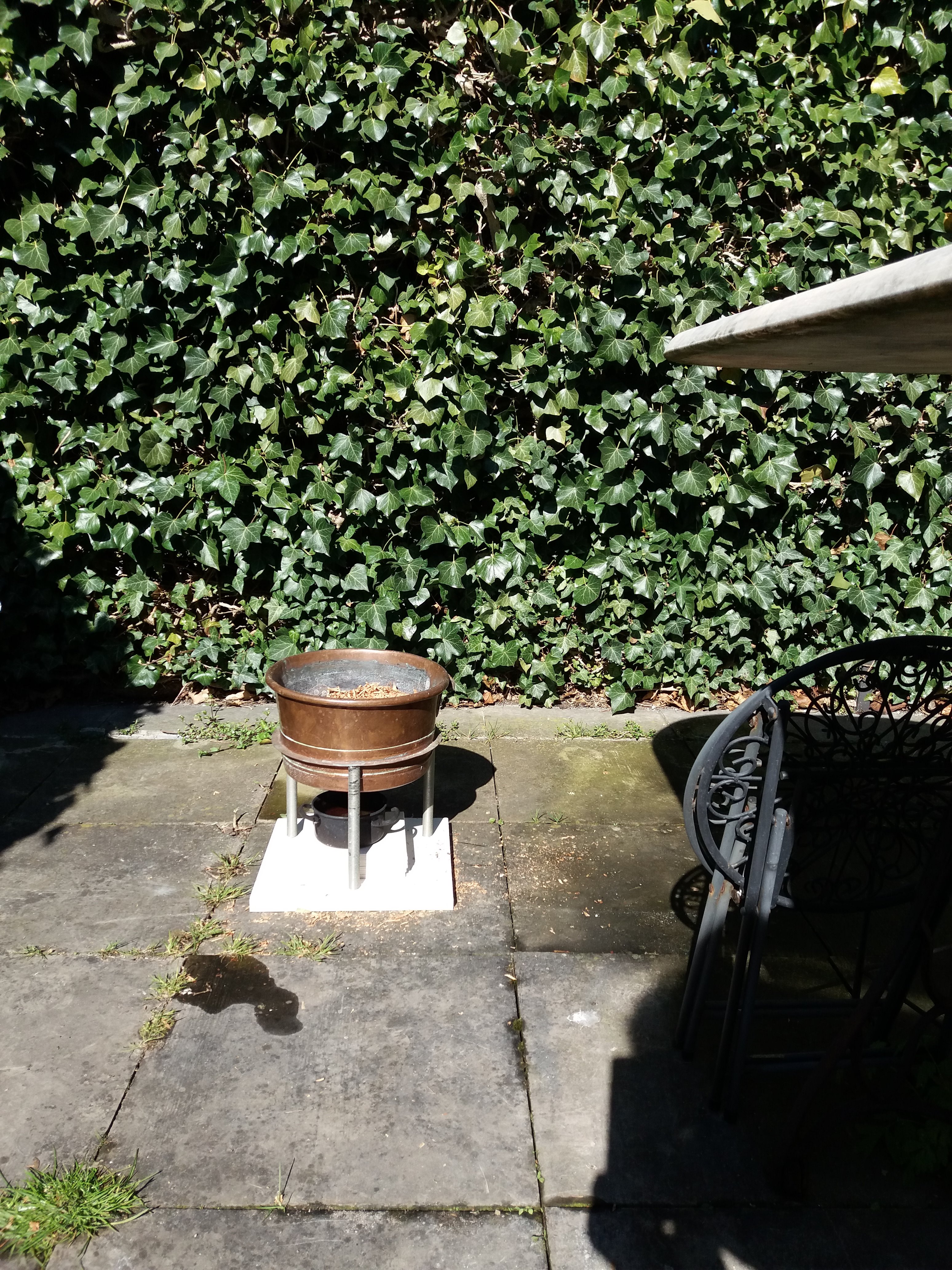

Concrete
![20190425_104905.jpg](/proxy/?url=https://content.instructables.com/FLJ/PH15/JUSNO7ZR/FLJPH15JUSNO7ZR.jpg&filename=20190425_104905.jpg)
![20190425_110226.jpg](/proxy/?url=https://content.instructables.com/FZS/43Z0/JUSNO81B/FZS43Z0JUSNO81B.jpg&filename=20190425_110226.jpg)
![20190425_104723.jpg](/proxy/?url=https://content.instructables.com/F5D/CCVM/JUSNO7ZA/F5DCCVMJUSNO7ZA.jpg&filename=20190425_104723.jpg)
As the test was satisfactory, the base was substituted to concrete to last some years.
I'm happy to have a smoker that stays outside.
My old Abu has served me well, but the soot has been a nuisance in the kitchen.
Now that problem is solved with a reclaimed grill.
New Build
![20190412_174326.jpg](/proxy/?url=https://content.instructables.com/FRA/99AF/JV2R0YA7/FRA99AFJV2R0YA7.jpg&filename=20190412_174326.jpg)
![20190412_182036.jpg](/proxy/?url=https://content.instructables.com/FHE/VKFY/JV2R0YAK/FHEVKFYJV2R0YAK.jpg&filename=20190412_182036.jpg)
![20190429_100634.jpg](/proxy/?url=https://content.instructables.com/FWV/1Z5R/JV2R0YBO/FWV1Z5RJV2R0YBO.jpg&filename=20190429_100634.jpg)
![20190429_102252.jpg](/proxy/?url=https://content.instructables.com/FWK/9UFV/JV2R0YCT/FWK9UFVJV2R0YCT.jpg&filename=20190429_102252.jpg)
To expand the functionality into daylong smoking,
I built a simple fireplace from reclaimed bricks and topped it
with an octagonal chimney to receive the Weber top.
This is however too recent to test for a while.
My intention is to cover the front during smoking with a piece
of mineral wool in the beginning, and perhaps make steel doors later.

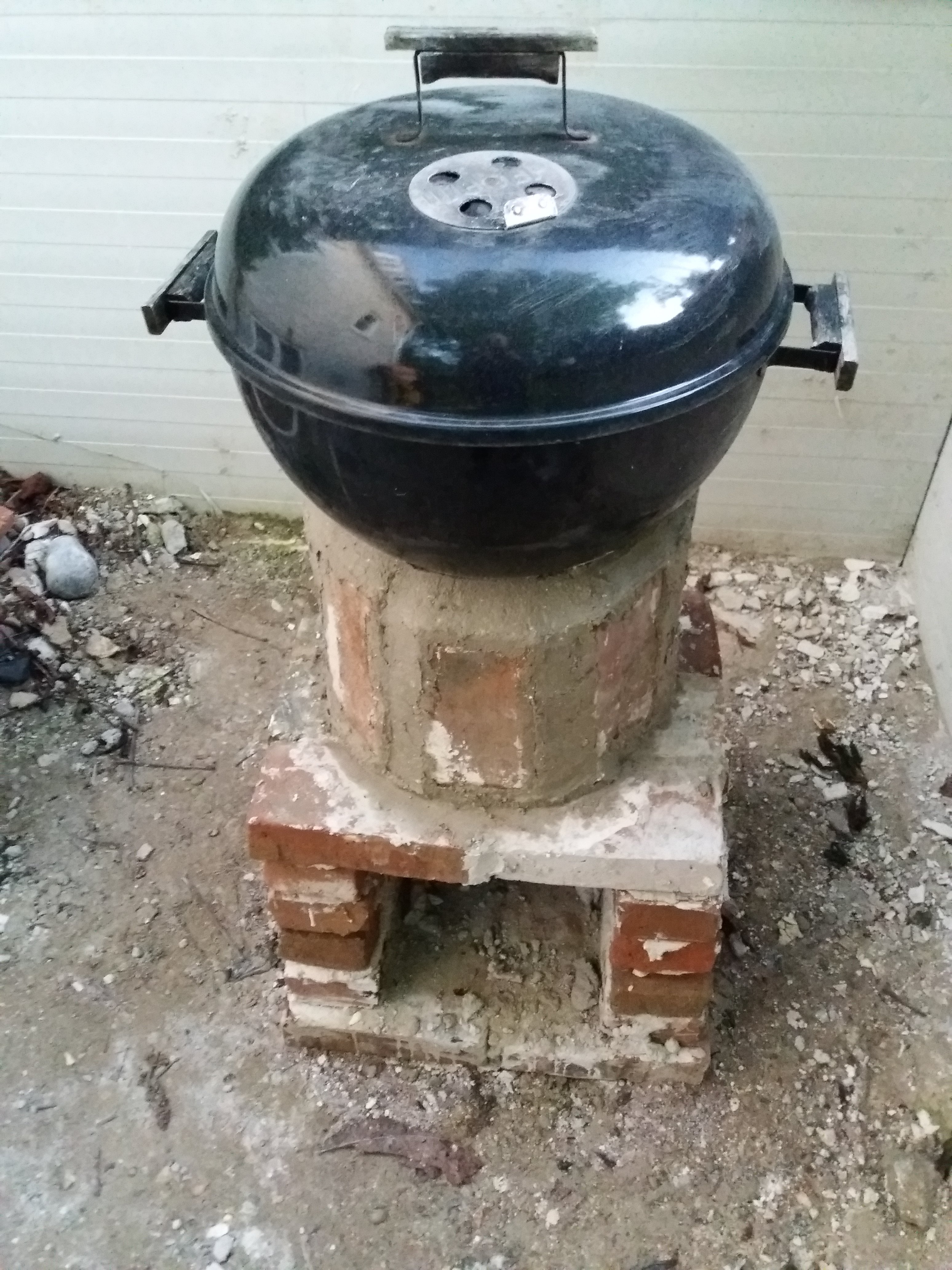

The Real Thing
![20190429_185245.jpg](/proxy/?url=https://content.instructables.com/FYV/5K2R/JV2R11Y8/FYV5K2RJV2R11Y8.jpg&filename=20190429_185245.jpg)
There is probably some mason who can make it a lot nicer,
but I think it will work fine.
Now I can choose between the chips-pot or the fireplace
depending on the size of meat to be smoked.
And it cost me nothing but labour.
