Wearable to Prevent Accidents in the Kitchen

by mariana8au in Circuits > Sensors

180 Views, 0 Favorites, 0 Comments

Wearable to Prevent Accidents in the Kitchen

Screen Shot 2023-11-12 at 18.57.54.png

Wearables are electronic devices worn on the body. These devices can take different forms, including medical devices, clothing, and more. These devices often include sensors, processors, and communications capabilities that monitor, analyze, and transmit personal data.

There are different wearables devices: the simple devices such as fitness wristbands that measure steps and hate rate, and also there are complex devices, for example, smartwatches.

The design and use of wearables can change depending on their purpose. There are wearables that focus on health or fitness activities, while others are more for communication capabilities and may include AI functions. Most of the wearables collect and analyze real time data (activity levels, biometrics, etc) that provides information to generate a sumary of the person who is wearing the device.

About our project...

The sensors used are MQ-2, DHT11, and ARD-350.


Supplies

Screen Shot 2023-11-12 at 20.07.35.png
  1. MQ-2 (gas sensor)
  2. DHT11 (temperature and humidity sensor)
  3. ARD-350 (ultrasonic sensor).
  4. Attiny85


Data sheet:

Idea

Screen Shot 2023-11-12 at 20.28.26.png

For this project, we decided to create a wearable to help the people that works in the kitchen, so we design a device capable of measuring the distance between the kitchen staff, temperature and gas within that space in order to reduce the risk of collisions, burns or accidents.

Programming Code for Ultrasonic Sensor

video sensor ultrasonico
Screen Shot 2023-11-14 at 11.17.32.png

The ARD-350 is an ultrasonic sensor that detects the distance of objects in a range of 1.7 cm to 400 cm.

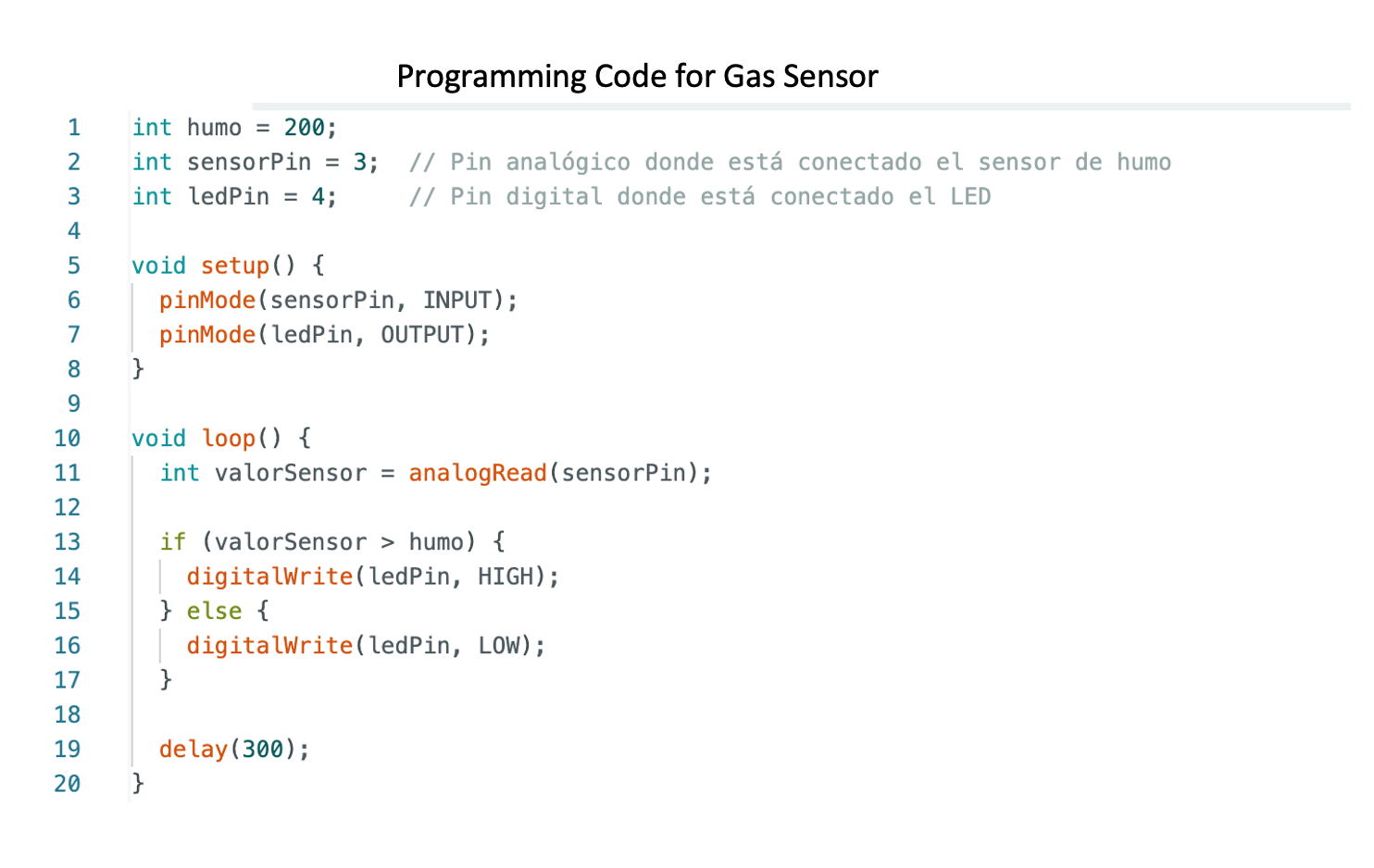

Programming Code for Gas Sensor

video gas sensor
Screen Shot 2023-11-14 at 11.24.54.png

The MQ2 is a gas sensor that helps detecting H2,CH4, Alcohol, Smoke, Propane, etc. . Due to its high sensitivity and fast response time, measurement can be taken as soon as possible. (Seeed Studio Wiki, 2023)

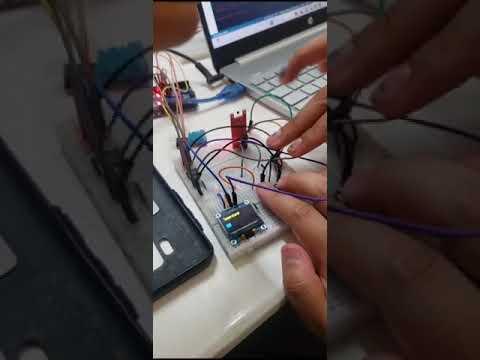

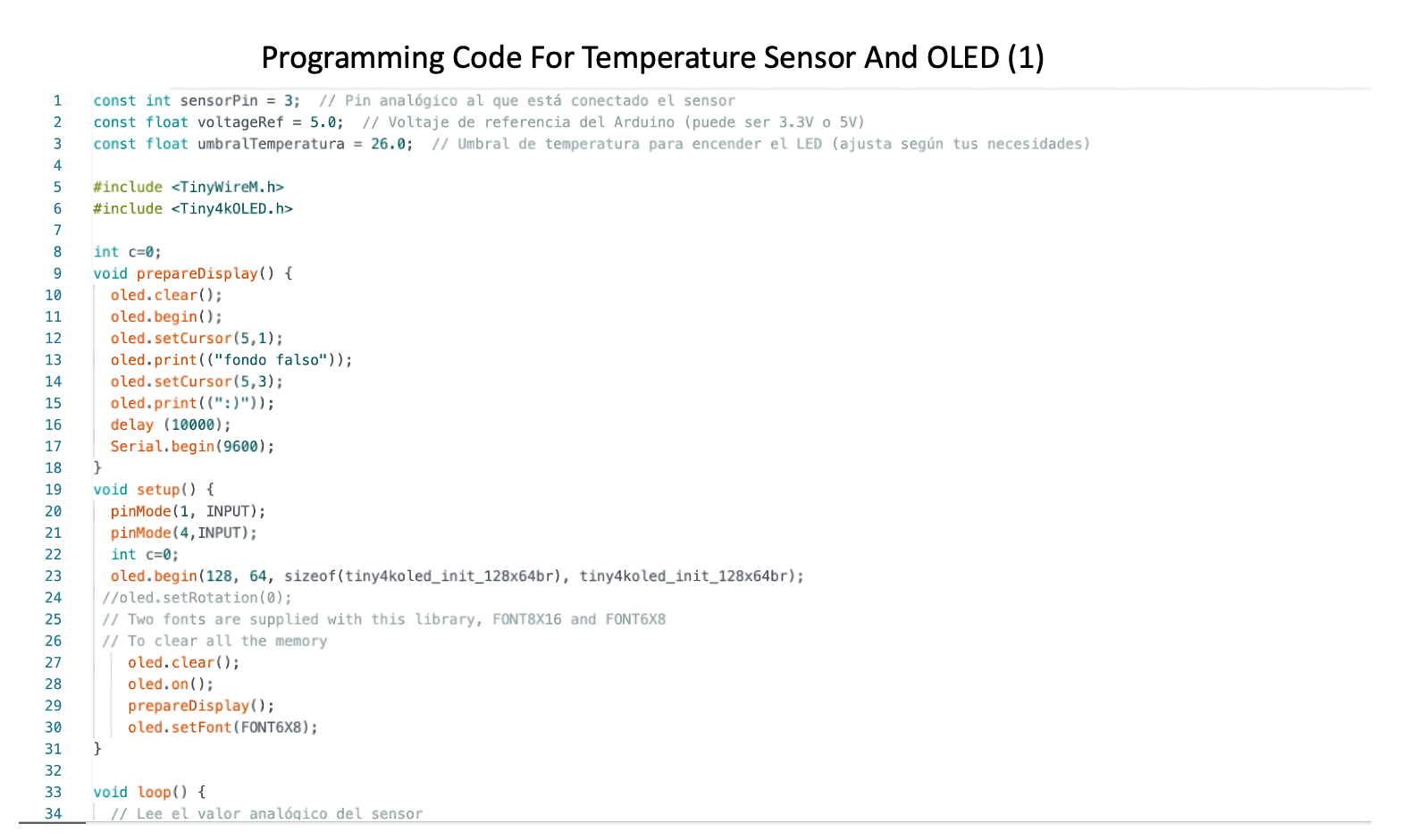

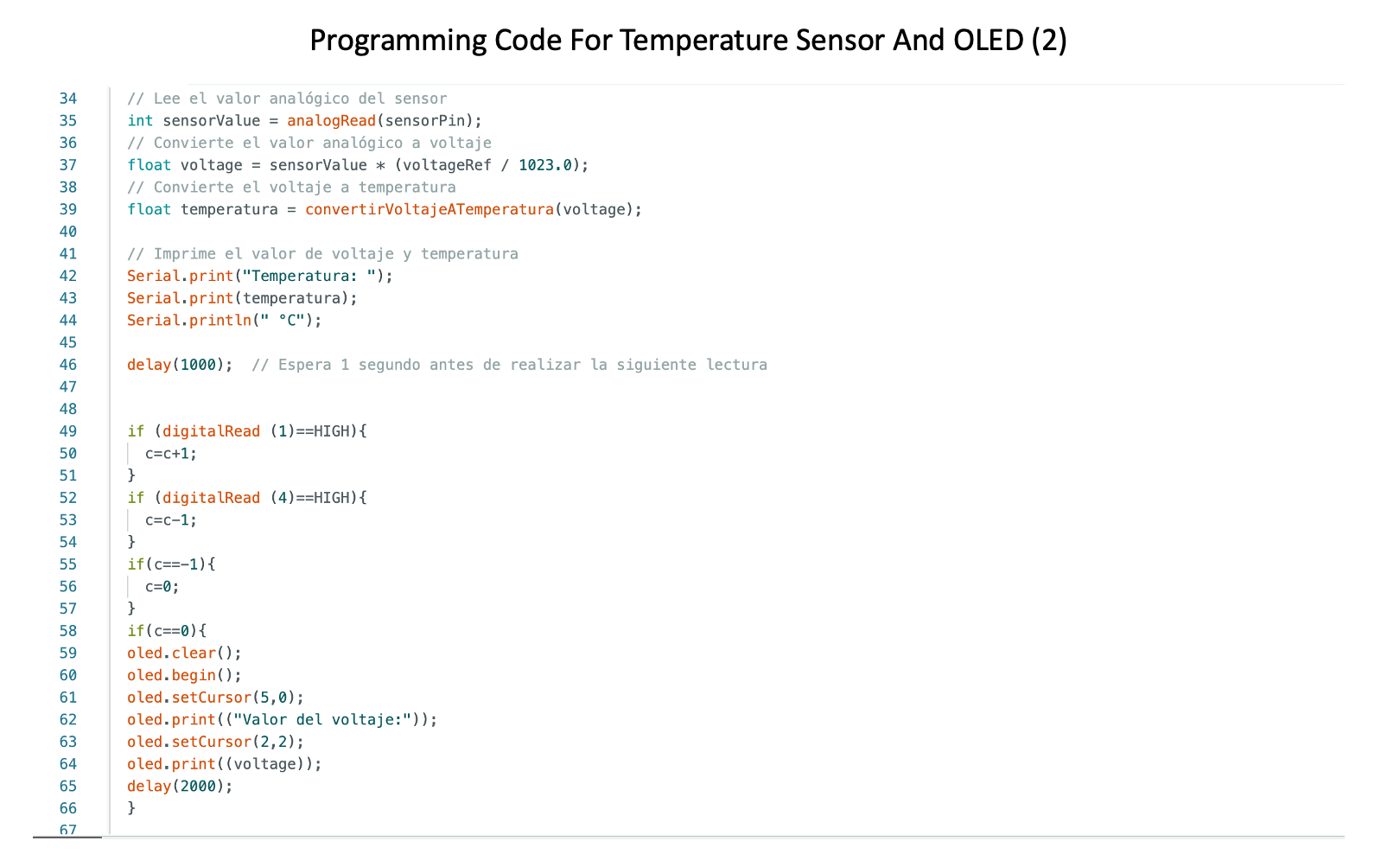

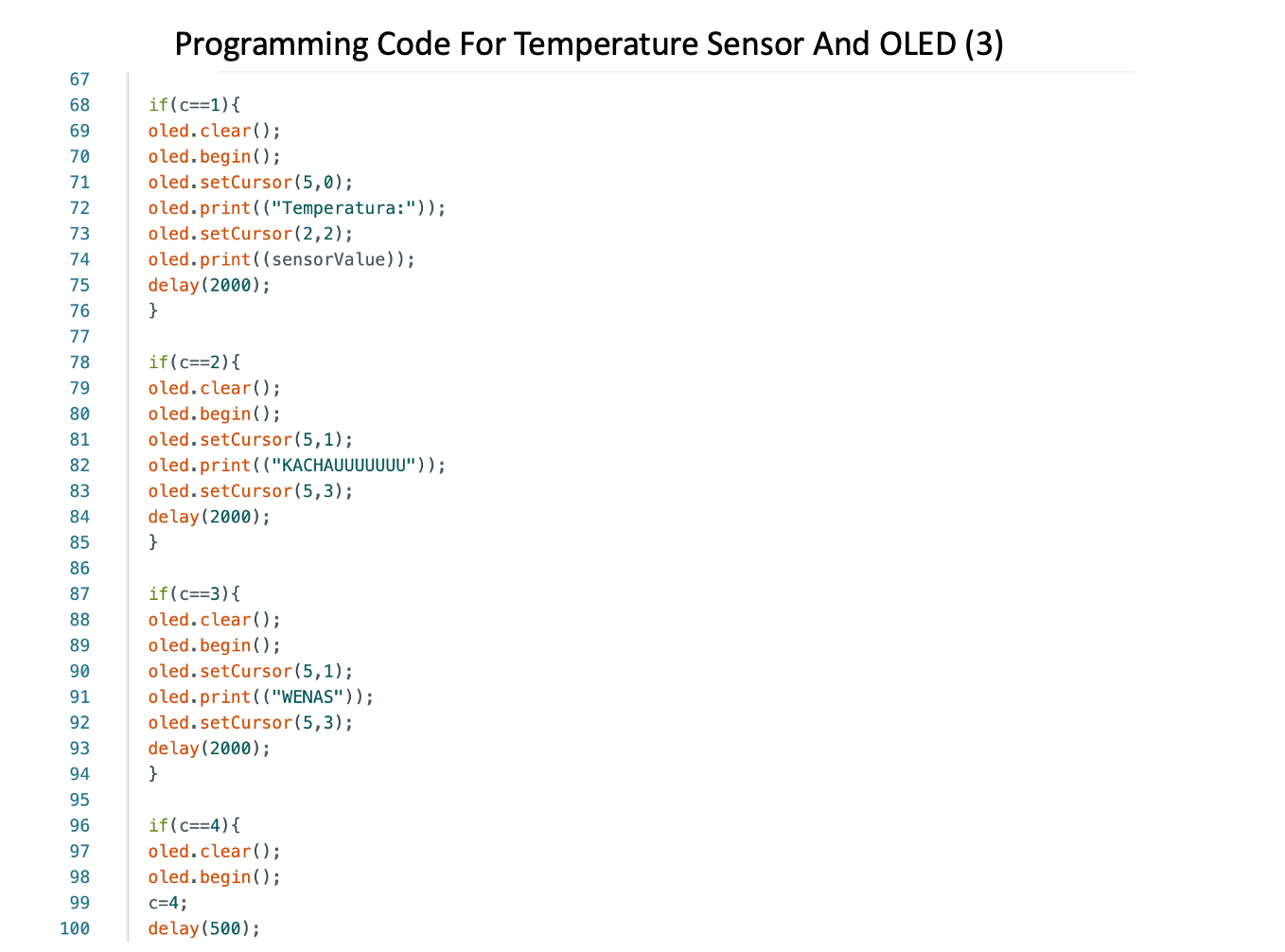

Programming Code for Temperature Sensor and OLED

sensor temperatura y oled
Screen Shot 2023-11-14 at 11.37.21.png
Screen Shot 2023-11-14 at 11.37.28.png
Screen Shot 2023-11-14 at 11.37.34.png
Screen Shot 2023-11-14 at 11.37.40.png

The DHT11 is a temperature and humidity sensor, which helps to measure the air around the place.


Assemble in the Protoboard

Screen Shot 2023-11-12 at 20.48.28.png
  1. ARD-350 (Ultrasonic sensor).
  2. MQ-2 (gas sensor)
  3. DHT11 (temperature and humidity sensor)

The ultrasonic sensor and the gas sensor are connected to the same attiny, while the temperature sensor is connected to the OLED.

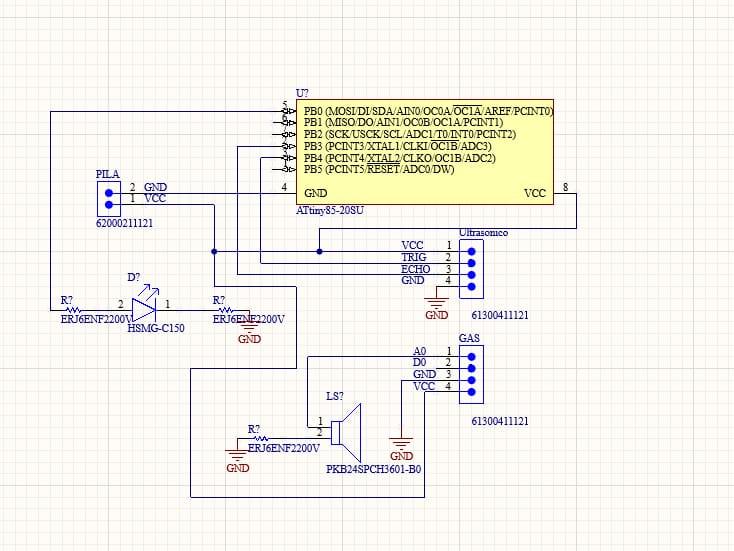

PCB


References

·     Hayes, A. (2022). What is wearable technology (Wearables) Definition and examples. Investopedia. https://www.investopedia.com/terms/w/wearable-technology.asp

·     Daley, S. (2022). What is wearable technology? Examples of wearables. Built In. https://builtin.com/wearables

·     Yasar, K., & Wigmore, I. (2022). Wearable technology. Mobile Computing. https://www.techtarget.com/searchmobilecomputing/definition/wearable-technology

·     Grove - Gas Sensor(MQ2) . (2023). Seeed Studio Wiki https://wiki.seeedstudio.com/Grove-Gas_Sensor-MQ2/

·     Industries. (s. f.). DHT11 Basic Temperature-Humidity Sensor. Adafruit https://www.adafruit.com/product/386
