Wearable FireFly
Making a wearable firefly that glows when the wings meet
Materials Needed
Colorful Fabric
Nail Polish to match the color of the wings
Beads/Glitter for eyes (optional)
Conductive Fabric (Iron on)
Iron
Hot Glue Gun
Scissors
Thread
Conductive Thread
Needles
Yellow LED
Resistor Coin Battery
FireFly Shapes

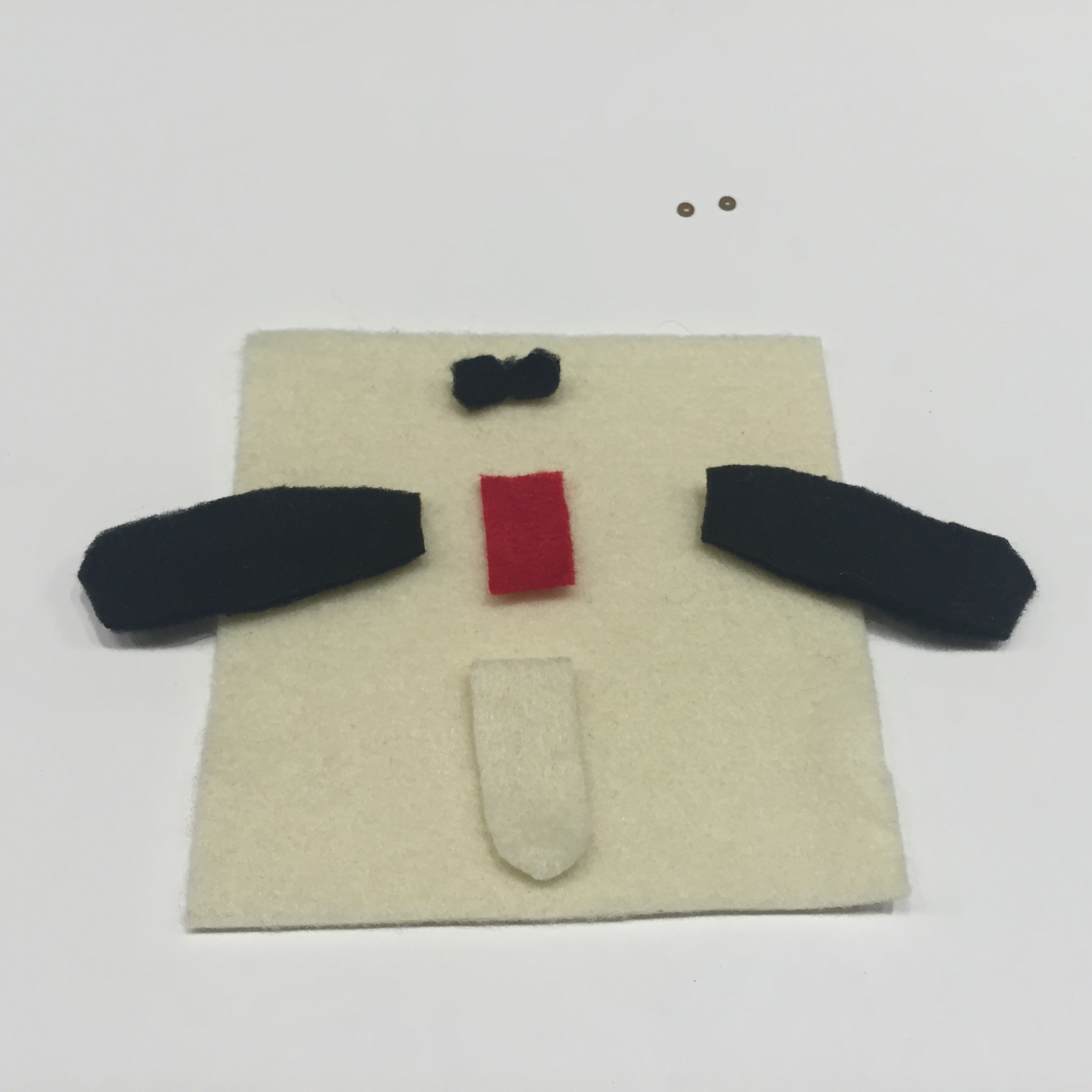

Cut out the firefly shapes

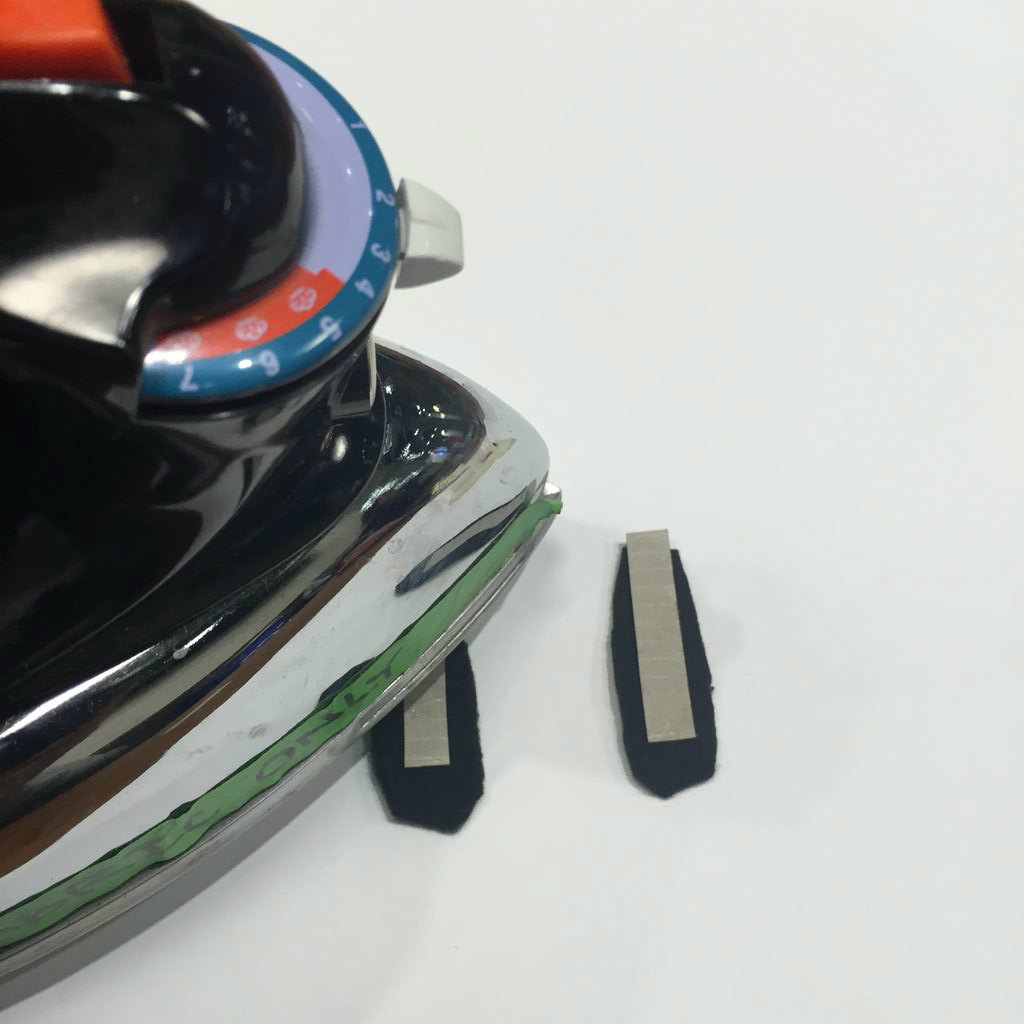

Iron on Fabric

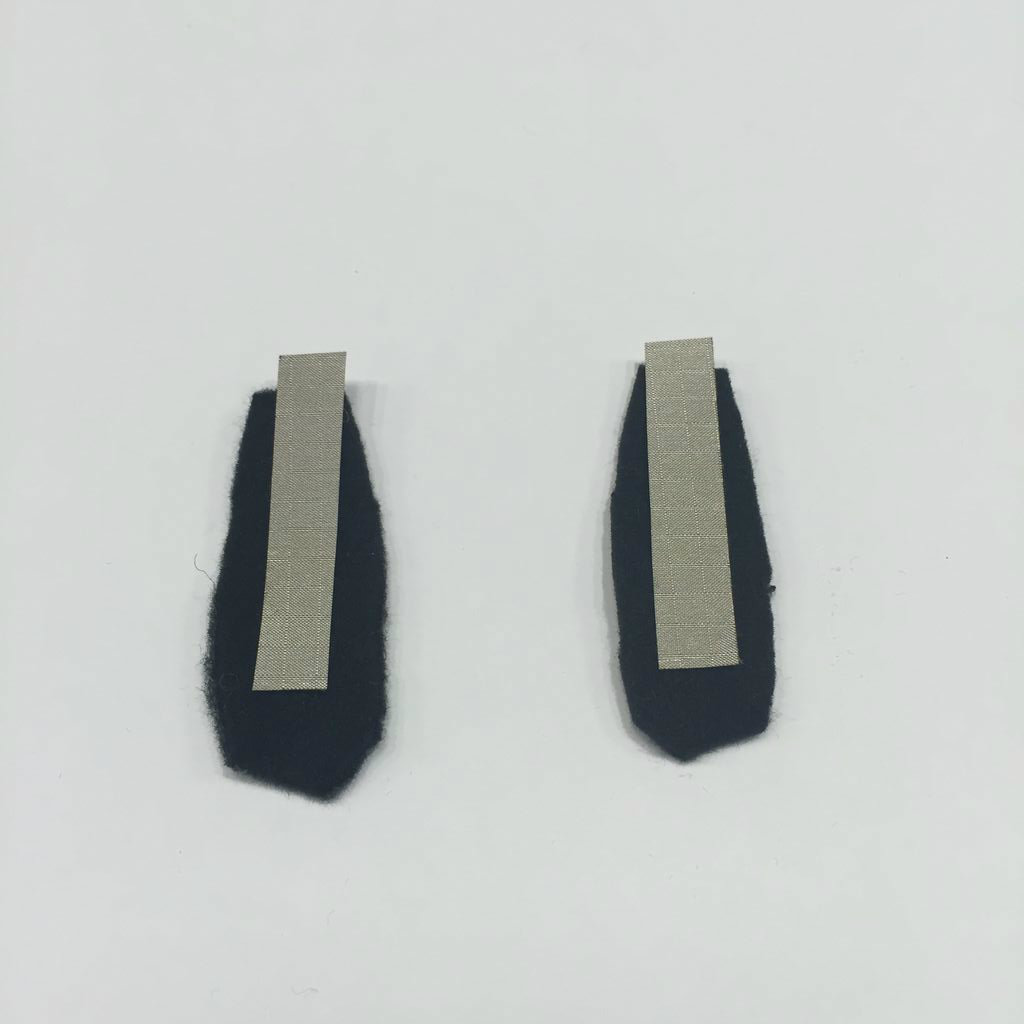

Iron on the conductive fabric onto the wings
Insulate Wings
Insulate the wings partially by covering it with nail polish
To learn how to insulate using nail polish follow the link-
Creating Circuit

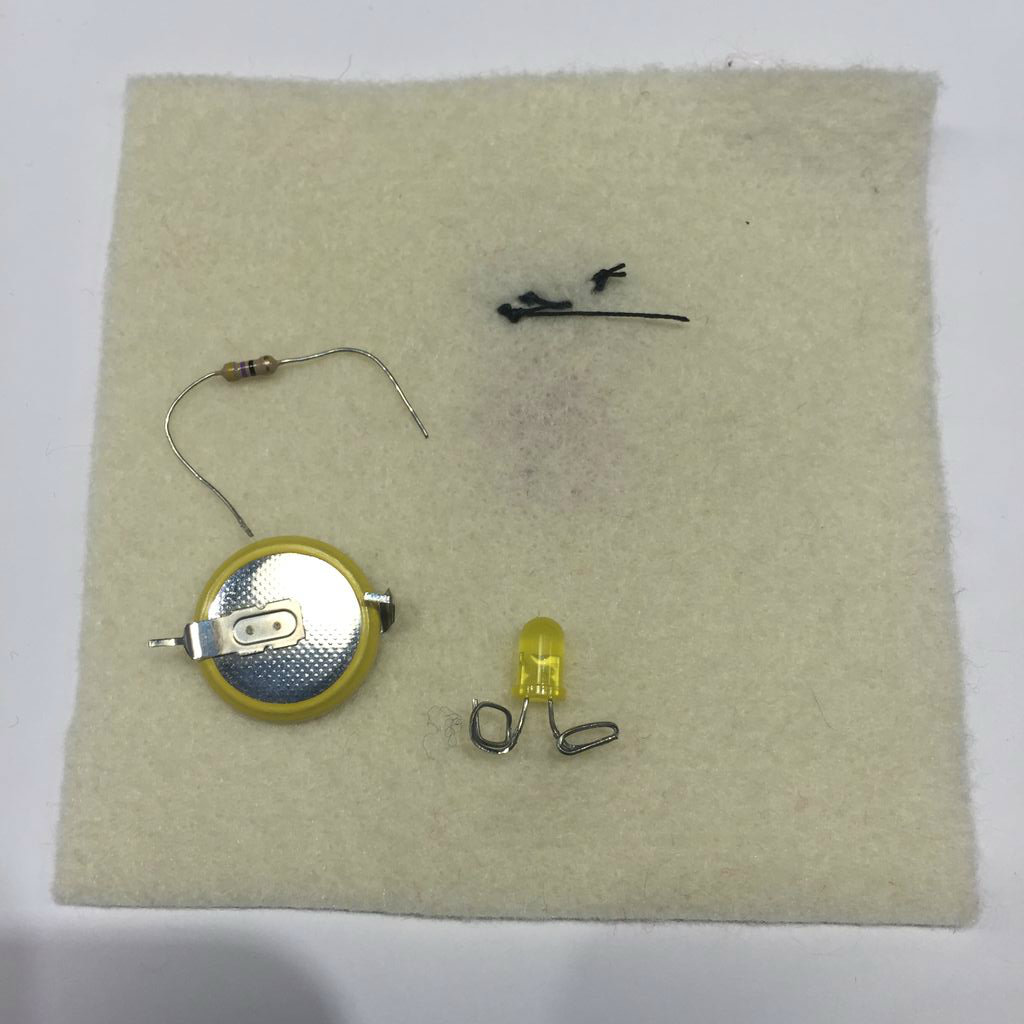

Create a circuit with the LED, battery, resistor and switch.
The switch is formed by the wings that can be pressed together on the other side of the cloth.
Stitching the Wings
Stitch on the wings using conductive thread to complete the circuit on the other side of the cloth
Insulating Wings
Once the wings are on use nail polish to cover intersection of wing and cloth so that the switch is not on all the time.
Insulating Circuit

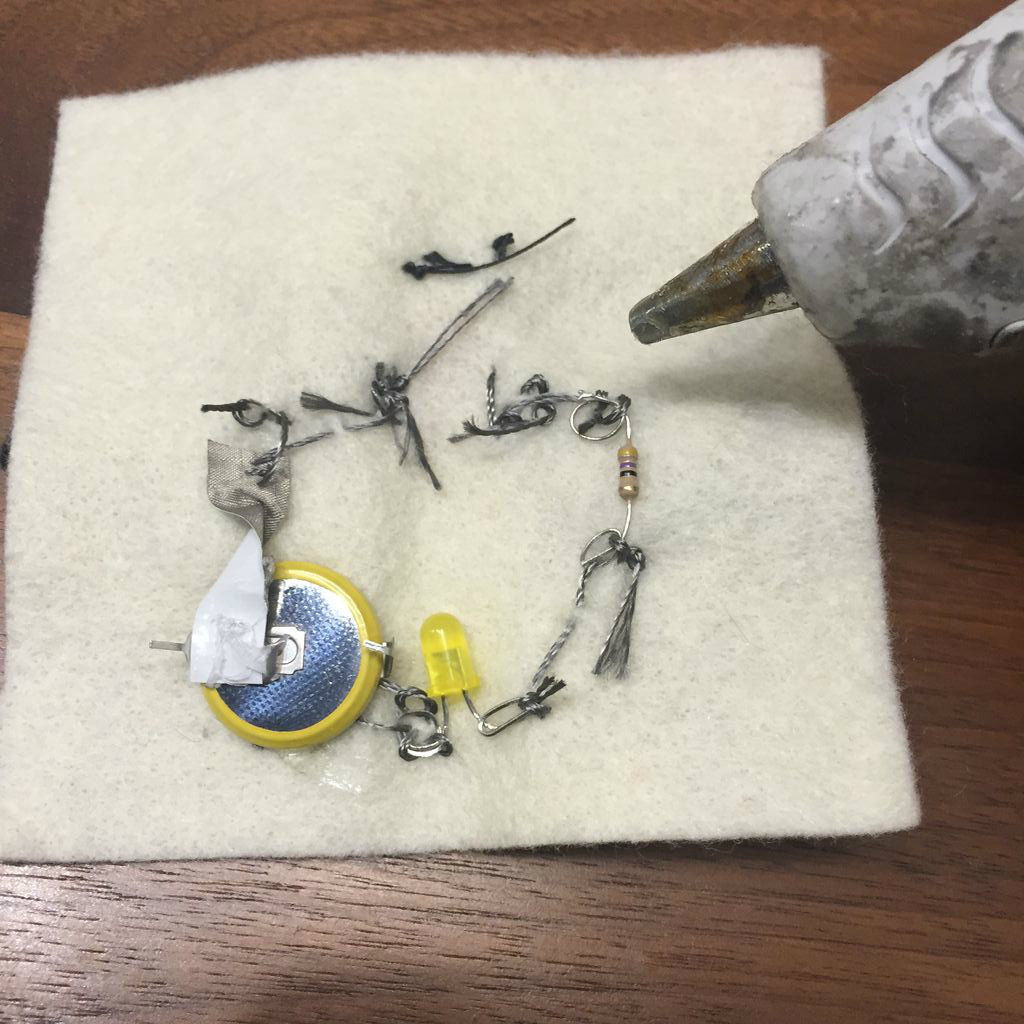

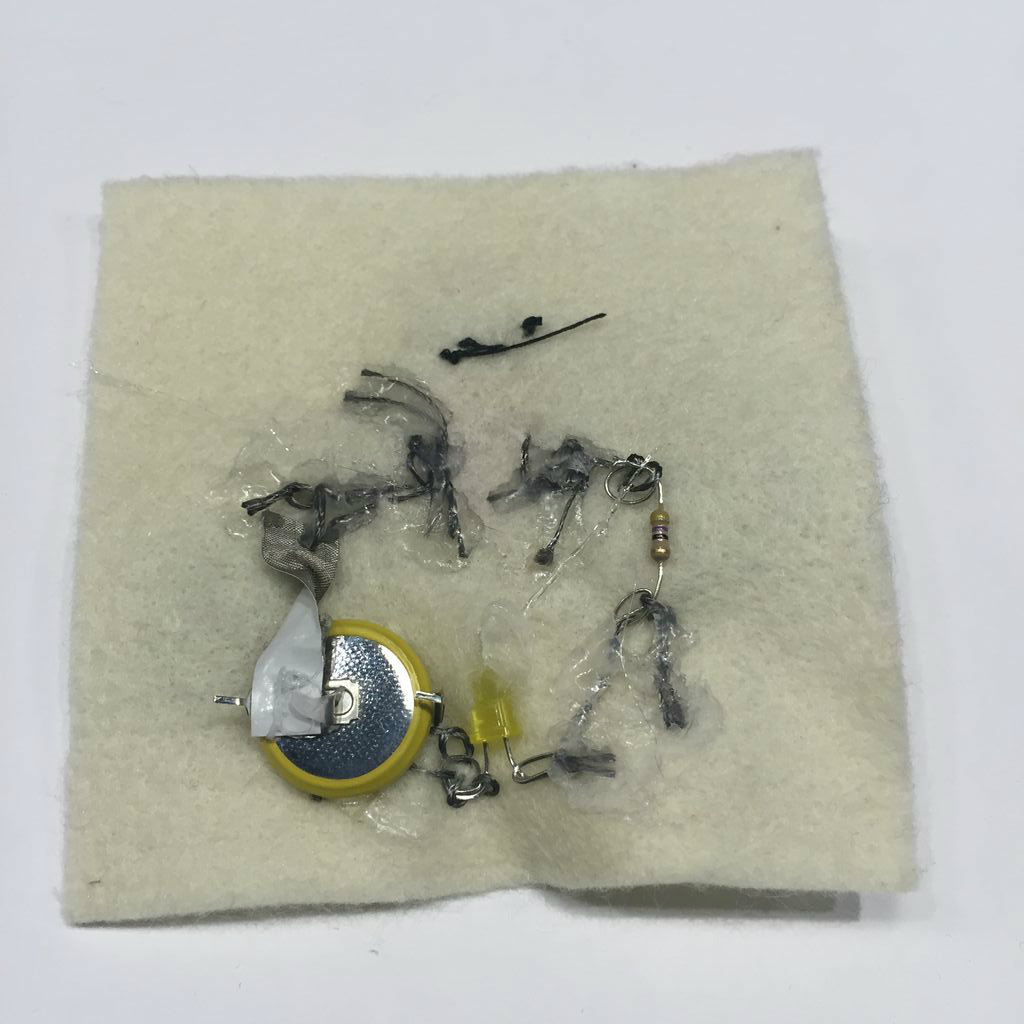

Use the glue gun to insulate the conductive thread.
Insulate each circuit separately.

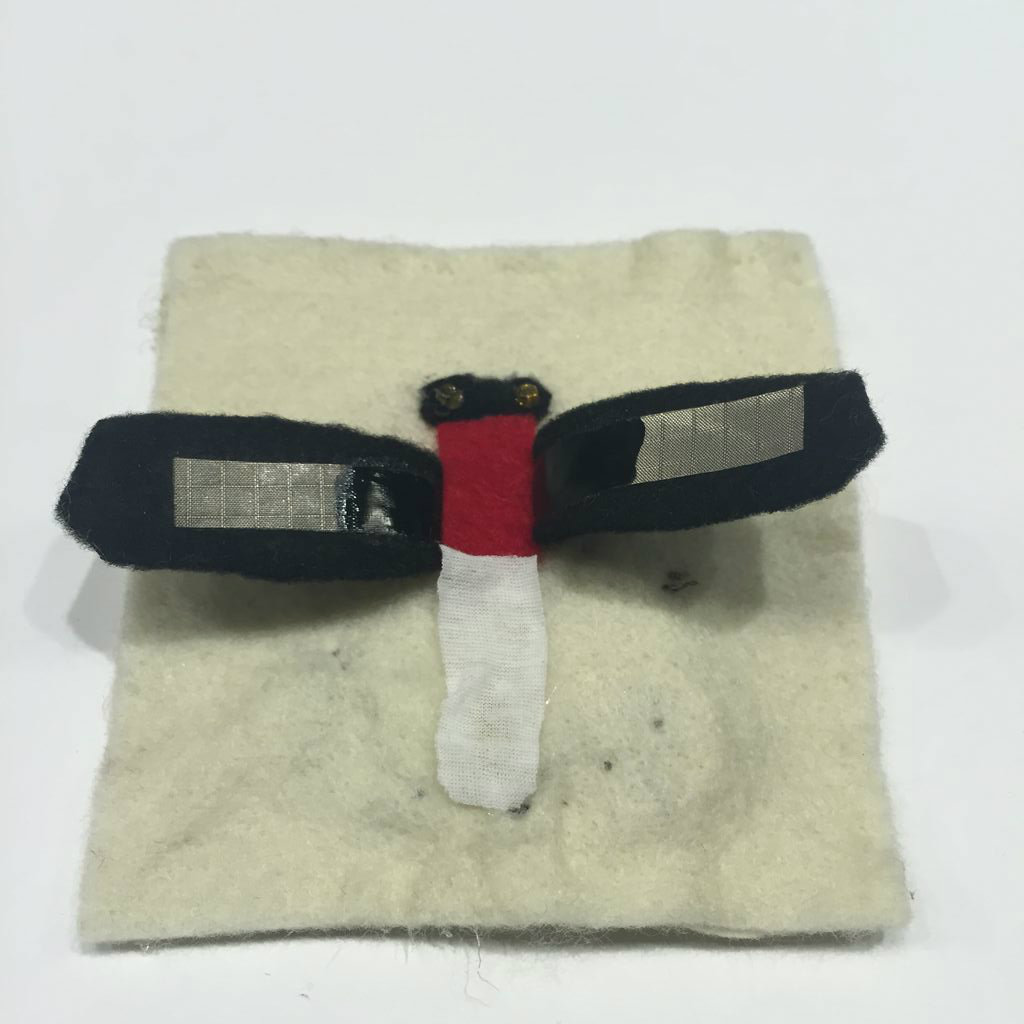

The Firefly Is Now Ready
Press the wings together to make it glow!
You can also stitch this patch onto a backpack, clothing, etc.
