Waterproof LED Lightstick
![IMG_0722.JPG](/proxy/?url=https://content.instructables.com/FX7/7CD6/ITCXI410/FX77CD6ITCXI410.jpg&filename=IMG_0722.JPG)
Here is the led lightstick that save you buying chemical light sticks which have not enough illumination. This lightstick is also waterproof that can be used underwater.
Parts List
![IMG_0713.JPG](/proxy/?url=https://content.instructables.com/FYQ/YCUJ/ITCXI41C/FYQYCUJITCXI41C.jpg&filename=IMG_0713.JPG)
![IMG_0715.JPG](/proxy/?url=https://content.instructables.com/F53/6VJ4/ITCXI40B/F536VJ4ITCXI40B.jpg&filename=IMG_0715.JPG)
![IMG_0716.JPG](/proxy/?url=https://content.instructables.com/FGV/TO7X/ITCXI40G/FGVTO7XITCXI40G.jpg&filename=IMG_0716.JPG)
![IMG_0714.JPG](/proxy/?url=https://content.instructables.com/FM3/3MU6/ITCXI41F/FM33MU6ITCXI41F.jpg&filename=IMG_0714.JPG)
![IMG_0717.JPG](/proxy/?url=https://content.instructables.com/FHS/SQ9T/ITCXI40N/FHSSQ9TITCXI40N.jpg&filename=IMG_0717.JPG)
- PVC tube (1.5mm inner diameter 40cm total length)
- Green leds x8
- AAA battery holder x3
- Mini switch
- PVC end cap
- Epoxy glue
Connecting the LEDs
![IMG_0712.JPG](/proxy/?url=https://content.instructables.com/F9T/WDIN/ITCXI41A/F9TWDINITCXI41A.jpg&filename=IMG_0712.JPG)

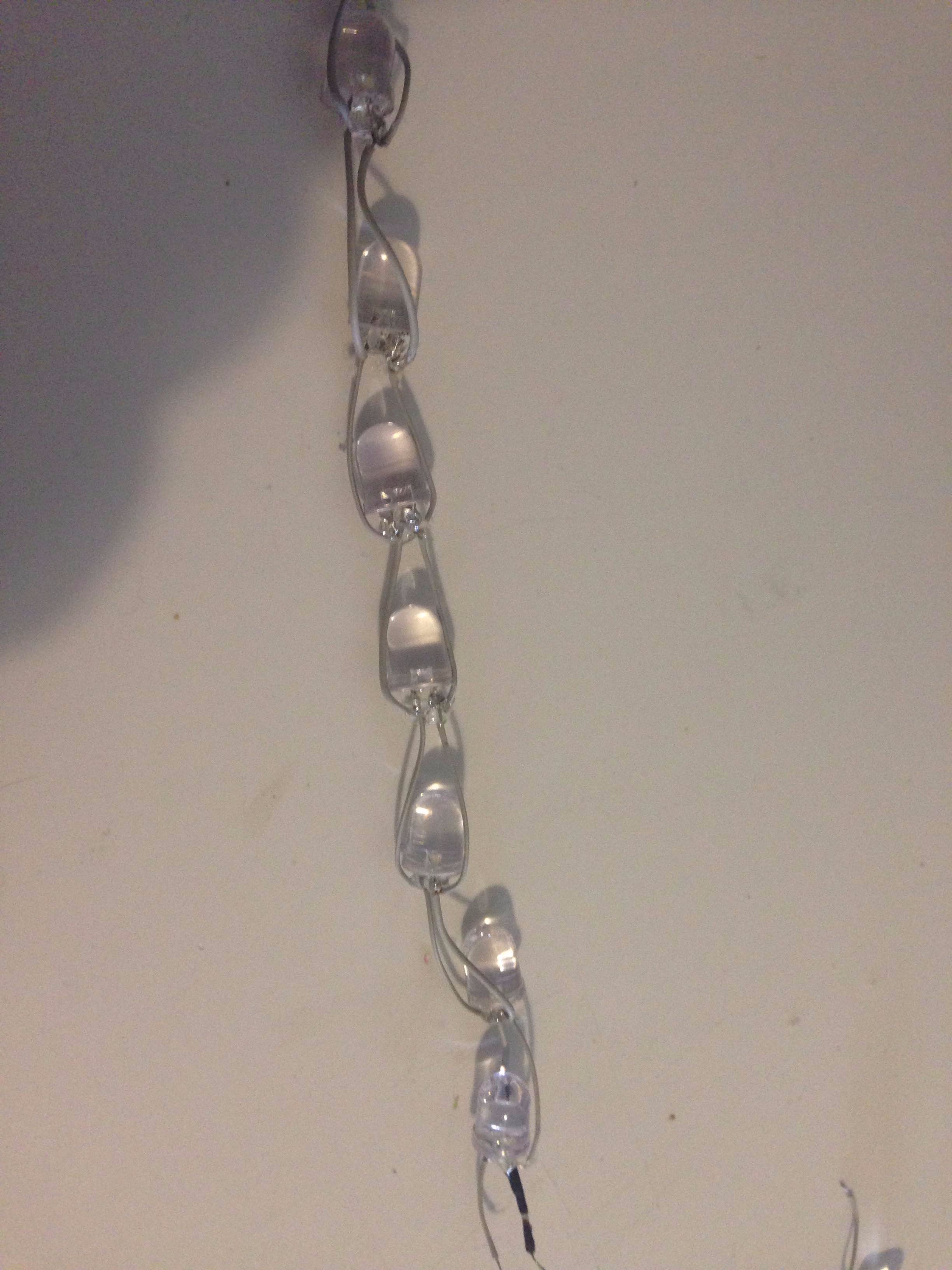

First I cut the legs of the LEDs and soldered small piece of wires. Then I soldered 8 leds in parallel.
Glueing the Battery Holders and Switch
![IMG_0718.JPG](/proxy/?url=https://content.instructables.com/FMK/I0YY/ITCXI40P/FMKI0YYITCXI40P.jpg&filename=IMG_0718.JPG)
![IMG_0720.JPG](/proxy/?url=https://content.instructables.com/FRF/YF0W/ITCXI40W/FRFYF0WITCXI40W.jpg&filename=IMG_0720.JPG)
![IMG_0719.JPG](/proxy/?url=https://content.instructables.com/FYQ/EK22/ITCXI40R/FYQEK22ITCXI40R.jpg&filename=IMG_0719.JPG)
After connecting the LEDs I glued three aaa battery holders in series with an epoxy glue. A switch was glued at the end of the battery holder. Finally I made the proper connections with soldering iron. I glued the switch to the drilled pvc end cap
Inserting LEDs to the Pipe
![IMG_0721.JPG](/proxy/?url=https://content.instructables.com/FRL/XAYU/ITCXI40Y/FRLXAYUITCXI40Y.jpg&filename=IMG_0721.JPG)
![IMG_0726.JPG](/proxy/?url=https://content.instructables.com/F69/FWQW/ITCXI416/F69FWQWITCXI416.jpg&filename=IMG_0726.JPG)
![IMG_0725.JPG](/proxy/?url=https://content.instructables.com/FKE/GPIO/ITCXI412/FKEGPIOITCXI412.jpg&filename=IMG_0725.JPG)

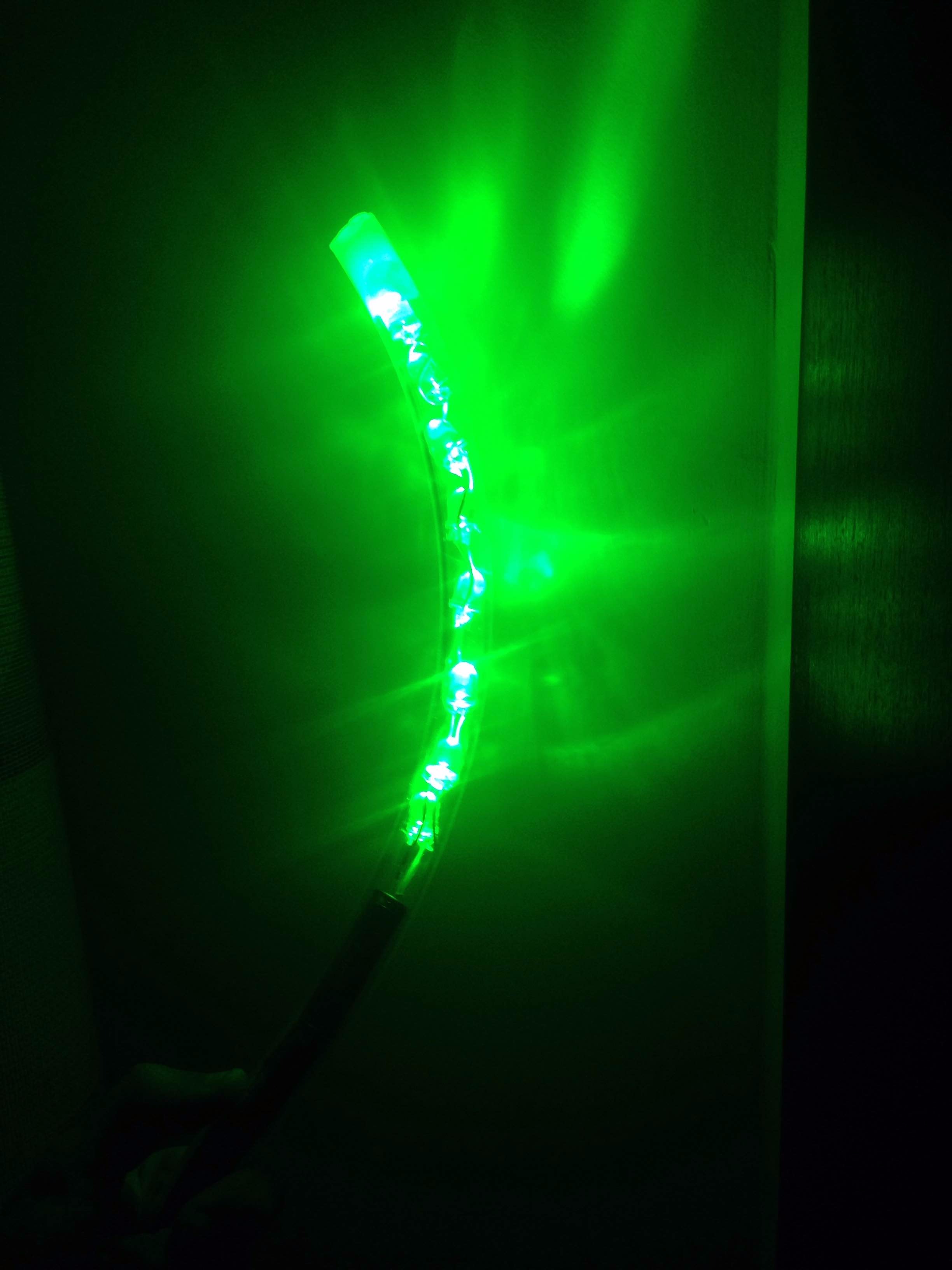

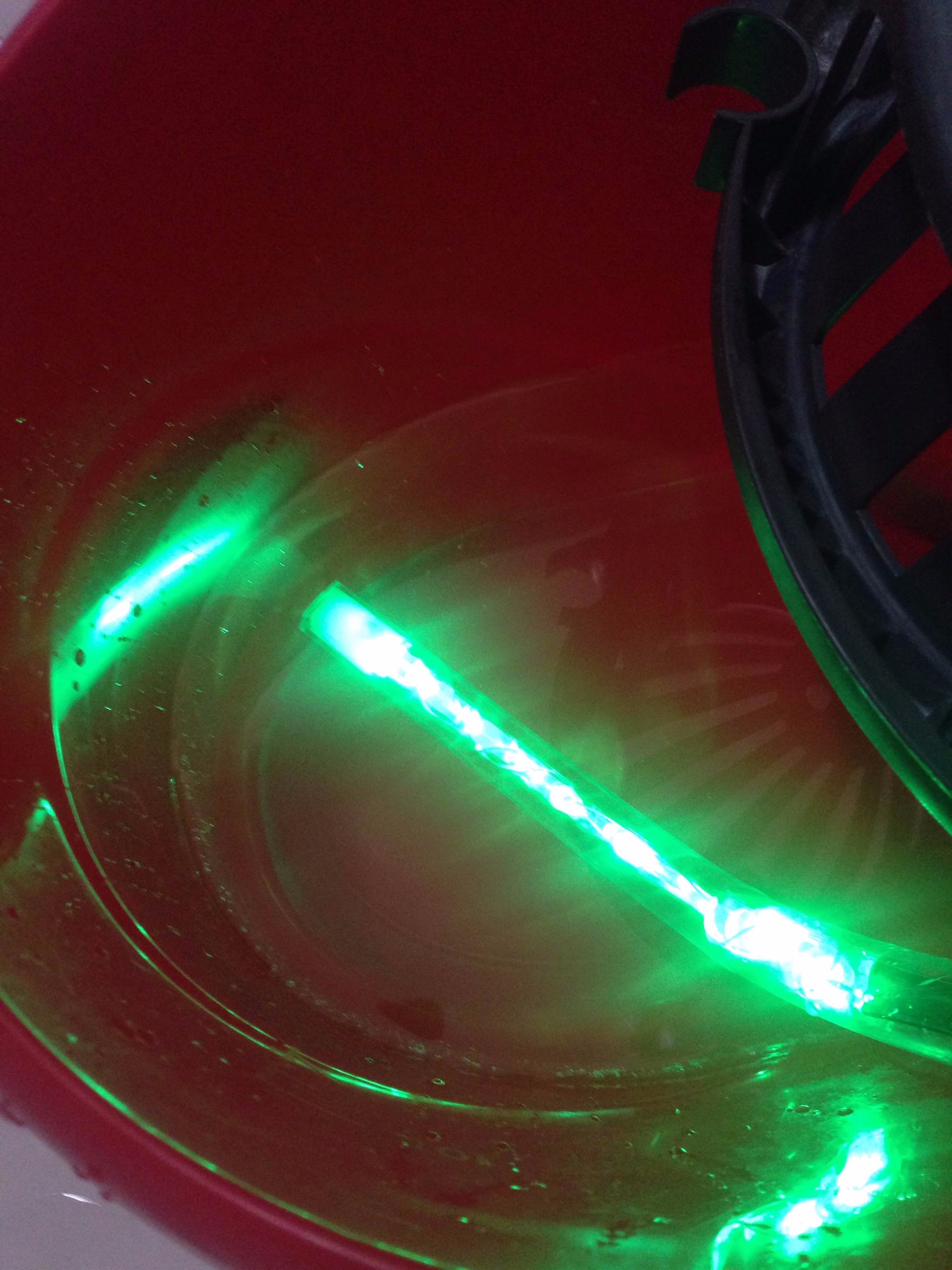

Finally I lead through the leds inside the pipe. A little bit alcohol helped for lubrication. Later I put the batteries and sealed the upper end with some hot glue. I added waterproof switch cap on the switch. You can see its function underwater. A hook cam be attached to an end for a futher improvement.
