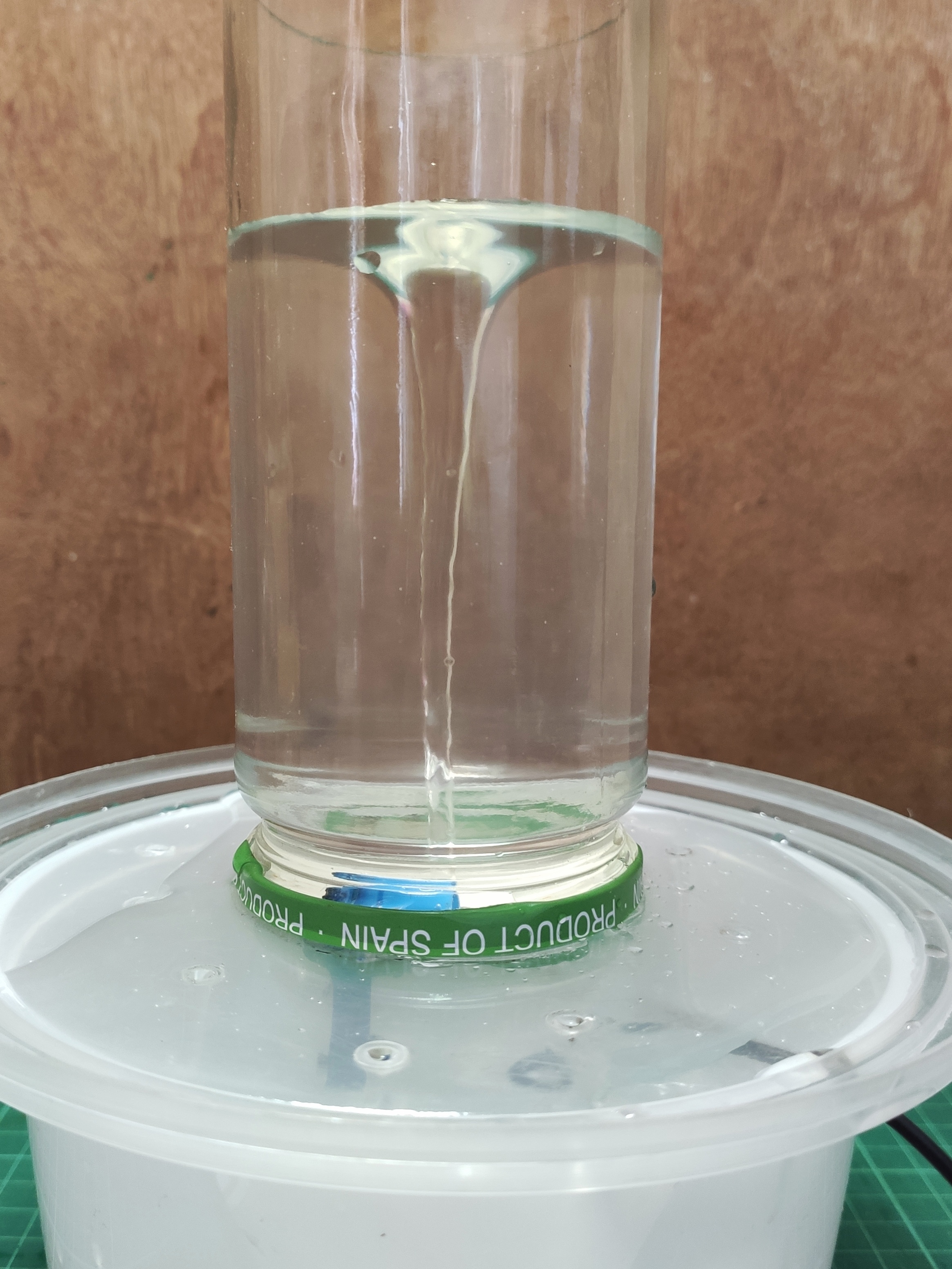

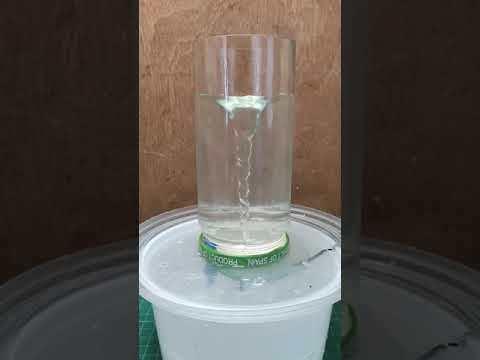

Water Vortex Mini Fountain
![IMG_20191222_115324-01.jpeg](/proxy/?url=https://content.instructables.com/F2R/CQY7/K4EF2LDM/F2RCQY7K4EF2LDM.jpg&filename=IMG_20191222_115324-01.jpeg)
![Water vortex mini fountain](/proxy/?url=https://content.instructables.com/FEM/E3RG/K4EF5D4L/FEME3RGK4EF5D4L.jpg&filename=Water vortex mini fountain)
"You can never step in the same water twice, my friend. Like flowing water, life is perpetual movement. There is nothing fixed.” -- Bruce lee
In this intructable I will share my how I made this mini water vortex fountain. Almost, all the materials used in this project are recycled...
I made this project with my son and he enjoys playing with water and experiment with things and observe how it affected the fountain, like putting a marble inside the vortex, adding a pipe or more water.. I hope you get to spend more time with your family and friends by building one..
What Do We Need ?
![IMG_20191222_100933-01-01.jpeg](/proxy/?url=https://content.instructables.com/F6Z/86LQ/K4EF2LC0/F6Z86LQK4EF2LC0.jpg&filename=IMG_20191222_100933-01-01.jpeg)
Material
- Long Glass jar ( Olive jar )
- Plastic Food container with lid (reusing one from last nights food takeout)
- Plastic straw
- DC water pump
- PVC tubes
- Glass marbles
- AC to DC, 9V Adapter ( from old device )
- Wires
Tools
- Drill
- Bottle cutter jig
- Soldering Iron
- Hot Glue gun
The Jar Cap
![IMG_20191222_101622-01.jpeg](/proxy/?url=https://content.instructables.com/FQ3/0Z2T/K4EF2LC7/FQ30Z2TK4EF2LC7.jpg&filename=IMG_20191222_101622-01.jpeg)
![IMG_20191222_103626-01.jpeg](/proxy/?url=https://content.instructables.com/FYK/1DPW/K4EF2LCG/FYK1DPWK4EF2LCG.jpg&filename=IMG_20191222_103626-01.jpeg)

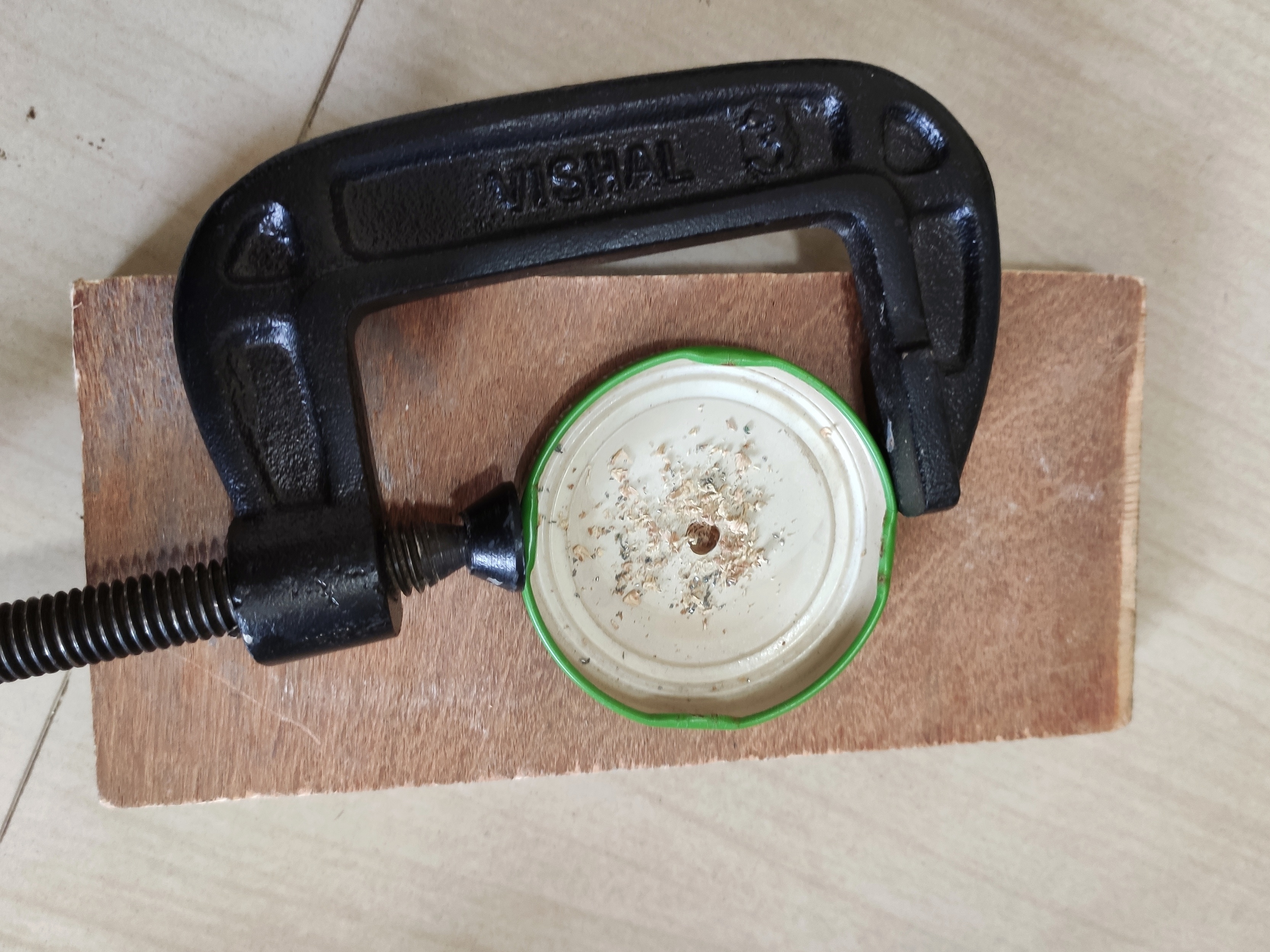

- It is difficult to drill holes on a glass, so I will use the metal jar cap

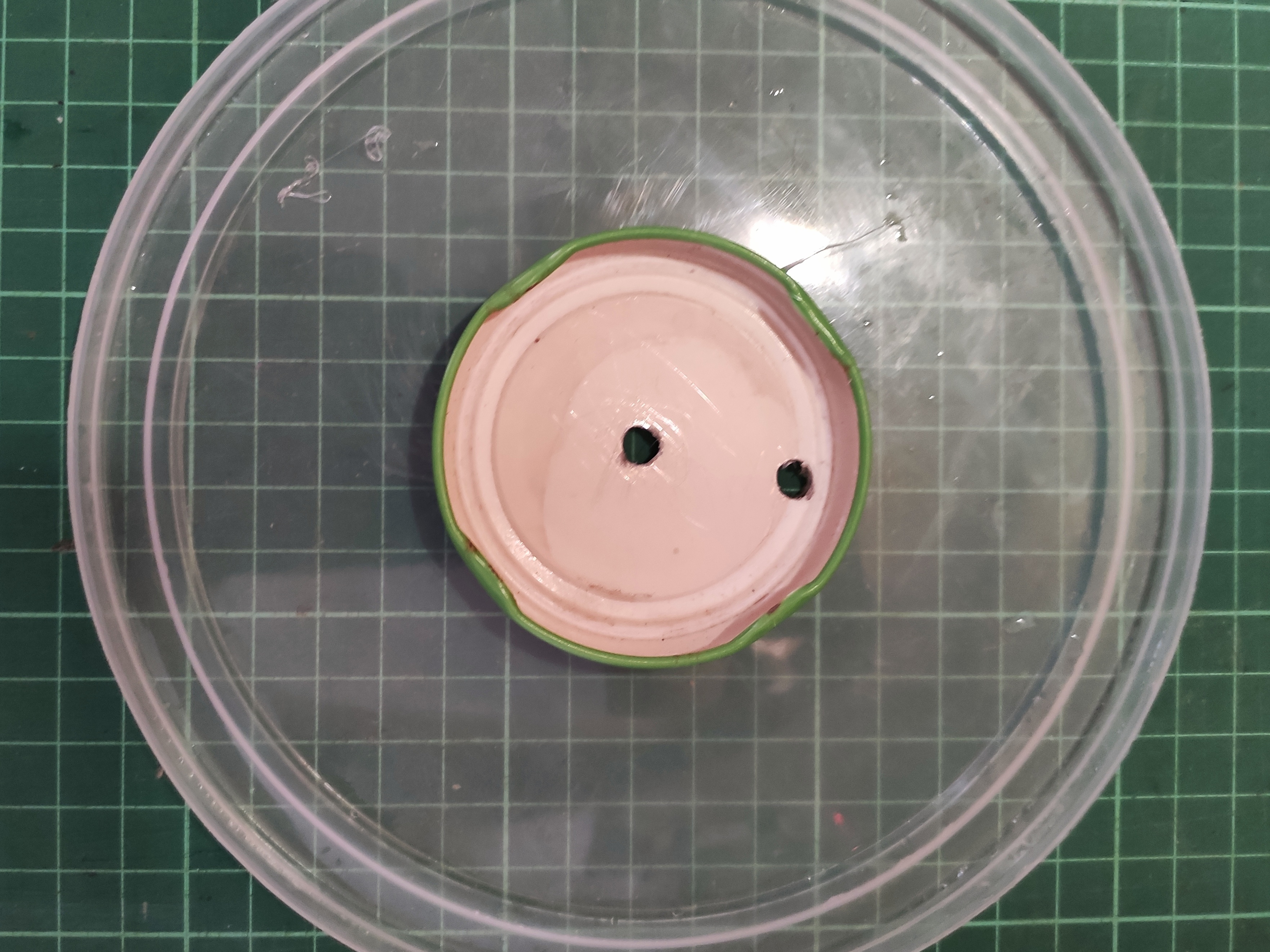

- Drill two holes, one at the center and other near the edge
- Make sure there is enough space for a plastic pipe and that the glass jar can still be closed
- Fix the jar cap on the plastic lid of the food container using hot glue gun\
- The middle hole will be used to create a vortex or whirlpool, while the second hole will be use to pump water into the jar at an angle
Bottle Jar
![IMG_20191222_101028-01.jpeg](/proxy/?url=https://content.instructables.com/FVP/Y5YW/K4EF2LC3/FVPY5YWK4EF2LC3.jpg&filename=IMG_20191222_101028-01.jpeg)
![F7LG5RMJF8IWLI1.LARGE.jpg](/proxy/?url=https://content.instructables.com/F07/4IAI/K4EF59OX/F074IAIK4EF59OX.jpg&filename=F7LG5RMJF8IWLI1.LARGE.jpg)

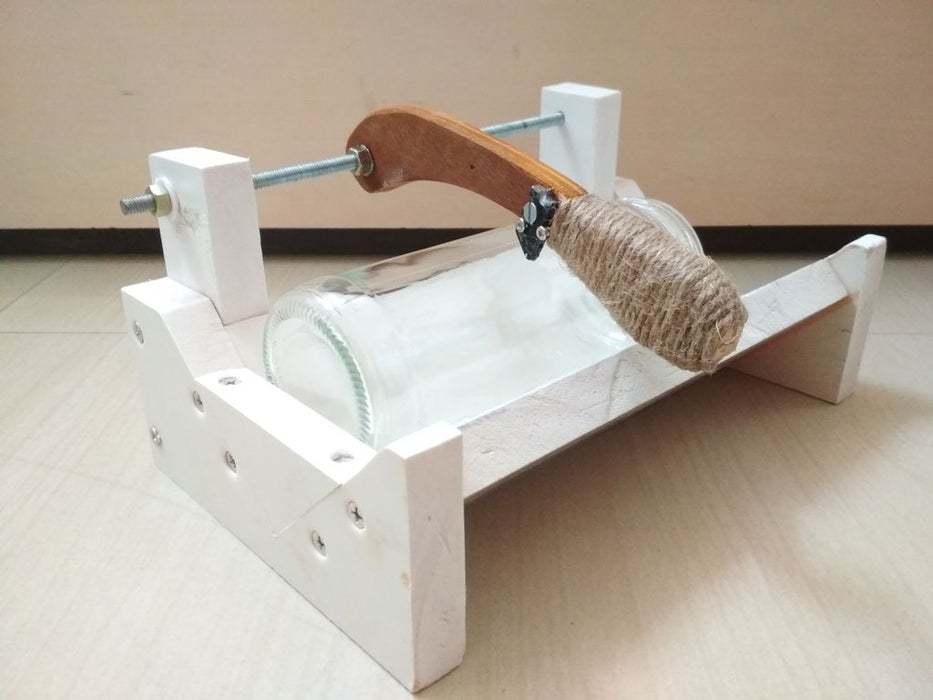

- Cut the bottom of the glass jar using a glass bottle cutter
- Sand the edges smooth
- We will place the glass jar inverted on the plastic lid
The Pump
![IMG_20191222_102917-01.jpeg](/proxy/?url=https://content.instructables.com/FCI/E3HS/K4EF2LCM/FCIE3HSK4EF2LCM.jpg&filename=IMG_20191222_102917-01.jpeg)
![IMG_20191222_103757-01.jpeg](/proxy/?url=https://content.instructables.com/FCD/J39G/K4EF2LCB/FCDJ39GK4EF2LCB.jpg&filename=IMG_20191222_103757-01.jpeg)
![IMG_20191222_105731.jpg](/proxy/?url=https://content.instructables.com/F0Q/2TFL/K4EF2M8B/F0Q2TFLK4EF2M8B.jpg&filename=IMG_20191222_105731.jpg)
- The water needs to be pumps inside the jar at an angle, so that the water moves in circular motion

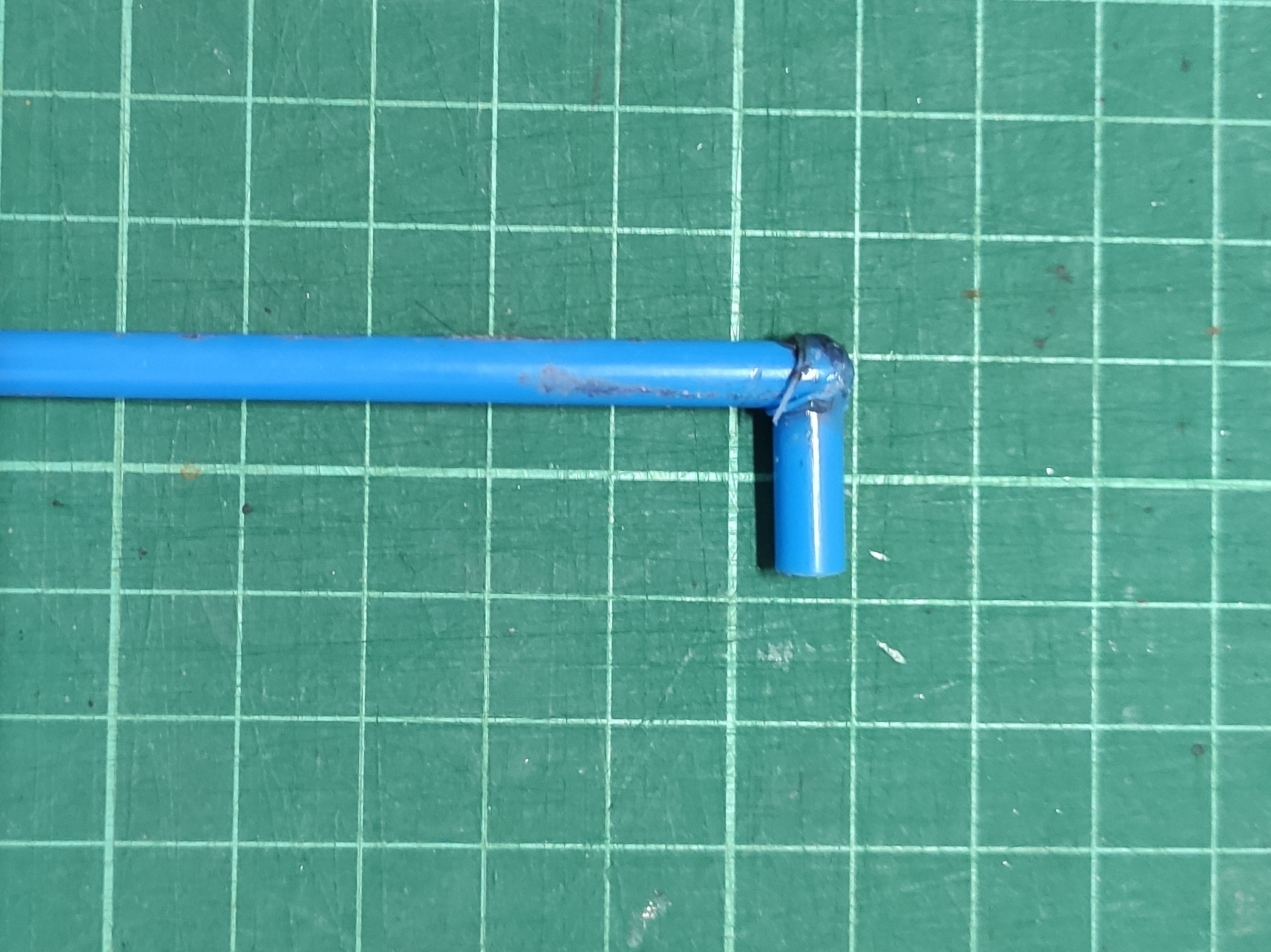

- To make a "L" shaped bend pipe by heating the pipe under a flame and then bending it
- Or cut two pieces of the pipe and attach them at 90 degree by hot glue or melting them together

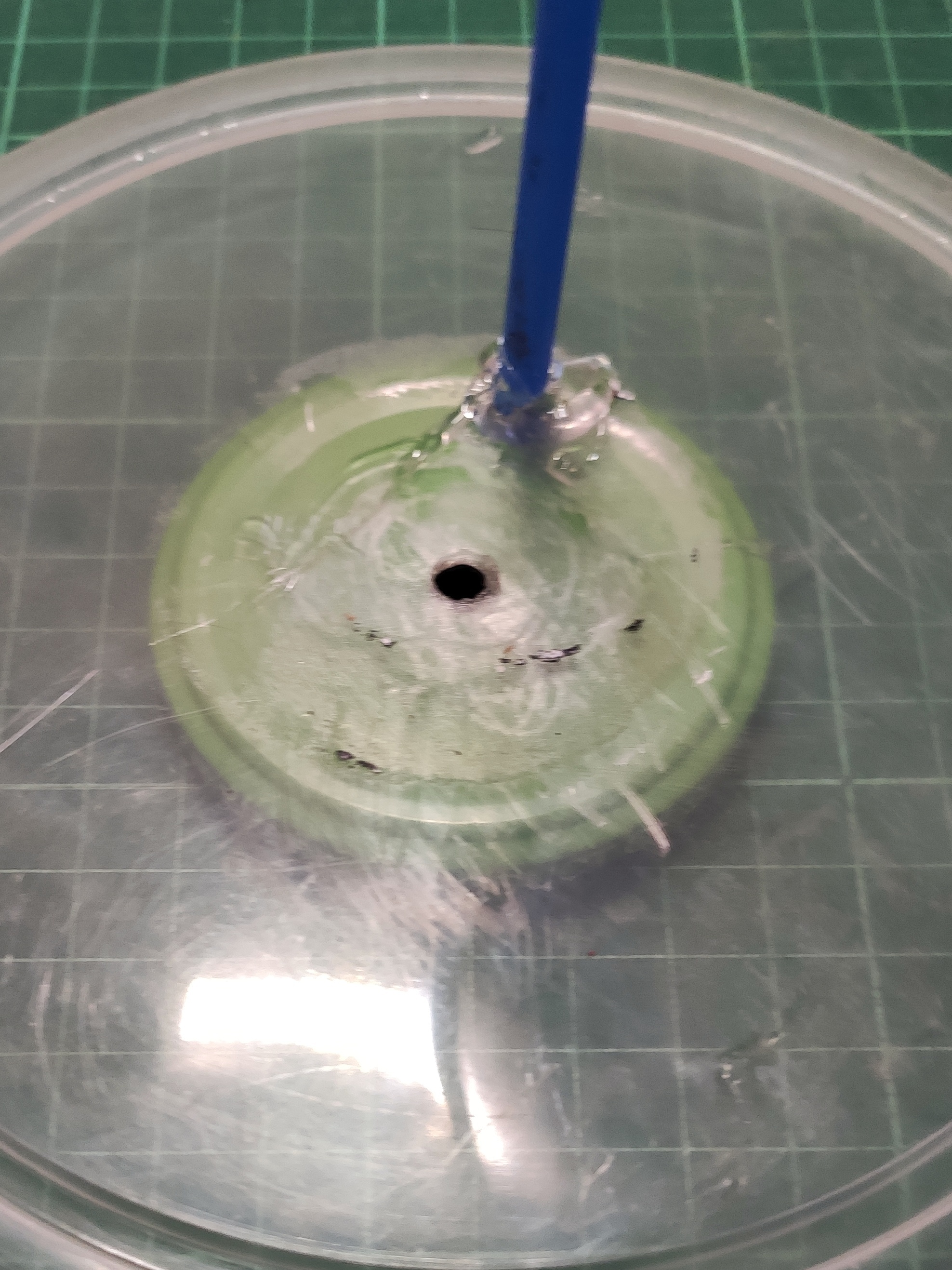

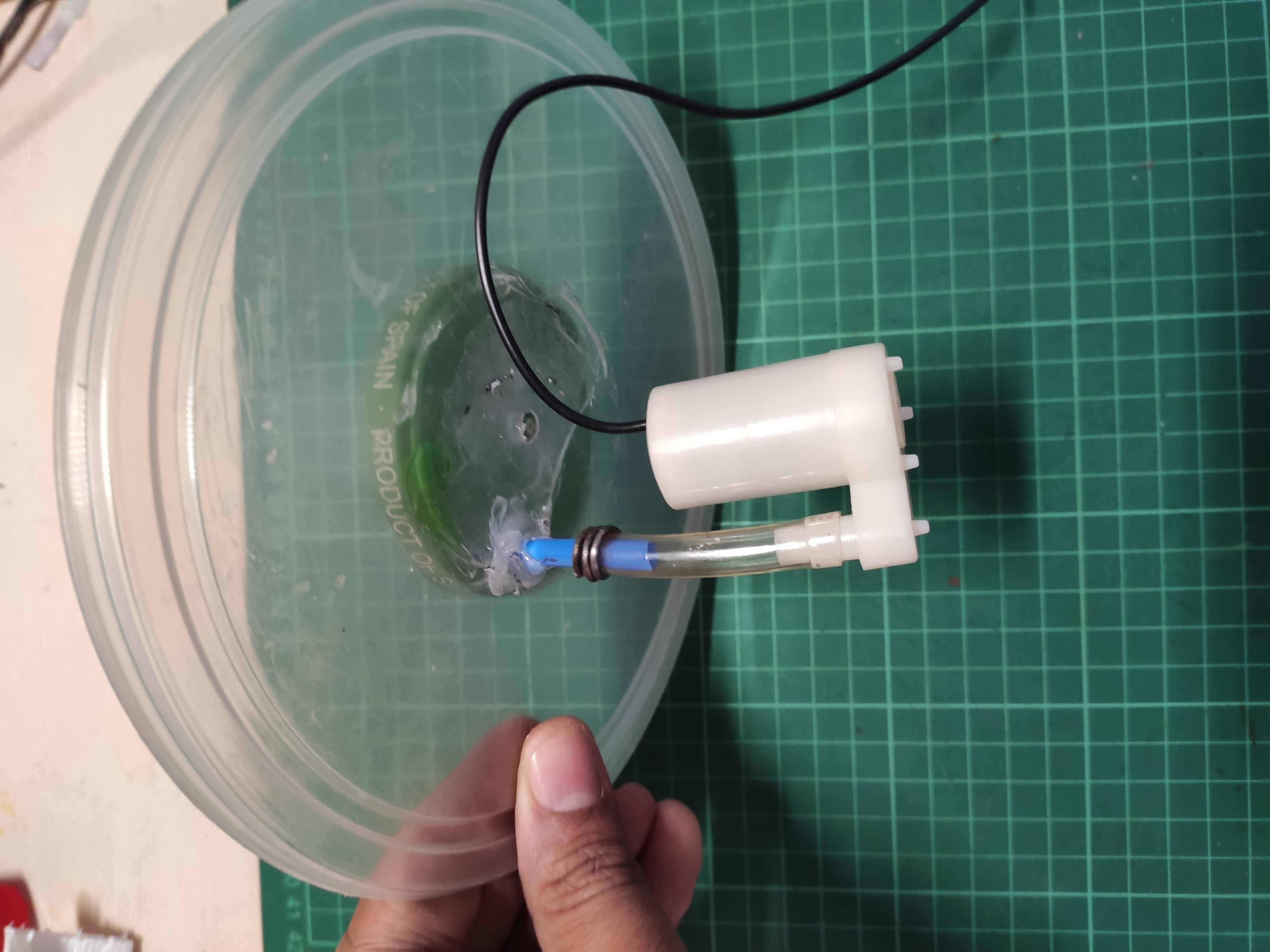

- The water pump is attached to a plastic pipe using a soft pvc tube, as shown
Finishing
![IMG_20191222_113929-01.jpeg](/proxy/?url=https://content.instructables.com/FC6/VTLY/K4EF2LD3/FC6VTLYK4EF2LD3.jpg&filename=IMG_20191222_113929-01.jpeg)
![IMG_20191222_114212-01.jpeg](/proxy/?url=https://content.instructables.com/FU3/WDO5/K4EF2LDC/FU3WDO5K4EF2LDC.jpg&filename=IMG_20191222_114212-01.jpeg)

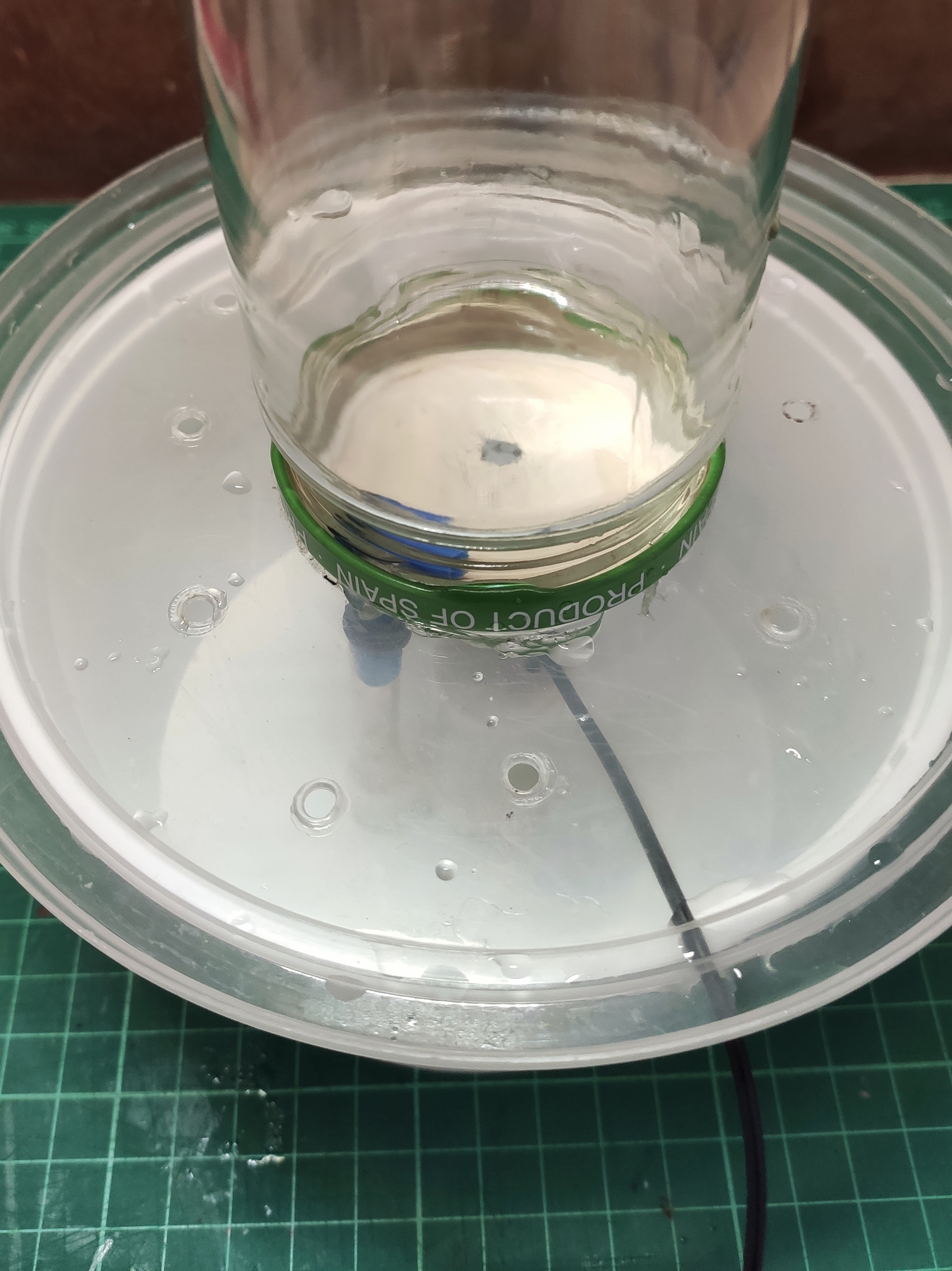

- Drill few extra holes on the food container lid for excess water
- The motor wire can come out at the lid

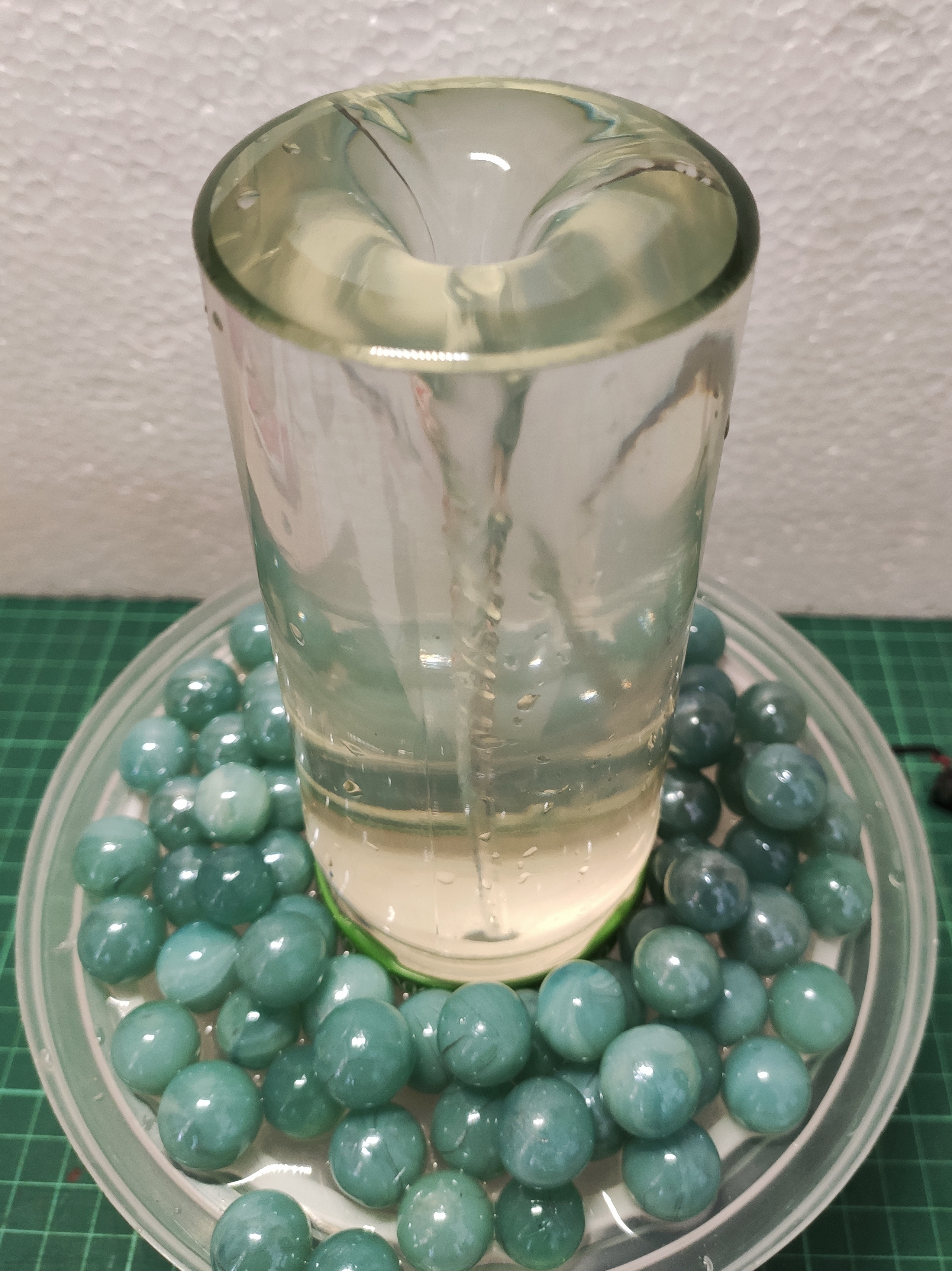

- Cover the lid with stones or glass marble
- Fill the plastic container with water
Optional :
- Add few lights
- Add blue color or glitter in the water
- Decorate the base jar
Thanks, please share your comments
