Wash Machine Motor Wiring

by DanielR34 in Circuits > Electronics

10261 Views, 20 Favorites, 0 Comments

Wash Machine Motor Wiring

This is a universal motor C.E.SET from old ZANUSSI wash machine.
It can be connect to DC and AC power supply.
It can be used for some your projects, it's a pity to throw to trash with wash machine.

Description :
13400 rpm
2A
450W

Connector

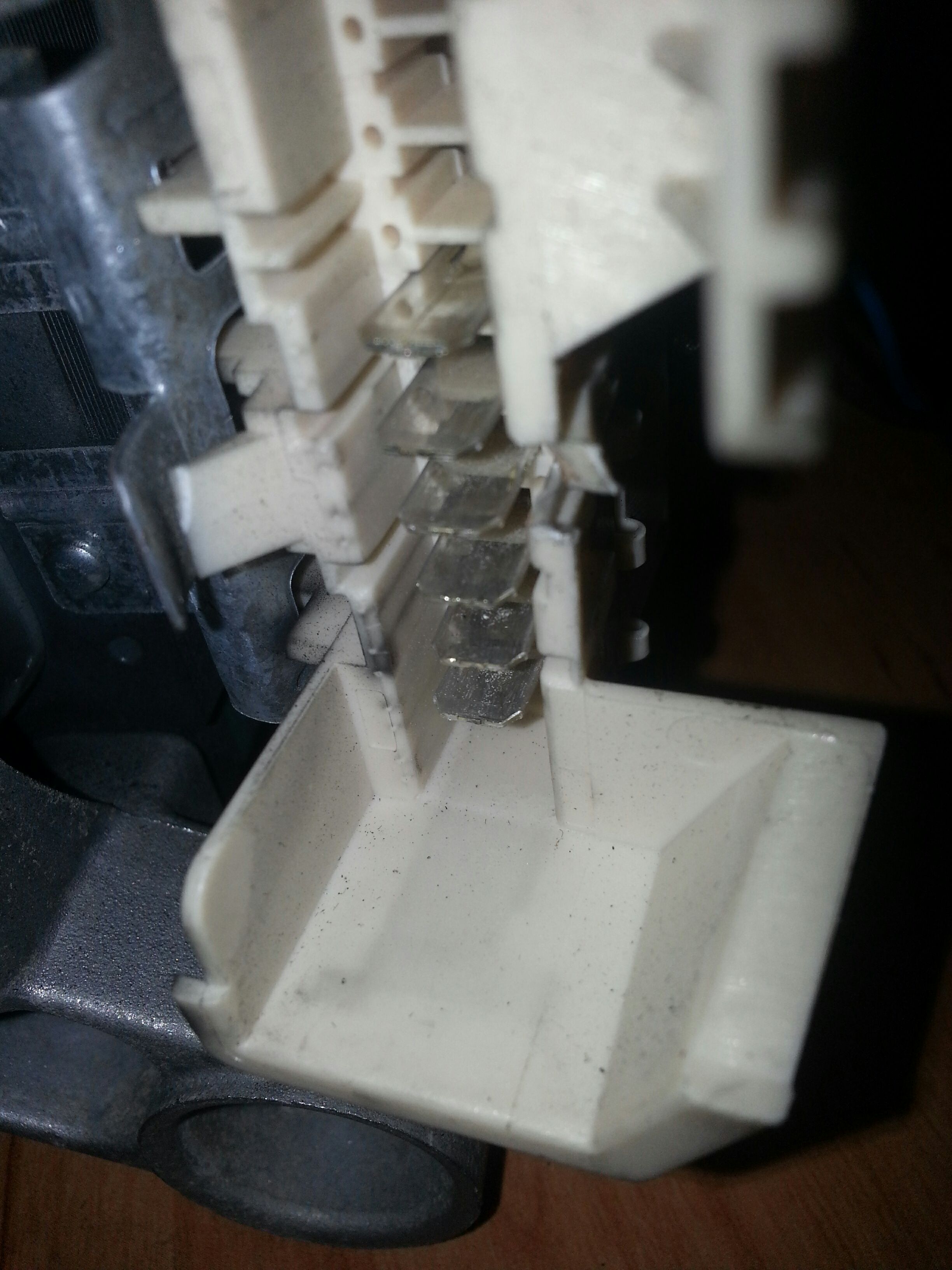

The connector contains six wires, we are going to use only 4.
First and second are heat fuse, these wires we leave not connected.

Wires can be organized little different, it's dependent on type of wash machine, but if you observe color of wires, It will be OK and should work.

Wiring

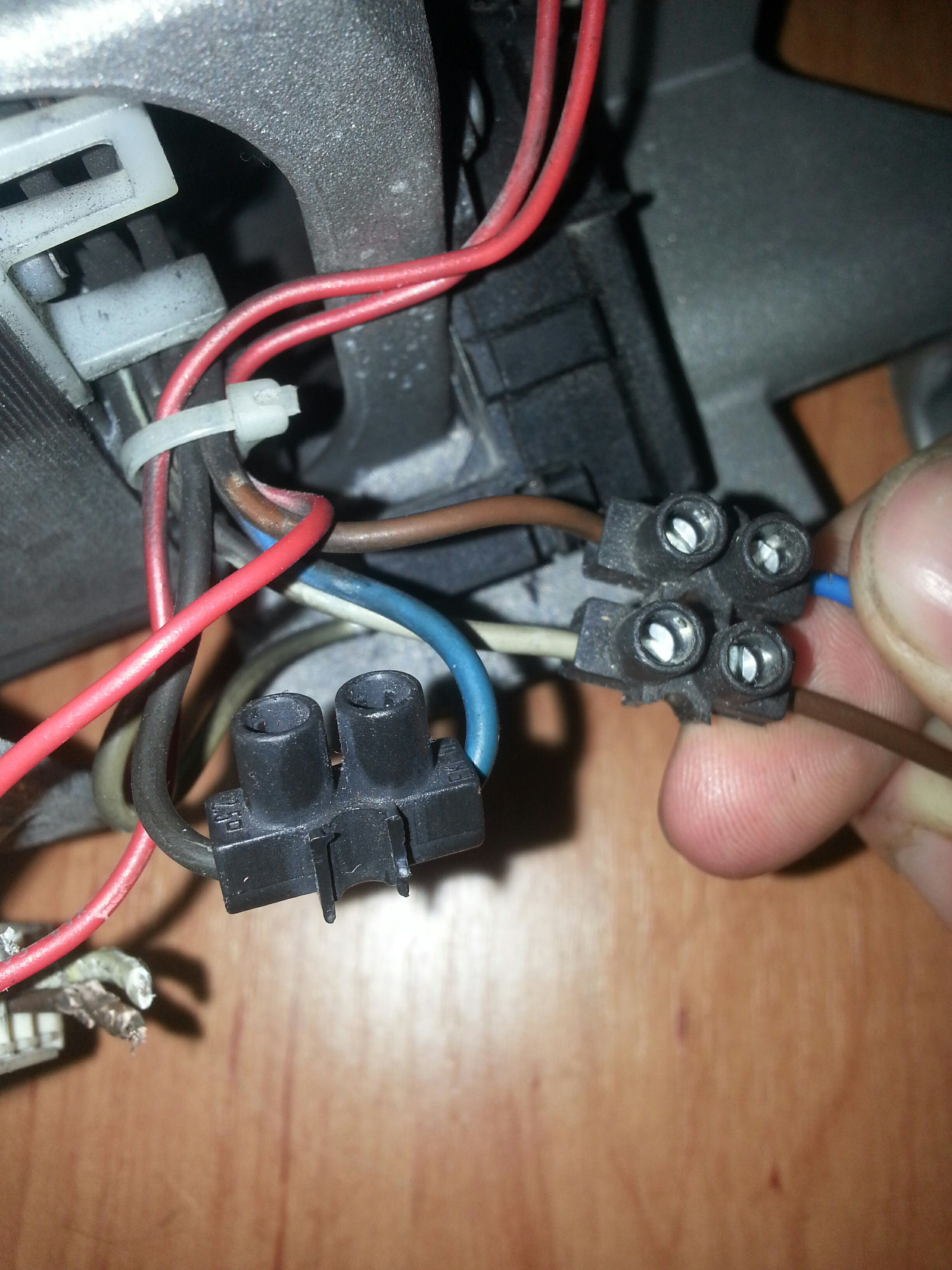

Cut wire behind the connector and connect black wire and blue wire together directly.

Gray and black wire are connected to power source. It's doesn't matter, which is to L and N, or + and -, It will always rotate in the same direction.

Connect to Power Supply

Wash machine motor wiring
