Warmee - Safe Heat Anywhere (Portable Pocket Heater)


Welcome to the world of Warmee - the revolutionary new portable pocket heater that allows you to enjoy safe heat anywhere you go! Warmee is designed to fit easily in your pocket, bag, or backpack, so you can take your warmth on the go. It’s perfect for outdoor activities, camping, or even just to keep your hands warm during the winter months. With temperature reaching 50 degrees in 10 seconds and a recharging system, Warmee is the perfect companion for any adventure. So grab your Warmee and let the warmth free you!

Supplies


Materials


Tools

  • Soldering iron and soldering wire
  • Card board cutter
  • Super glue/Glue gun

Making the Heat Generator

  • Cut the MDF board by using a utility knife.
  • Take two flat-head screws and superglue them to the MDF board.
  • Tie the copper wires to both screws.
  • Take nichrome wire and spiral it with the help of a pen.
  • With both screws, solder the spiral nichrome wire.

Completing the Circuit

pocket heater diagram.jpg
  • Switches are placed on a side panel of an MDF board.
  • The switch was linked to the fan, nichrome wire, and batteries. (refer the circuit diagram shown above)


Assembling

  • The module is tested after the circuit has been completed. The heat could be felt surrounding the nichrome wire.
  • Every component is then fixed using hot glue to the MDF boards, and the box panels are then covered.

Enhancement

  • After fitting all the panels, we named our product and added some printables to it to make it look attractive. And now our Warmee is ready.

Conclusion

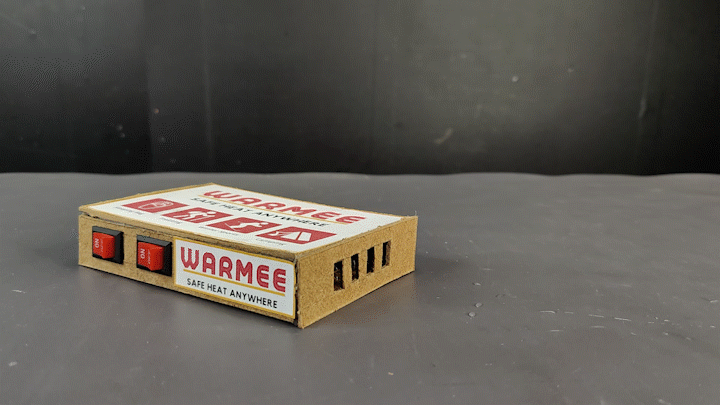

Pocket heater gif.gif

The Warmee – Safe Heat Anywhere Portable Pocket Heater is the perfect solution for those who need to stay warm in any situation. Its portable design, safe heating technology and long battery life(2 hours in one charge approximately) make it an ideal choice for anyone who needs to stay warm on-the-go. Whether you’re camping, hiking, or just need to stay warm in a cold environment, the Warmee – Safe Heat Anywhere Portable Pocket Heater is the perfect solution. With its compact size and powerful heating capabilities, the Warmee – Safe Heat Anywhere Portable Pocket Heater is the perfect device to have on hand when the temperature drops.
