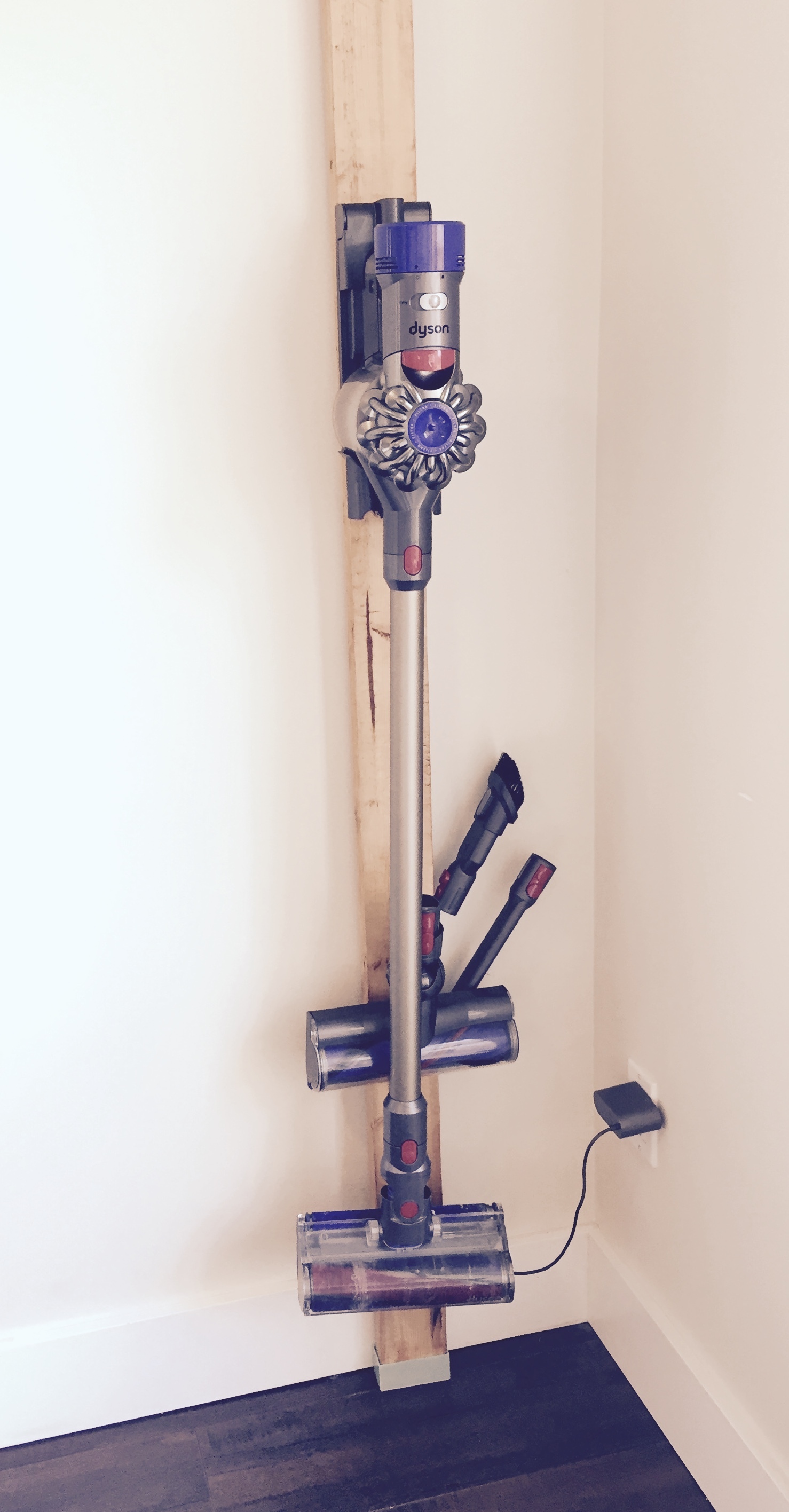

Wall Mount Dyson Cordless Vacuum

Check out my Dyson wall mount plans!

If you are a renter like me, here’s the good news! You can wall hang your Dyson without having to drill holes in the walls. Even if you don't rent you might prefer to keep your walls damage free and avoid having to repair the wall later on (spackle and paint).

You first need to build a 2x4 stud outside of the wall. Then you fasten the Dyson docking/backing station to the external stud (rather than drill into the wall).

I use 2×4 Labrico Adjuster brackets to hold the stud vertically.

The top bracket has a tightening screw which fastens the bracket to the ceiling. Once fastened, the brackets hold the stud in a vertical position.

If you want convenience, you can setup up your Dyson in the kitchen, living area or living space.

Or, if you want to store your Dyson away, you can setup it up in a store room or entryway closet. Just make sure the ceiling in the closet is flat.

Dyson Attachments

There are only 2 attachment slots on the Dyson docking or backing station. That's not enough slots. I have the crevice tool, the mini soft dusting brush, the combination tool and a couple of others I don't know the names of.

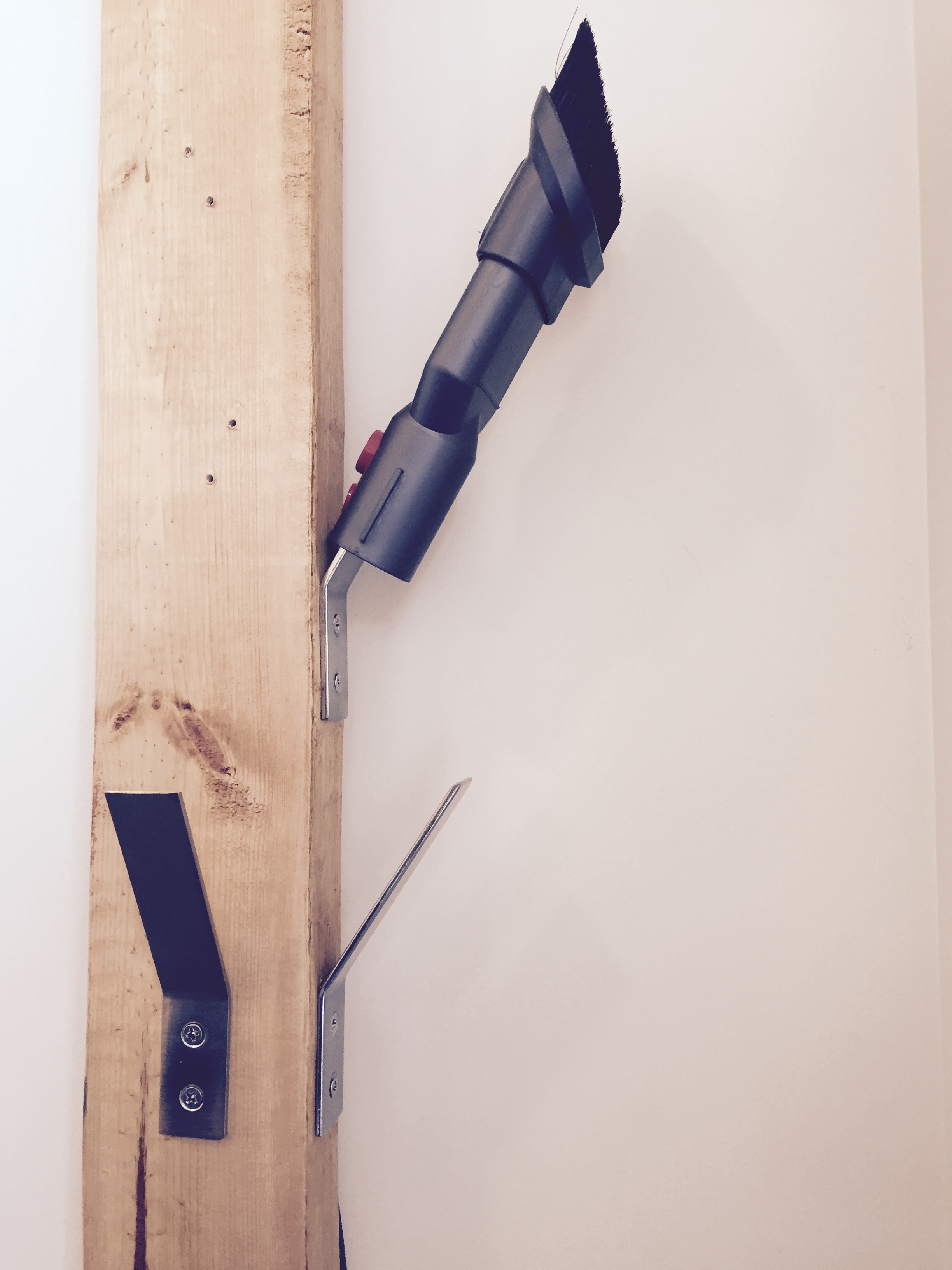

By adding metal hooks to the 2x4 stud, you can store your extra attachments in one place for easy access.

Tips

Choose a spot near a power outlet

Check your ceiling and floor area are flat and sturdy

The 2x4 Labrico brackets can setup against a wall or be freestanding

To build the framework

• Labrico 2×4 Adjuster bracket set x 1
• 2×4 stud posts x 1
• 1 1/2″ Wood screws (for the docking station) x 2

Hardware

• Metal hooks x 3
• Dyson docking/backing station (provided with the purchase of your Dyson)

To Stain the wood

• Briwax wood stain product (I use Antique Mahogany)
• Rags or cut up old clothes for staining and polishing
• Sandpaper (fine and medium grit)

Choose a location for your Dyson wall mount with a power outlet within reach.

Check the ceiling and floor are flat and stable.

To calculate the length of 2x4 timber you need to buy, use this calculation.

Ceiling height minus 95mm (3.7") = 2x4 length

Tip: The hardware store can cut the wood for free or sometimes they charge a small fee per cut. It saves having to do it yourself.

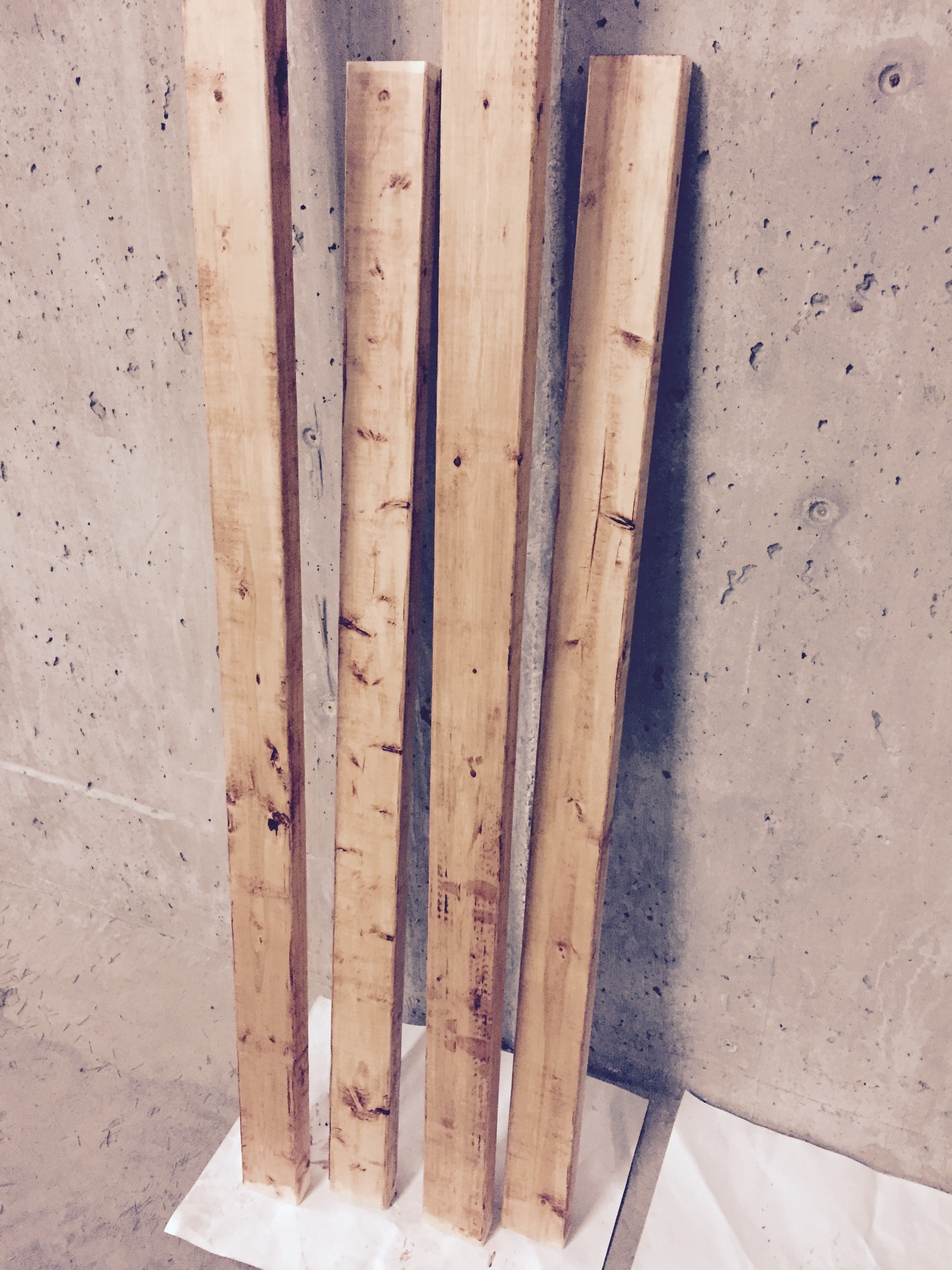

Stain the timber post is optional, but I highly recommend it. With a small amount of effort you can make the timber post look good and it protects the post from drying out.

To stain the timber post I use Briwax. The colour I used for the wood in the photos is Antique Mahogany.

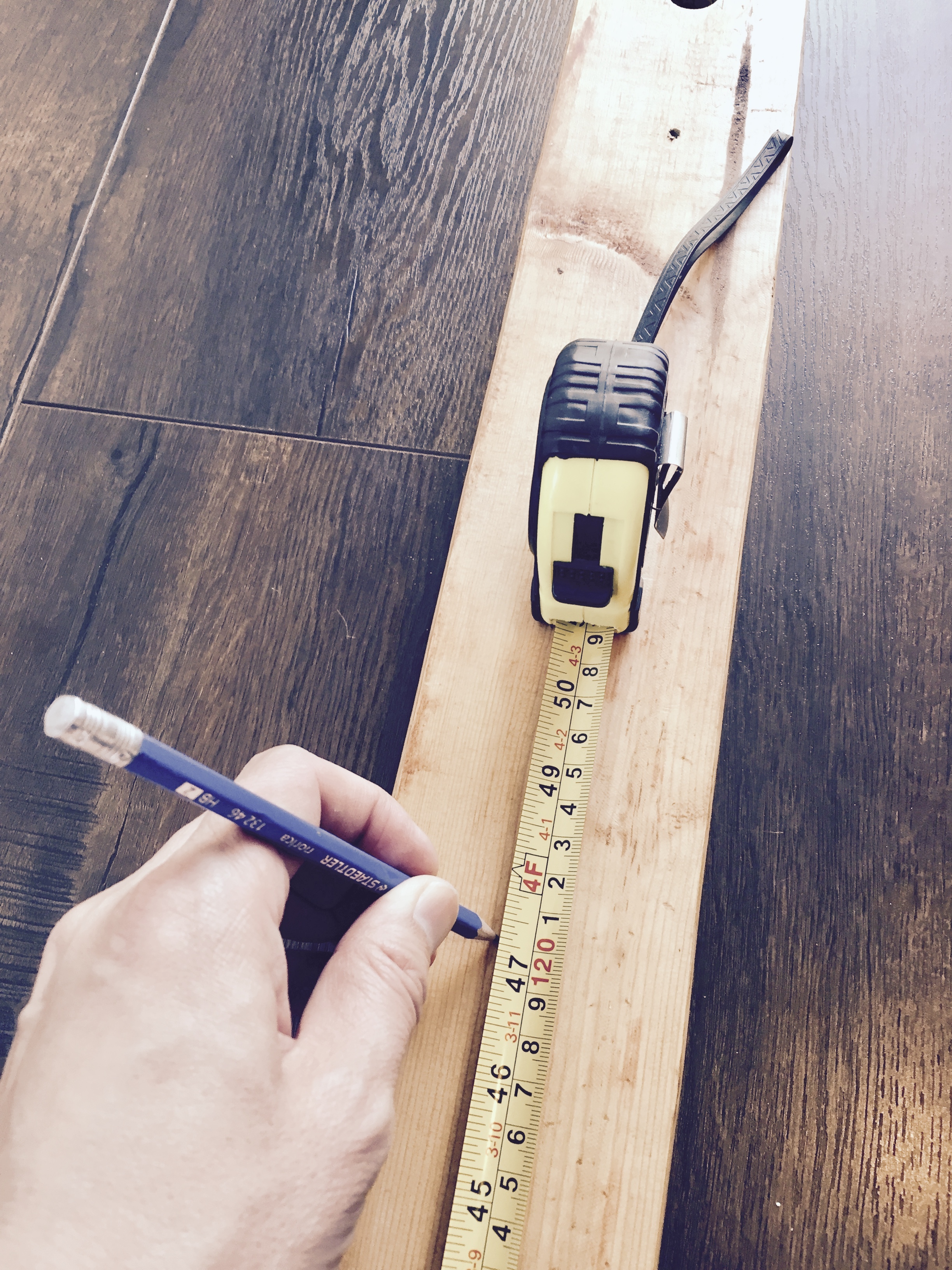

Measure 47 ¼” or 120cm from the bottom of the wood post.

Mark the spot with a pencil.

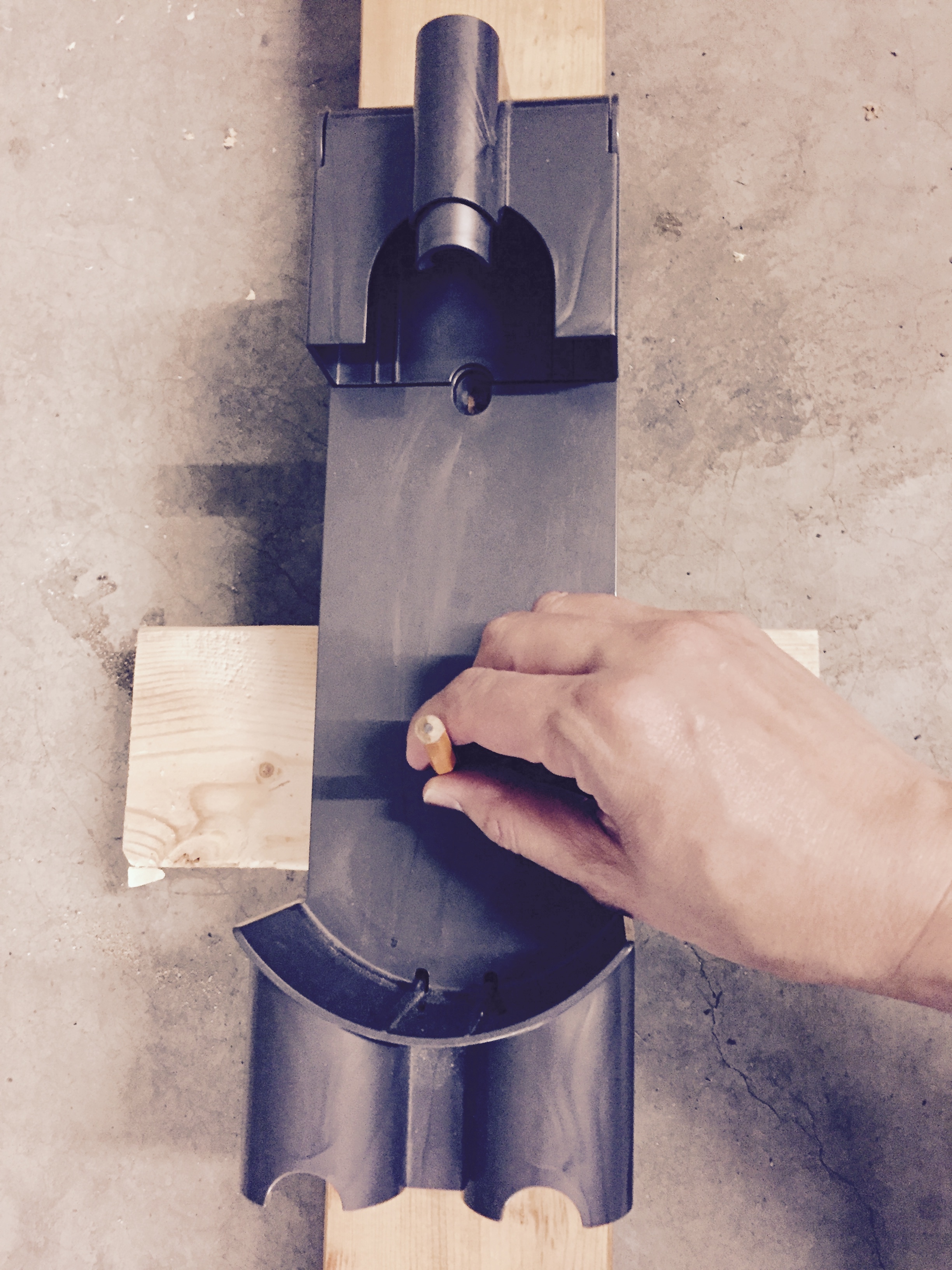

With the docking station, align the lower screw hole over the mark.

Mark the two screw holes.

Drill pilot holes.

Follow this step if you prefer to hide the cord at the back of the timber post

Place the docking station over the pilot holes.

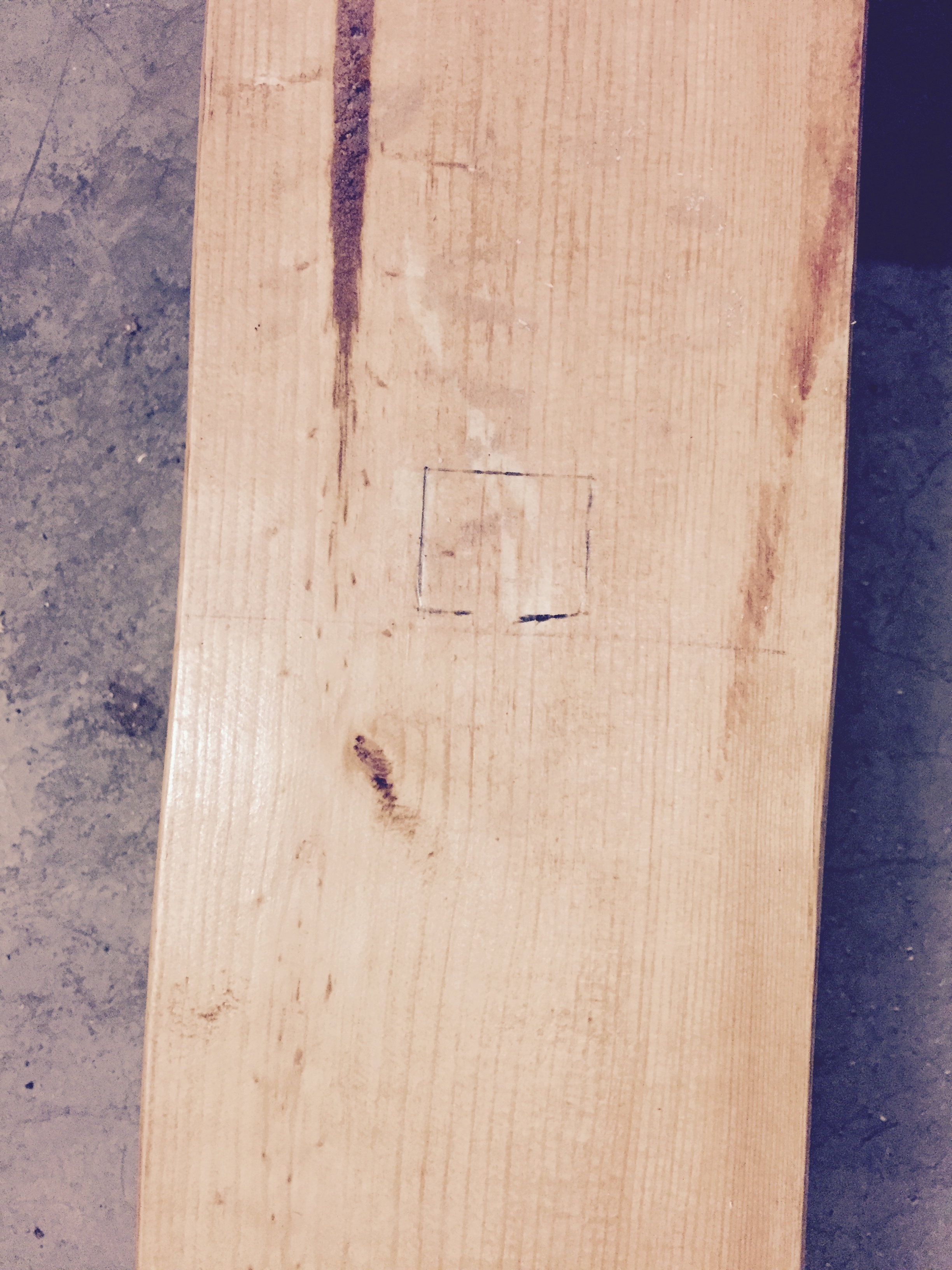

Draw an outline around the square found underneath the 2 attachment holders.

Follow this step if you prefer to hide the cord

Remove the docking station to show the outline.

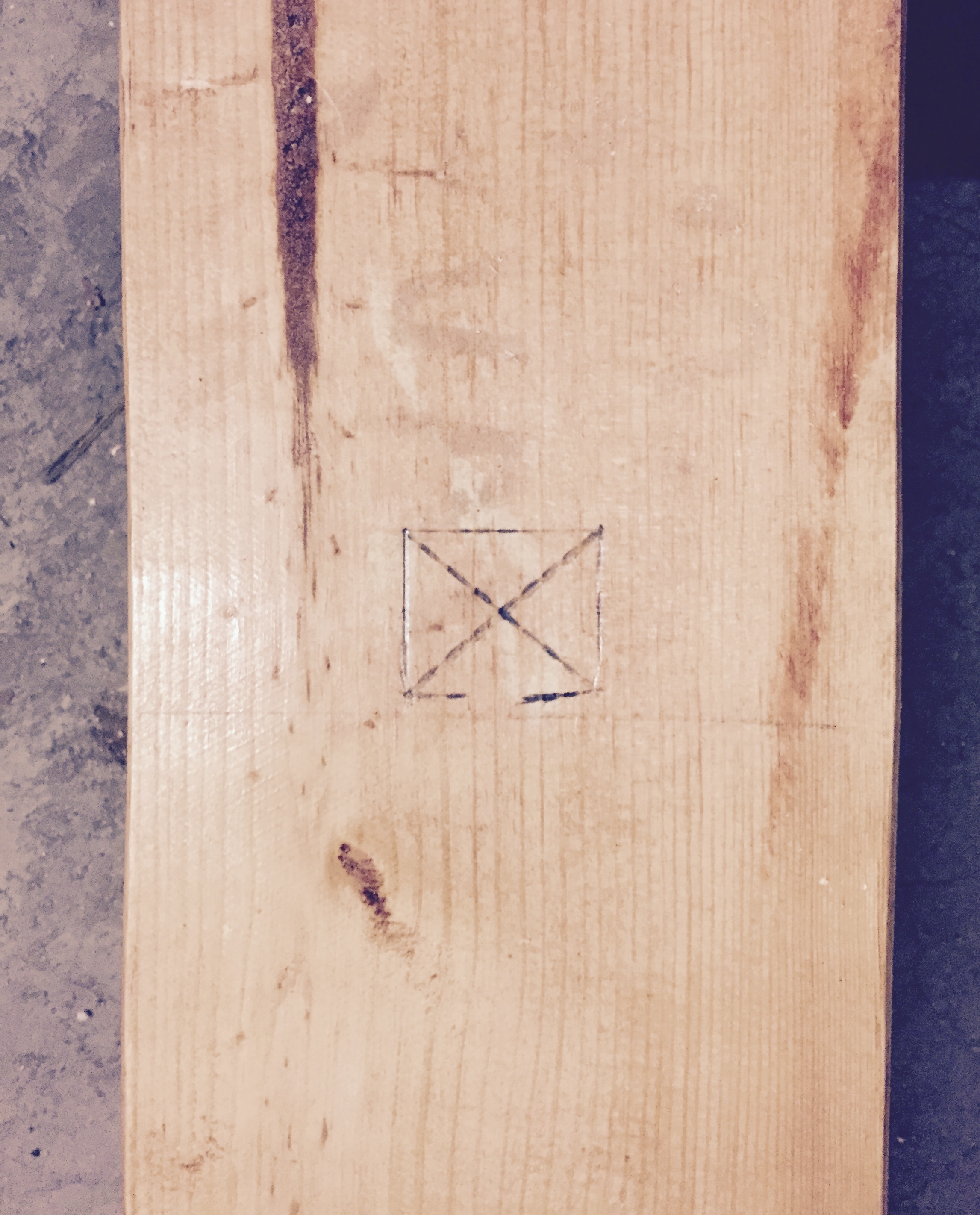

Draw an ‘X’ to find the centre.

Follow this step if you prefer to hide the cord

Use a ¾” paddle/spade drill bit to bore a hole through the timber.

This is where the cord will feed through.

Follow this step if you prefer to hide the cord

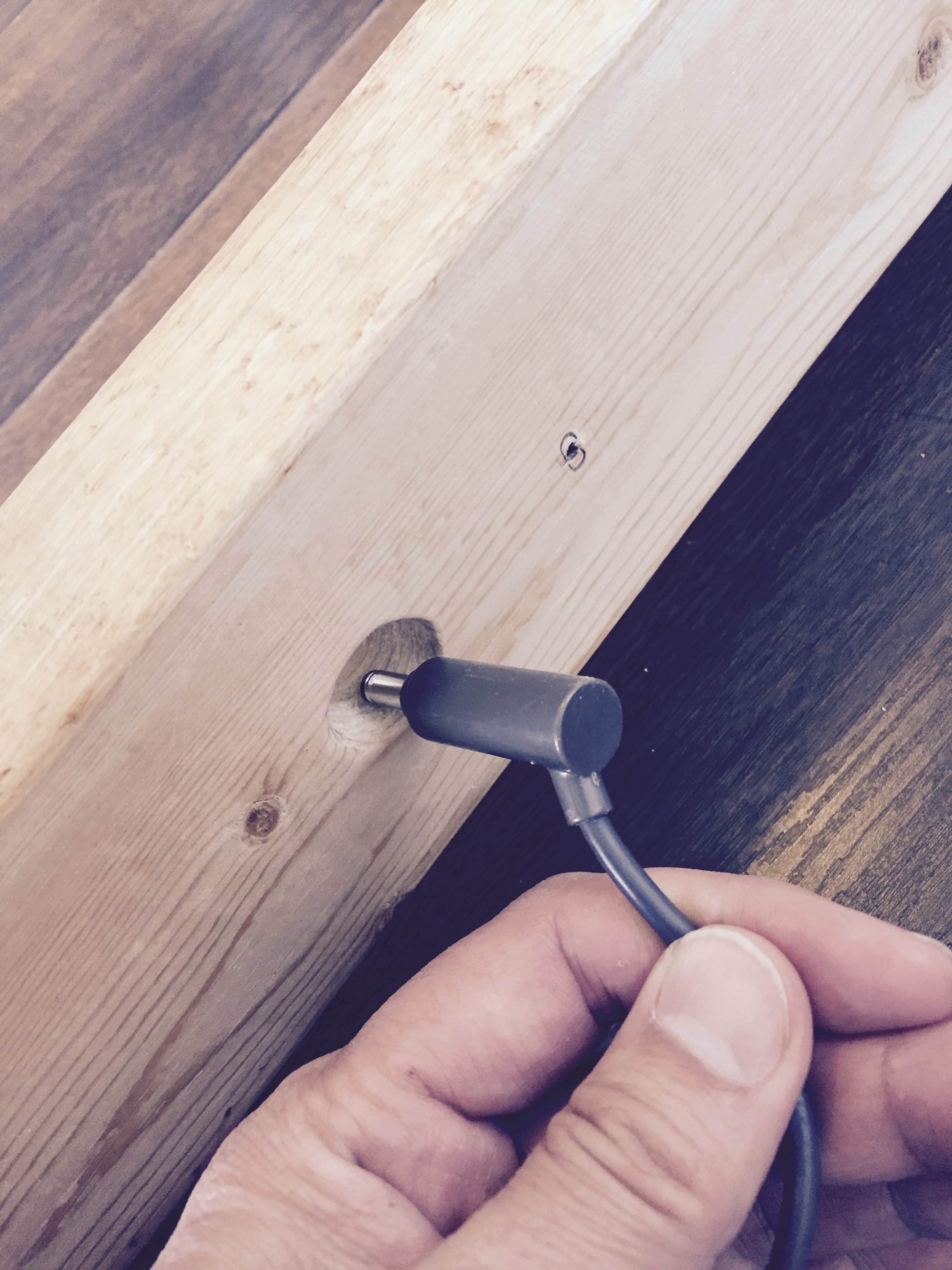

Push the tip of the charging cord (or jack plug) through the hole – from the back to the front of the wood post.

Follow this step if you prefer to hide the cord

Pull the cord through.

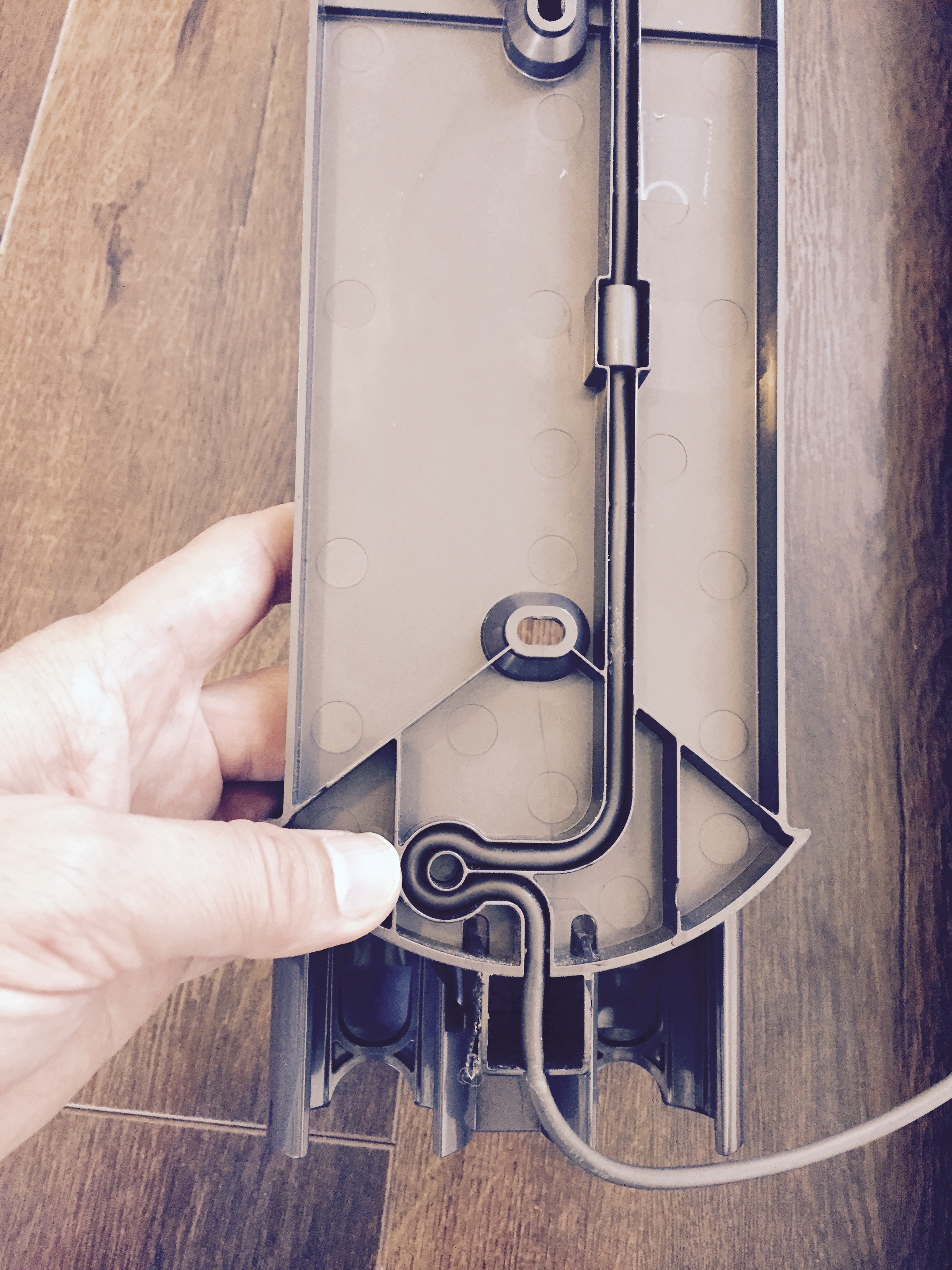

Then make sure the charging cable is secured neatly to the back of the docking station.

Pull the cord slack through the hole.

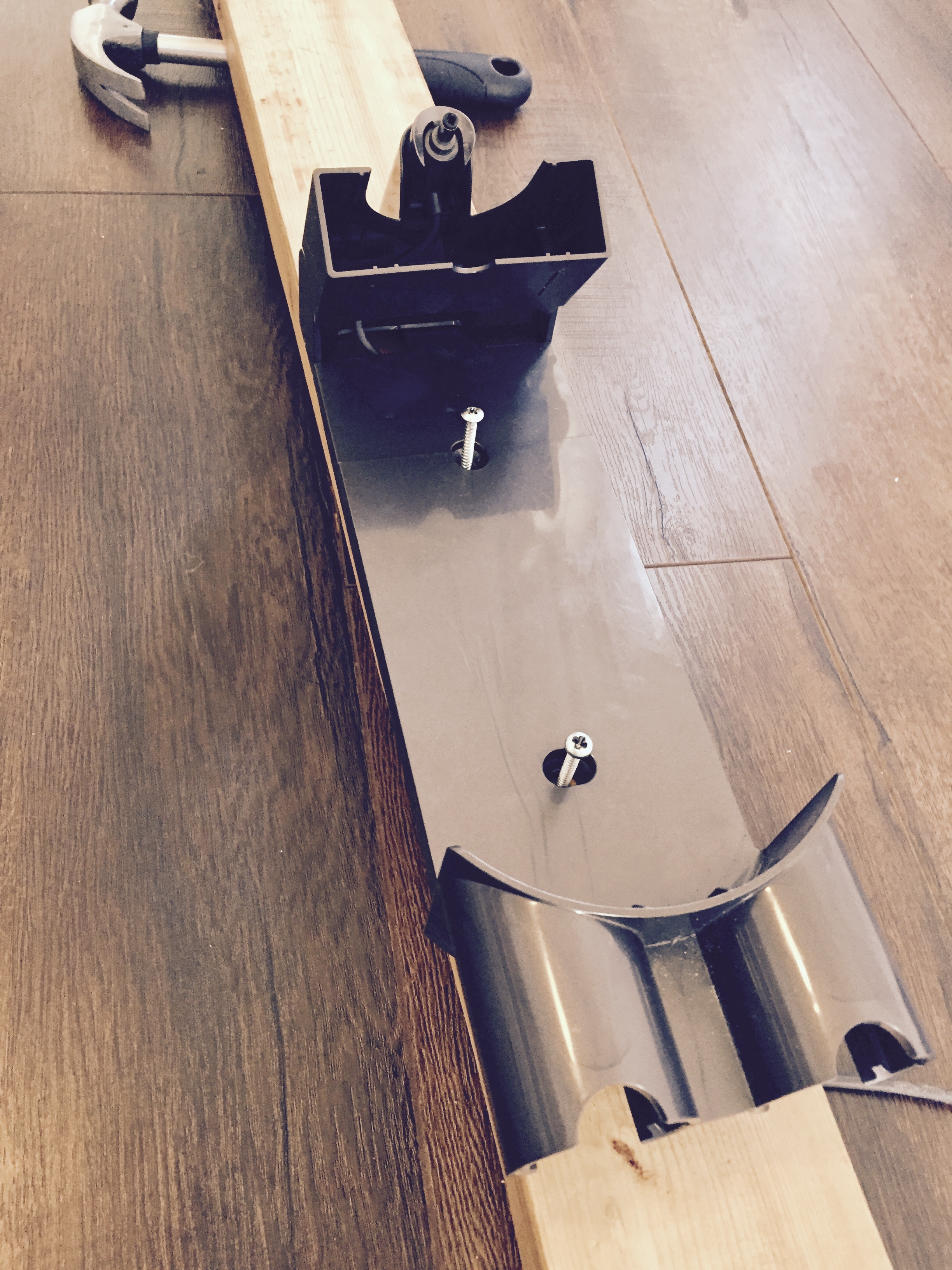

Using pilot holes made earlier, fasten the docking station to the wood post using 1½” wood screws.

Put the Labrico 2x4 Adjuster upper bracket and bottom bracket on the stud post.

The top cap has the adjusting screw.

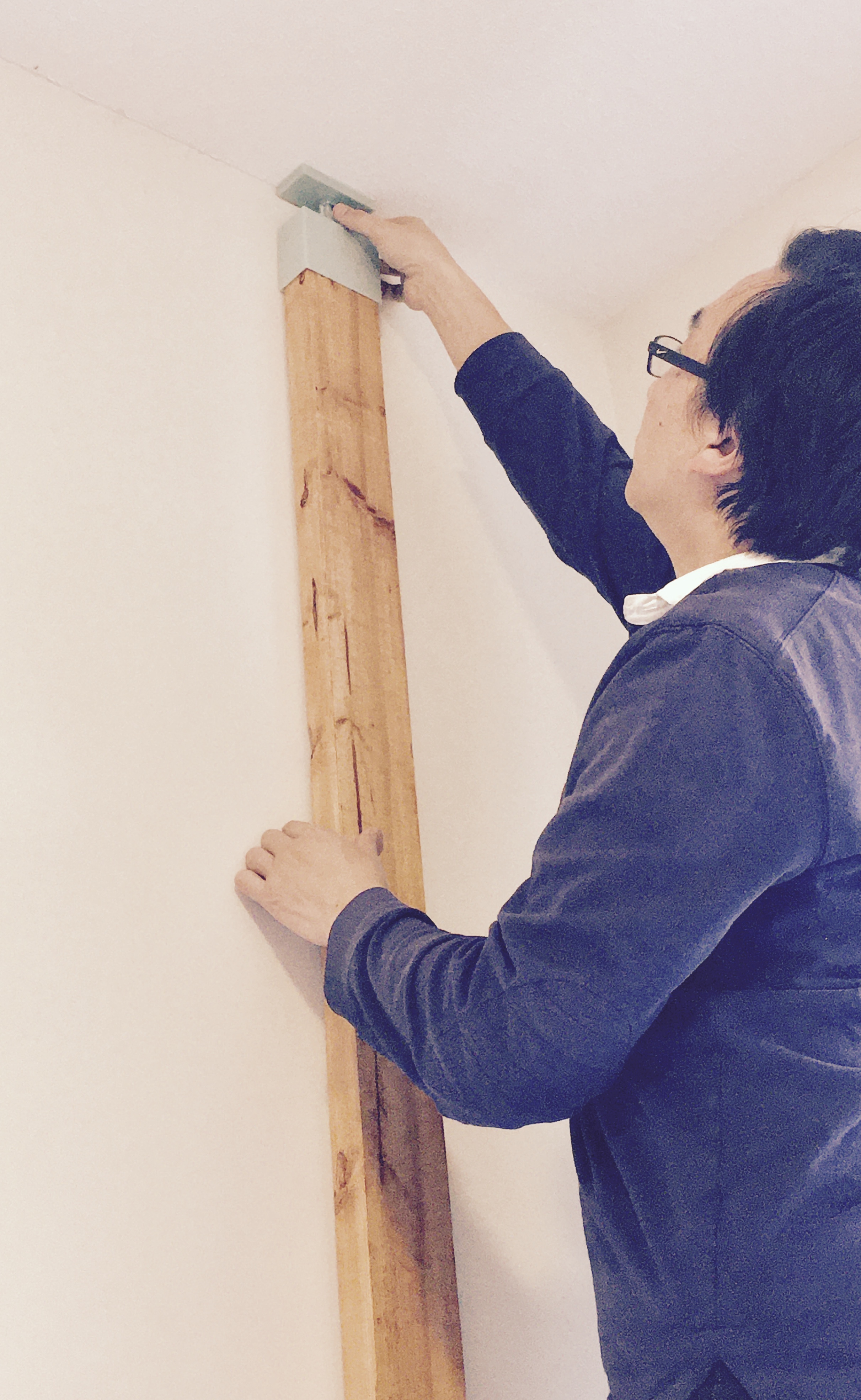

Lift the wood post into place.

Double check the cord can reach a power outlet.

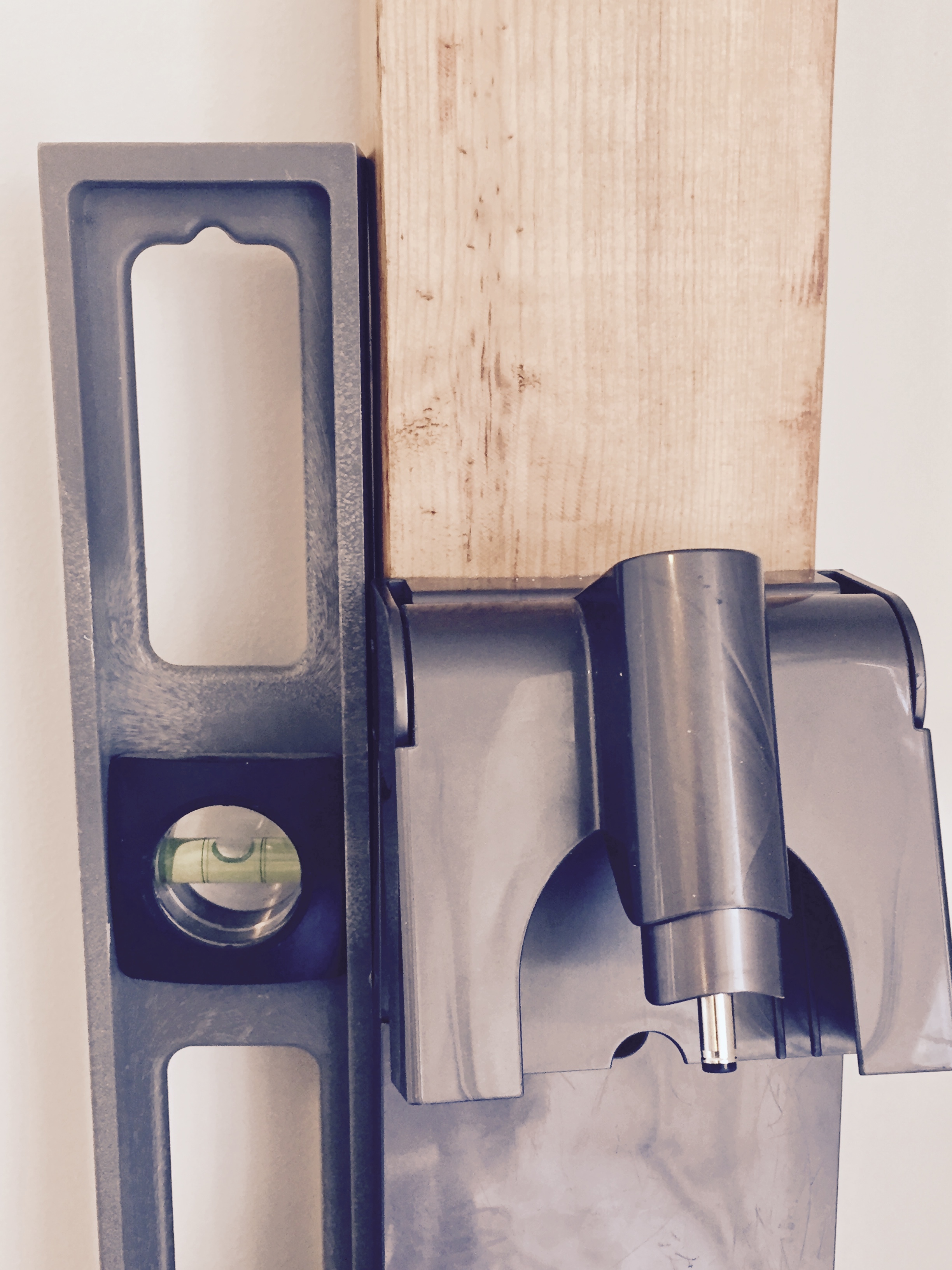

Check the wood post is vertical by using a spirit level.

Tip: for an online spirit level, download “Bubble Level” for free from the iphone app store.

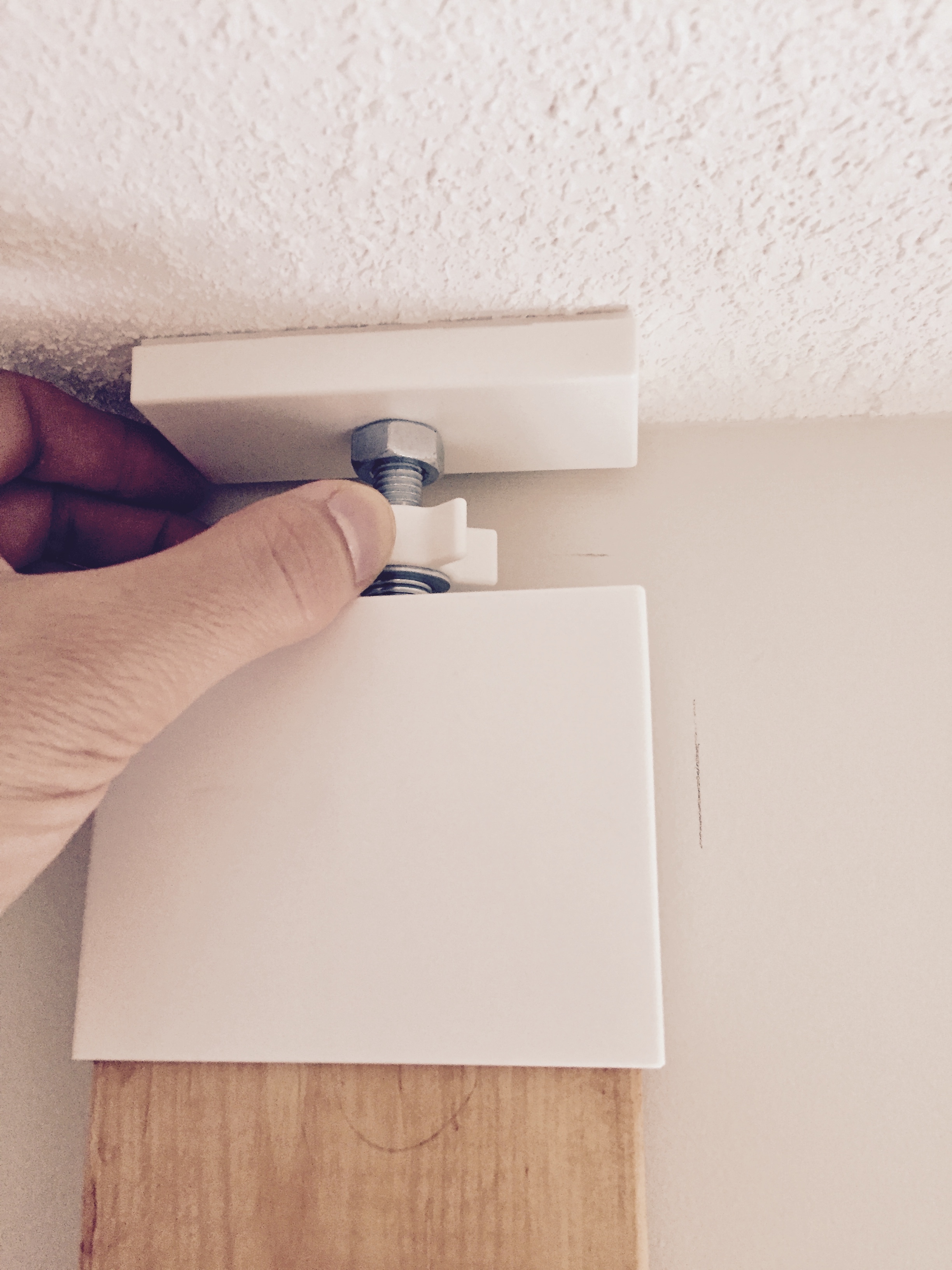

Turn the adjusting screw clockwise to tighten.

Don’t over tighten.

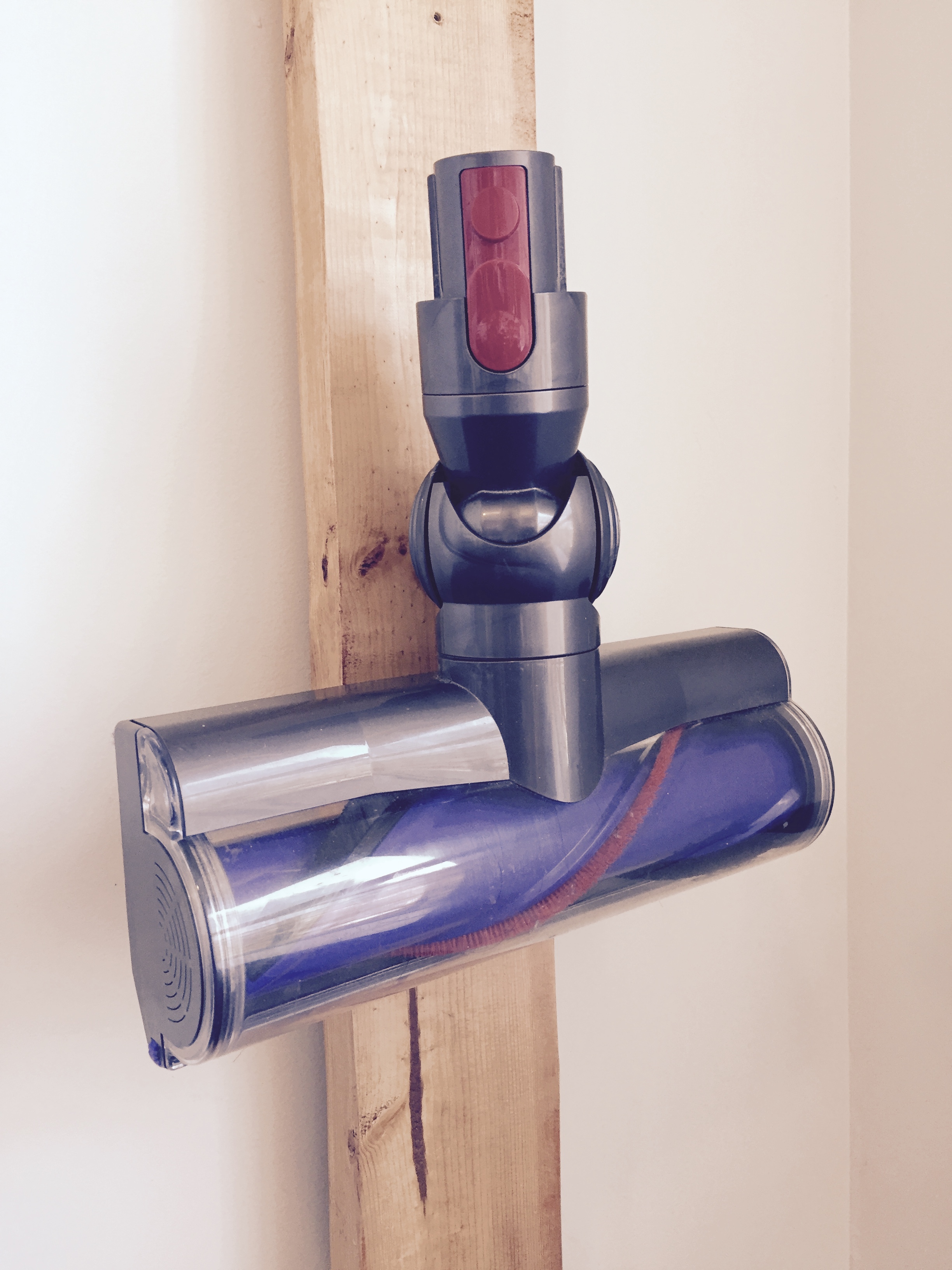

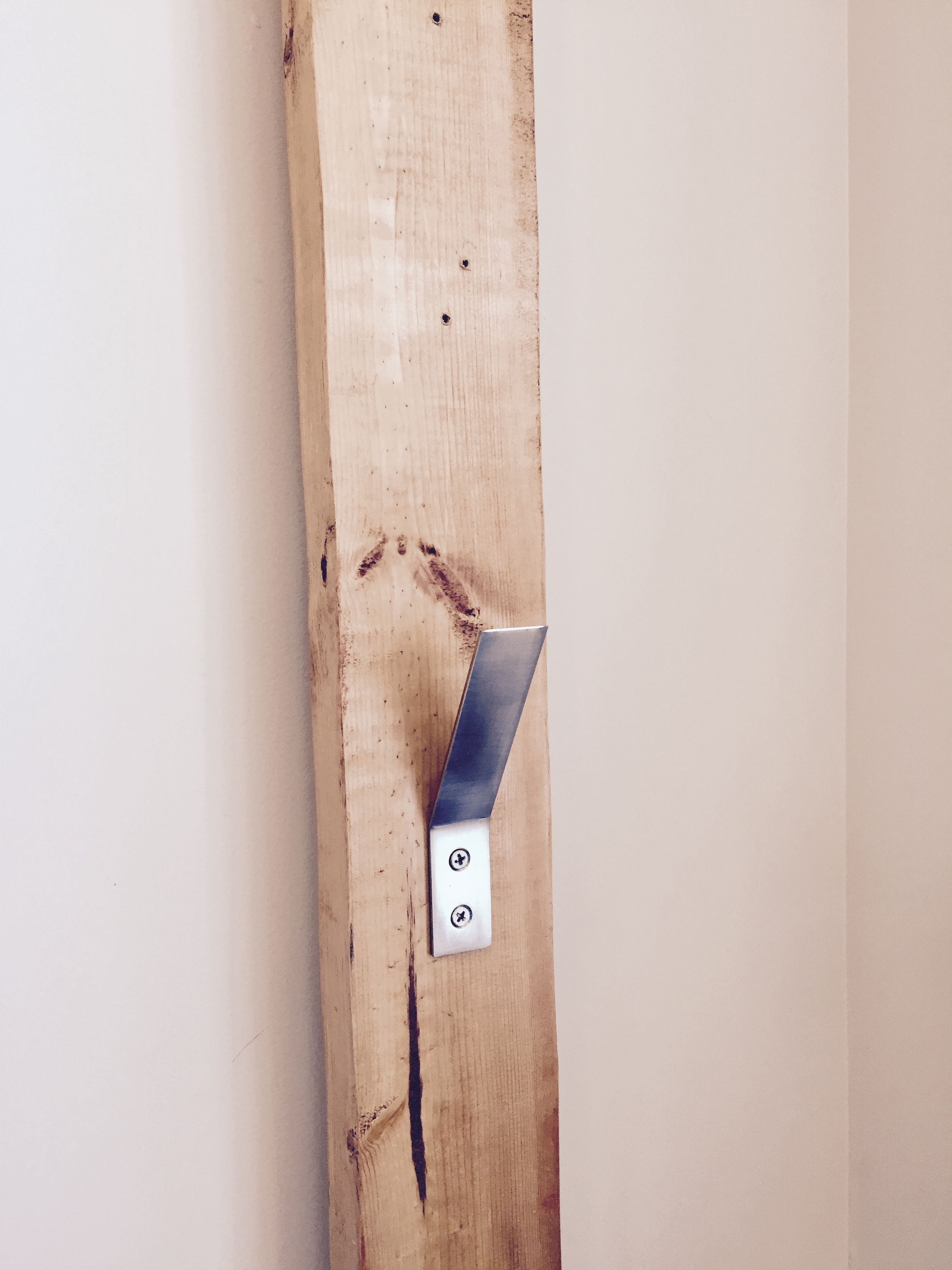

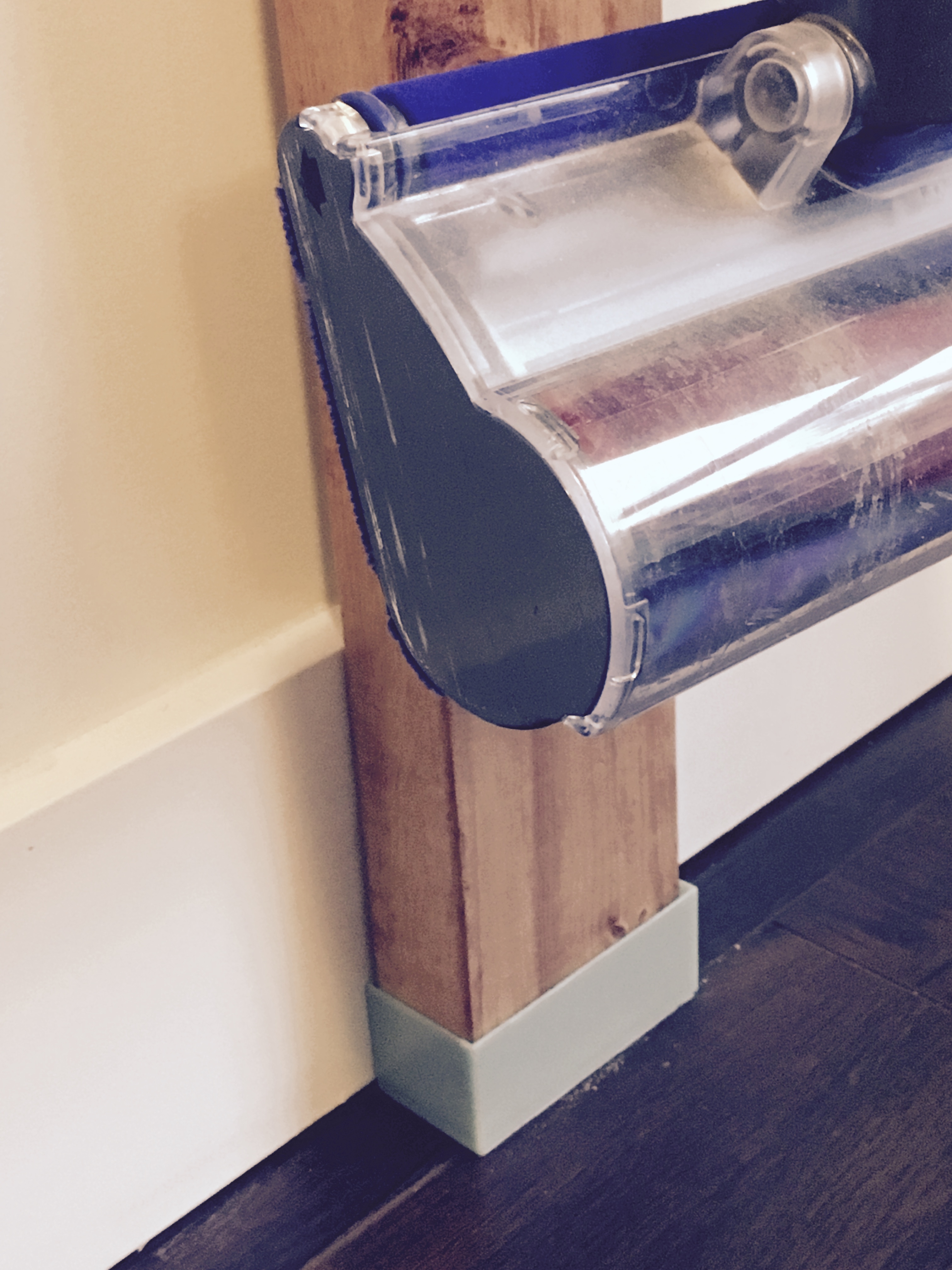

Attach the hook for the spare vacuum head to the front of the wood post.

Measure 18” from the floor to the first screw hole on the hook. Then fasten.

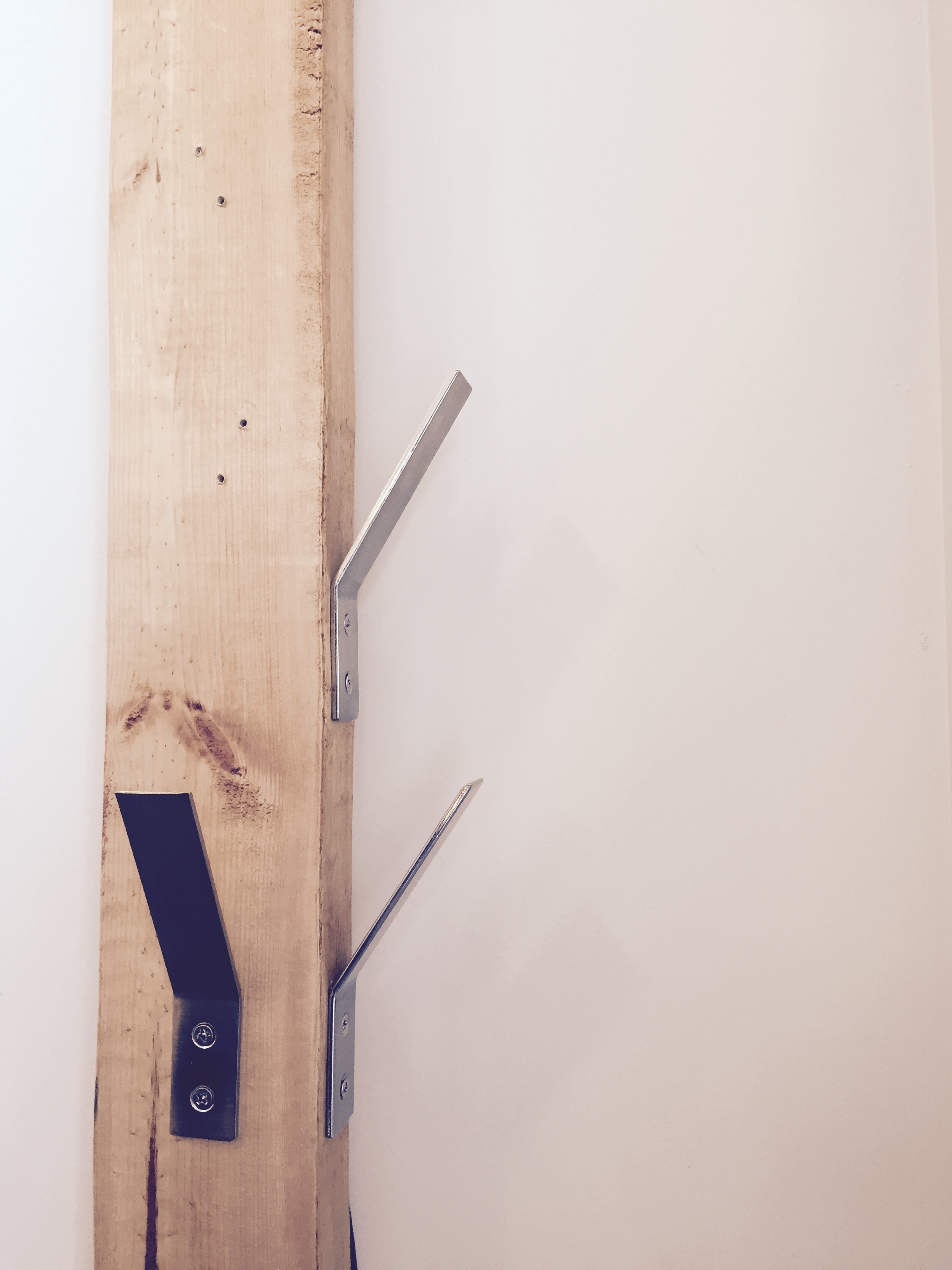

On the side of the wood post, attach hooks for the smaller vacuum attachments.
