Wall Hanging Ball Rack
![temp_1003500455.jpg](/proxy/?url=https://content.instructables.com/FQH/YY1U/J4OFOCUH/FQHYY1UJ4OFOCUH.jpg&filename=temp_1003500455.jpg)
Hi All,
My son has several cricket balls, footballs and basket ball. And when I open, my son's toy wardrobe, these balls fall off the shelves or mess up all toys inside
So thought to make simple wall hanging ball rack, that could hold 3 to 4 footballs/ basket balls and with tray to hold cricket balls
In this intructable, I will share, how to make one
Please vote for me
What Do We Need ?
![temp_-563783315.jpg](/proxy/?url=https://content.instructables.com/FTB/ODY0/J4IQ0G8F/FTBODY0J4IQ0G8F.jpg&filename=temp_-563783315.jpg)
![temp_1334328489.jpg](/proxy/?url=https://content.instructables.com/FWE/EBZ9/J4IQ4C9R/FWEEBZ9J4IQ4C9R.jpg&filename=temp_1334328489.jpg)

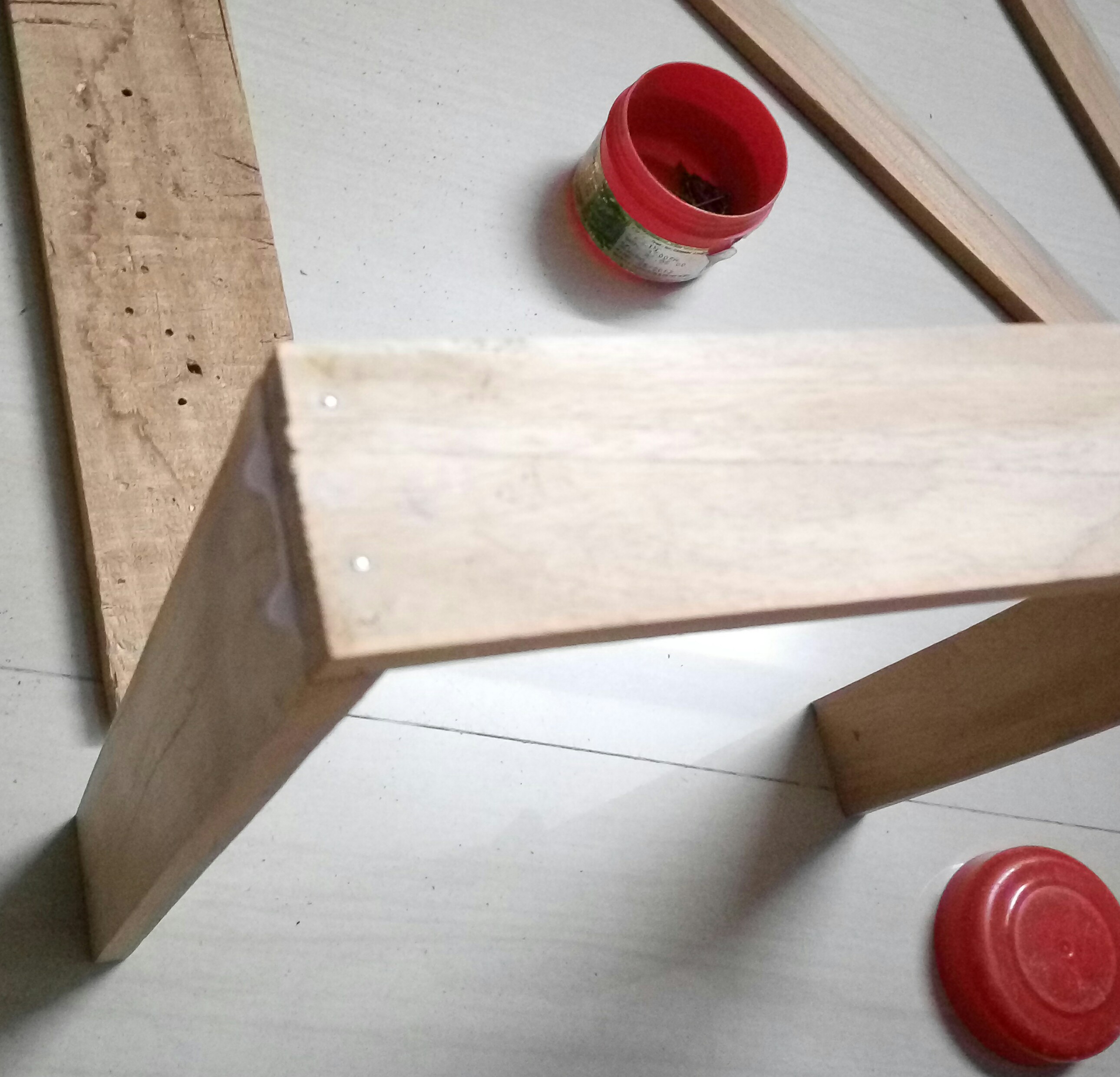

Material
- Wooden strips ( 38 MM x 10MM )

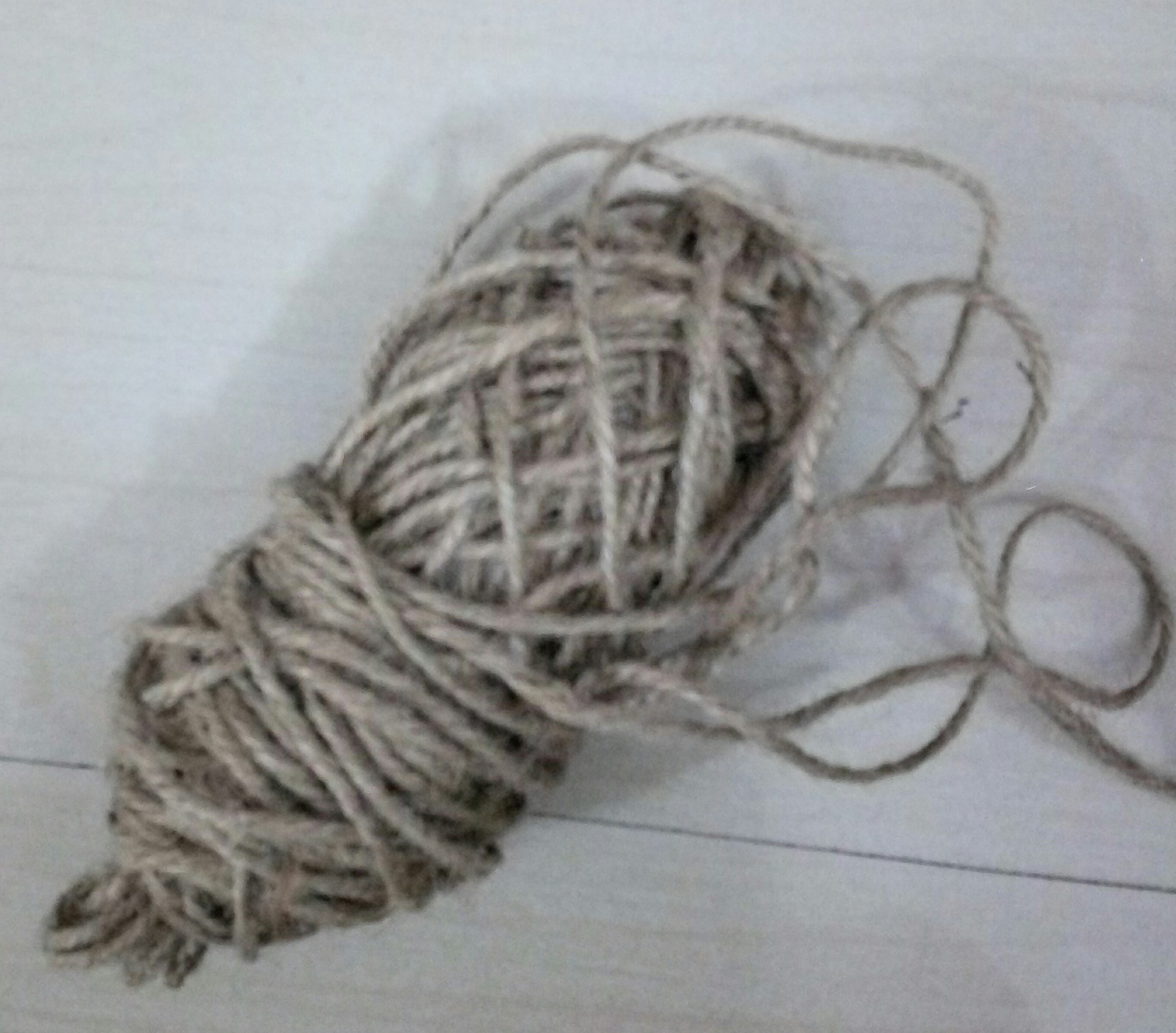

- Jute Thread ( I had bought this to decorate a bottle, never got time)
- Thin Nails
- Fevicol / PVA glue
- Hammer
- Wood Saw
- Brown Oil paint and brush to apply
Frame Work
![temp_1649500708.jpg](/proxy/?url=https://content.instructables.com/FN4/NZ0Y/J4IQ0G8G/FN4NZ0YJ4IQ0G8G.jpg&filename=temp_1649500708.jpg)
![temp_-192181530.jpg](/proxy/?url=https://content.instructables.com/F3V/S7BO/J4IQ0G8M/F3VS7BOJ4IQ0G8M.jpg&filename=temp_-192181530.jpg)
![temp_-663667926.jpg](/proxy/?url=https://content.instructables.com/F8D/MLX8/J4IQ0G8V/F8DMLX8J4IQ0G8V.jpg&filename=temp_-663667926.jpg)
![temp_-2100097524.jpg](/proxy/?url=https://content.instructables.com/F1G/TCCK/J4IQ0G9F/F1GTCCKJ4IQ0G9F.jpg&filename=temp_-2100097524.jpg)
- Cut 8 wooden strips for 266mm
- Make two squares as shown in pics
- On one of the squares fix 3 strips
This will be our tray to hold cricket balls
Paint Job
![temp_-1044983019.jpg](/proxy/?url=https://content.instructables.com/FIF/Y4YV/J4IQ0QTD/FIFY4YVJ4IQ0QTD.jpg&filename=temp_-1044983019.jpg)
- Sand the wood with 150 Grit sand paper and then with 220 grit
- Mix 1:1 ratio for oil paint and thinner, in a large container
- Brush thin layer over the wood ( It is recommended to first coat the wood with wood primer, I skipped that part.
- Leave the framework to dry for 24 to 48 hrs
Hanging and Threading
![temp_293628945.jpg](/proxy/?url=https://content.instructables.com/FDJ/SG75/J4OFOCVT/FDJSG75J4OFOCVT.jpg&filename=temp_293628945.jpg)
![temp_-469899137.jpg](/proxy/?url=https://content.instructables.com/FQ1/I359/J4OFOCXR/FQ1I359J4OFOCXR.jpg&filename=temp_-469899137.jpg)
Hanging
- Using a drilling machine, drill holes on the wall
- Hang the bottom and top frames as shown
Threading
- I used jute thread, but elastic thread would be ideal
- I made simple 3 lines of thread on each sides
Testing and Improvements
![temp_-1937844435.jpg](/proxy/?url=https://content.instructables.com/FWE/4Y2R/J4OFOCYU/FWE4Y2RJ4OFOCYU.jpg&filename=temp_-1937844435.jpg)
![temp_469244991.jpg](/proxy/?url=https://content.instructables.com/FZ0/8QQF/J4OFNBTJ/FZ08QQFJ4OFNBTJ.jpg&filename=temp_469244991.jpg)
I asked my son to test the rack by placing some balls in it and then removing it.
I noticed few issues
• The balls fell over at the corner
• The top frame was stressed too much due tensions of the threads, it needed support
I tried adding an extra support to it and worked the way I wanted
Future improvements
• Paint the supporting stick to match the rack framework
• Replace jute thread with elastic thread or paracord
• May be add support midway to support better
Please share your comments, how I can improve this further
Thanks
