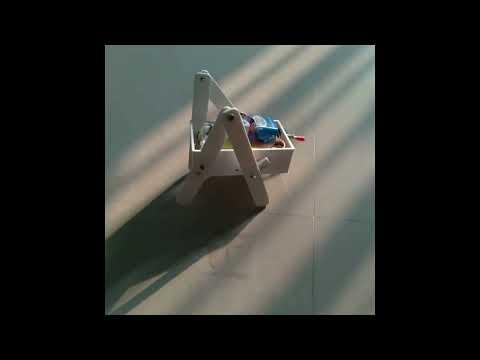

WalkBot (Basic Version)



Our project is to create a friendly walking robot that moves with the help of motors and on a battery. we 3D printing tiny legs and body parts, just like building blocks for our new robotic friend. We'll connect them with wires & switch.
checkout & follow below step to make WalkBot.
Supplies




Materials:

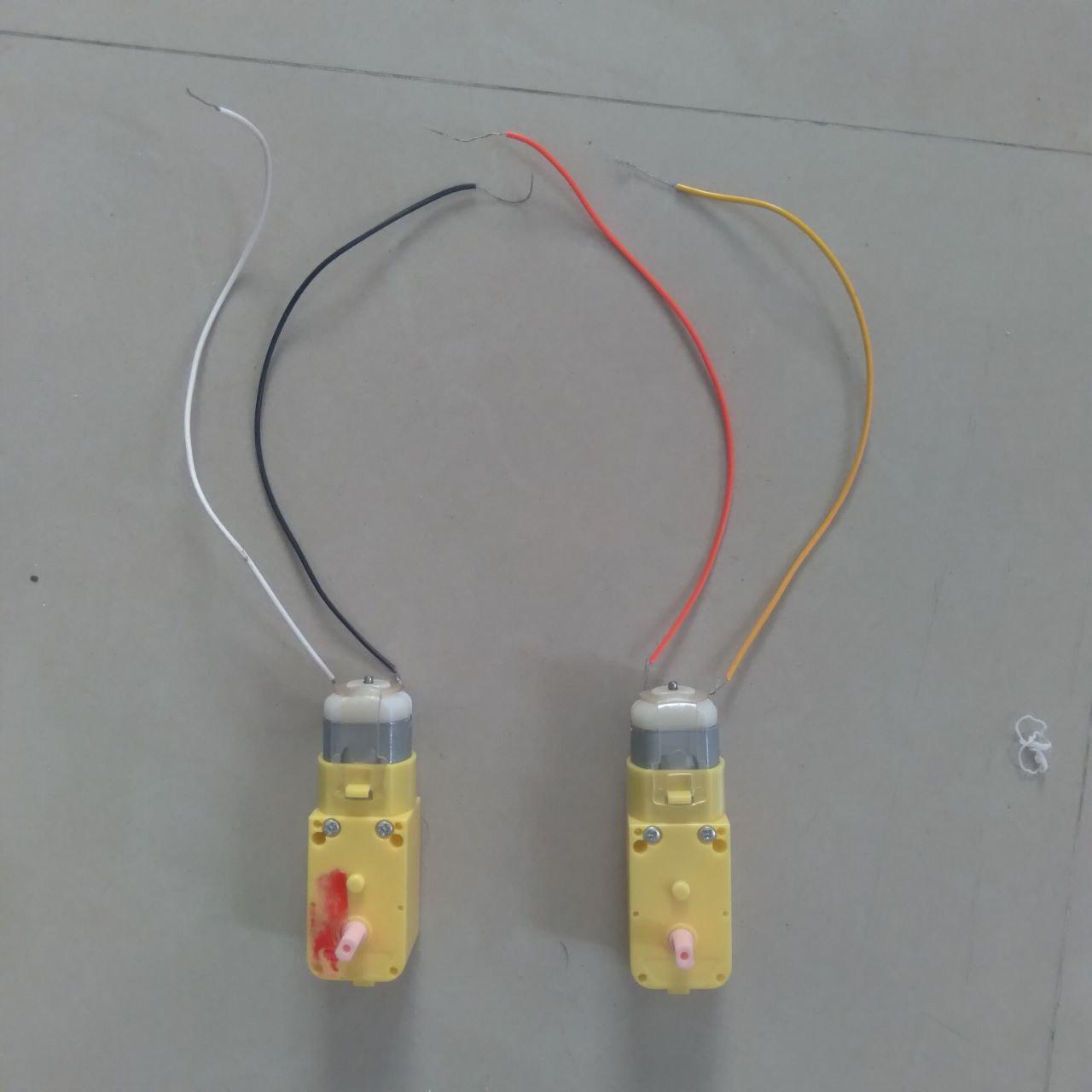

- BO DC Motors (quantity as per design)

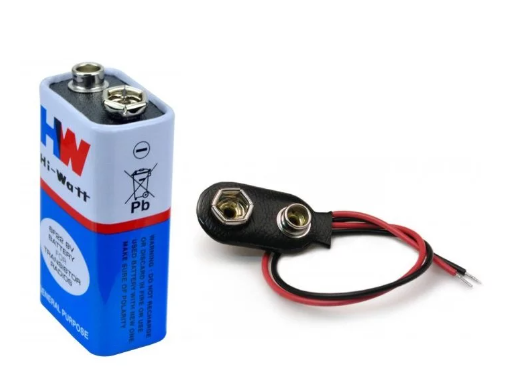

- 9V Battery
- 3D Printer Filament
- 3D Printer
- Switch

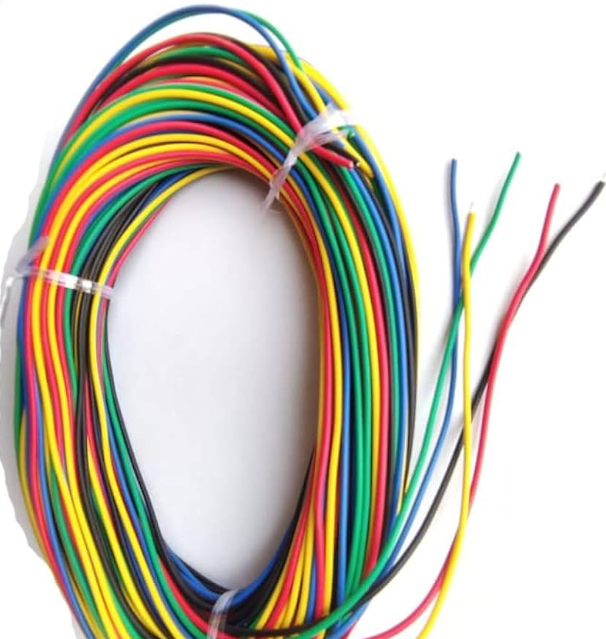

- Jumper Wires
- Screws and Nuts
Tools:
- Screwdriver
- Soldering Iron
- Wire Cutter
- 3D Printer

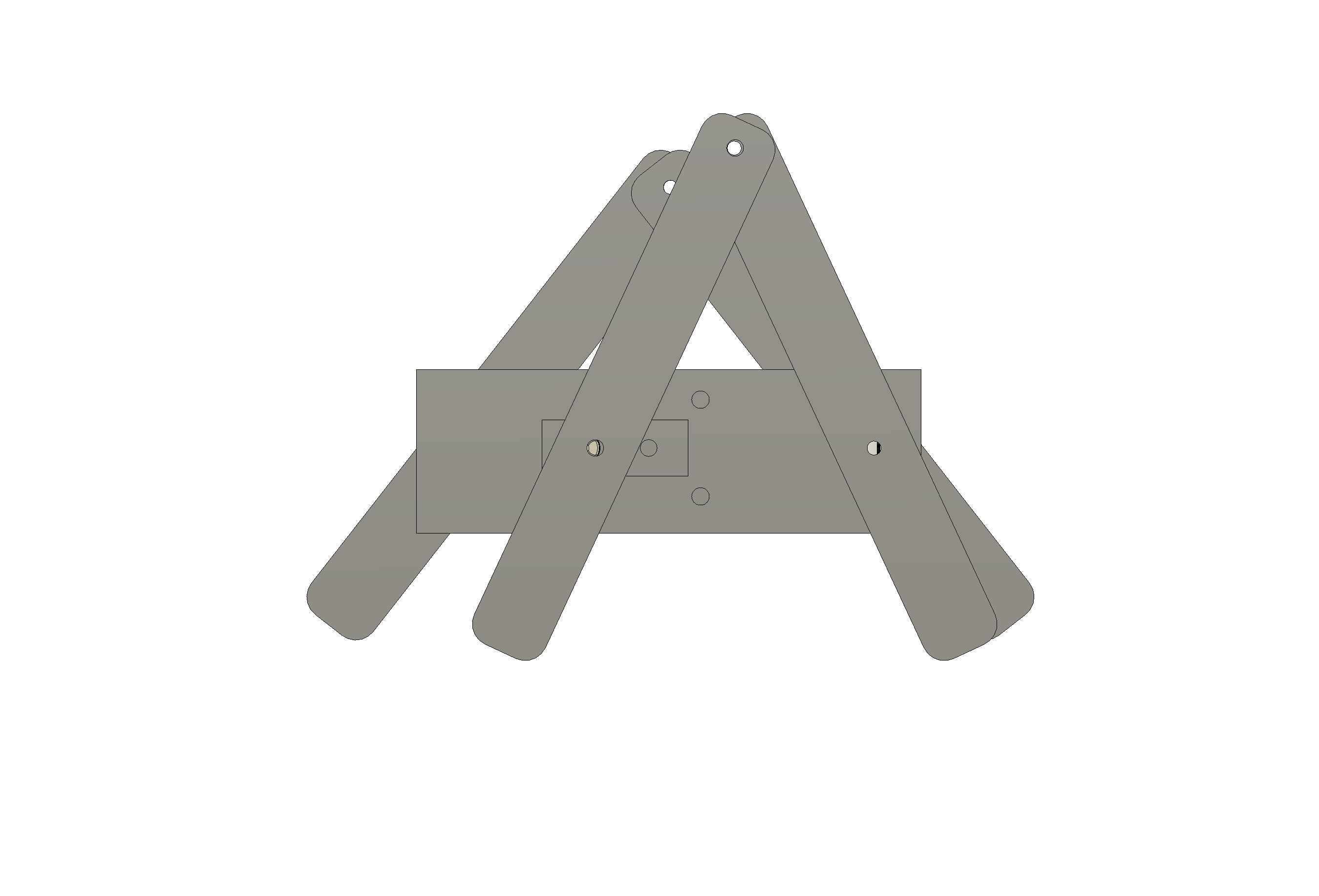

Design in Fusion360



Use a Fusion360 software to design legs and body parts. Ensure that the parts are hollow to accommodate the motors and wiring.
- accommodate 2 BO motors side by side and make enclosure.
- Consider Shaft of motors comes out side.
- use holes to constrain motor or we use Glue gun for that.
- make a Legs of WalkBot .
- add pivot point of robot .
- add legs and motor connector.
- add thickness of parts 2mm.
- After completion of design, Export each part as .STL file for 3d printing.

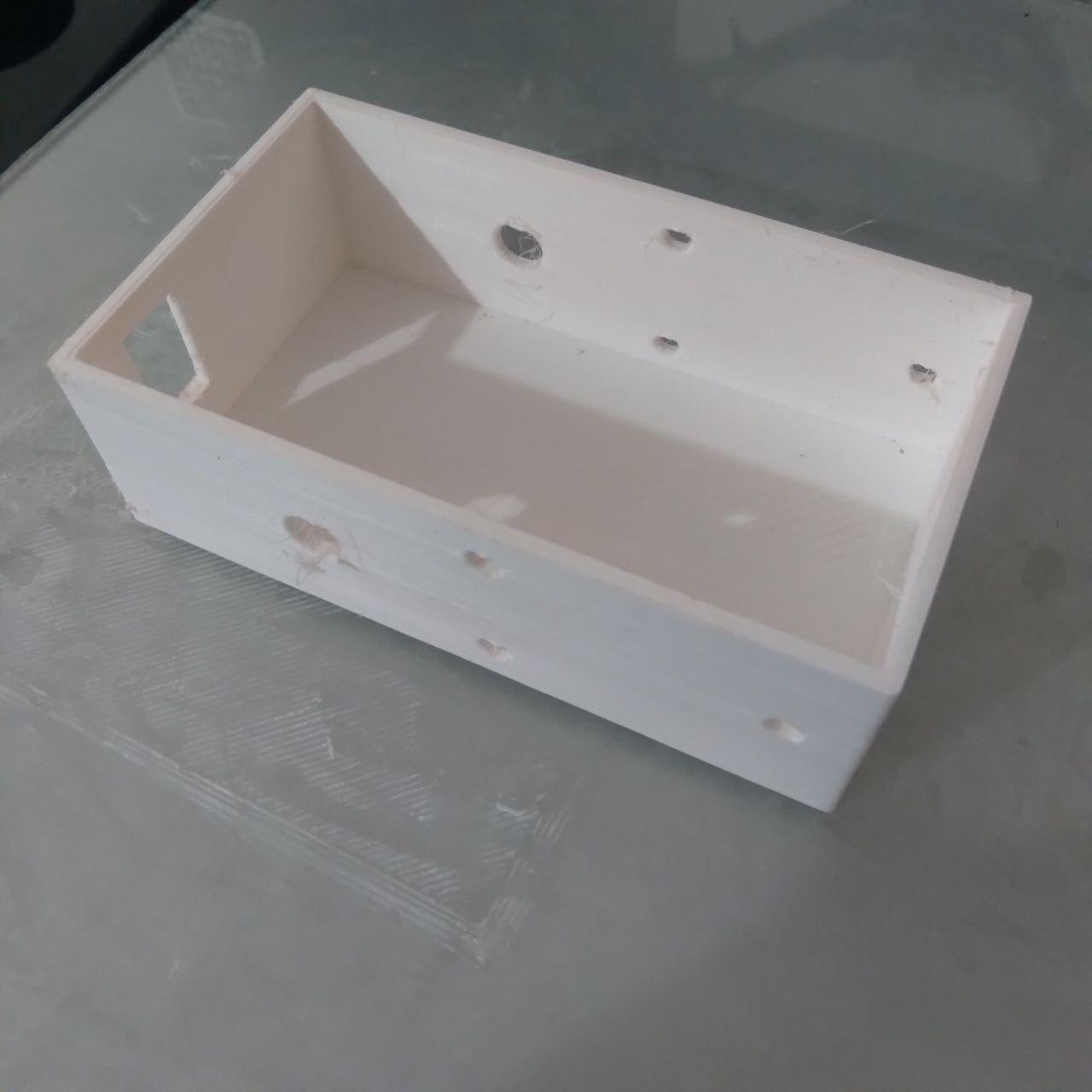

3D Printing




Before do 3D printing we need to Slice STL file to make GCODE files.
I use CURA for Slicing.
I attach .STL files for casing and legs below.
Parameters.
- Layer thickness=0.2 mm
- wall= 2
- top/bottom=3
- Infill=30 %
- Material = PLA
- Speed =45mm/s
- Support = no.
Use above parameters for good 3d print.
Assembly








Attach Motors: Secure the BO DC motors to the 3D printed legs using screws and nuts. Ensure they are securely attached to provide stability.

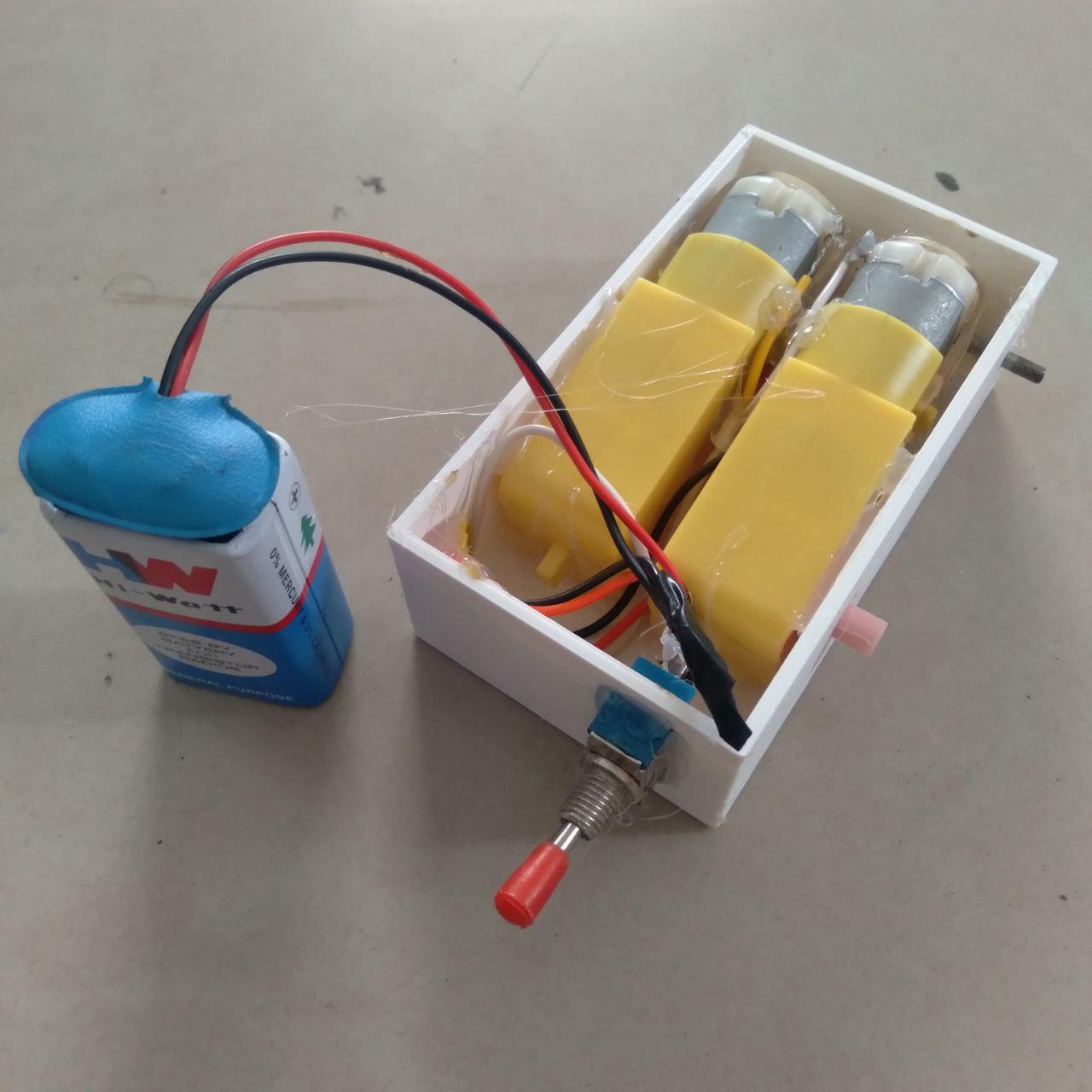

Connect Body Parts: Assemble the 3D printed body parts, leaving space for the battery and switch. Use screws to connect the parts securely.
Wire Motors: Connect the motors to the battery using jumper wires. If necessary, use a motor driver to control the motor speed and direction.
Add Switch: Integrate the switch into the design, ensuring it is easily accessible. Connect it to the battery to control the power supply.
Electrical Connections





Connect Motors to Switch: Use jumper wires to connect the motors and the switch. Ensure proper polarity to avoid damage.
Connect Battery: Connect the 9V battery to the switch and motors. Double-check the connections to avoid any short circuits.
Testing & Finalization



Power Up: Turn on the switch and observe the movement of the walking bot. Make any necessary adjustments to the motor connections or body parts.
Fine-Tune: Adjust the walking bot's design, weight distribution, or leg movements for optimal performance.
Secure Components: Once satisfied with the performance, secure all components in place using additional screws or adhesives.
