Wake Up Machine

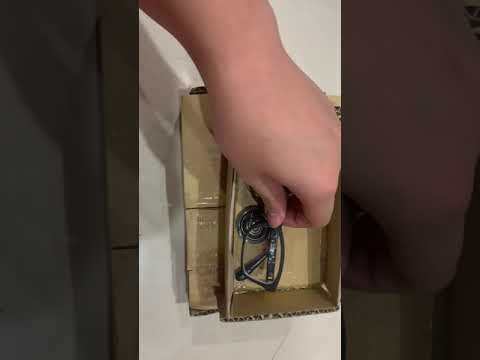

The reason that I create this machine is that when I wake up in the morning by the alarm, I would easily fell asleep if I didn't wear my glass, and the alarm would be easily close by pressing a button. Therefore I made this machine, which could use the delay to control what time in the morning I what it to function (wake up) then the machine would make to the noise until I take up my glasses. I would not fell asleep with my glass on.

Cardboard

Arduino

Hot glue gun

DuPont line

Photoresistance

Speaker

Utility knife

Breadboard

Tape

Portable charger

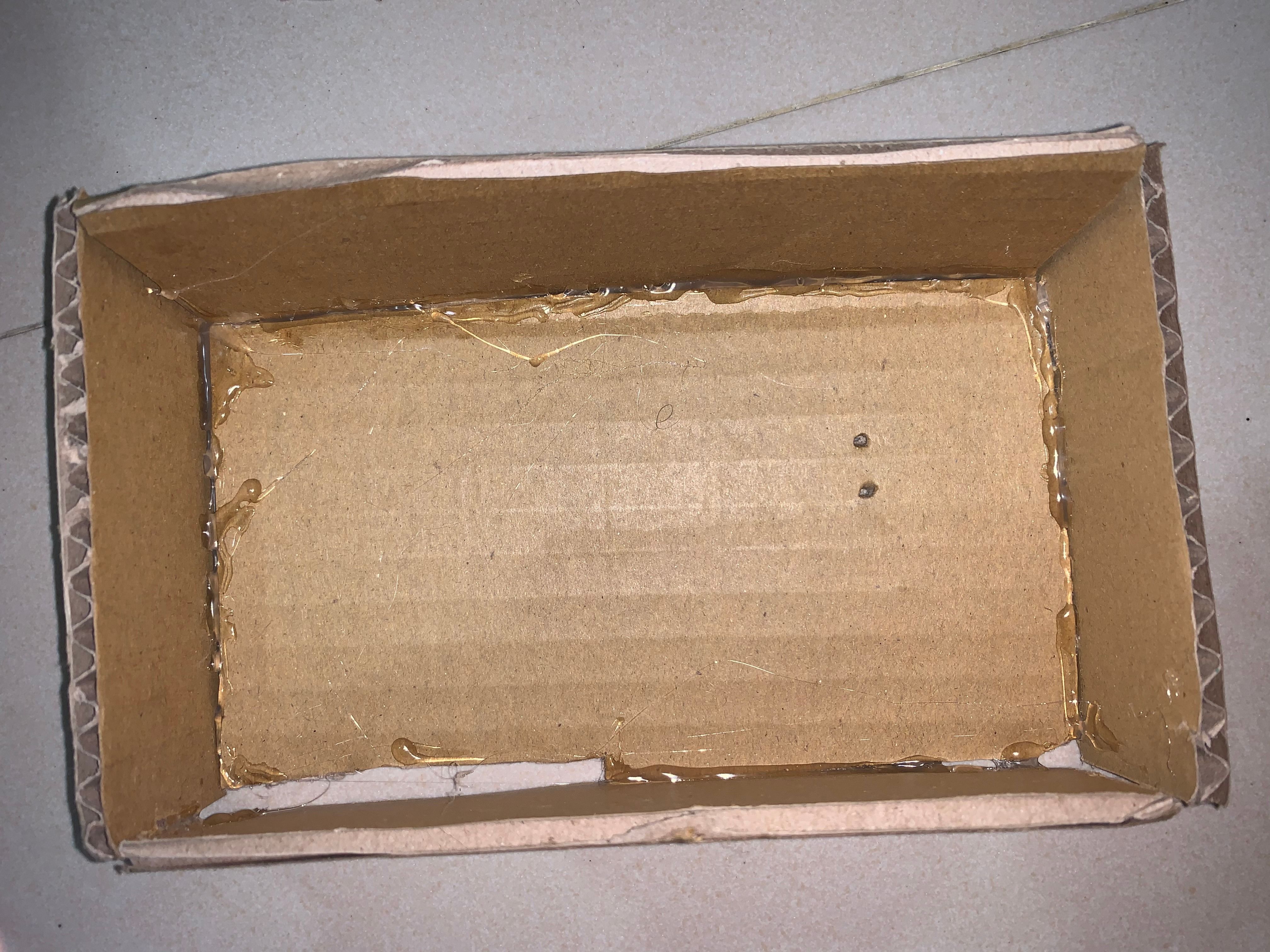

1. Use the utility knife to cut cardboard (Box 1) into one 20cm x 14cm (Base), two 20cm x 4cm (Wall of the longer side), two 14cm x 4cm (Wall of the shorter side) [Picture 1]. One 10.5cm x 17cm, one 6cm x 6cm, one 6cm x 7cm, one 4cm x 17cm [Picture 2]. (Box 2) One 18cm x 10cm (Base), two 18cm x 5cm (Wall of the longer side), two 10cm x 5cm (Wall of shorter side) [Picture 3].

2. Install the speaker and photoresistance in (Box 2)

3. Write the code into the Arduino and install the circuit on the breadboard

4. Put the Arduino into box 1

5. Change the source of electricity to a portable charger.

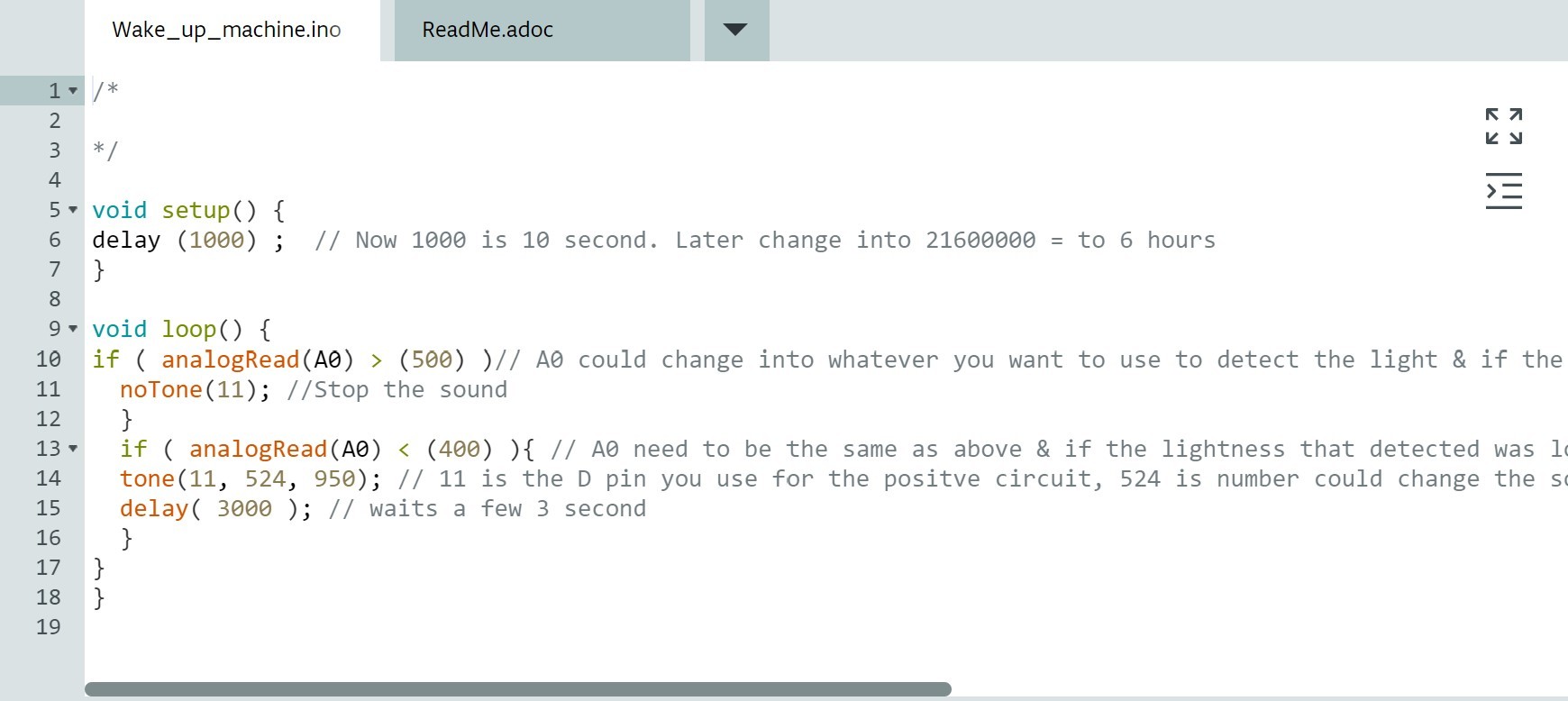

This is what my circuit looks like and the link to the Arduino website with the code I write.
