In this Instructable, I'm going to guide you step-by-step on how to make a CTH Wacom pen in Tinkercad. Wacom pens are stylus' that are used specifically for Wacom tablets for graphic design and online art.
Base
![Annotation 2023-05-19 134502.png](/proxy/?url=https://content.instructables.com/FP4/U5OX/LHUKM9D4/FP4U5OXLHUKM9D4.png&filename=Annotation 2023-05-19 134502.png)
We are going to make the base of the pen. Place down a cylinder and rotate it 90 degrees onto its side. Select the cylinder. While holding shift, click the corner squares and resize the cylinder until it is your preferred size.
Change the color of the cylinder to a greyish color. Resize the cylinder until it is 35mm in length and 5mm in width. It should look like the picture above.
Grip
![Annotation 2023-05-19 134831.png](/proxy/?url=https://content.instructables.com/FA8/1RJK/LHUKM9UI/FA81RJKLHUKM9UI.png&filename=Annotation 2023-05-19 134831.png)
Next, we're making the grip of the pen. Duplicate the base and change the color to black. Change the length of the grip to 40mm. It should look like the above picture.
Pen Nib
![Annotation 2023-05-19 135929.png](/proxy/?url=https://content.instructables.com/FIT/PPAX/LHUKMBKL/FITPPAXLHUKMBKL.png&filename=Annotation 2023-05-19 135929.png)

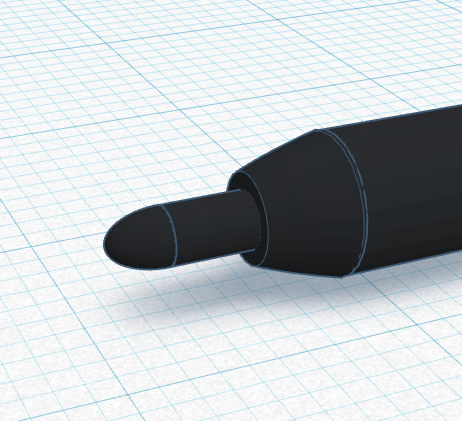

We are going to make the pen nib next. Place a paraboloid onto the workspace. Change the color of it to black. Adjust the size until it can fit at the top of the grip (mine is 5.05 x 5.1). Then, place a hole 2mm from the tip of the nib-base, then group them together.
Place a cylinder onto the workspace and change its color to black. Change the size to 1.5mm x 2mm. Change grid snap to 0.5mm. Place it in the center of the nib-base.
Place a half-sphere onto the workspace. Resize it to be 2x2. Then, place it on top of the nib. Change the color to black. It should look like the above.
Eraser
![Annotation 2023-05-19 135852.png](/proxy/?url=https://content.instructables.com/FC2/C6NX/LHUKMBGT/FC2C6NXLHUKMBGT.png&filename=Annotation 2023-05-19 135852.png)
Duplicate the pen nib and bring it to the other size of the base. Rotate it 180 degrees. Center the half-sphere. Then, resize it to 4x3.02 It should look like the above.
Congratulations
Congrats. You've made your very own Wacom pen in Tinkercad. Thank you for reading.
