WRT160N Fan Mod

Router: Cisco/Linksys WRT160N (Rev.3) - DD-WRT v24 (Build 14896 firmware)

While this is a very crude mod, my WRT160N was running a bit hotter than normal with the DD-WRT firmware (antenna output cranked up to 85mw). So, a simple mod with a 2" fan soldered to the power connector a 1.75" hole, and some temporary pedestals until I go to the hobby shop.

The temperature was getting up to 90 degrees and while the router has cooling ports on the top and is perferated on the bottom plate, it's not very efficient on the cooling side. With the fan mounted below (pulling air out of the base), I measured a 21 degree F cooler temp on the body of the router with the fan installed and operating.

Overall, definitely a plus when modifying these routers with better and more adjustrable firmware and (soon to come) external antenna's to handle the extra power output.

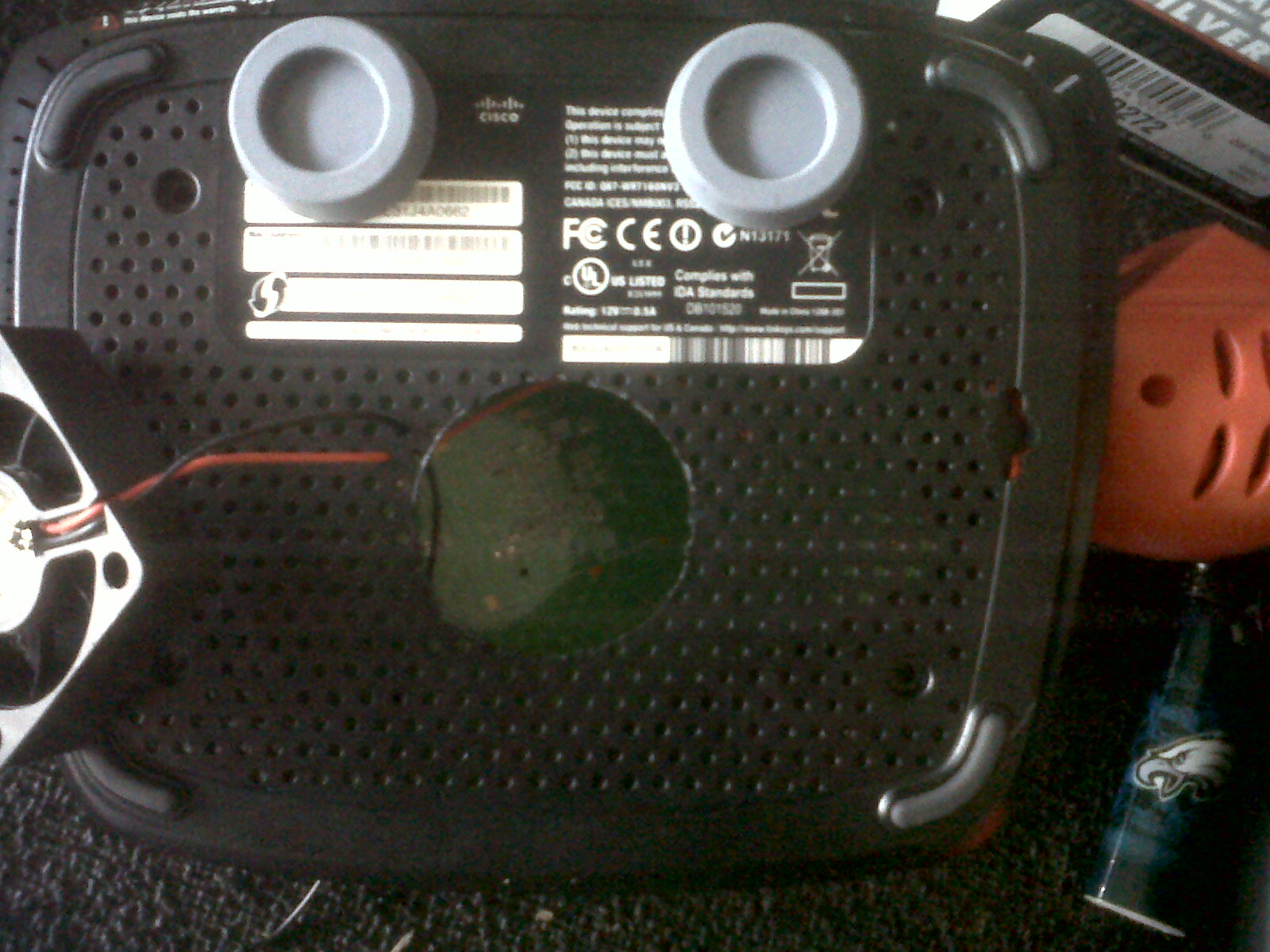

You'll have to open the router (voiding the warranty) with a T8 Safety-Torx driver (the one with a hole in the tip). Once you remove the four screws on the bottom, it pops apart by simply lifting the top cover from the base (a dime can get you started if it's tough). Gently lift the board out of the way - no need to disconnect the antenna's as there's plenty of slack in the wires. Once opened, grab a 1.75" (1 3/4") hole saw and cut a hole in the mesh on the bottom plate. Run the fan wires though the mesh for ease of installation.

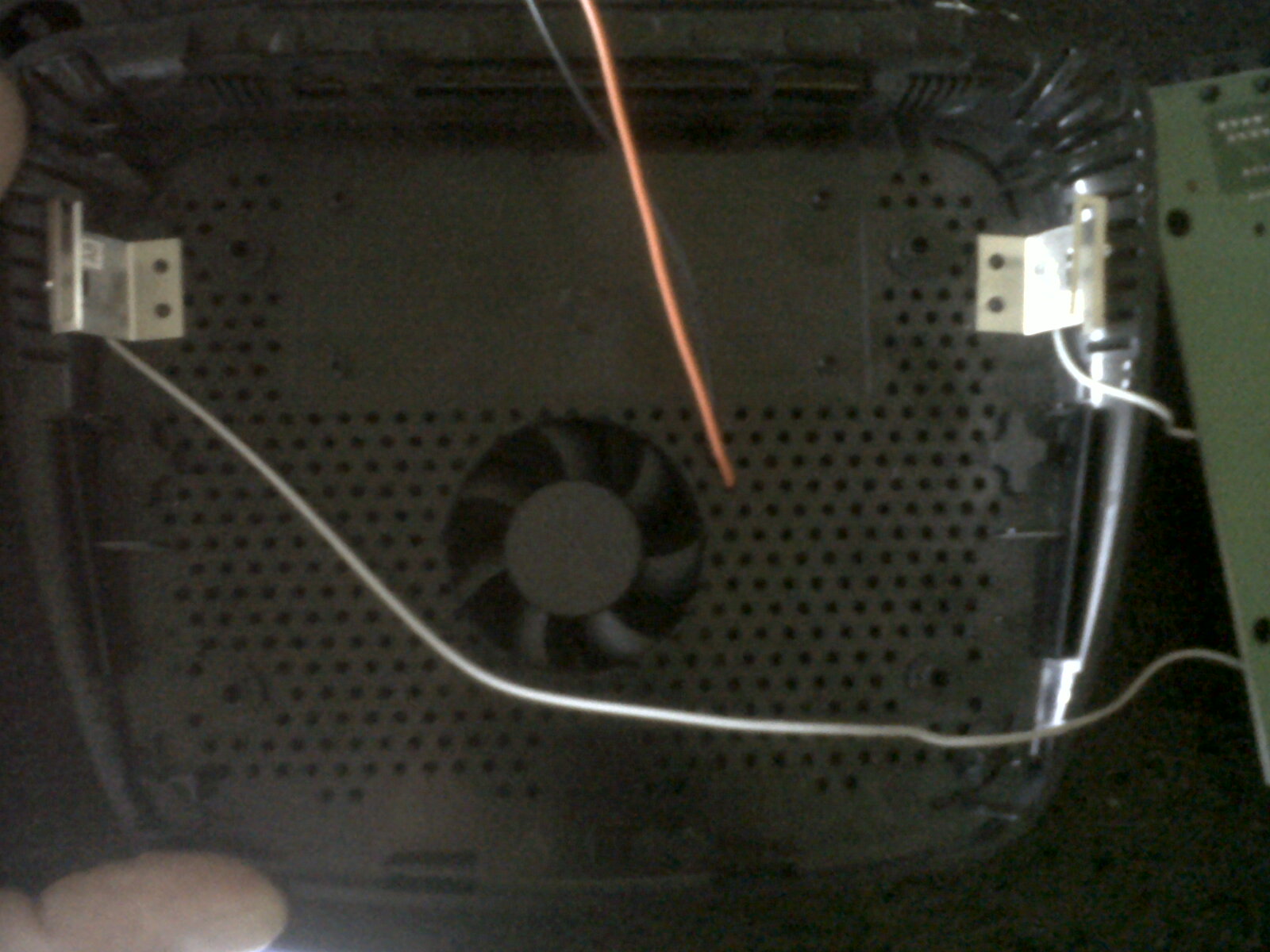

These are the exact locations to solder the power (red) and ground (black) wires from the fan.

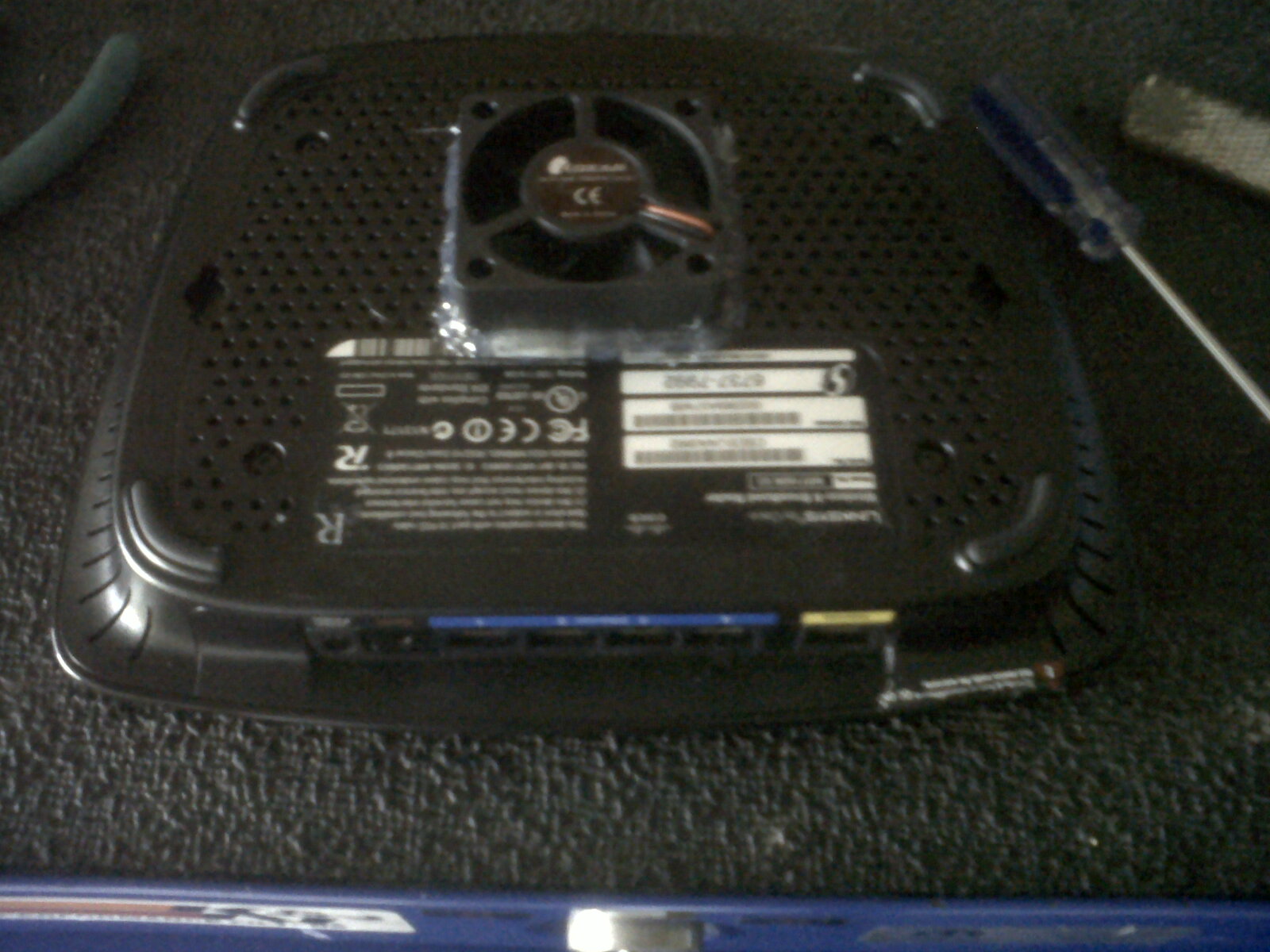

I used a cold-glue gun for this and laid two beads around the fan. There's not enough room to screw the fan down (space in between the PCB and bottom cover), but the glue works well and you can't see it anyway.

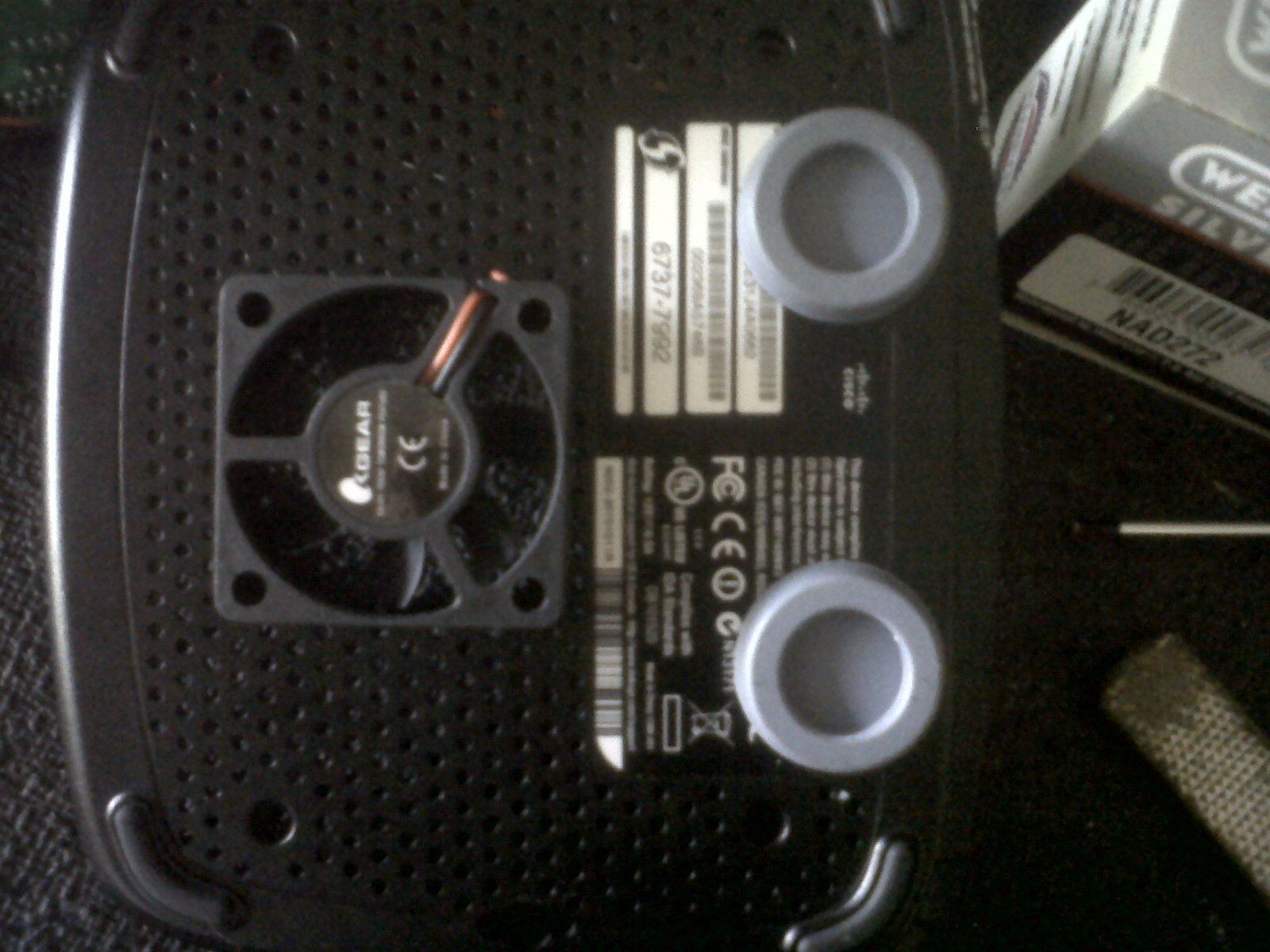

I couldn't find anything that worked around the garage so I used four identical 9/16" sockets and used the glue gun to set them in place (they're easy to remove later when I find some better pedestals). After the pedestals are mounted, I put some rubber stick-on feet to keep it from sliding around on my desk (again - will be replaced once I find better options at the hobby store). So there you have it - simple, quick, quiet, and my router is much cooler and better equipped for the next mod: 12dbi antenna's and the firmware (DD-WRT) cranked up to 100mw
