WEB Firmware Update on WIZwiki-W7500 Platform

I know WIZ550web solution for monitoring. Recently WIZwiki-W7500 platform was announced by WIZnet. So I implemented a firmware of WIZwiki-W7500 by WIZ550web SW modification because I can handle a source code easily.
You can know the status of equipment even if it is so far. Please refer to the following step.

Please refer to the following.
1. WIZwiki-W7500 board. ( http://www.shopwiznet.com/wizwiki-7500 )
2. Mini USB cable
3. LAN cable
4. UART2USB adapter

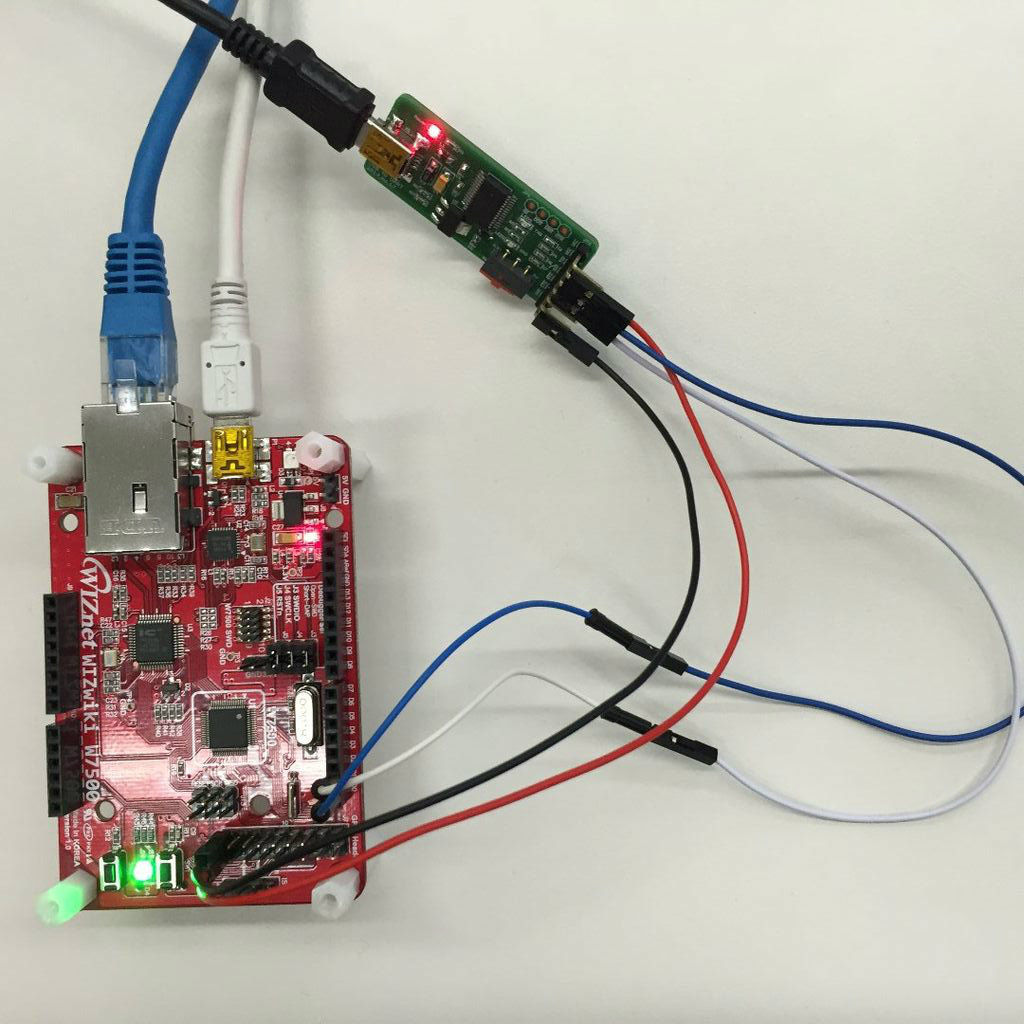

Please connect an USB, LAN cable and UART2USB adapter
You can get more HW info by the following site.
http://wizwiki.net/wiki/doku.php?id=products:wizwiki_w7500:start

I prepared GCC development environment by the following site.
http://lghmms.cafe24.com/how-to-build-a-development-environment-with-gnu-arm-java-jdk-eclipse-cygwin/
I installed GNU Toolchain, Java JDK, Eclipse, Cygwin.
If you install all tools, you are ready for running this project.
You can use a Configuration Tool by the following temporarily.
http://wizwiki.net/wiki/lib/exe/fetch.php?media=products:wiz550s2e:wiz550s2e_configuration_tool_ver1.03beta_20151005.zip
How to use a CFG tool : http://wizwiki.net/wiki/doku.php?id=products:wiz550s2e:wiz550s2epg_en#configuration_tool
## Reference
WIZwiki-W7500 library source : http://wizwiki.net/wiki/doku.php?id=products:w7500:library

I opened source codes of this project in GitHub.
https://github.com/bingdo/WEB_WIZwiki-W7500_Eclipse
You can download this project files. And then import project into Eclipse.
After compile, you can run WEB application of WIZwiki-W7500.
This project is open for everyone. I expect your participation to improve a quality of project.

Refer to the movie of TFTP. ( https://www.youtube.com/watch?v=a5-Lf9taNOU )

1. To program FW into a target.
2. To reset a target and insert MAC address.
3. To search a target by Configuration Tool.
4. To check Host IP and Options.
5. To change IP, Gateway properly.
6. To search a target by Configuration Tool again.
7. To select "F/W Uploading".
8. To change Server IP, File Name properly.
9. To press OK.
10. To check a version of new FW through terminal program.
11. Carry out WEB operation.
Thank you for your attention.
