WEARABLE WASTE OF ENERGY

Sew together various soft electronic components to turn your favorite clothing item into a wearable waste of energy!

These step-by-step instructions will show you how to combine fabric buttons, fabric pressure sensors, and conductive fabric traces as well as some funny elements, all in the name of wasting energy for no particular reason.

There are 7 different components to this wearable. And below is a list of the materials and tools you will need to complete them. The following 7 steps will explain how to make each of these components. And the idea is that you come up with your own design and layout for the components, and maybe even add some new elements.

VIDEOS COMING SOON ! ! !

COMPONENTS:
Step 1) Conductive fabric traces
Step 2) 9V battery, battery snaps and little pocket
Step 3) Fabric switch
Step 4) Fabric pressure sensor
Step 5) Vibration motor embedded in Shapelock
Step 6) LED
Step 7) Decorative elements: the doll and the sun

MATERIALS:
- Old clothing item to modify!
- Fabric leftovers
- Stretch conductive fabric from http://www.lessemf.com
- Conductive thread from http://www.sparkfun.com
- Fusible interfacing from local fabric store
- Velostat by 3M from http://www.lessemf.com
- Thread
- 3mm thick foam
- LED
- Vibration motor
- 9V batterys
- Rainbow wire
- Shapelock from http://www.shapelock.com

TOOLS:
- Hole maker
- Scissors
- Iron
- Sewing needle
- Popper/snap machine (handheld or hammer and simple version)
- Hot water

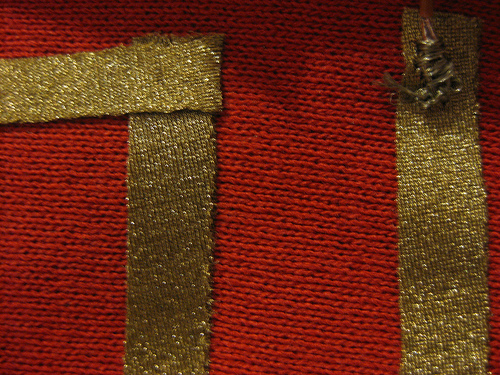

So that the electricity can flow from the battery through the button or the pressure sensor to the component it needs a conductive connection. Since we are working with clothing, it makes sense to use conductive fabric to make these traces. Iron on some fusible interfacing to your conductive fabric before cutting it into thin strips. Then iron these strips onto the clothing item where you need them to complete the circuit.

Once you have decided on the layout and design of your wearable you will have to plan in one 9V battery for almost every component you integrate. This is because the conductive fabric traces have quite a bit of resistance, thus suck quite a lot of energy, which contributes to the whole “waste of energy” idea.

To connect the 9V battery snaps to the conductive traces, strip the ends of the wires that come out of the battery snaps and make a little loop. Solder this so that it does not unravel. Use conductive thread to sew the loop onto the end of the fused conductive trace.

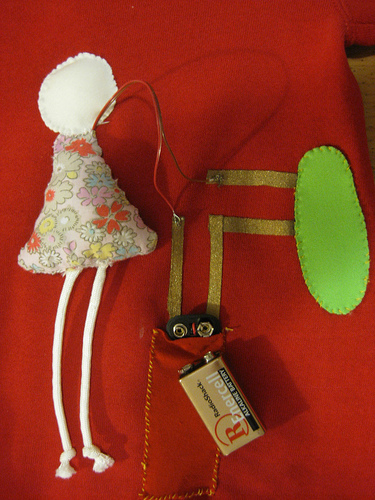

You will want to make a pocket for your battery. Best to use stretchy fabric and cut it a bit smaller than the actual size of the battery so that the stretch will keep it in place. Also, make the pocket 2 or 3 cm longer than the battery, this way it stays in nicely, even when upside-down.

For this component you will want to follow the detailed instructions posted in this Instructable>>
https://www.instructables.com/id/Fabric-Switch/ (coming soon...)

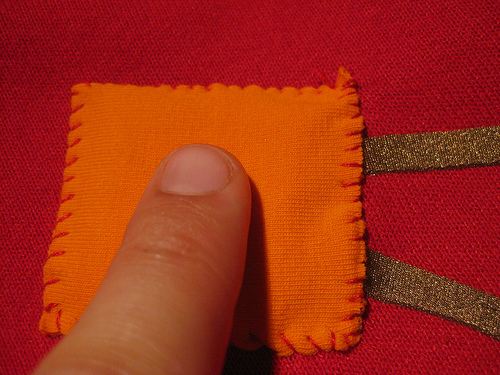

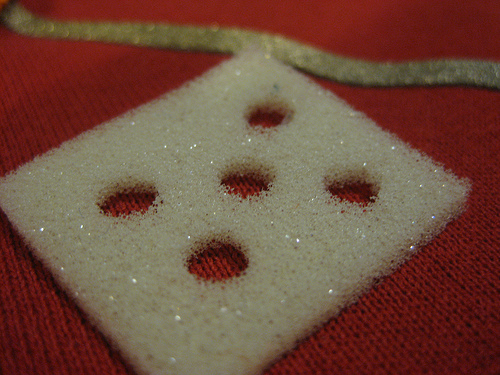

For this component you will want to follow the detailed instructions posted in this Instructable>>
https://www.instructables.com/id/Flexible-Fabric-Pressure-Sensor/

Strip the ends of the short wires coming out of a small vibration motor (the kind you find in cell phones) make loops in the wire and solder them just like the ends of the 9V battery snap wires.

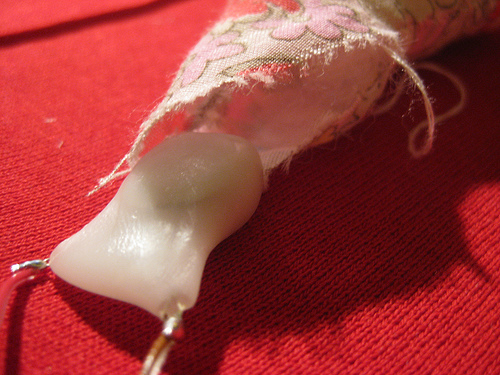

Shapelock is a very cool thermoplast. It comes in small pellets and when you pour a handful of them into hot water they will melt and stick together. They are ready to mould when transparent. Take out the cluster of hot plastic pellets and shake off the hot water. Mould into solid form and then form around the small vibration motor, leaving the two soldered loops sticking out. In this example I simply soldered to these rings in order to connect them to the conductive trace, but the idea of embedding the motor in Shapelock is to make it washable (not in hot water though!) and so that the rings can also be stitched to the conductive traces with conductive thread. Getting rid of the wire, which is a good thing, in terms of wearability. I guess.

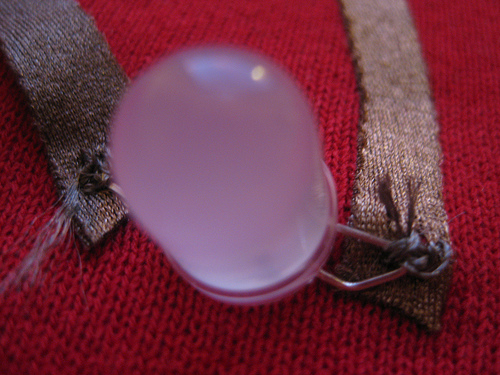

With a pair of small pliers curl the legs of the LED into little loops and sew these loops, using conductive thread, straight to the conductive fabric traces. Make sure that the LED's plus goes to the battery's plus!

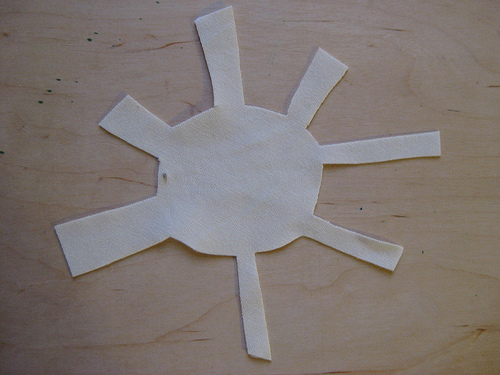

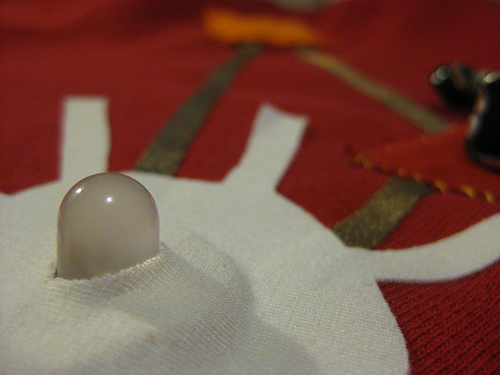

For the sun I simply cut a small circle of foam and then cut out a circle the size of the LED in the middle of that and then placed it over the LED, to create some 3D-ness. Then I ironed-on some fusible interfacing to some white cotton jersey and cut out a piece in the shape of a sun. I also cut a hole in this the size of the LED and placed it on top of the led and the foam. Then I ironed on the sun to the sweater, being careful of the LED and the foam underneath.

And that was that.

I attached the batteries to their snaps and slipped them into the pockets and put on the sweater and pressed the button and the pressure sensor and watched them work and wasted energy all the while I wore it.
