WATER LEVEL INDICATOR

Hi, iam cj from india.i am going to tell u guys about how to make a liquid level indicator easily with simple items available near your shop.

dia 1:this is the cicuit diagram.from this it is easy to fit the circuits in pcb.

dia:2:In this diagram the components for this projects is shown and is named.you need the following components to work this project.

resistors:      no.of.items
  27k                 1
  10k                  2
  150E               1
ceramic capacitor:
      0.01MFD{1}

IC-555{1}

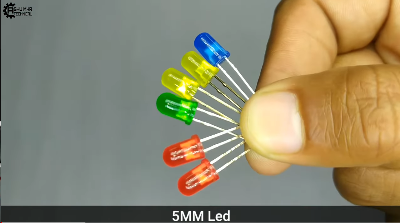

LED red or green -1

dia:3 I have fitted these things in spring breadboard for easy checking whether it works or not. it works.
        so, first check the circuits are fitted in correct order using bread board and finally fit it in a pcb.

dia:4 I have wired all these things. it worked.

dia:5 I have made mine by using a black plastic board since i don't have an pcb.so i used a single wire for joining those circuits.to do it i removed a wire covering from a 9 cm wire.then i took those metalstrings out
and twisted and soldiered in the circuits and i laminated them with cello tape to avoid short circuits.thank you.
