W6: Milling Simulation
![photo_2020-05-11_14-32-53.jpg](/proxy/?url=https://content.instructables.com/FLU/1OM0/KA3XFYQ5/FLU1OM0KA3XFYQ5.jpg&filename=photo_2020-05-11_14-32-53.jpg)
![box.jpg](/proxy/?url=https://content.instructables.com/FOC/GQLL/KA3XFYR1/FOCGQLLKA3XFYR1.jpg&filename=box.jpg)
![cnc_0_error.jpg](/proxy/?url=https://content.instructables.com/FWB/490Z/KA3XFYQ4/FWB490ZKA3XFYQ4.jpg&filename=cnc_0_error.jpg)
This week, we started learning a bit about subtractive fabrication and toolpath generation with this modality. I would say that understanding additive methods was more intuitive for me. CNC simulations require lots of machine-specific input (like the tools).
To simulate the milling path, I picked a box to house 1 Intel Realsense depth camera and 1 Raspberry Pi. The box dimensions are 13.7 x 10 x 3.5 cm for the main body and 13.7 x 10 x 0.75 cm for the lid. I also 3d-printed the box using Ender 3. Since the main body is deep, I couldn't find a way to simulate any no-collision paths. That's why I only simulated the lid of the box.
Supplies
Fusion 360
[Thermal Load]
![thermal.jpg](/proxy/?url=https://content.instructables.com/F5Z/H362/KA3XFYQJ/F5ZH362KA3XFYQJ.jpg&filename=thermal.jpg)
I found a Thermal Load simulation under the Simulation tab. Usage was intuitive: I closed the box with the lid and clicked on auto contacts. Fusion 360 was smart enough to understand these two parts were touching and adjusted the setup accordingly. Then I specified a thermal load that may simulate the working condition of the box. The result came in less than 2 minutes, and its as shown above.
CNC Milling - Front
![lid-front.gif](/proxy/?url=https://content.instructables.com/F58/CR1X/KA3XG5VD/F58CR1XKA3XG5VD.gif&filename=lid-front.gif)
![lid_0.jpg](/proxy/?url=https://content.instructables.com/F5S/8Q6V/KA3XG5VB/F5S8Q6VKA3XG5VB.jpg&filename=lid_0.jpg)

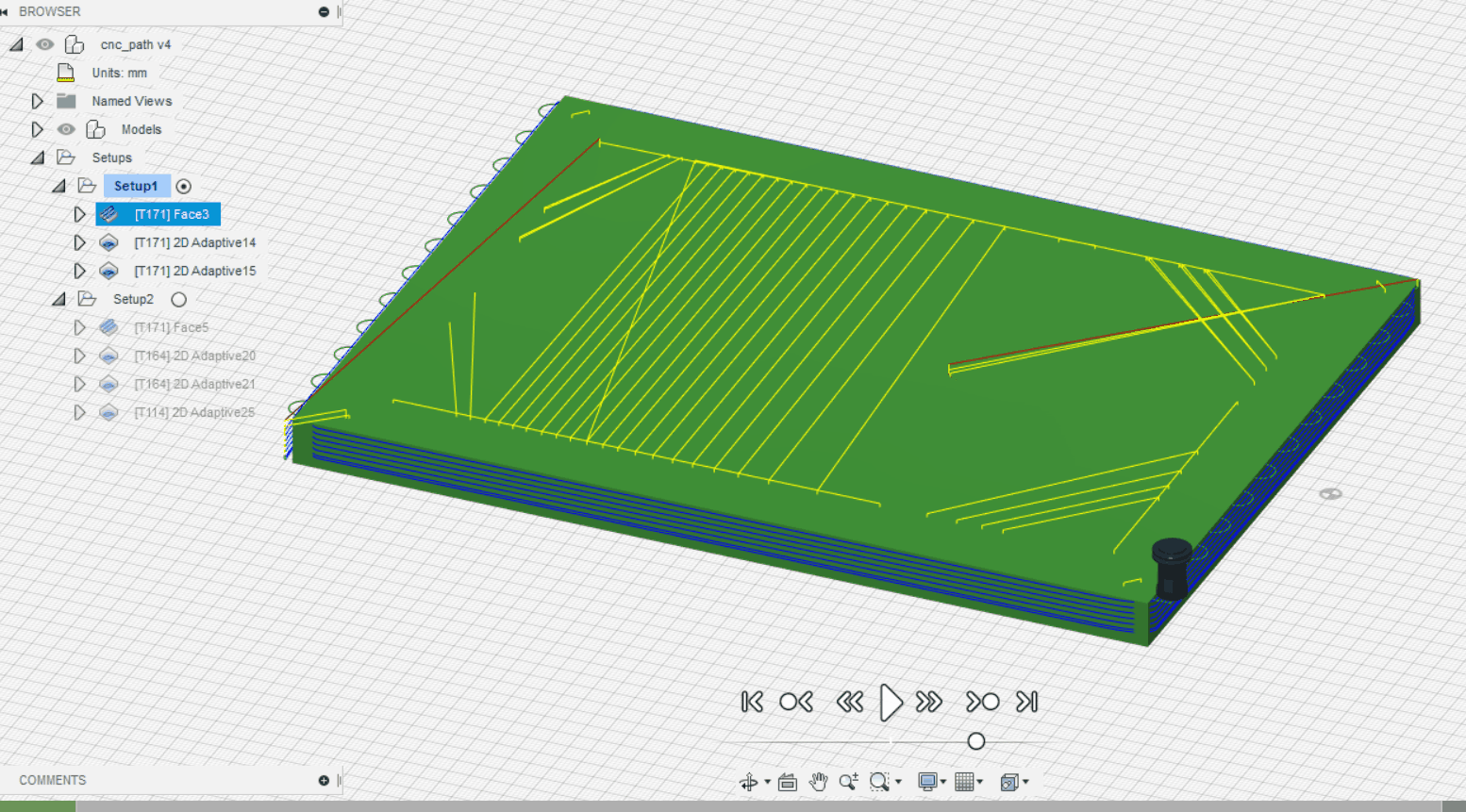

I specified a stock material for the lid of size 14.7 x 11 x 8 cm with an offset from the bottom of 1 mm. I don't think this is a standard stock size but since I will only simulate this object on Fusion 360, I wasn't concerned with it just yet. I set up the coordinate system to correspond to the upper left corner, Z pointing up.
Then I created a Face milling with #171 - Ø1.9675"R0.015" face (2" Face Mill). This operation removed extra material on the surface of my object. Then I used 2D Adaptive Clearing to remove material inside the lid edges with the same tool. I had to turn on the Multiple-Depths option to prevent tool collision. And I used the same settings to remove extra material outside the lid edges. I wasn't too concerned about slightly rounded edges of my case because they are not obstructing any functional parts.
CNC Milling - Back
![lid-back.gif](/proxy/?url=https://content.instructables.com/F0Z/HAO4/KA3XG70Y/F0ZHAO4KA3XG70Y.gif&filename=lid-back.gif)
![lid_1.jpg](/proxy/?url=https://content.instructables.com/FAO/JYV6/KA3XG6X3/FAOJYV6KA3XG6X3.jpg&filename=lid_1.jpg)

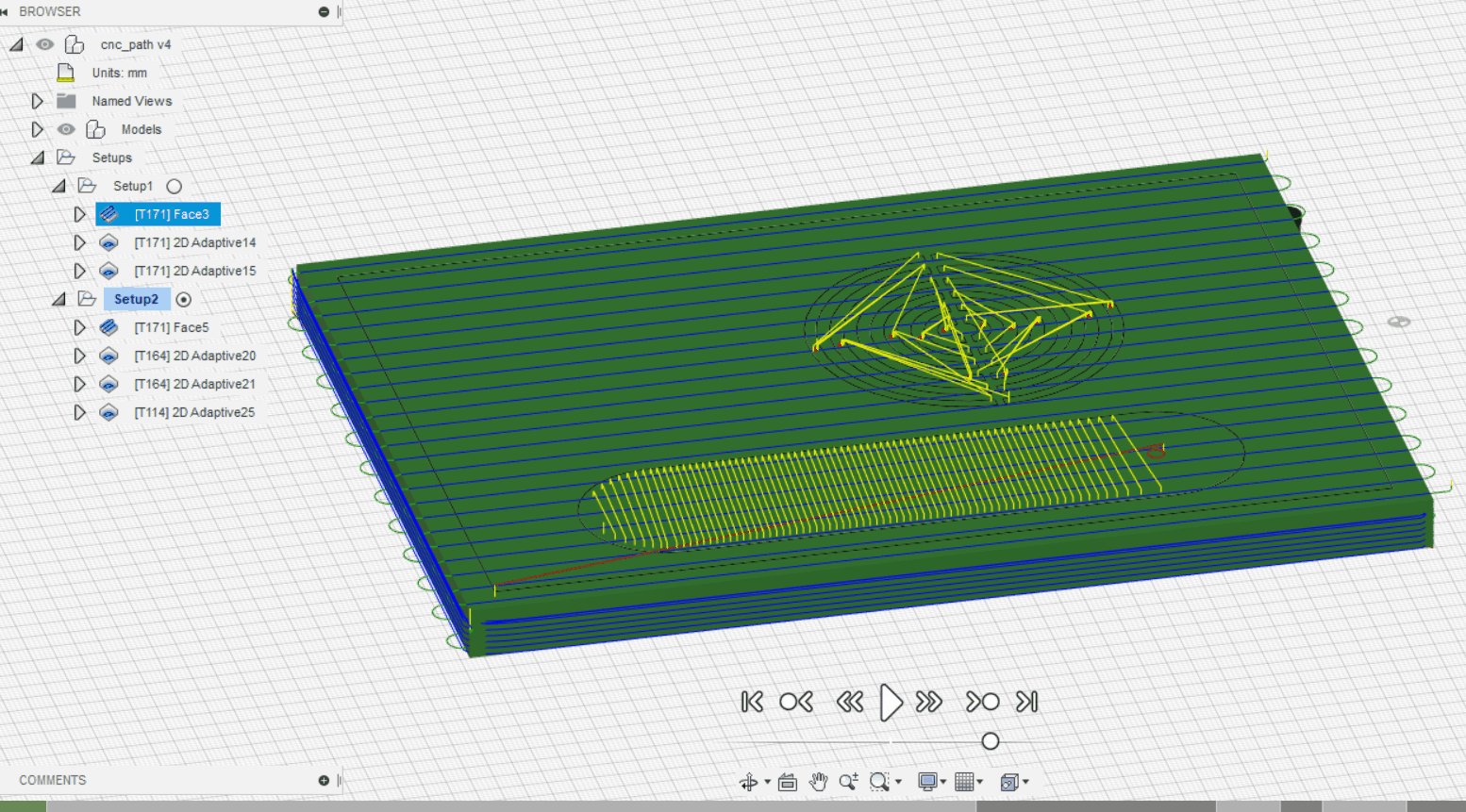

I duplicated Setup1 to use the same stock material. Then I changed the stock origin to the far-left of the other side of my part.
I started with a Face operation with #171 - Ø1.9675"R0.015" face (2" Face Mill) again. 2D Adaptive Clearing with #164 - Ø1" flat (1" EM Short) helped me to remove the outer contour of the lid. I had to give a bottom offset of 2 mm operations like this that pierce through the material block. I cleared the big opening with the same tool, and then used #114 - Ø1/4" flat (1/4" EM Short) to remove concentric fan openings (the gap is smaller than #171).
