Hi All,
In this instructable, I will share, how I made this Voronoi pattern dog
Supplies
- 3d Printer
- Meshmixer
- Cura
- TinkerCad
Download a 3d Model
![Img0239.jpg](/proxy/?url=https://content.instructables.com/FFS/SMO7/KM6B8L4U/FFSSMO7KM6B8L4U.jpg&filename=Img0239.jpg)
- Go to your favorite 3d Model site
- I like Thingiverse.com
- I would recommend picking a low poly model instead of full poly
- For this instructable I used https://www.thingiverse.com/thing:446787
- You can choose any other model too
my model is avaliable at https://www.thingiverse.com/thing:4792489
Meshmixer 1/3
![Img0243.jpg](/proxy/?url=https://content.instructables.com/F42/J5YV/KM6B8L7M/F42J5YVKM6B8L7M.jpg&filename=Img0243.jpg)
![Img0245.jpg](/proxy/?url=https://content.instructables.com/FNA/NM7E/KM6B8L7L/FNANM7EKM6B8L7L.jpg&filename=Img0245.jpg)
![Img0249.jpg](/proxy/?url=https://content.instructables.com/FCL/BE0I/KM6B8L7K/FCLBE0IKM6B8L7K.jpg&filename=Img0249.jpg)
- If you do not have Meshmixer, download and install from https://www.meshmixer.com/download.html
- Import the stl file into Meshmixer
- After import, you will notice the surface is different than you expected

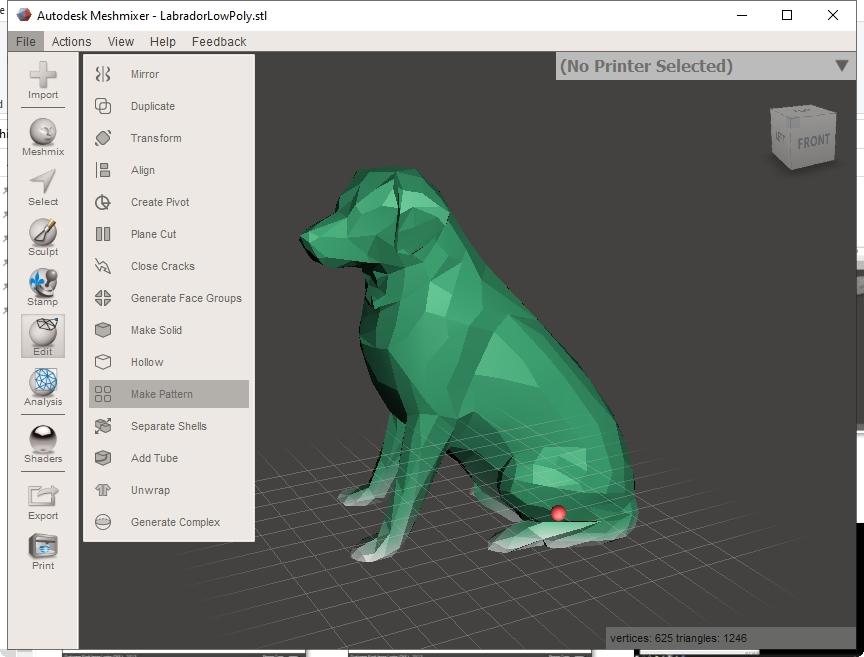

- To fix this, click on Edit and select Generate Face Groups, This should fix the shape
- Now under Edit, select Make Pattern
- As soon as you select it, the default is Tiled Tubes, you can change the pattern using Pattern Type dropdown
- You can experiment with the different patterns but for out Voronoi we need to select "Dual Edges" or "Mesh + Delaunay Dual edges"
- You can play with the "Element dimension" and "element spacing" for desired thickness
- Once happy, press the Accept button, it may take a few minutes while Meshmixer processes the model
Meshmixer 2/3
![Img0250.jpg](/proxy/?url=https://content.instructables.com/F8U/L7G6/KM6B8LA7/F8UL7G6KM6B8LA7.jpg&filename=Img0250.jpg)
![Img0251.jpg](/proxy/?url=https://content.instructables.com/FJN/VQ0H/KM6B8LDZ/FJNVQ0HKM6B8LDZ.jpg&filename=Img0251.jpg)
- After Meshmixer is done processing, it may have cracks or error
- In this case, it does show them as red dots
- Just to be sure, select Analysis and then Inspector
- You will be able to see all the defects, I typically select Auto repair all and then Done
Meshmizer 3/3
![Img0252.jpg](/proxy/?url=https://content.instructables.com/FGF/J0X9/KM6B8LPD/FGFJ0X9KM6B8LPD.jpg&filename=Img0252.jpg)
![Img0253.jpg](/proxy/?url=https://content.instructables.com/FTX/PHYY/KM6B8LPC/FTXPHYYKM6B8LPC.jpg&filename=Img0253.jpg)
![Img0254.jpg](/proxy/?url=https://content.instructables.com/FEV/872L/KM6B8LPB/FEV872LKM6B8LPB.jpg&filename=Img0254.jpg)
- Many times the base of the model is not flat, it may not print well
- To avoid this you can either slice the base by 0.5 to 1mm
- Or Add a base
- I created a 2mm thick 100mm circular disc in tinkercad, and export it as stl file
- Now import this disc in Meshmixer, select Append

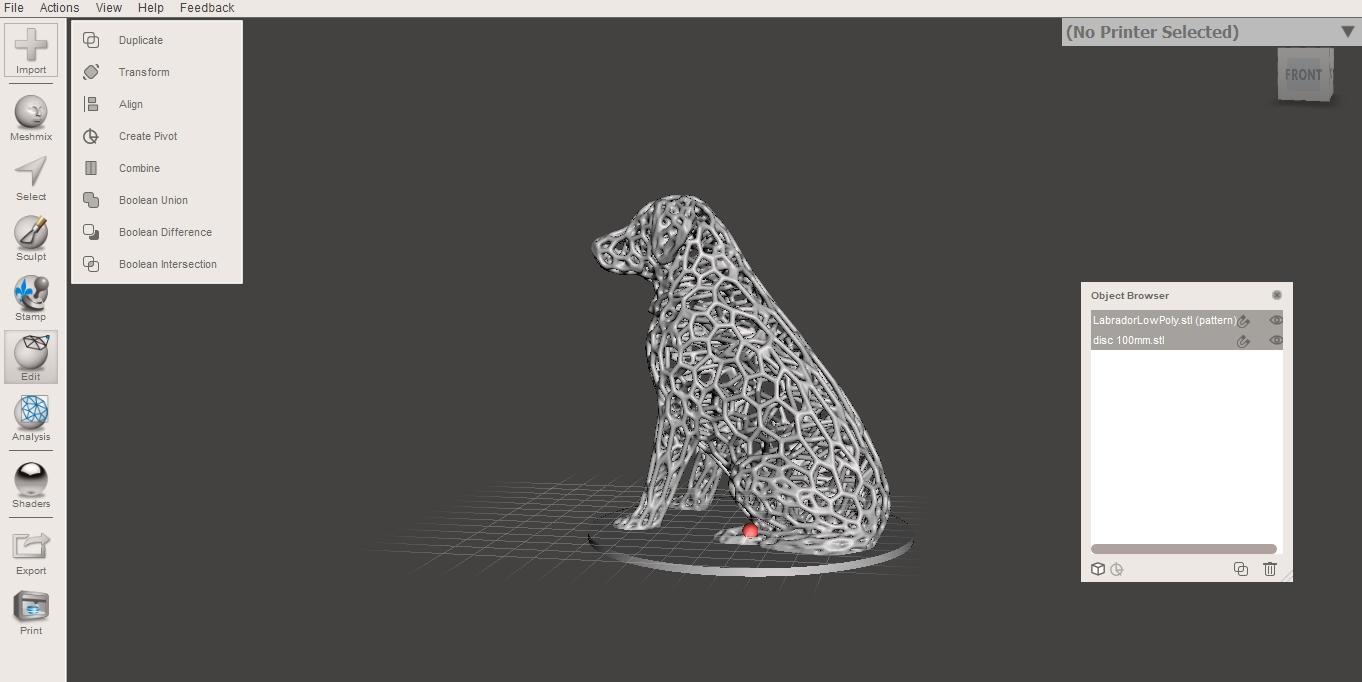

- Use object browser to select the disc and Generate face groups
- Under Edit, use transform to align the dog and the base
- In Object browser select the dog and the base, option to combine automatically pops up
- Select Combine and then export the model
Cura Settings
![Img0256.jpg](/proxy/?url=https://content.instructables.com/FIE/4JBD/KM6B8MTS/FIE4JBDKM6B8MTS.jpg&filename=Img0256.jpg)
![Img0255.jpg](/proxy/?url=https://content.instructables.com/FVO/KQLX/KM6B8MTR/FVOKQLXKM6B8MTR.jpg&filename=Img0255.jpg)

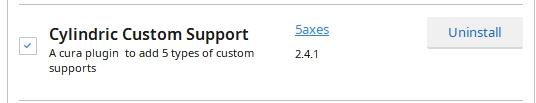

- Install Cylinder custom support and restart Cura
- Import the model in Cura
- Do not activate Supports use custom supports
- We need to add support where needed, for this model, I added just on
- Resolution 0.28mm
- Reduced scale to 80%
Printing and Cleanup
- Export the gcode from Cura and print it
- It took 3.5 hrs for me
- Once done, you will notice that there is a lot of stringing
- Use a hair drier to melt the string
- Since we did not use supports, there will be some sagging but does not standout
I hope you will try this method and do share your feedback and suggestions
