Visuino How to Use Pulse Width Modulation (PWM) to Change Brightness of a LED

In this tutorial we will use a LED connected to Arduino UNO and Visuino to make a change it's brightness using Pulse Width Modulation (PWM).

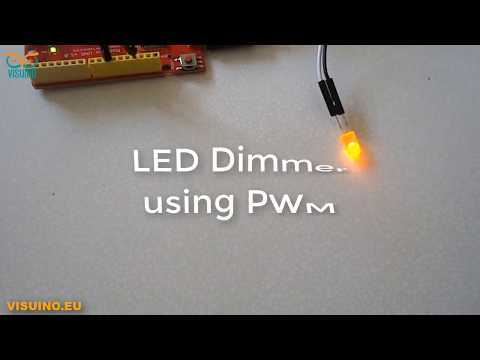

Watch a demonstration video.

1. Arduino UNO (or any other Arduino)
2. LED
3. Visuino program: Download Visuino

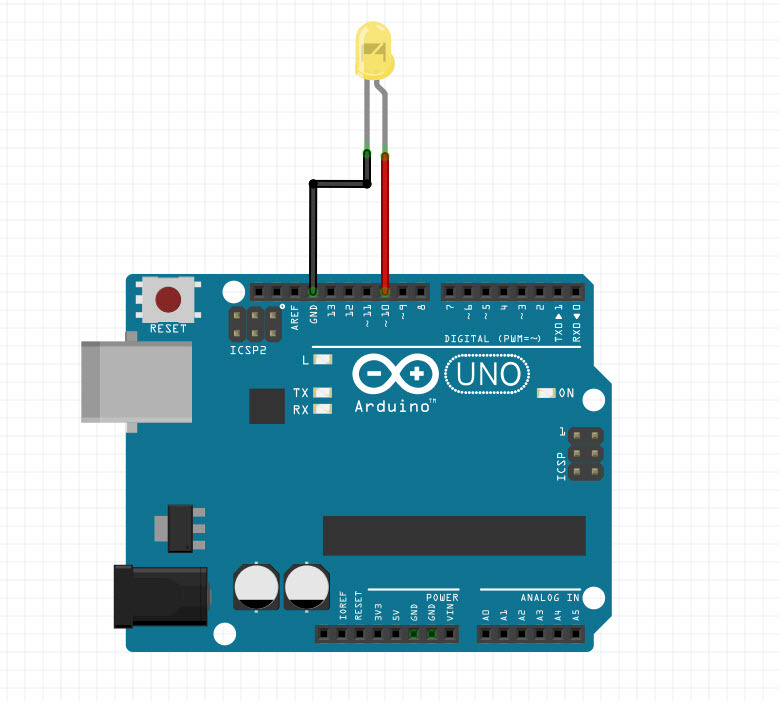

Connect LED negative (short) to Arduino pin (GND)

Connect LED positive (long) to Arduino pin (10)

All you need to do is drag and drop components and Connect them together. Visuino will create the working code for you so you don’t have to waste time on creating the code. It will do all the hard work for you fast and easy! Visuino is perfect for all kind of projects, you can easily build complex projects in no time!

Download the Latest Powerful Visuino Software

To start programming the Arduino, you will need to have the Arduino IDE installed from here: http://www.arduino.cc/.

Please be aware that there are some critical bugs in Arduino IDE 1.6.6. Make sure that you install 1.6.7 or higher, otherwise this Instructable will not work! If you have not done follow the steps in this Instructable to setup the Arduino IDE to program Arduino UNO! The Visuino: https://www.visuino.eu also needs to be installed. Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "Arduino UNO" as shown on Picture 2

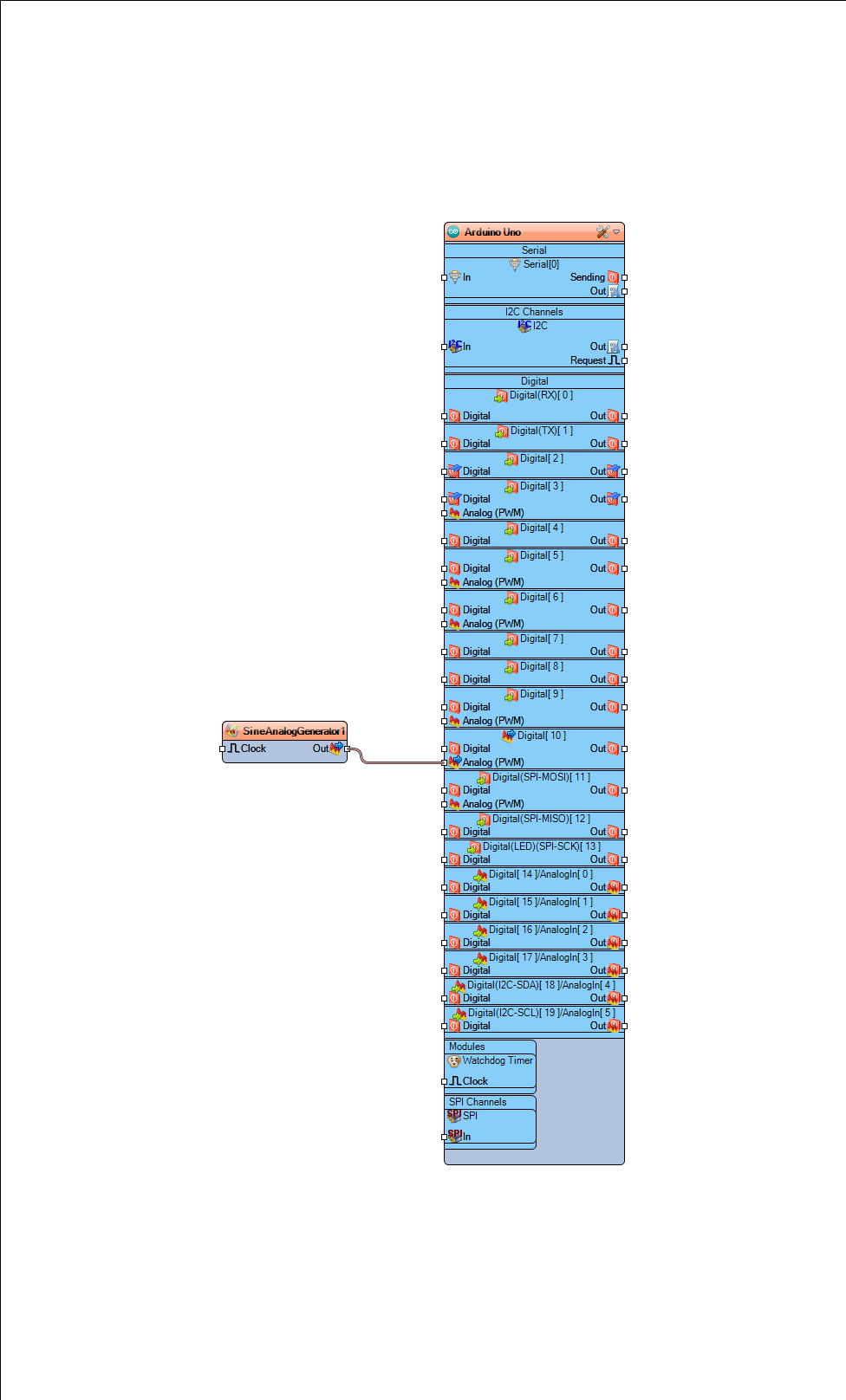

1. Add "Sine Analog Generator" component
2. Set "SineAnalogGenerator1" component frequency to "0.2"
3. Connect "SineAnalogGenerator1" to Arduino Digital pin [10]

In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.

If you power the Arduino UNO module, the LED will slowly turn ON and slowly turn OFF.

Congratulations! You have completed your project with Visuino. Also attached is the Visuino project, that I created for this Instructable. You can download and open it in Visuino: https://www.visuino.eu
