Visuino How to Use Inductive Proximity Sensor

In this tutorial we will use Inductive Proximity Sensor and a LED connected to Arduino UNO and Visuino to detect metal Proximity.

Watch a demonstration video.

1. Arduino UNO (or any other Arduino)
2. LED
3. Inductive Proximity Sensor Switch
4. Visuino program: Download Visuino

1. Connect LED negative (short) to Arduino pin (GND)
2. Connect LED positive (long) to Arduino pin (13)
3. Connect Inductive Proximity Sensor - Black wire to Arduino analog pin (A0)
4. Connect Inductive Proximity Sensor - Blue wire to Arduino pin (GND)
5. Connect Inductive Proximity Sensor - Brown wire to Arduino pin (5V)

All you need to do is drag and drop components and Connect them together. Visuino will create the working code for you so you don’t have to waste time on creating the code. It will do all the hard work for you fast and easy! Visuino is perfect for all kind of projects, you can easily build complex projects in no time!

Download the Latest Powerful Visuino Software

To start programming the Arduino, you will need to have the Arduino IDE installed from here: http://www.arduino.cc/.

Please be aware that there are some critical bugs in Arduino IDE 1.6.6. Make sure that you install 1.6.7 or higher, otherwise this Instructable will not work! If you have not done follow the steps in this Instructable to setup the Arduino IDE to program Arduino UNO! The Visuino: https://www.visuino.eu also needs to be installed. Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "Arduino UNO" as shown on Picture 2

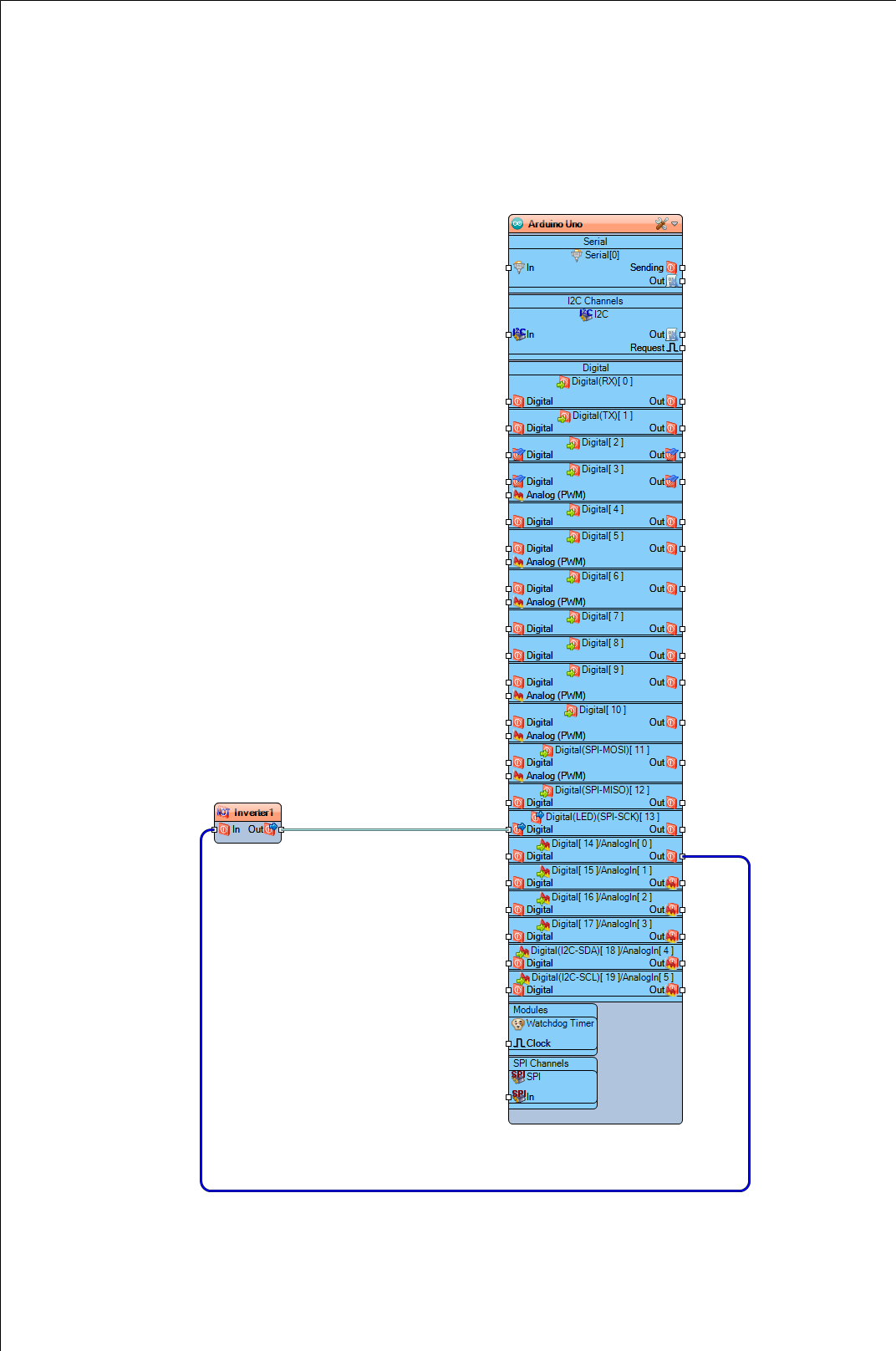

1. Add "Digital (Boolean) Inverter (Not)" component
2. Connect Arduino pin Out Analog [0] to Inverter1 component pin [in]
3. Connect Inverter1 component pin [Out] to Arduino Digital pin[13]

In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.

If you power the Arduino UNO module, the LED will turn ON when you put a metal near proximity sensor and turn OFF when you put the metal away.

Congratulations! You have completed your project with Visuino. Also attached is the Visuino project, that I created for this Instructable. You can download and open it in Visuino: https://www.visuino.eu
