Virtual Obstacle Avoidance Robot

I Have Made An Obstacle Avoidance Robot Using Tinkercad.com !

This project is a Virtual Obstacle Avoidance Robot made using tinkercad.com. When there is a obstacle ahead within 15cm then the robot will make right turn, else it moves forward.

Components Required

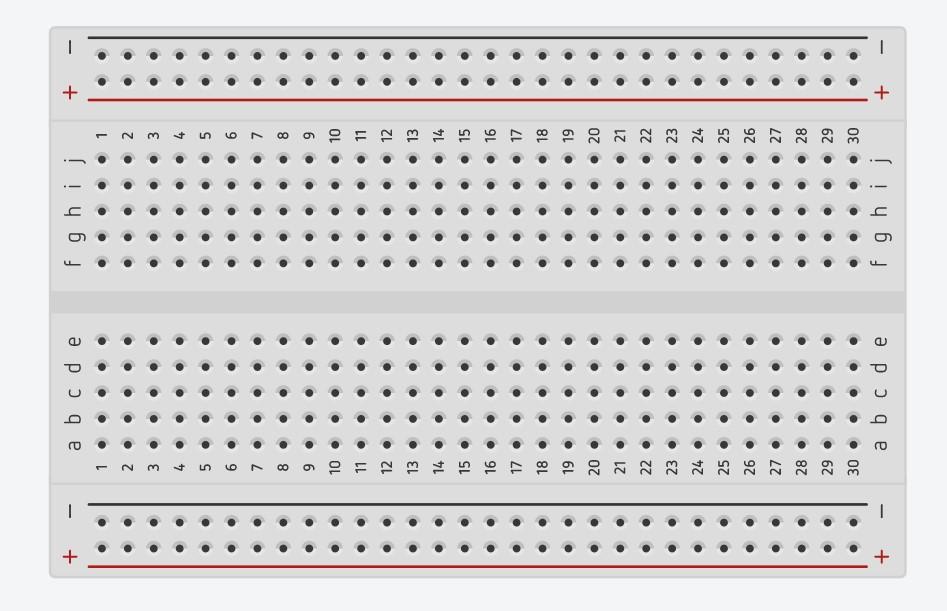

1.Bread Board- 1nos

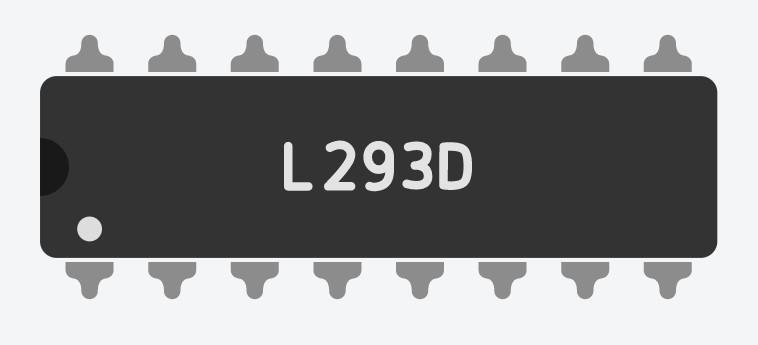

2.L293D/ Motor Driver- 1nos

3.Motors- 2nos

4.Ultra Sonic Sensor- 1nos

5.Arduino UNO- 1nos

Connections


Make the circuit connections as shown in the picture.

Codings


Click the code button and code as given in the picture.
