Vintage Style Pipe Table

This Instructable will show my attempt at an iron pipe table. This is the first table that I have made and I think it turned out pretty nice. I hope you enjoy, and please vote for me in the contests.

For this table I used
All 3/4 inch pipe in 8 6inch, 4 4inch segments, 8 bases, 6 T connections, and one 32 inch pipe
The other items needed are:

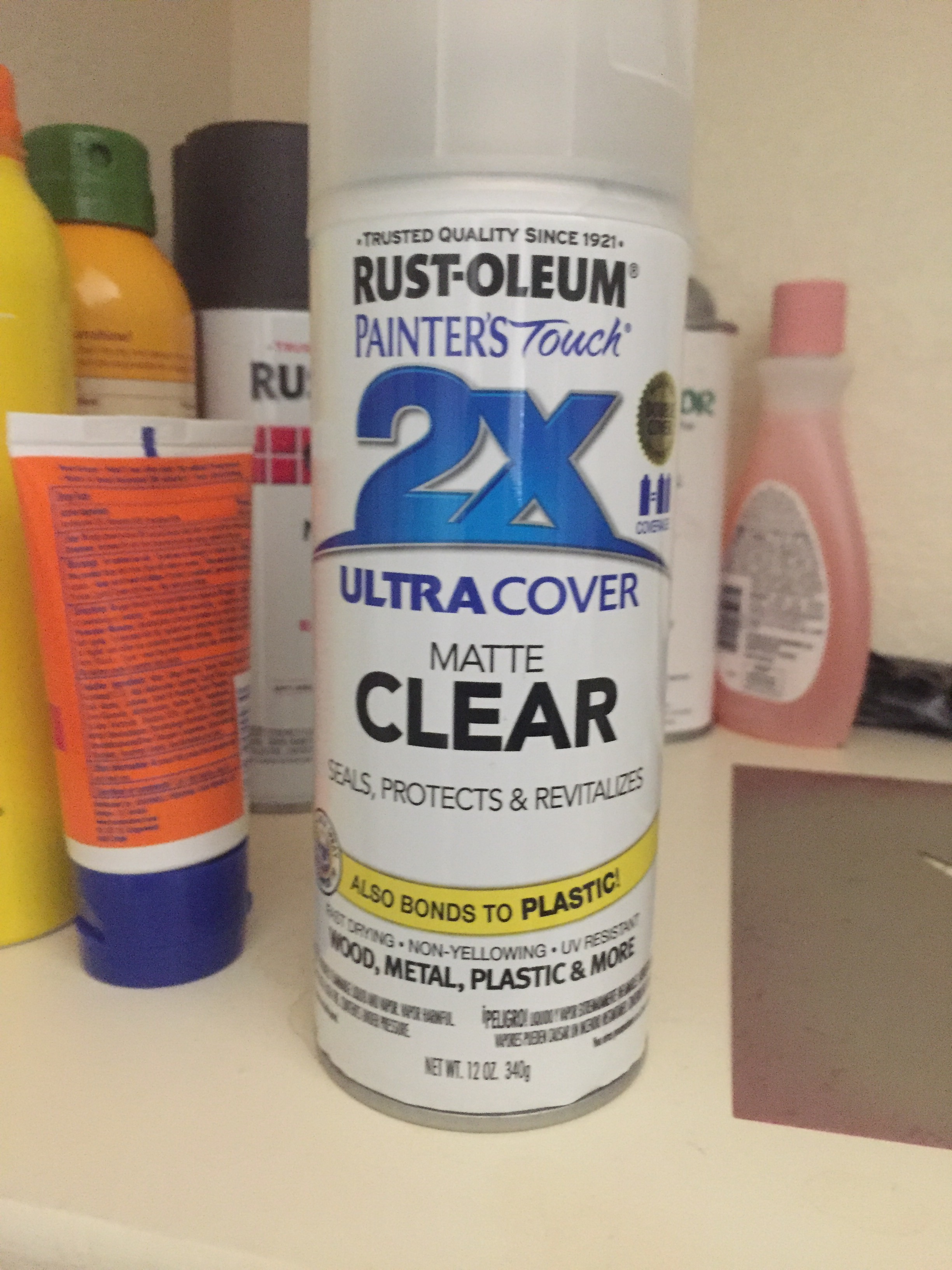

Clear coat( I didn’t know what to use as a finish, but so far this has worked)

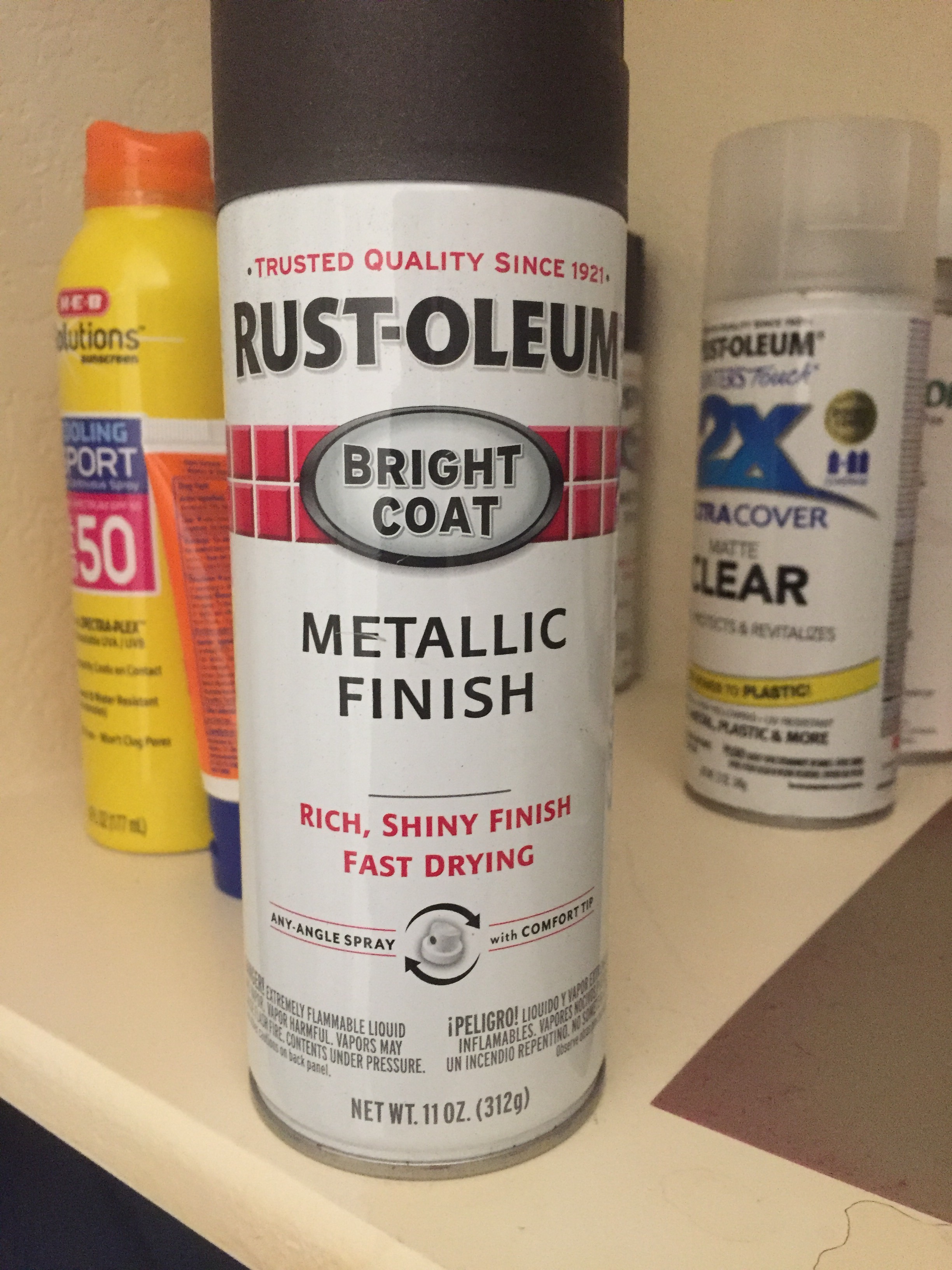

Grey spray paint
Two 11 1/2 by 48inch oak trim boards ( I chose these because of the beveled edge)

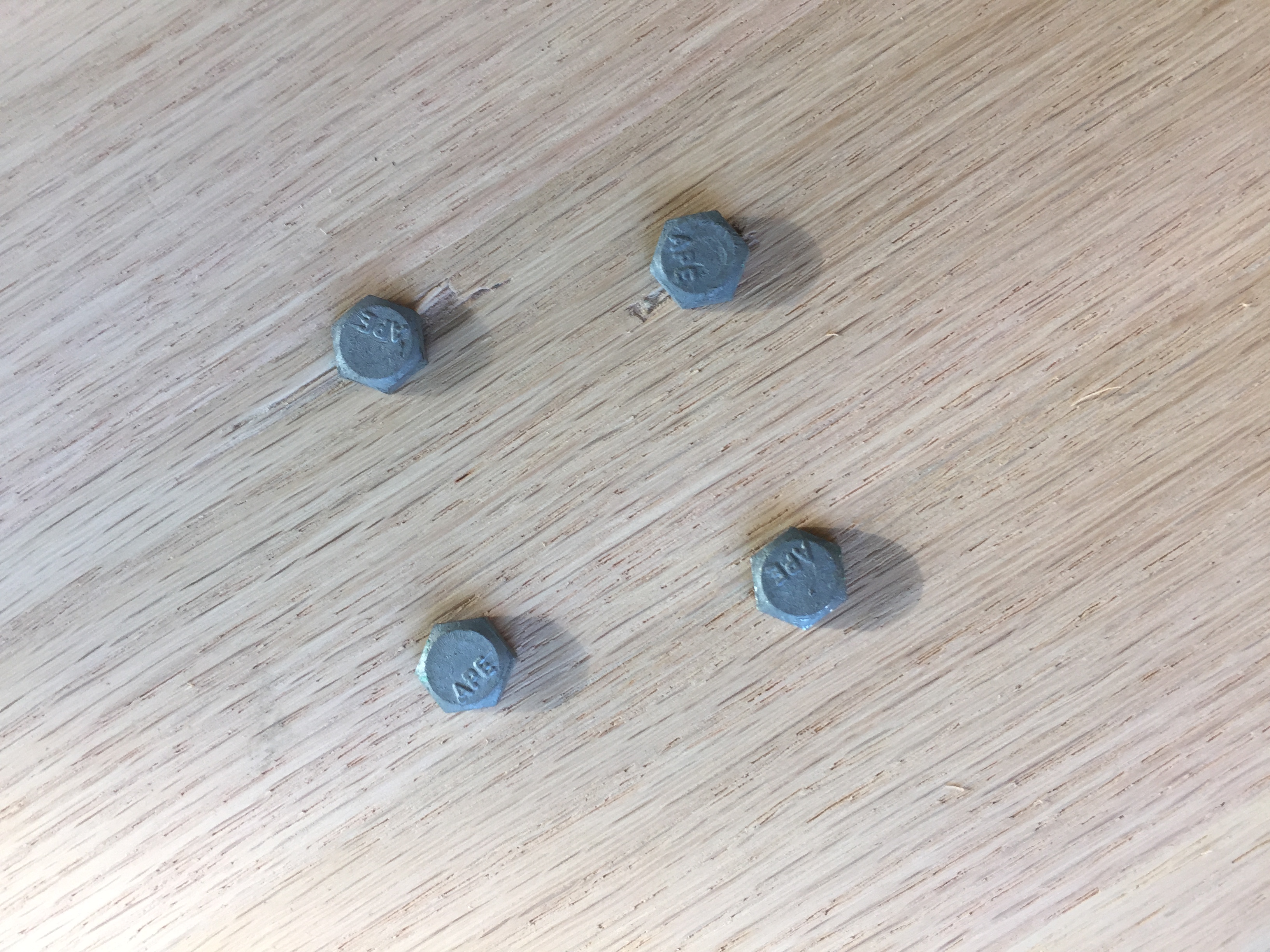

16 1/4 inch bolts
3 metal connection plates
20 short screws
Sand paper 80-220 grit
Dark walnut 2716 stain
And a brush with gloves

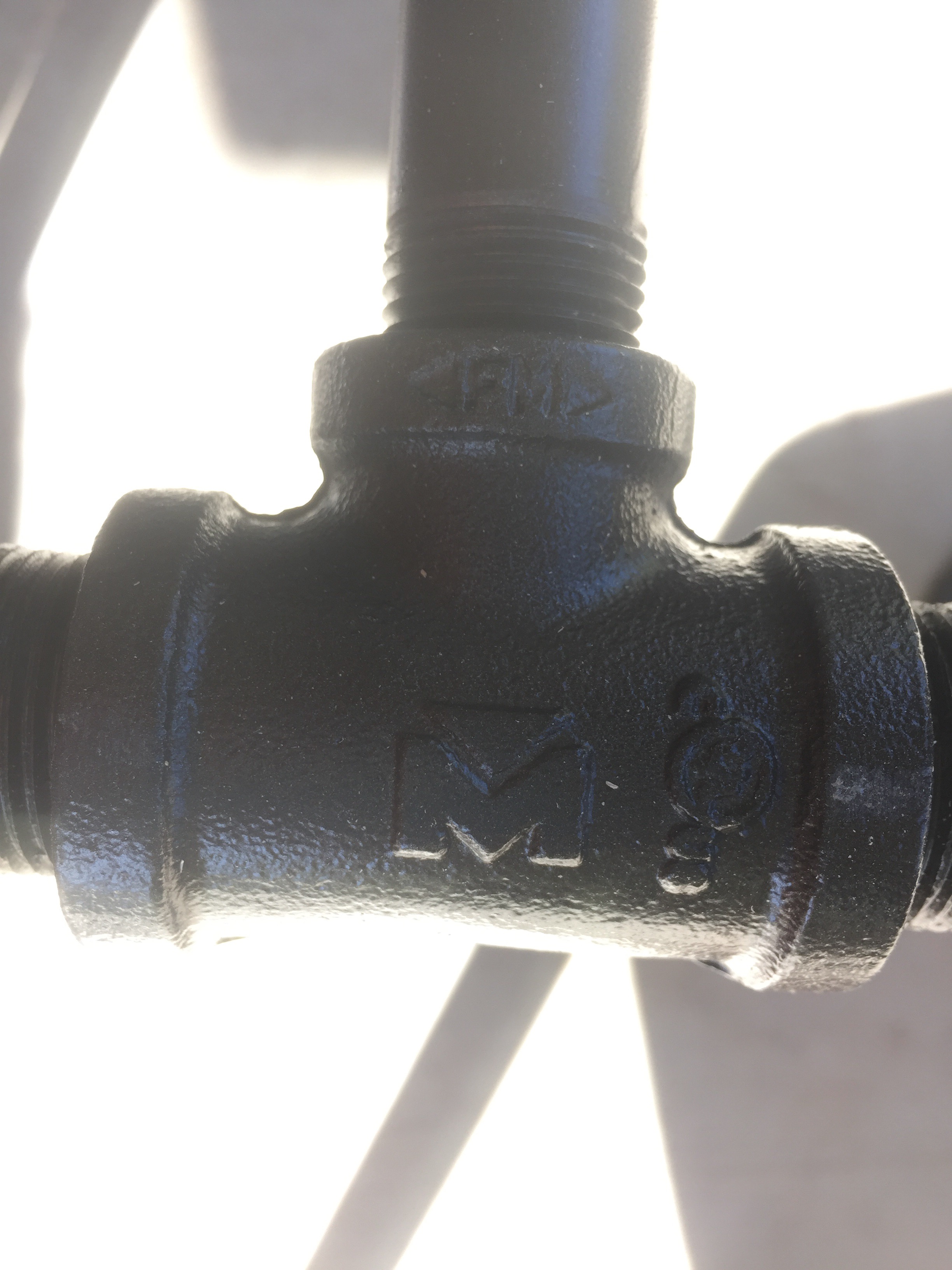

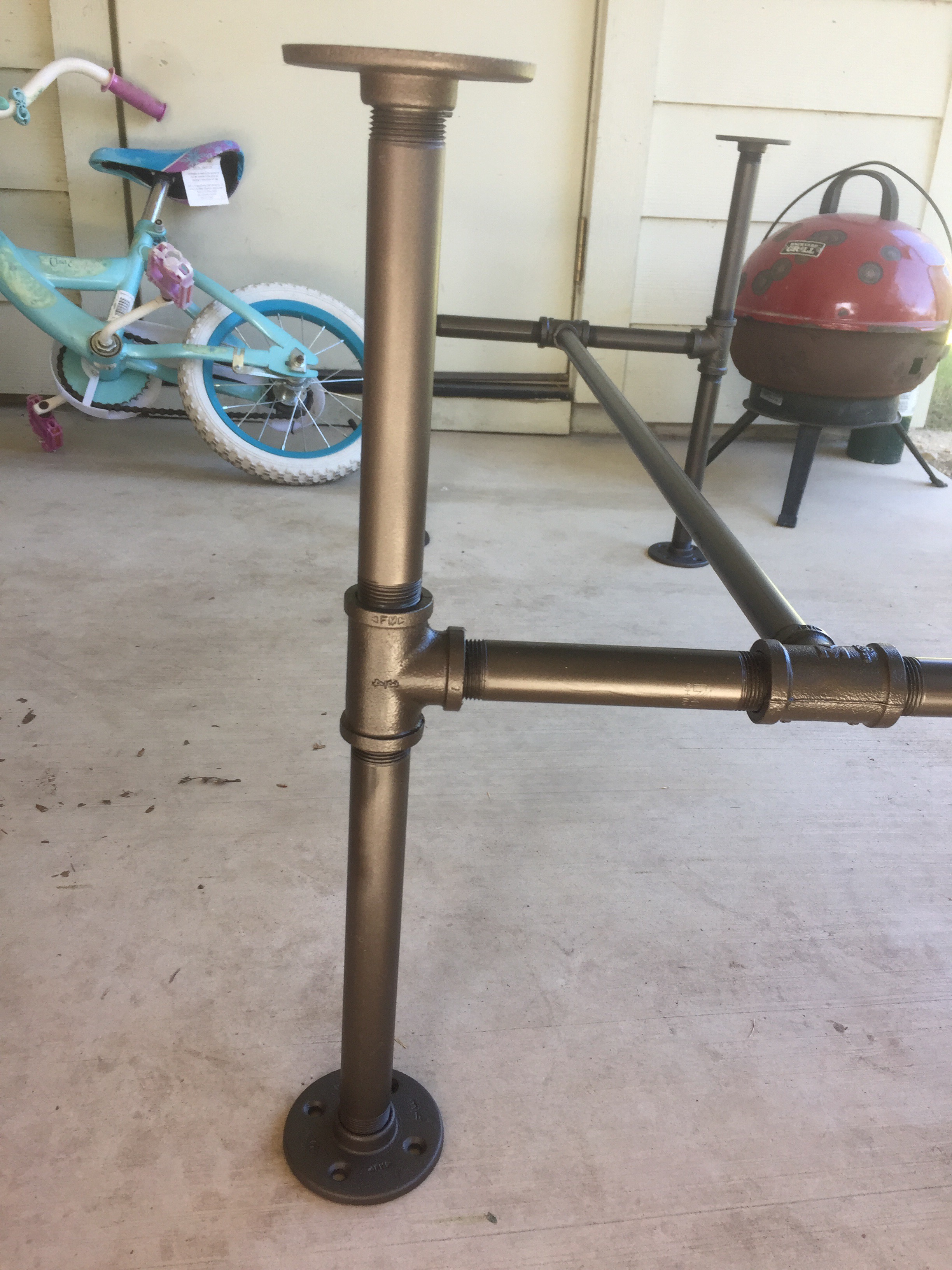

The frame I made consisted ofthe four base plates, then attached to each base was two 6 inch pipes connected by a T connection. The T led to a 4 inch pipe connected to another T connection, this then gets attached to the same thing on the other side. You should end up with 2 sets of legs, the large 32 inch pipe connects these two together. I recommend painting the pipe frame to make it look nicer but if you do not want to skip the spray paint and clear coat.

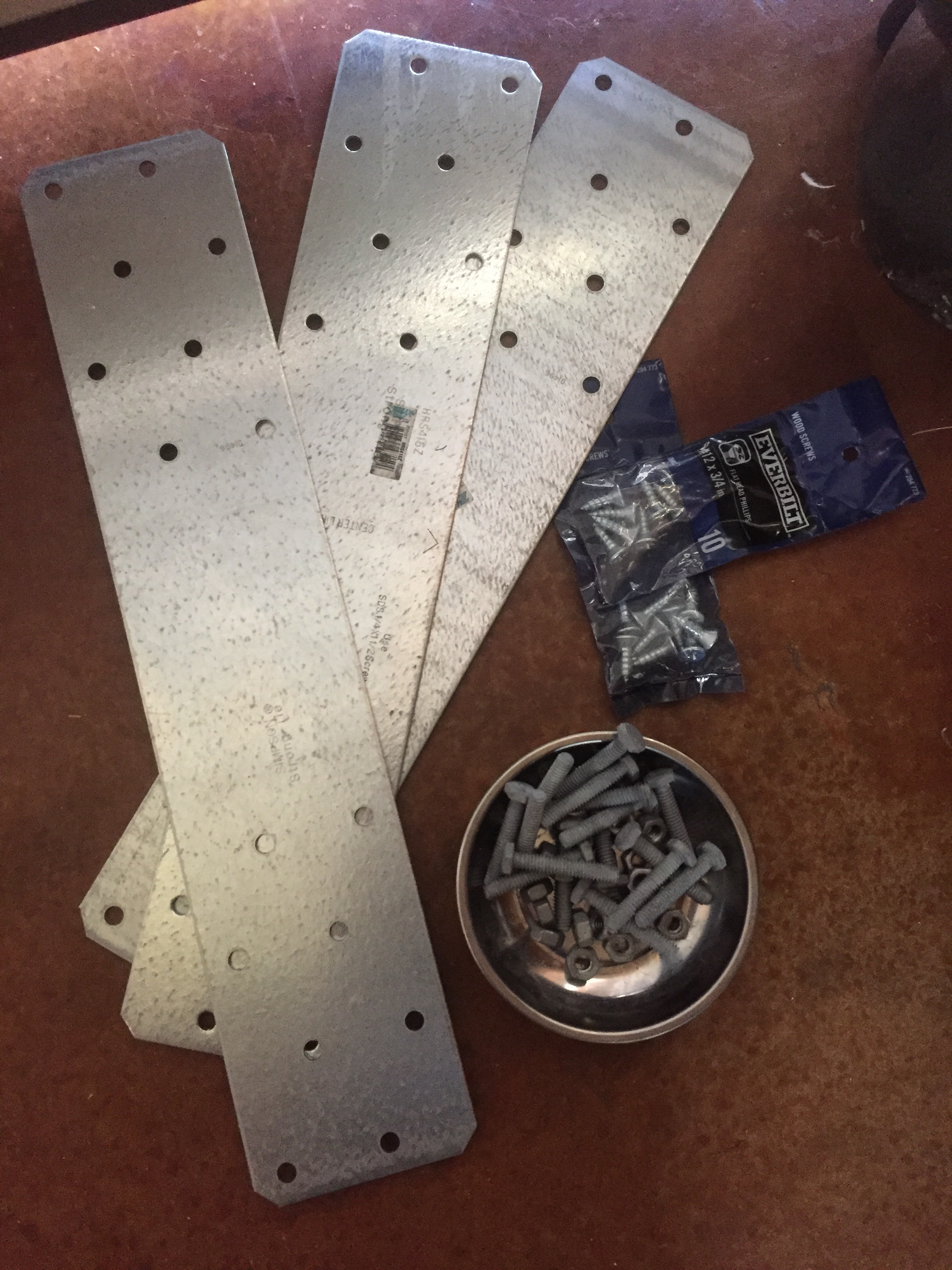

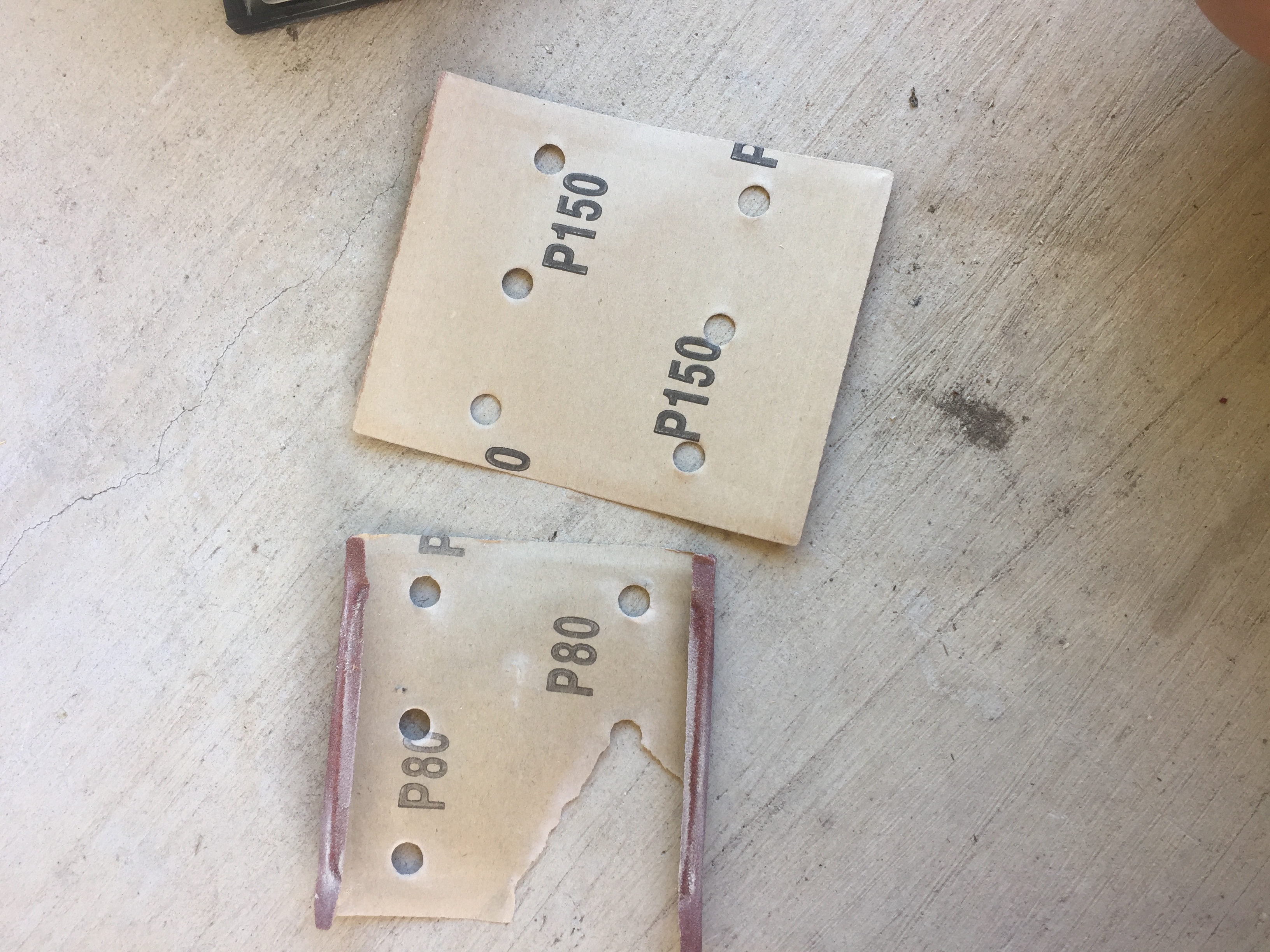

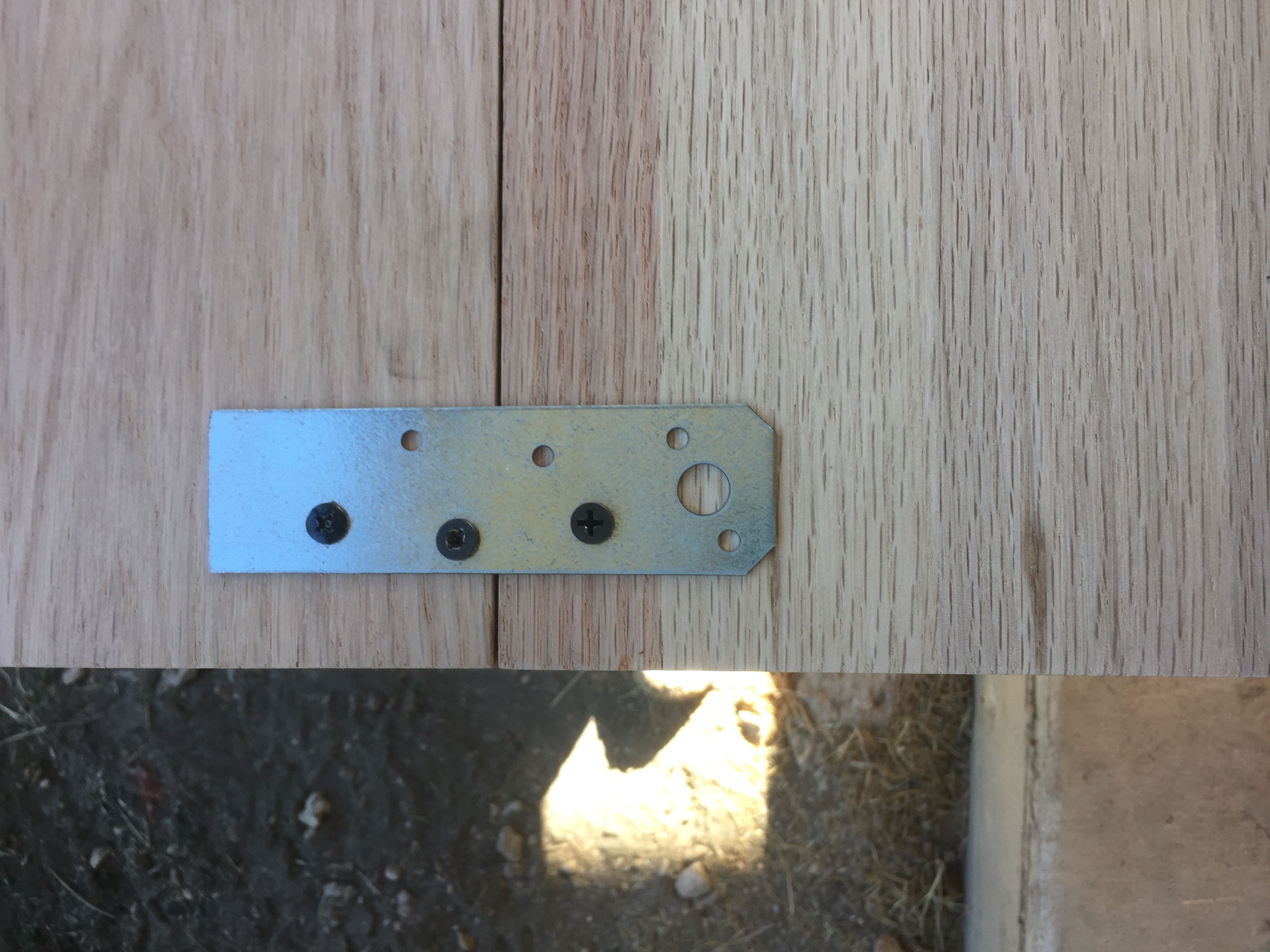

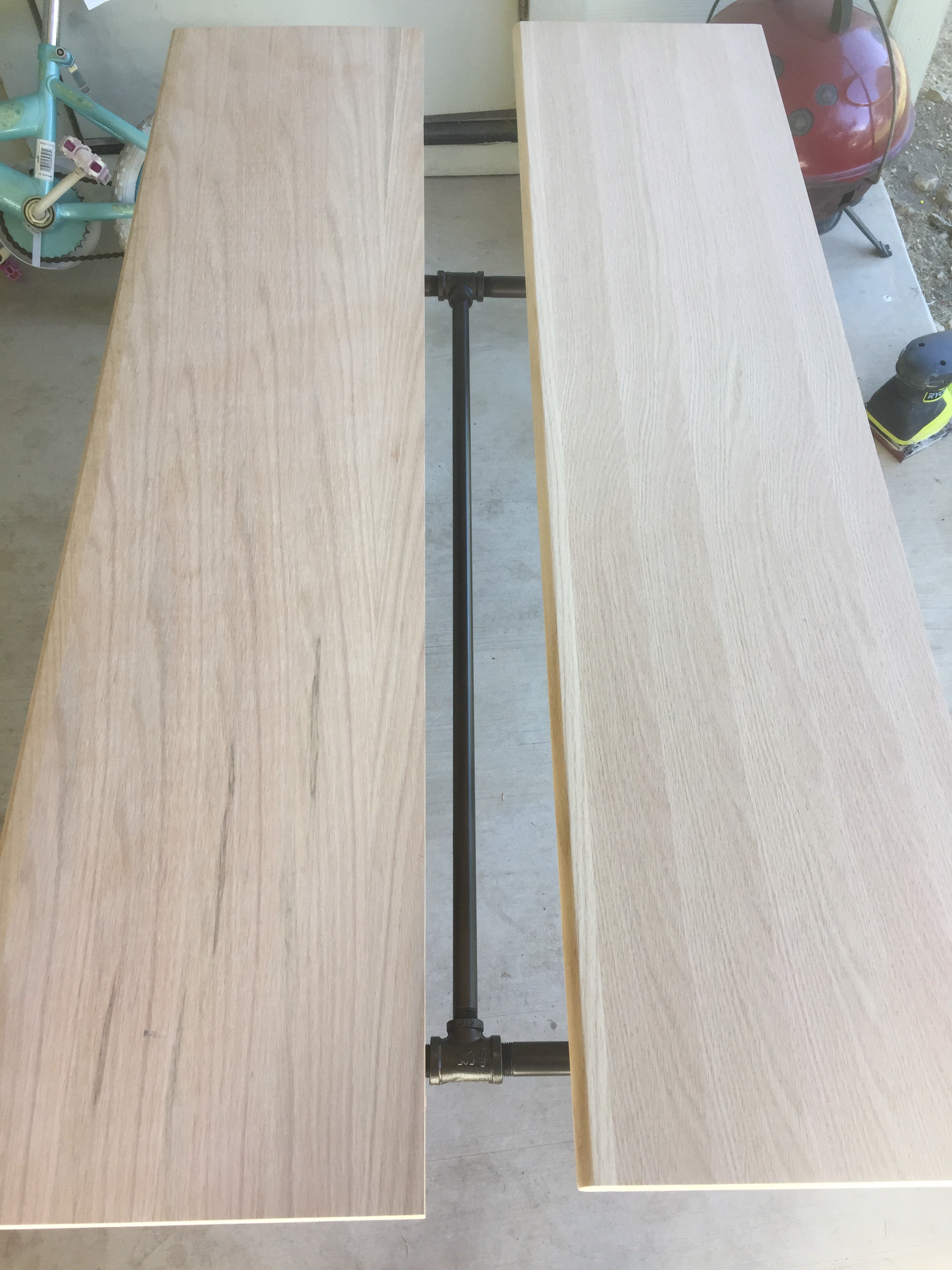

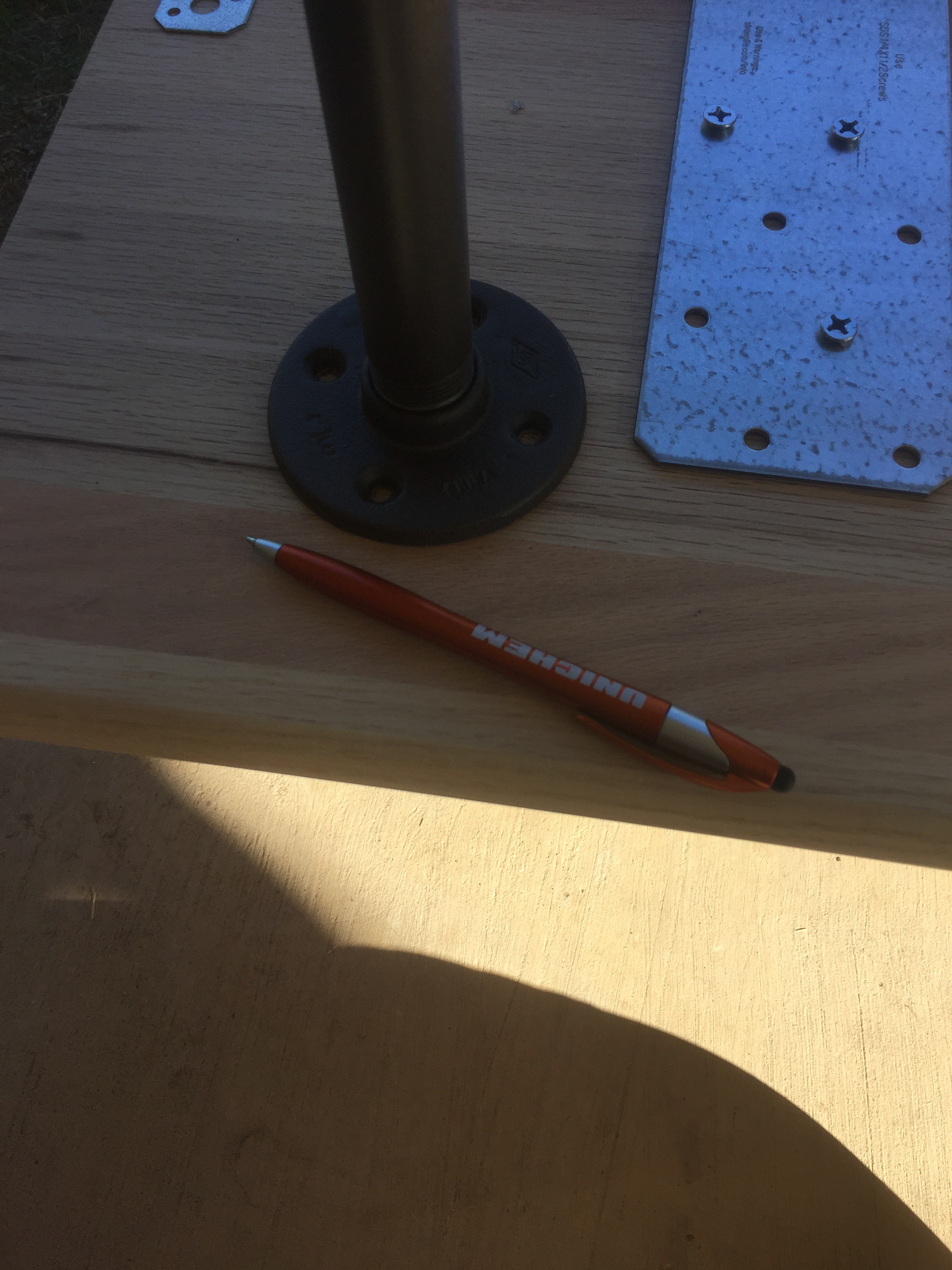

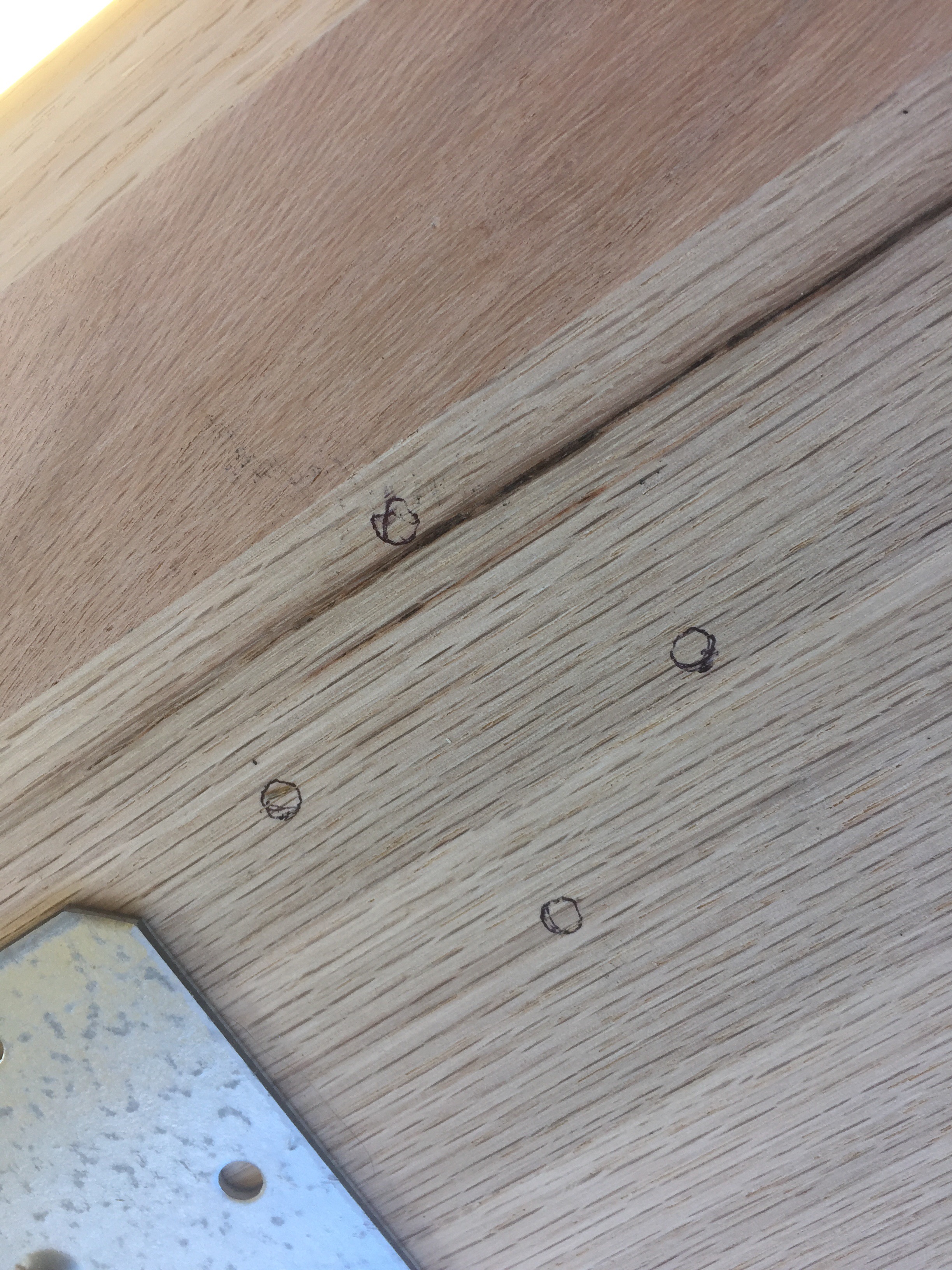

Next you have to sand the heck out of the wood, I started with 80 grit and made it all the way to 220 grit. After sanding with one grit use a moist paper towel to wipe the wood dust off. This whole sanding process took about two hours, because you want the table to be very smooth. Then use the metal plates to connect the two boards( I could not find a board big enough so I had to use two). After it’s all assembled mark holes on the bottom side of the board, if you don’t want to use bolts you can just use some short screws. Then connect the frame to the table top and your almost done!

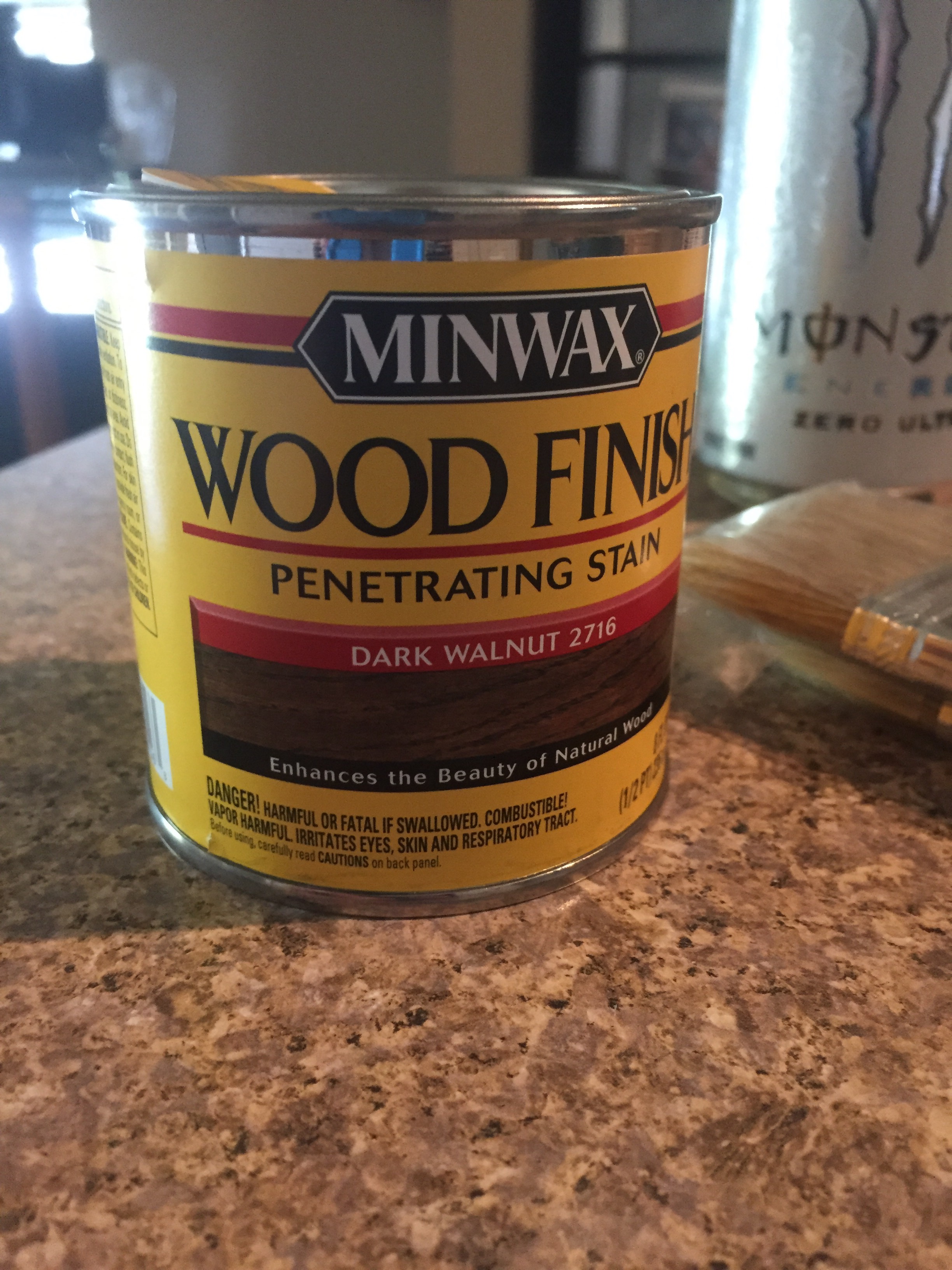

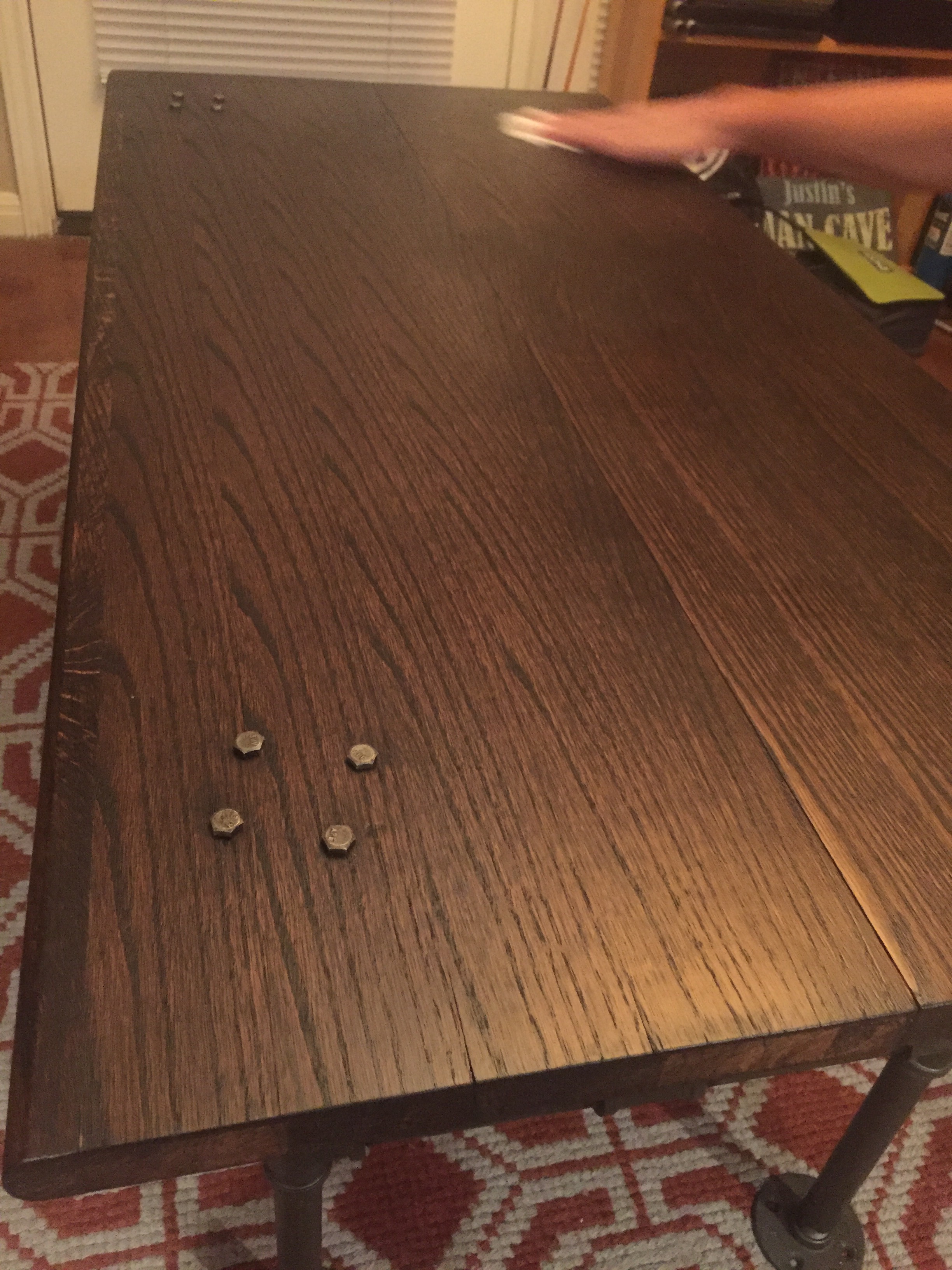

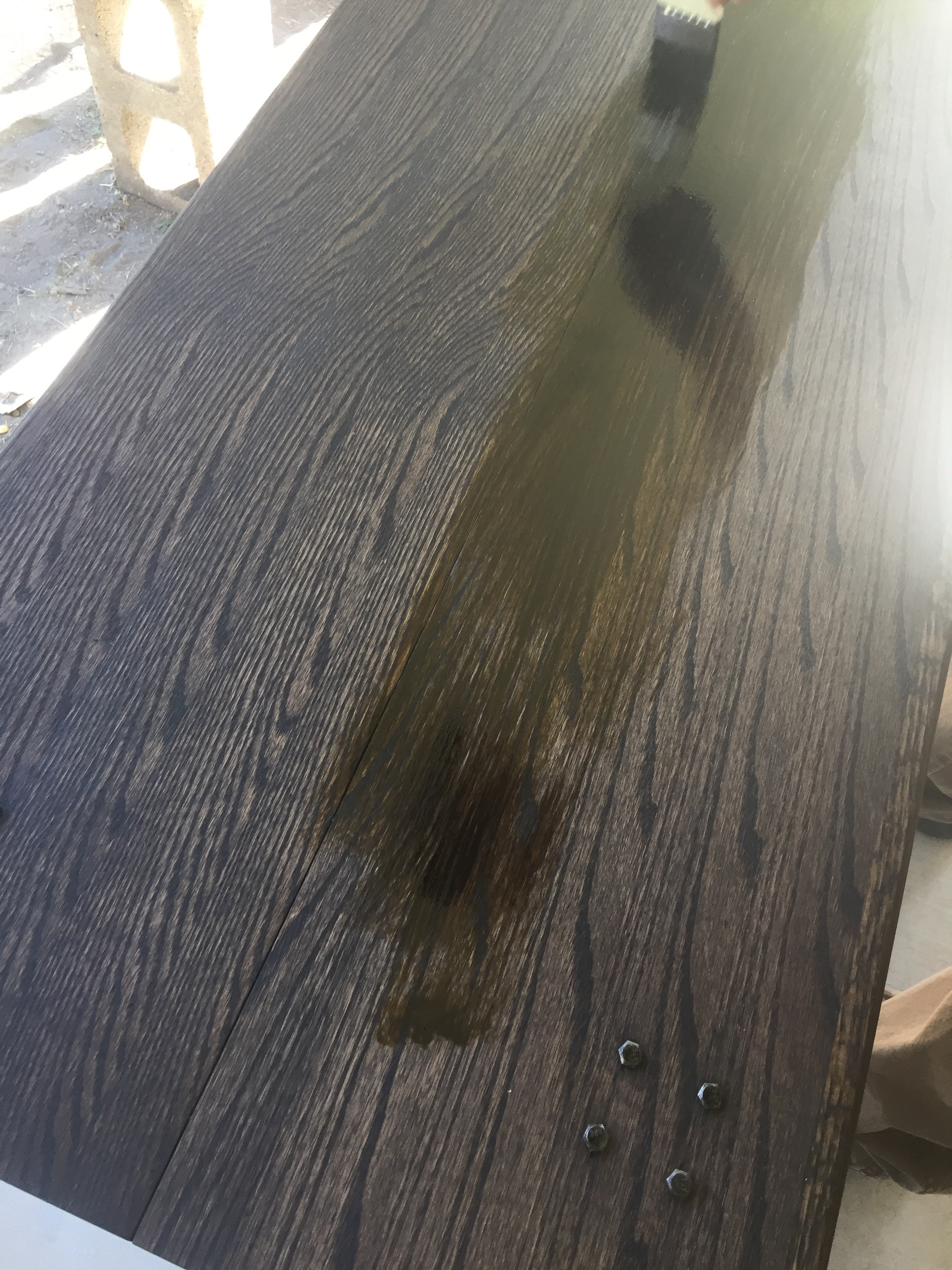

Now you have to get the stain and paint it onto the table. Make sure you wear glove, stain will stain your skin. Immediately after the first coat is on wipe off the excess stain, do this after each coat. To make it darker add more coats, to make it lighter only add 2 coats. I ended up doing a total of 3 coats.

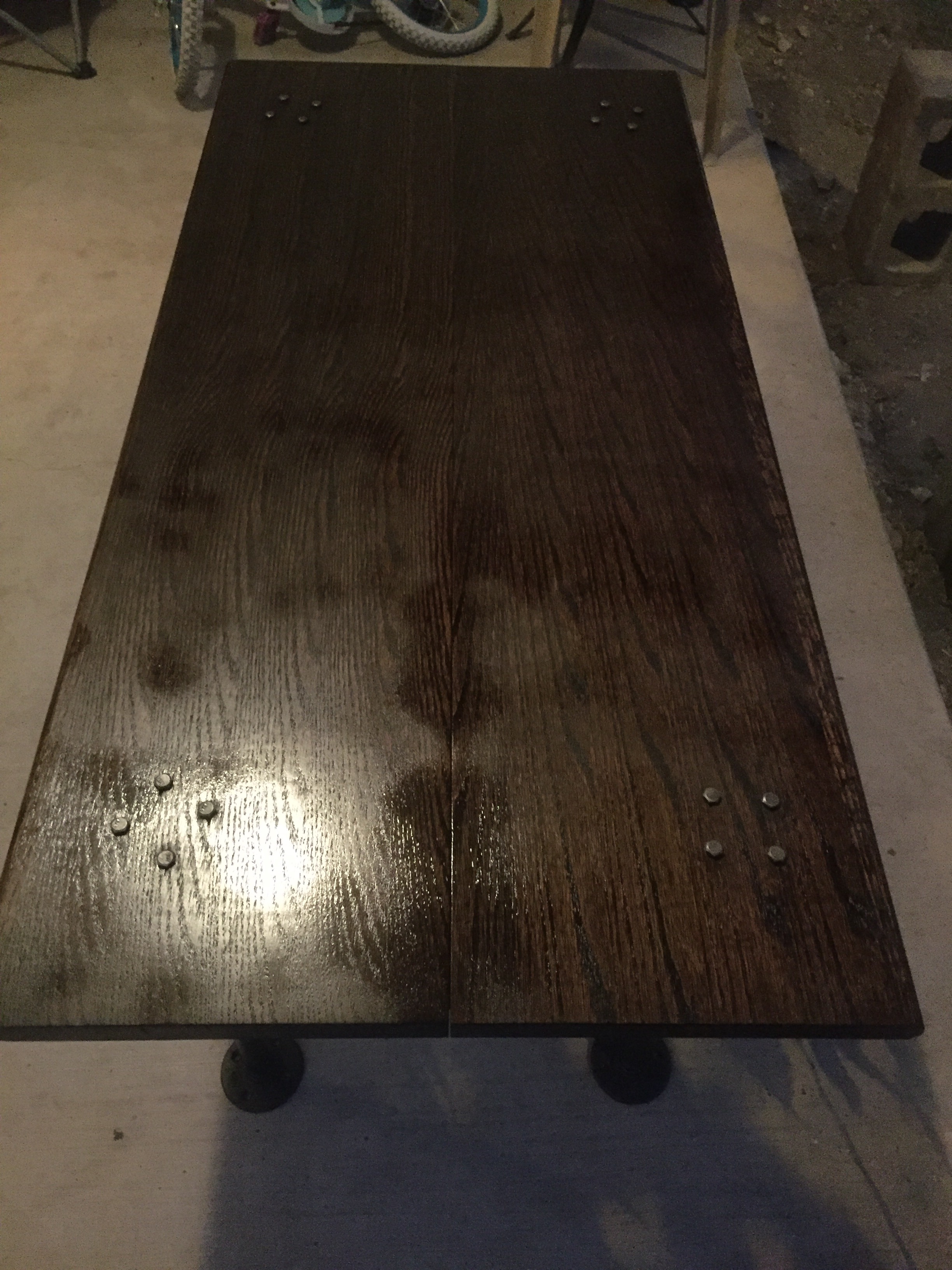

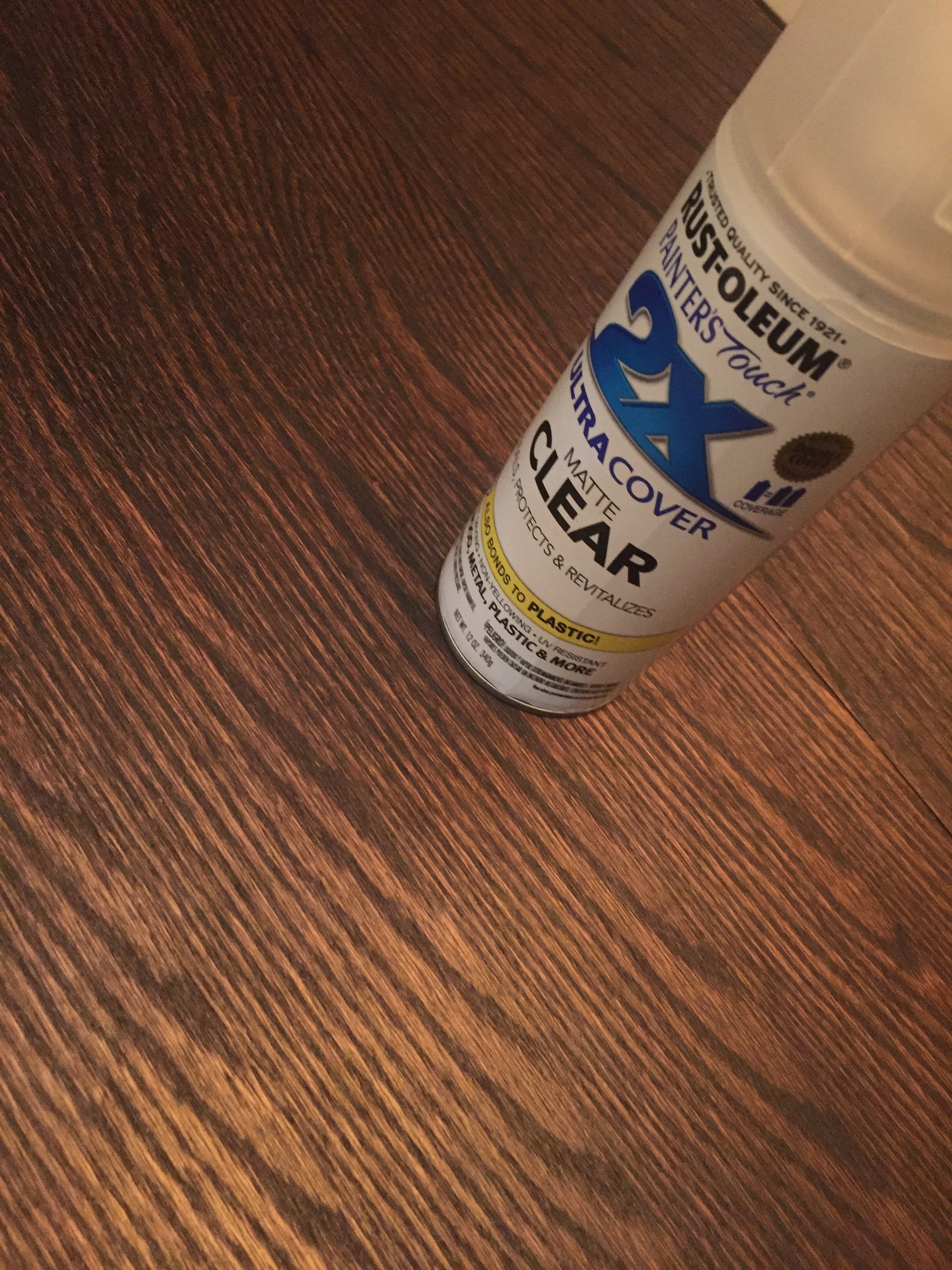

To finish the table spray clear coat or any other seal. After this you are done! Just make sure the entire table is covered so the wood doesn’t get messed up.

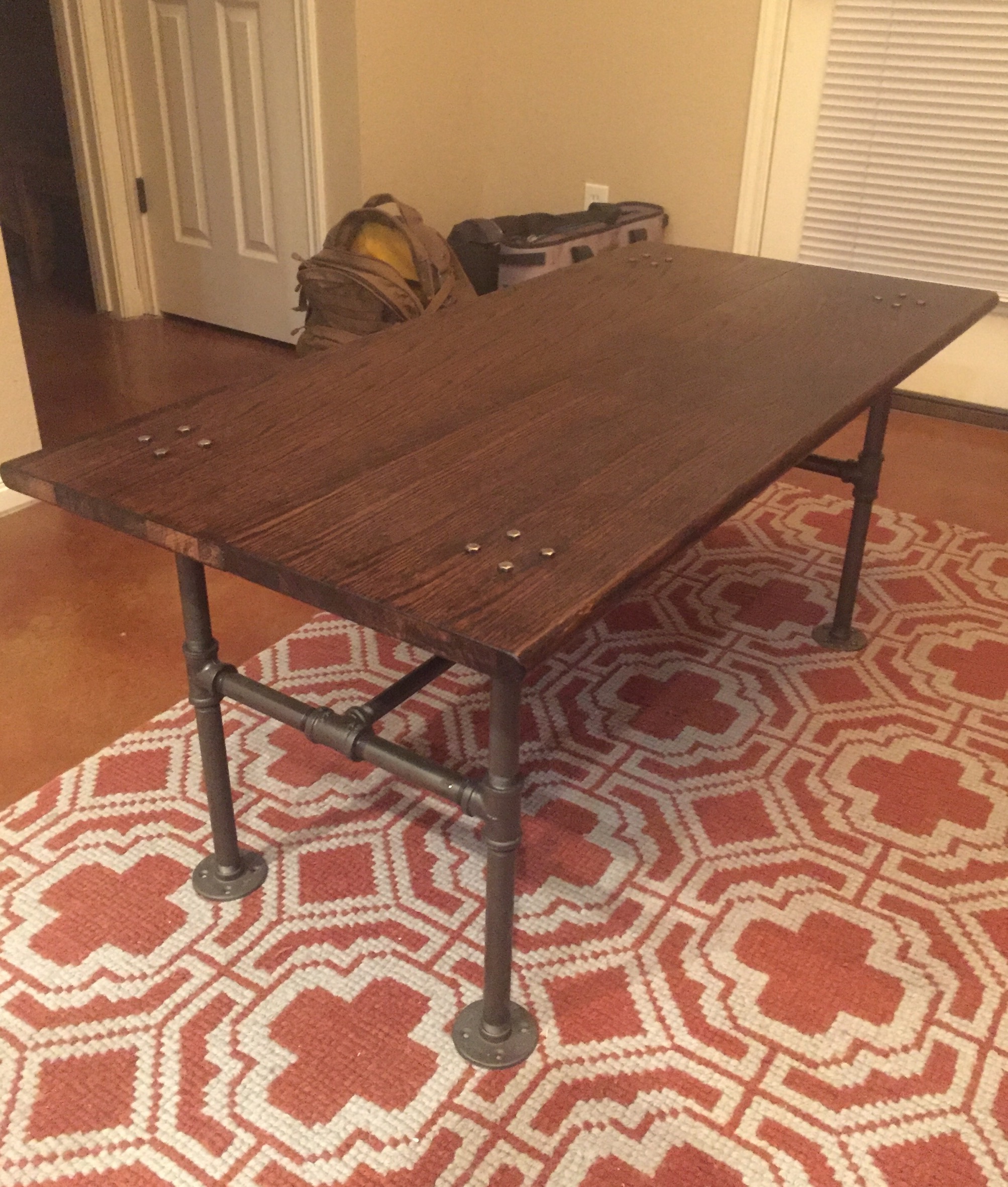

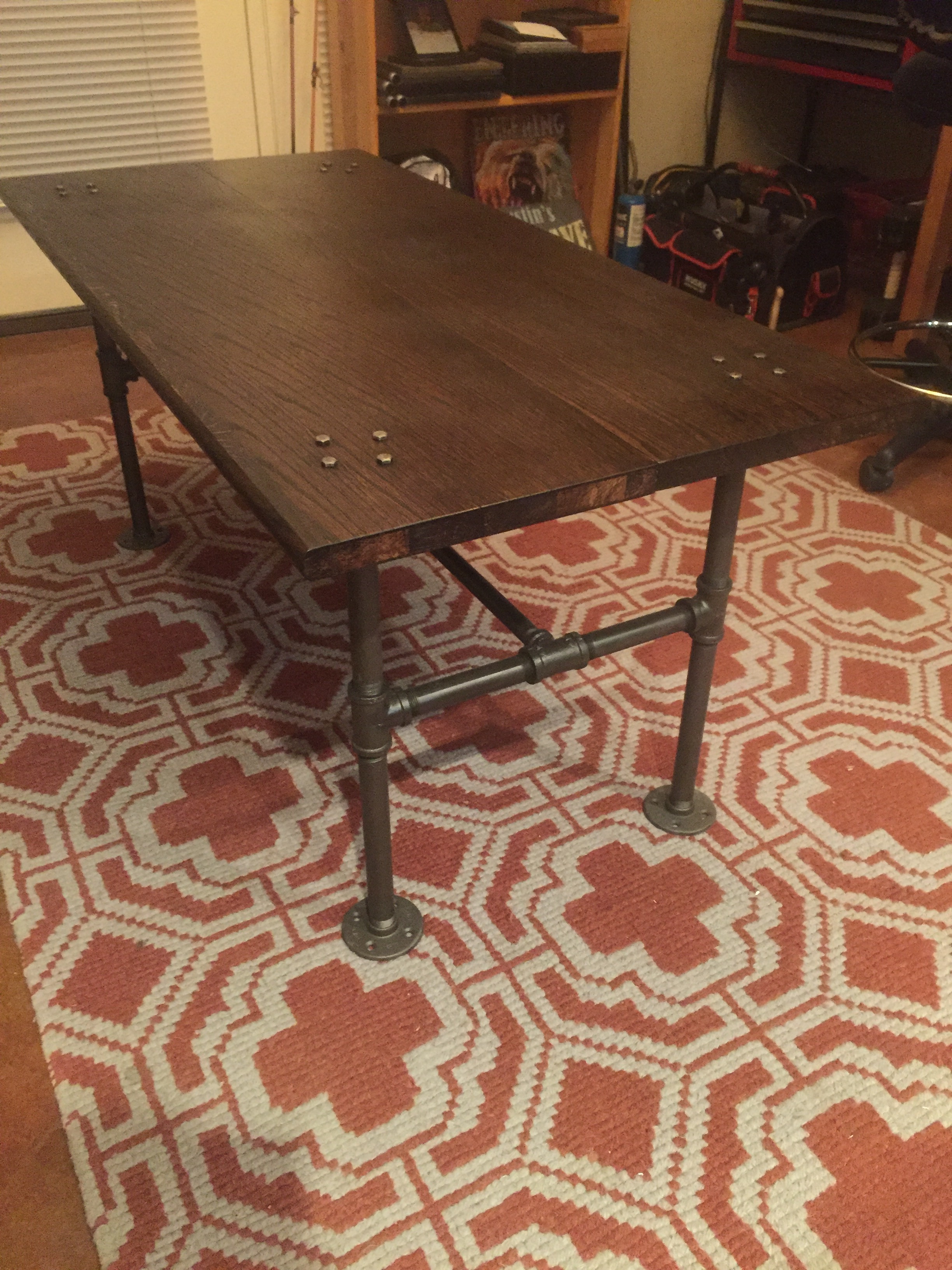

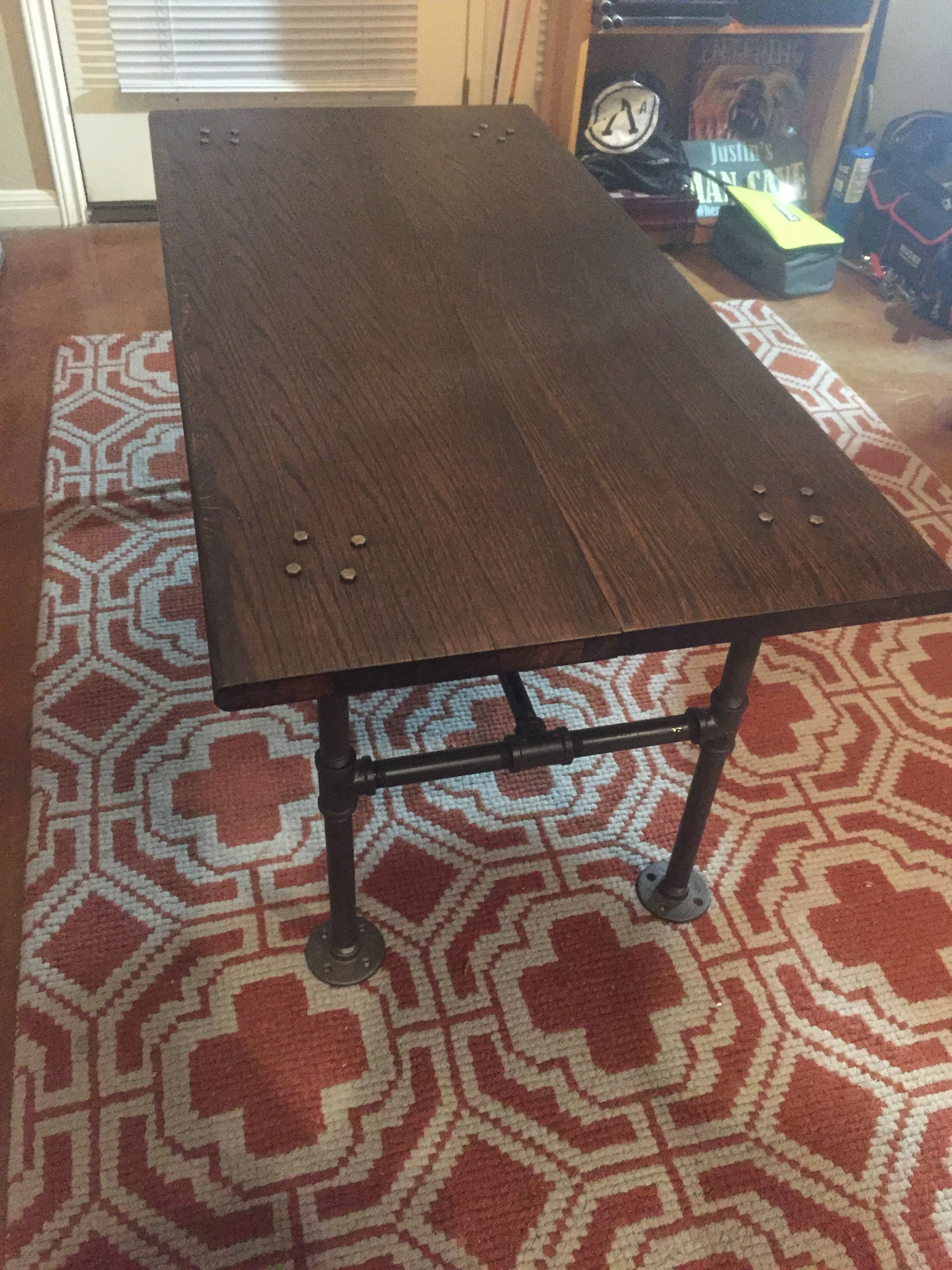

Overall this was a great project and I recommend making this. I decided to put a layer of paint on the metal plates to make them match. This table is meant to be a coffee table but if you wanted a dining table or any other size just change the size of the boards and pipes, but the frame style can stay the same. I hope you enjoyed this and found it helpful, if you make this table yourself please leave a picture in the comments I would love to see it. Thanks for reading and please vote for me if you like this Instructable.
