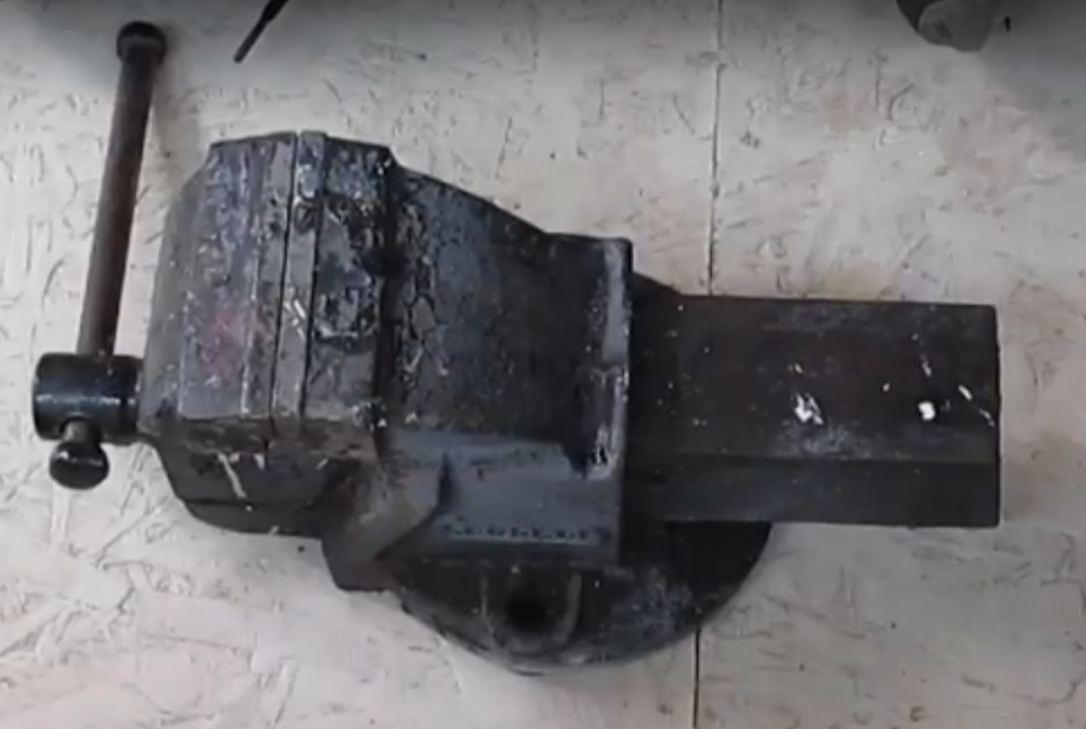

Clean up of an old Record No.3 vice.
I inherited an old vice, it's seen some use but tools like this are good for several lifetimes. For me it needed a clean and a fresh coat of paint.
Tools:
- Wire brush
- Paint scraper
- Paint stripper
- Wire wheels for power drill
- Blue paint - I used Hammerite Smooth blue, it's close to the original.
- UK Amazon link
- US Amazon link - I don't see a US link for the spray I used so this the same colour paint.
Hardware:
- Replacement jaws - Record ones are a bit pricey, I've not found a nice set yet so reused the original for the moment.
- Soft jaws - These are great for what I need:
- New spring - Not yet found a good place for these, reused the original in the short term.
- I also applied some fresh grease during the reassembly, I had some general purpose grease to hand similar to:
Disassembly
Spring:
There's a split pin through the screw, holding the washer and spring in place. I used a little nail head to tap it out. It's not shown in the video but it took some WD40 and a couple of goes to get it moving, it had been there many years.
Screw and nut:
There's a ~5mm diameter pin holding the nut in place, I tapped it out using a big nail. Once the nut is free it can be slid out of the body. The whole slide should come free and the nut can be unwound from the screw.
I started cleaning before disassembly. If/when I do another I'll disassemble first as it makes it much easier to get in and around everything.
Clean Up
![IMG_20181128_180721.jpg](/proxy/?url=https://content.instructables.com/FW2/YK7Q/JOYNX26S/FW2YK7QJOYNX26S.jpg&filename=IMG_20181128_180721.jpg)
![IMG_20181013_120715.jpg](/proxy/?url=https://content.instructables.com/FZ6/B8VD/JOYNZVKE/FZ6B8VDJOYNZVKE.jpg&filename=IMG_20181013_120715.jpg)
I stared with a wire brush and scraper, this was optimistic, the wire wheels on a power drill were much better suited to remove dirt and loose paint.
Once the worst was off I could see the original paint was in a bad way so got some paint stripper to remove this, once the stripper had started to dissolve the paint I could scrape it off.
Not in the video, I gave everything a good wash in soapy water then a rinse to remove the soap. If there was any paint stripper solution left in the corners the new paint wouldn't go down very well.
Paint
![IMG_20181128_180646.jpg](/proxy/?url=https://content.instructables.com/FHC/6N8V/JOYNX278/FHC6N8VJOYNX278.jpg&filename=IMG_20181128_180646.jpg)
I used a Hammerite direct to rust blue paint. I hadn't used it before but it went on great with no primer. I did 3 coats, leaving each to dry for about 20 minutes until it was no longer tacky. Then left the final coat a good hour or so to be sure it was well dry.
I enjoy spray painting and the results are usually passable.
Things to remember:
- Mix the paint well before you start, especially if it's not a new can, poor mixing/shaking will give spatters.
- The can should never stop moving when you are spraying. Never!
- I go 'off' the ends, don't stop and change direction over the object or you risk a puddle.
- Multiple light coats are much better, paint puddling will lead to runs.
- If you get poor coverage on an area do another coat later.
- If you are indoor make sure it's well ventilated.
- If you are outdoor be aware you will get dust and invertebrates on to your wet surfaces.
- If there's paint left over make sure you clean the nozzle... in-fact clean it anyway it's always handy to have spares!
Reassemble
![assemble.png](/proxy/?url=https://content.instructables.com/FL1/EEMM/JOYNX5NF/FL1EEMMJOYNX5NF.png&filename=assemble.png)
![IMG_3017.JPG](/proxy/?url=https://content.instructables.com/FI5/0X2E/JOSY00PI/FI50X2EJOSY00PI.jpg&filename=IMG_3017.JPG)
I couldn't get the slider in with the nut on the screw, this may not be the case for all makes of vice.
This is about 8:30 in the video.
For the No.3 Record:
- Insert slide into the body.
- Insert screw into slide.
- Thread nut onto screw.
- Seat the nut in the body and secure with the pin.
- Secure the spring and washer by the sliding jaw with a split pin.
I think the result is not bad. Now I need to build a workbench!
