Hi,
Now days, it is easy to buy things in India, like I can get IronMan Mask easily in toy shop.. But arc reactor is still not available.
I did read a lot of intructables for it, but could not get silicon molds and resin casting kit around.
The one I am sharing in this intructable is simple and components can be easily found or bought, I am using a semi transparent cap from wife's night cream. It makes things very easy
What Do We Need ?
![IMG_20150418_162106_1429433456837.jpg](/proxy/?url=https://content.instructables.com/FPW/3M5V/IAWCBWL8/FPW3M5VIAWCBWL8.jpg&filename=IMG_20150418_162106_1429433456837.jpg)
Arc Reactor
- 01 : Semi transparent cap ( Diameter : 3 inches ), wait for wife to finish though-es expensive night creams
- 04 : 3mm Blue diffused Leds
- 01 : 3v Volt coin battery
- 01 : Battery holder
- 1 to 2 Mtr : Brown wire; I extracted it from Cat5e cable ( brown pair )
- Double side Tape
- Universal PCB
- 01 : On / off switch
- Black Chart Paper
Helmet
- Big piece of card board / carton box
- Paper tape
- Paster of paris
- Fevicol
- Acyrlic paint ( Red and Golden)
Tools
- Soldering Iron
- Paint brush
- etc
Arc Reactor : Prepare Outer Shell
![IMG_20150418_162419_1429433481636.jpg](/proxy/?url=https://content.instructables.com/FW4/2HNB/IAWCBWLT/FW42HNBIAWCBWLT.jpg&filename=IMG_20150418_162419_1429433481636.jpg)
![IMG_20150418_163515_1429433506546.jpg](/proxy/?url=https://content.instructables.com/F47/IOH0/IAWCBWMH/F47IOH0IAWCBWMH.jpg&filename=IMG_20150418_163515_1429433506546.jpg)
![IMG_20150418_165749_1_1429433529655.jpg](/proxy/?url=https://content.instructables.com/FYI/23I3/IAWCBWMJ/FYI23I3IAWCBWMJ.jpg&filename=IMG_20150418_165749_1_1429433529655.jpg)
![IMG_20150418_180122_1_1429433553721.jpg](/proxy/?url=https://content.instructables.com/F0Y/MYGV/IAWCBWN7/F0YMYGVIAWCBWN7.jpg&filename=IMG_20150418_180122_1_1429433553721.jpg)
![IMG_20150418_182935_1429433570862.jpg](/proxy/?url=https://content.instructables.com/F7Q/KURG/IAWCBWNT/F7QKURGIAWCBWNT.jpg&filename=IMG_20150418_182935_1429433570862.jpg)
![IMG_20150418_184020_1429433587546.jpg](/proxy/?url=https://content.instructables.com/F9H/C3UV/IAWCBWOD/F9HC3UVIAWCBWOD.jpg&filename=IMG_20150418_184020_1429433587546.jpg)
![IMG_20150418_185516_1429433605620.jpg](/proxy/?url=https://content.instructables.com/FV8/TD38/IAWCBWOG/FV8TD38IAWCBWOG.jpg&filename=IMG_20150418_185516_1429433605620.jpg)
![IMG_20150418_185646_1429433624436.jpg](/proxy/?url=https://content.instructables.com/FU5/CD3Q/IAWCBZVK/FU5CD3QIAWCBZVK.jpg&filename=IMG_20150418_185646_1429433624436.jpg)

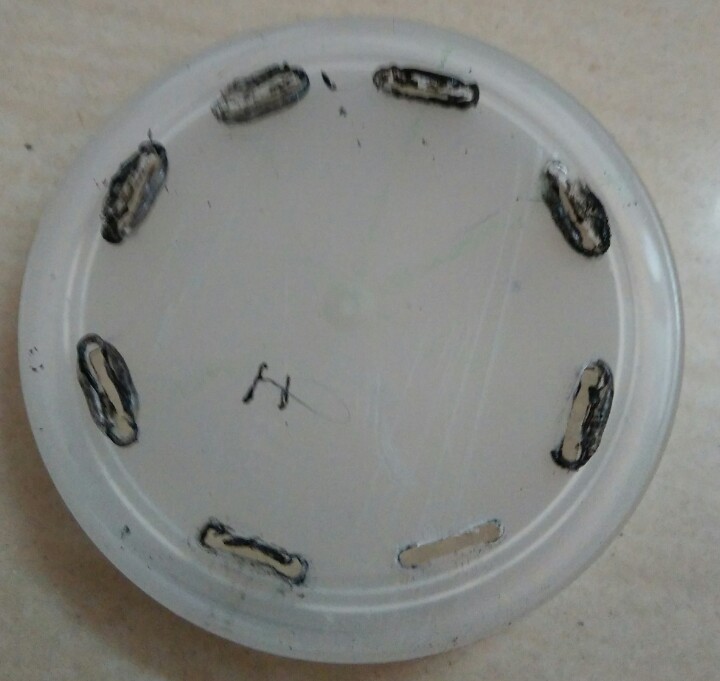

- Use a metallic pin or paper clip
- heat it on a candle flame
- and make holes on the plastic cap as shown
- Using brown wire( insulated), wind around each hole
Some of the instruction available, uses PVC sheet and lazer cutter, to build circuit like design inside the arc reactor.
Where do I get the lazer cutter ? I do not have one and not cheap to buy one.

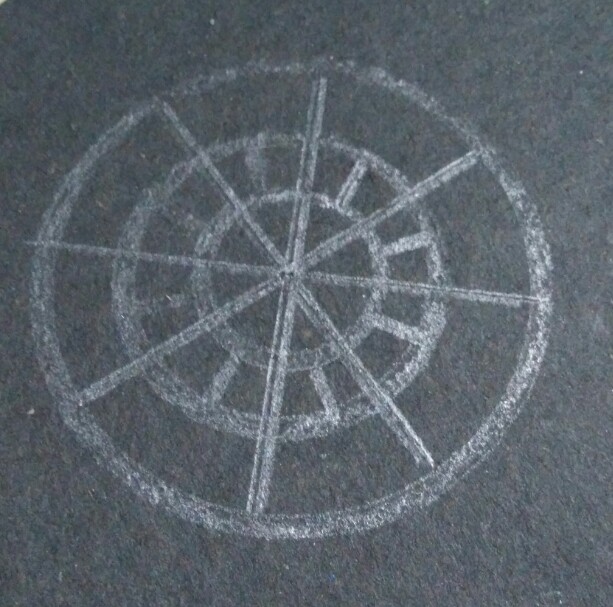

Easy solution, I used black chart paper ( Thicker than normal paper). Simply by cutting and pasting on the cap
Arc Reactor : Build It
![IMG_20150419_131607_1429433677240.jpg](/proxy/?url=https://content.instructables.com/FWC/4FX5/IAWCBWPH/FWC4FX5IAWCBWPH.jpg&filename=IMG_20150419_131607_1429433677240.jpg)
![IMG_20150419_131939_1429433702144.jpg](/proxy/?url=https://content.instructables.com/FPZ/PW56/IAWCBWPI/FPZPW56IAWCBWPI.jpg&filename=IMG_20150419_131939_1429433702144.jpg)
![IMG_20150419_122110_1429433648011.jpg](/proxy/?url=https://content.instructables.com/FJE/JRBE/IAWCBWPE/FJEJRBEIAWCBWPE.jpg&filename=IMG_20150419_122110_1429433648011.jpg)
![IMG_20150419_144043.jpg](/proxy/?url=https://content.instructables.com/F36/03NY/IAWCBWQR/F3603NYIAWCBWQR.jpg&filename=IMG_20150419_144043.jpg)
![IMG_20150419_132041_1429433729076.jpg](/proxy/?url=https://content.instructables.com/F84/ZCM5/IAWCBWPW/F84ZCM5IAWCBWPW.jpg&filename=IMG_20150419_132041_1429433729076.jpg)
![IMG_20150419_153810.jpg](/proxy/?url=https://content.instructables.com/F5R/KEEH/IAWCBWVA/F5RKEEHIAWCBWVA.jpg&filename=IMG_20150419_153810.jpg)
![IMG_20150419_140949_1429437134983.jpg](/proxy/?url=https://content.instructables.com/FPS/JBHG/IAWCBWQP/FPSJBHGIAWCBWQP.jpg&filename=IMG_20150419_140949_1429437134983.jpg)
- Fix a On/off switch on the cap as shown
- Solder 2 wires
- now solder 4 leds, battery holder
- The leds are in parallel
- Solder the PCB on to the Switch as shown
- Cover the back using PVC sheet and use tape to keep it in place
Since the battery is just 3V, I have not used any resister
Helmet
![IMG_20150423_230728.jpg](/proxy/?url=https://content.instructables.com/F1Q/DG0L/IAWCBWW7/F1QDG0LIAWCBWW7.jpg&filename=IMG_20150423_230728.jpg)
![IMG_20150423_230736.jpg](/proxy/?url=https://content.instructables.com/FDS/6NJW/IAWCBWWL/FDS6NJWIAWCBWWL.jpg&filename=IMG_20150423_230736.jpg)
![IMG_20150424_190054.jpg](/proxy/?url=https://content.instructables.com/FQ9/SDDA/IAWCBWWM/FQ9SDDAIAWCBWWM.jpg&filename=IMG_20150424_190054.jpg)
![IMG_20150424_192603.jpg](/proxy/?url=https://content.instructables.com/F1B/8NIA/IAWCBWX1/F1B8NIAIAWCBWX1.jpg&filename=IMG_20150424_192603.jpg)
![IMG_20150424_193113.jpg](/proxy/?url=https://content.instructables.com/FKH/JCS3/IAWCBWXG/FKHJCS3IAWCBWXG.jpg&filename=IMG_20150424_193113.jpg)
![IMG_20150424_211920_1429890583775.jpg](/proxy/?url=https://content.instructables.com/FEA/ZJ8Q/IAWCBWXH/FEAZJ8QIAWCBWXH.jpg&filename=IMG_20150424_211920_1429890583775.jpg)
- Print the attached
- Paste the prints on a cardboard and cut them out
- Use paper tape to make joins as shown
- Before we paint the helmet, we will coat the helmet by paste of plaster of paris and White Glue
- Let is dry for 24 hours
- use a sand paper to smooth the surface
- Paint the helmet with Red and golden color
I use white glue in the paint as it gives a little glossy finish.
Downloads
Show Off
![IMG_20150419_140949_1429437096050.jpg](/proxy/?url=https://content.instructables.com/FM3/7NTZ/IAWCBWPX/FM37NTZIAWCBWPX.jpg&filename=IMG_20150419_140949_1429437096050.jpg)
![IMG_20150419_155842.jpg](/proxy/?url=https://content.instructables.com/F9Z/MQUI/IAWCBWVT/F9ZMQUIIAWCBWVT.jpg&filename=IMG_20150419_155842.jpg)
![IMG_20150424_221738.jpg](/proxy/?url=https://content.instructables.com/FKZ/E339/IAWCC1G1/FKZE339IAWCC1G1.jpg&filename=IMG_20150424_221738.jpg)
![IMG_20150424_221633.jpg](/proxy/?url=https://content.instructables.com/FCR/T0CA/IAWCBWXJ/FCRT0CAIAWCBWXJ.jpg&filename=IMG_20150424_221633.jpg)
Take a selfie and update facebook ;)
