Very Easy 3d Puzzle to Do DIY But Devilishly Difficult for Smart People

by DanielC788 in Workshop > 3D Printing

4482 Views, 40 Favorites, 0 Comments

Very Easy 3d Puzzle to Do DIY But Devilishly Difficult for Smart People

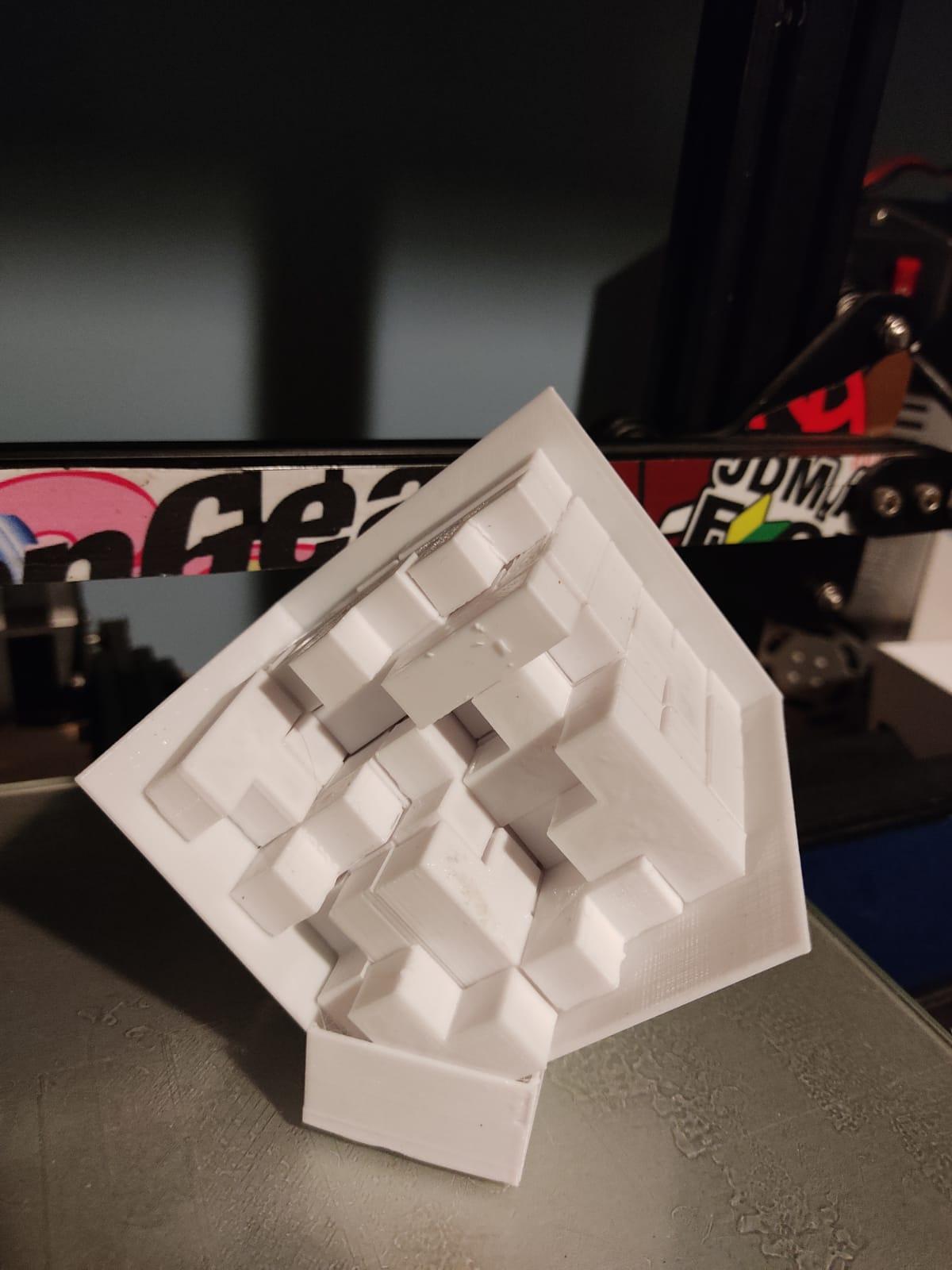

portada proyecto fin.png

This is a very easy to DIY but it's very hard to resolve. The puzzle consists of 54 T pieces and a two part base. The goal is to create a 6x6 cube.With the 54 pieces in T form.

It helps improve your spatial vision!!

Do not despise this puzzle, it is more difficult than it seems.

You can scale the pieces to make it as big as you want.

And you can use different types of filament.

Supplies

Logo tinker.png

You will need this:

  1. Autodesk Tinkercad

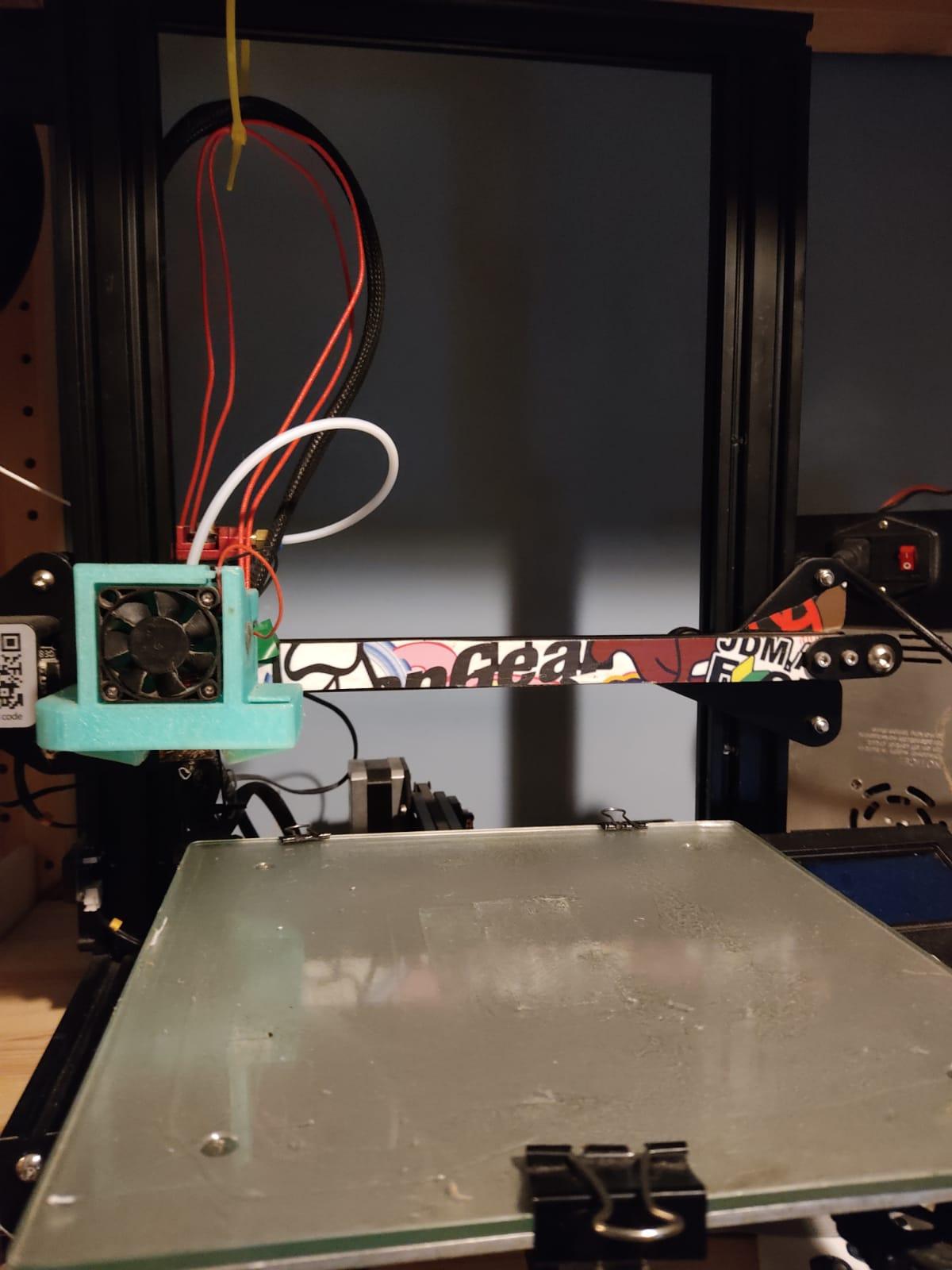

  2. 3d Printer

Holder Pieces

holder base square.png
2 cubes.png
move 2mm.png
holder base end.png

Cube holder:

  • Generate 2 cubes. 1 red and 1 trans X:70mm, Y:70mm, Z:70mm
  • Center the cubes, take the transparent cube and move 2 mm in X and Y
  • Group and make a copy.


Holder Base

holder base P1.png
2 cubes for holder.png
corte45º  2.png
erase square and redimension 2.png
THIS IS IT.png
apoyo antes de agrupar.png

Generate 2 rectangles

  • Red rectangle: X:33mm Y:76mm Z:20mm
  • Trans rectangle: X:31mm Y:74mm Z:20
  • We choose "holder pieces" piece (Copy). Move to 45º degrees and prepare it to cut.
  • Align the red rectangle with the "holder pieces" piece and move in Z 2mm (Better if we give 4mm)
  • Group to make the cut and that´s it.


T Piece

design T piece.png
T piece thinker.png
1 T piece.png

Generate 2 Rectangles

  • Red Cube X:30mm Y:10mm Z:10mm
  • Blue Cube X:20mm Y:10mm Z:10mm
  • Rotate the smaller rectangle 90º degrees to align to the center.
  • Form a letter "T".


Print

holder base square.png
holder base P1.png
holder base complete.png

You need 54 "T" pieces.

  • Prepare for the next day, you need over 20 hours for print.
  • High infill = Better experience


And Enjoy... or Not.

portada proyecto.png

Very easy to do, don´t think?

Get ready!!! because this puzzle is very complicated.

Has thousands of combinations, but few solutions.

When you has been done please, give me the solution!!!
