Vertical Laptop Stand

Screen Shot 2015-12-31 at 5.11.57 PM.png

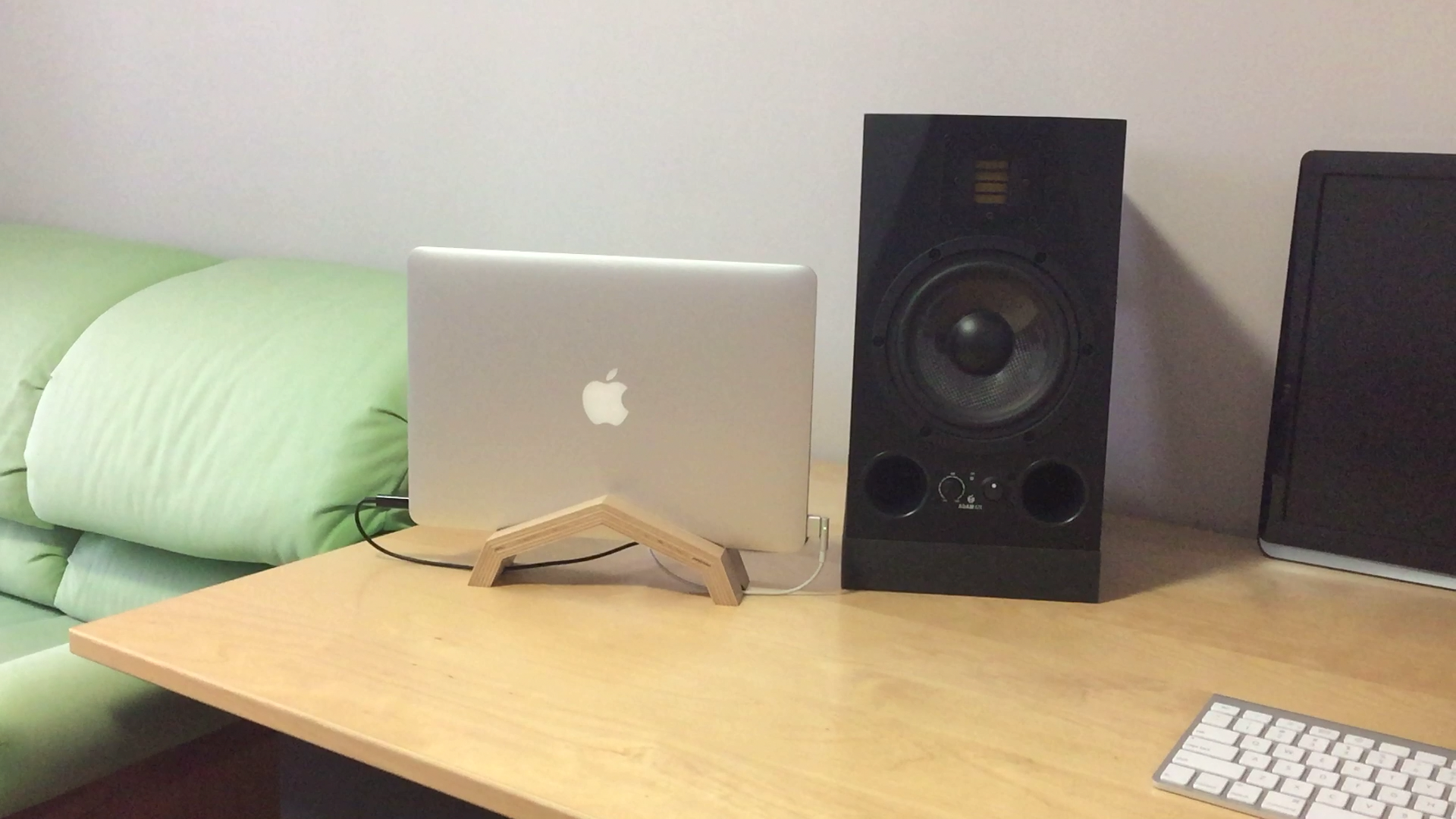

Make a vertical laptop stand (inspired by Twelve South's BookArc). Positioning a laptop vertically reduces heat buildup on the bottom and allows it to run much cooler!

Measurements

Screen Shot 2016-01-01 at 11.08.55 AM.png

Screen Shot 2016-01-01 at 11.11.28 AM.png

Measure the thickness of your laptop. If you use calipers, I suggest applying some tape on the jaws to avoid scratching your computer.

You'll need to do some calculations to determine the size of all the pieces. All the measurements are in the PDF plans: http://fasteasysmarttool.com/laptop/

Step 2: Cut Pieces to Width

Screen Shot 2016-01-01 at 11.09.36 AM.png

Screen Shot 2016-01-01 at 11.10.02 AM.png

Screen Shot 2016-01-01 at 11.10.20 AM.png

I cut down a sheet of 3/4" plywood to a manageable size. Then at the mitre saw, I cut two thin strips (1"), and one thick strip* (2 5/8").

*These dimensions should be adjusted for your laptop per the plans in step 1.

Cut Pieces to Length

Screen Shot 2016-01-01 at 11.11.00 AM.png

Screen Shot 2016-01-01 at 11.11.15 AM.png

Screen Shot 2016-01-01 at 11.11.33 AM.png

The mitre saw table is adjusted to 22.5°.

I apply masking tape to the plywood to control tearout.

Sanding

Screen Shot 2016-01-01 at 11.12.12 AM.png

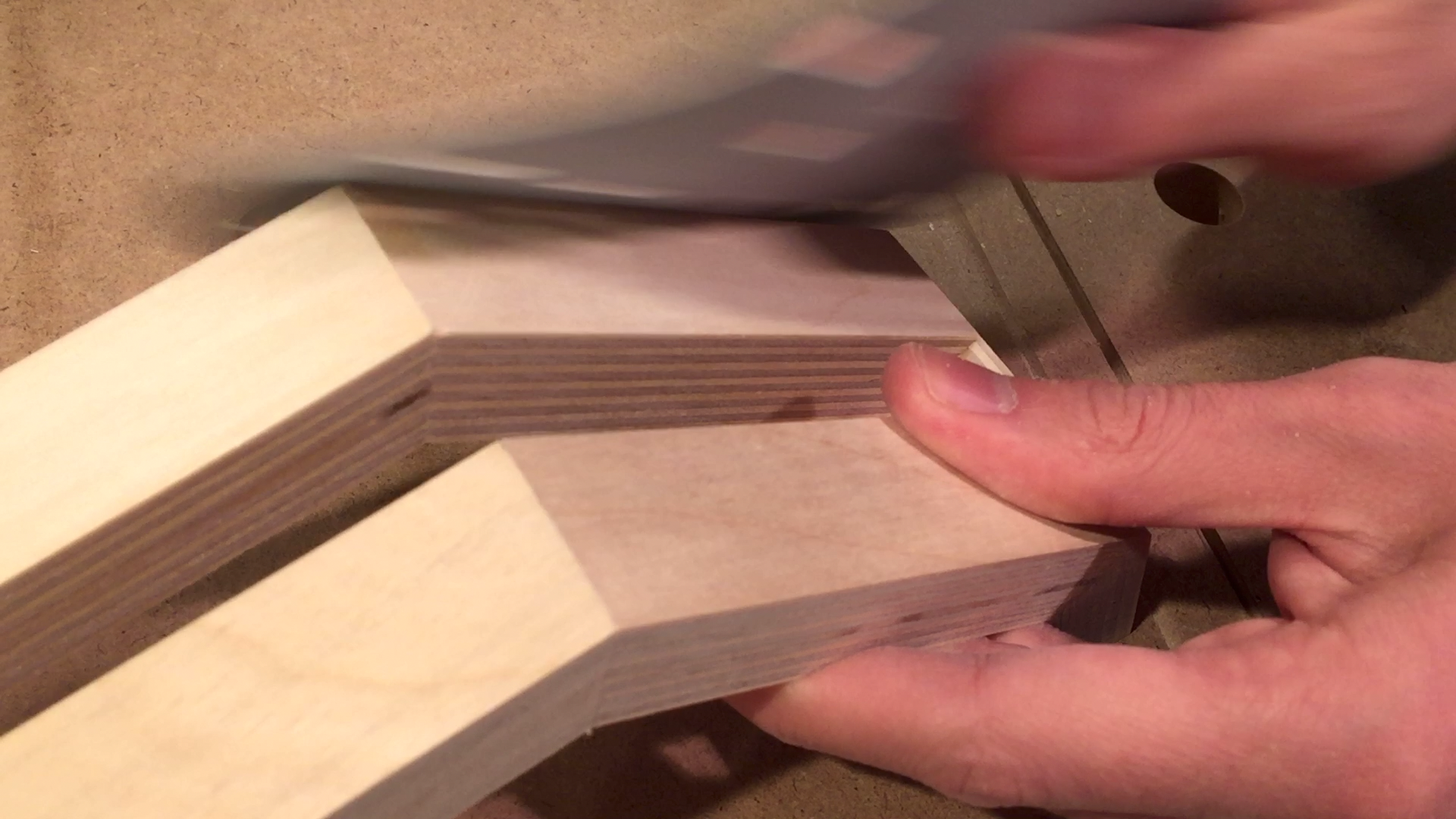

Prepare the surfaces for gluing.

Tape the Bits Together

Screen Shot 2016-01-01 at 11.12.24 AM.png

Screen Shot 2016-01-01 at 11.12.53 AM.png

Use masking tape to hold everything together before the glue-up.

Test Fit

Screen Shot 2016-01-01 at 11.13.13 AM.png

Perfect!

Glue-up

Screen Shot 2016-01-01 at 11.13.36 AM.png

Screen Shot 2016-01-01 at 11.13.46 AM.png

Apply glue to all the joints. Let it set overnight.

Glue Clean-Up

Screen Shot 2016-01-01 at 11.14.03 AM.png

Screen Shot 2016-01-01 at 11.14.14 AM.png

Clean-up any glue squeeze out, and break the edges with sandpaper.

Route Cable Holes (Optional)

Screen Shot 2016-01-01 at 11.14.21 AM.png

On the router table, I cut a slot on each side for cable management.

Strength Test!

Screen Shot 2016-01-01 at 11.14.36 AM.png

To be honest... I'm surprised it didn't break :)

Apply Finish

Screen Shot 2016-01-01 at 11.14.50 AM.png

Screen Shot 2016-01-01 at 11.15.52 AM.png

Screen Shot 2016-01-01 at 11.16.05 AM.png

Screen Shot 2016-01-01 at 11.16.29 AM.png

I'm using enduro-var. First I pre-raise the grain with water. Then I apply two coats of finish, sanding between each coat.

Done!

Screen Shot 2016-01-01 at 11.16.40 AM.png

Your laptop has a new home!

Video

How to Make a Wooden Laptop Stand (Free Plans)

Here's a video of the whole process.
