Variable Motor Driver
![Variable Motor Driver 01 Device.jpg](/proxy/?url=https://content.instructables.com/F8V/1OXS/KTPSY7MB/F8V1OXSKTPSY7MB.jpg&filename=Variable Motor Driver 01 Device.jpg)
![Variable Motor Driver 02 Step 01 Design the Circuit.jpg](/proxy/?url=https://content.instructables.com/FIO/K2NW/LJMVHA16/FIOK2NWLJMVHA16.jpg&filename=Variable Motor Driver 02 Step 01 Design the Circuit.jpg)
![Variable Motor Driver 1](/proxy/?url=https://content.instructables.com/F55/ZMLH/KTPSY7MP/F55ZMLHKTPSY7MP.jpg&filename=Variable Motor Driver 1)
This article is about a simple motor driver. The motor driver can be placed into a box with only two terminals. However, you will need to connect a diode across the motor.
The D1 diode is needed to ensure transistor saturation and thus reduce power dissipation. The second use of this diode is the prevention of transistor collector-emitter reverse biasing that will damage the transistor. The D2 diode is needed to prevent damage due to the reverse currents of the motor.
This is definitely not the cheapest solution for a motor driving circuit. The cost of the circuit can be reduced by replacing the Rb and Ro resistors with a short circuit. However, you might need the Rb and Ro resistors to prevent the failure of the transistor.
You might need a power supply of 4.5 V or even 6 V. It depends on the type of motor that you are using.
Supplies
Components: Power transistor (TO3 or TO220 package), heat sink, bolt, washer, nut, 10-ohm resistor (5 Watt), 10-ohm resistor (1 Watt), general-purpose diode - 2, power source (3 V or two AA/AAA/C/D batteries), 1-kohm potentiometer, solder.
Optional components: Heat transfer paste, masking tape, cardboard box.
Tools: wire stripper, screwdriver, soldering iron.
Optional tools: Multimeter, pliers.
Design the Circuit

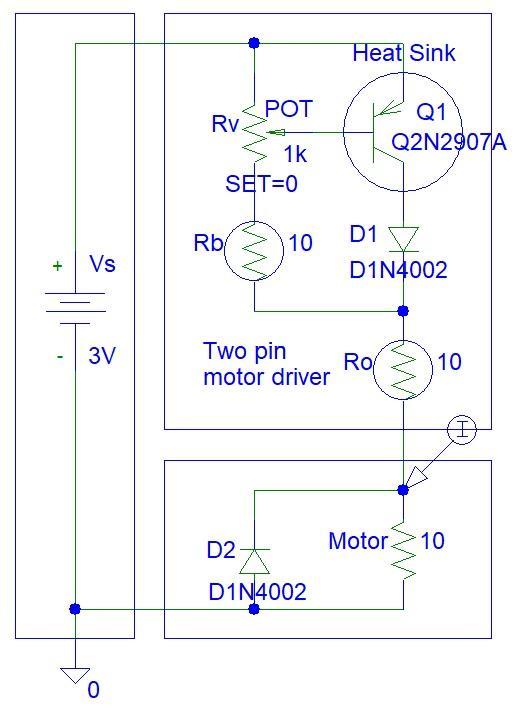

![FIOK2NWLJMVHA16.jpg](/proxy/?url=https://content.instructables.com/FNP/DP48/LJMVHA1G/FNPDP48LJMVHA1G.jpg&filename=FIOK2NWLJMVHA16.jpg)
I used the old PSpice simulations software to draw and simulate the circuit to reduce time.
The minimum voltage between the power supply and Rb/D1/Ro node will not fall below 0.9 V (Vd + VceSat = 0.7 V + 0.2 V = 0.9 V).
The power transistor base might have an internal resistance as high as 100 ohms. This resistance is reciprocal to transistor biasing current. Higher biasing currents will reduce the base resistance.
Simulations
![FIOK2NWLJMVHA16.jpg](/proxy/?url=https://content.instructables.com/FA9/MS9E/LJMVHA1W/FA9MS9ELJMVHA1W.jpg&filename=FIOK2NWLJMVHA16.jpg)
![Variable Motor Driver 03 Step 02 Simulations.jpg](/proxy/?url=https://content.instructables.com/FY0/2KNE/LJMVHA1Z/FY02KNELJMVHA1Z.jpg&filename=Variable Motor Driver 03 Step 02 Simulations.jpg)
You can see that the maximum current is very small. This is because the 2N2222 transistor is not a power transistor but a general-purpose transistor. The student edition software does not have power transistor components.
Make the Circuit
![FIOK2NWLJMVHA16.jpg](/proxy/?url=https://content.instructables.com/F8I/SUTI/LJMVHA2J/F8ISUTILJMVHA2J.jpg&filename=FIOK2NWLJMVHA16.jpg)

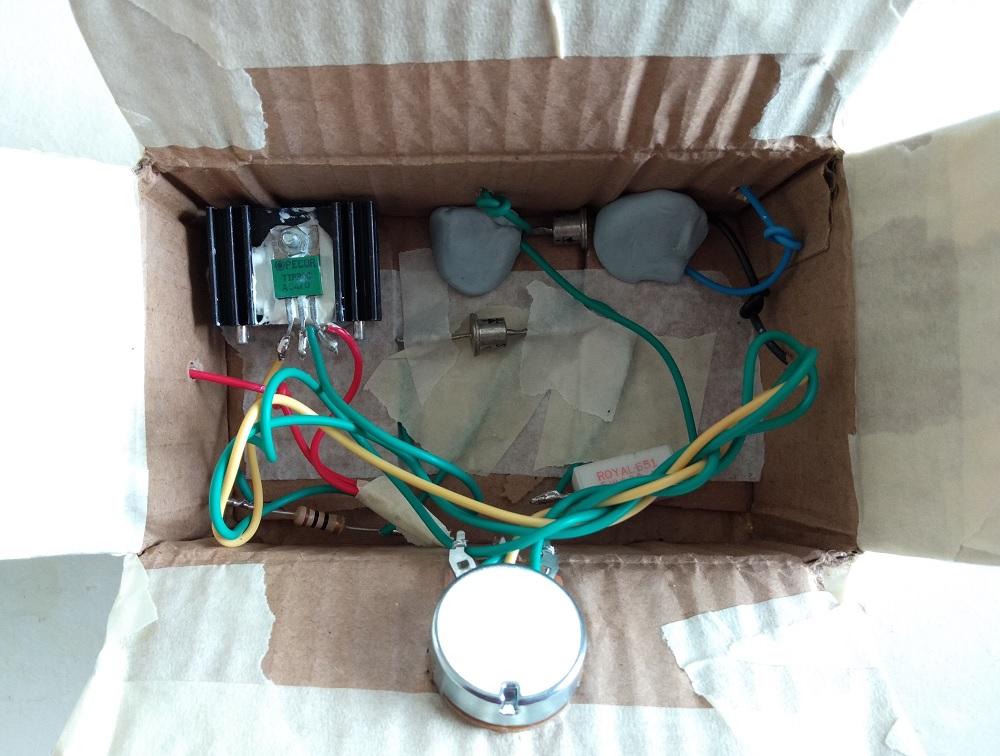

![Variable Motor Driver 04 Step 03 Make the Circuit.jpg](/proxy/?url=https://content.instructables.com/FS4/TCS7/KTPSY7MG/FS4TCS7KTPSY7MG.jpg&filename=Variable Motor Driver 04 Step 03 Make the Circuit.jpg)
You need to purchase a power transistor if you are building this circuit. You will also need a heat sink (TO3 or TO220 heat sink). I used a TO220 transistor. TO3 packaged transistors and TO3 heat sinks are more expensive.
I used Ro resistor of 27 ohms because I did not have a second 5 W 10-ohm resistor.
Heat sink calculations are shown here:
Encasement
![Variable Motor Driver 05 Step 04 Encasement.jpg](/proxy/?url=https://content.instructables.com/FX1/V3LM/KTPSY7MH/FX1V3LMKTPSY7MH.jpg&filename=Variable Motor Driver 05 Step 04 Encasement.jpg)
I used an old cardboard box from an eBay electronic components parcel.
Testing

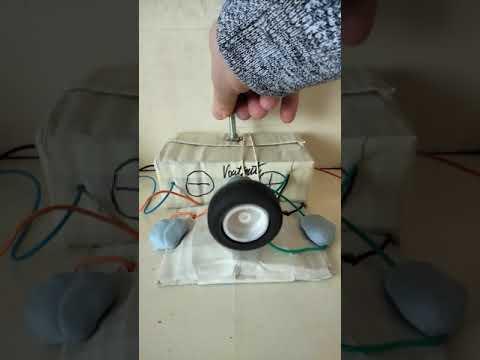

![Variable Motor Driver 2](/proxy/?url=https://content.instructables.com/FMH/FDA2/KTPSY7NQ/FMHFDA2KTPSY7NQ.jpg&filename=Variable Motor Driver 2)
Testing showed that the circuit works with 27 ohm Ro resistor.
