Vacuum Extraction Rig.

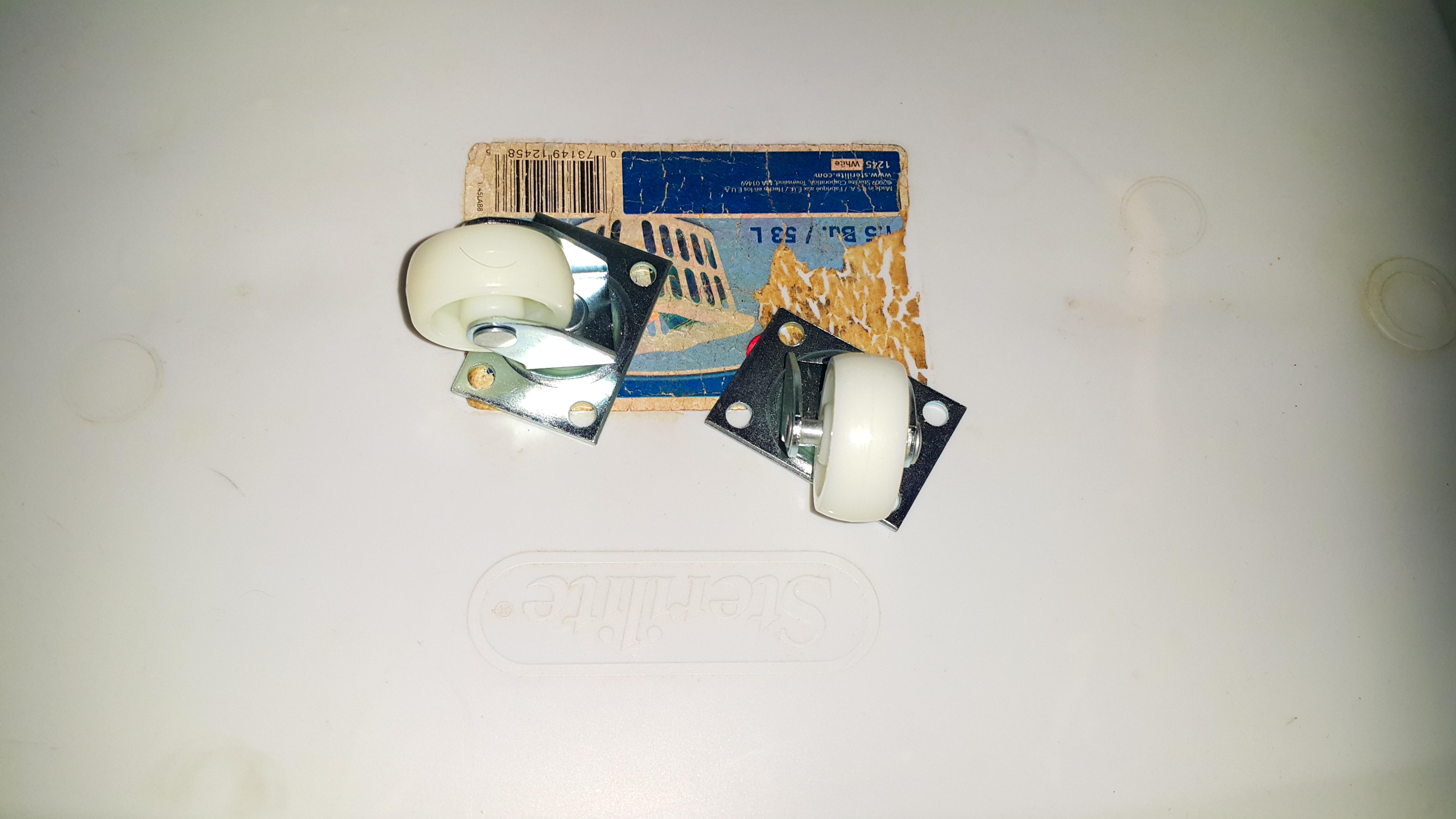

I needed a mobile rig for my vacuum extraction kit. I used an old clothes basket and installed 2 castors plus a rubber foot on the bottom.
The Main Components.

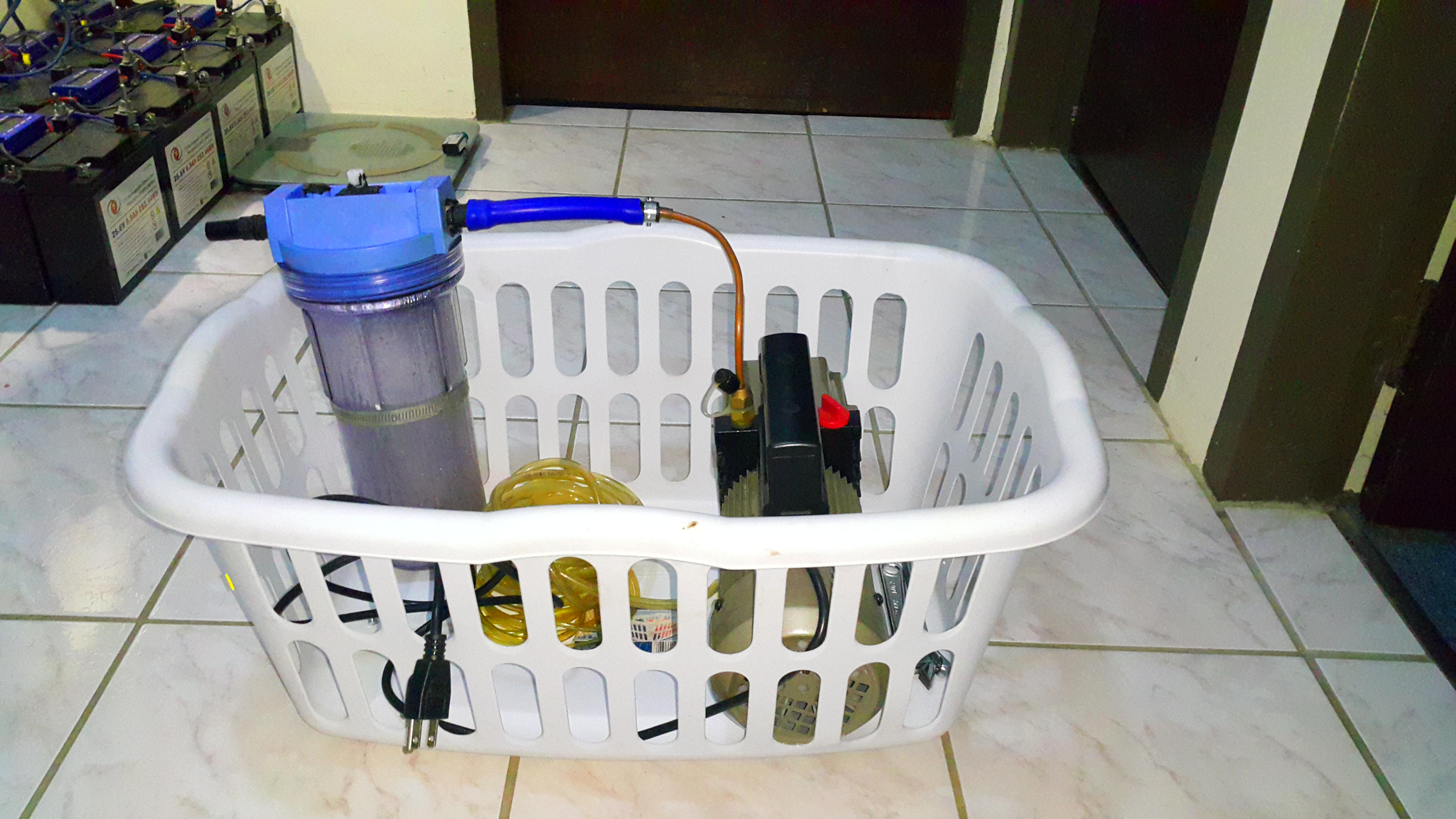

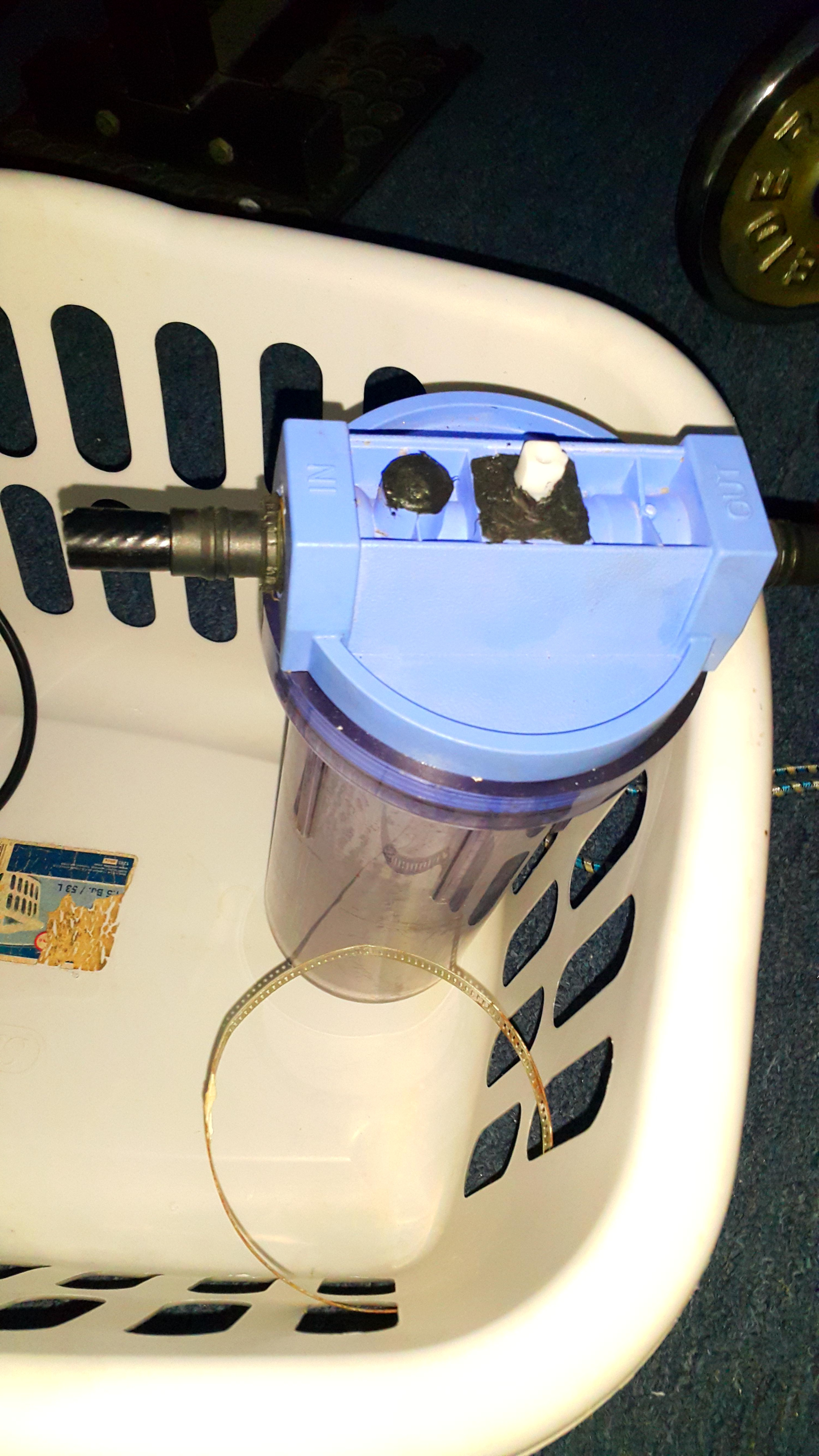

The heavy vacuum pump I put over the side with the castors. The vacuum impound bottle I clamped to the basket with a hose clamp.
Connection and Tools.

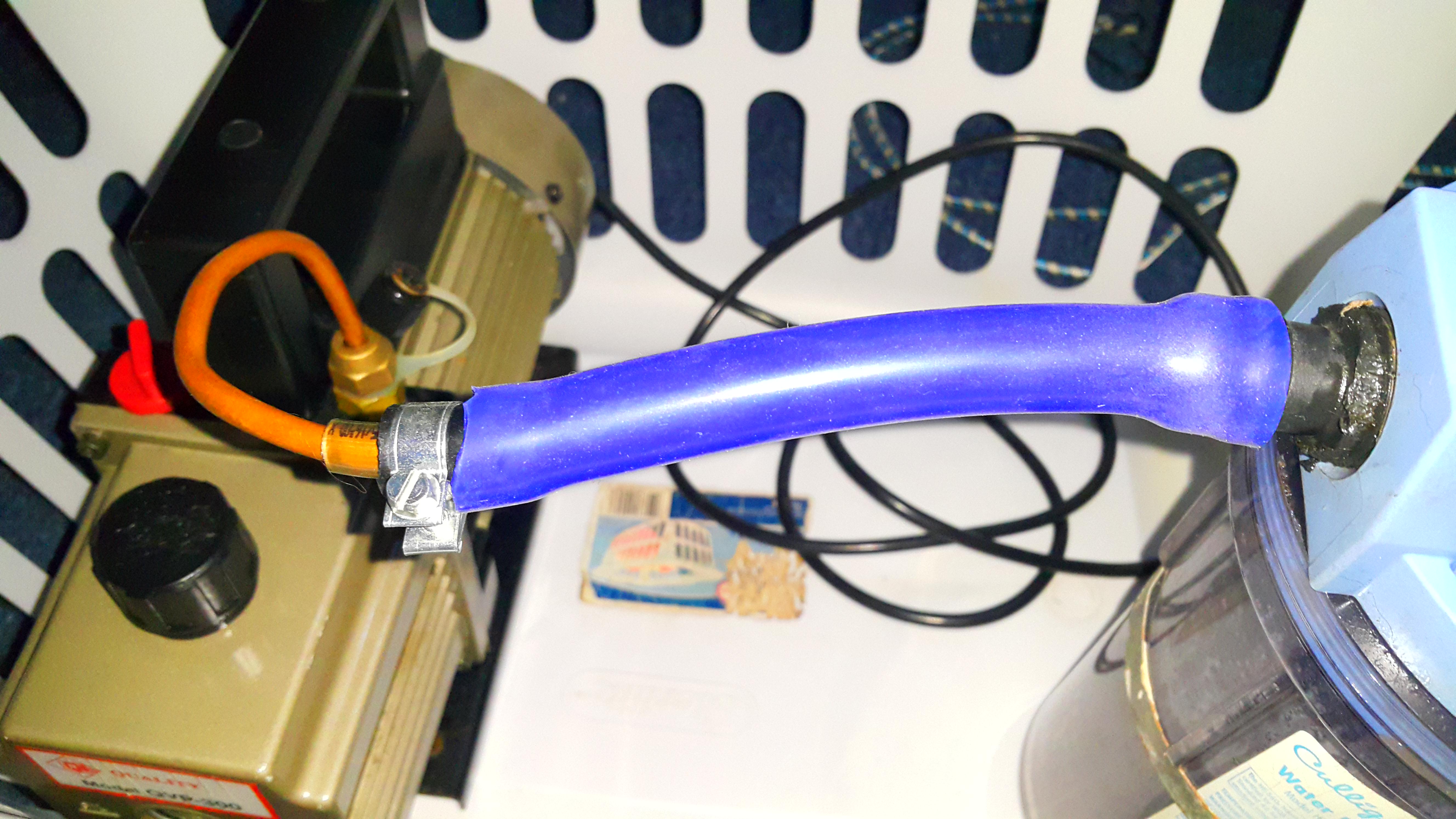

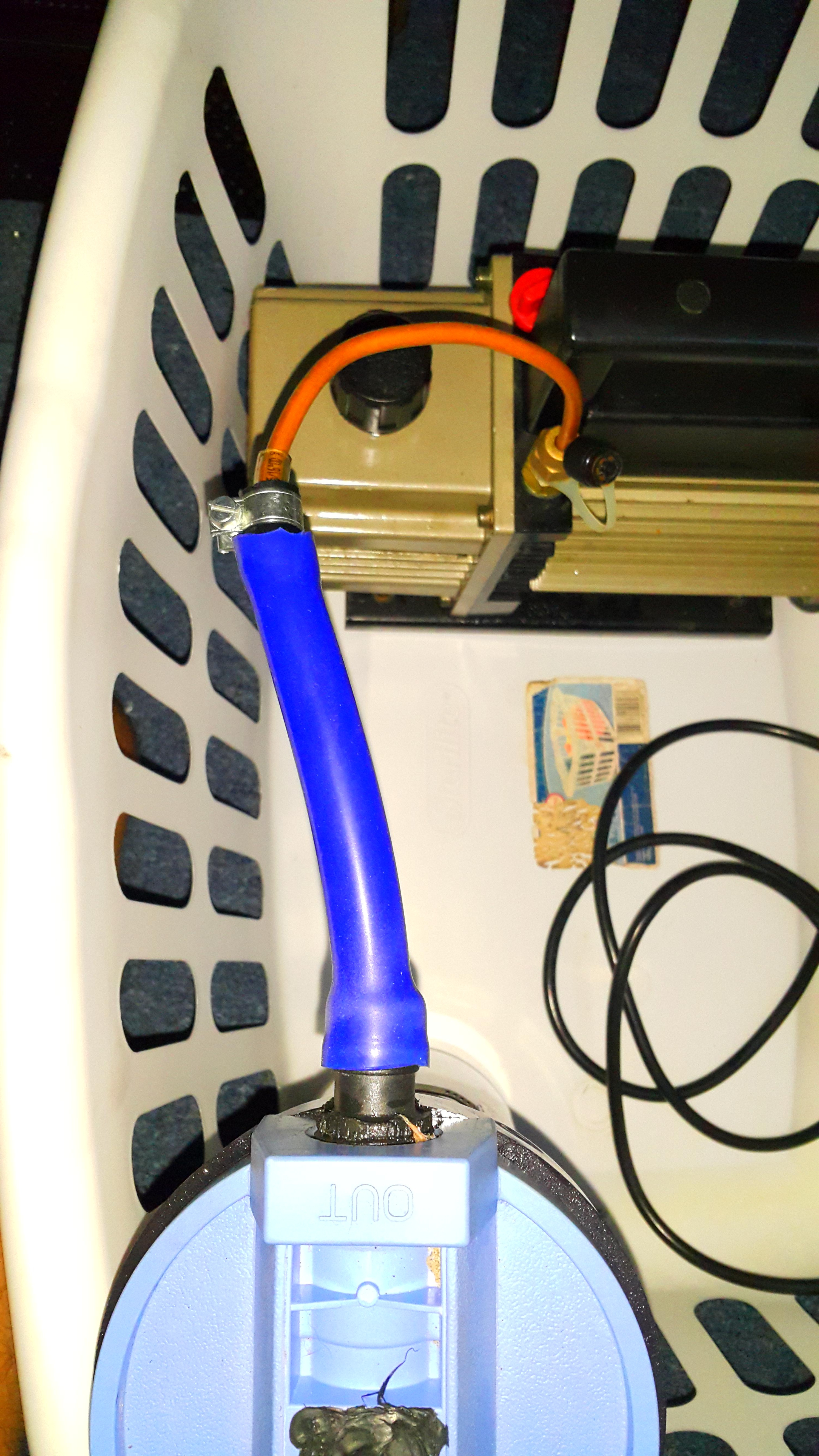

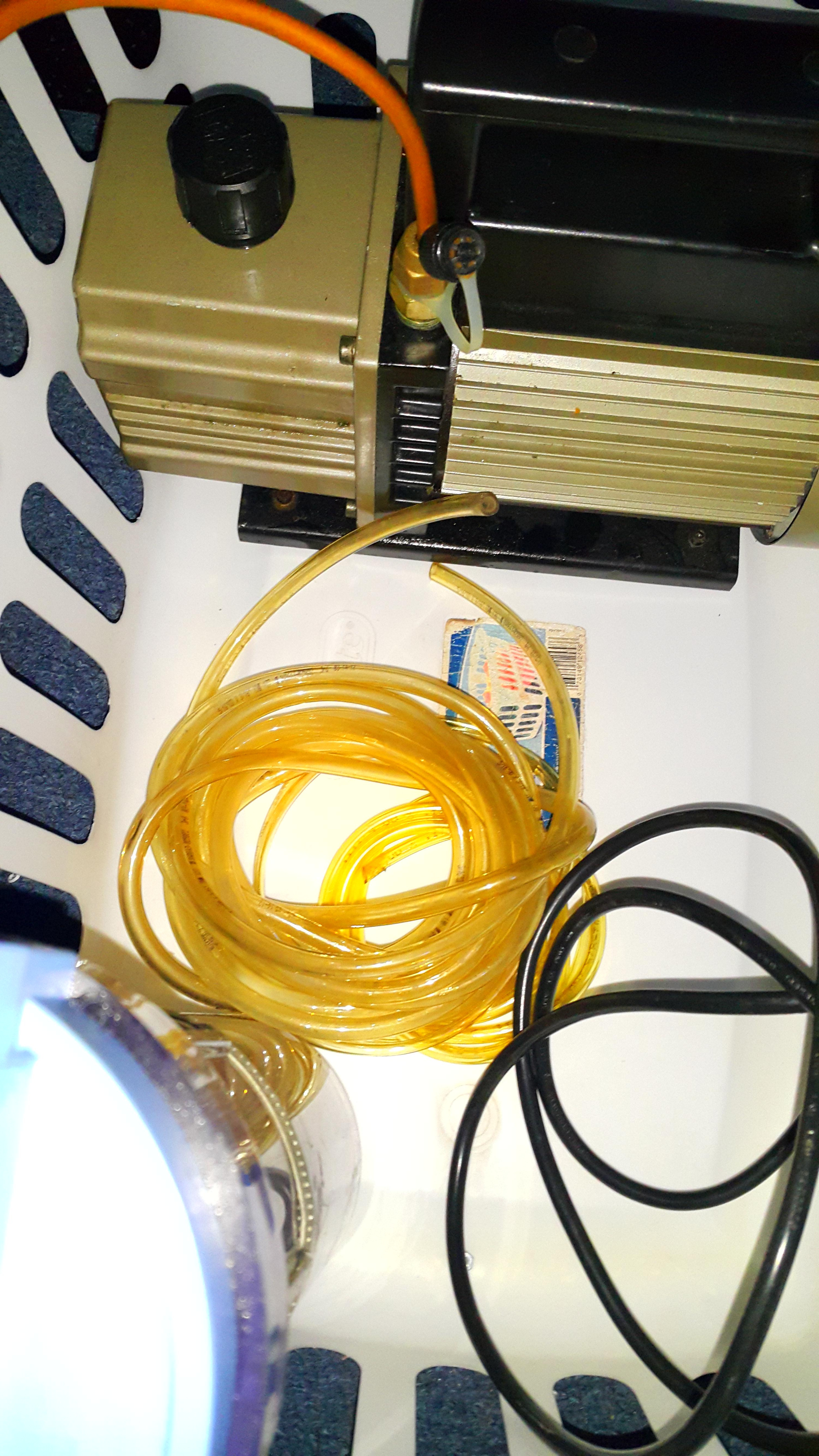

The vacuum connection to the pump I made with silicone and copper tubing. The spanners and nylon tubing all fit nicely within the modified clothes basket.
Completion.

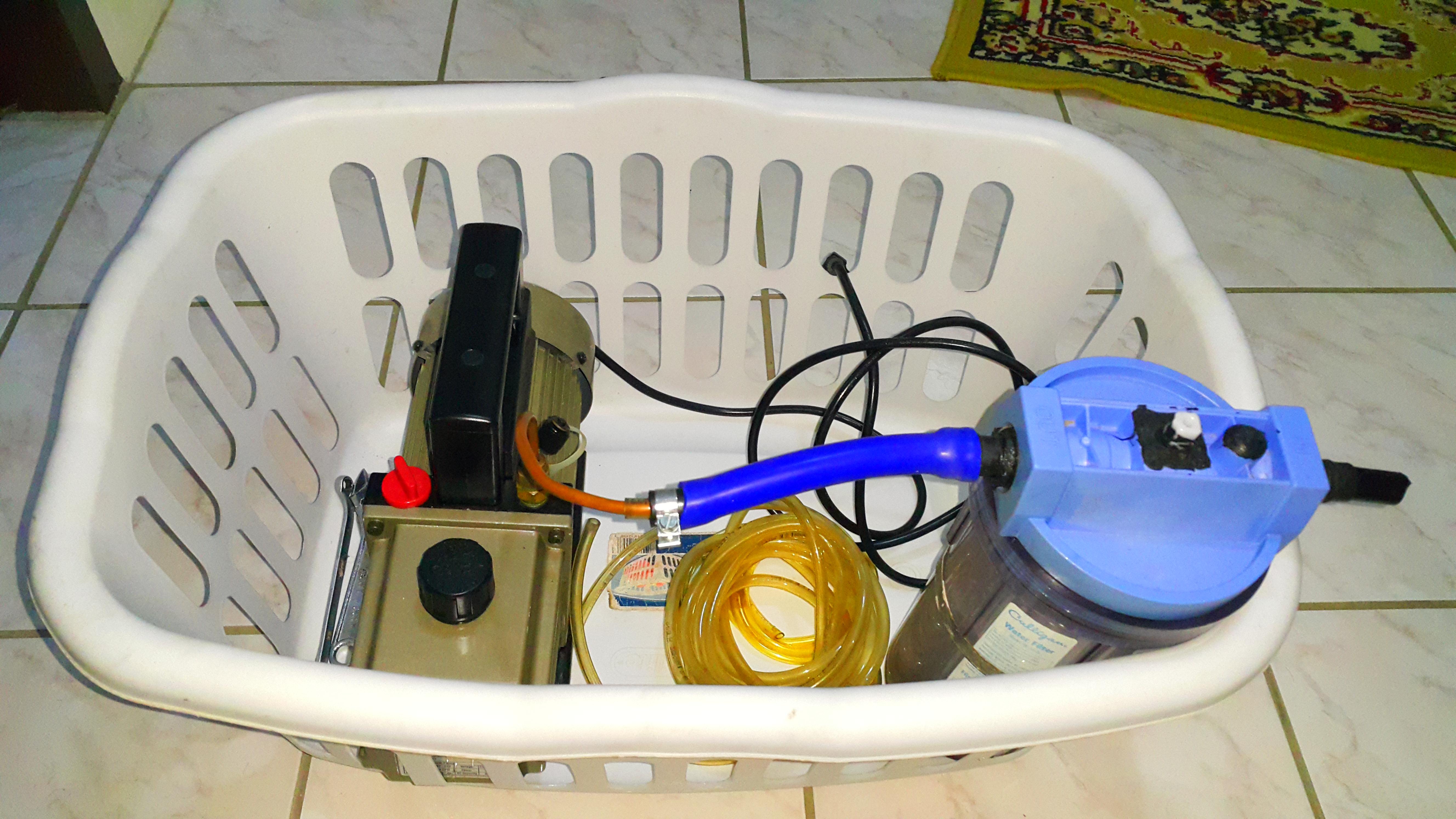

Now all components and tools are secured in my mobile vacuum extraction rig. This setup I have used quite successfully to bleed brake lines, remove transmission fluid and power steering oil.
