V8 Block Coffee Table

While "Dumpster Diving" I found a V8 block, now surely that can be used for something!!!!

So home with me it came (to be hidden from the wife)

For info it's a Rover 3.5 V8 alloy block and I am going to turn it into a table

So this is metal, it's furniture, and it is probably going to be given away as a xmas present.

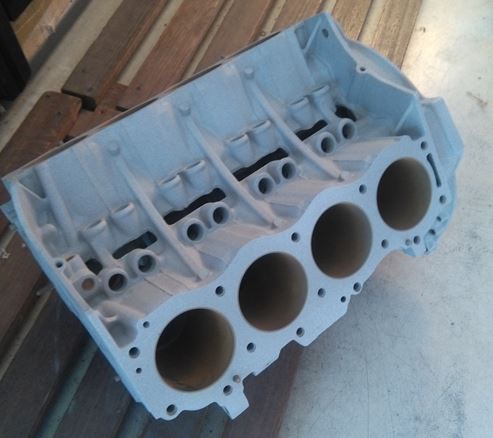

Obviously I wasn't going to get away with anything using it in its oil and grime encrusted condition, but luckily we had the sand blasters in at work stripping paint from our water tanks, so a couple of beers later all the grime had magically disappeared!!

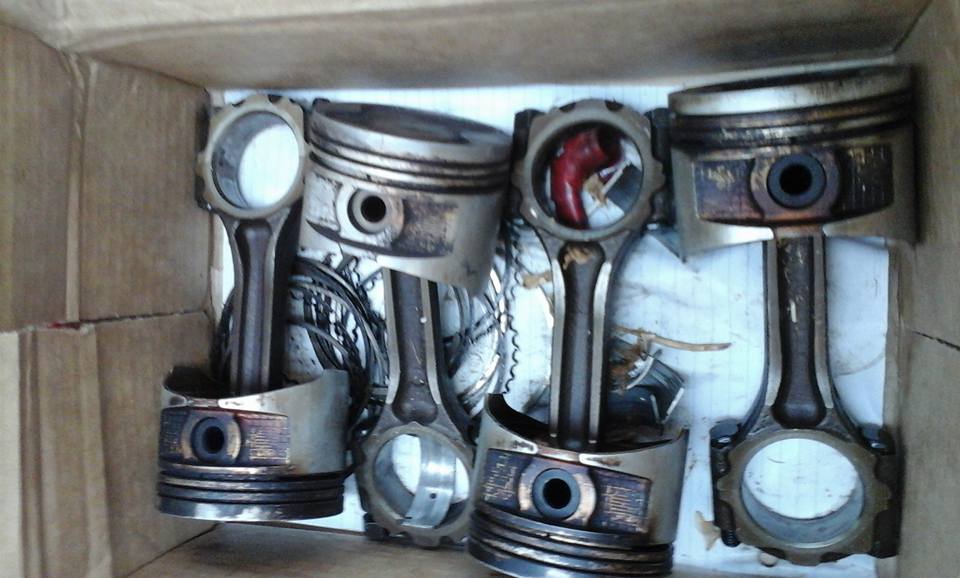

Searching around in the shed junk pile I found 4 pistons (they are not the right ones for the engine but that doesn't matter.

I took off the rings and blasted them in the blast cabinet (also at work)

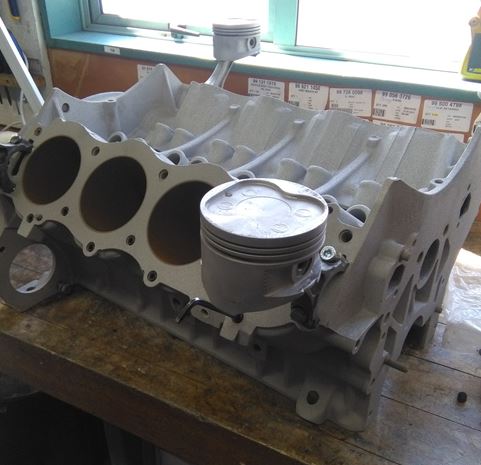

I intend attaching the pistons to the cylinder head screw holes and for them to sit flat I needed to file part of the skirt away (shown on the piston on the right)

Because of the con-rod bolt design and cylinder head bolt spacing, I could only screw in one bolt from each con-rod/piston in an already drilled hole, in the second hole I had to drill and tap a hole for an M8 allen bolt.

The bolts were coated in araldite before screwing in (them suckas ain't comin' out!!)

I thought it looked more pleasing with the rest of the cylinder head screw holes filled so I used a bunch of allen grub screws also araldited in place

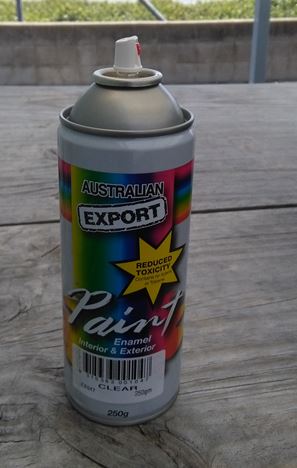

Once all assembled I used spray clear epoxy to prevent corrosion

I found some small self adhesive silicon "dots" which I stuck on the piston tops.

Initially I am going to try 2 but we will see if it needs more

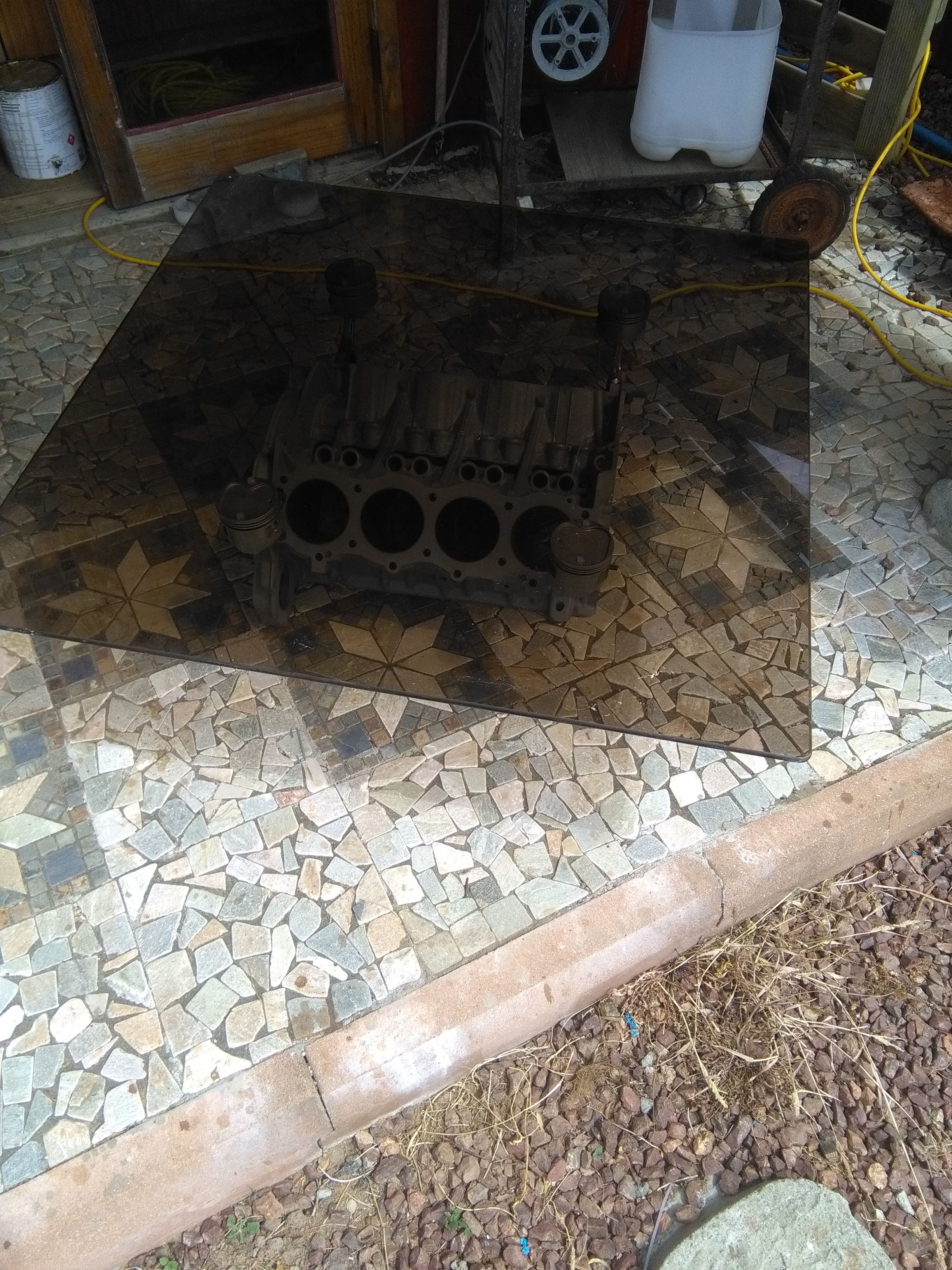

I found an old glass table on TradeMe and for the princely sum of $2 it was mine and gave me this lovely piece of smoked glass which turned out to be more or less the perfect size.

The photos are a little dark and don't do it justice, but it actually looks pretty good

So all told this project cost me $3 in bolts, $2 in glass, the block was free, the silicon dots were $10!!!! but I have only used 8 out of a pack of 64, the grub screws were free as they were test failed ones destined for the scrap bin.

Now I just have to persuade the wife to let me keep it!!

(just kidding - she's an angel and I am probably going to give it to a friend who is a total petrolhead!)
