V1 Rotary Encoder Using Attiny Microcontroller

by heemanthy in Circuits > Electronics

516 Views, 1 Favorites, 0 Comments

V1 Rotary Encoder Using Attiny Microcontroller

encoder using attiny.png

i made a rotary encoder generator using attiny microcontroller which can be used for simulation in proteus and tinkercad as there no encoder wheel viable in them

Supplies

this are the list of materials required

Downloads

Attiny Schematic

encoder using attiny.png
encoder using attiny schematic.png

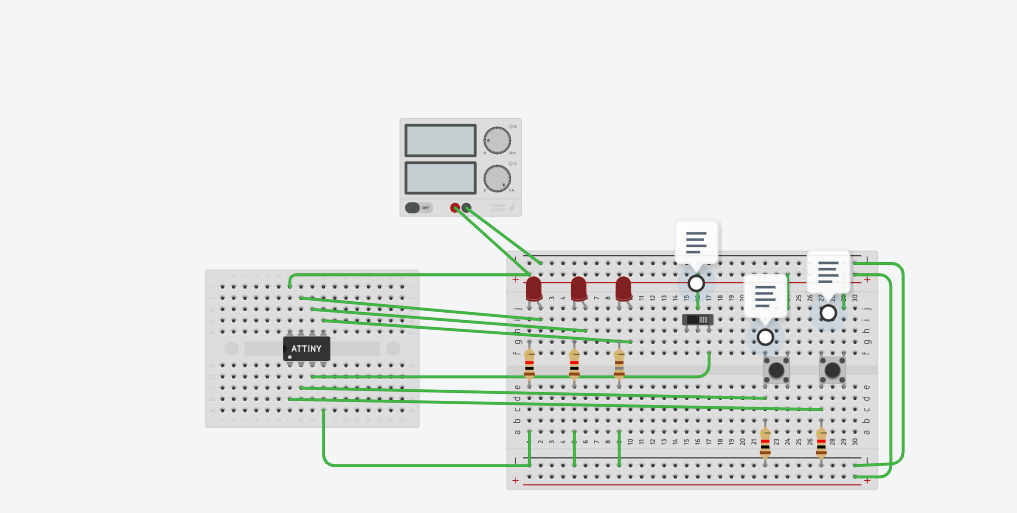

at here you see the connection you can use the .brd file in tinkercad

Source Code

at here you can there is a simple code given for the attiny

// C++ code

//

void setup()

{

 pinMode(4, INPUT);

 pinMode(3, INPUT);

 pinMode(0, OUTPUT);

 pinMode(1, OUTPUT);

 pinMode(2, OUTPUT);

 pinMode(5, INPUT);

}


void loop()

{

 if (digitalRead(4) == HIGH) {

  if (digitalRead(3) == HIGH) {

   digitalWrite(0, HIGH);

   digitalWrite(1, LOW);

   digitalWrite(2, LOW);

   delay(100); // Wait for 100 millisecond(s)

   digitalWrite(0, HIGH);

   digitalWrite(1, HIGH);

   digitalWrite(2, LOW);

   delay(100); // Wait for 100 millisecond(s)

   digitalWrite(0, LOW);

   digitalWrite(1, HIGH);

   digitalWrite(2, HIGH);

   delay(100); // Wait for 100 millisecond(s)

   digitalWrite(0, LOW);

   digitalWrite(0, LOW);

   digitalWrite(0, HIGH);

   delay(100); // Wait for 100 millisecond(s)

  }

  if (digitalRead(5) == HIGH) {

   digitalWrite(0, LOW);

   digitalWrite(1, LOW);

   digitalWrite(2, HIGH);

   delay(100); // Wait for 100 millisecond(s)

   digitalWrite(0, LOW);

   digitalWrite(1, HIGH);

   digitalWrite(2, HIGH);

   delay(100); // Wait for 100 millisecond(s)

   digitalWrite(0, HIGH);

   digitalWrite(1, HIGH);

   digitalWrite(2, LOW);

   delay(100); // Wait for 100 millisecond(s)

   digitalWrite(0, HIGH);

   digitalWrite(0, LOW);

   digitalWrite(0, LOW);

   delay(100); // Wait for 100 millisecond(s)

  }

 } else {

  if (digitalRead(3) == HIGH) {

   digitalWrite(0, LOW);

   digitalWrite(1, LOW);

   digitalWrite(2, LOW);

   delay(100); // Wait for 100 millisecond(s)

   digitalWrite(0, HIGH);

   digitalWrite(1, LOW);

   digitalWrite(2, LOW);

   delay(100); // Wait for 100 millisecond(s)

   digitalWrite(0, HIGH);

   digitalWrite(1, HIGH);

   digitalWrite(2, LOW);

   delay(100); // Wait for 100 millisecond(s)

   digitalWrite(0, HIGH);

   digitalWrite(0, LOW);

   digitalWrite(0, LOW);

   delay(100); // Wait for 100 millisecond(s)

  }

  if (digitalRead(5) == HIGH) {

   digitalWrite(0, HIGH);

   digitalWrite(1, LOW);

   digitalWrite(2, LOW);

   delay(100); // Wait for 100 millisecond(s)

   digitalWrite(0, HIGH);

   digitalWrite(1, HIGH);

   digitalWrite(2, LOW);

   delay(100); // Wait for 100 millisecond(s)

   digitalWrite(0, LOW);

   digitalWrite(1, HIGH);

   digitalWrite(2, LOW);

   delay(100); // Wait for 100 millisecond(s)

   digitalWrite(0, LOW);

   digitalWrite(0, LOW);

   digitalWrite(0, LOW);

   delay(100); // Wait for 100 millisecond(s)

  }

 }

}

Link to the Circuit

https://www.tinkercad.com/things/co9FU5KTbk5
