Use of Microphone Module

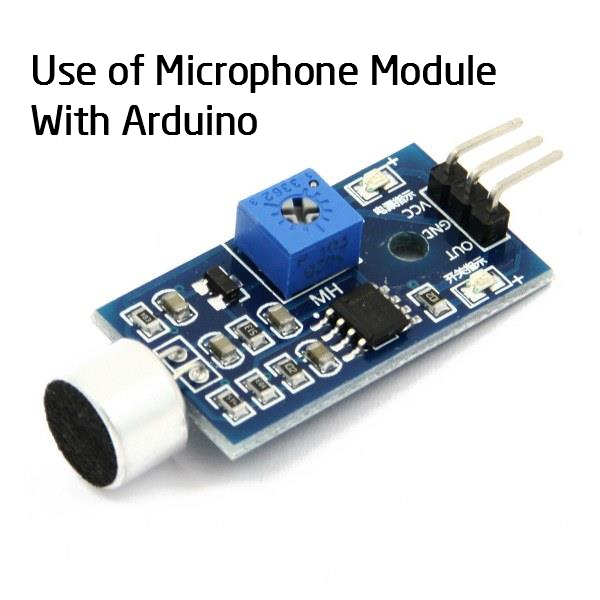

In this article I will talk about the mic module with the arduino.You can practice with several microphone module.There are usually one per module 4.He writes the names on p. 5V Vcc pin plugs eat GND GND pin. The other two pins AO and DO pins are made of the connection pin number defined in the code section. A0 pin to analog, the DO pin is defined as the input pin reading digitally.
Sound Sensitive LED Control With Microphone
LED application volume is now the reference will blink for a second.
Circuit Diagram:
Connection pins:
Microphone module >>>>Arduino
AO____________________A0
DO____________________D2
VCC __________________ 5V
GND__________________ GND
Led >>>>>>Arduino
Anode_____D13
Cathode___ GND
Software Part:
// Robimek - Robotic Systems - 2016
const int DO_pin = 2;
const int AO_pin = 0;
int ses;
int led = 13;
void setup()
{
pinMode(DO_pin, INPUT);
pinMode(led, OUTPUT);
Serial.begin(9600);
}
void loop()
{
if (ses > 35)
{
digitalWrite(led, HIGH);
delay(1000);
digitalWrite(led, LOW);
}
ses = analogRead(AO_pin);
Serial.print(digitalRead(DO_pin));
Serial.print("-");
Serial.println(analogRead(AO_pin));
}
More information : http://make.robimek.com/use-of-microphone-module-with-arduino/
