Usb Wall Outlet Hack

Phone,Phone,Phone!
Everyone Uses It All the Time,Maybe You Are Using It Right Now As Well!
But Every phone has One Disadvantage!
That It Runs Out Of juice really Fast!
These Days Finding Phone Chargers make Our Heads Spin!
So I Decided To Hack My Ac Wall Outlet Into A Built In Phone Charger!
Now No one Can Remove your Charger From Your Room To Use It!
Moreover It Is Easy To Use As well As make!

In Order To Hack Your Wall Outlet You Need a Few Things!
1) 5v USB Wall Adapter!(This Will Fit Inside The Ac Outlet!)
http://www.ebay.com/itm/EU-Euro-European-Wall-Char...

2) Female Usb Port!(we are Not Going To Remove The Port From The USB Charger,Instead We are going To Connect a New one!)
(You Can Find These Locally!)

3)Wires

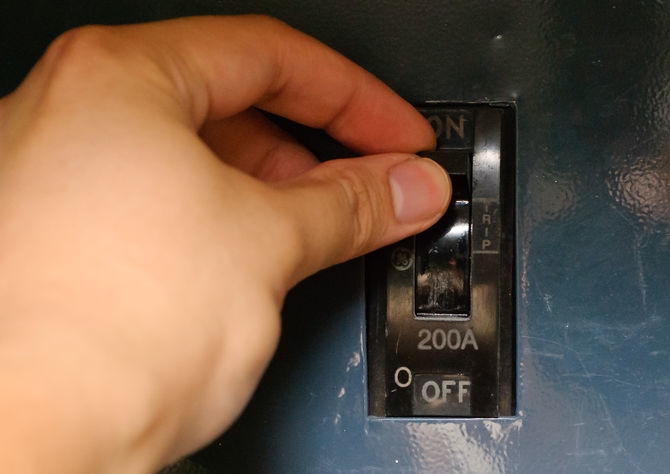

Make Sure You Turn Off Your Main Power Of your House while opening the Ac Outlet!

Now We Would need to remove the Front Panel Of Your AC Outlet!
Mine Has 4 Screws In The Front By which I took out the panel!
Now You Will find 3 Color wires in it!
RED=LIVE
BLACK=Neutral
Green=Earth
The Color Might Be Different in Your AC outlet!
If You Don't Understand The Wires Better To Call A Electrician For this!

Now You Need To Make A Rectangle Cutout For USB Port!

Now We Need to Open Up The Wall Chargers Casing and take out its board from it!
Just apply a small amount of pressure near the Pins And it would come out!

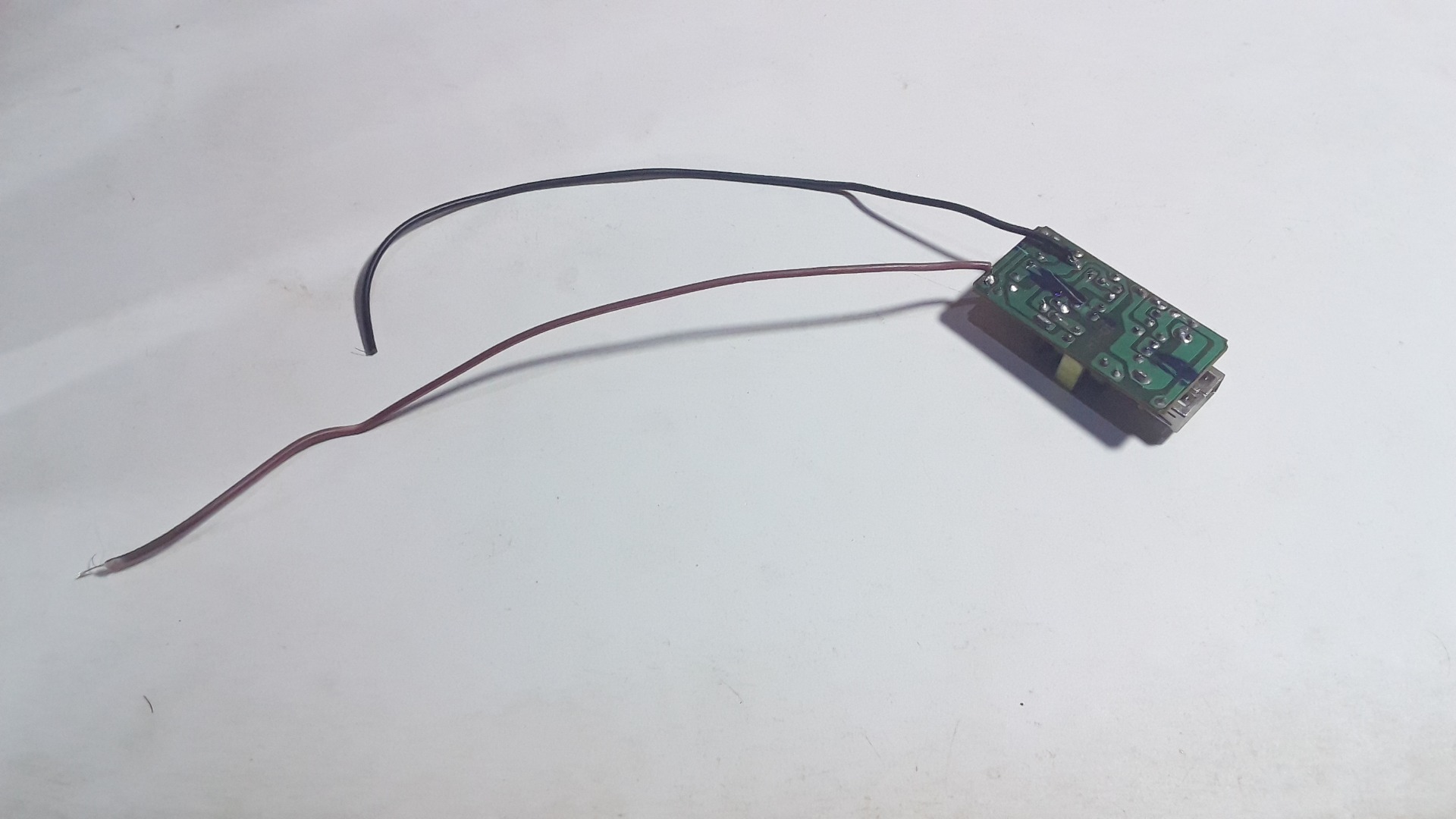

Now The Wires On The Circuit Board Are Really Short So We Need To extend Them, You Can do that by replacing them with new wires,Now Instead of Removing the USB from The Board,I Directly Soldered 2 Wires To the usb port on the circuit!
In My Case- Orange=Negative
red= Positive!

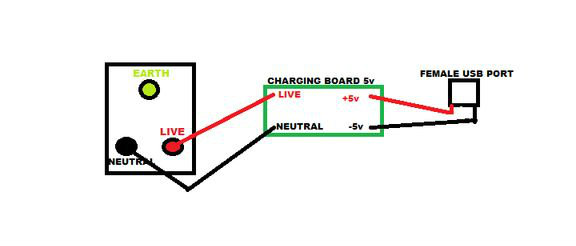

Now I Prepared This Wiring Diagram!
Whole Project Is Based On This!

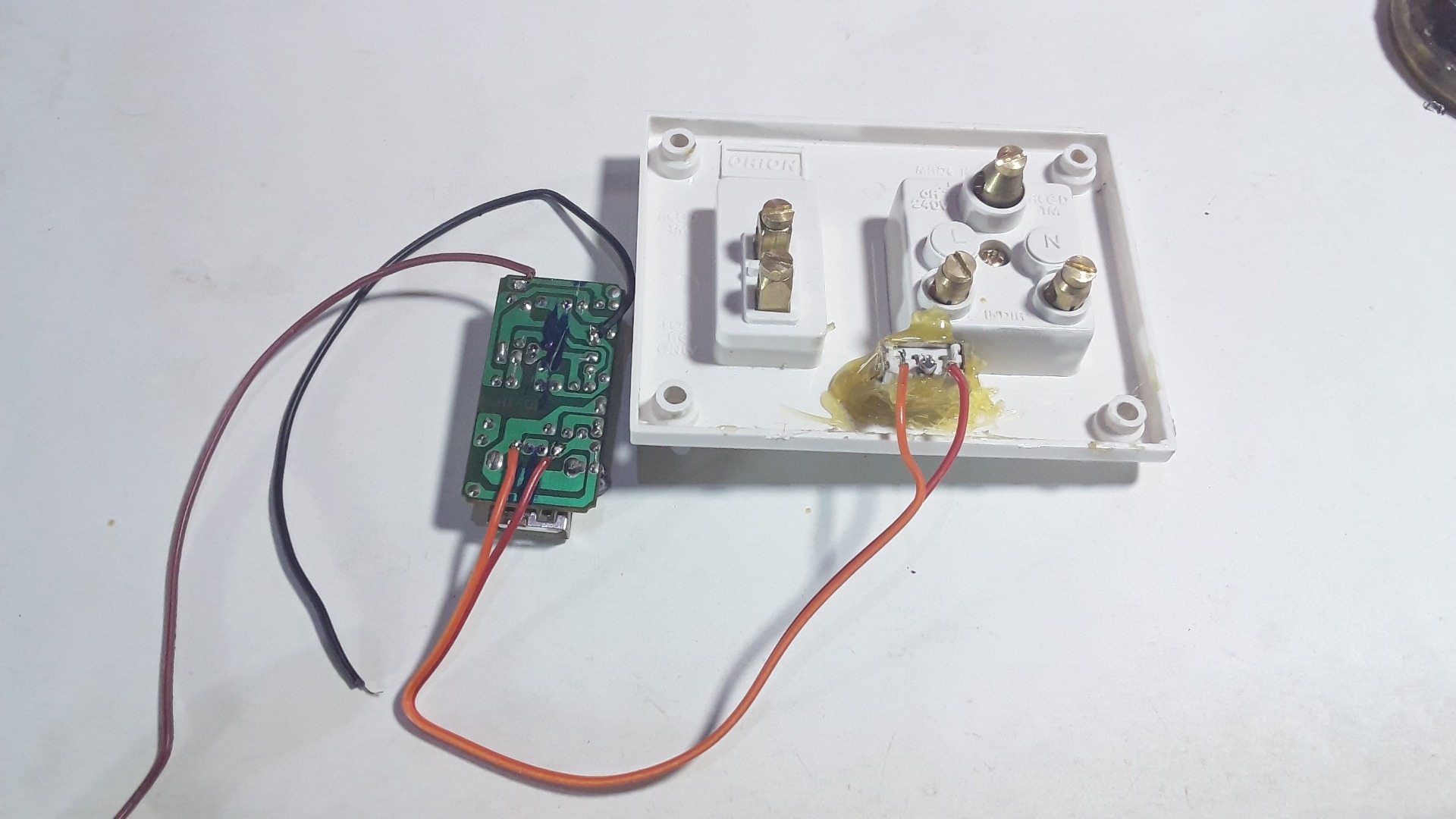

Now I Soldered The USB wires from the Circuit Board To the Female USB Port!
Make Sure to Solder In Right Polarities!

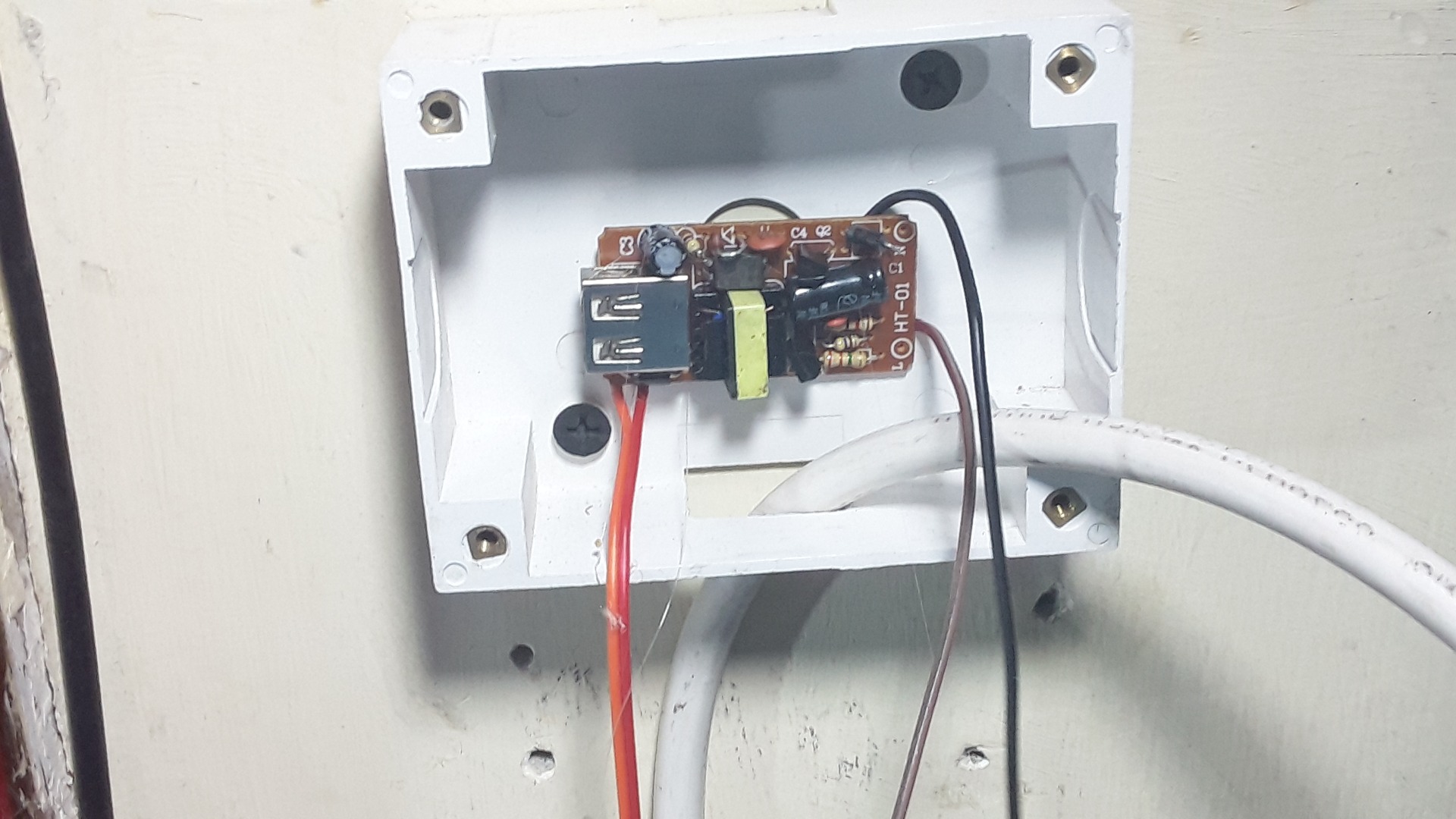

Now Apply Some Hot Glue On the Back Of The Circuit Board & Place It Inside The Ac outlet!

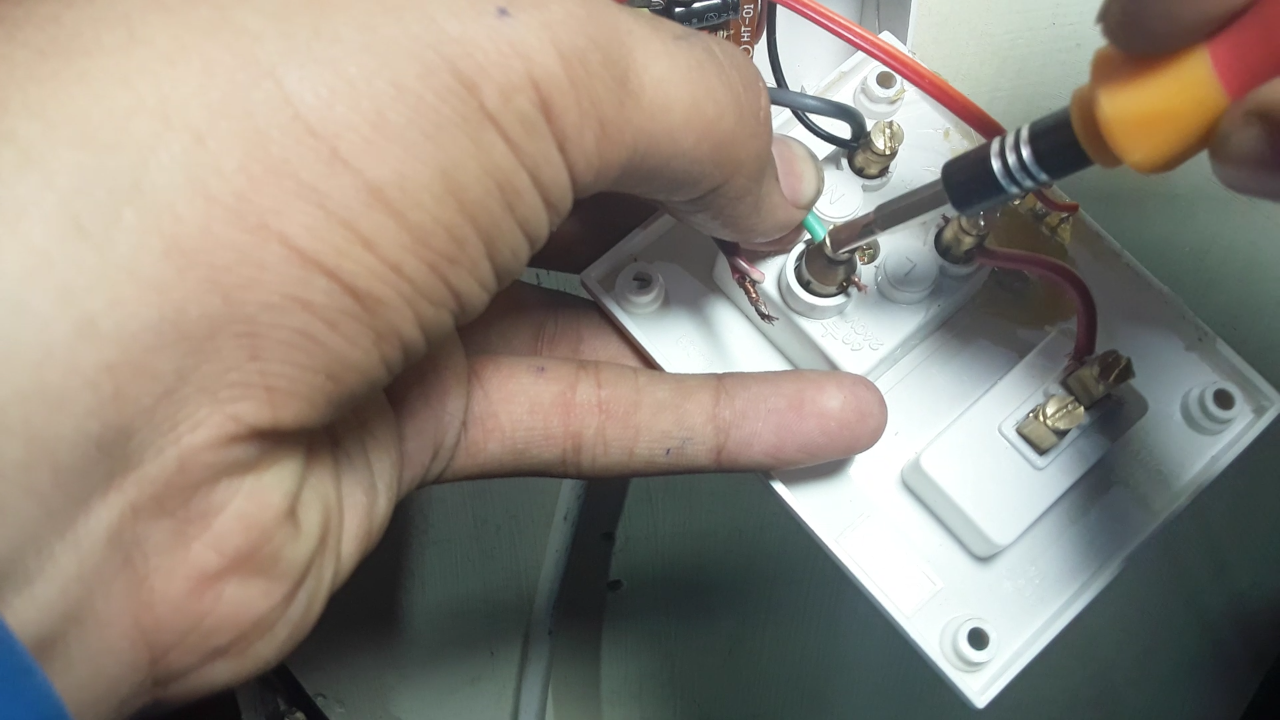

Now Twist The Live Wire From The Circuit with the Live of Ac outlet
& Twist the negative wire from the Circuit To Negative Of AC outlet!
Screw The Front Panel Back Into its place!

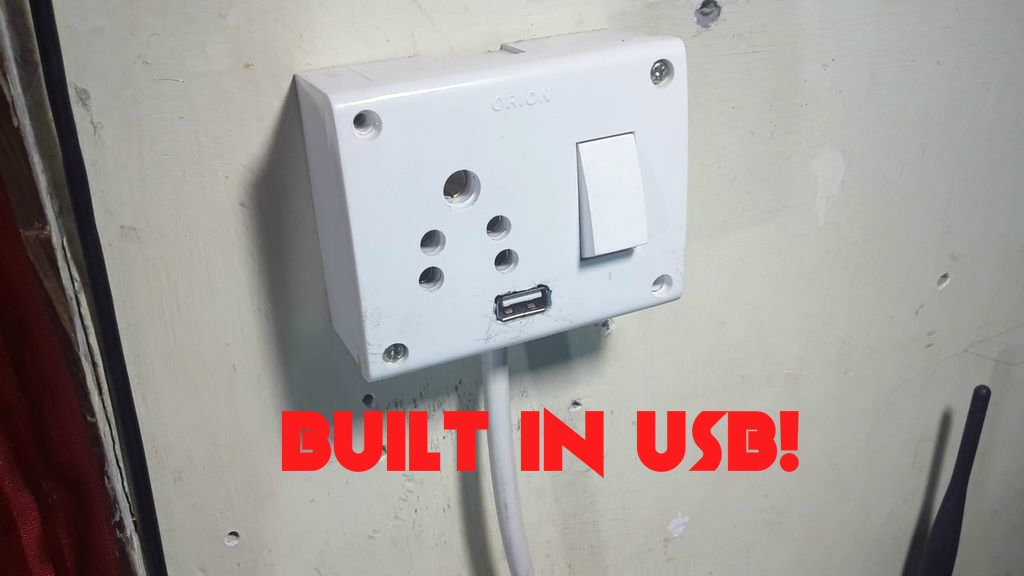

Now We Have Successfully hacked our AC outlet Into a AC outlet With Built In USB Charger!
