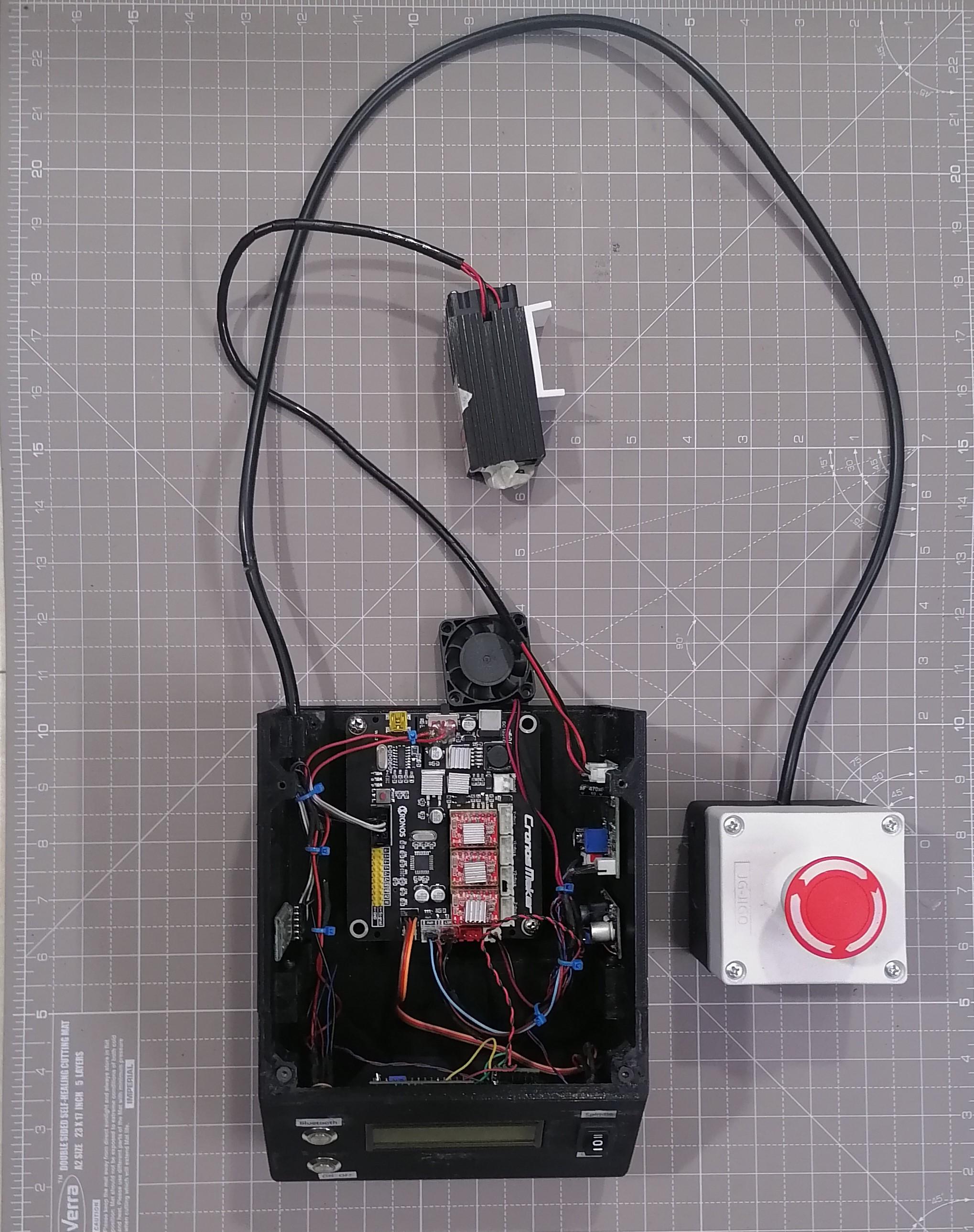

Upgrade CNC Control Box
![CNC Control Box Upgrade](/proxy/?url=https://content.instructables.com/F1L/ALVS/L330VHGL/F1LALVSL330VHGL.jpg&filename=CNC Control Box Upgrade)
![2465.jpg](/proxy/?url=https://content.instructables.com/FQ1/UB5G/L31SZLLY/FQ1UB5GL31SZLLY.jpg&filename=2465.jpg)
![IMG_20211230_115922.jpg](/proxy/?url=https://content.instructables.com/F8K/PBQM/L31SZN00/F8KPBQML31SZN00.jpg&filename=IMG_20211230_115922.jpg)
![CNC Control Box Upgrade](/proxy/?url=https://content.instructables.com/FYP/YWX2/L330VHMC/FYPYWX2L330VHMC.jpg&filename=CNC Control Box Upgrade)

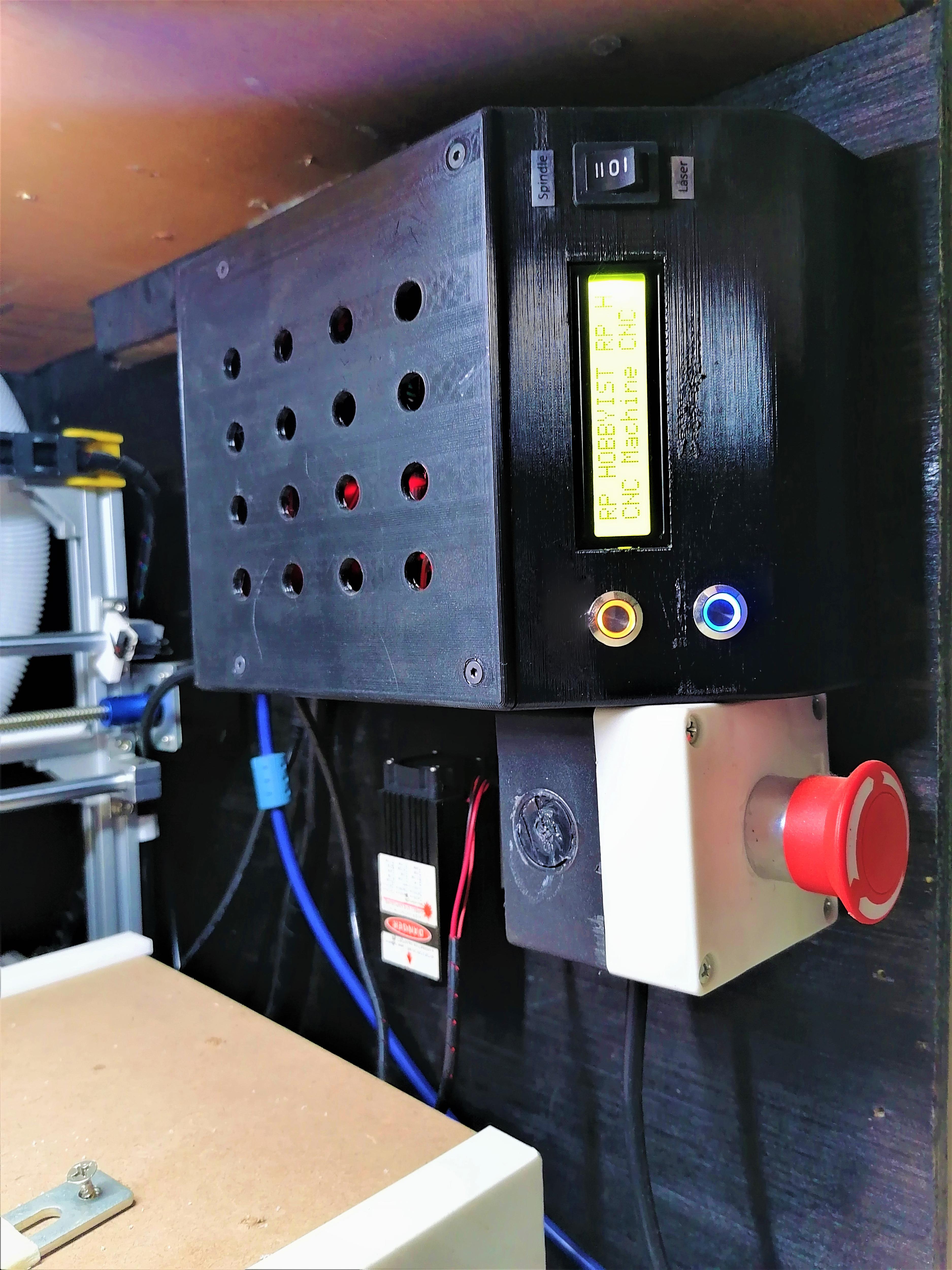

In this project, I am upgrading the CNC control Box with the new feature. As I use both Laser and Spindle so it makes hard to change function, that's why here I am adding DPDT Switch to change function from Spindle to Laser. There are two momentary switches the blue one is to turn ON/OFF the Machine and the Yellow one is to Turn ON/OFF. Also, the Laser control circuit was added to the Control Box with Cooling Fan. The LCD is for just showing the Text of my name.
This Control Box compatible with 3018 CNC or Similar CNC Machines.
All Designing and Animation is done in Fusion360.
"Hope you Enjoy to make this project"
Supplies
![IMG_20211226_121432.jpg](/proxy/?url=https://content.instructables.com/FAC/FKPC/L31T0DR3/FACFKPCL31T0DR3.jpg&filename=IMG_20211226_121432.jpg)
![IMG_20211230_115254.jpg](/proxy/?url=https://content.instructables.com/FWQ/RJMA/L31T0DR4/FWQRJMAL31T0DR4.jpg&filename=IMG_20211230_115254.jpg)
![24v fan.jpg](/proxy/?url=https://content.instructables.com/FFB/K8YS/L31T0DR6/FFBK8YSL31T0DR6.jpg&filename=24v fan.jpg)
![EasyMech-SS-304-STS-Self-Tapping-Philips-Head-Screws-11.jpg](/proxy/?url=https://content.instructables.com/FPD/FIMB/L338IYYW/FPDFIMBL338IYYW.jpg&filename=EasyMech-SS-304-STS-Self-Tapping-Philips-Head-Screws-11.jpg)
![Easymech-SS-304-CSK-Countersunk-Philips-Head-Bolt-8.jpg](/proxy/?url=https://content.instructables.com/F38/W00Z/L338IZ0M/F38W00ZL338IZ0M.jpg&filename=Easymech-SS-304-CSK-Countersunk-Philips-Head-Bolt-8.jpg)
![IMG_20210222_114431.jpg](/proxy/?url=https://content.instructables.com/F66/6R1W/L33AVSTY/F666R1WL33AVSTY.jpg&filename=IMG_20210222_114431.jpg)
- M3 x 10 - 4 pieces ( for Top Lid)
- M5 x 15 - 2 pieces ( for Back Lid)
- 3mm x 15mm - 2 pieces ( for fan)
- 40x40x10mm Fan 24v/12v - 1 pieces

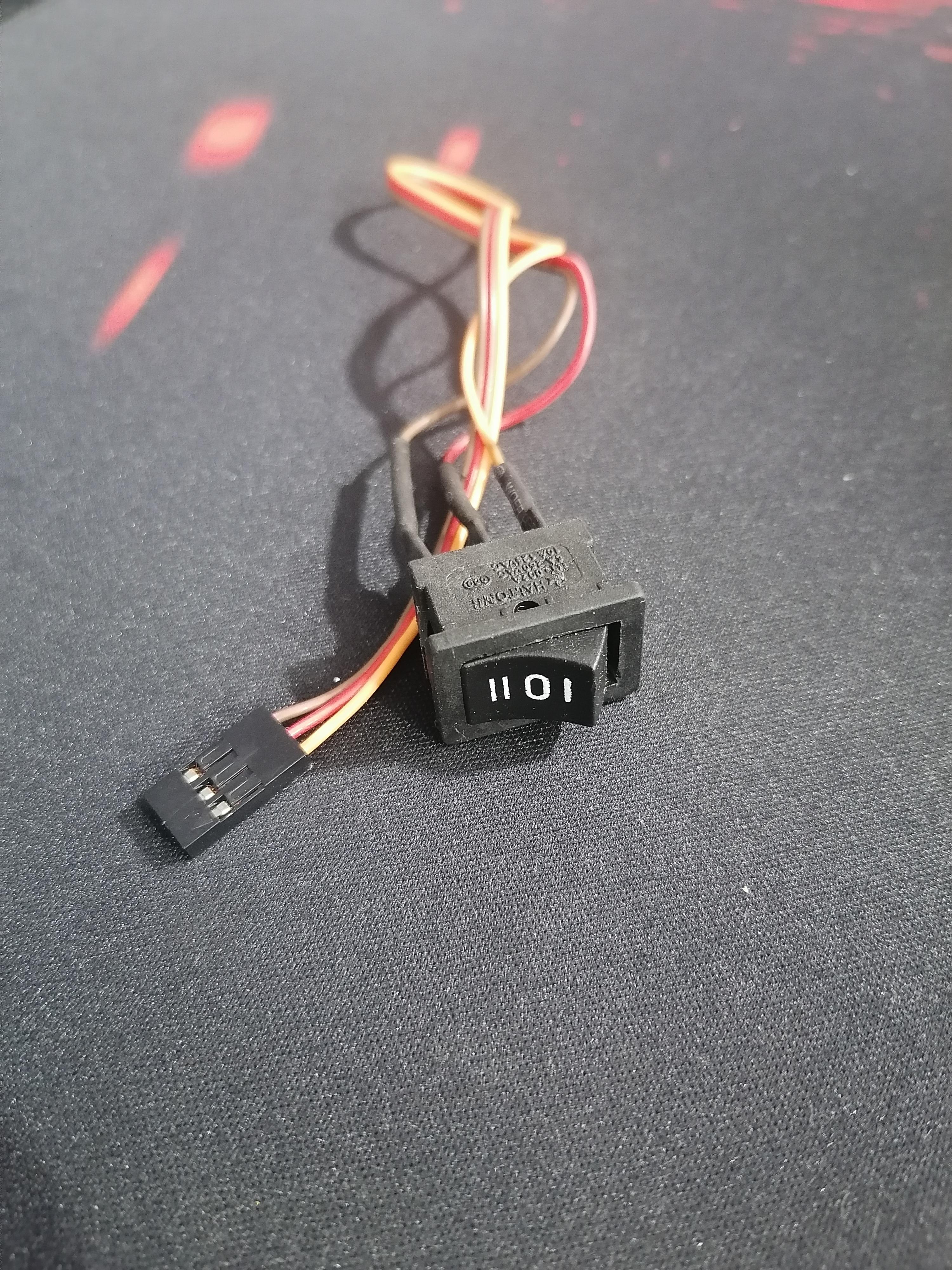

- SPDT Switch - 1 pieces
- Momentary Switch - 2 pieces
- Emergency Stop Button - 1 pieces
- Hot Glue-Gun
- Wires
- Zip-Tie 100mm - 20 pieces
- LCD (optional)

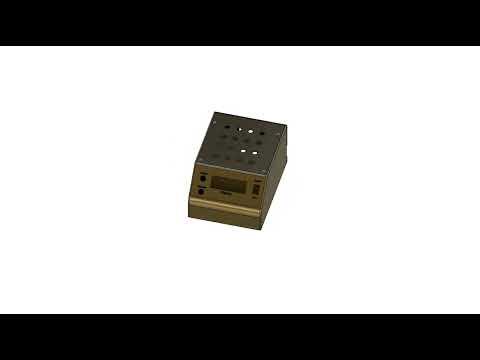

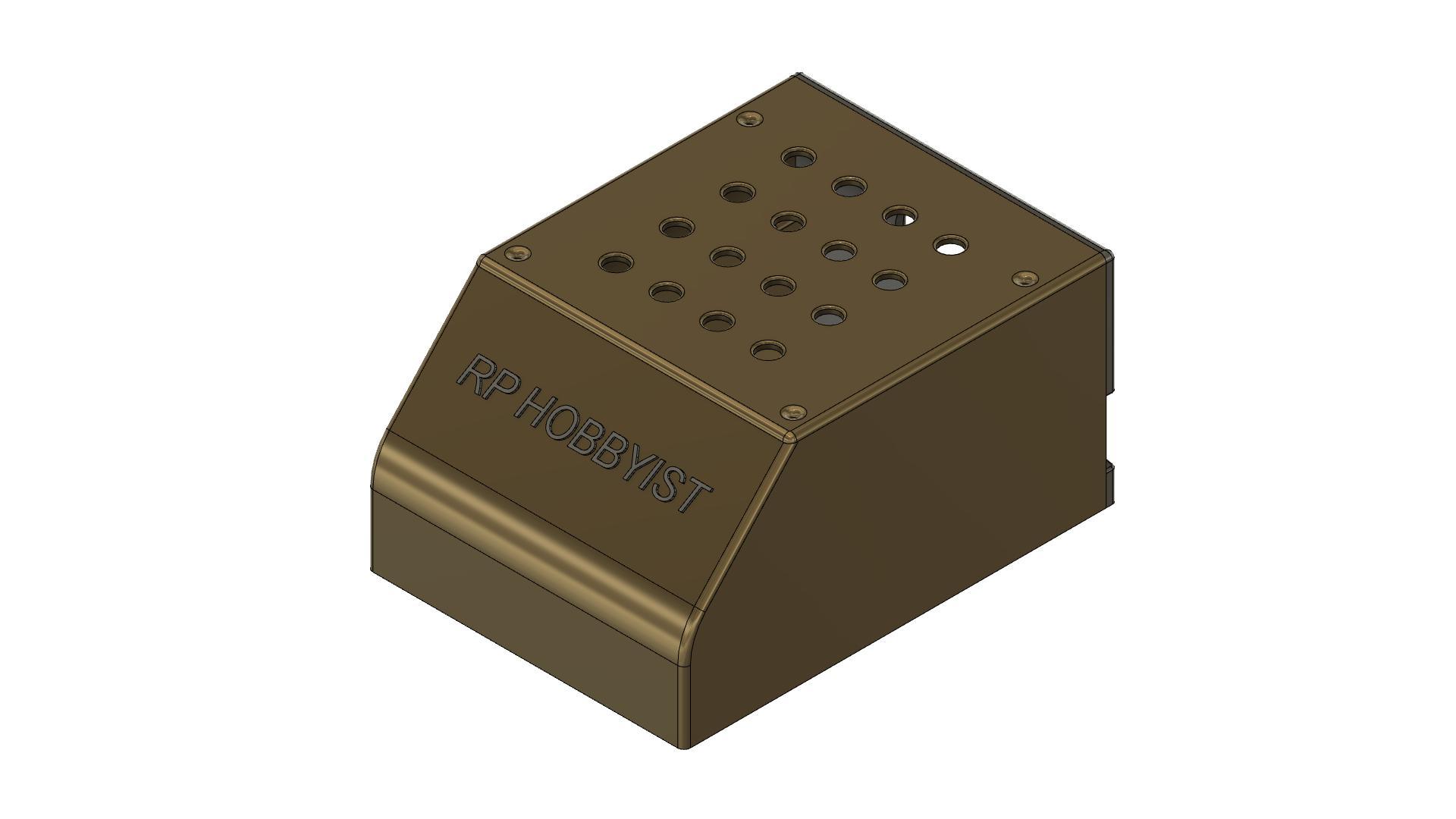

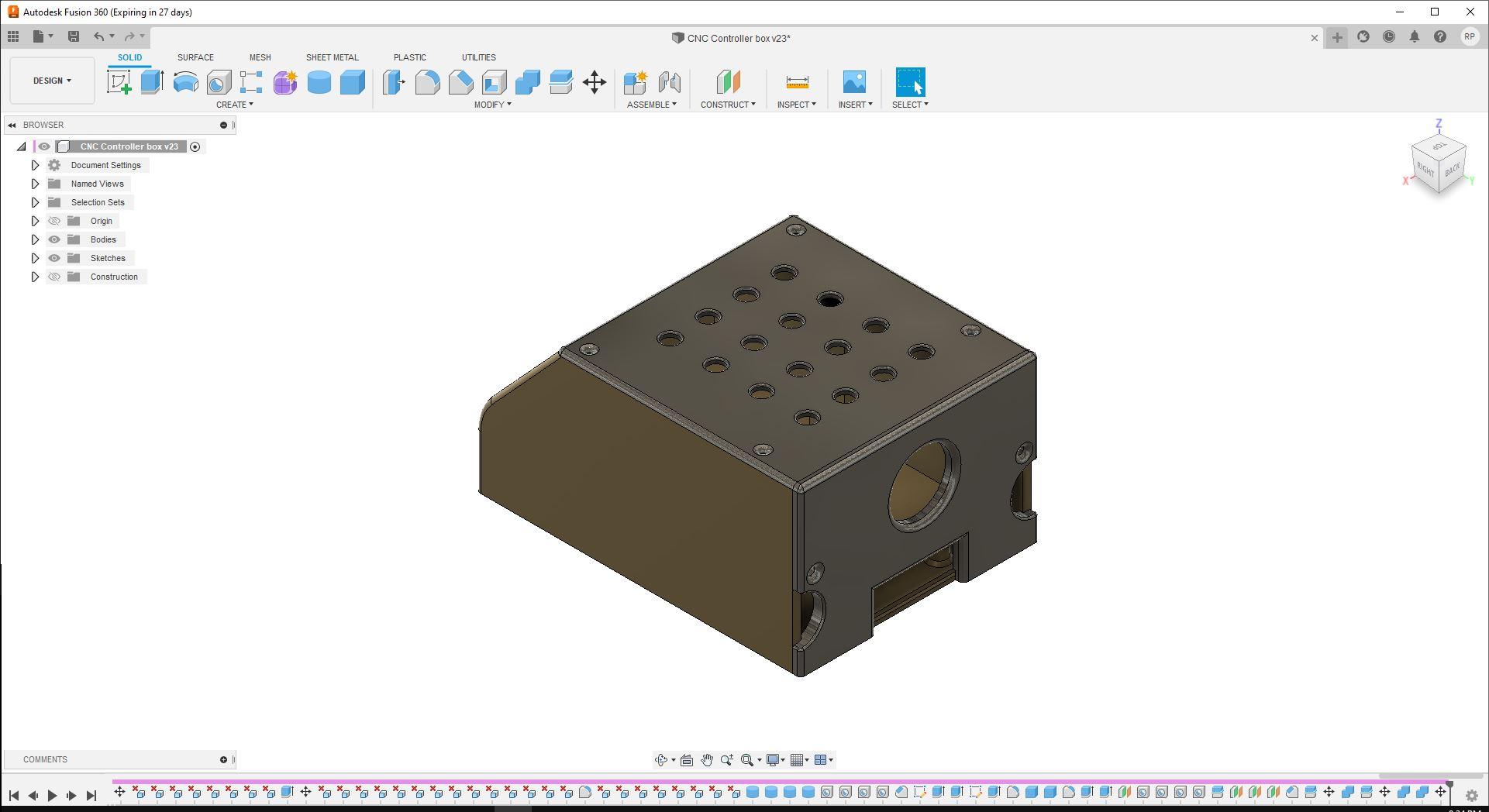

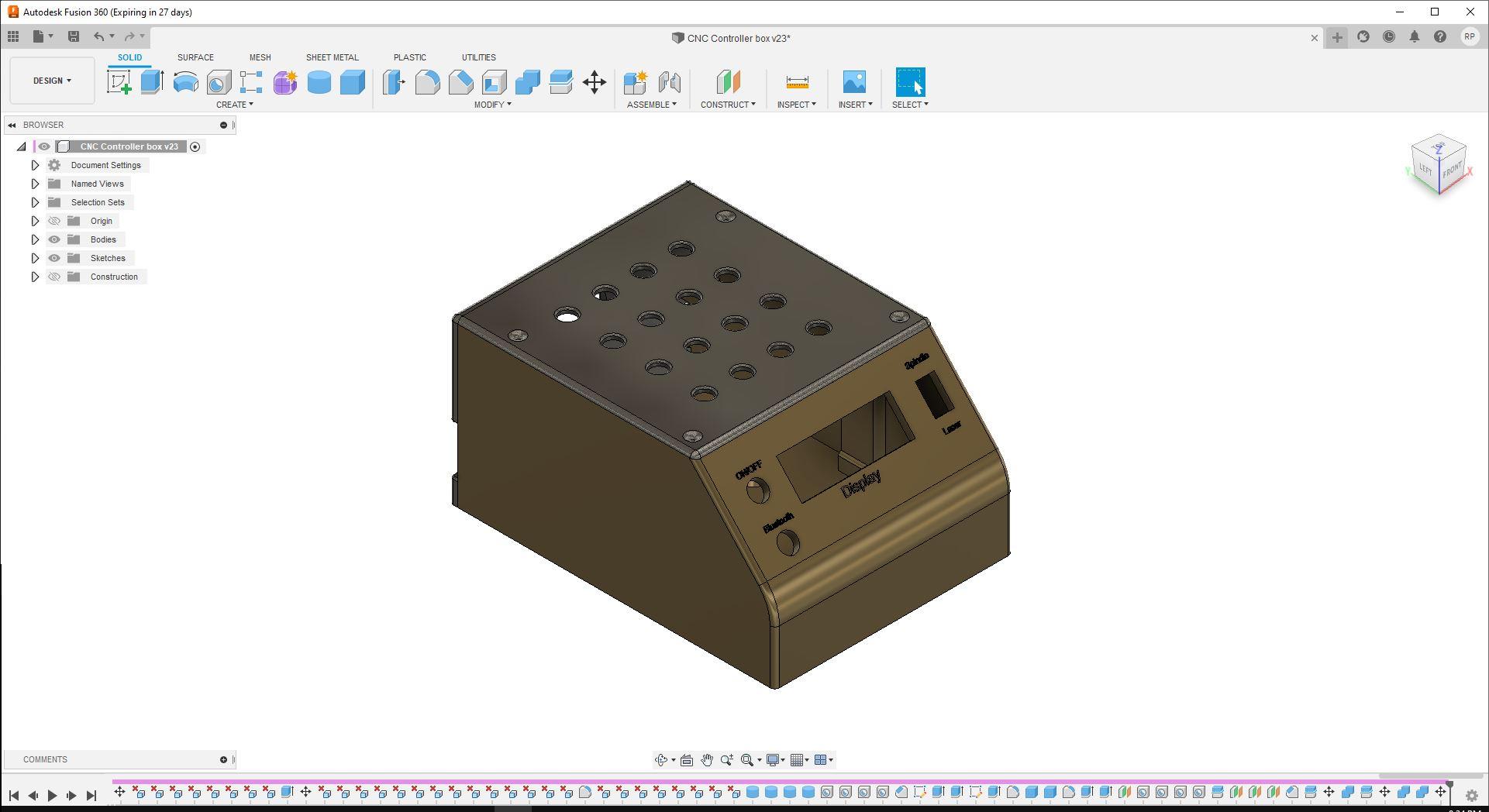

Design in Fusion360
![Capture.PNG](/proxy/?url=https://content.instructables.com/F1R/PX26/L31T0DTN/F1RPX26L31T0DTN.png&filename=Capture.PNG)

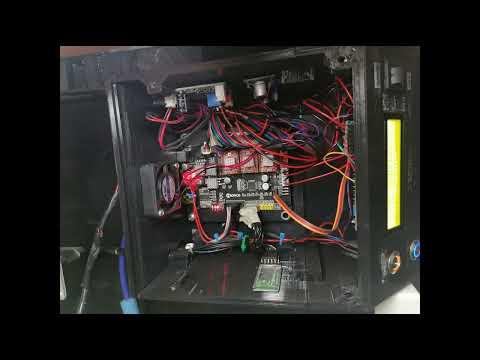

![CNC Control Box Upgrade | Animation in Fusion360](/proxy/?url=https://content.instructables.com/F1K/TZKH/L31SZN3Q/F1KTZKHL31SZN3Q.jpg&filename=CNC Control Box Upgrade | Animation in Fusion360)
![CNC Control Box Upgrade | Design in Fusion360](/proxy/?url=https://content.instructables.com/F8I/J2O6/L31SZN6A/F8IJ2O6L31SZN6A.jpg&filename=CNC Control Box Upgrade | Design in Fusion360)
![5.JPG](/proxy/?url=https://content.instructables.com/F7D/EH85/L31T0DTK/F7DEH85L31T0DTK.jpg&filename=5.JPG)
![6.JPG](/proxy/?url=https://content.instructables.com/FZN/CB4A/L31T0DTL/FZNCB4AL31T0DTL.jpg&filename=6.JPG)
![7.JPG](/proxy/?url=https://content.instructables.com/FMZ/2UTN/L31T0DTM/FMZ2UTNL31T0DTM.jpg&filename=7.JPG)
![1.JPG](/proxy/?url=https://content.instructables.com/FO3/FGHI/L31T0DTO/FO3FGHIL31T0DTO.jpg&filename=1.JPG)
![2.JPG](/proxy/?url=https://content.instructables.com/FB6/6BE4/L31T0DTP/FB66BE4L31T0DTP.jpg&filename=2.JPG)
![3.JPG](/proxy/?url=https://content.instructables.com/FUS/8YJF/L31T0DTQ/FUS8YJFL31T0DTQ.jpg&filename=3.JPG)
Note: If you want to make same as this then download these STL Files otherwise Not.
Download STL File Without Front Holes
![Without front holes.jpg](/proxy/?url=https://content.instructables.com/FLD/BA1B/L31SZO65/FLDBA1BL31SZO65.jpg&filename=Without front holes.jpg)
Note: Download these STL file if don't need Front holes in Control Box.
3D Print the Parts
![IMG_20211226_112513.jpg](/proxy/?url=https://content.instructables.com/FX2/OSBW/L31SZN7T/FX2OSBWL31SZN7T.jpg&filename=IMG_20211226_112513.jpg)
![IMG_20211226_112521.jpg](/proxy/?url=https://content.instructables.com/FX6/V5OZ/L31SZN83/FX6V5OZL31SZN83.jpg&filename=IMG_20211226_112521.jpg)
![IMG_20211226_111109.jpg](/proxy/?url=https://content.instructables.com/FSO/0H88/L31SZN84/FSO0H88L31SZN84.jpg&filename=IMG_20211226_111109.jpg)
![IMG_20211226_111118.jpg](/proxy/?url=https://content.instructables.com/FGL/KJG4/L31SZN85/FGLKJG4L31SZN85.jpg&filename=IMG_20211226_111118.jpg)
![IMG_20211226_111158.jpg](/proxy/?url=https://content.instructables.com/F64/NDKM/L31SZN86/F64NDKML31SZN86.jpg&filename=IMG_20211226_111158.jpg)
![IMG_20211226_111214.jpg](/proxy/?url=https://content.instructables.com/FXK/7SUQ/L31SZN87/FXK7SUQL31SZN87.jpg&filename=IMG_20211226_111214.jpg)
![IMG_20211226_111233.jpg](/proxy/?url=https://content.instructables.com/FGW/IK1Q/L31SZN88/FGWIK1QL31SZN88.jpg&filename=IMG_20211226_111233.jpg)
![IMG_20211226_111251.jpg](/proxy/?url=https://content.instructables.com/F29/6I5U/L31SZN8C/F296I5UL31SZN8C.jpg&filename=IMG_20211226_111251.jpg)
These parts are Old version Design. Provided above are latest version of Design.
New Design include only 3 Parts.

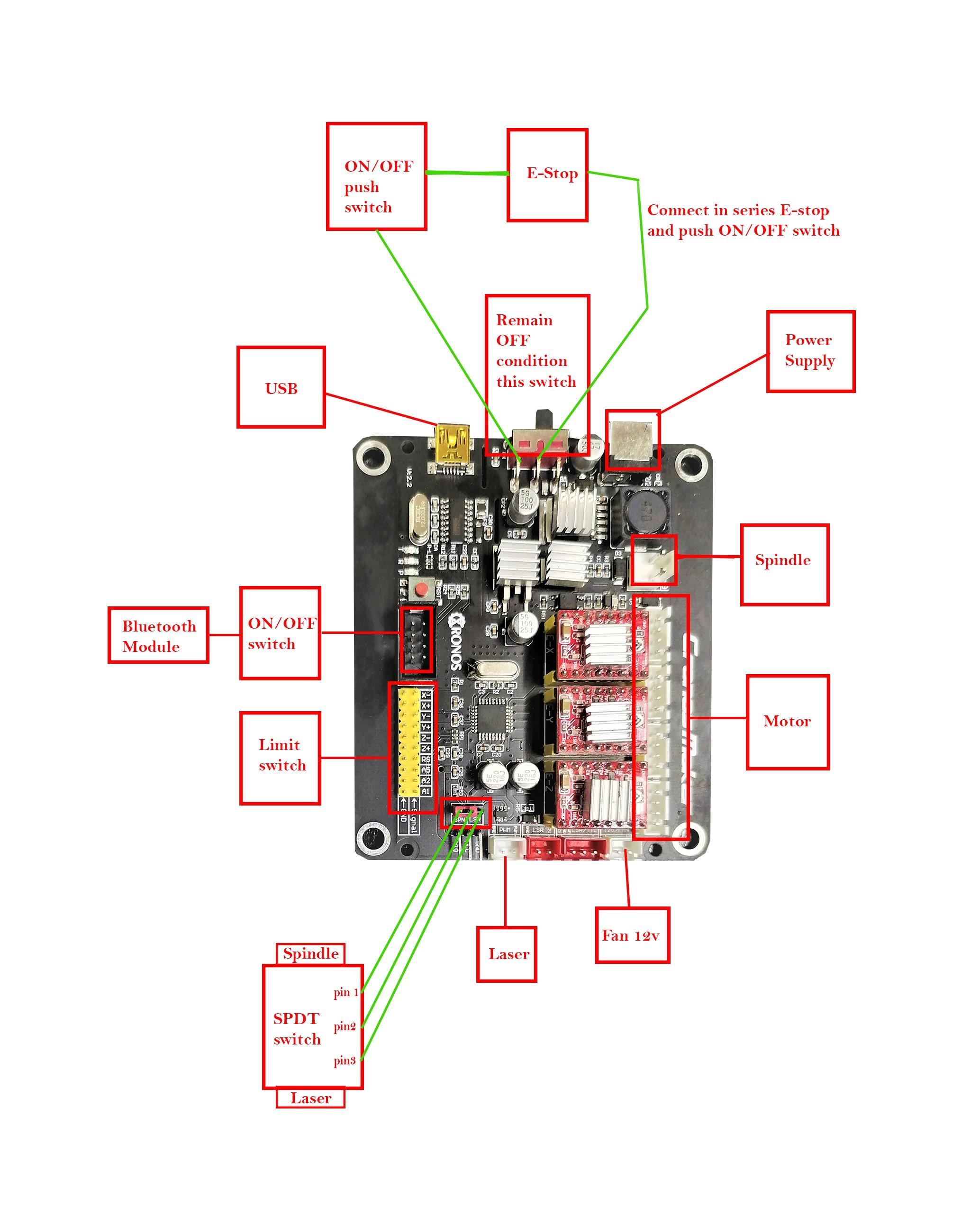

Wiring Connection Diagram
![CNC Control Box Wiring Diagram.jpg](/proxy/?url=https://content.instructables.com/FL6/CL8K/L3LLLCF1/FL6CL8KL3LLLCF1.jpg&filename=CNC Control Box Wiring Diagram.jpg)

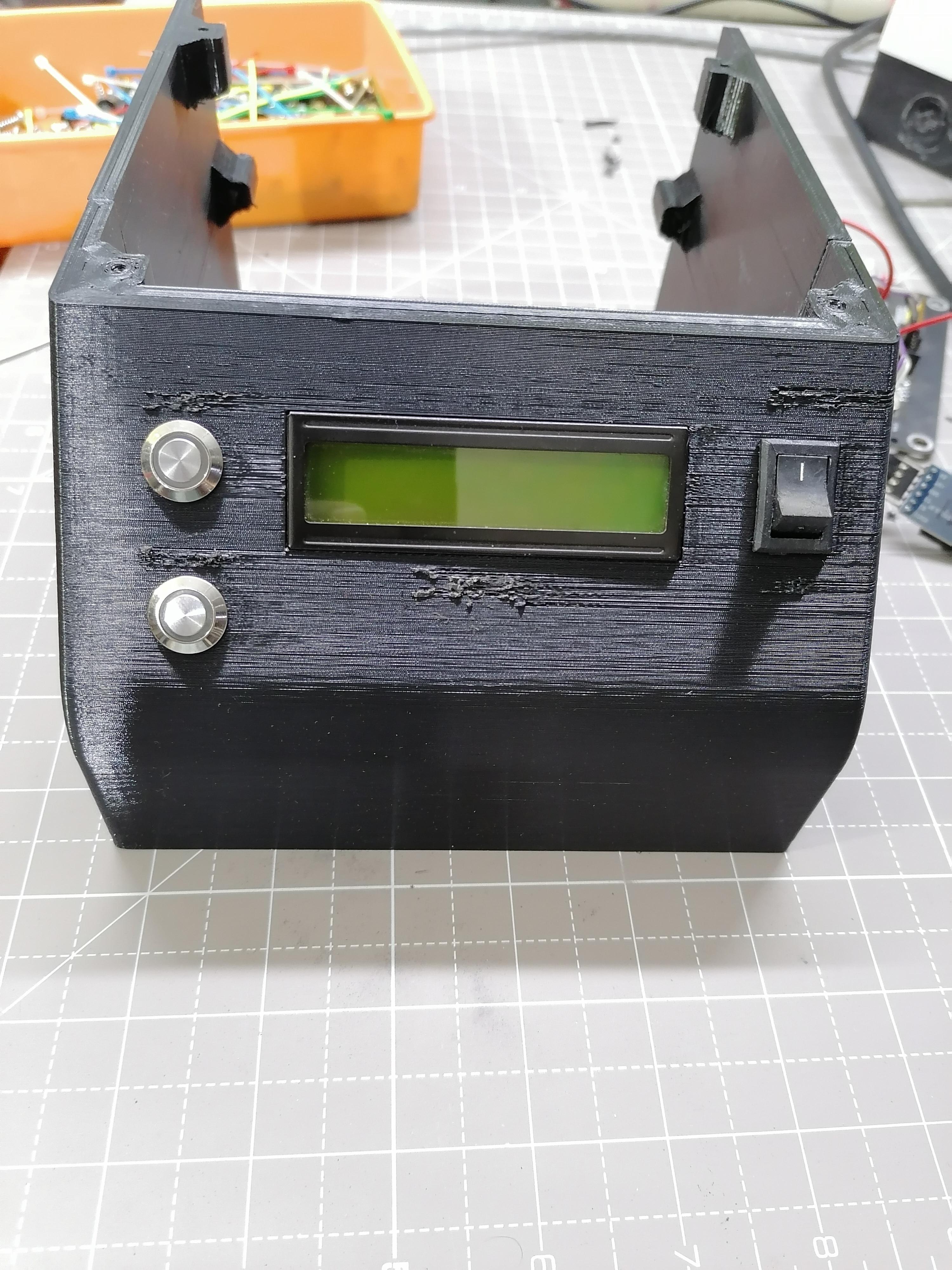

Insert the SPDT Switch, Momentary Switch and LCD
![IMG_20211226_114108.jpg](/proxy/?url=https://content.instructables.com/FXG/YLJX/L33AVU19/FXGYLJXL33AVU19.jpg&filename=IMG_20211226_114108.jpg)
![IMG_20211226_121432.jpg](/proxy/?url=https://content.instructables.com/FPP/O95O/L33AVU1A/FPPO95OL33AVU1A.jpg&filename=IMG_20211226_121432.jpg)
![IMG_20211230_115254.jpg](/proxy/?url=https://content.instructables.com/F29/CLEN/L33AVU1H/F29CLENL33AVU1H.jpg&filename=IMG_20211230_115254.jpg)
![IMG_20211226_114030.jpg](/proxy/?url=https://content.instructables.com/FEH/8561/L33AVU17/FEH8561L33AVU17.jpg&filename=IMG_20211226_114030.jpg)
![IMG_20211226_114024.jpg](/proxy/?url=https://content.instructables.com/FTI/1BBY/L33AVU1L/FTI1BBYL33AVU1L.jpg&filename=IMG_20211226_114024.jpg)
Note: LCD part is option if you want LCD then you can use otherwise not. Also You can use single momentary switch if you are not using the Bluetooth module.
Note: DPDT Switch is used for change function From CNC to Laser or visa versa.
This LCD Is Optional
![IMG_20211230_120007.jpg](/proxy/?url=https://content.instructables.com/FIQ/92SB/L34GAFG9/FIQ92SBL34GAFG9.jpg&filename=IMG_20211230_120007.jpg)
![IMG_20211230_125426.jpg](/proxy/?url=https://content.instructables.com/FB8/OKJ6/L34GAFHG/FB8OKJ6L34GAFHG.jpg&filename=IMG_20211230_125426.jpg)
Do Comment below if you need more info about this.
Wiring of SPDT Switch to CNC Mainboard
![IMG_20211230_115254.jpg](/proxy/?url=https://content.instructables.com/FO7/ELMX/L34GAEE4/FO7ELMXL34GAEE4.jpg&filename=IMG_20211230_115254.jpg)
![IMG_20211230_124057 (2).jpg](/proxy/?url=https://content.instructables.com/FQX/CZEM/L34GAENK/FQXCZEML34GAENK.jpg&filename=IMG_20211230_124057 (2).jpg)

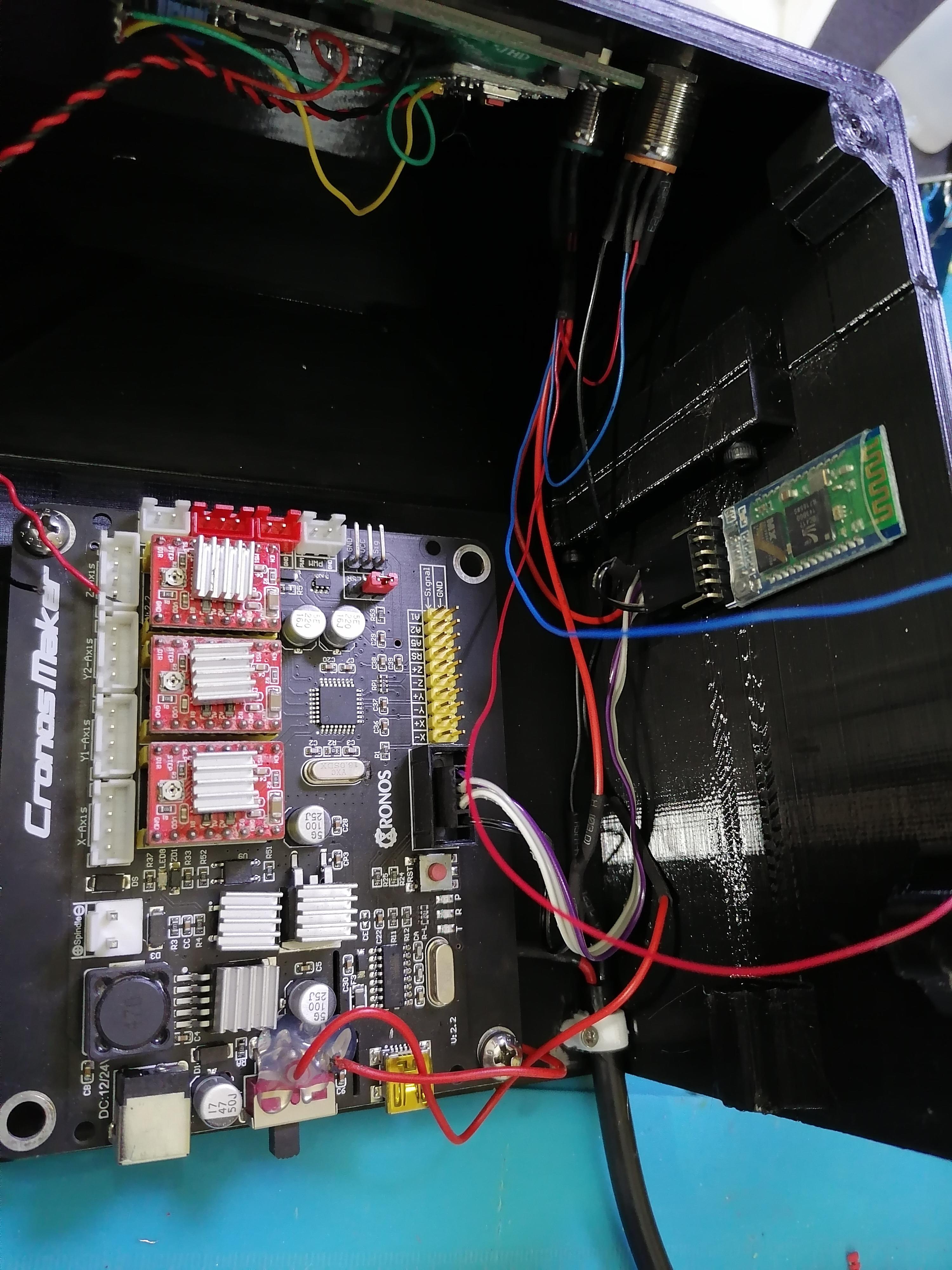

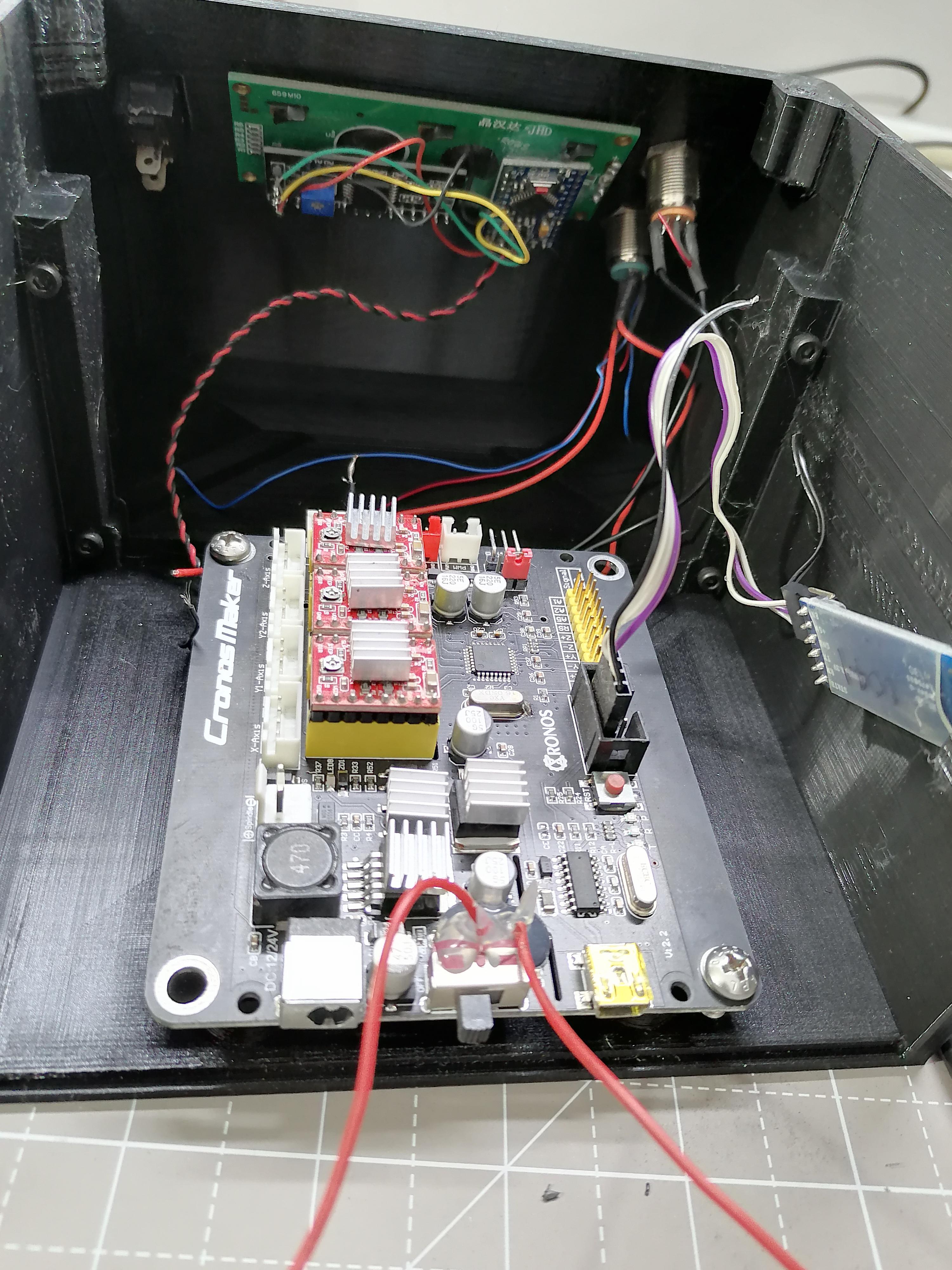

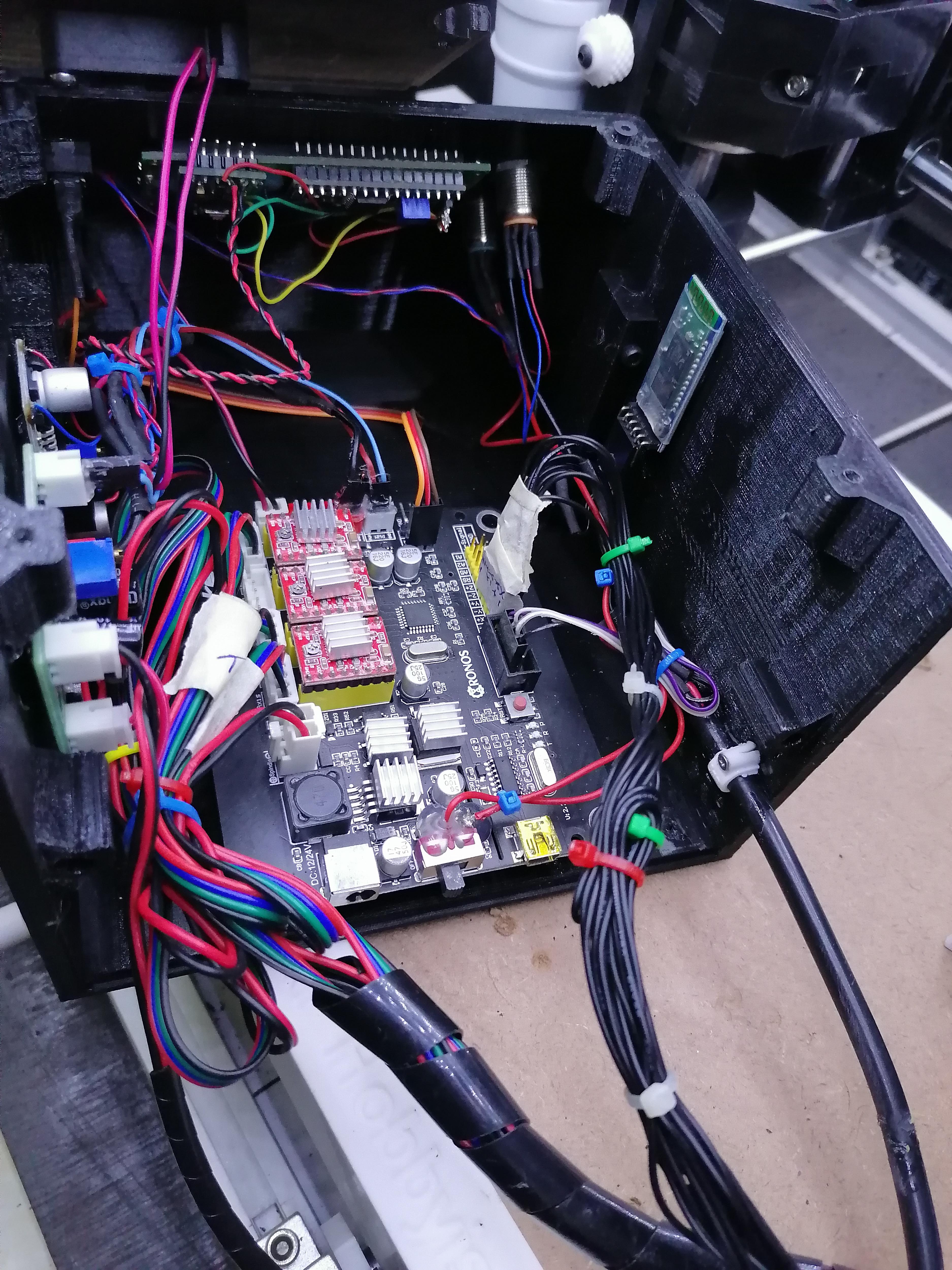

Attach the CNC Mainboard and Do Wire Harness
![IMG_20211226_114737.jpg](/proxy/?url=https://content.instructables.com/F3U/NTEB/L34GA4OM/F3UNTEBL34GA4OM.jpg&filename=IMG_20211226_114737.jpg)
![IMG_20211226_122402.jpg](/proxy/?url=https://content.instructables.com/FLV/9GXR/L34GA4ON/FLV9GXRL34GA4ON.jpg&filename=IMG_20211226_122402.jpg)
![IMG_20211226_122406.jpg](/proxy/?url=https://content.instructables.com/F9W/GUTV/L34GA4Q1/F9WGUTVL34GA4Q1.jpg&filename=IMG_20211226_122406.jpg)
Do Wringing harness according what components you are using. here I am also use Bluetooth module which you can see in image. If you want add the Bluetooth feature in CNC then let me know in comment I will provide information related to it .
Attaching the Laser Circuit
![IMG_20211226_200759.jpg](/proxy/?url=https://content.instructables.com/FL8/8QT4/L34GA78P/FL88QT4L34GA78P.jpg&filename=IMG_20211226_200759.jpg)
![IMG_20211226_200821.jpg](/proxy/?url=https://content.instructables.com/FEE/O91K/L34GA7A4/FEEO91KL34GA7A4.jpg&filename=IMG_20211226_200821.jpg)
![IMG_20211226_200759.jpg](/proxy/?url=https://content.instructables.com/FTP/UUFU/L34GA7BJ/FTPUUFUL34GA7BJ.jpg&filename=IMG_20211226_200759.jpg)

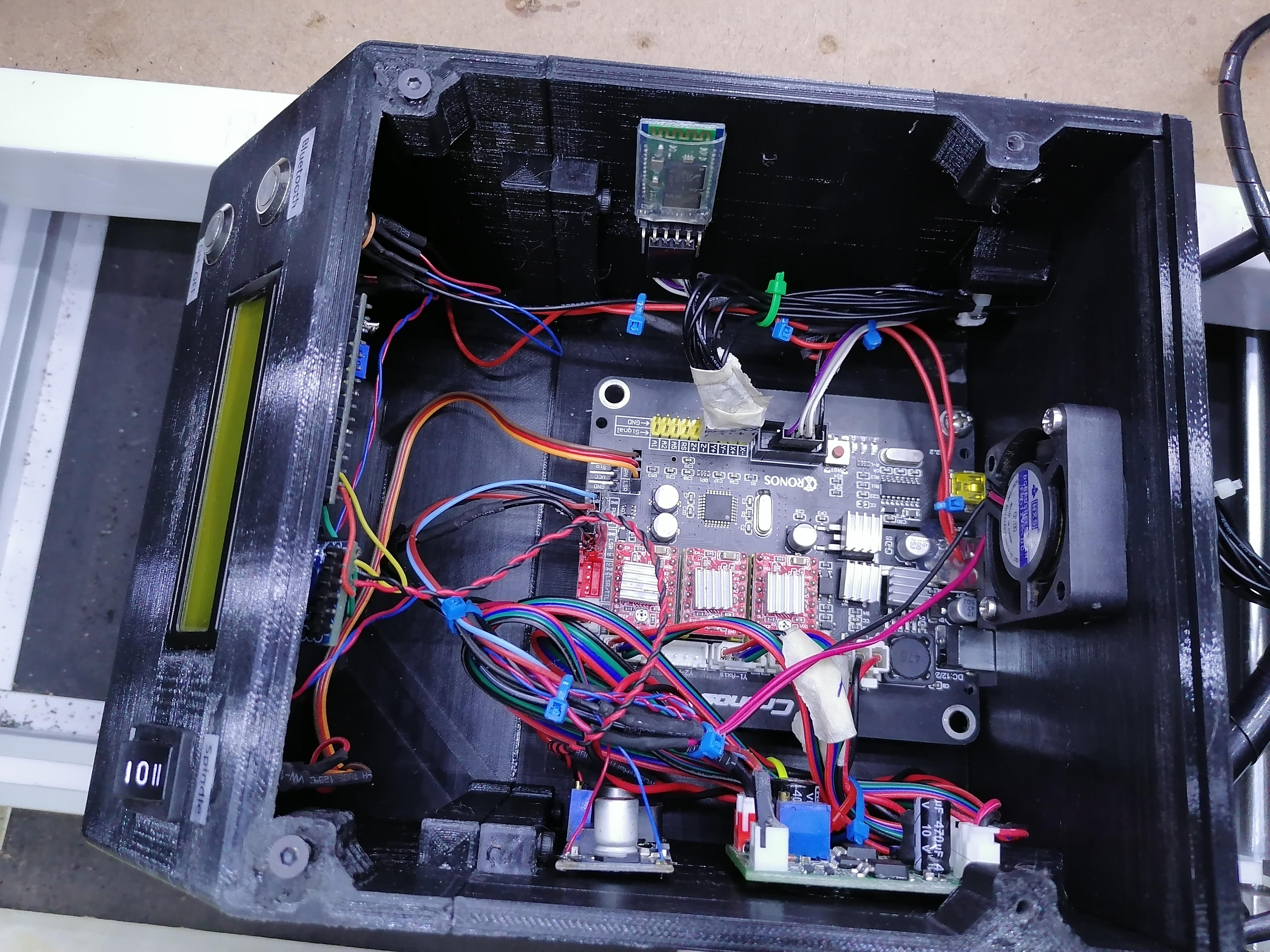

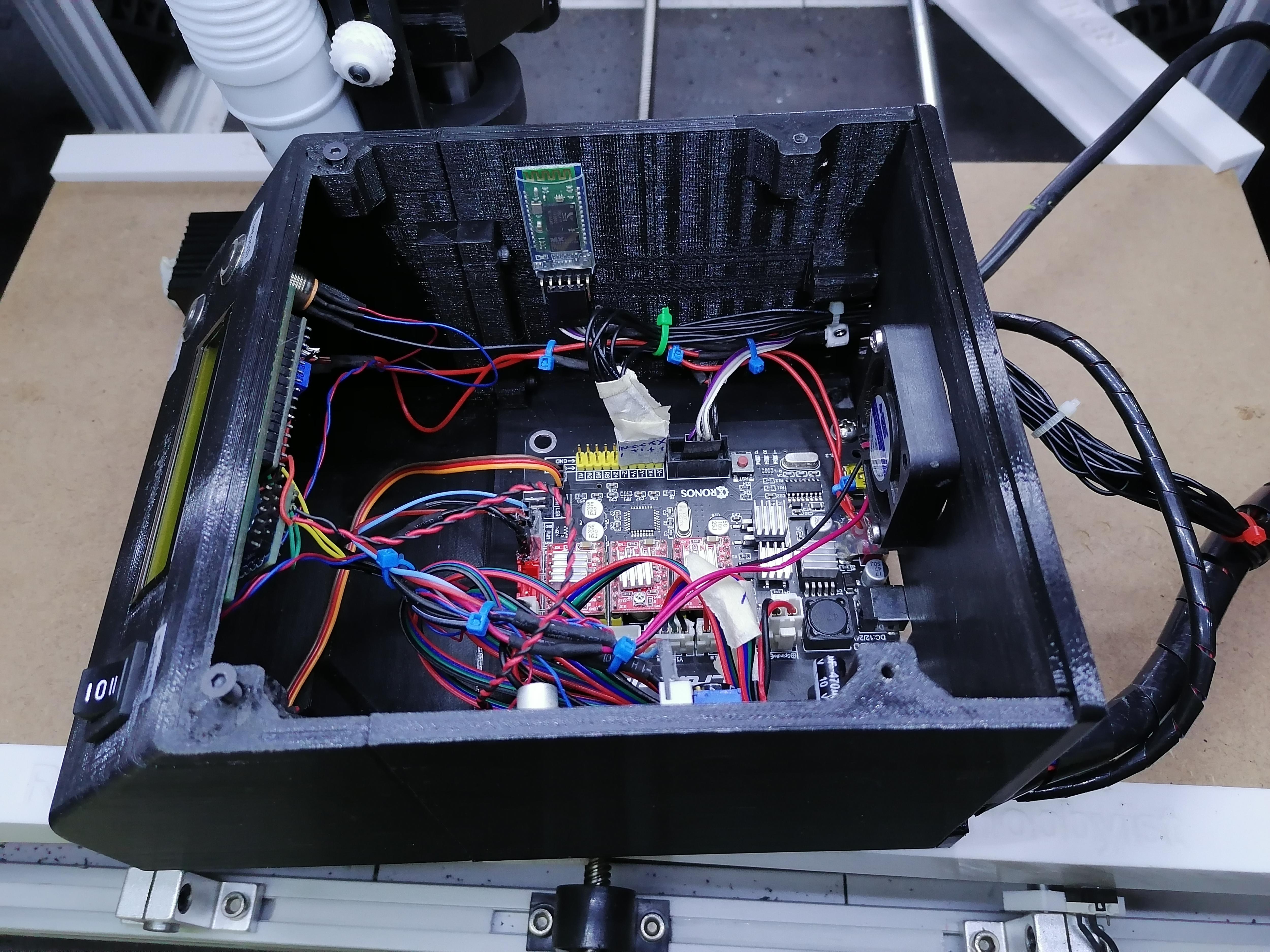

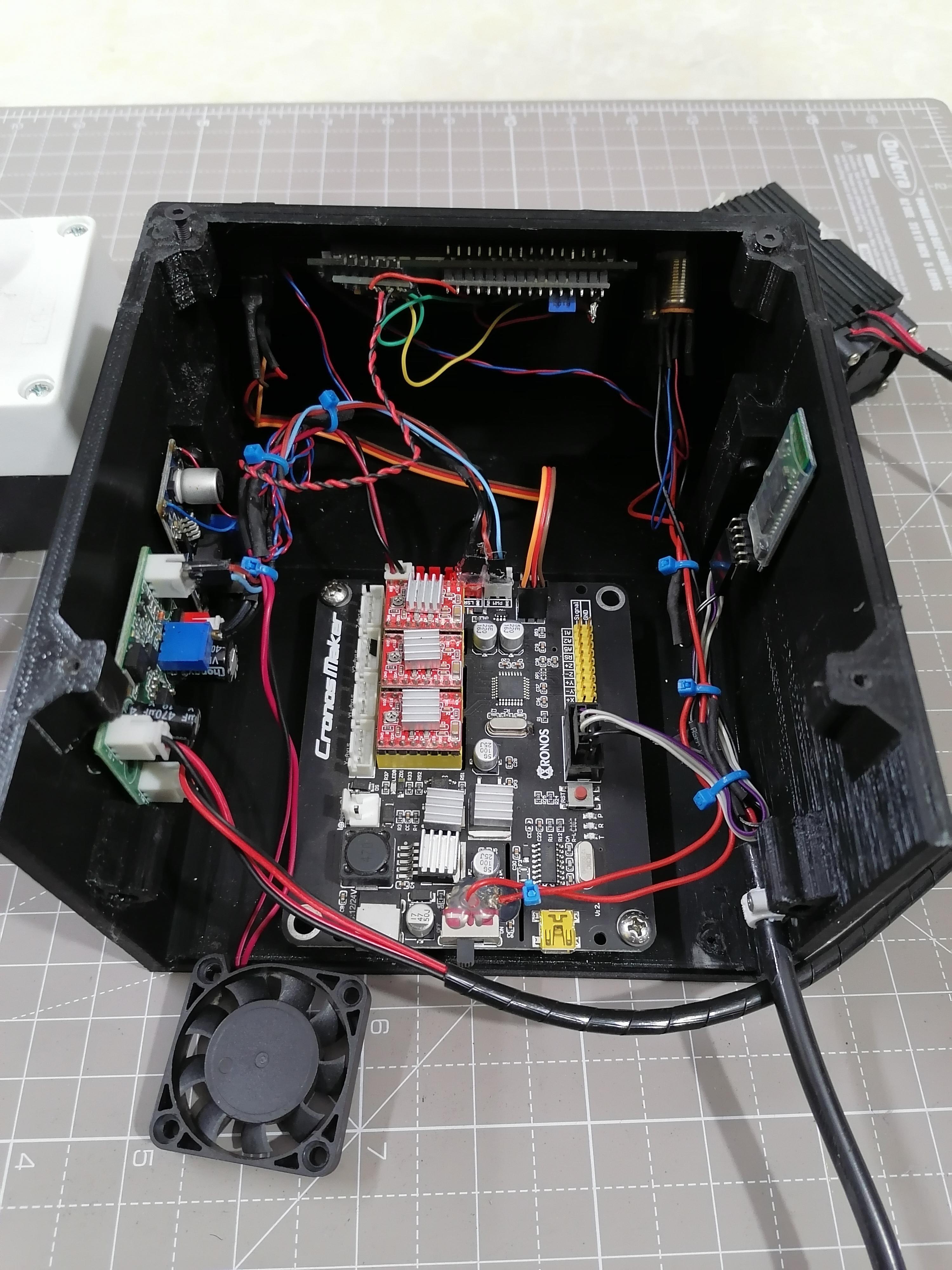

Complete the Wire Harness
![IMG_20211230_115922.jpg](/proxy/?url=https://content.instructables.com/F4T/8T6M/L34GA7OE/F4T8T6ML34GA7OE.jpg&filename=IMG_20211230_115922.jpg)
![IMG_20211230_115947.jpg](/proxy/?url=https://content.instructables.com/FL4/R72N/L34GA7OF/FL4R72NL34GA7OF.jpg&filename=IMG_20211230_115947.jpg)
![IMG_20211230_115957.jpg](/proxy/?url=https://content.instructables.com/FR4/I8TY/L34GA7OD/FR4I8TYL34GA7OD.jpg&filename=IMG_20211230_115957.jpg)
![IMG_20211230_120032.jpg](/proxy/?url=https://content.instructables.com/F4N/T2BS/L34GA9C8/F4NT2BSL34GA9C8.jpg&filename=IMG_20211230_120032.jpg)
![IMG_20211230_120037.jpg](/proxy/?url=https://content.instructables.com/FPA/SMOA/L34GA9F1/FPASMOAL34GA9F1.jpg&filename=IMG_20211230_120037.jpg)
Note: Close Back and Top Lid if you don't want mount on something.
Note: Don't Close Back and Top Lid until you mount on surface.
Wiring the Motors and Other Cables to the CNC Mainboard
![IMG_20211230_122755.jpg](/proxy/?url=https://content.instructables.com/FS2/CHU5/L34GA9H7/FS2CHU5L34GA9H7.jpg&filename=IMG_20211230_122755.jpg)
![IMG_20211230_120749.jpg](/proxy/?url=https://content.instructables.com/FIW/84EP/L34GA9HH/FIW84EPL34GA9HH.jpg&filename=IMG_20211230_120749.jpg)
![IMG_20211230_120911.jpg](/proxy/?url=https://content.instructables.com/FE3/ZDK1/L34GA9HI/FE3ZDK1L34GA9HI.jpg&filename=IMG_20211230_120911.jpg)
![IMG_20211230_120940.jpg](/proxy/?url=https://content.instructables.com/FN7/0V90/L34GA9GW/FN70V90L34GA9GW.jpg&filename=IMG_20211230_120940.jpg)
![IMG_20211230_121223.jpg](/proxy/?url=https://content.instructables.com/F2Y/FXFE/L34GA9GX/F2YFXFEL34GA9GX.jpg&filename=IMG_20211230_121223.jpg)
![IMG_20211230_120929.jpg](/proxy/?url=https://content.instructables.com/FA0/JV9A/L34GA9HJ/FA0JV9AL34GA9HJ.jpg&filename=IMG_20211230_120929.jpg)

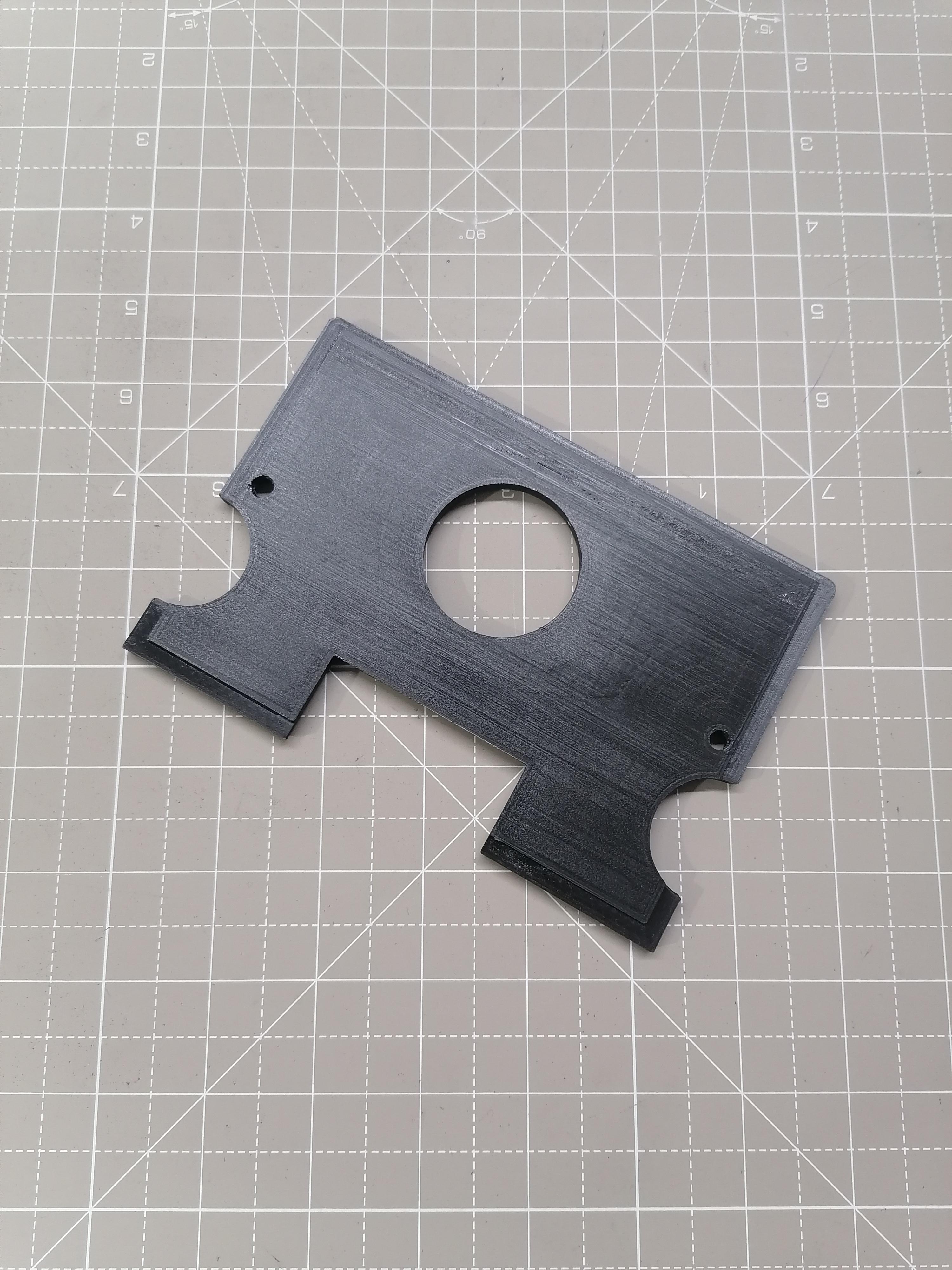

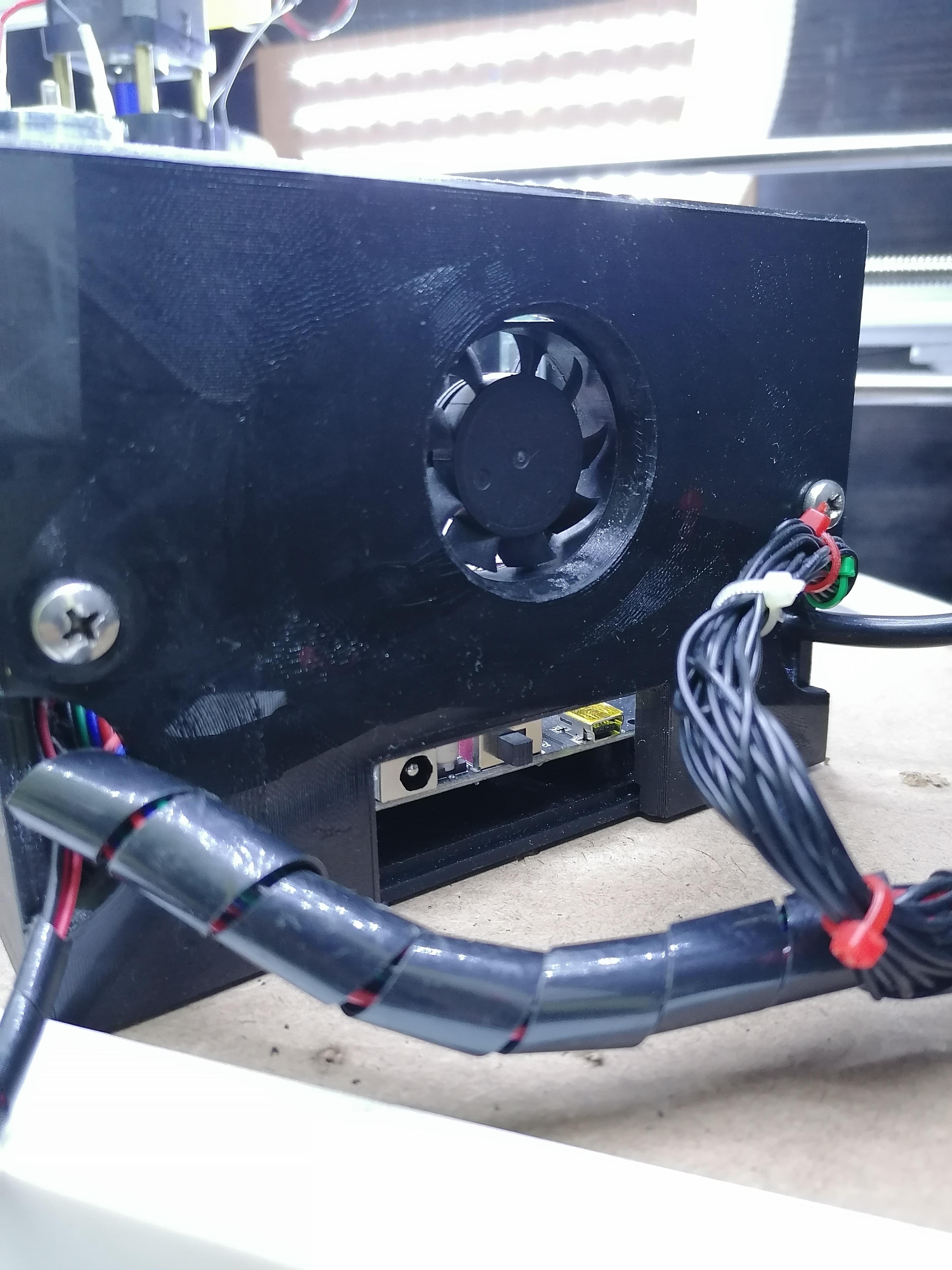

Attach Fan to Back Lid With Screw or Glue
![IMG_20211226_113058.jpg](/proxy/?url=https://content.instructables.com/FWQ/GNVT/L33AVTMA/FWQGNVTL33AVTMA.jpg&filename=IMG_20211226_113058.jpg)
![IMG_20211226_111118.jpg](/proxy/?url=https://content.instructables.com/FUA/ZAHT/L33AVTM9/FUAZAHTL33AVTM9.jpg&filename=IMG_20211226_111118.jpg)
![EasyMech-SS-304-STS-Self-Tapping-Philips-Head-Screws-11.jpg](/proxy/?url=https://content.instructables.com/FON/ZJM8/L33AVTMB/FONZJM8L33AVTMB.jpg&filename=EasyMech-SS-304-STS-Self-Tapping-Philips-Head-Screws-11.jpg)
Make sure the wire length is enough to reach at power pin on CNC Circuit.

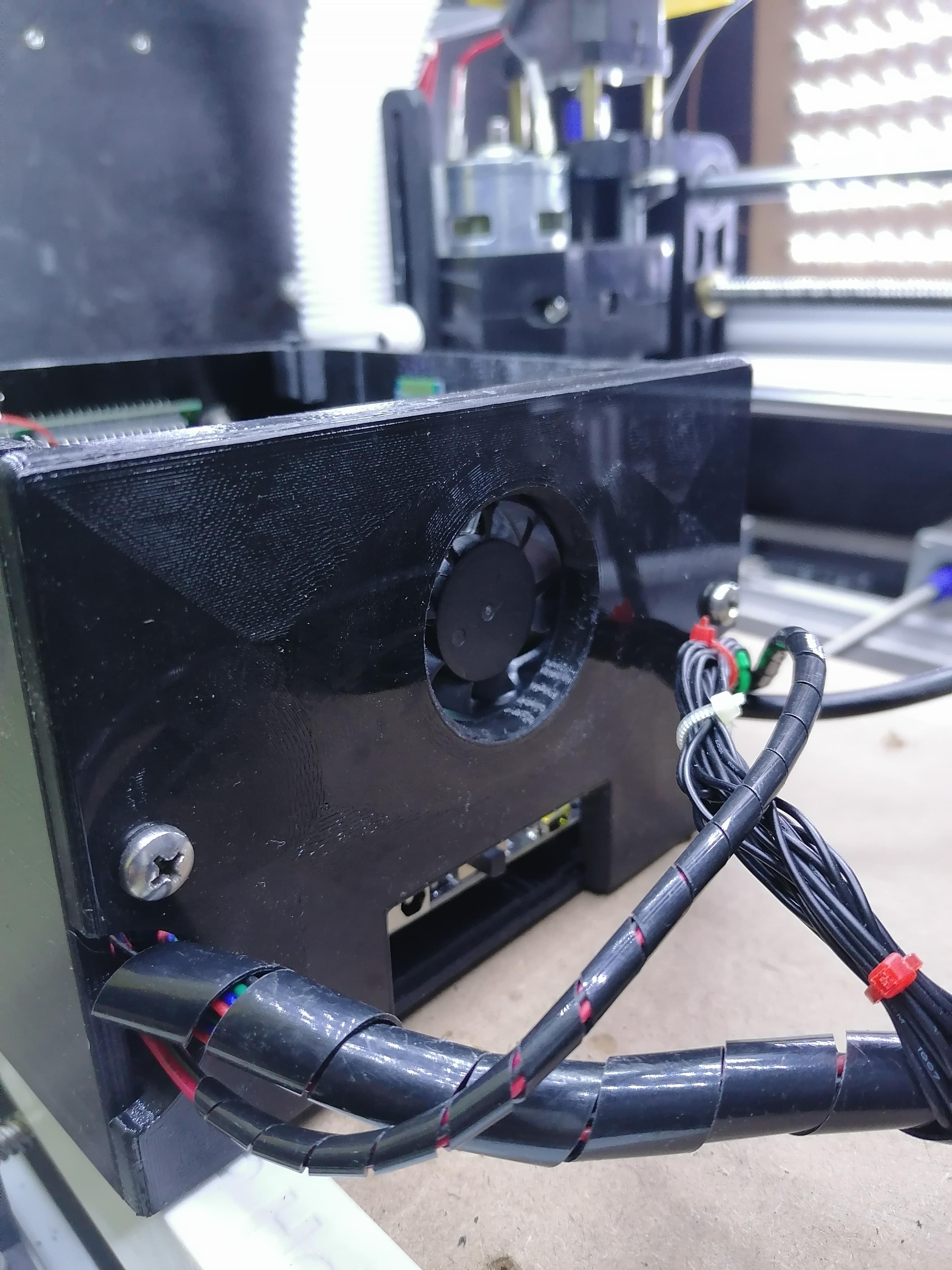

Close Back Lid With Screws
![IMG_20211230_124054.jpg](/proxy/?url=https://content.instructables.com/FSR/692D/L34GAAQK/FSR692DL34GAAQK.jpg&filename=IMG_20211230_124054.jpg)
![IMG_20211230_124057.jpg](/proxy/?url=https://content.instructables.com/F01/SP18/L34GAAR8/F01SP18L34GAAR8.jpg&filename=IMG_20211230_124057.jpg)
![IMG_20211230_123339.jpg](/proxy/?url=https://content.instructables.com/F8S/T2VZ/L34GAARM/F8ST2VZL34GAARM.jpg&filename=IMG_20211230_123339.jpg)
![IMG_20211230_123346.jpg](/proxy/?url=https://content.instructables.com/FZX/YYSW/L34GAARZ/FZXYYSWL34GAARZ.jpg&filename=IMG_20211230_123346.jpg)
![IMG_20211230_123359.jpg](/proxy/?url=https://content.instructables.com/FSL/Y1DQ/L34GAASB/FSLY1DQL34GAASB.jpg&filename=IMG_20211230_123359.jpg)
![IMG_20211230_123419.jpg](/proxy/?url=https://content.instructables.com/F4U/WB4X/L34GAASN/F4UWB4XL34GAASN.jpg&filename=IMG_20211230_123419.jpg)
![IMG_20211230_124050.jpg](/proxy/?url=https://content.instructables.com/FBG/JQGT/L34GAAT1/FBGJQGTL34GAAT1.jpg&filename=IMG_20211230_124050.jpg)
Close Back Lid with Screws
Mount the Control Box on the Surface
![IMG_20211230_125415.jpg](/proxy/?url=https://content.instructables.com/F7J/4I8K/L34GAB10/F7J4I8KL34GAB10.jpg&filename=IMG_20211230_125415.jpg)
![IMG_20211230_125426.jpg](/proxy/?url=https://content.instructables.com/FES/8WBN/L34GAB14/FES8WBNL34GAB14.jpg&filename=IMG_20211230_125426.jpg)
![IMG_20211230_125410.jpg](/proxy/?url=https://content.instructables.com/FOB/HZRG/L34GAB0U/FOBHZRGL34GAB0U.jpg&filename=IMG_20211230_125410.jpg)
![IMG_20220129_180123.jpg](/proxy/?url=https://content.instructables.com/F05/KH9D/L34GAB0R/F05KH9DL34GAB0R.jpg&filename=IMG_20220129_180123.jpg)
I am mounting the control Box on the wood surface with wood screws.
Note: You can keep on Floor also.
Close the Top Lid With Screws
![16854.jpg](/proxy/?url=https://content.instructables.com/F6L/GVO3/L34GABFF/F6LGVO3L34GABFF.jpg&filename=16854.jpg)
![Easymech-SS-304-CSK-Countersunk-Philips-Head-Bolt-8.jpg](/proxy/?url=https://content.instructables.com/FIZ/1LB7/L34GABHK/FIZ1LB7L34GABHK.jpg&filename=Easymech-SS-304-CSK-Countersunk-Philips-Head-Bolt-8.jpg)
![IMG_20211226_111109.jpg](/proxy/?url=https://content.instructables.com/FN9/1QEF/L34GABHJ/FN91QEFL34GABHJ.jpg&filename=IMG_20211226_111109.jpg)

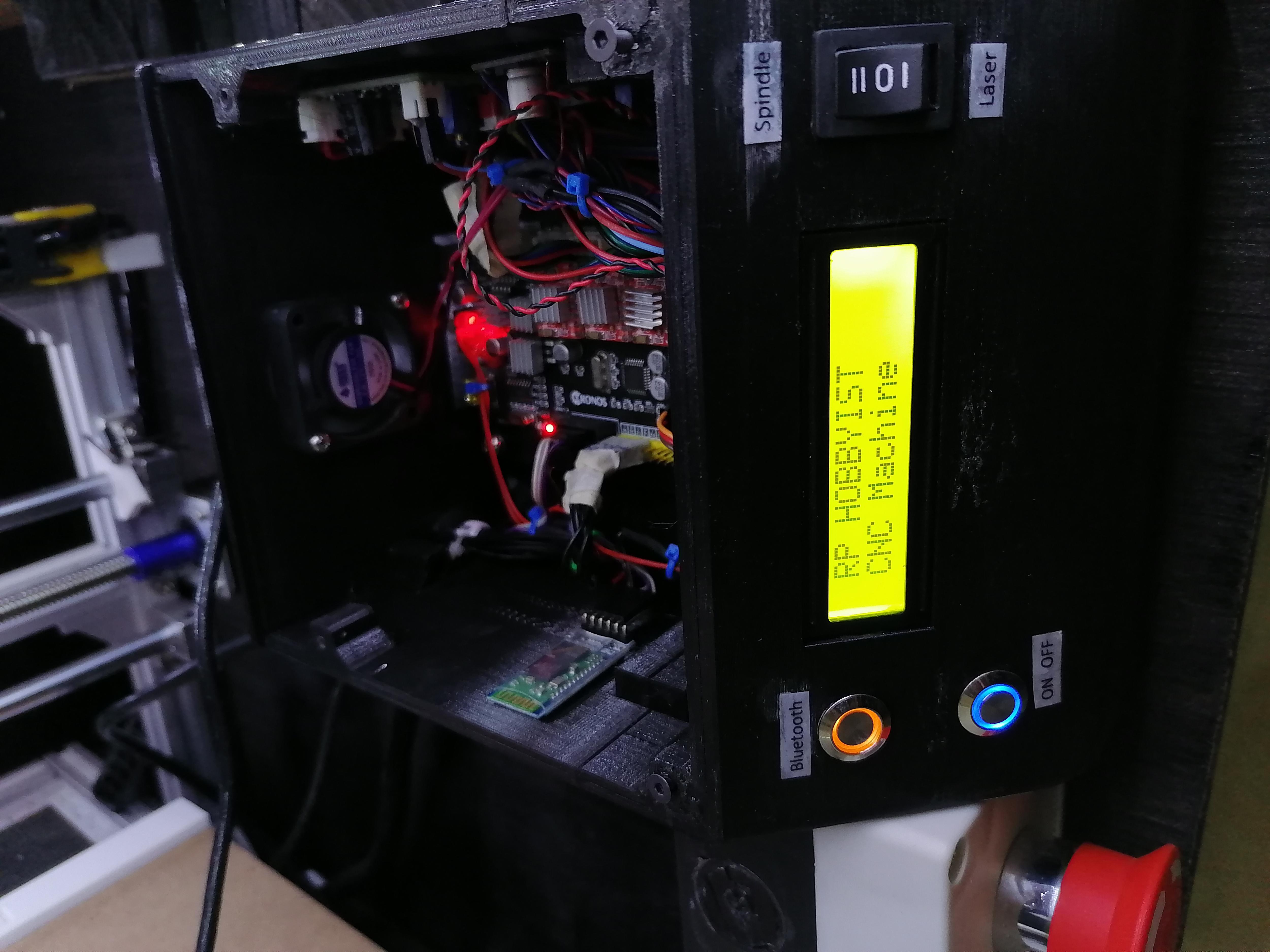

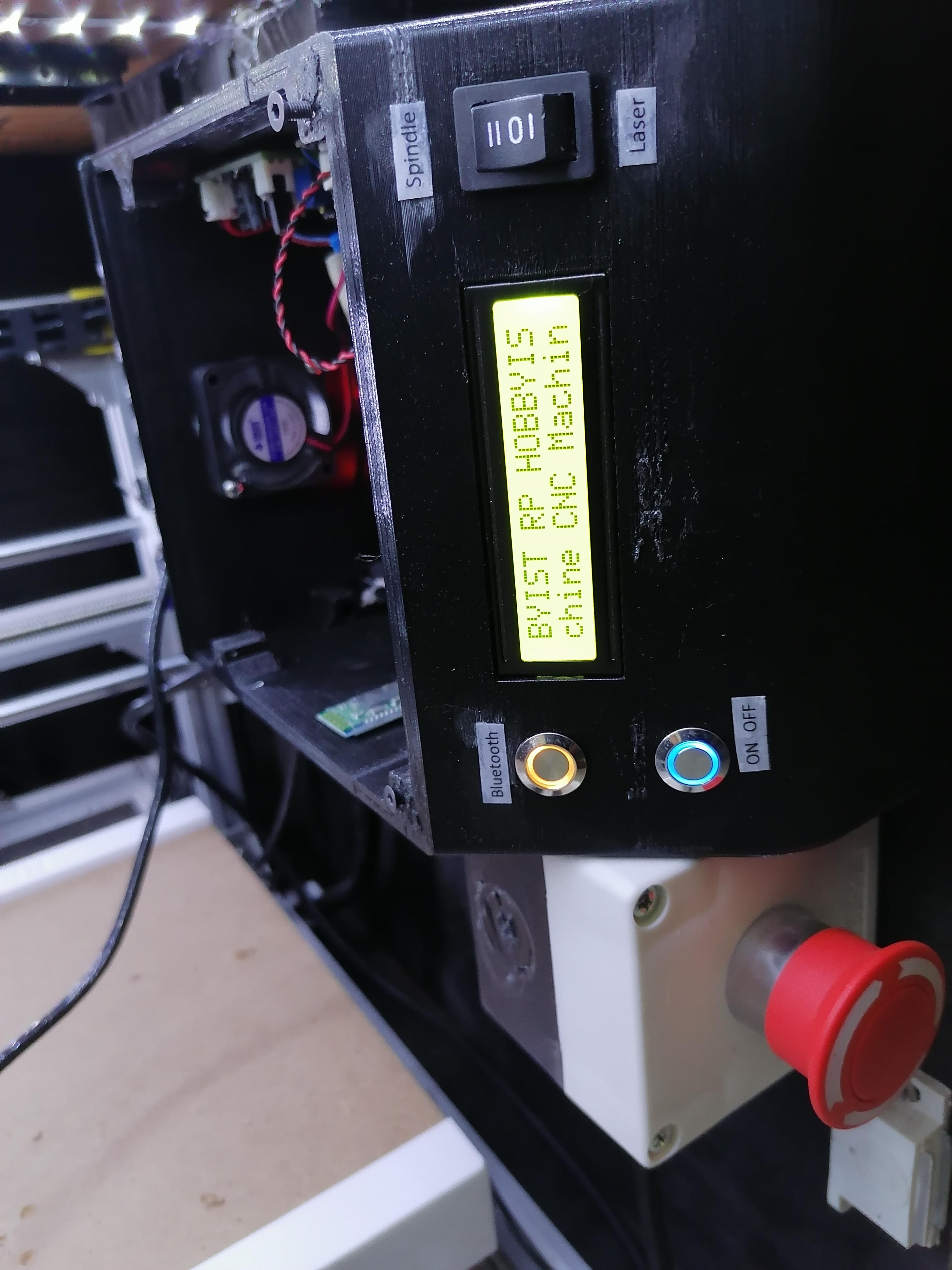

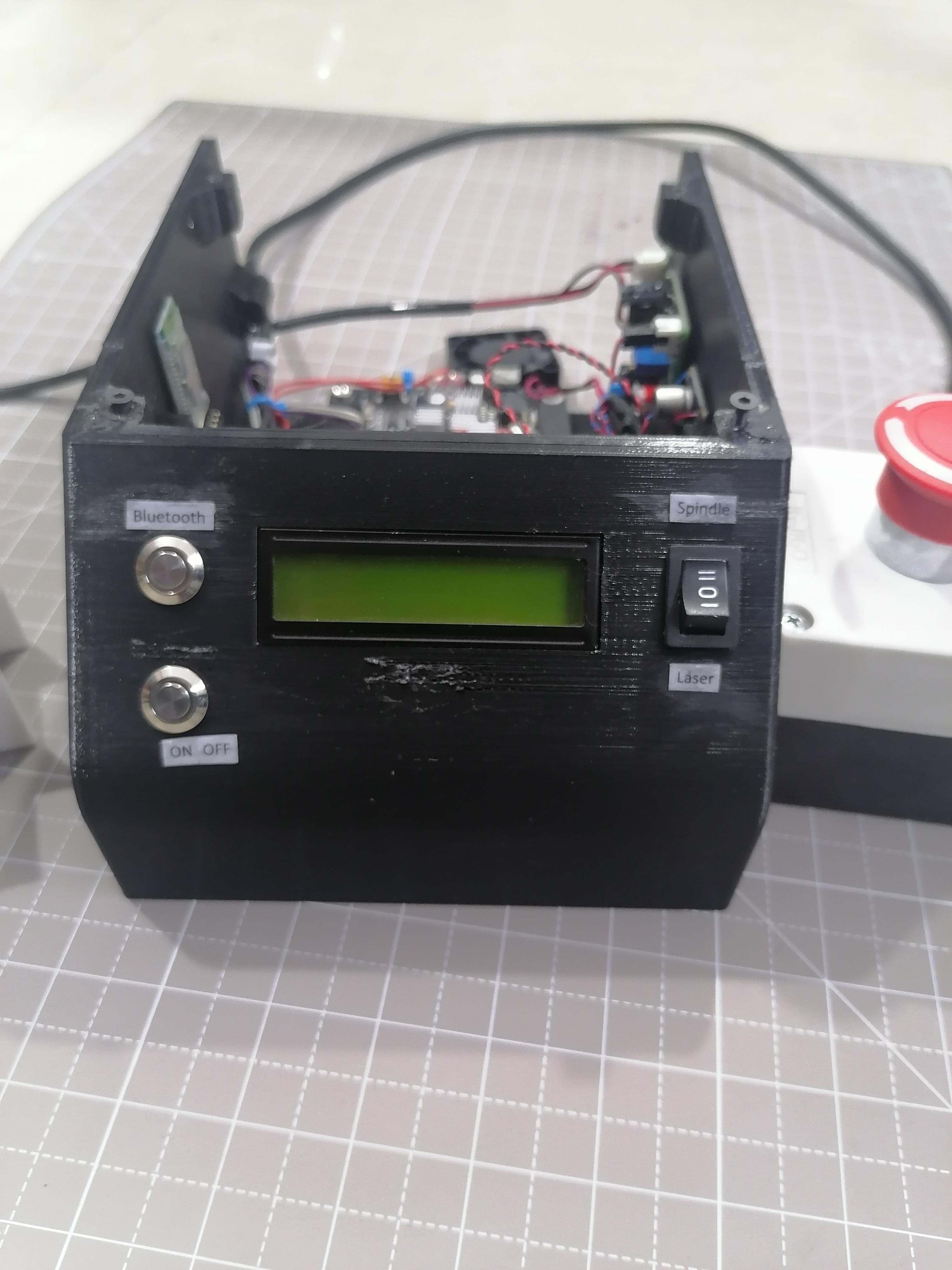

Final Look!!
![CNC Control Box Upgrade](/proxy/?url=https://content.instructables.com/FO8/8ETZ/L330VHKA/FO88ETZL330VHKA.jpg&filename=CNC Control Box Upgrade)
![2465.jpg](/proxy/?url=https://content.instructables.com/FAL/SL3B/L34GABHI/FALSL3BL34GABHI.jpg&filename=2465.jpg)
![CNC Control Box Upgrade](/proxy/?url=https://content.instructables.com/F8E/4B8Q/L330VHLA/F8E4B8QL330VHLA.jpg&filename=CNC Control Box Upgrade)
"Hope you Enjoy to make this project" If you like this project please let now in comment.....
If any question about this project just let me know in comment box!!
